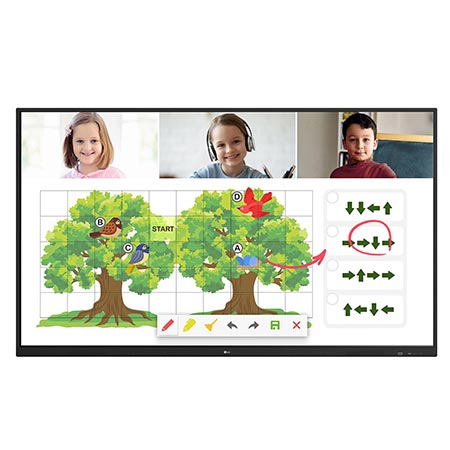

TR3DJ Series

(2)

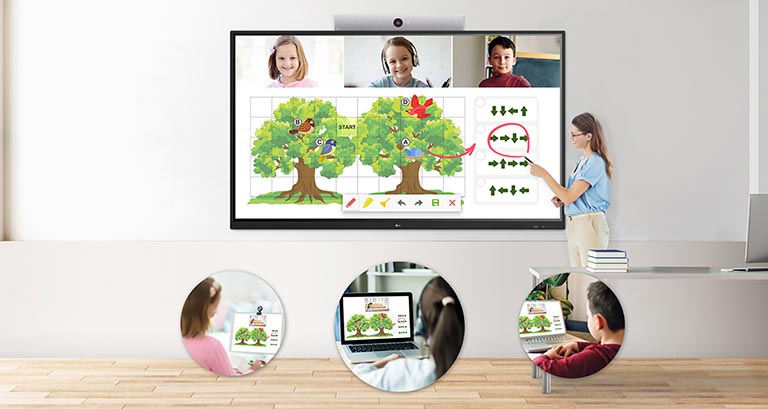

True Interactivity
Bringing People Together

*All images are for illustrative purposes only.

SMOOTH TOUCH & WRITING EXPERIENCE

Multi Touch

The TR3DJ series can simultaneously use up to 20 points of multi touch. This function offers a lifelike board touch experience and makes collaboration much easier.

SMOOTH TOUCH & WRITING EXPERIENCE

Enhanced Visibility with Low Parallax

With 1mm gap between the screen and tempered glass, which supports low parallax, The TR3DJ series can offer precise touch and excellent writing experience.

SMOOTH TOUCH & WRITING EXPERIENCE

Dual Pen & Dual Color

The stylus pen comes in two different colors and with two different tip sizes of 3mm and 8mm. The dual pens enable users to write or draw simultaneously.

SMOOTH TOUCH & WRITING EXPERIENCE

Easy Writing Experience

The TR3DJ series allows you to write and annotate on all sources, so your writing experience can be easy and satisfying.

EASY CONNECTION & SHARING

Air Class

Air Class supports connecting up to 30 students and offers interactive meetings for mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts. Air Class is easily accessible from the TR3DJ's main toolbar.

EASY CONNECTION & SHARING

Built-in OPS Slot

The TR3DJ series supports OPS slots, allowing you to easily and conveniently mount an OPS device at the back of the digital board without the hassle of connecting to an external desktop, offering you more expanded functions.

EASY CONNECTION & SHARING

ScreenShare Pro

ScreenShare Pro enables you to show up to six shared screens or a file on a screen in real-time, and it has enhanced usability by allowing users to share Chromecast and Apple device mirroring on the same network without any additional application.

EASY CONNECTION & SHARING

Bluetooth Connectivity

TR3DJ supports Bluetooth wireless connections to various devices such as speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline meetings and classes can proceed smoothly.

USER FRIENDLY EXPERIENCE

Web Browser

The TR3DJ series supports an embedded Android web browser, so you can search the web easily and quickly, without connecting to an external tablet or computer.

USER FRIENDLY EXPERIENCE

Toolbar

The Toolbar allows you to easily find and run the tool they need. The annotation feature works on virtually all file types, and you can highlight the section you wish to emphasize using the Spotlight function. The countdown and stopwatch features help you manage class time effectively.

USER FRIENDLY EXPERIENCE

Audio Experience

The TR3DJ series supports built-in speakers in both sides of the front bezel which deliver high-quality sound and clear audio experience.

USER FRIENDLY EXPERIENCE

USB Block

USB Block Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential for being used in spaces where security is critical.

All Spec

PANEL

Screen size (cm)

190.5 cm (75)
Panel Technology

IPS
Back Light Type

Direct
Aspect Ratio

16:9
Native Resolution

3840x2160 (UHD)
Refresh Rate

60Hz
Brightness

350nits
Contrast Ratio

1,200:1
Color Gamut

NTSC 68%
Viewing Angle(H x V)

178 x 178
Color Depth

10bit, 1.07Billion colors
Surface Treatment(Haze)

Anti Glare, 7H(Mohs)
Operation Hours (Hours/Day)

16/7
Portrait / Landscape

Landscape
Air GAP

1mm
Screen protection

7 Mohs

CONNECTIVITY(JACK INTERFACE)

Input - Video / Audio

HDMI (3), RGB / Audio In
Input - External Control

RS232C In, RJ45
Output - Video / Audio

Audio Out / Optical Output

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

18.9/18.9/18.9/45.7mm
Weight(Head)

53.1Kg .
Packed Weight

69.85Kg .
Monitor Dimension(W x H x D)

1710×1020×87mm .
Carton Dimensions(W x H x D) (Box outer size)

1860×280×1140mm .
Handle

Yes
VESA™ Standard Mount Interface

800x400

KEY FEATURES

HW

Internal Memory (32GB), SoC ( Dual core A73+Dual core A53), DDR(3GB), Wi-Fi(Built-in, Slot type), Power Indicator, Local Key Operation(1, Power button)
SW

Android 8.0

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C
Operation Humidity

10% to 80%

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-in Power

POWER CONSUMPTION

Typ.

260W
Max.

350W .
BTU (British Thermal Unit)

TBD
Power off

0.5W↓

SOUND

Speaker

Yes (10W x 2)

CERTIFICATION

Safety

CB / NRTL
EMC

FCC Class "A" / CE
ErP / Energy Star

Yes / No

OPS COMPATIBILITY

OPS Type Compatible

Yes (Slot)
OPS Power Built In

Yes

ACCESSORY

Basic

Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
