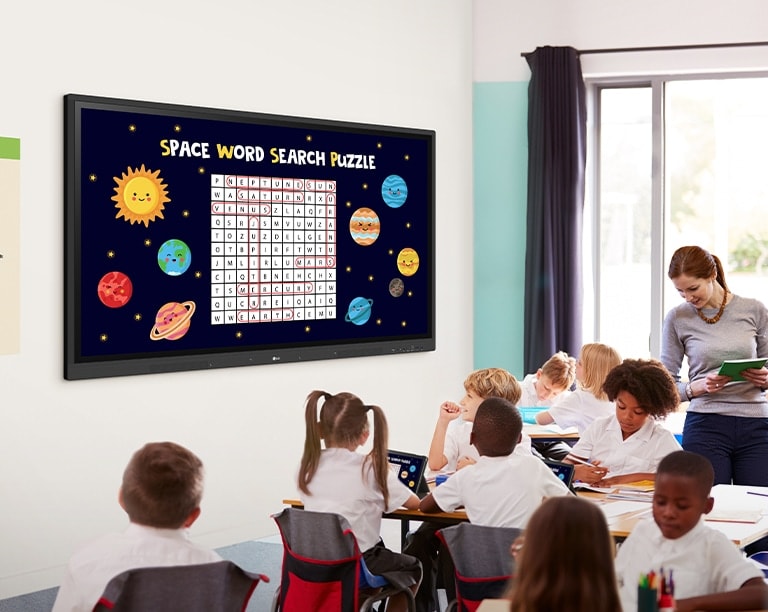

Class is being conducted in the classroom, and the class material screen which is displayed on the classroom wall's LG CreateBoard is being shared on the students' tablets.
*All images in this page are for illustrative purposes only.

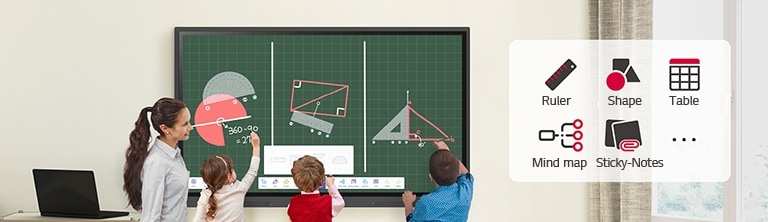

LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.
Students are solving problems using various ruler models on the LG CreateBoard menu.
LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.
In the classroom, several students are simultaneously writing on the LG CreateBoard screen.
*A max of 32 points are recognized in the Android environment, and a max of 40 points are detected in the Windows environment.
*Up to 10 points can be recognized in the writing app.
LG CreateBoard includes simple import and export functionality. Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).
Materials used to conduct class can be shared through the LG CreateBoard's import and export function after
LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.
The LG CreateBoard can easily share screens with multiple devices in real time via app and website.
*LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
*For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).

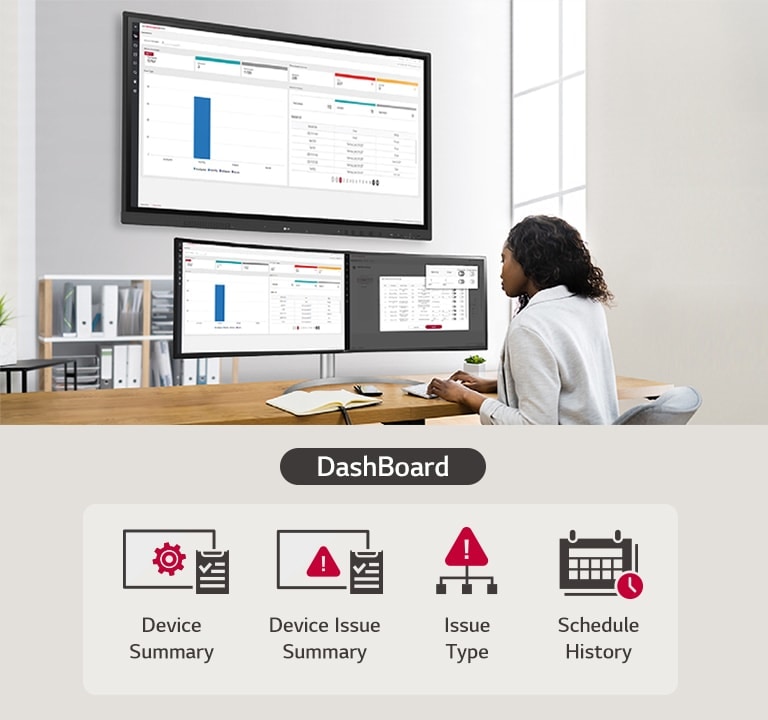

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.
An IT manager is managing/controlling the status of the LG CreateBoard through LG ConnectedCare DMS.
*LG ConnectedCare DMS' needs to be purchased separately.
*The availability of the 'LG ConnectedCare DMS' service differs by region, so please contact the LG sales representative in your region for more details.
*LG ConnectedCare DMS supports the TR3DJ/TR3PJ/TR3DK Series as of now(plus more to come) under a cloud environment.
Frequently used controls such as the power on/off, scheduling, brightness, and screen lock functions can be applied using a remote control.

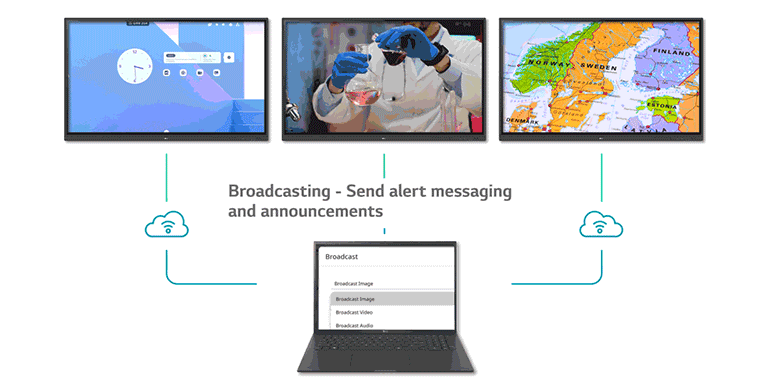

Messages and a range of other content can be sent from the main system to individual classroom devices connected to LG ConnectedCare DMS. In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which help teachers and students promptly take safety action.

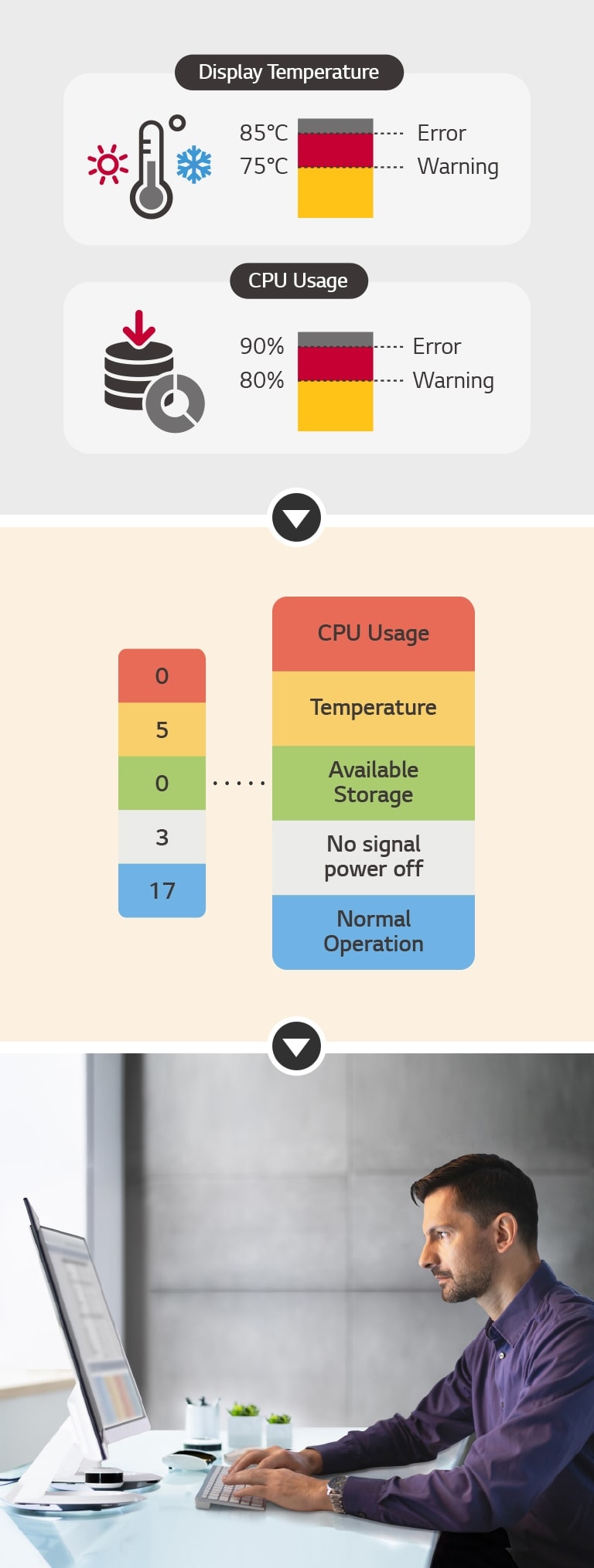

The user can set a threshold for receiving an warning/error signal for eight categories: display temperature, CPU usage, etc. The current status of the issue is easily indicated in categories, enabling for quick real-time responses. Issues can be managed remotely with an LG ConnectedCare DMS solution.
Users can set thresholds in eight categories including display temperature, memory usage, or signal, and can receive warning or error notifications based on their threshold settings.
An engineer can check the status in real-time and diagnose problems remotely. Also, the current status of issues can be categorized, allowing for easy viewing and quick responses.
Remote issue management can be carried out by the LG ConnectedCare DMS solution. This makes management safer and more efficient, facilitating the stable operation of the classroom.
LG CreateBoard has received Google certification, enabling users to seamlessly integrate with the Google ecosystem by connecting their Google accounts.
Users have access to the Google Play Store, where they can download a wide range of applications, including educationrelated games, tools, and more for an expanded experience.
*Exceptions apply in countries without Google services.
LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.
The LG CreateBoard can wirelessly connect to devices such as keyboards, mice, and speakers via Bluetooth.

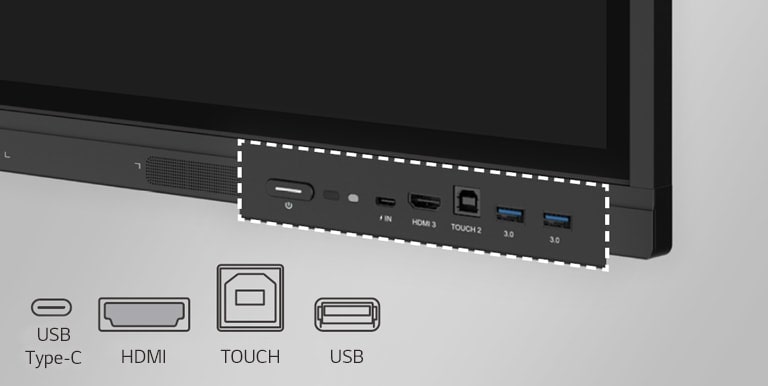

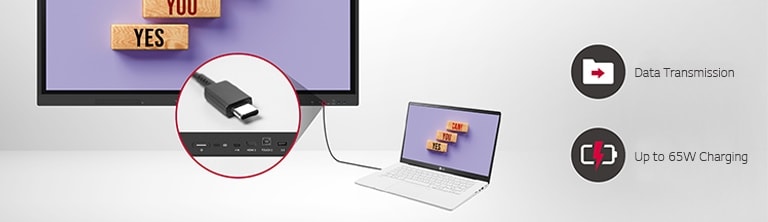

USB-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.
The LG CreateBoard easily transmits data via USB-C connectivity and can charge up to 65W.
*USB Type-C cables are sold separately.
Teachers can lock the screen using the Screen Lock function, and unlock it by entering a password. Users can set the Screen Lock in the Settings menu to protect the device from unidentified users.

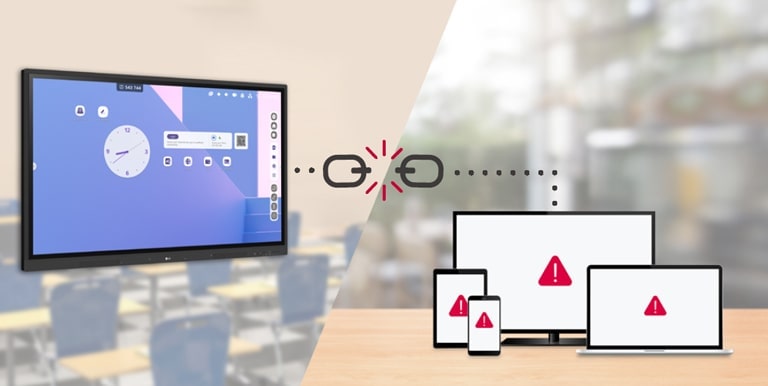

LG CreateBoard supports Secure Mode that disables the LG CreateBoard Share function to prevent unauthorized content from being shown on various devices.

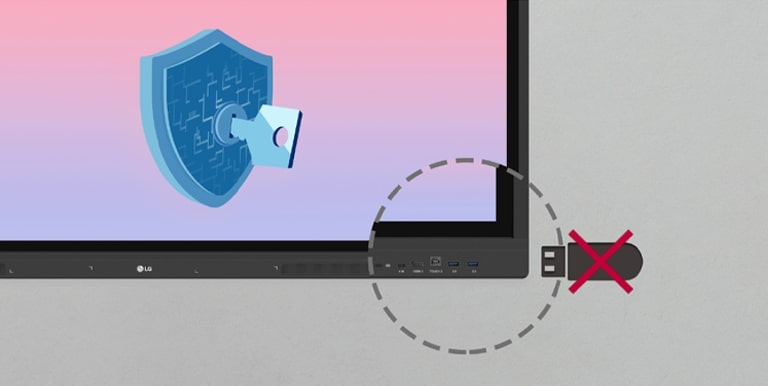

USB Lock Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential when being used in spaces where security is critical.

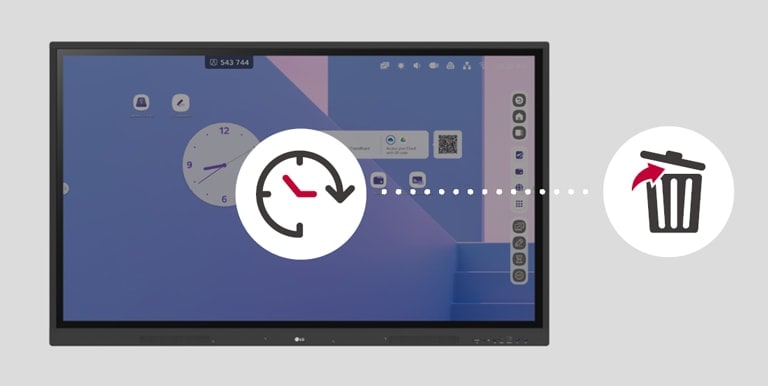

Users can set LG CreateBoard to delete files regularly for enhanced security.
Screen Size (Inch)
98 (248.92cm)
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840x2160 (UHD)
Refresh Rate
60Hz
Brightness
440 Nits (Max.)
Dynamic CR
3000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178°(H/V)
Color Depth (Number of Colors)
1.07B(10bit)
Response Time
8ms
Surface Treatment (Haze)
25%
Operation Hours (Hours/Day)
16/7
Portait / Landscape
No / Yes
Bezel Color
Black
Bezel Width
T/R/L/B : 30/27/27/45mm
Weight (Head)
103.6Kg
Packed Weight
133.2Kg
Monitor Dimensions (W x H x D)
2244 × 1323 × 91mm
Handle
Yes
VESA Standard Mount Interface
800×600mm
Carton Dimensions (W x H x D)
2406 × 1474 × 280mm
Operation Temperature
0 ~ 40 °C
Operation Humidity
10 ~ 90 % RH
Power Supply
100-240V~ 50/60Hz 5.5A
Power Type
Built-In Power
BTU (British Thermal Unit)
1348 BTU/Hr(Typ.), 2081 BTU/Hr(Max)

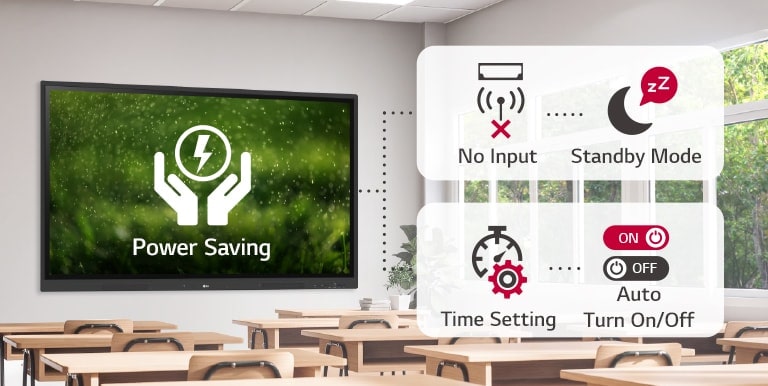

Smart Energy Saving (70%)
≤0.5W
DPM
≤0.5W
Max.
610W
Typ.
395W
Speaker (Built-in)
Yes (15W x 2)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
Yes / Yes

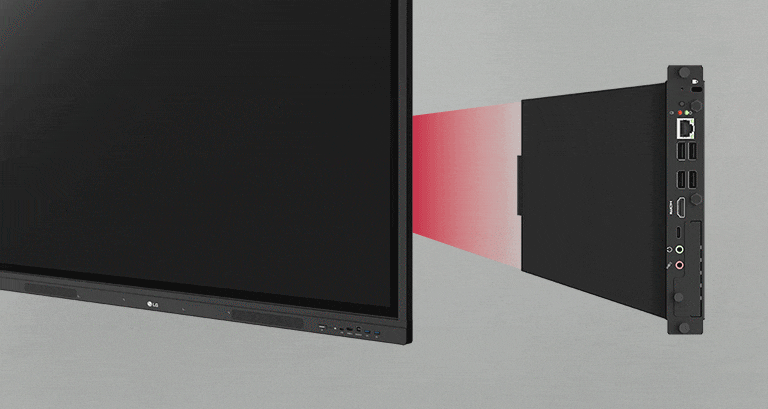

OPS Type compatible
Yes (Slot)
OPS Power Built-in
Yes
Connected Care
Yes
OSD
English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai
Basic
Power Cord 3 M*1, USB Cable(Type A-Type B) 5 M*1, USB Type-C Cable(C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Optional
Wall Mount(WM-L000S), Floor Stand(ST-000F)
CPU
Quad core A55
GPU
Mali G52MP2
Memory(RAM)
8GB
Storage
64GB
Wi-Fi
802.11a/b/g/n/ac/ax (WiFi 6)
LAN
Gigabit LAN
Bluetooth
Bluetooth 5.0
OS ver. (Android)
Android 13
