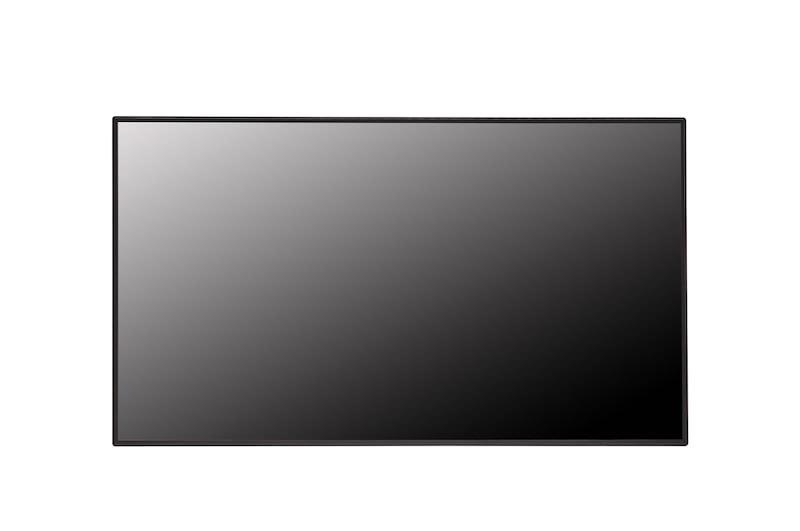

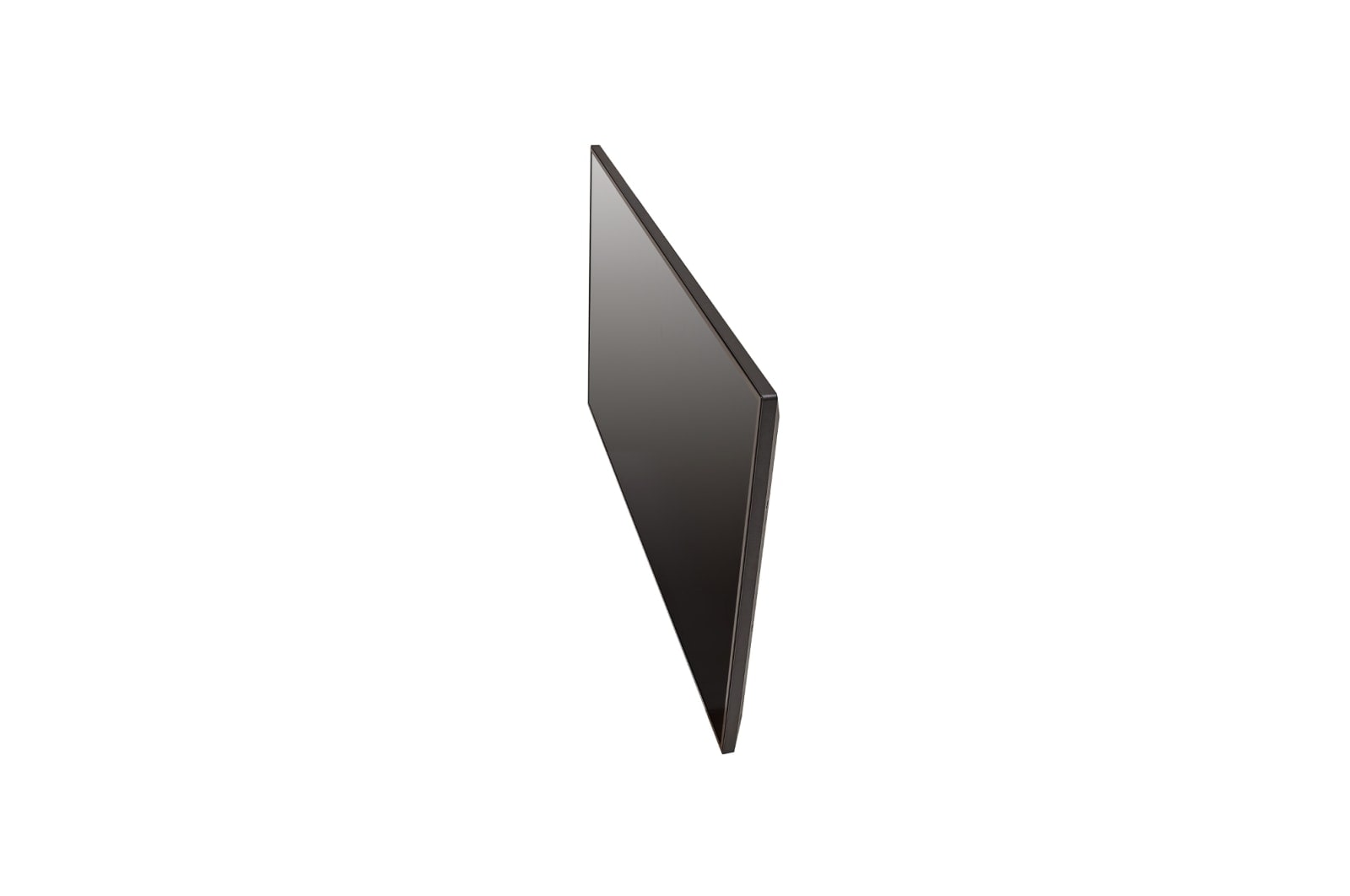

LG UHD Signage Display

(4)

Key Features

Resolution : 3,840 x 2,160 (UHD)
Brightness (Typ.) : 500 nit
Surface Treatement (Haze) : 25 %
Bezel : 12.1 mm (T/B), 11.1 mm (R/L)
Interface : HDMI(3) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
webOS Smart Platform

A screen showing the meeting’s contents is installed on the meeting room’s wall.

*165.1 cm
*All images in this page are for illustrative purposes only.

The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

A number of tasks can be done at the same time with the intuitive GUI.

Convenient webOS Platform

The UM5N-H is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability

Optimized for business environments, the UM5N-H is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

The UM5N-H has Conformal Coating on the power board to protect display even in a salty or humid environment.

Design for Space Utilization

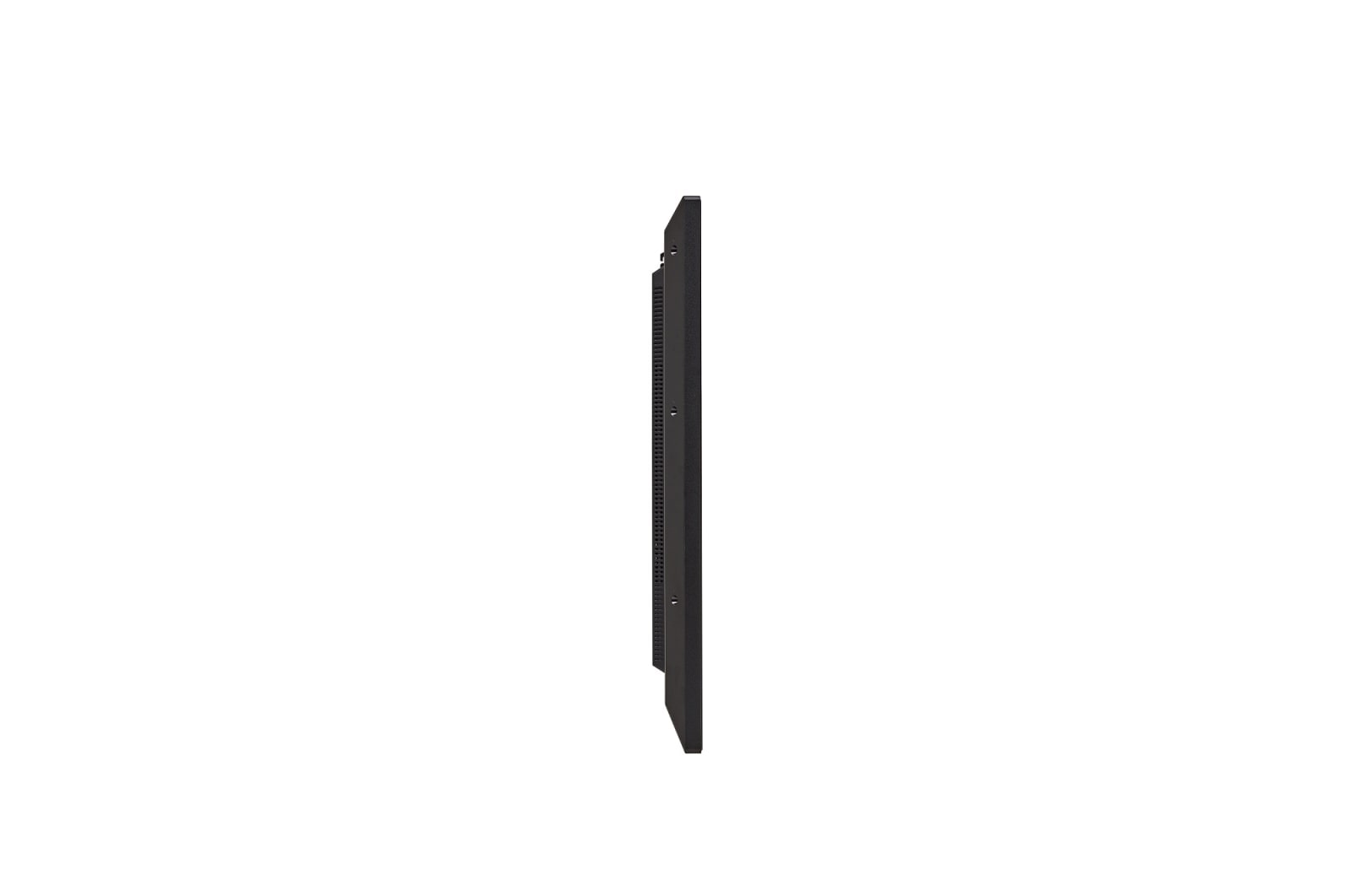

Designed with thin bezels and simple cable management, the UM5N-H saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

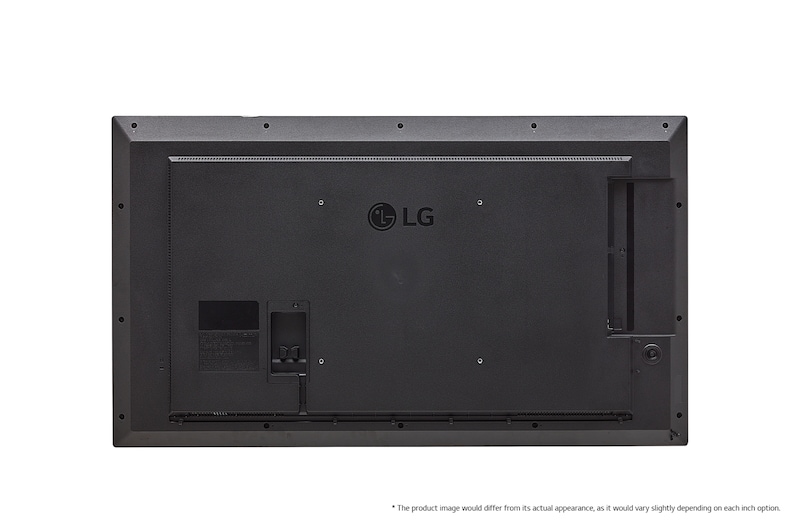

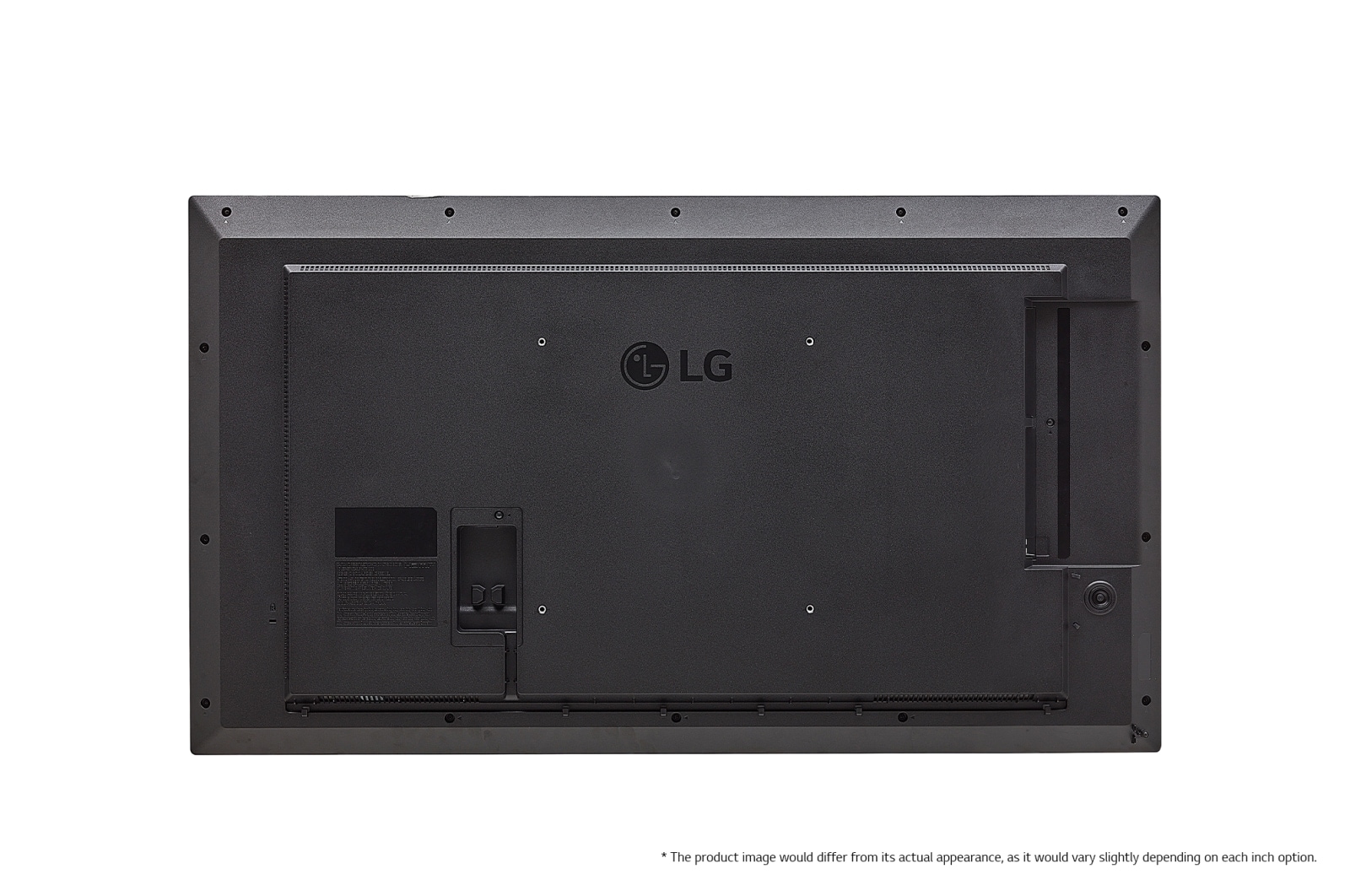

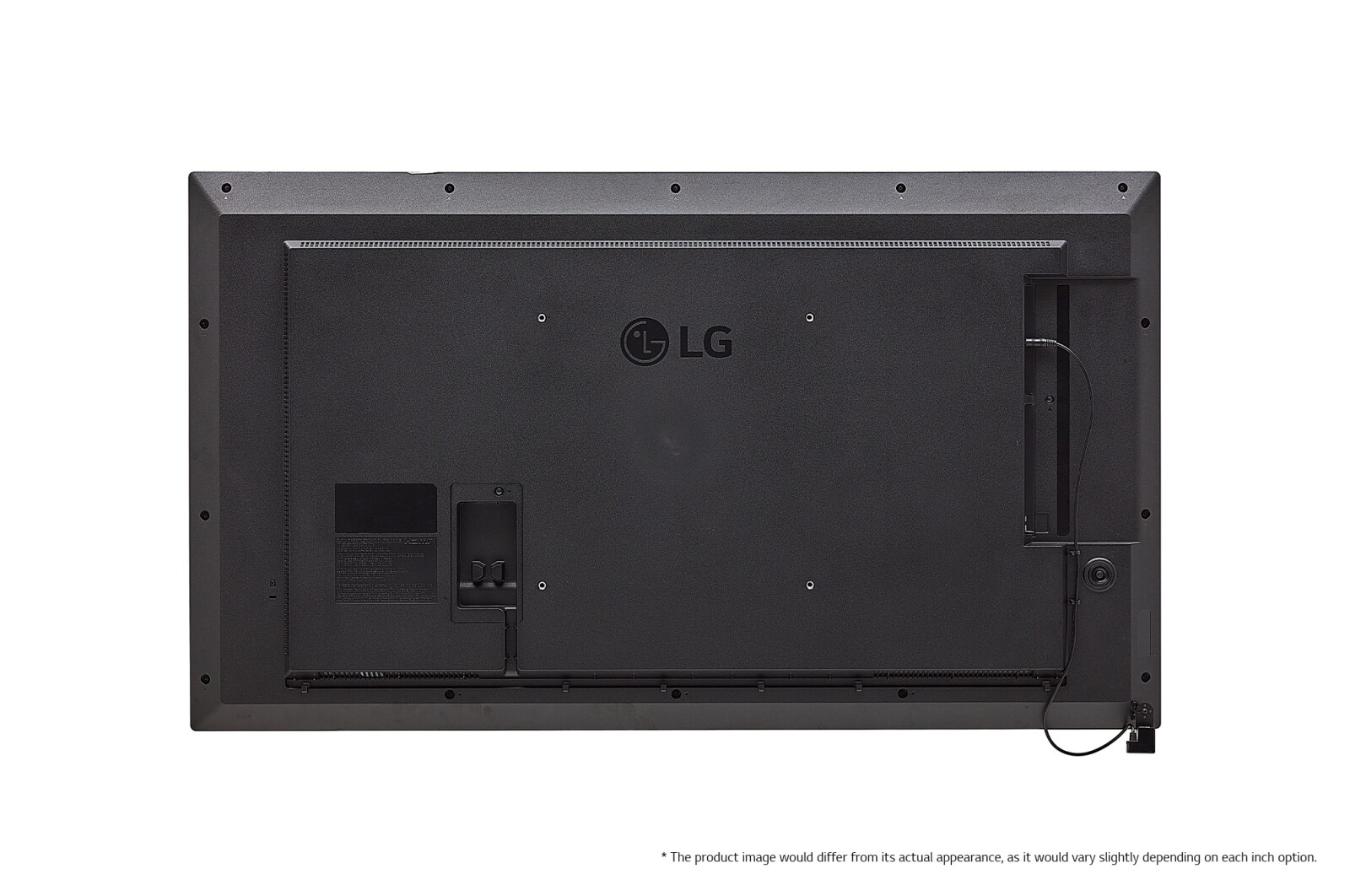

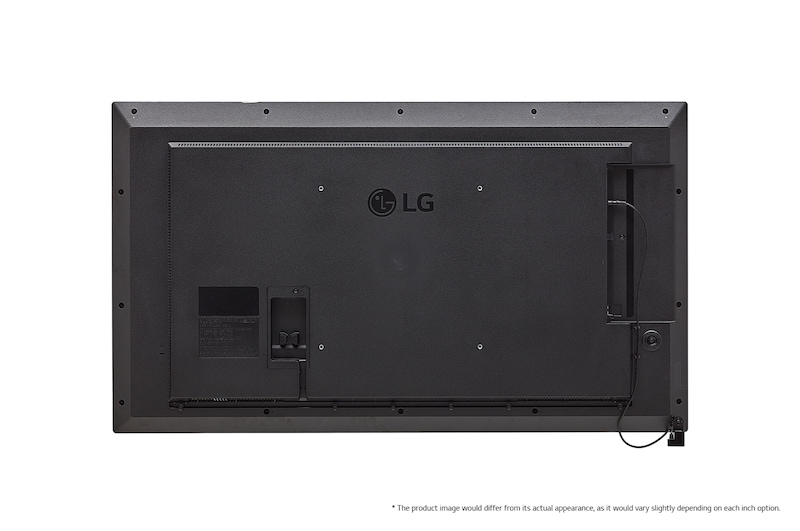

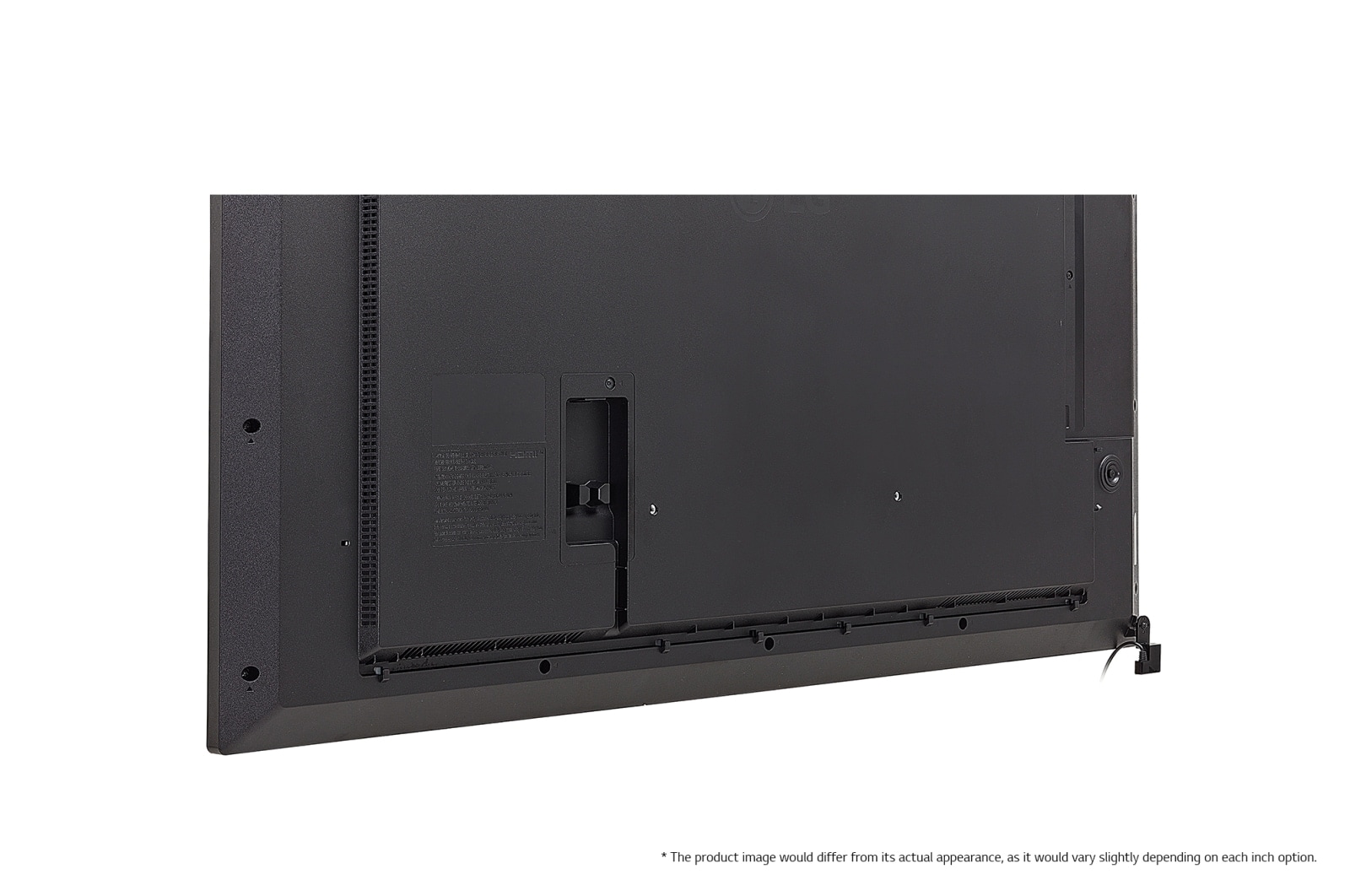

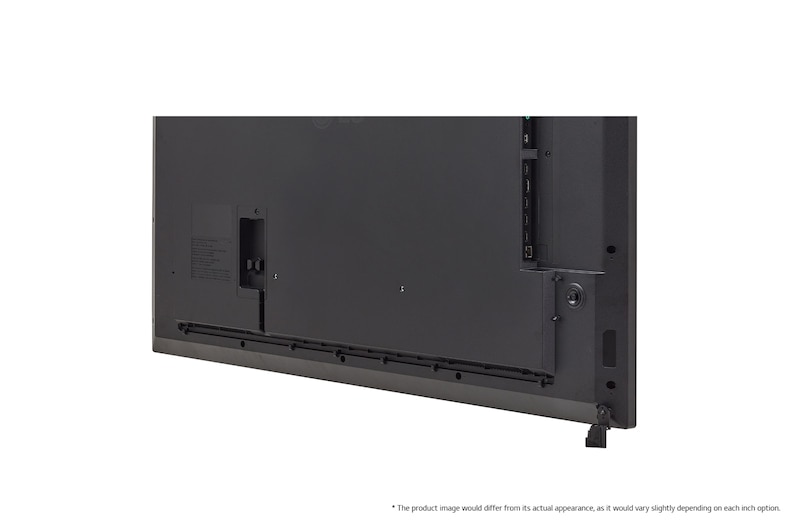

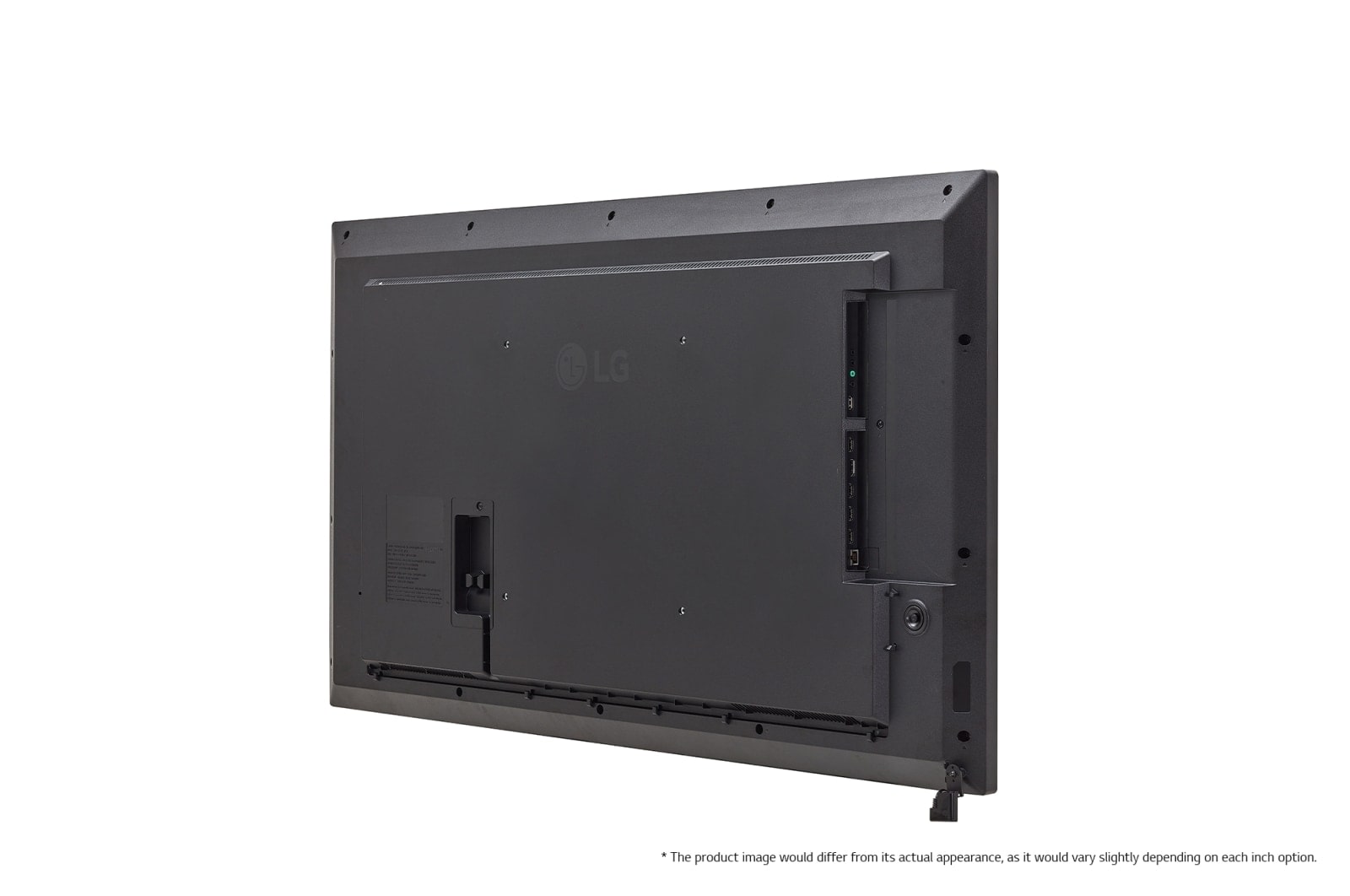

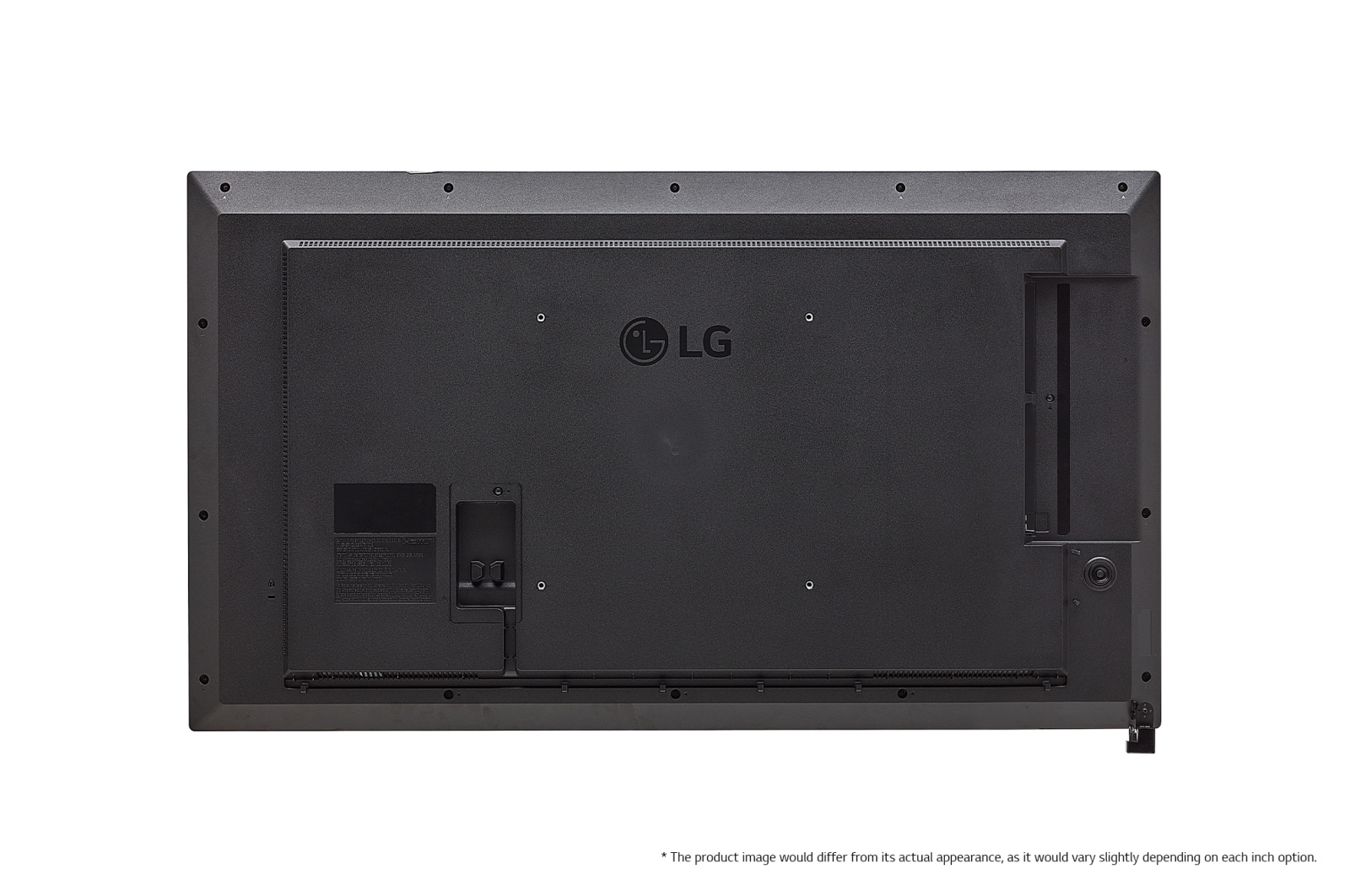

The UM5N-H with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.

* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

The UM5N-H provides security features to protect important data from external access or attacks.

Enhanced Security Features

The UM5N-H provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

LG strives for a sustainable future by obtaining various certifications such as FCC EMC Class B.

Sustainability

With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

All Spec

PANEL

Screen Size (Inch)

109.22 cm (43)
Panel Technology

IPS
Back Light Type

Direct
Aspect Ratio

16 : 9
Native Resolution

3840x2160 (UHD)
Refresh Rate

60Hz
Brightness

500nit (Typ.)
Dynamic CR

1,000,000:1
Color Gamut

BT709 95%
Viewing Angle (H x V)

178 x 178
Color Depth (Number of Colors)

8bits + FRC, 1.07Billion colors
Response Time

Tr : 8ms / Tf :10ms
Surface Treatment (Haze)

28%
Operation Hours (Hours/Day)

24/7
Portait / Landscape

Yes / Yes

CONNECTIVITY

HDMI In

Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
DP In

Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C In

Yes(1), 4pin Phone-jack
RJ45(LAN) In

Yes(1)
IR In

Yes(1)
USB In

USB2.0 Type A(1)
HDMI Out

Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP
Audio Out

Yes(1)
External Speaker Out

Yes
RS232C Out

Yes(1), 4pin Phone-jack
Daisy Chain

Yes(Input HDMI, DP / Output HDMI)

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

T/B: 12.1mm R/L: 11.1mm
Weight (Head)

9.0Kg
Packed Weight

11.3kg
Monitor Dimensions (W x H x D)

968 x 559 x 57.7mm (Without IR)
VESA Standard Mount Interface

200 x 200
Carton Dimensions (W x H x D)

1055 x 660 x 142mm

FEATURE - HARDWARE

Internal Memory (eMMC)

16GB
Wi-Fi/BT (Built-in)

Yes
Temperature Sensor

Yes
Auto Brightness Sensor

Yes( IR)
Acceleration(Gyro) Sensor

Yes
Local Key Operation

Yes

FEATURE - SOFTWARE

OS Ver. (webOS)

webOS 6.0
Local Contents Scheduling

Yes
Fail Over

Yes
Booting Logo Image

Yes
No Signal Image

Yes
RS232C Sync

Yes
PIP

Yes
PBP

Yes(4)
Screen Share

Yes
Screen Rotation

Yes
External Input Rotation

Yes
Tile Mode Setting

Yes (Max. 15x15)
SNMP

Yes
Cisco Certification

Yes
Crestron Connected

Yes
Smart Energy Saving

Yes
Wake on LAN

Yes
BEACON

Yes
HDMI-CEC

Yes

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C
Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-In Power

POWER CONSUMPTION

BTU (British Thermal Unit)

341 BTU/Hr(Typ.), 478 BTU/Hr(Max)
Smart Energy Saving (70%)

70W
DPM

0.5W
Power off

0.5W
Max.

140W
Typ.

110W

CERTIFICATION

Safety

CB / NRTL
EMC

FCC Class "B" / CE / KC
ERP / Energy Star

Yes (NewErP) / Yes

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes
SuperSign Control+

Yes / Yes
SuperSign WB

Yes
SuperSign Cloud

Yes
Mobile CMS

Yes
Connected Care

Yes

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish→Türkiye, Arabic

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA)
Optional

Slim Wall Mount (WB21LMA/B), Wall Mount (LSW240A/B) Wall Mount Adapter (AM-B220S)
