98UH5F

98(248.92cm) 500 nits 60 Hz UHD Signage

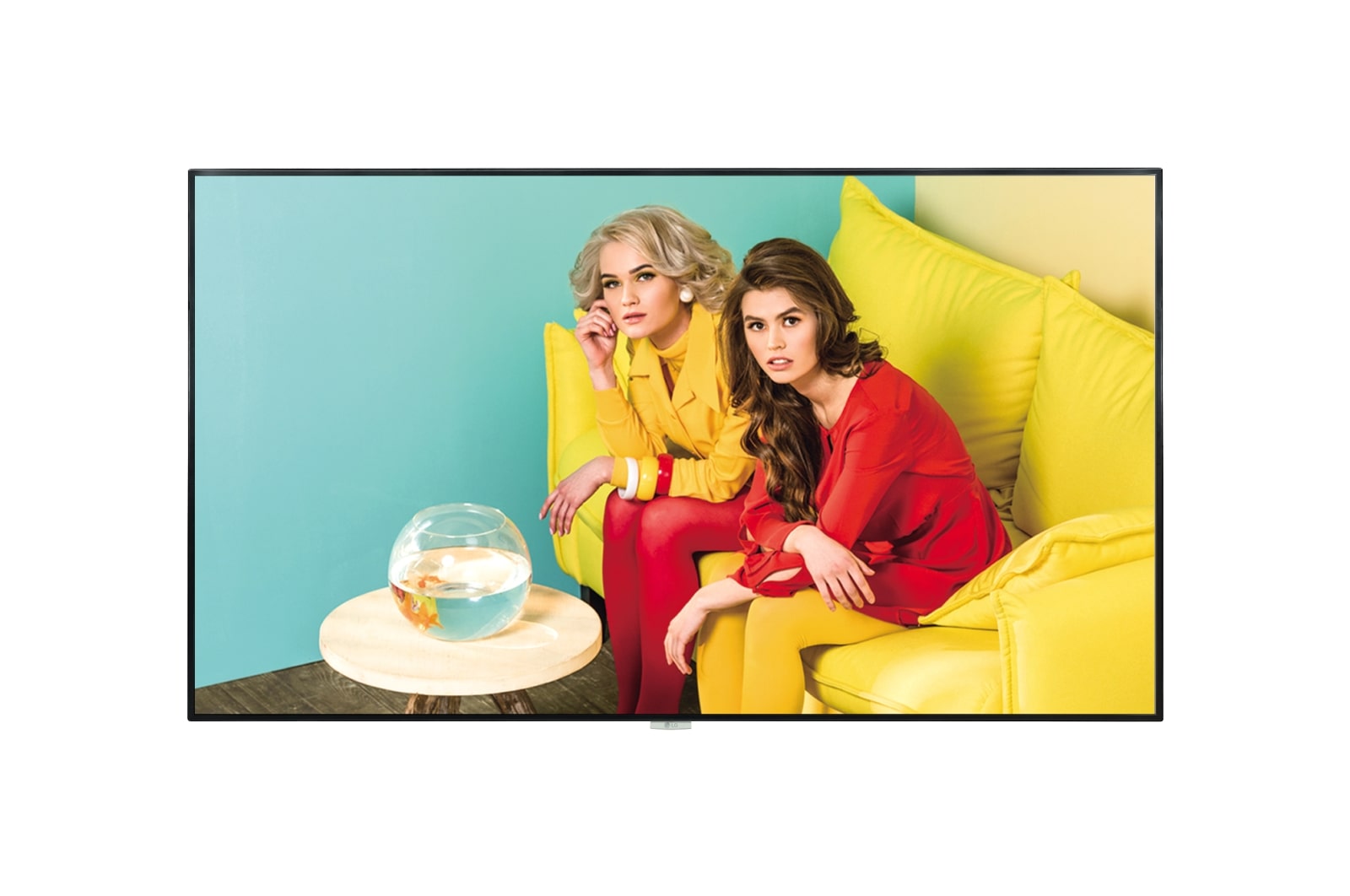

LG 98UH5F digital signage front view
LG UHD Signage Offers Lifelike Vision to Customers1

LG UHD Signage Offers Lifelike Vision to Customers

With superb picture quality and cutting-edge intelligence, the UH5F/E series enlivens colors without the aid of peripherals. Its quality and brightness capture the attention of passersby.
ULTRA HD Resolution1
SUPERB PICTURE QUALITY

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion.
SUPERB PICTURE QUALITY

High Efficiency Video Coding

The UH5F/E series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.

* HEVC: High Efficiency Video Coding

SLEEK AND PRACTICAL DESIGN

Slim Depth and Detachable Logo

Although UH5F/E series is a large-sized display, the product still has a slim depth which allows easy installation by using less space. Also, the detachable logos give users flexibility to arrange the display.
SLEEK AND PRACTICAL DESIGN

Built-in Speakers

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
High-Performance with webOS1
webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications1
webOS SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Compatible with AV Control System1
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UH5F/E series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

Compatible with Video Conference System1
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F/E series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

* Using an HDMI cable connection

Multi Screen with PBP/PIP1
USER CONVENIENCE

Multi Screen with PBP/PIP

PBP(Picture-By-Picture) features multi screen in a single display with upto 4 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.
Real-Time Monitoring & Control1
USER CONVENIENCE

Real-Time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F/E series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

USER CONVENIENCE

LG 98UH5F user convenience features

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.

Real-time Promotion

With Beacon and BLE(Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

Wireless Access Point

The UH5F/E series operates as a virtual router which can be an wireless access point for mobile devices.

All Spec

PANEL

  • Screen Size

    248.92cm (98)

  • Panel Technology

    IPS

  • Native Resolution

    3,840 x 2,160 (UHD, RGB)

  • Refresh Rate

    120 Hz

  • Brightness(Typ.,cd/m²)

    500

  • Contrast Ratio

    1,300:1

  • Viewing Angle (H x V)

    178 x 178

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 1%

  • Life Time (Typ.)

    50,000 Hrs

  • Operation Hours

    24 Hrs

  • Orientation

    Portrait & Landscape

CONNECTIVITY

  • Input

    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)

  • Output

    DP, Audio (Off/Fixed/Variable)

  • External Control

    RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    14.9 mm (Even) * Off-Bezel

  • Monitor Dimension (W × H × D)

    2,191.8 x 1,246.8 x 83.8 mm (without Handle and Logo)

  • Weight (Head)

    81.1 kg

  • Carton Dimensions (W × H × D)

    2,354 x 1,386 x 420 mm

  • Packed Weight

    119 kg

  • Handle

    Yes

  • VESA™ Standard Mount Interface

    800 x 400 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ. / Max.

    420 W / 560 W

  • Smart Energy Saving

    294 W

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ErP / Energy Star

    Yes (EU Only) / N/A

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control/Control+

ACCESSORY

  • Basic

    Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, Eye-bolt

  • Optional

    No

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
