Non-Glare Ultra HD Series

Features

Gallery

Specs

Support

Resource

Find a Dealer

Non-Glare Ultra HD Series

Non-Glare Ultra HD Series

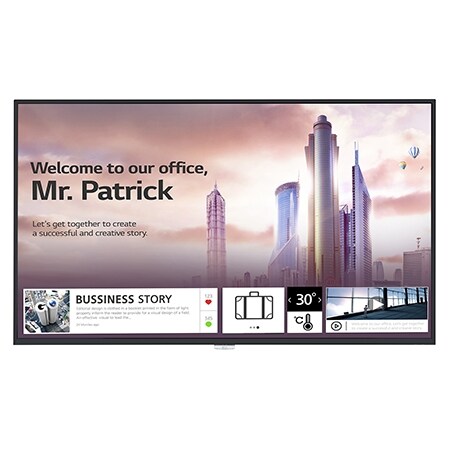

49UH5F-H
(7)
  • LG Non-Glare Ultra HD Series, 49UH5F-H
  • LG Non-Glare Ultra HD Series, 49UH5F-H
  • LG Non-Glare Ultra HD Series, 49UH5F-H
  • LG Non-Glare Ultra HD Series, 49UH5F-H
  • LG Non-Glare Ultra HD Series, 49UH5F-H
  • LG Non-Glare Ultra HD Series, 49UH5F-H
LG Non-Glare Ultra HD Series, 49UH5F-H
LG Non-Glare Ultra HD Series, 49UH5F-H
LG Non-Glare Ultra HD Series, 49UH5F-H
LG Non-Glare Ultra HD Series, 49UH5F-H
LG Non-Glare Ultra HD Series, 49UH5F-H
LG Non-Glare Ultra HD Series, 49UH5F-H

Key Features

  • Brightness(Typ.) : 500 cd/m²
  • Surface Treatment (Haze) : 28%
  • Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
  • Depth : 39.9 mm
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • 30º Tilting Installation
More
LG 49UH5F UHD Signage Standard
SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

LG 49UH5F Superb Picture Quality

SUPERB PICTURE QUALITY

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

LG 49UH5F ULTRA HD Resolution

SLEEK AND PRACTICAL DESIGN

Narrow Bezel & Slim Depth

This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

LG 49UH5F Narrow Bezel

SLEEK AND PRACTICAL DESIGN

Detachable Logo and Built-in Speaker

This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

LG 49UH5F Built-in Speaker

PRODUCT RELIABILITY

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

LG 49UH5F IP5x Certified Design

PRODUCT RELIABILITY

30° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the installation with 30 degrees of tilt* is supported.

LG 49UH5F 30° Tilting Installation

* Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)

EASY INSTALLATION

Auto Screen Rotatio

This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

LG 49UH5F Auto Screen Rotatio

EASY INSTALLATION

Fine Adjustment

This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.

LG 49UH5F Fine Adjustment

webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

LG 49UH5F High-Performance with webOS

webOS SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

LG 49UH5F Various Sensor Applications

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

LG 49UH5F AV Control System

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

LG 49UH5F Video Conference System

* Using an HDMI cable connection

 ENERGY STAR® Certified

Print

All Spec

PANEL

  • Screen Size

    49 (124.46 cm)

  • Panel Technology

    IPS

  • Native Resolution

    3,840 x 2,160 (UHD)

  • Brightness(Typ.)

    500

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition.

  • Color Gamut

    BT709 95%

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth

    1.07 Billion Colors (10 bit)

  • Response Time

    8 ms (G to G)

  • Surface Treatment (Haze)

    Haze 28%

  • Operation Hours (Hours / Day)

    24 / 7

  • Portrait / Landscape

    Yes / Yes

CONNECTIVITY

  • Input

    HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A

  • Output

    DP, Audio

  • External Control

    RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    9.9mm(T/R/L), 14.4mm(B)

  • Weight (Head)

    15.4 kg

  • Monitor Dimension (W × H × D)

    1,098.6 x 644.5 x 39.9 mm

  • Monitor Dimensions with Stand (W × H × D)

    1,098.6 × 694.3 × 290.0 mm

  • VESA™ Standard Mount Interface

    300 x 300 mm

SPECIAL FEATURE

  • Tilt (Facedown)

    Yes (Max. 30º) *In conditions within 30ºC temperature, 50% humidity

  • IP Rating

    IP5x

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ. / Max.

    95W / 130W

  • BTU (British Thermal Unit)

    324 BTU/Hr (Typ.),
    444 BTU/Hr (Max.)

SOUND

  • Speaker

    10W + 10W

CERTIFICATION

  • Safety

    CB, NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ErP

    Yes

OPS COMPATIBILITY

  • OPS Type Compatible

    Yes

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control / Control+

    Yes

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • LG ConnectedCare

    Yes (The availability can differ by region.)

ACCESSORY

  • Basic

    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

  • Optional

    Stand (ST-653T), Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF)

GENERAL

  • Region

    INDIA
