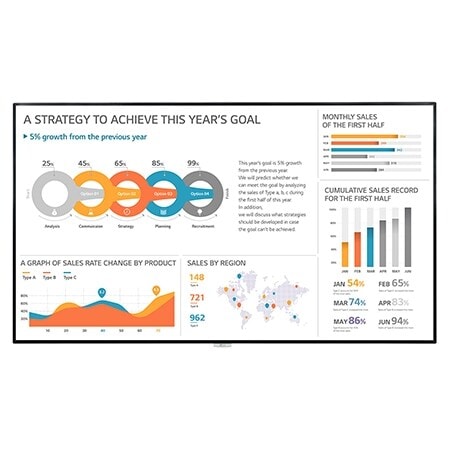

LG 98UH5F-H UHD Signage Standard

SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

LG 98UH5F-H Superb Picture Quality

SUPERB PICTURE QUALITY

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

LG 98UH5F-H ULTRA HD Resolution

webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

LG 98UH5F-H Narrow Bezel

webOS SMART SIGNAGE PLATFORM

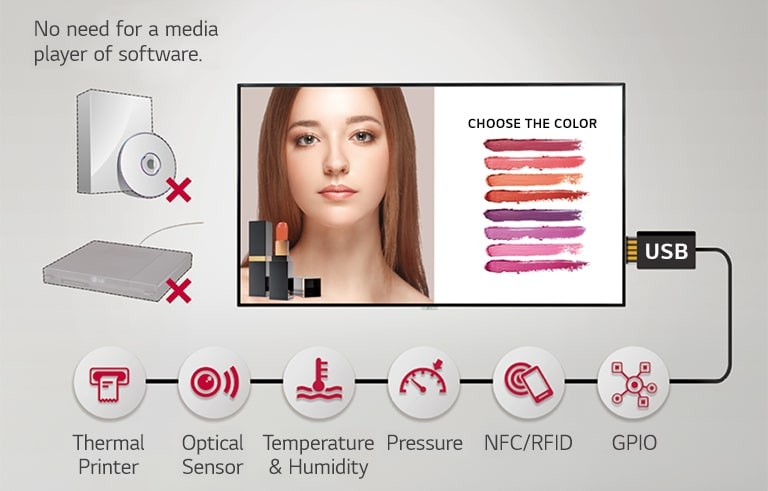

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

LG 98UH5F-H Real-time Monitoring

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

LG 98UH5F-H Signage365care

* Network based control

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

LG 98UH5F-H Multiscreen Feature with PBP

* Using an HDMI cable connection

EASY MANAGEMENT

Real-time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F-H series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

LG 98UH5F-H Wireless Access Point

EASY MANAGEMENT

Real-time Cloud Care Service - LG ConnectedCare

The maintenance gets easier and faster with an optional service LG ConnectedCare*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

Real-time Cloud Care Service - LG ConnectedCare.

*The availability of “LG ConnectedCare” service can differ by region, so please contact the LG sales representative in your region for further details.

USER CONVENIENCE

Multiscreen Feature with PBP / PIP

PBP (Picture-By-Picture)features multiple screens in a single display with up to 4 input sources while PIP (Picture-In-Picture) supports playing both a main screen and a subscreen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

LG 98UH5F-H AV Control System

USER CONVENIENCE

Wireless Access Point

The UH5F-H series operates as a virtual router which can be an wireless access point for mobile devices.

LG 98UH5F-H Video Conference System

All Spec

PANEL

  • Screen Size

    98" (248.92cm)

  • Panel Technology

    IPS

  • Native Resolution

    3,840 x 2,160 (UHD)

  • Brightness(Typ.)

    500

  • Contrast Ratio

    1,100:1

  • Dynamic CR

    1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition.

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth

    1.06 Billion Colors (10 bit)

  • Response Time

    8 ms (G to G)

  • Surface Treatment (Haze)

    Haze 28%

  • Operation Hours (Hours / Day)

    24 / 7

  • Portrait / Landscape

    Yes / Yes

CONNECTIVITY

  • Input

    HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A (2)

  • Output

    DP, Audio

  • External Control

    RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    14.9 mm (Even Bezel)

  • Weight (Head)

    81.1 kg

  • Monitor Dimension (W × H × D)

    2,191.8 × 1,246.8 × 83.8 mm
    (Without Handle and LG Logo)

  • Handle

    Yes

  • VESA™ Standard Mount Interface

    800 x 400 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ. / Max.

    420 W / 560 W

  • BTU (British Thermal Unit)

    1,433.25 BTU/Hr(Typ.),
    1,911 BTU/Hr(Max)

SOUND

  • Speaker

    10W + 10W

CERTIFICATION

  • Safety

    CB, NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ErP

    Yes

OPS COMPATIBILITY

  • OPS Type Compatible

    Yes

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control / Control+

    Yes

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • LG ConnectedCare

    Yes (The availability can differ by region.)

ACCESSORY

  • Basic

    Remote Controller, Power Cord, QSG, IR / Light Sensor Receiver, DP Cable (1.8 M), Regulation Book, Phone to RS232C Gender, EYE-BOLT

GENERAL

  • Region

    INDIA
