55(139.7 cm) 500 nits FHD 60 Hz 0.44mm Even Bezel Video Wall

55SVM5F

55(139.7 cm) 500 nits FHD 60 Hz 0.44mm Even Bezel Video Wall

()

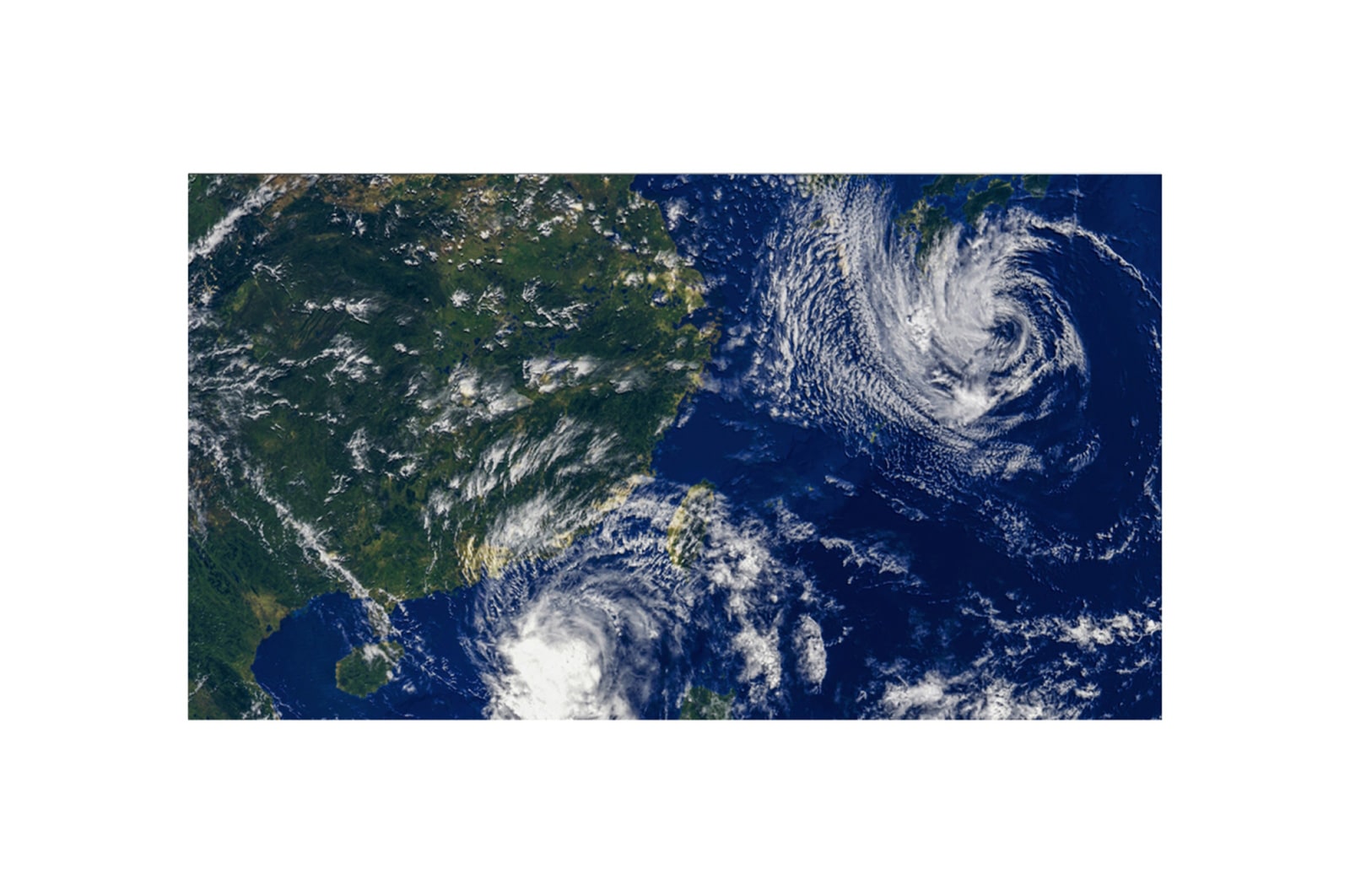

Front view with infill image

0.44mm
Video Wall with Clear & Flawless Vision

The 0.44 mm Even Bezel Video Wall offers seamless view throughout the assembled large screen. Also, it offers clear and vivid picture under any bright circumstances by its non-glare screen.

SEAMLESS VIEWING EXPERIENCE

Groundbreaking 0.44mm Even Bezel

The unprecedented razor-thin bezel – 0.44mm EVEN BEZEL and 0.88mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look more actual by depicting a subject without any distortions. Seamlessly assembled on a large video wall screen, the 55SVM5F-H will provide an even more immersive experience for viewers.

* The 0.44mm even panel bezel and 0.88mm BtB size(borderless type, no metal bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.

VIVID AND DYNAMIC PICTURE QUALITY

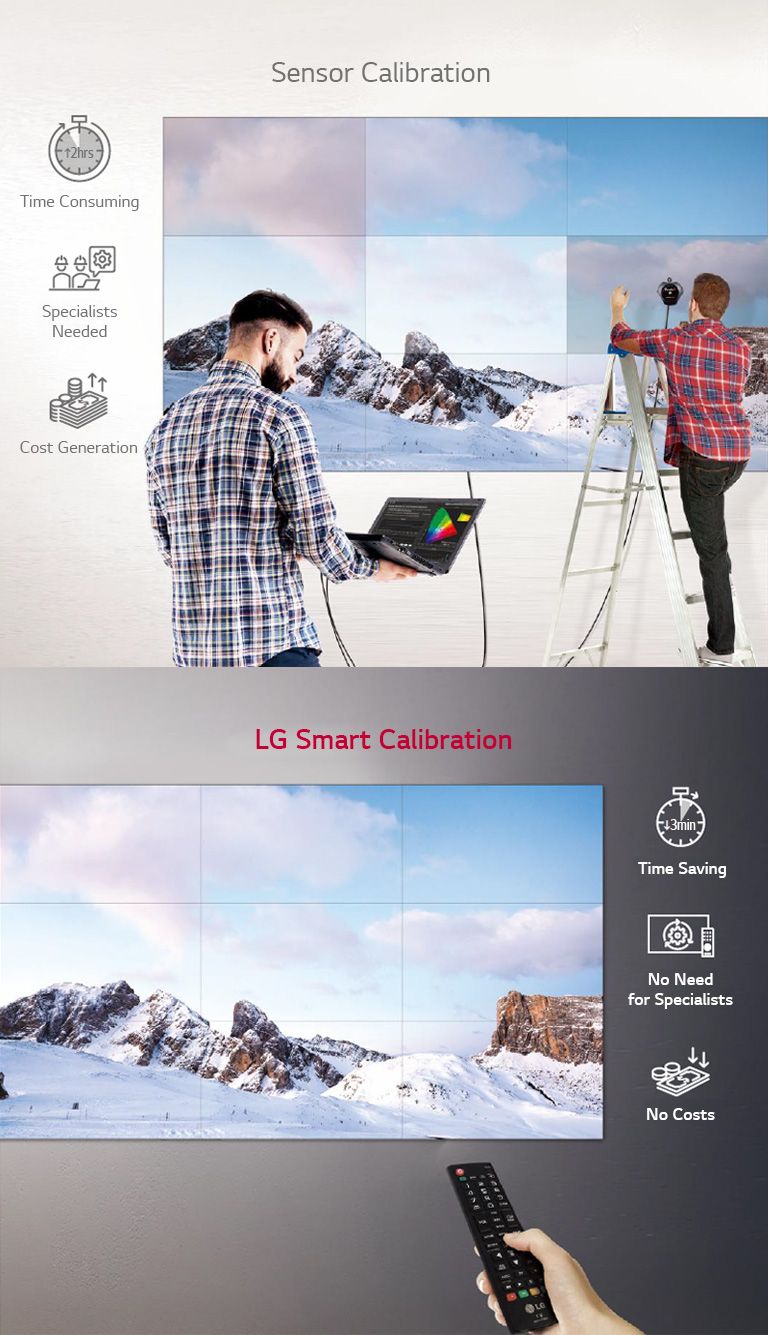

Smart Calibration

Smart Calibration is a solution that enables the reduction of time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the differences between connected displays. With just few simple clicks of a remote control, this calibration process can be done in a matter of minutes. In addition, calibration can be set to automatically occur at regular intervals to always deliver optimum image quality.

Smart Calibration

* Depending on the user, the difference in color can be felt after smart calibration. In this case, adjusting the color manually is recommended.

VIVID AND DYNAMIC PICTURE QUALITY

Clear View with Non-glare Panel

Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The 55SVM5F-H series has resolved such inconveniences by increasing the level of haze to 28%, which enhanced visibility and text readability.

VIVID AND DYNAMIC PICTURE QUALITY

Uniform Color Expression

Poor uniformity around bezel boundaries can produce a dark appearance to corners, which doesn't look good on a large screen. However, the 55SVM5F-H has enhanced uniformity, including the four corners of the display, to deliver vivid and consistent color throughout the screen.

* Uniformity among 13 points of the screen. Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

VIVID AND DYNAMIC PICTURE QUALITY

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55SVM5F-H is superior to that of conventional video walls, allowing it to display vivid colors with no distortion – even in areas that are not suitable for large screens.

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

VIVID AND DYNAMIC PICTURE QUALITY

Image Gap Reduction

The 55SVM5F-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

* The "Conventional" refers to displays which do not include an image improvement algorithm.

webOS SMART SIGNAGE PLATFORM

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies accessibility and groups similar functions together, adopting a more intuitive GUI for ease of use. With this way users can avoid trial-and-error when exploring desired functions and managing displays.

webOS SMART SIGNAGE PLATFORM

Dedicated GUI for Portrait Orientation

The conventional GUI(Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn't well-suited for screens in portrait mode. The OSD of the 55SVM5F-H, however, consists of a long range menu with bigger font sizes of 9:16 ratio, creating a comfortable and efficient business environment

USER CONVENIENCE

Real-Time Care Service

Easier and faster maintenance are available with our optional cloud service solution Signage365Care*. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

* The availability of "Signage365Care" service can differ by region, so please contact the LG Sales representative in your region for further details.

USER CONVENIENCE

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmware at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.

LG 55(139.7 cm) 500 nits FHD 60 Hz 0.44mm Even Bezel Video Wall, 55SVM5F

LG 55(139.7 cm) 500 nits FHD 60 Hz 0.44mm Even Bezel Video Wall, 55SVM5F

LG 55(139.7 cm) 500 nits FHD 60 Hz 0.44mm Even Bezel Video Wall, 55SVM5F

LG 55(139.7 cm) 500 nits FHD 60 Hz 0.44mm Even Bezel Video Wall, 55SVM5F

LG 55(139.7 cm) 500 nits FHD 60 Hz 0.44mm Even Bezel Video Wall, 55SVM5F

LG 55(139.7 cm) 500 nits FHD 60 Hz 0.44mm Even Bezel Video Wall, 55SVM5F

LG 55(139.7 cm) 500 nits FHD 60 Hz 0.44mm Even Bezel Video Wall, 55SVM5F

LG 55(139.7 cm) 500 nits FHD 60 Hz 0.44mm Even Bezel Video Wall, 55SVM5F

LG 55(139.7 cm) 500 nits FHD 60 Hz 0.44mm Even Bezel Video Wall, 55SVM5F

All Spec

PANEL

Screen Size

139.7cm (55)
Panel Technology

IPS
Aspect Ratio

16:9
Native Resolution

1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)

500
Contrast Ratio

1,100:1
Dynamic CR

500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.)
Viewing Angle (H x V)

178 x 178
Response Time

8 ms (G to G)
Surface Treatment

Haze 28%
Life Time (Typ.)

60,000 Hrs
Operation Hours

24 Hrs
Orientation

Portrait & Landscape

CONNECTIVITY

Input

HDMI (2), DP, DVI-D, Audio, USB 2.0
Output

DP, Audio
External Control

RS232C In/out, RJ45 (LAN) In/out, IR In

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

0.44 mm (Even)
Monitor Dimension (W × H × D)

1,210.51 x 681.22 x 86.5 mm
Weight (Head)

16.8 kg
Carton Dimensions (W × H × D)

1,353 x 855 x 263 mm
Packed Weight

23.6kg
Handle

Yes
VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C
Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz
Power Type

Built-In Power

POWER CONSUMPTION

Typ. / Max.

200W / 250W
Smart Energy Saving

105W

CERTIFICATION

Safety

CB / NRTL
EMC

FCC Class “A” / CE / KC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 7.0)

MEDIA PLAYER COMPATIBILITY

OPS type compatible

Yes (Piggyback)

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS
Control and Monitoring Software

SuperSign Control / Control+

ACCESSORY

Basic

Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional

Wall Mount ( Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSF)
