LSBC Compact Series

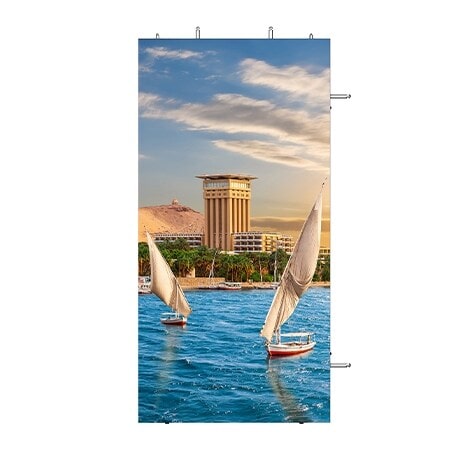

LG LSBC019-GD Compact Series
*All images in this web page are for illustrative purposes only.
*HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
*Corner option is available as add-ons without additional costs. The option should be included in an ordering form.
Compatibility with
LG Software Solution
LG LSBC019-GD Software Solution
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power).
*Actual GUI may vary in different webOS versions.
Gallery
All Spec
PHYSICAL PARAMETERS
-
Pixel Configuration
3 in 1 SMD
-
Pixel Pitch(mm)
2.604
-
Module Resolution (WxH)
96x96
-
Module Dimensions(WxH,mm)
250x250
-
Weight per Module (kg)
0.70
-
No. of Modules per Cabinet (WxH)
2 x 4
-
Cabinet Resolution (WxH)
192x384
-
Cabinet Dimensions (W x H x D, mm)
500x1000x68
-
Cabinet Surface Area (㎡)
0.500
-
Weight per Cabinet (kg/unit)
12.0
-
Weight per Square Meter (kg/㎡)
24.0
-
Physical Pixel Density (pixels/㎡)
147,456
-
Flatness of Cabinet (mm)
0.5
-
Cabinet Material
Die casting Aluminum
-
Service access
Front or Rear
OPTICAL SPECIFICATIONS
-
Max Brightness (After Calibration, nit)
1,000
-
Color Temperature (K)
3,200~9,300
-
Visual Viewing Angle (Horizontal)
160
-
Visual Viewing Angle (Vertical)
140
-
Brightness Uniformity
97%
-
Color Uniformity
±0.003Cx,Cy
-
Contrast Ratio
5000:1
-
Processing Depth (bit)
16(HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/cabinet, Max.)
300
-
Power Consumption (W/cabinet, Avg.)
100
-
Power Consumption (W/㎡, Max.)
600
-
Heat Dissipation (BTU/h/Cabinet, Max.)
1,024
-
Heat Dissipation (BTU/h/Cabinet, Avg.)
341
-
Heat Dissipation (BTU/h/㎡, Max.)
2,047
-
Power Supply (V)
100 to 240
-
Frame Rate (Hz)
50 / 60
-
Refresh Rate (Hz)
3,840
OPERATION SPECIFICATIONS
-
LED Lifetime (Half brightness)
100,000
-
Operating Temperature(℃)
-20∘to +40∘
-
Operating Humidity
10-90%RH
-
IP rating Front
IP5X
-
IP rating Rear
IP5X
CERTIFICATION
-
Certification
CE/FCC/cTUVus/CB/CCC
ENVIRONMENT
-
Environment
RoHS/REACH/WEEE
CONTROLLER
-
Controller
CVBA
90 DEGREE CORNER CUT
-
90 Degree Corner Cut
Yes
-
