LG Versatile Series

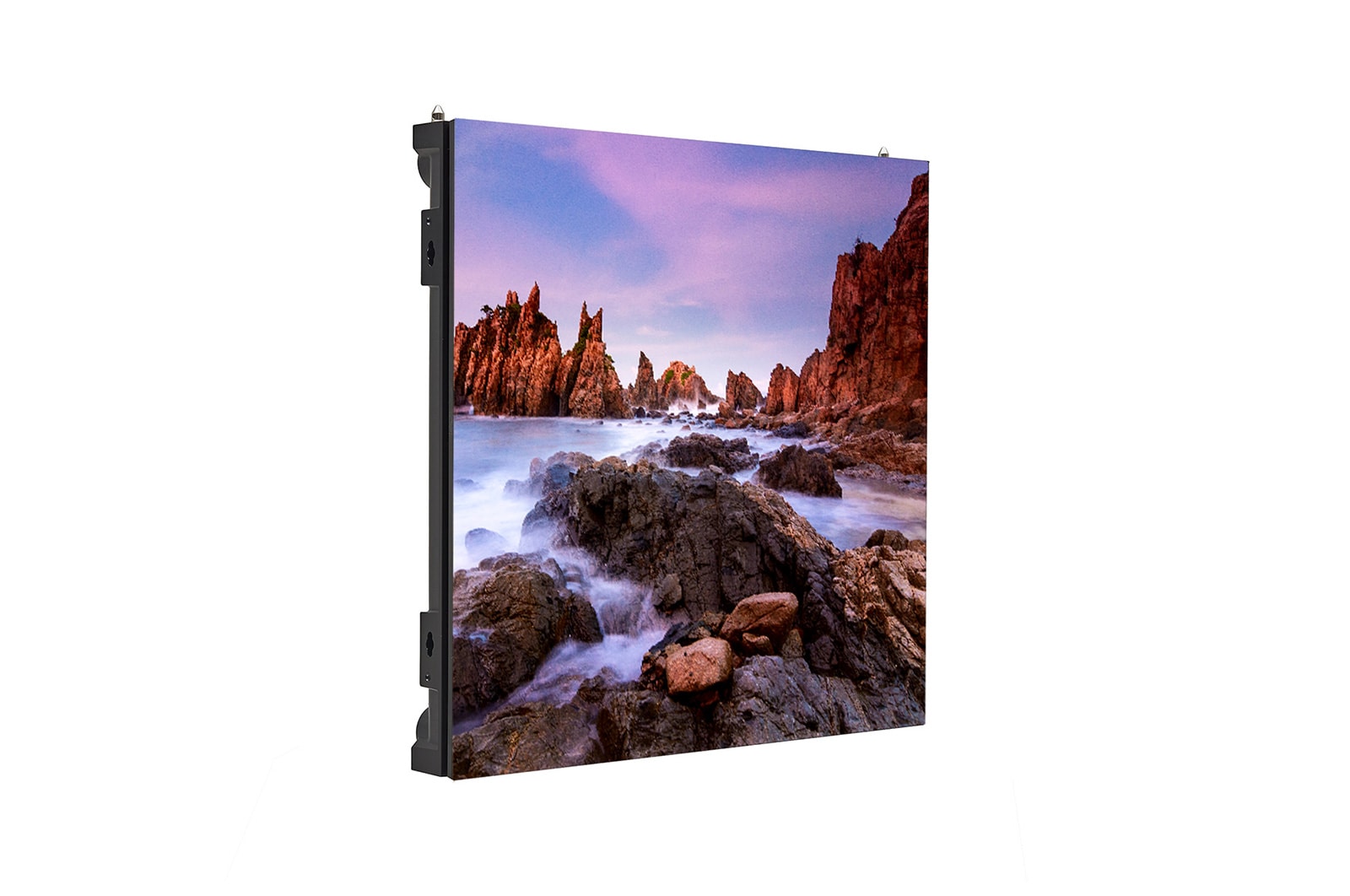

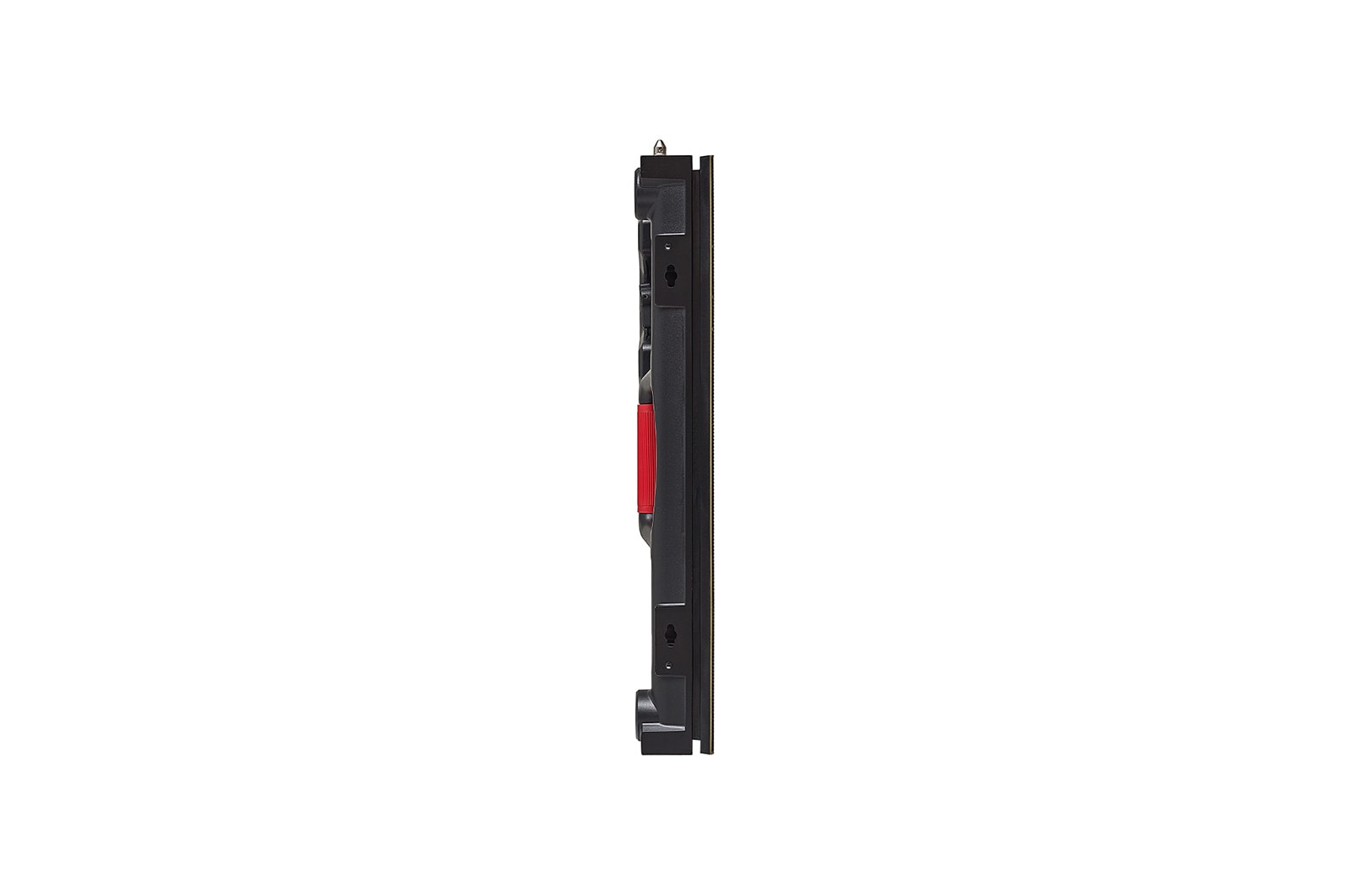

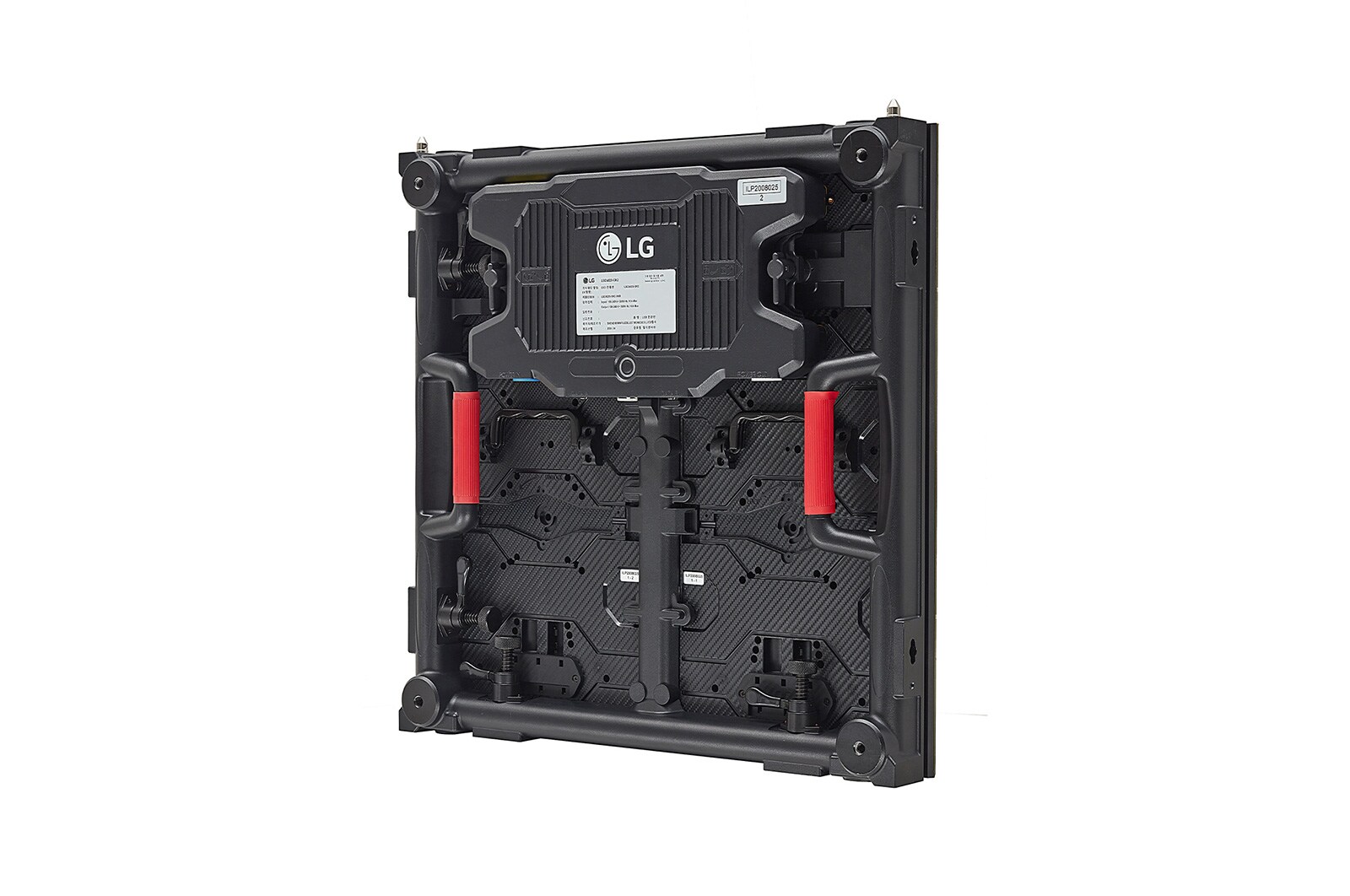

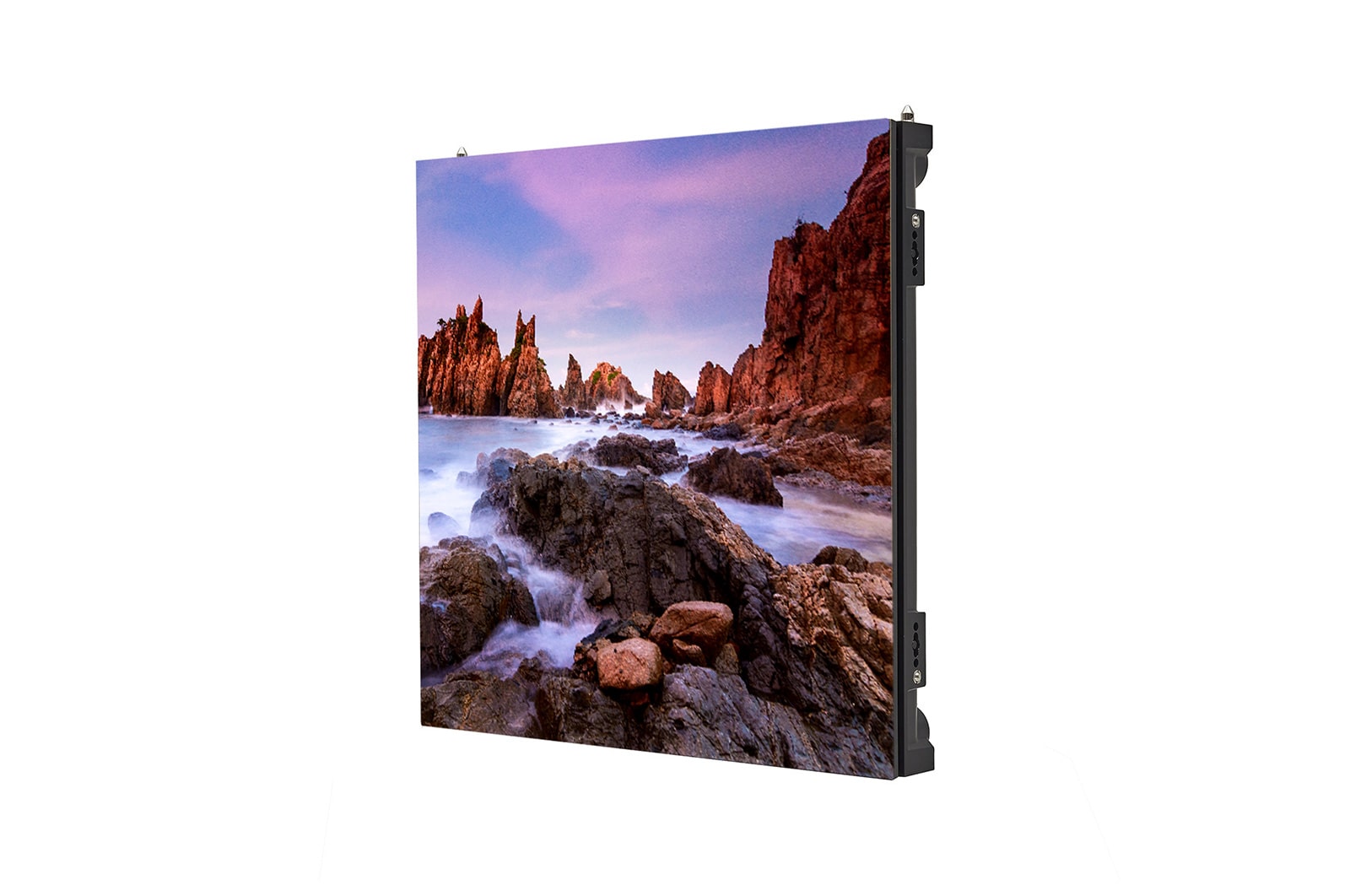

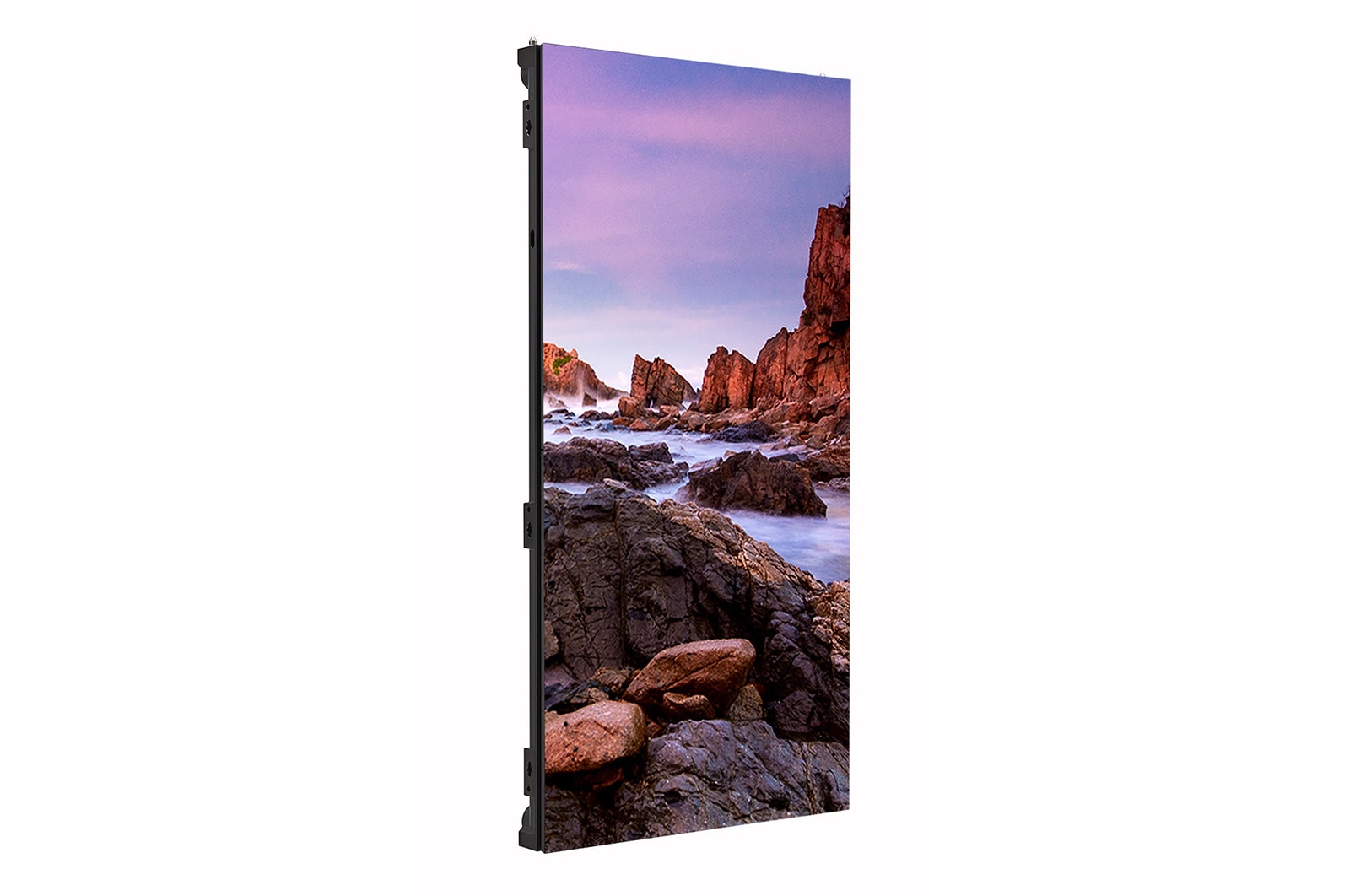

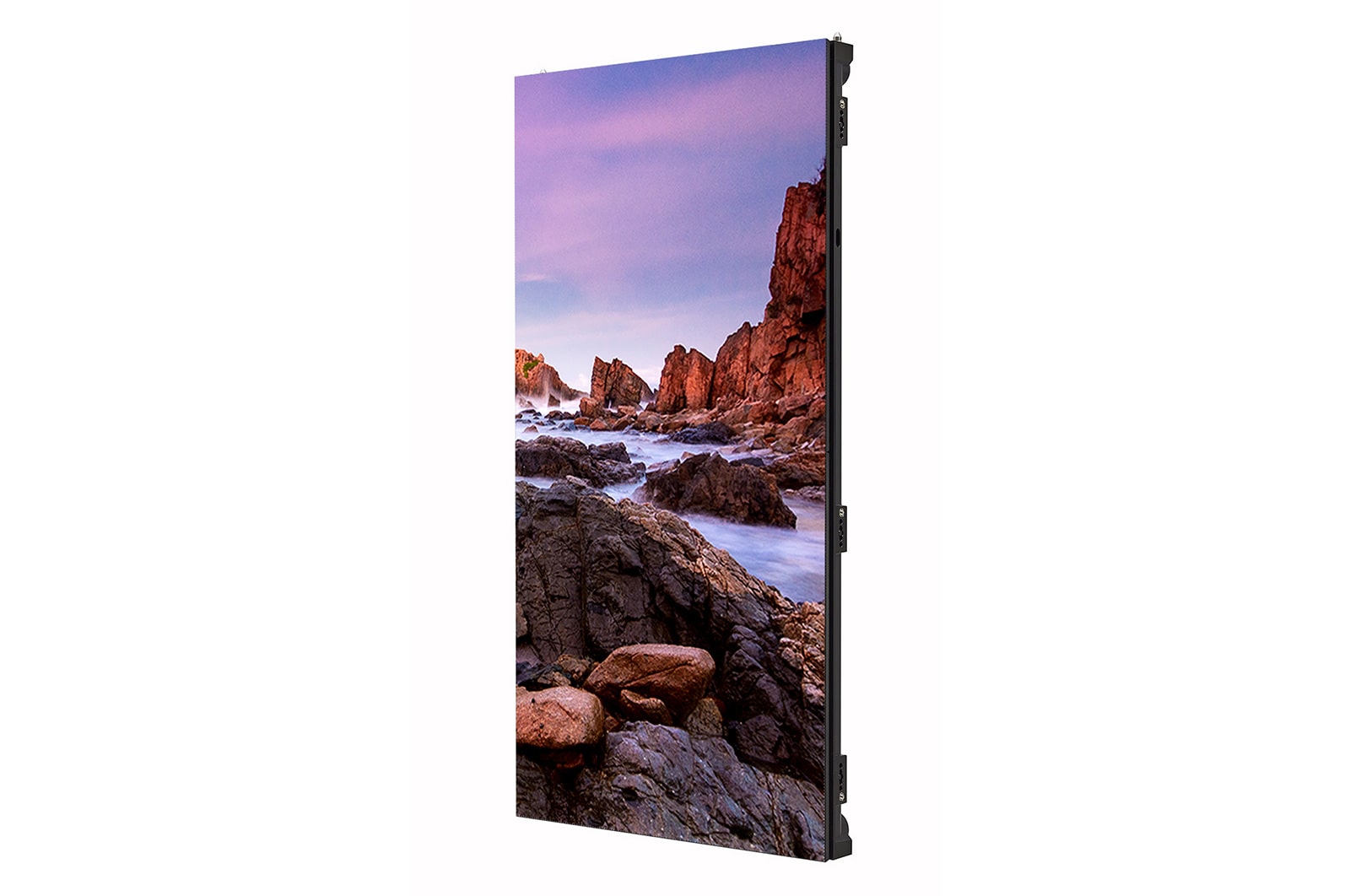

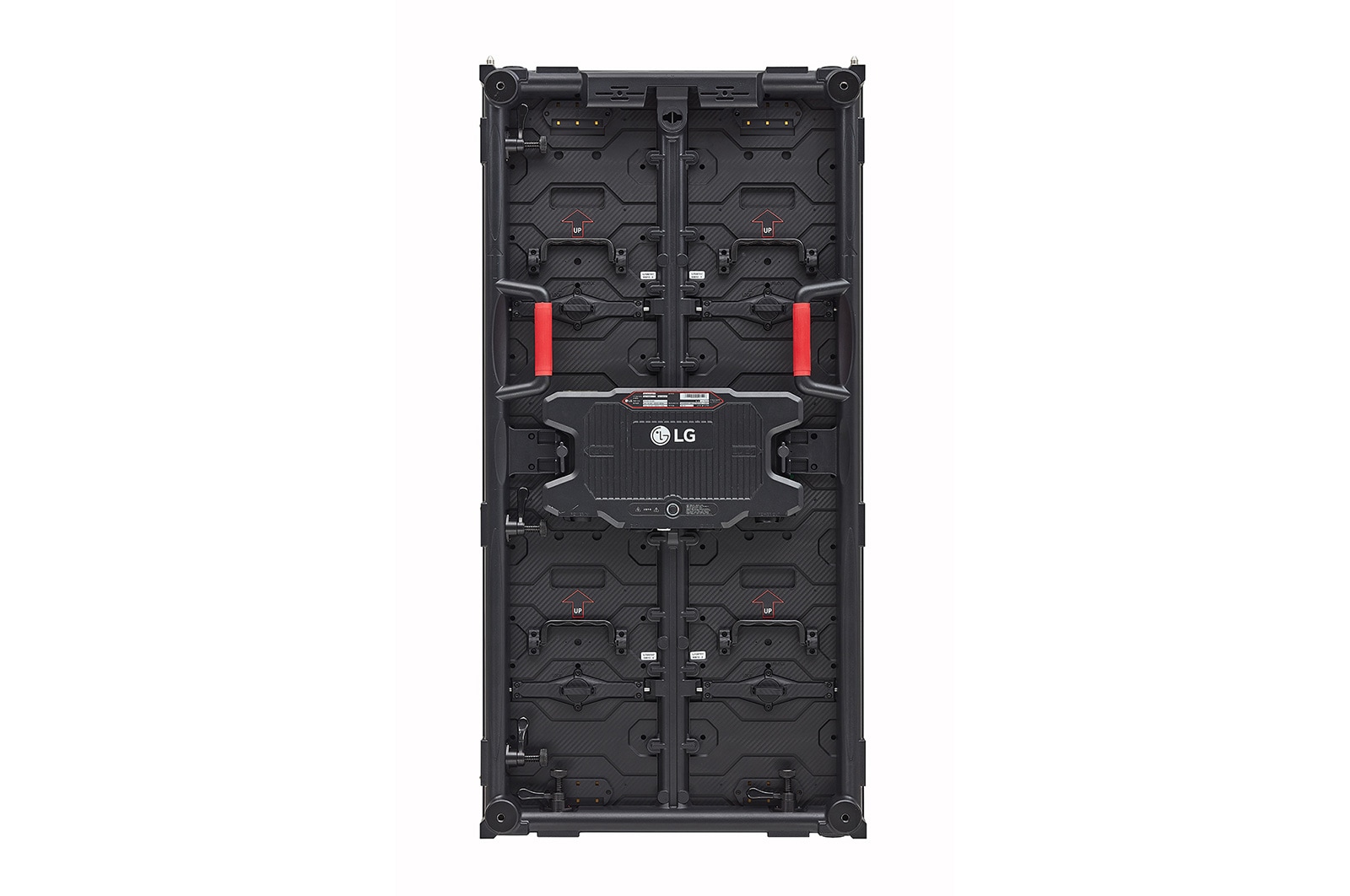

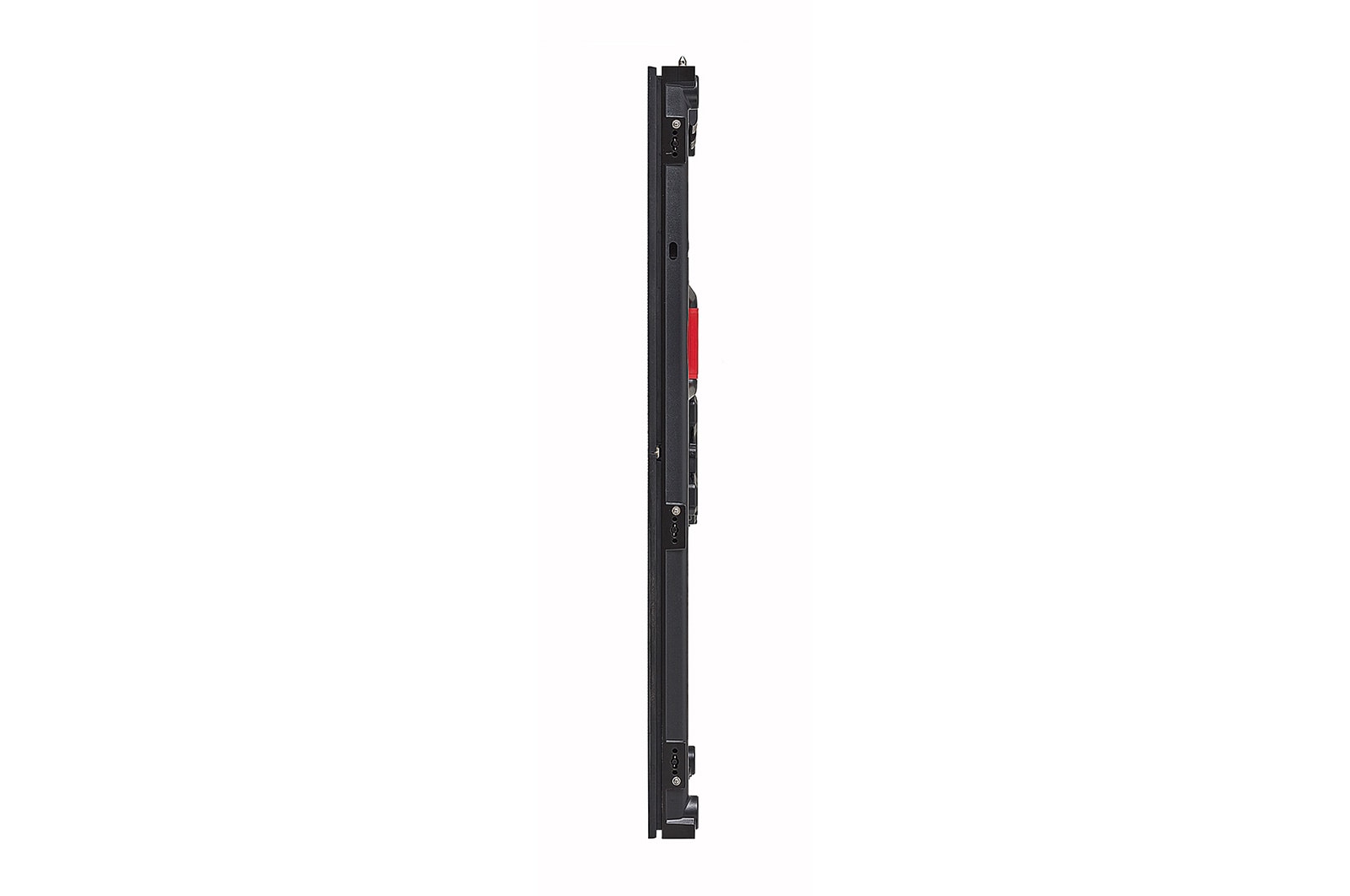

LSCA029

LG Versatile Series

(2)

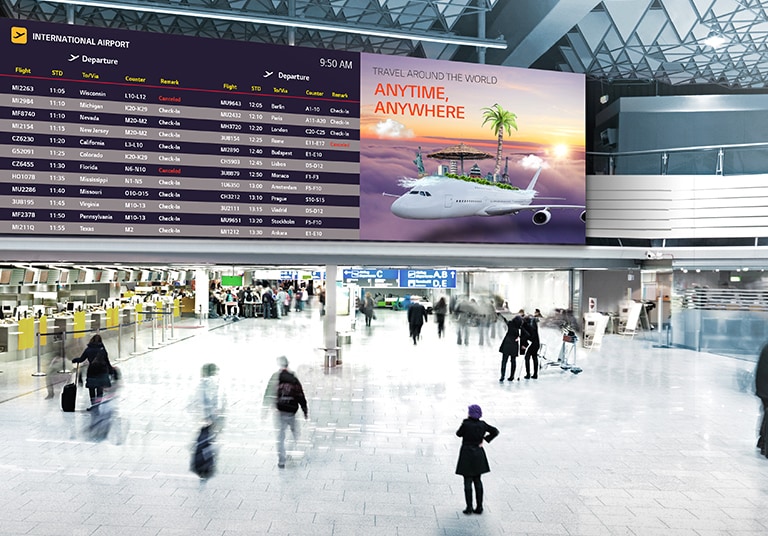

LSCA Versatile Series

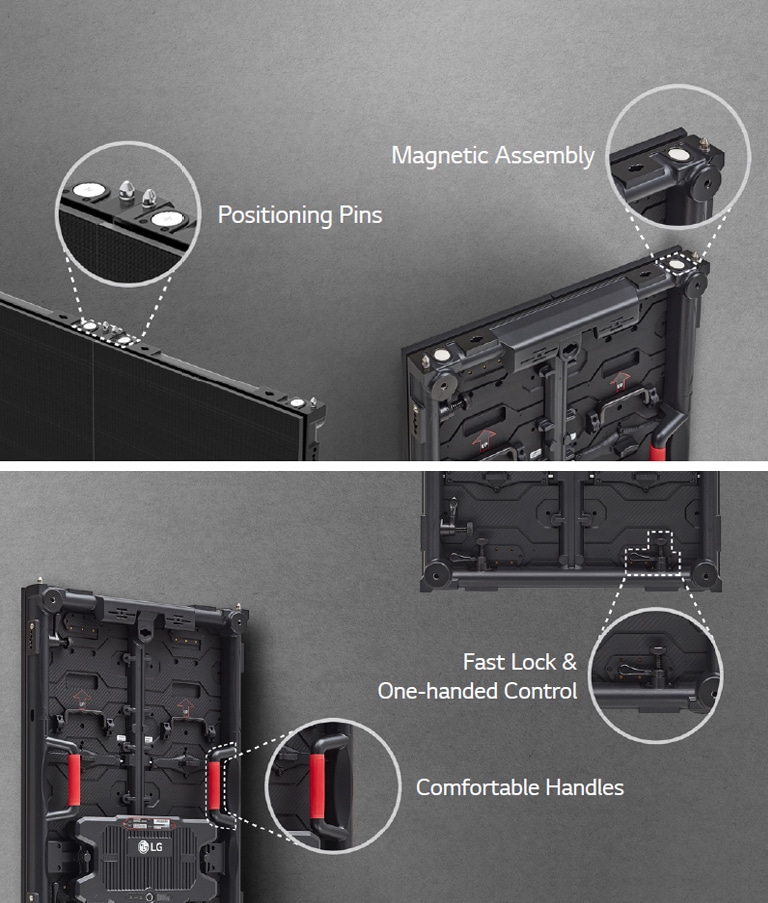

Fast Installation

Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.

Fast Installation

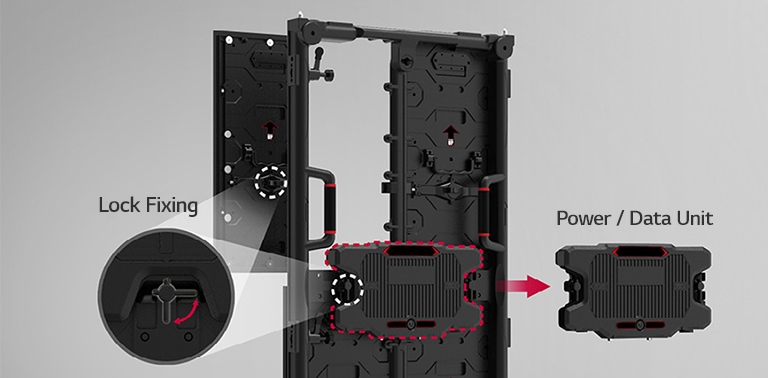

Easy Maintenance

Easy Maintenance

The LSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.

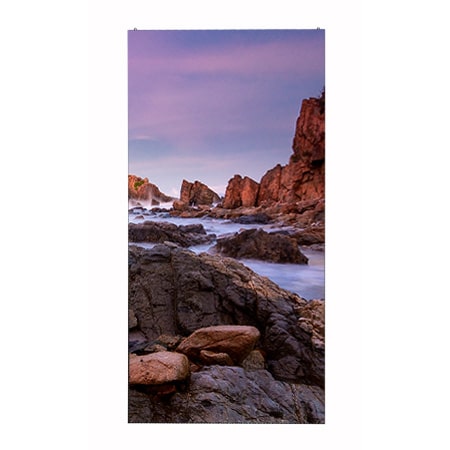

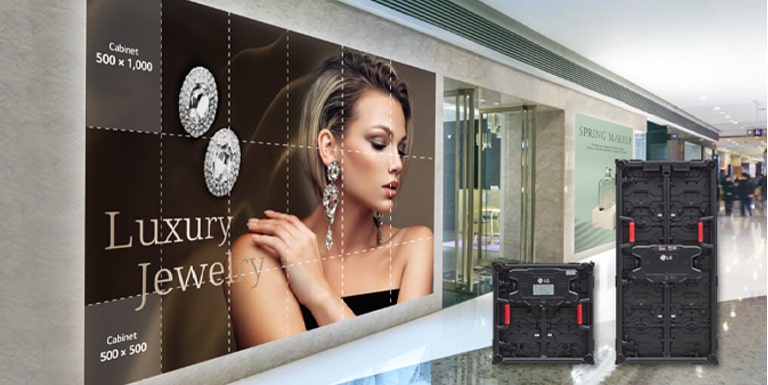

Two Cabinet Options

Two Cabinet Options

The LSCA series offers two sizes of cabinets, enabling a screen size configuration that fits perfectly with customer's demands.

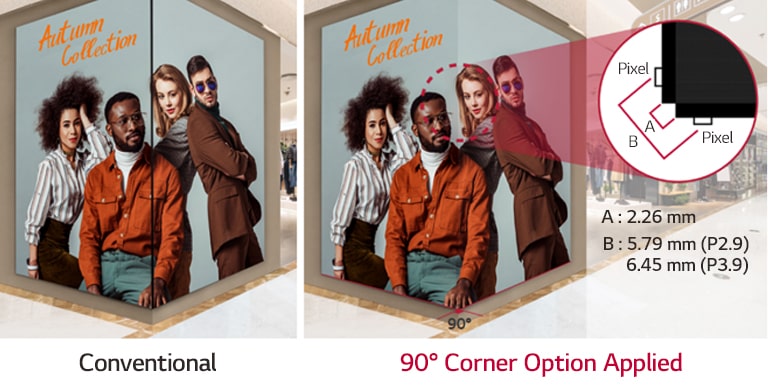

90° Corner Design Available

90° Corner Design Available

If you add a 90° corner option, the LSCA series can deliver flawless content even when installed on right-angled structures.

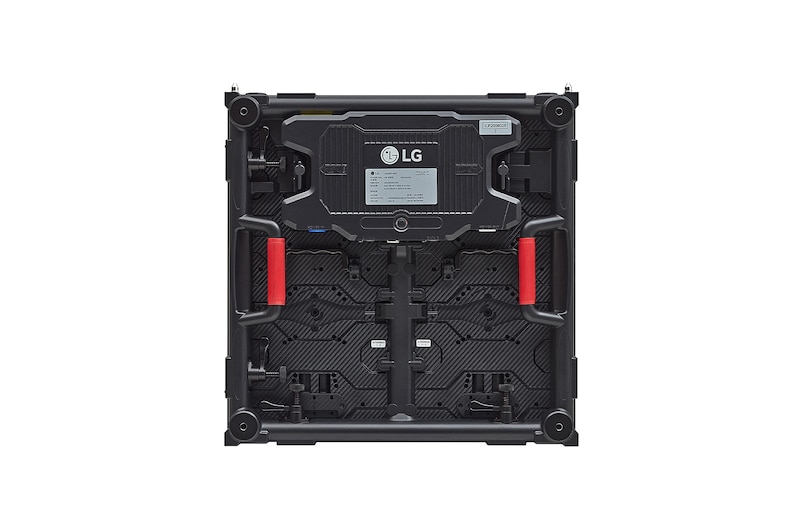

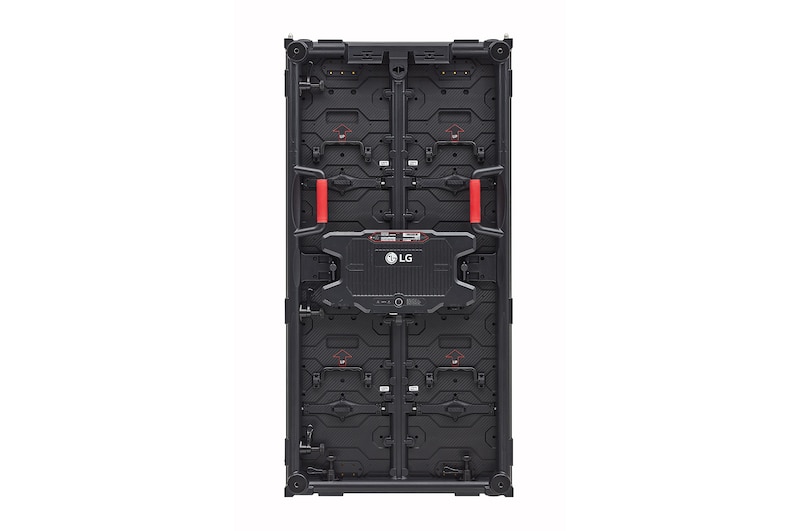

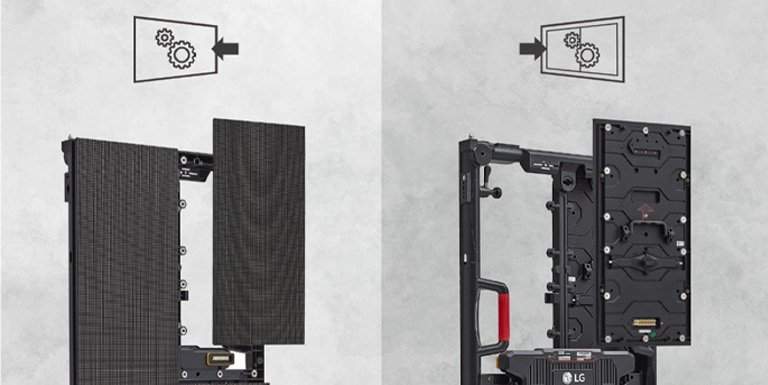

Front or Rear Serviceability

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.

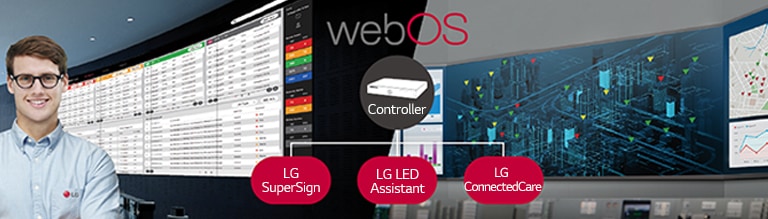

Compatibility with
LG Software Solutions

Powered by LG’s high performance system controller, the LSCA series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

Compatibility with LG Software Solutions

*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power).

Print

All Spec

PHYSICAL PARAMETER

  • Pixel Configuration

    3 in 1 SMD

  • Pixel Pitch (mm)

    2.97

  • Module Resolution (W x H)

    84 × 168

  • Module Dimensions (W x H, mm)

    250 × 500

  • Weight per Module (kg)

    1.30

  • No. of Modules per Cabinet (W × H)

    2 × 2 / 2 × 1 (Half-sized)

  • Cabinet Resolution (W × H)

    168 × 336 / 168 × 168 (Half-sized)

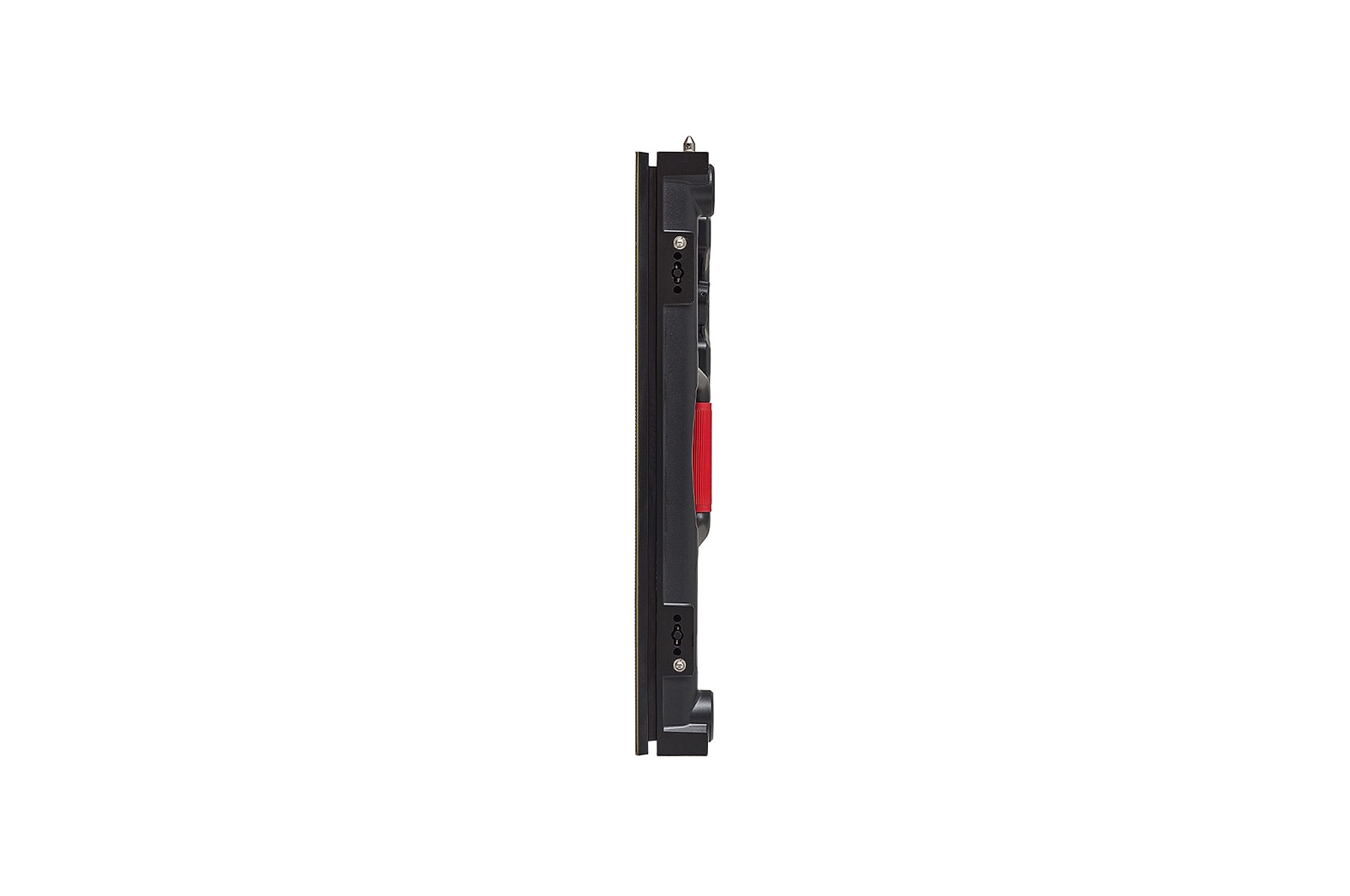

  • Cabinet Dimensions (W × H × D)

    500 × 1,000 × 66 / 500 × 500 × 66 (Half-sized)

  • Cabinet Surface Area (m²)

    0.500 / 0.250 (Half-sized)

  • Weight per Cabinet (kg/cabinet)

    14.0 / 10.0 (Half-sized)

  • Weight per Square Meter (kg/m²)

    28.0 / 40.0 (Half-sized)

  • Physical Pixel Density (pixels/m²)

    112,896

  • Flatness of Cabinet

    ± 0.3 mm

  • Cabinet Material

    Die-casting Aluminum

  • Service Access

    Front or Rear (One Option Only)

OPTICAL PARAMETER

  • Min. Brightness (After Calibration)

    1,000

  • Color Temperature

    3,500 ~ 9,000

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    160

  • Brightness Uniformity

    97%

  • Color Uniformity

    ± 0.003 Cx,Cy

  • Contrast Ratio

    5,000

  • Processing Depth (bit)

    14

ELECTRICAL PARAMETER

  • Power Consumption (W/cabinet, Max.)

    270 / 135 (Half-sized)

  • Power Consumption (W/cabinet, Avg.)

    90 / 45 (Half-sized)

  • Power Consumption (W/m², Max.)

    540

  • Power Consumption (BTU/h/cabinet, Max.)

    921 / 461 (Half-sized)

  • Power Consumption (BTU/h/cabinet, Avg.)

    307 / 154 (Half-sized)

  • Power Consumption (BTU/h/m², Max.)

    1,842

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    2,880

OPERATION CONDITIONS

  • Lifetime (Hours to Half Brightness)

    100,000

  • Operating Temperature (°C)

    -10 °C to +45 °C

  • Operating Humidity

    0 - 80 % RH

  • IP rating Front / Rear

    IP30 / IP30

CERTIFICATION

  • Certification

    CE,FCC,ETL

ENVIRONMENT

  • Environment

    RoHS

CONTROLLER

  • Controller

    CVCA, LCIN006

Catalog,Data Sheets

extension : pdf
LED Signage Catalogue.pdf
Download
extension : pdf
LSCA-Series-Datasheet-LG-Versatile-LED-Signage-200506.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
