Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
4.63
Module Resolution (W x H)
54 × 108
Module Dimensions (W x H, mm)
250 × 500
Weight per Module (kg)
1.40
No. of Modules per Cabinet (W × H)

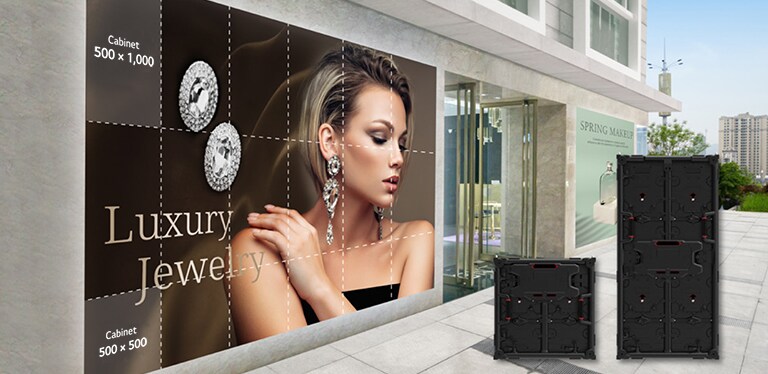

2 × 2 / 2 × 1 (Half-sized)
Cabinet Resolution (W × H)
108 × 216 / 108 × 108 (Half-sized)
Cabinet Dimensions (W × H × D)
500 × 1,000 × 67.2
500 × 500 × 67.2 (Half-sized)
Cabinet Surface Area (m²)
0.500 / 0.250 (Half-sized)
Weight per Cabinet (kg/cabinet)
12.7 / 8.1 (Half-sized)
Weight per Square Meter (kg/m²)
25.4 / 32.2 (Half-sized)
Physical Pixel Density (pixels/m²)
46,656
Flatness of Cabinet
± 0.3 mm
Cabinet Material
Die-casting Magnesium
Service Access
Front or Rear (One Option Only)
Min. Brightness (After Calibration)
5,000
Color Temperature
3,500 ~ 9,000
Visual Viewing Angle (Horizontal/Vertical)
160 / 155
Brightness Uniformity
97%
Color Uniformity
± 0.003 Cx,Cy
Contrast Ratio
11,000
Processing Depth (bit)
14
Power Consumption (W/cabinet, Max.)
300 / 150 (Half-sized)
Power Consumption (W/cabinet, Avg.)
100 / 50 (Half-sized)
Power Consumption (W/m², Max.)
600
Power Consumption (BTU/h/cabinet, Max.)
1024 / 512 (Half-sized)
Power Consumption (BTU/h/cabinet, Avg.)
341 / 171 (Half-sized)
Power Consumption (BTU/h/m², Max.)
2047
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-20℃ to +45℃
Operating Humidity
10-99%RH
IP Rating Front
IP65
IP Rating Rear
IP65
Certification
CE,FCC,ETL
Environment
RoHS
Controller
LCIN006
