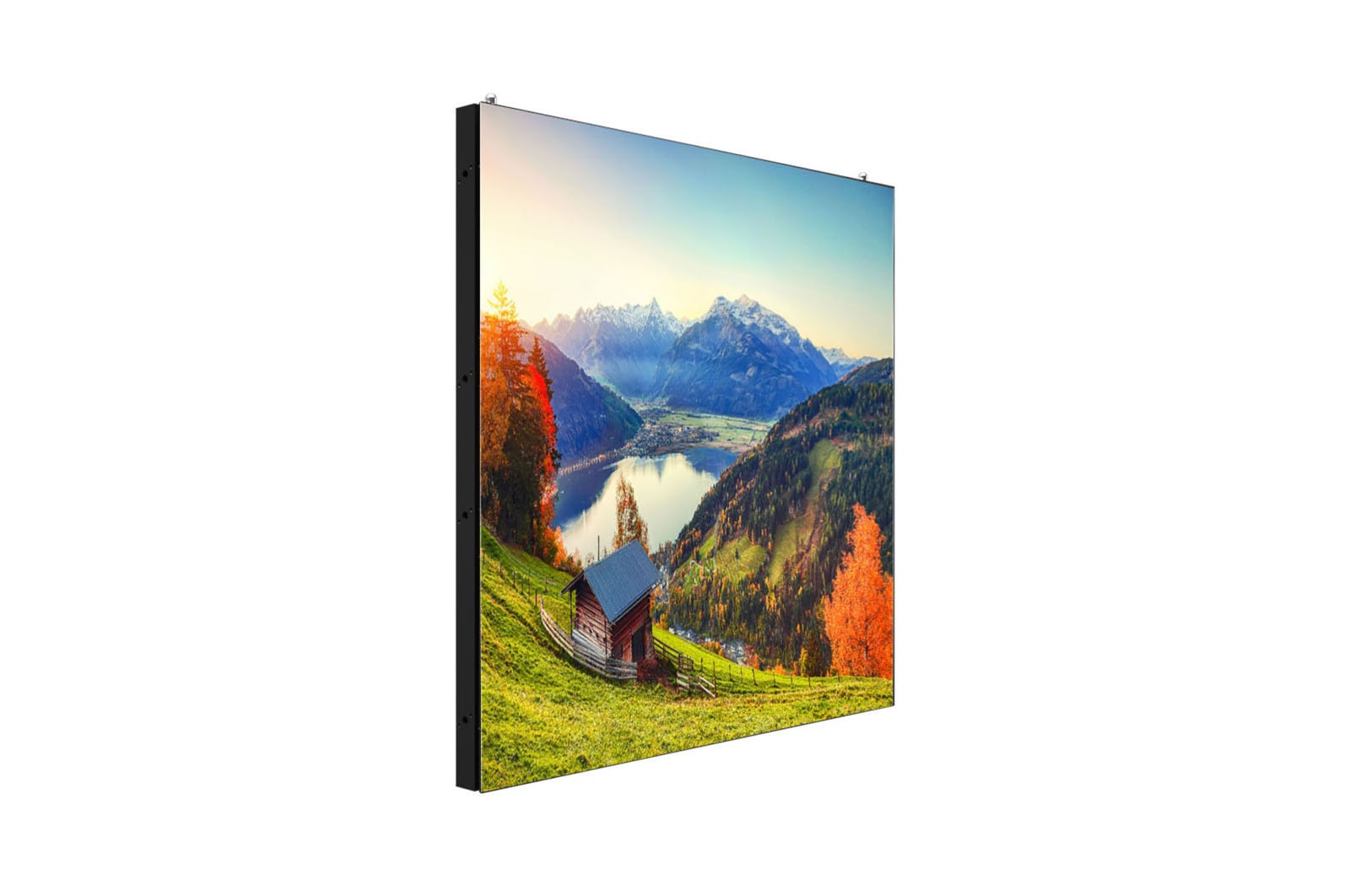

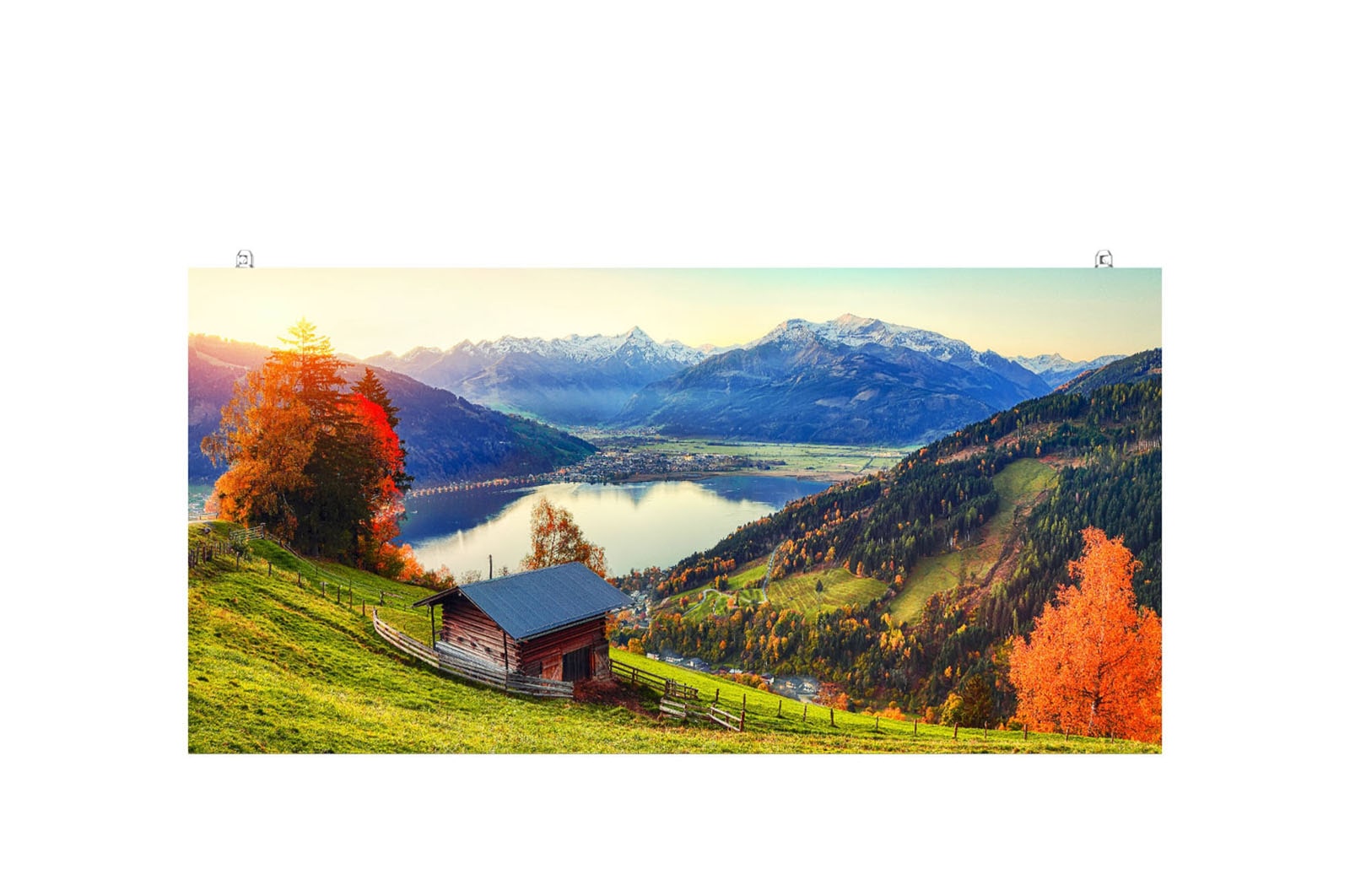

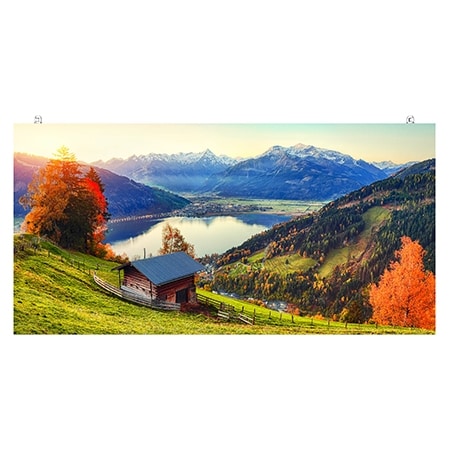

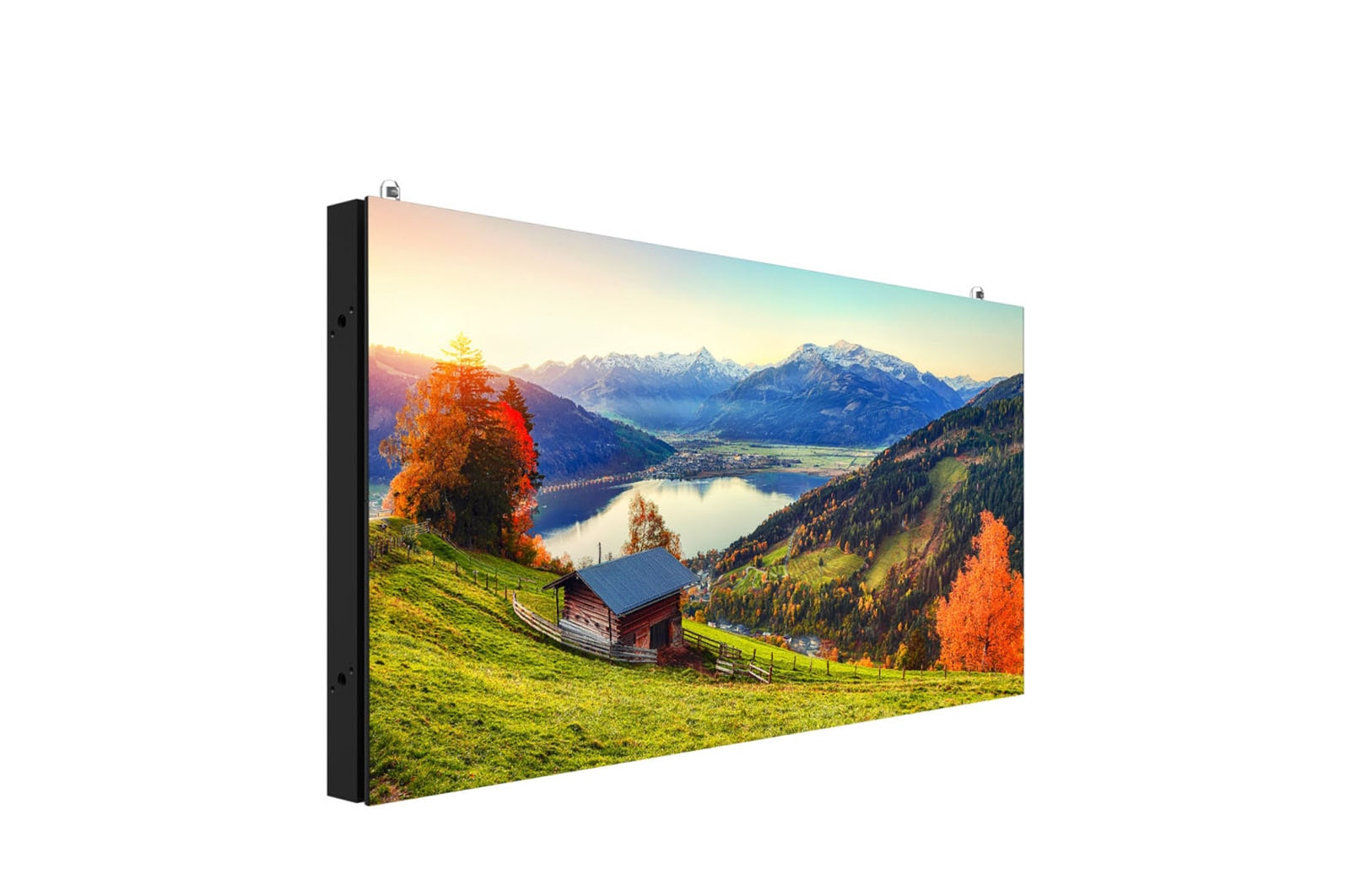

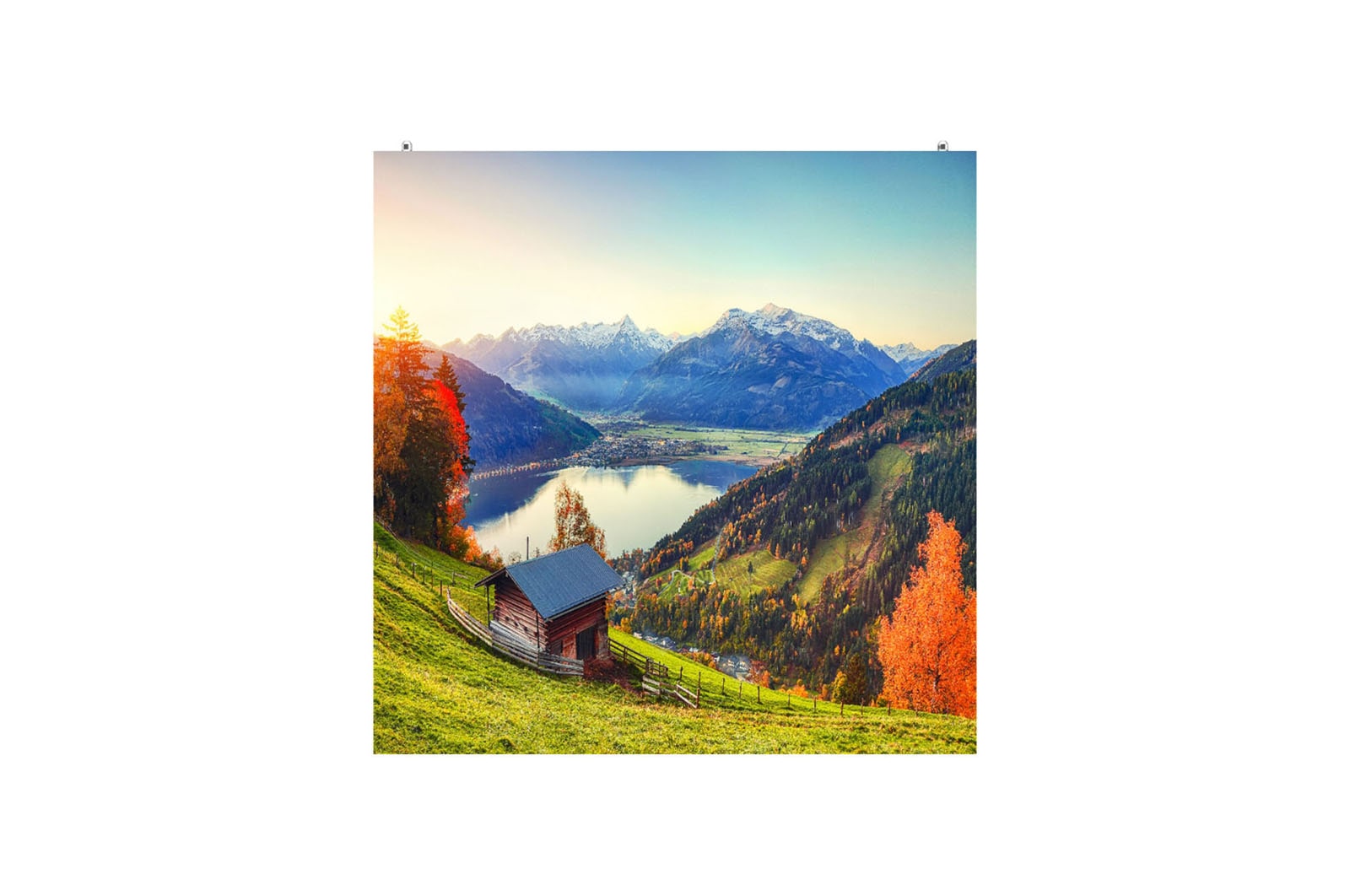

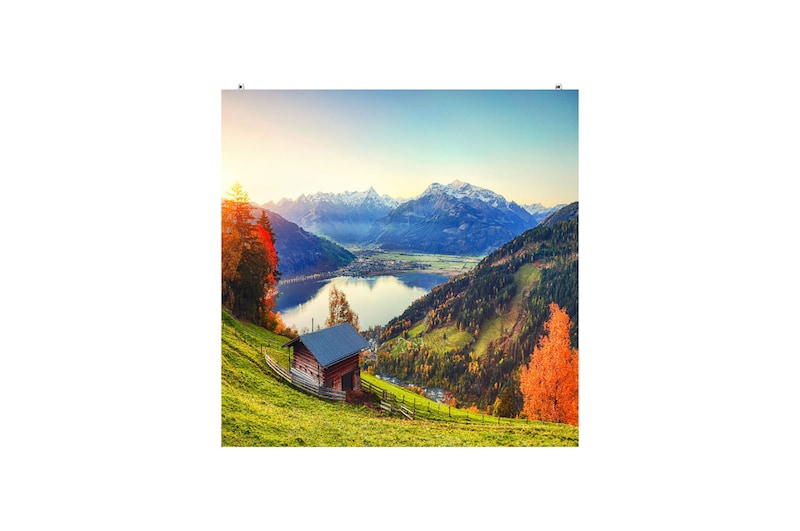

GSCD Ultra Light Series

With a lightweight design, the Ultra Light Series can be easily composed of a large screen without providing heavy load to the installing structure. A 90° corner option is provided for seamless right-angled installation.

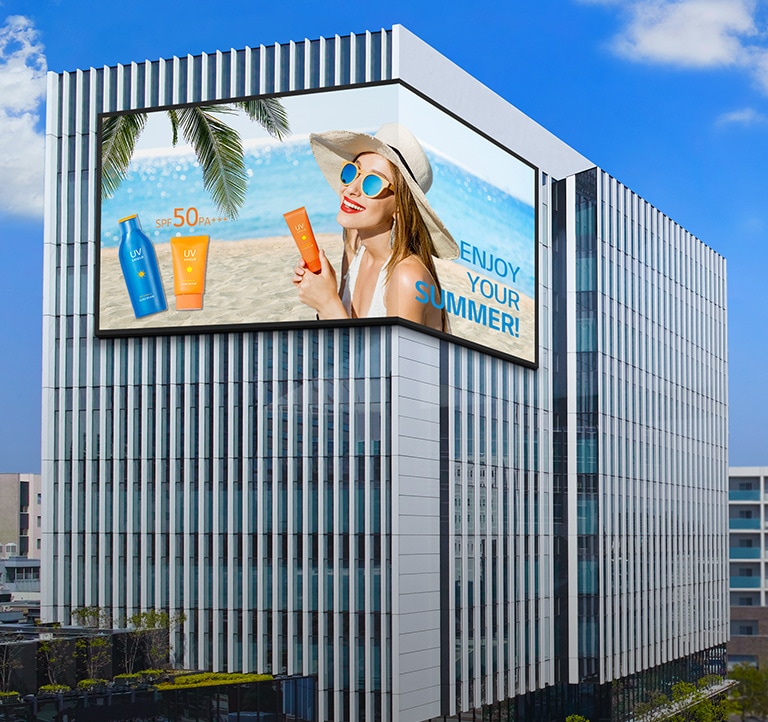

There is a LED screen installed on the corner of the building.

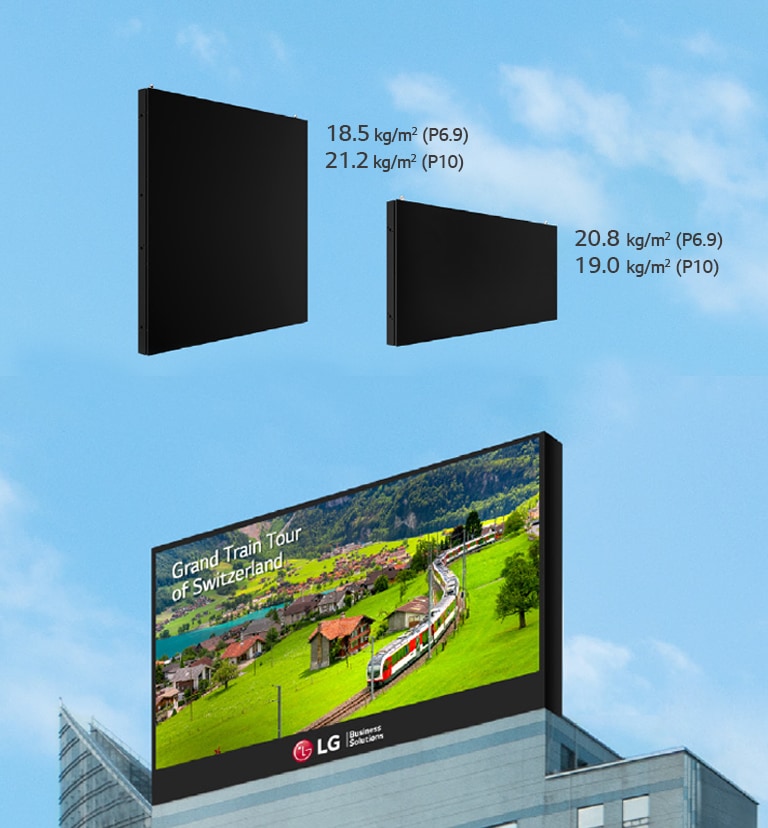

Lightweight Design

The weights of the cabinet is very light, so even if a large LED screen is installed on the roof, it puts less pressure on the building's load.

The GSCD series is installed on the roof of the building.

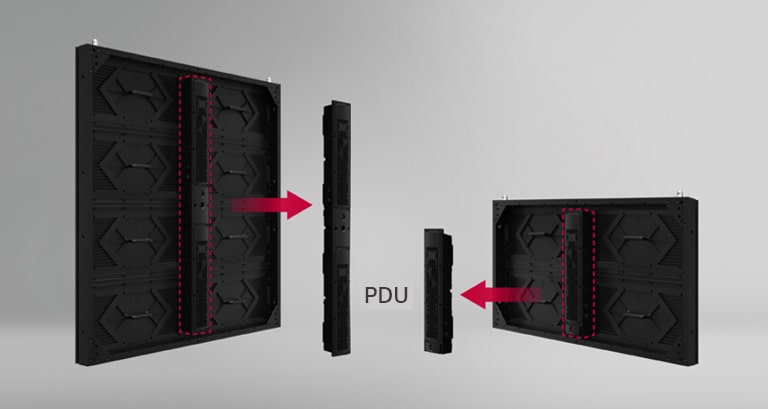

The control unit of the cabinet is being detached.

Easy Maintenance

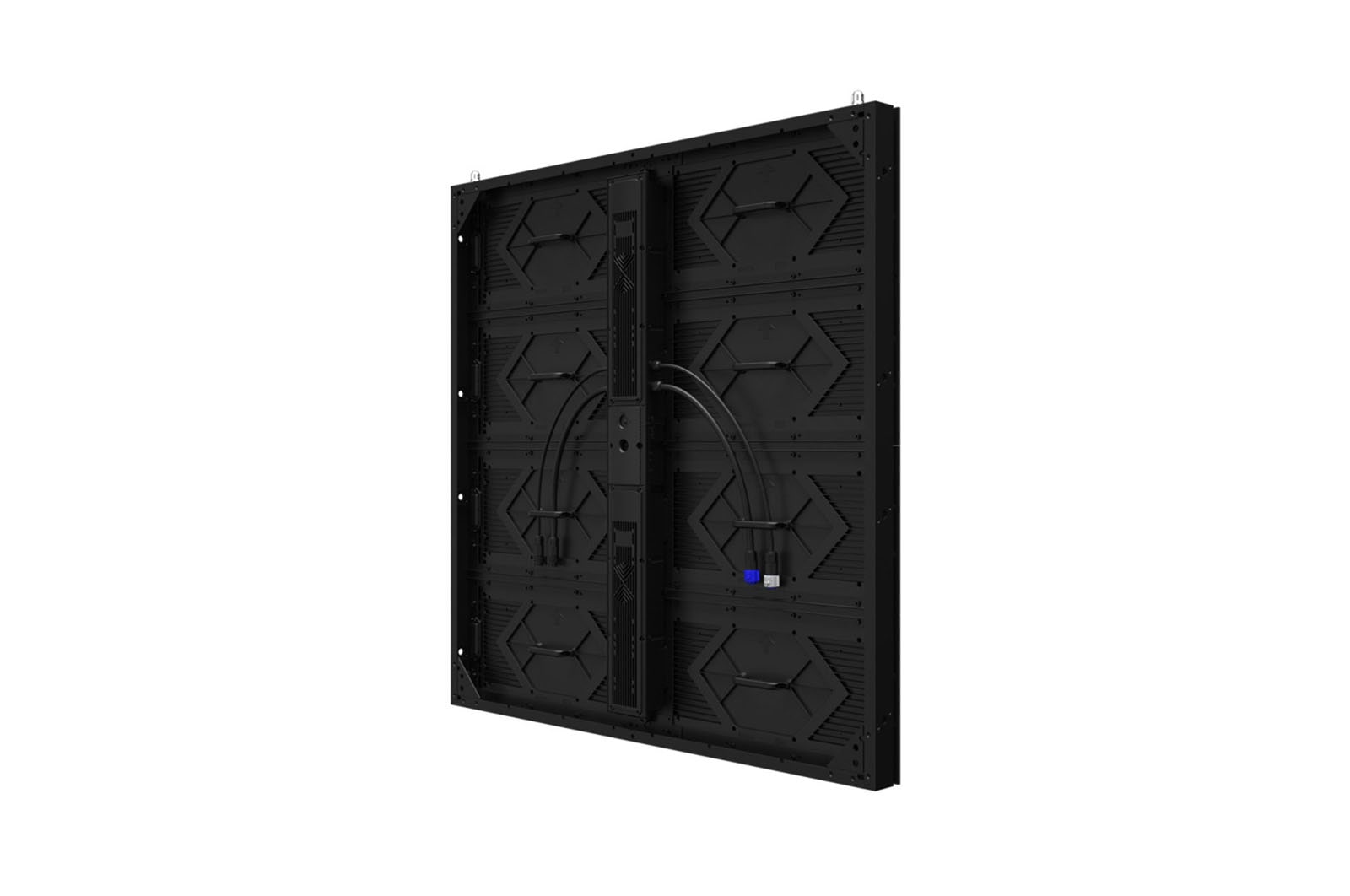

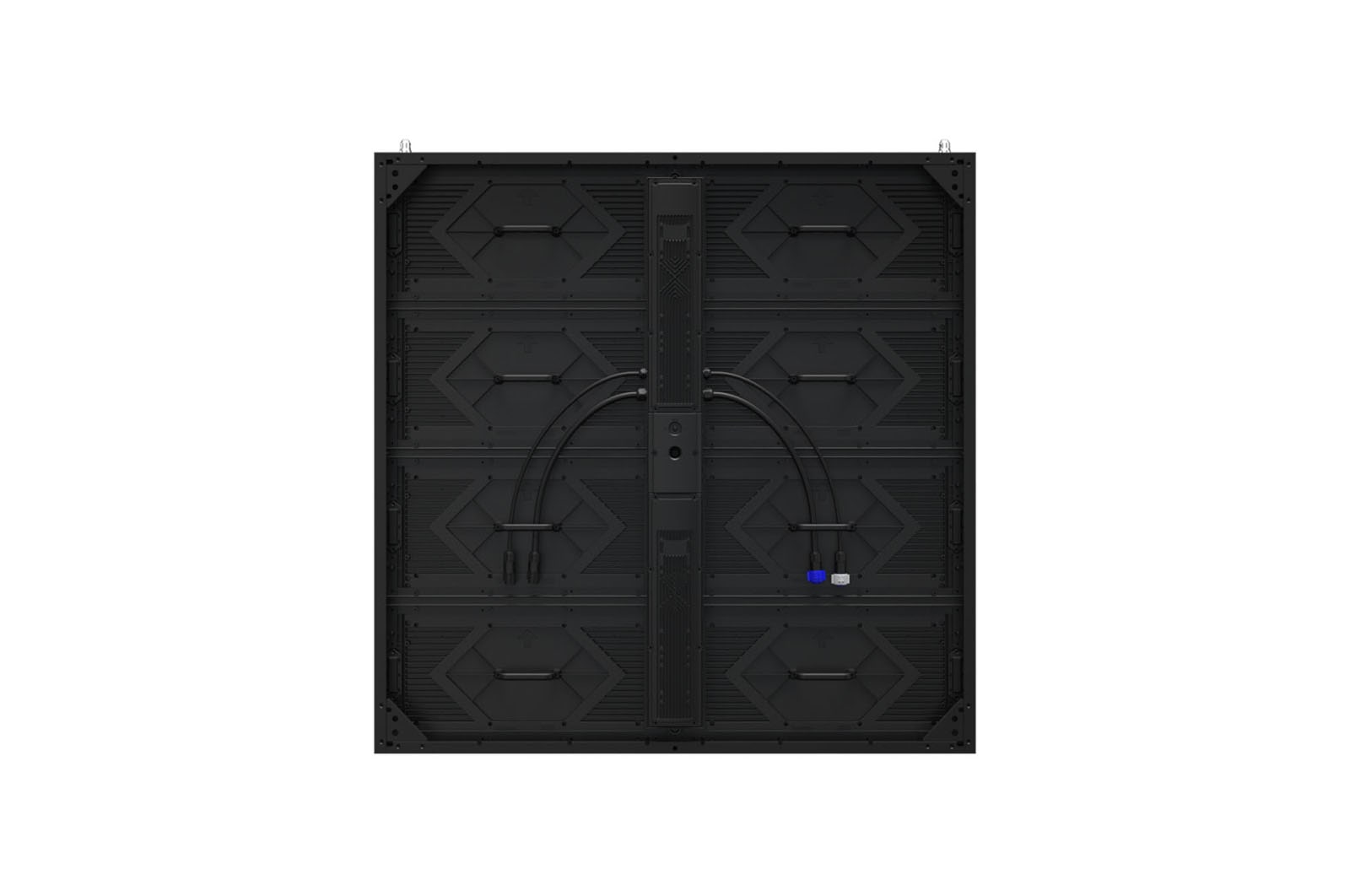

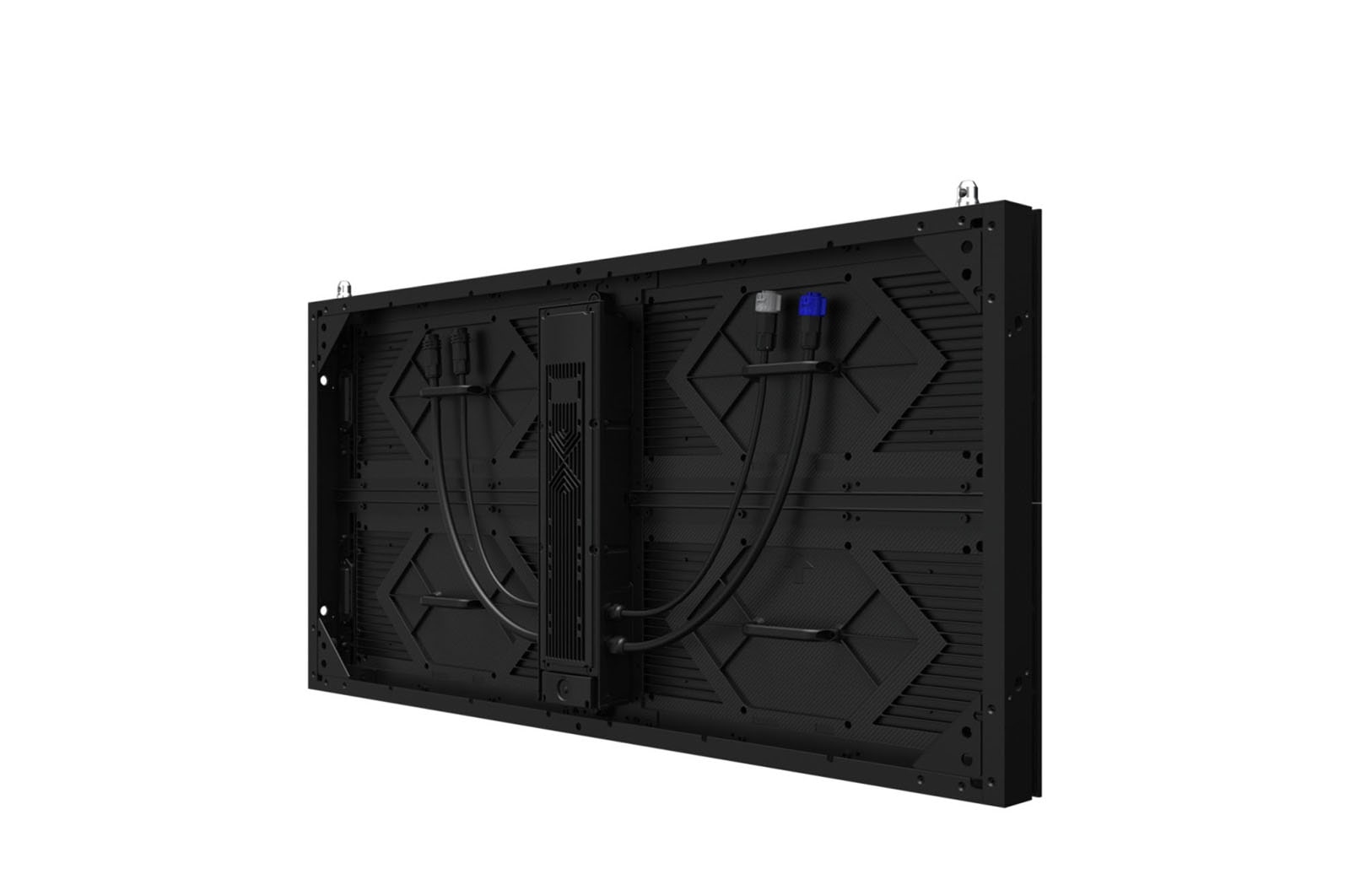

The control unit (PDU) of the cabinet is a modular type which can be easily attached or detached, supporting easy maintenance.

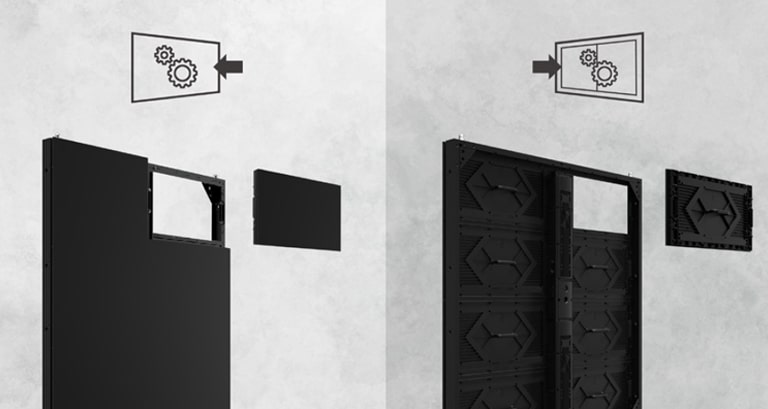

An LED module can be detached from the front side or rear side.

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their environment.

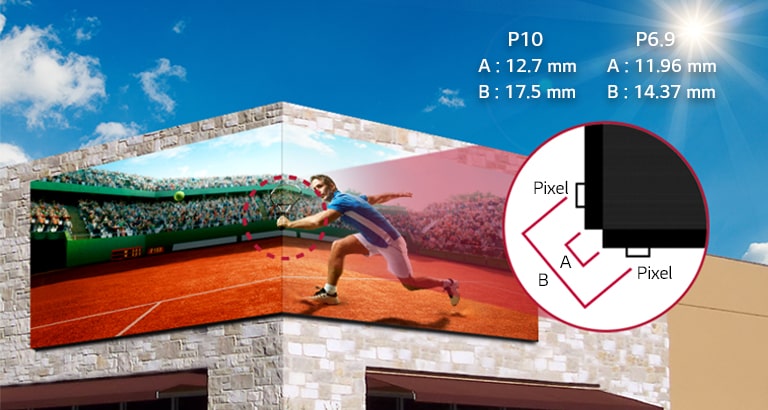

The GSCD series is showing clear content, being installed in a 90° corner.

90° Corner Design Available

If you add a 90° corner option*, the GSCD series can deliver content effectively even when installed on the corners.

*Require purchase of 90° corner installable model.

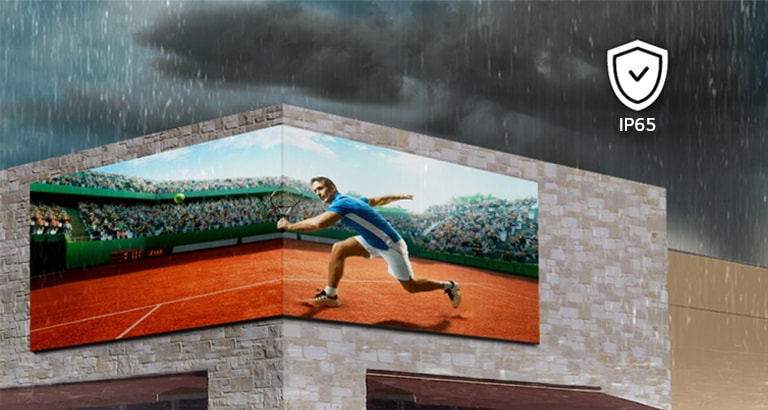

The IP65 certified cabinet allows the GSCD series to work well even in rainy or cloudy weather.

IP Rated Weatherproof Design

The front and back of the cabinet are IP65 certified, allowing stable operation less affected by weather.

All Spec

PHYSICAL PARAMETER

Pixel Configuration

3 in 1 SMD
Pixel Pitch (mm)

10.41
Module Resolution (W x H)

48 × 24
Module Dimensions (W x H, mm)

500 × 250
Weight per Module (kg)

1.30
No. of Modules per Cabinet (W × H)

2 × 4 / 2 × 2 (Half-sized)
Cabinet Resolution (W × H)

96 × 96 / 96 × 48 (Half-sized)
Cabinet Dimensions (W × H × D)

1,000 × 1,000 × 85.1 mm / 1,000 × 500 × 85.1 mm (Half-sized)
Cabinet Surface Area (m²)

1.000 / 0.500 (Half-sized)
Weight per Cabinet (kg/cabinet)

19.0 / 10.6 (Half-sized)
Weight per Square Meter (kg/m²)

19.0 / 21.2 (Half-sized)
Physical Pixel Density (pixels/m²)

9,216
Flatness of Cabinet

±0.5 mm
Cabinet Material

Aluminum Profile
Service Access

Front or Rear (One Option Only)
