LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography

Features

Gallery

Specs

Support

Resource

Find a Dealer

LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography

LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography

31HN713D-B
()

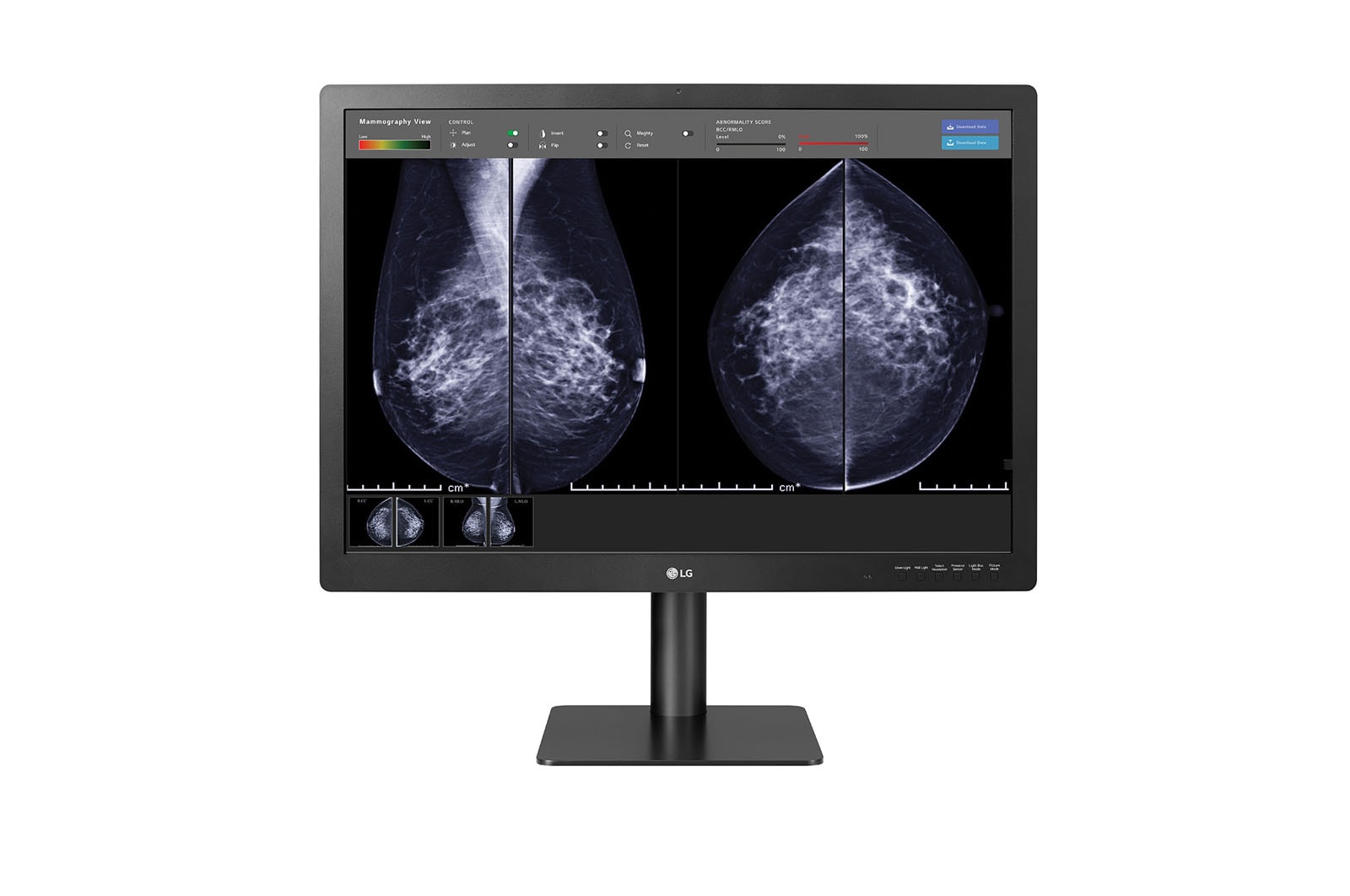

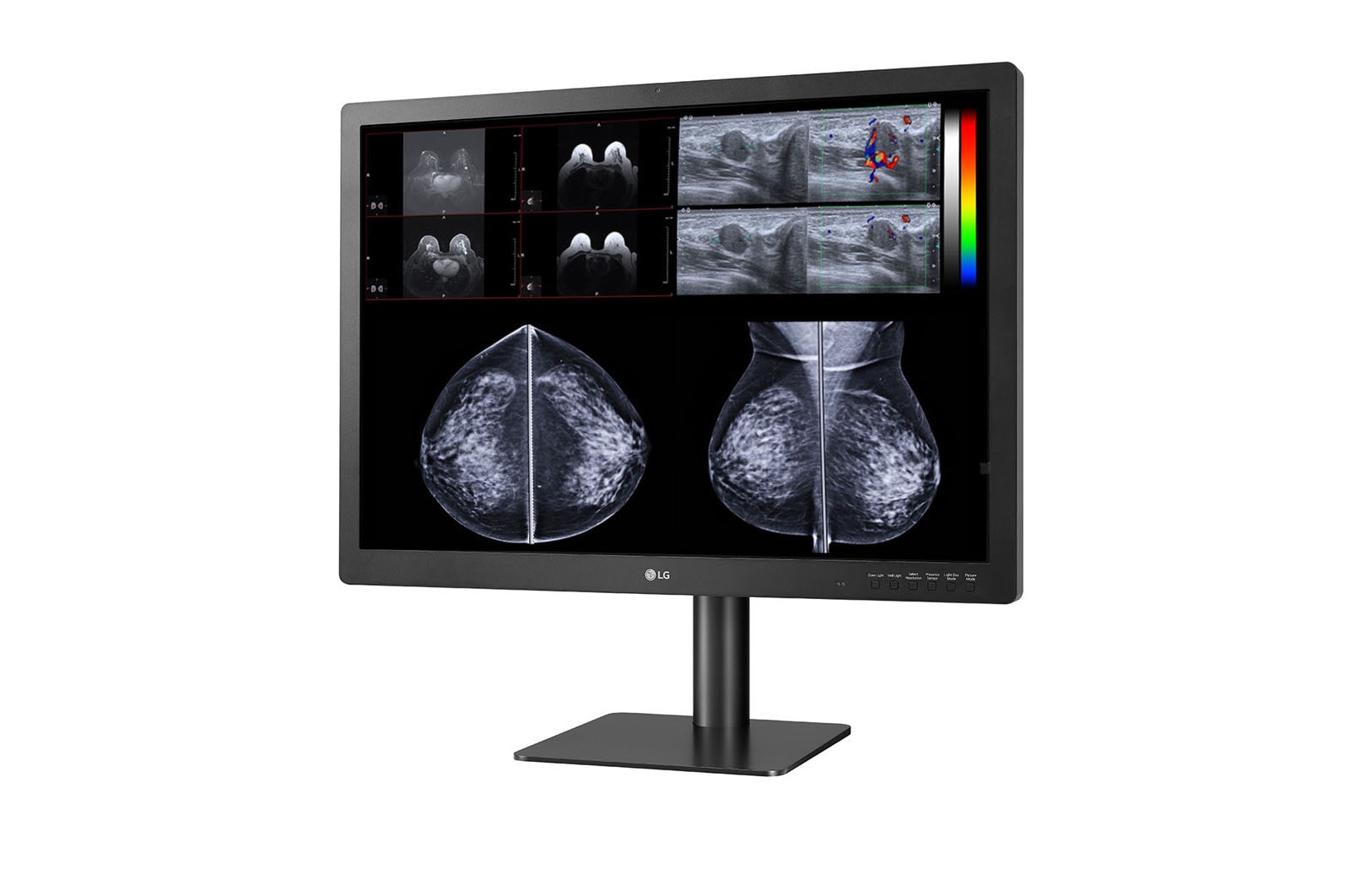

  • front view with mammography imaging results on the screen
  • LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
  • LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
  • LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
  • LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
  • LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
  • LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
  • LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
  • LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
  • LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B

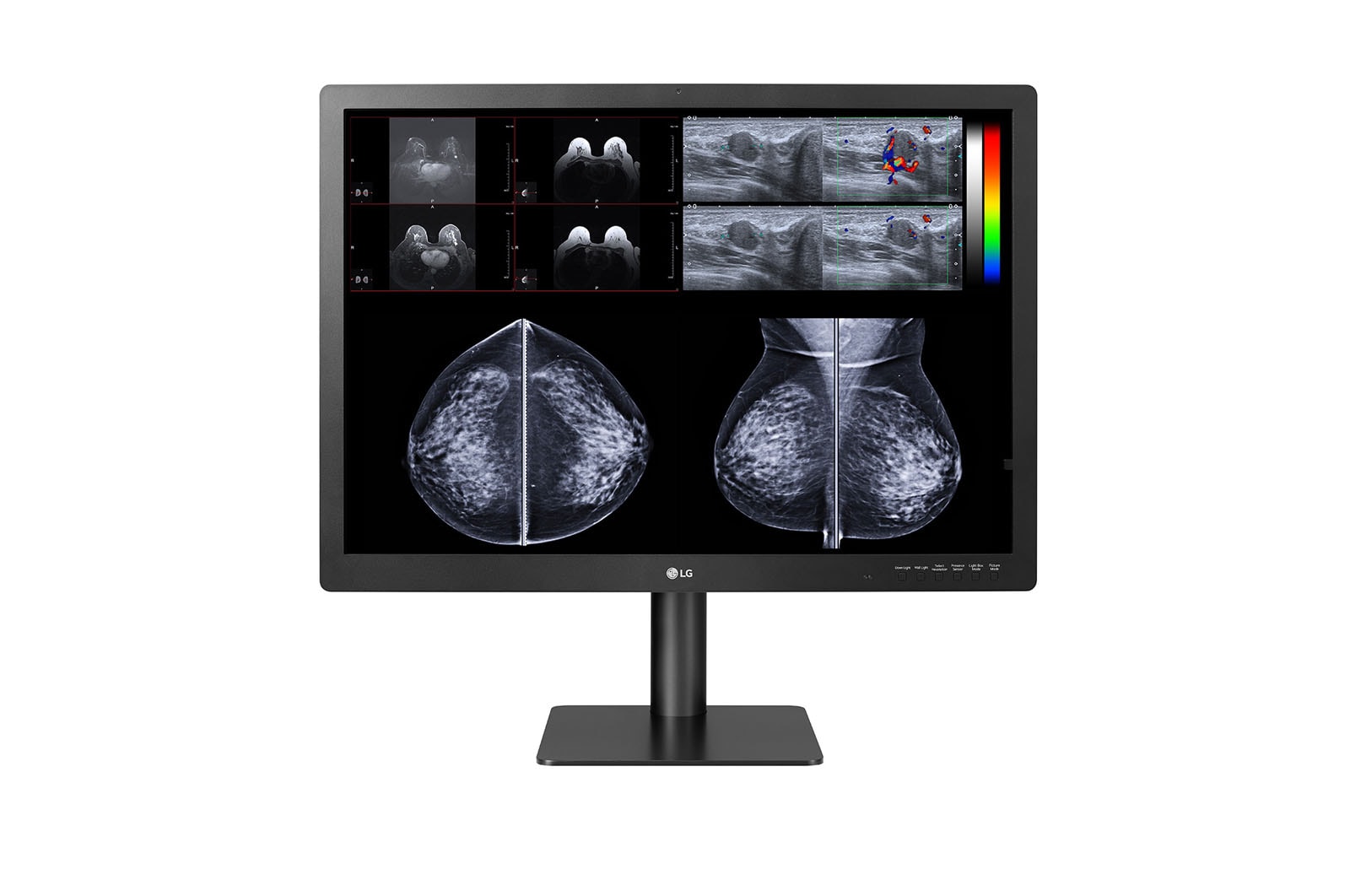

front view with mammography imaging results on the screen
LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B
LG 31 (78.74cm) 12MP Diagnostic Monitor for Mammography, 31HN713D-B

Key Features

  • 31 (78.74cm) 12MP (4200x2800) IPS Display
  • Multi-resolution Mode (12/6MP)
  • 1080 cd/㎡ (Typ.)
  • Pathology Mode, Focus View Mode
  • Lighting (Down/Wall Lighting)
More
lg 31 inch 12mp ips display designed for breast imaging offering streamlined workflow, and improved comfort
31 (78.74cm) 12MP IPS Display

Designed for Mammography

Accuracy

31 (78.74cm) 12MP IPS Display
Self-calibration with Front Sensor

Efficiency

Focus View
PBP & Dual Controller

Convenience

6 Hot Key
Ergonomic Design

Accurate Imaging

multi-resolution mode offering for users to select resolution between input of 12mp and of 6mp

Multi-resolution Mode



Compatible with Every Device

Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 31HN73D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.



pathology mode offering imaging results as detailed and accurately colored as seen under a microscope

Pathology Mode



True-to-Life Color Reproduction

In Pathology Mode, the 31HN713D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.



the monitor equipped with the front-sense offering for automatic self-calibration
Self-calibration

Consistency in Medical Images

The front-sensor allows for automatic, self-calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.

Streamlined and Efficient Workflow

multi-resolution mode offering for users to select resolution between input of 12mp and of 6mp

Presence Sensor



Hassle-free Savings & Stronger Security

Thanks to the Presence Sensor of 31HN713D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.



multi-resolution mode offering for users to select resolution between input of 12mp and of 6mp

Auto Luminance Sensor



Reducing Eye Strain

LG 31HN713D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.



focus view offering for users to review a specific part of imaging
Focus View

Fully Focus on the Important part

LG 31HN713D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the important part of the image for a more accurate and efficient diagnosis.

More Ergonomic and Comfortable to Review

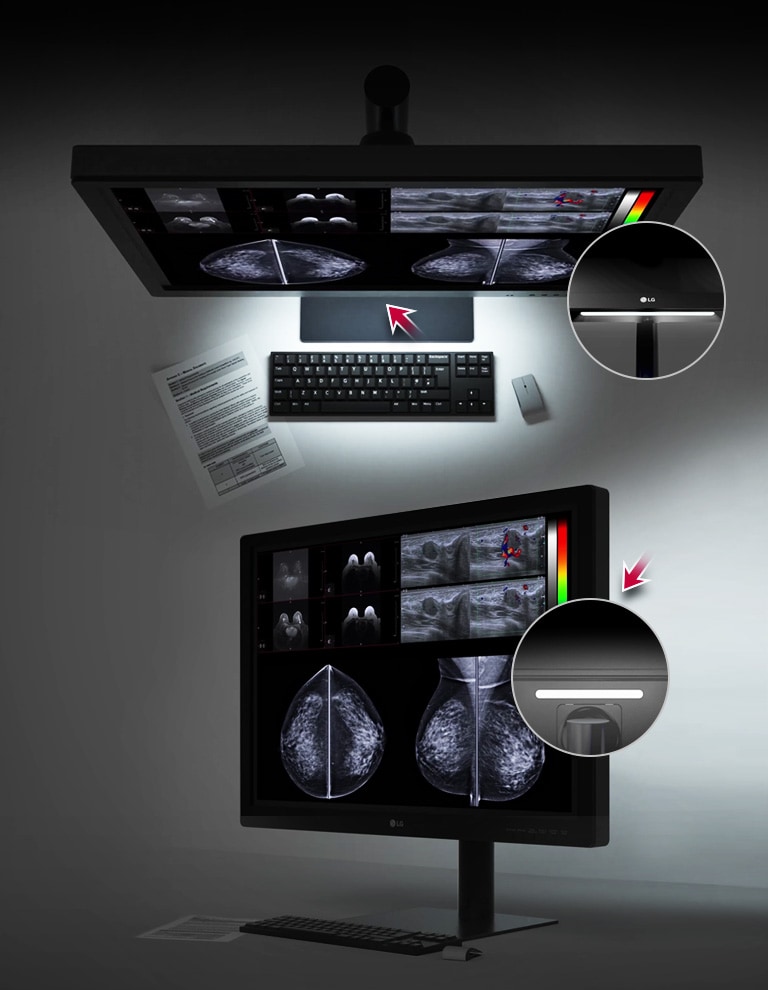

Down Lighting & Wall Lighting

Optimal Reading Condition

Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.

down lighting, and wall lighting offering users to view imaging results on the screen comfortably in the darkroom

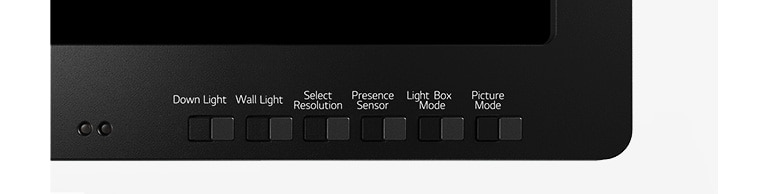

6 Hot Keys

Intuitive Control

The 31HN713D's 6 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 6 Hot Keys are much faster and easier to operate while working, allowing you to change mode, screen resolution, and lighting settings all without disrupting your workflow.

6 hot keys offering user's intuitive control consisting of down light, wall light, select resolution, presence sensor, light box mode, and picture mode

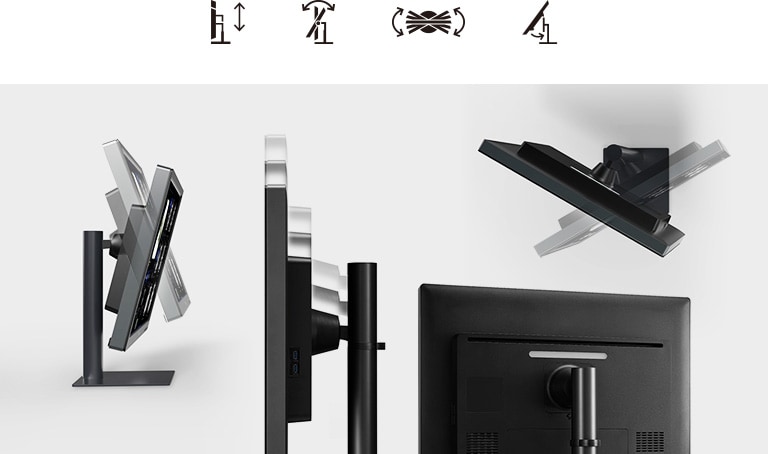

Ergonomic Design

Easy and Comfort

The One-Click Stand and ultra-lightweight body make installing the 31HN713D simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel, reducing chronic pain caused by long hours of work.

one-click stand with ultra-lightweight body making installation easy, and the stand offering adjustment of tilt, height, and swivel

Print

All Spec

DISPLAY

  • Size [Inch]

    31

  • Aspect Ratio

    3:2

  • Panel Type

    IPS

  • Resolution

    4200x2800

  • Viewing Angle (CR≥10)

    178°(Right/Left), 178°(Up/Down)

  • Brightness (Typ.) [cd/m²]

    1080cd/m² (Uniformity On)

  • Contrast Ratio (Typ.)

    1500:1

  • Response Time

    14ms(Off-setting), 5ms(Faster-setting)

  • Color Gamut (Typ.)

    sRGB over 97%(Coverage)

  • Size [cm]

    78.74cm

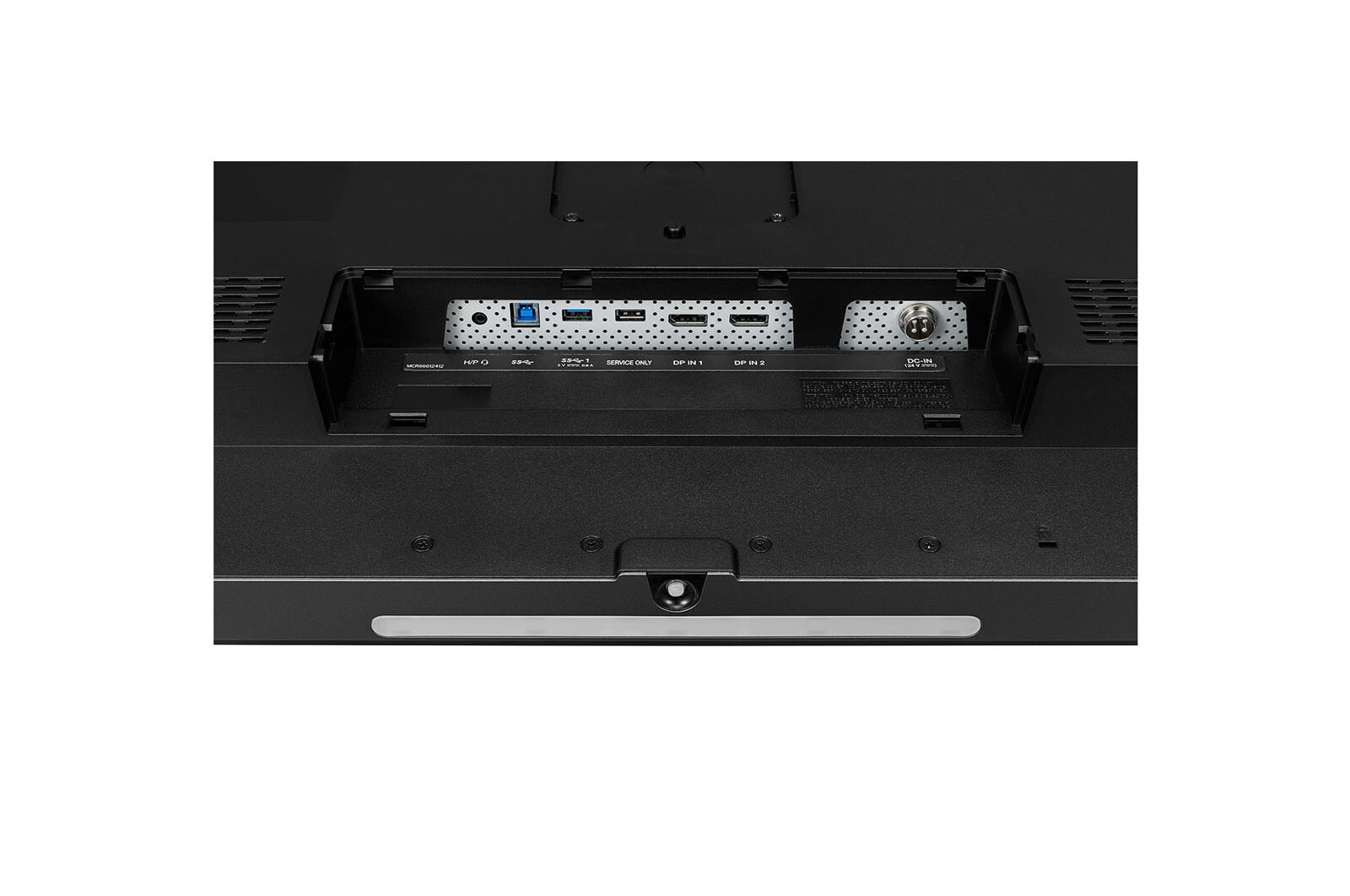

CONNECTIVITY

  • DisplayPort

    Yes (2ea)

  • USB Downstream Port

    Yes(3ea/ver3.0)

  • USB Upstream Port

    Yes(1ea/ver3.0)

  • Headphone out

    Yes

FEATURES

  • Flicker Safe

    Yes

  • Black Stabilizer

    Yes

  • Smart Energy Saving

    Yes

  • HW Calibration

    Yes

  • PBP

    Yes (2PBP)

  • Reader Mode

    Yes

  • Super Resolution+

    Yes

MECHANICAL

  • Display Position Adjustments

    Tilt/Height/Swivel

  • Wall Mountable [mm]

    100 x 100mm

DIMENSIONS/WEIGHTS

  • Dimension in Shiping (W x H x D) [mm]

    21.5kg(TBD)

  • Dimension with Stand (W x H x D) [mm]

    14.0kg(30.9lb)

  • Dimension without Stand (W x H x D) [mm]

    10.7kg(23.6lb)

  • Weight in Shipping [kg]

    978x628x277mm

  • Weight with Stand [kg]

    704.7x662.6x280mm

  • Weight without Stand [kg]

    704.7x499.5x83.2mm

SW APPLICATION

  • Dual Controller

    Yes

POWER

  • Power Consumption (DC Off)

    Less than 0.3W

  • Power Consumption (Max.)

    180W

  • AC Input

    100-240Vac, 50/60Hz

  • Type

    External Power (Adapter)

ACCESSORY

  • Display Port

    Yes

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
