LG 31.5 (80.01cm) 4K IPS Surgical Monitor

Features

Gallery

Specs

Support

Resource

Find a Dealer

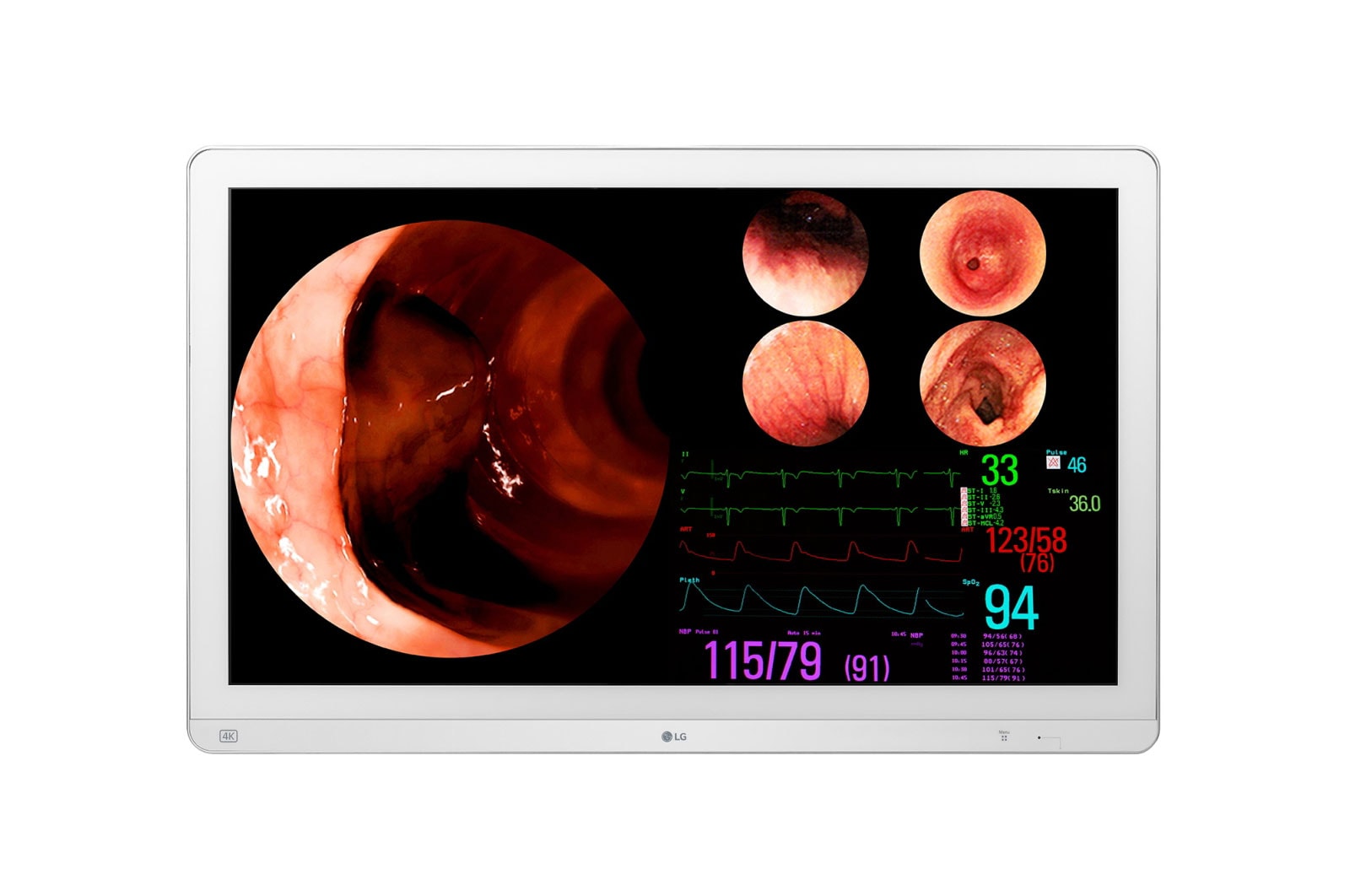

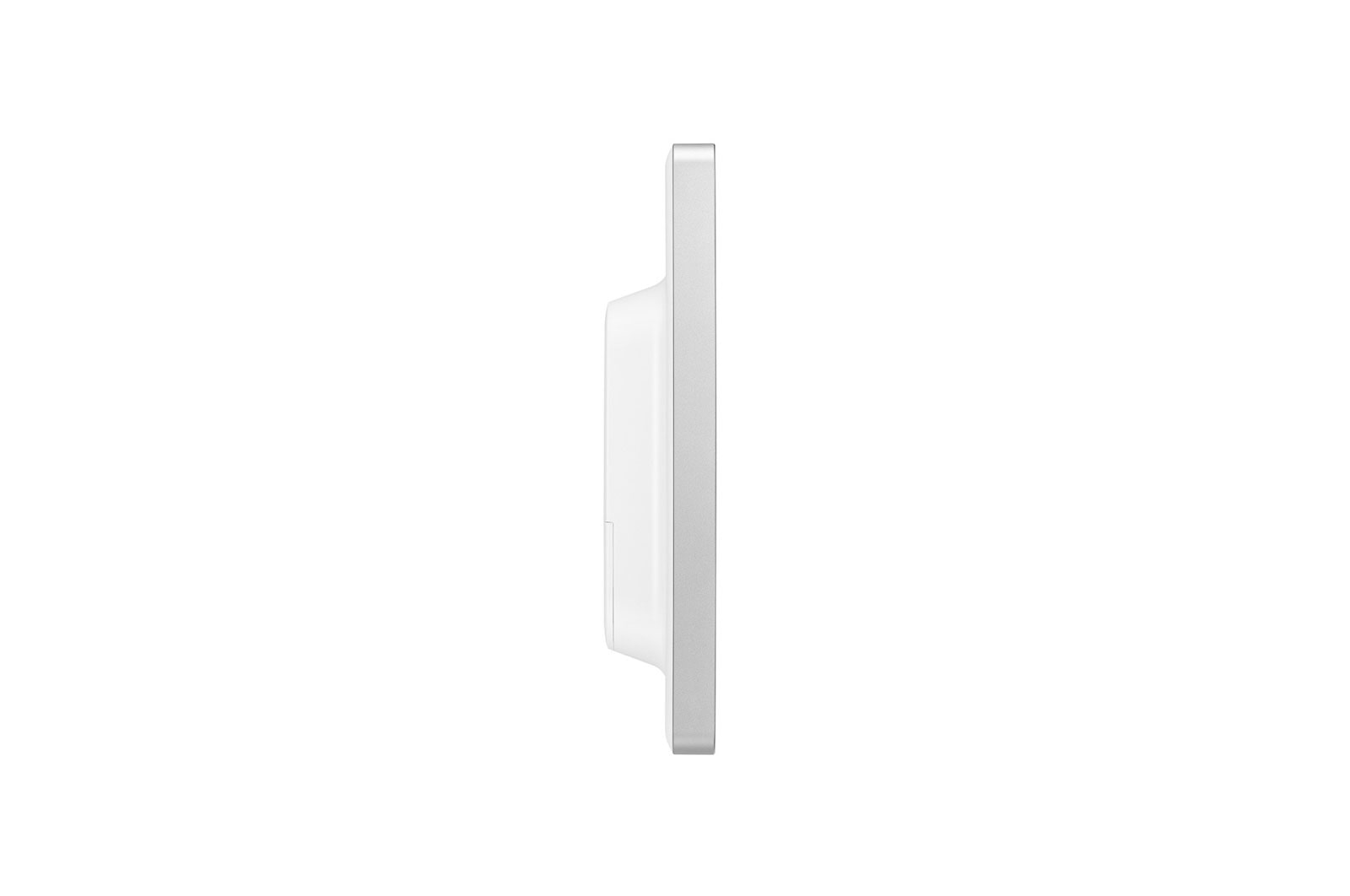

LG 31.5 (80.01cm) 4K IPS Surgical Monitor

32HL710S-W

LG 31.5 (80.01cm) 4K IPS Surgical Monitor

()
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL710S-W

Key Features

  • 31.5 (80.01cm) 4K (3840x2160) IPS
  • Support HDR10
  • Mirror & Rotation Mode
  • Up to 4PBP, PIP
  • Dustproof, Water Resistant
  • Protection Glass
More

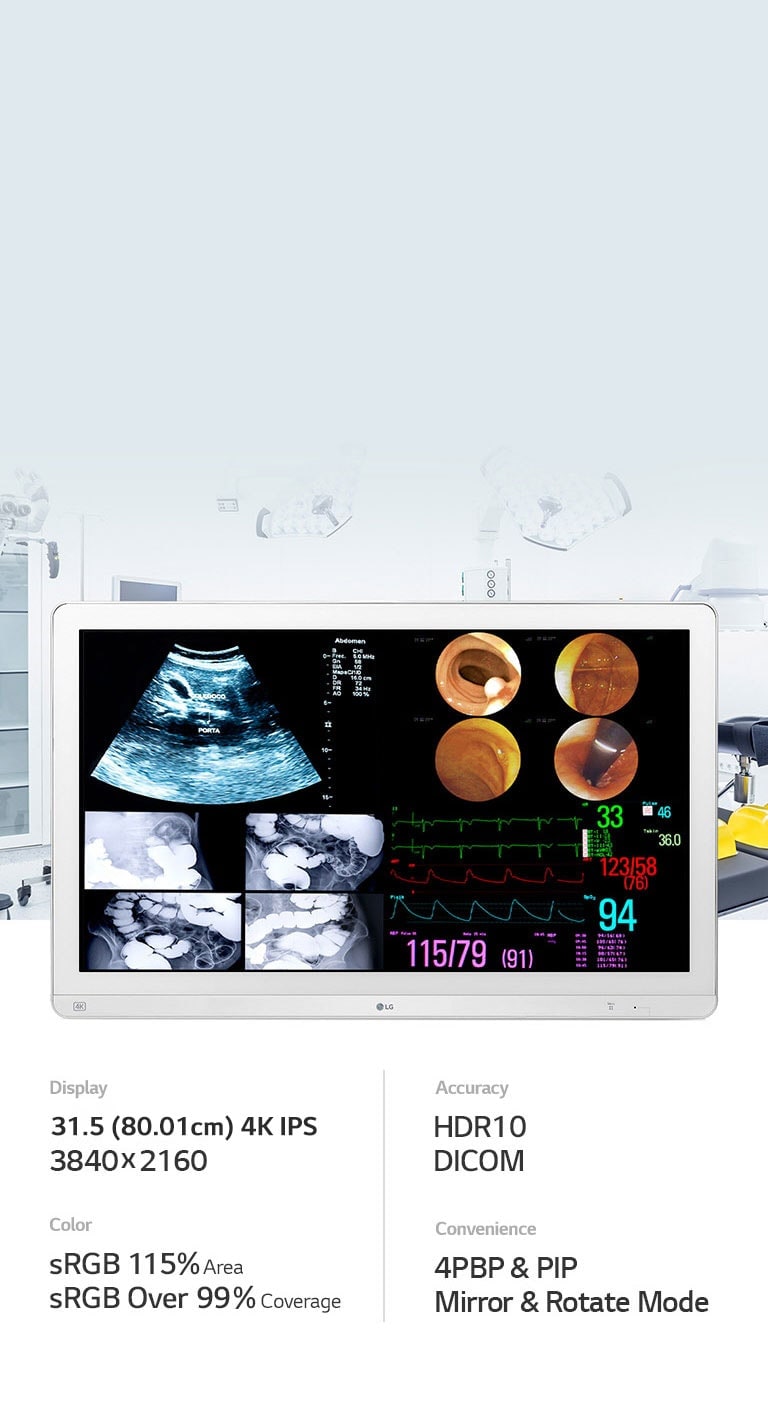

Large Display for Surgical Precision2

4K Surgical Display

Large Display for Surgical Precision

LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.

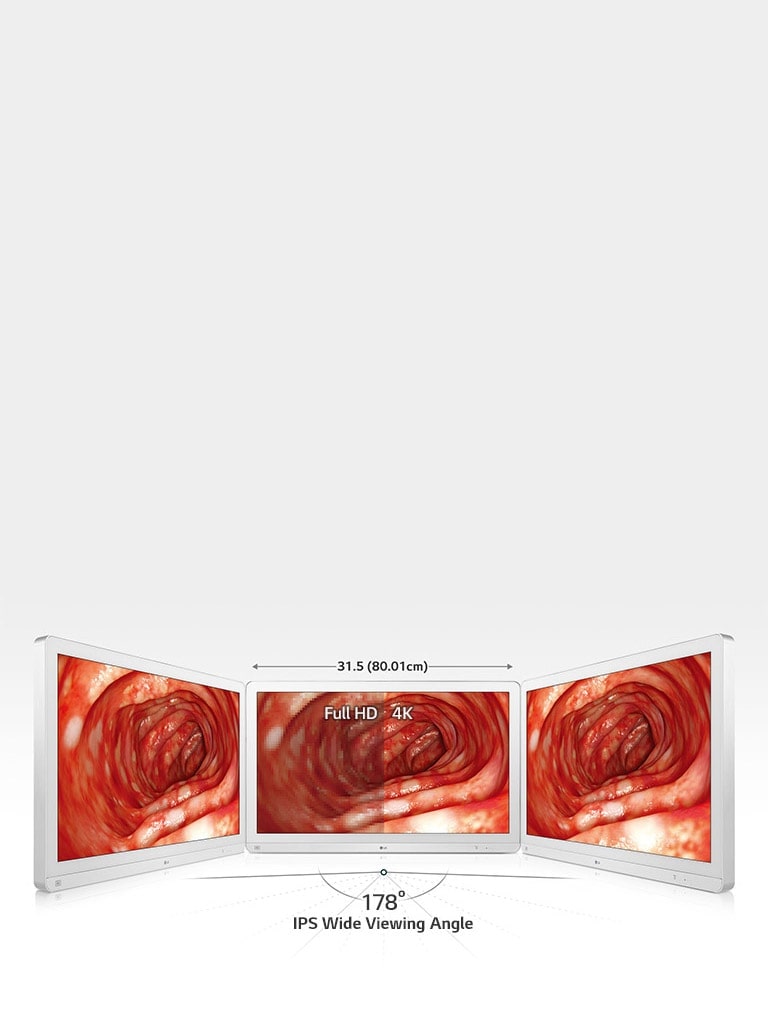

Enhanced Accuracy with Wide View2

31.5 (80.01cm) 4K IPS

Enhanced Accuracy with Wide View

With 31.5 (80.01cm) 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.

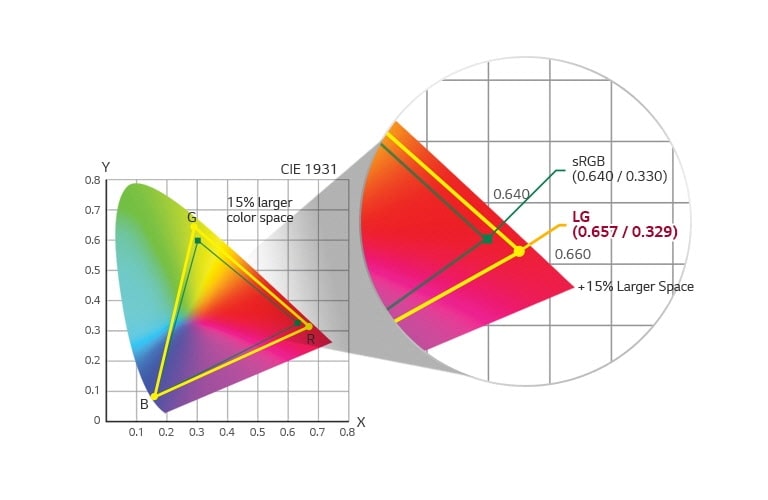

CIE 1931 color space diagram sRGB / LG, 15% larger color space

sRGB 115% (Area), Over 99% (Coverage)

The 32HL710S, supports sRGB 115% (Area) and Over 99% (Coverage) with the standard DICOM Part 14, is designed for accurate color recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.

None Brightness Stabilization VS. Brightness Stabilization

Brightness Stabilization

LG surgical monitor is designed to fits with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.

None HDR10 VS. HDR10

Support HDR10

LG 4K surgical monitor is compatible with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.

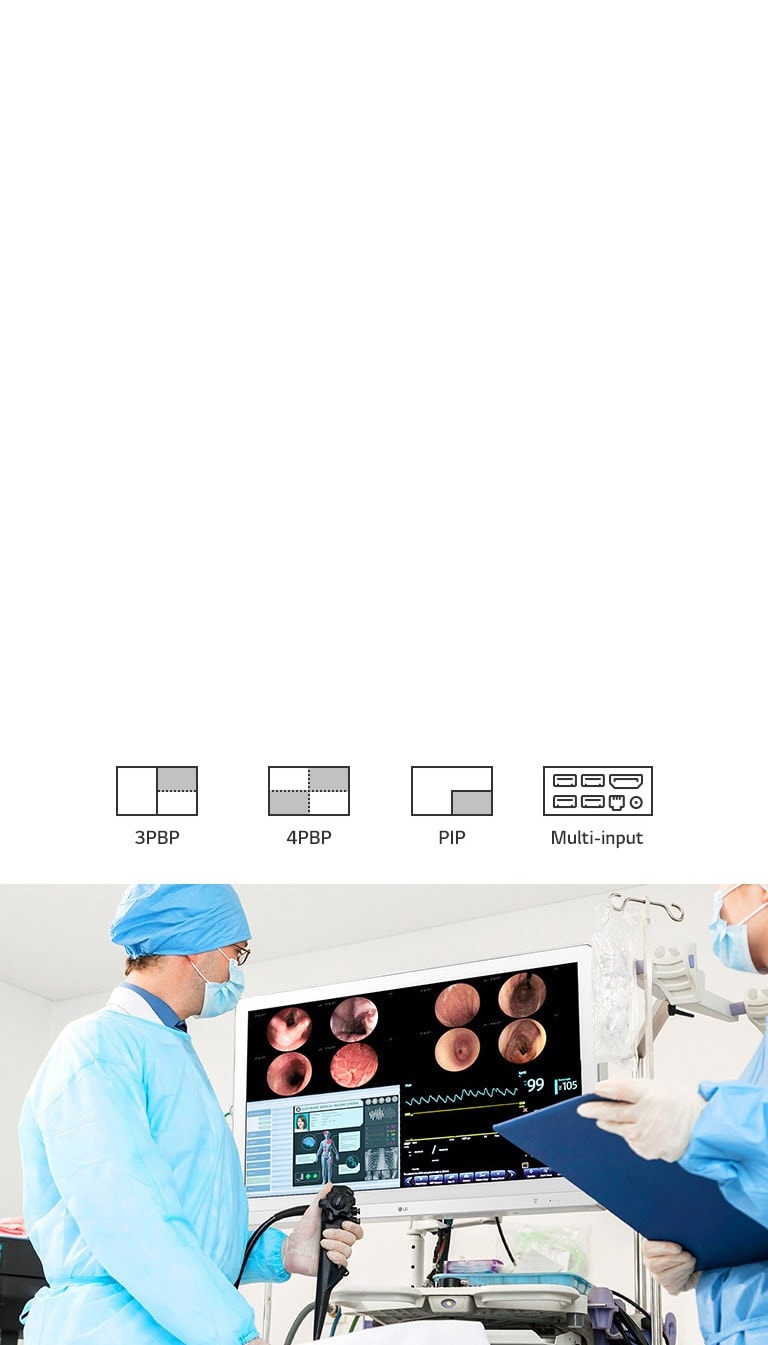

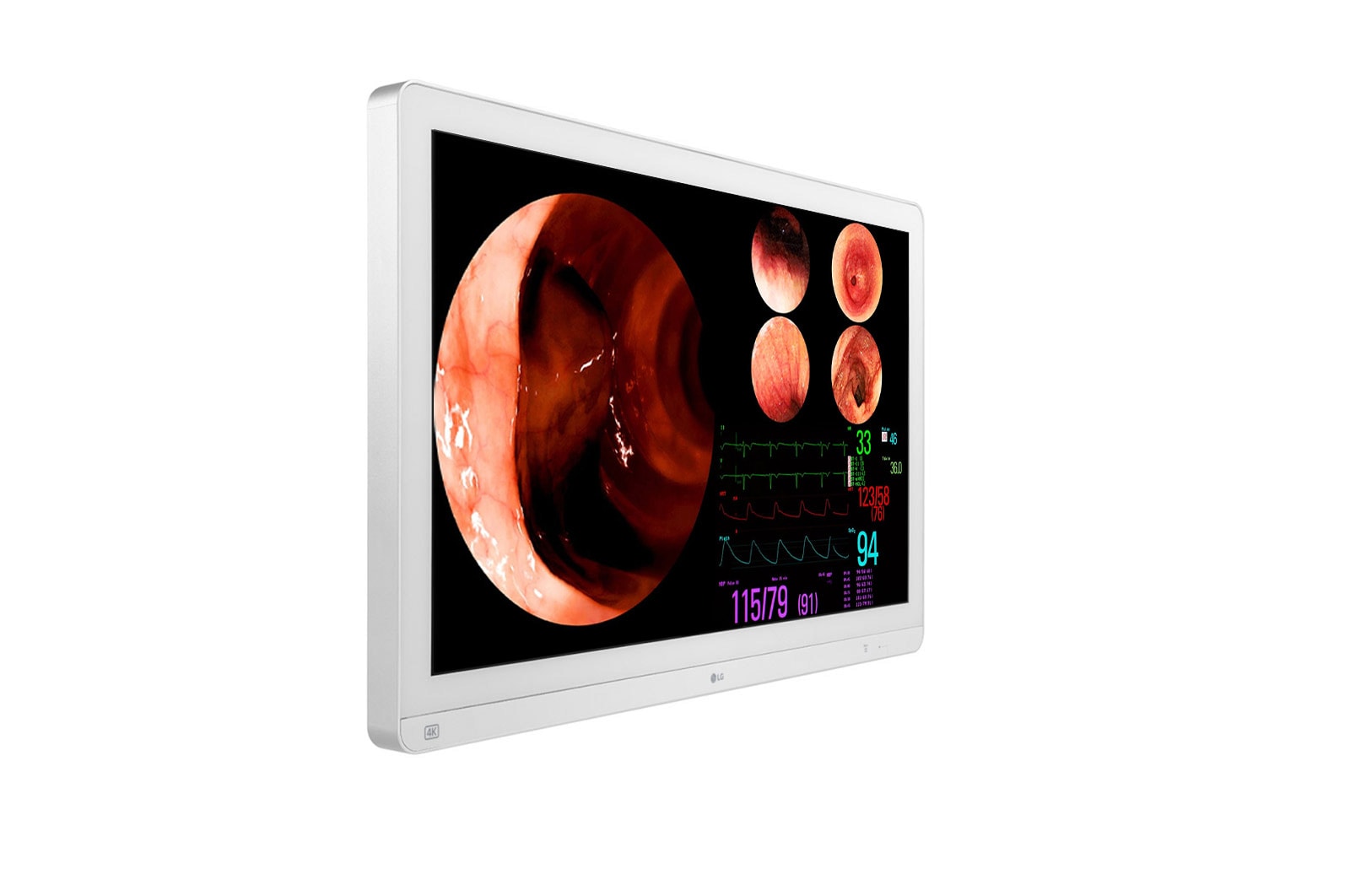

Multiple Signals on One Screen2

PBP, PIP & Multi-input

Multiple Signals on One Screen

The 32HL710S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.

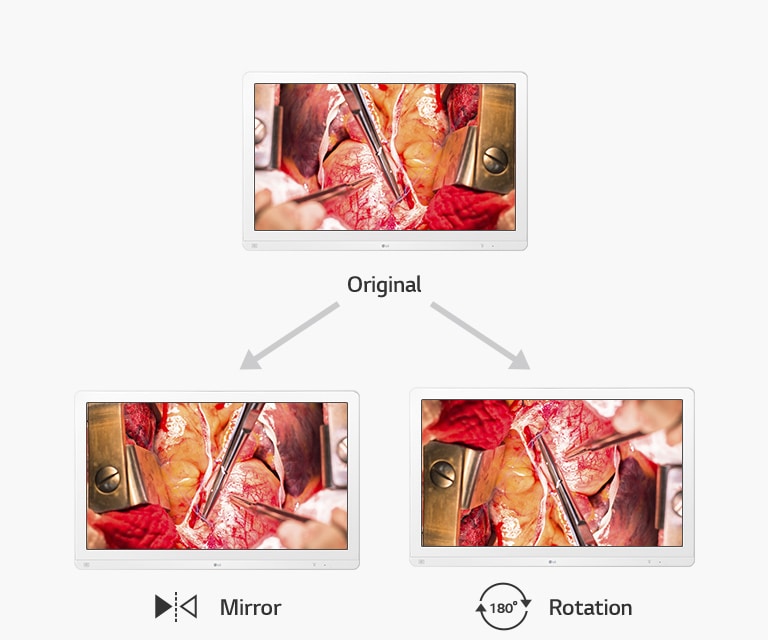

Original screen, Mirror screen and 180° Rotation
Mirror & Rotation

Find the Perfect Operating View

The 32HL710S with Mirror & Rotate functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.

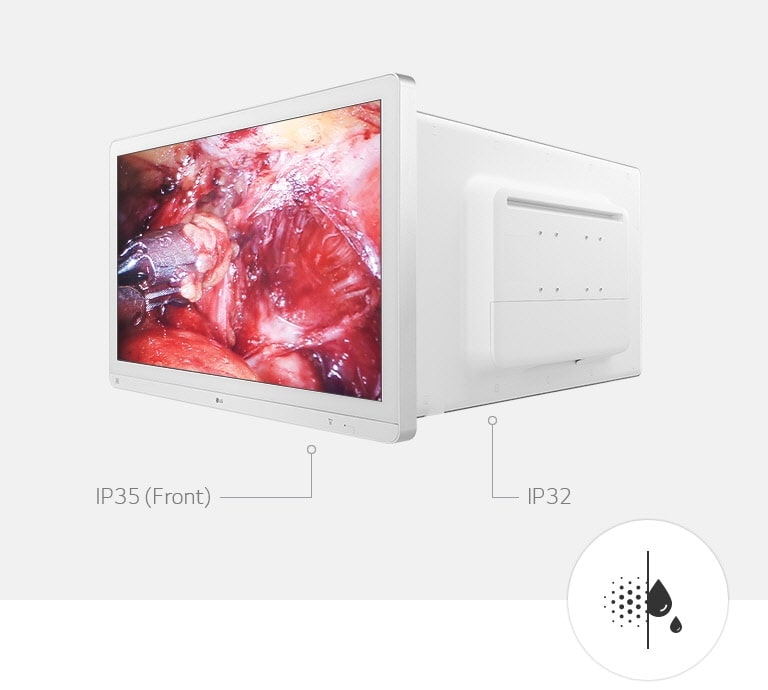

Dustproof

Dustproof & Water Resistant

To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.

Print

All Spec

DISPLAY

  • Category

    Surgical Monitors

  • Aspect Ratio

    16:9

  • Brightness (Typ.)

    800

  • Color Gamut (Typ.)

    sRGB 115% (Area),
    Over 99% (Coverage)

  • Contrast Ratio (Typ.)

    1000:1

  • Panel Type

    IPS

  • Peak Brightness (Typ.)

    800

  • Pixel Pitch

    0.18159(H)mm x 0.18159(V)mm

  • Resolution

    3840 x 2160

  • Response Time (GTG)

    14ms (Off), 5ms (Faster)

  • Size (cm)

    80.0051

  • Surface Treatment

    Protection Glass (1.6t, AR, AF)

  • Viewing Angle (CR≥10)

    178(R/L), 178(U/D)

FEATURE

  • Auto Luminance sensor

    Yes

  • Black Stabilizer

    Yes

  • Factory Calibration

    Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)

  • DICOM

    Yes (<=10%)

  • Color Temperature

    6500K/7500K/9300K
    Manual (5000K ~ 10000K)

  • Flicker safe

    Yes

  • HDR 10

    Yes

  • HDR Effect

    Yes

  • HW Calibration

    Yes (True Color pro)

  • OSD Language

    17 Languages

  • PBP

    Yes (2PBP/3PBP/4PBP)

  • PIP

    Yes

  • Picture Mode

    (SDR) Custom, Mono, Vivid, HDR Effect, DICOM, Calibration 1, Calibration 2, (HDR) Custom, Vivid, Standard

  • Screen Flip

    Yes

  • Smart Energy Saving

    Yes

  • Super Resolution+

    Yes

  • Uniformity

    Yes

SW APPLICATION

  • True Color Pro

    Yes

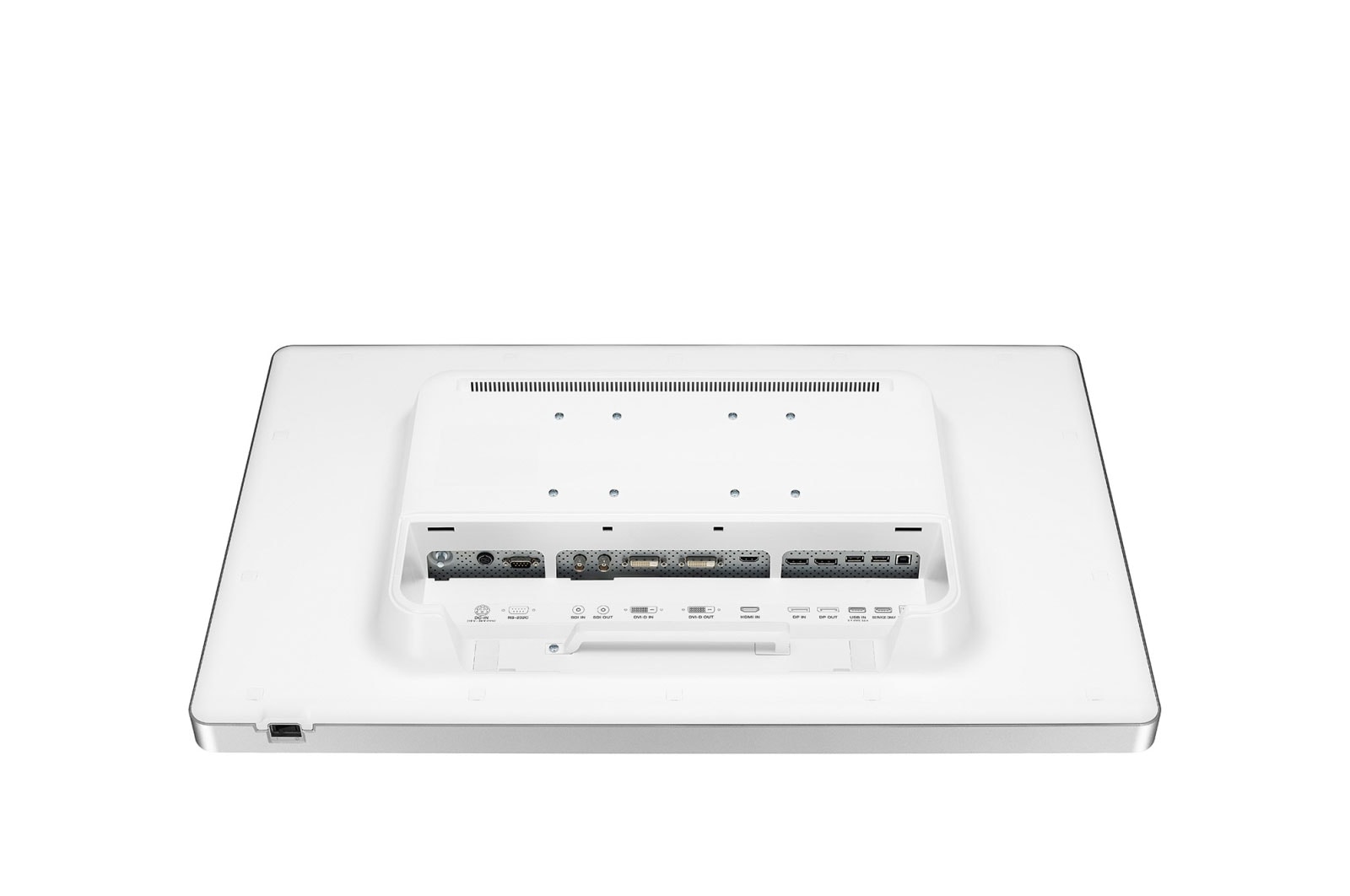

CONNECTIVITY

  • 3G-SDI

    Yes (3G,IN x 1/OUT x 1)

  • DP Version

    1.2

  • DVI

    Yes (1In / 1Out)

  • DisplayPort

    Yes (in 1ea/out 1ea)

  • HDMI

    Yes (1ea)

  • HDMI Version

    2.0

  • RS-232

    Yes

  • USB Downstream Port

    Yes (1ea/ver2.0)

  • USB Upstream Port

    Yes (1ea/ver2.0)

POWER

  • AC Input

    100-240Vac, 50/60Hz

  • DC Output

    19-24V, 6.32A-5.0A (24V Ready)

  • Power Consumption (DC Off)

    Less than 0.3W

  • Power Consumption (Max.)

    120W

  • Type

    External Power (Adapter)

MECHANICAL

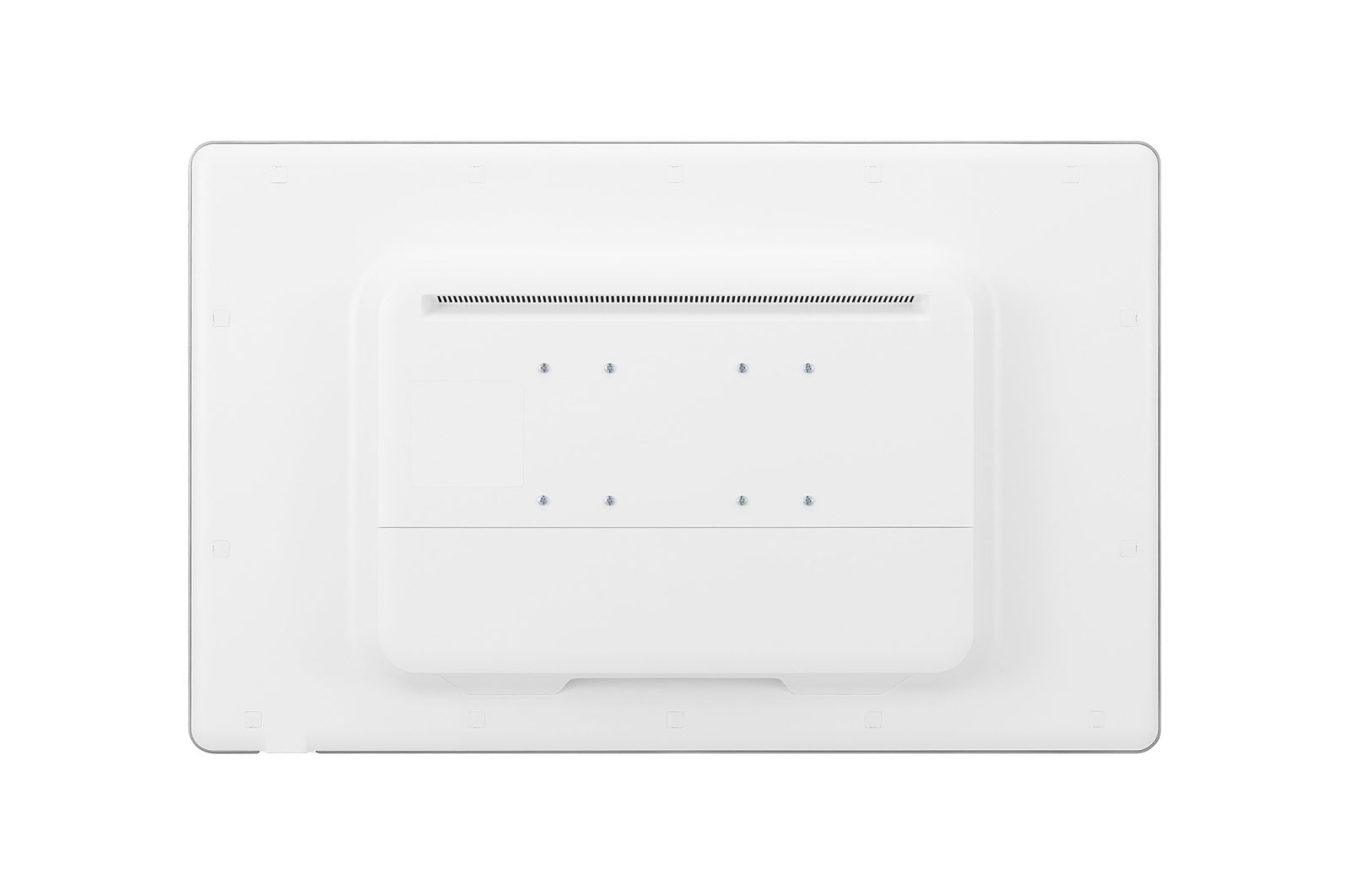

  • Wall Mountable

    200 x 100 mm & 100 x 100 mm

DIMENSIONS/WEIGHT

  • Dimension in Shiping (W x H x D)

    883 x 599 x 200 mm

  • Dimension without Stand (W x H x D)

    764.6 x 480.8 x 94.4 mm

  • Pallet Stuffing (20ft/40ft/40ft HC)

    216EA/405EA/495EA

  • Weight in Shipping

    17.2 kg

  • Weight without Stand

    12.2 kg

STANDARD

  • IEC (IEC 60601-1/IEC 60601-1-2)

    Yes

  • EN (EN 60601-1/EN 60601-1-2)

    Yes

  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)

    Yes

  • FCC (FCC part 15 Class A)

    Yes

  • FDA

    Registration (Class I)

  • CE (MDD 93/42/EEC, 2007/47/EC)

    Yes

  • ISO13485

    Yes

  • GMP

    Yes

  • KGMP

    Yes

  • RoHS

    Yes

  • REACH

    Yes

  • WEEE

    Yes

  • MFDS

    Yes

  • IP (front/except for front)

    IP35/IP32

  • Vandal-proof

    IK06

ACCESSORY

  • Adapter

    Yes

  • Calibration Report (Paper)

    Yes

  • Display Port

    Yes

  • HDMI

    Yes

  • Power Cord

    Yes

PRODUCT DETAILS

  • Net Quantity

    1 N

  • Country of Origin

    Korea

  • Manufactured By

    LG Electronics Nanjing New Technology Co. Ltd, NO.346, YAOXIN ROAD ECONOMIC & TECHNICAL DEVELOPMENT ZONE, NANJING, 210038, PEOPLE'S REPUBLIC OF CHINA

  • Imported By

    LG Electronics India Pvt. Ltd,A-24/6,Mohan Cooperative Industrial Estate, Mathura Road, New Delhi – 110044

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
