MIL-STD-810H
*LG gram: MIL-STD-810 standard testing and certification by KOLAS Labs December 2022. Passed 7 different MIL-STD 810H Tests for durability conducted by an independent laboratory that conforms to U.S. military standards. Compliant with the following methods for MIL-STD-810H: Method 500.6 Low Pressure (Altitude) (Procedure I – Storage and Method and Procedure II - Operation); Method 501.7 High Temperature (Procedure I – Storage and Procedure II - Operation); Method 502.7 Low Temperature (Procedure I – Storage and Procedure II - Operation); Method 509.7 – Salt Fog Test; Method 510.7 - Dust; Method 514.8 – Vibration; Method 516.8 Shock (Procedure II) – Transportation Shock. Device may not perform as tested in all conditions. Test performed in controlled environment. Do not attempt.
*It is not available to arbitrarily manipulate the refresh rate when the VRR is on.
*As the refresh rate is reduced when the mouse is not moved or in standby mode, the power consumption is decreased.
*The refresh rate range is 31Hz~144Hz.
**VRR LCD brightness is 400nits(Typ.) and 350nits(Min.).
Normal LCD brightness is 350nits(Typ.).
*The images simulated to enhance feature understanding. It may differ from actual use.
**DCI-P3 Typical 99%, Minimum 95%.
DCI-P3 : The color standard that is defined by the Digital Cinema Initiatives (DCI).
*The images simulated to enhance feature understanding. It may differ from actual use.
*The brightness is 350nits(Typ.).
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
*This feature is only available when the product and mobile phone are connected to the internet.
*To use this function, scan the QR code generated by the PC app with your phone. In case not available to scan the QR, enter the 6-digit PIN code to connect.
LG 16Z90R-G It show that the security guard works when user leaves the gram and it sends an alert to its user.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The e-mail notification works only when the product is connected to the internet and the adapter is plugged in. The security guard works no matter whether the internet is connected or not.
Protects your privacy by automatically locking your gram or blurring the screen when you leave your laptop or others see your screen.
Tracks your gaze and moves the mouse pointer accordingly or transfer active content to the screen you’re working on.
Alerts you when you make a bad posture as well as when you continually work on for a long time.
It makes not only audiences can see your presentation and material at a same time but also offers convenient functionalities such as auto mute, mute warning and virtual camera.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The model image in the video and the feature cards might be different from the actual model.
*Actual battery life will vary from specifications depending on model, setup configuration, applications used, features utilized and power management settings.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
**Modified keyboard location to improve the airflow. Larger fan with more blades. Applied graphite sheet under the keyboard. The advanced cooling feature is in comparison to the preceding model.

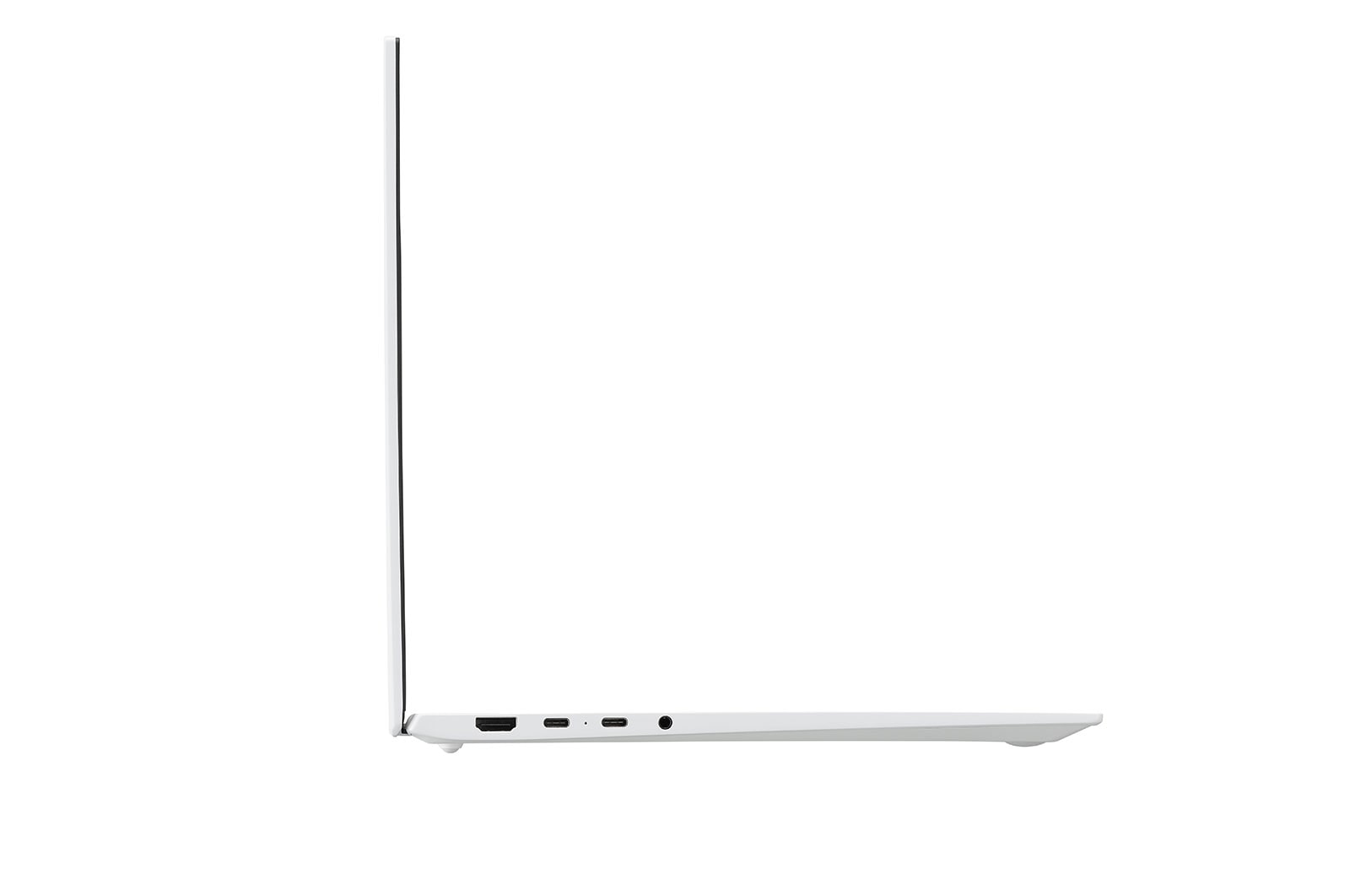

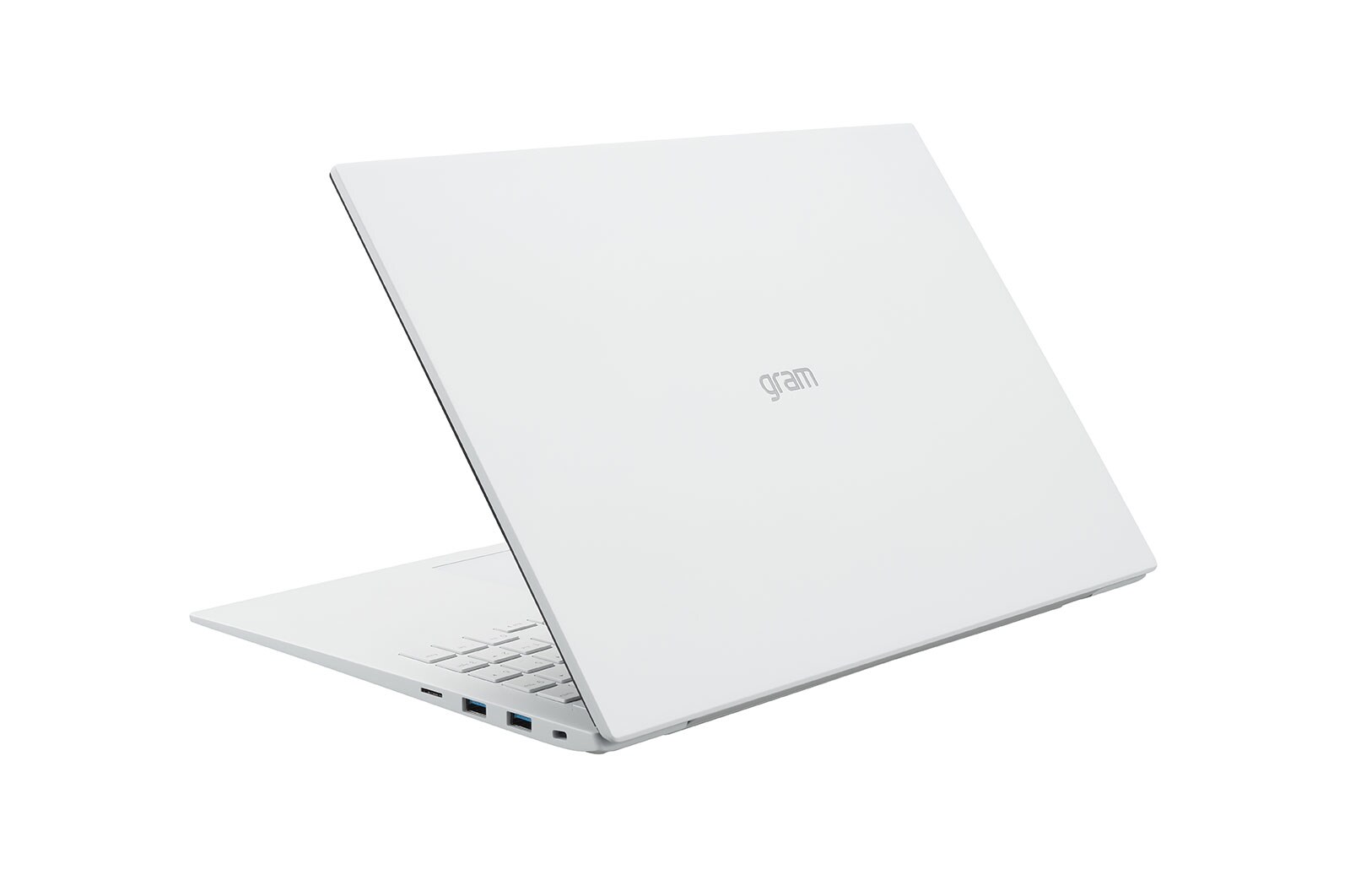

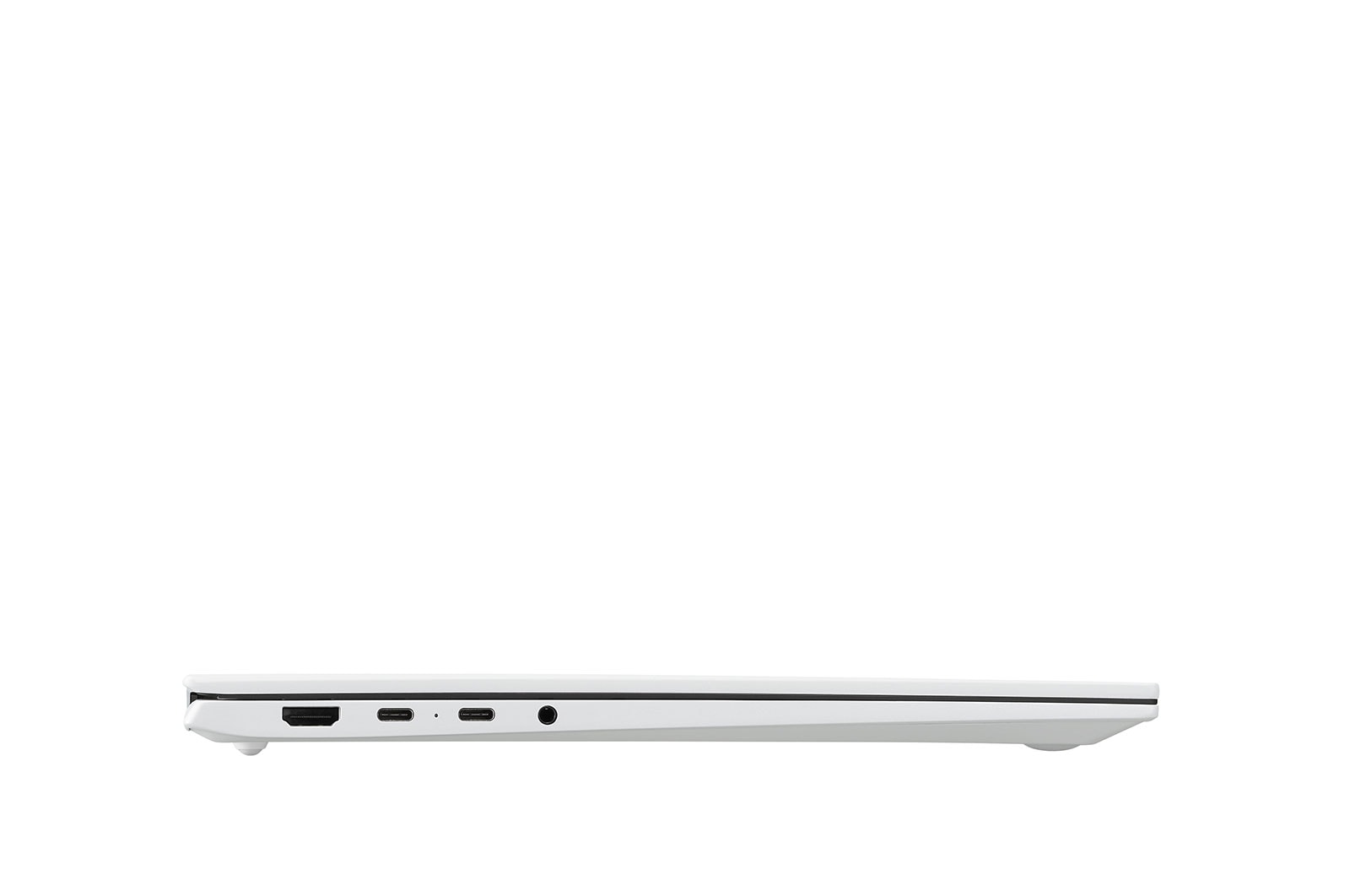

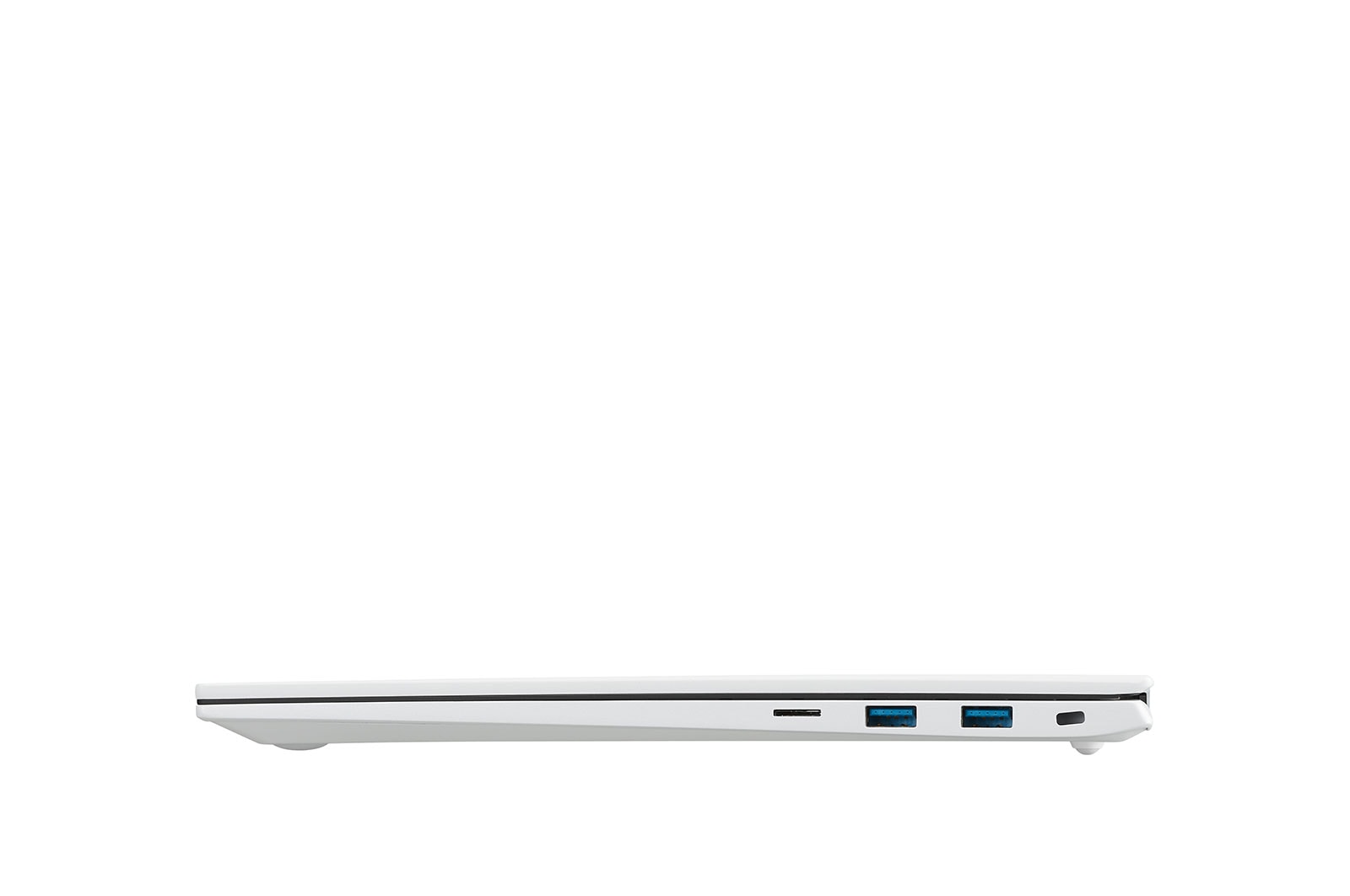

LG 16Z90R-G It shows various ports of LG gram.
*The cable for connection to 2nd display is not included. It is sold separately.
*The images simulated to enhance feature understanding. It may differ from actual use.
Operating System
Windows 11 Home
Size (Inch)
16
Processor
i7-1360P
Memory
16GB LPDDR5 (Dual Channel, 6000MHz)
SSD
512GB NVMe Gen4 M.2(2280) Dual SSD slots
weight(kg)
1.199
Resolution
WQXGA 2560 x 1600
Graphic
Intel Iris Xe Graphics
Color gamut
DCI-P3 99% (Typical, min 95%)
Product Category
gram
Year
Y23
Dimension(mm)
355.1 x 242.3 x 16.8
Shipping Dimension(mm)
475 x 290 x 60
Shipping weight(kg)
2.2
weight(kg)
1.199
Chassis Materials
Magnesium, PC-ABS
Color
Snow White
Graphic
Intel Iris Xe Graphics
Memory
16GB LPDDR5 (Dual Channel, 6000MHz)
Operating System
Windows 11 Home
Processor
i7-1360P
Brightness
350nit
Color gamut
DCI-P3 99% (Typical, min 95%)
Contrast
1200:1 (Typical)
Panel Type
IPS Non Touch
Pol
Anti-Glare
Ratio
16:10
Refresh Rate
60Hz
Resolution
WQXGA 2560 x 1600
Response Time
N/A
Size (Inch)
16
finger print
NO
fTPM/HW TPM
Option
Slim Kensington lock
YES
SSD Security
YES
Secure mode
NO
HDD Security
NO
eMMC
N/A
HDD
N/A
MMC Slot
Micro SD
SSD
512GB NVMe Gen4 M.2(2280) Dual SSD slots
Audio
HD Audio with Dolby Atmos
Speaker
Stereo Speaker 2.0W x 2, Max 5W(Smart Amp)
BT
BT 5.1
Interface
N/A
TV Tuner
N/A
Webcam
FHD IR Webcam with Dual Mic (Face recognition)
Wireless
Intel® Wireless-AX211 (802.11ax, 2x2, Dual Band, BT Combo)
Battery
80Wh
AC Adapter
65W
Accessory
USB-C to RJ45 adapter (B2B option)
Certified
N/A
Cyberlink Power Media, Photo Director LE*, Power Director LE*, Audio Director LE*, Color Director LE*
NO
Dolby Atmos
YES
DTS X:Ultra
NO
Intel® Connectivity Performance Suite
YES
Intel® Unision
YES
LG Control Center
NO
LG Display Extension
YES
LG Easy Guide / Troubleshooting Guide
NO
LG Glance by Mirametrix®
YES
LG On Screen Display 3
YES
LG PC Manuals
YES
LG Pen Settings
NO
LG Power Manager
NO
LG Reader Mode
NO
LG Security Guard
YES
LG UltraGear Studio
NO
LG Update & Recovery
YES
LG Update Center
NO
McAfee Live Safe (30 Days Trial)
YES
Microsoft 365 (30 Days Trial)
YES
Nebo for LG
NO
PCmover Professional
YES
Sync on Mobile
YES
Wacom notes
NO
HP-Out
4Pole Headset, US type
USB Type A
USB 3.2 Gen 2x1 (x1)
USB Type C
USB 4 Gen3x2 Type C (x2, with Power Delivery, Display Port, Thunderbolt 4)
HDMI
YES
DC-in
N/A
RJ45
N/A
Etc.
N/A
Keyboard
Full Size Backlit Keyboard (US: 97 Key, UK: 98 Key w/ 3 Column Numeric Keypad)
Pointing Device
Precision Touch Pad w/ Scroll and Gesture Function (size: 131.5 x 82.6mm)
LED
Power, DC-In, Caps Lock, webcam
Thermal
N/A
Button
Power button without Fingerprint
Net quantity
1
Country of origin
China
Imported by
LG ELECTRONICS INDIA PVT LTD, A-24/6, MOHAN COOPERATIVE INDUSTRIAL ESTATE, MATHURA ROAD, NEW DELHI – 110044
Manufactured by
LG ELECTRONICS NANJING NEW TECHNOLOGY CO. LTD., 346, YAOXIN ROAD, ECONOMIC & TECHNICAL DEVELOPMENT ZONE, NANJING 210038, CHINA
