32SM5J-B component-copyModelName
Full HD Standard Signage

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (32SM5J-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (32SM5J-B)
    $
    $
    LG Members Price
Total
Full HD Standard Signage

LG webOS Standard Signage

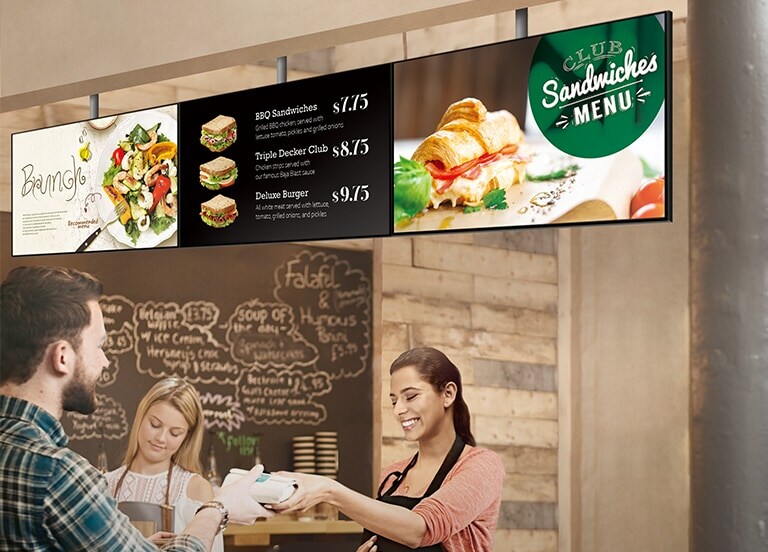

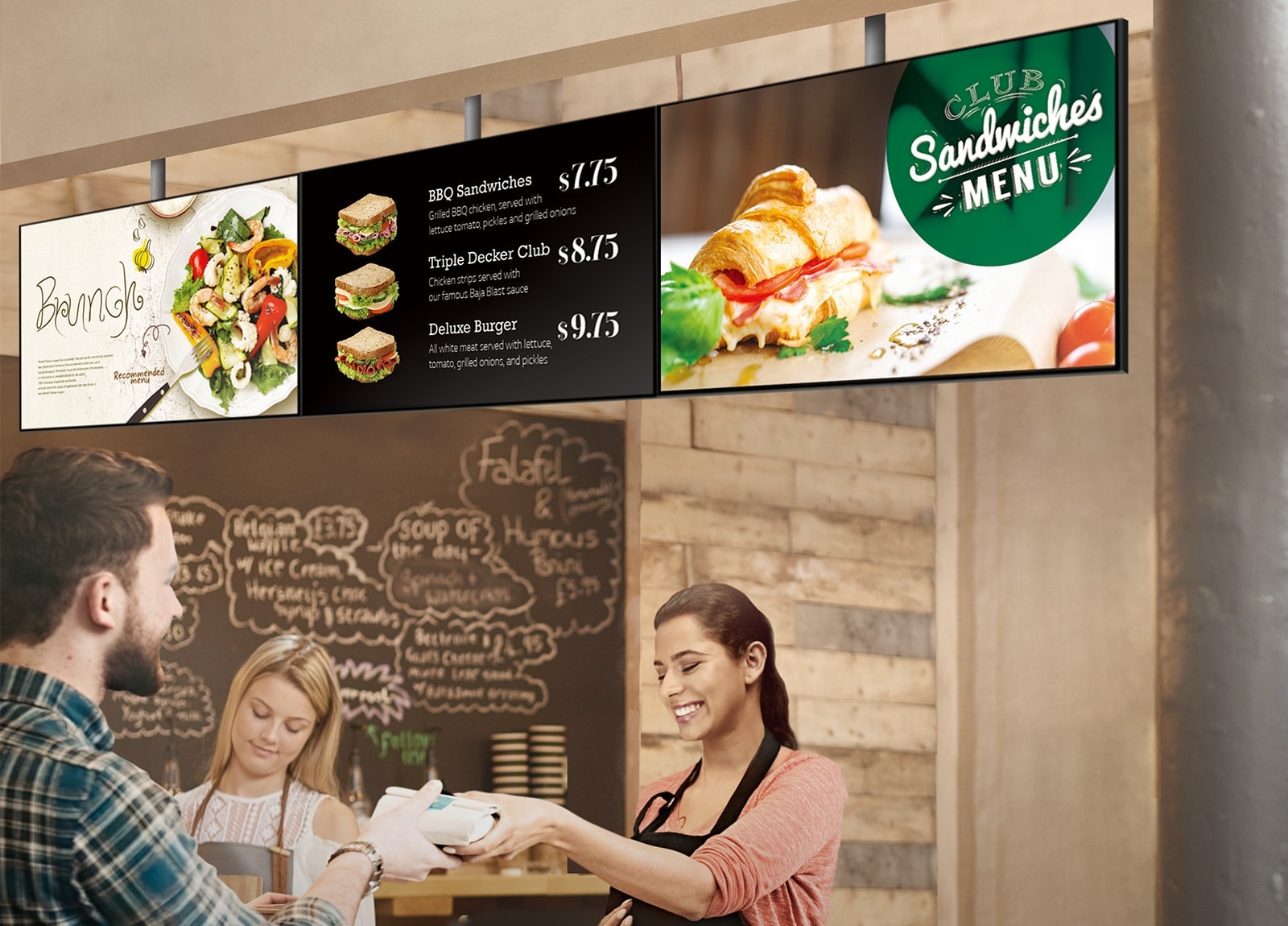

The staff in a sandwich store is handing a sandwich to a customer. The SM5J series showing a menu board is installed above them, displaying sandwich menus with brunch promotions. The staff in a sandwich store is handing a sandwich to a customer. The SM5J series showing a menu board is installed above them, displaying sandwich menus with brunch promotions.
* All images in this web page are for illustrative purposes only and may differ from the actual product.

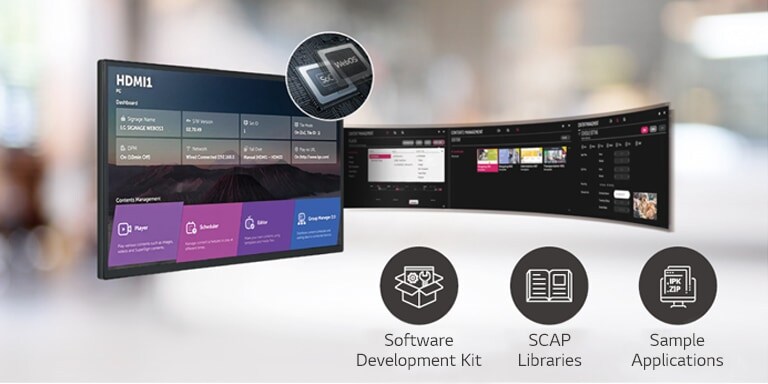

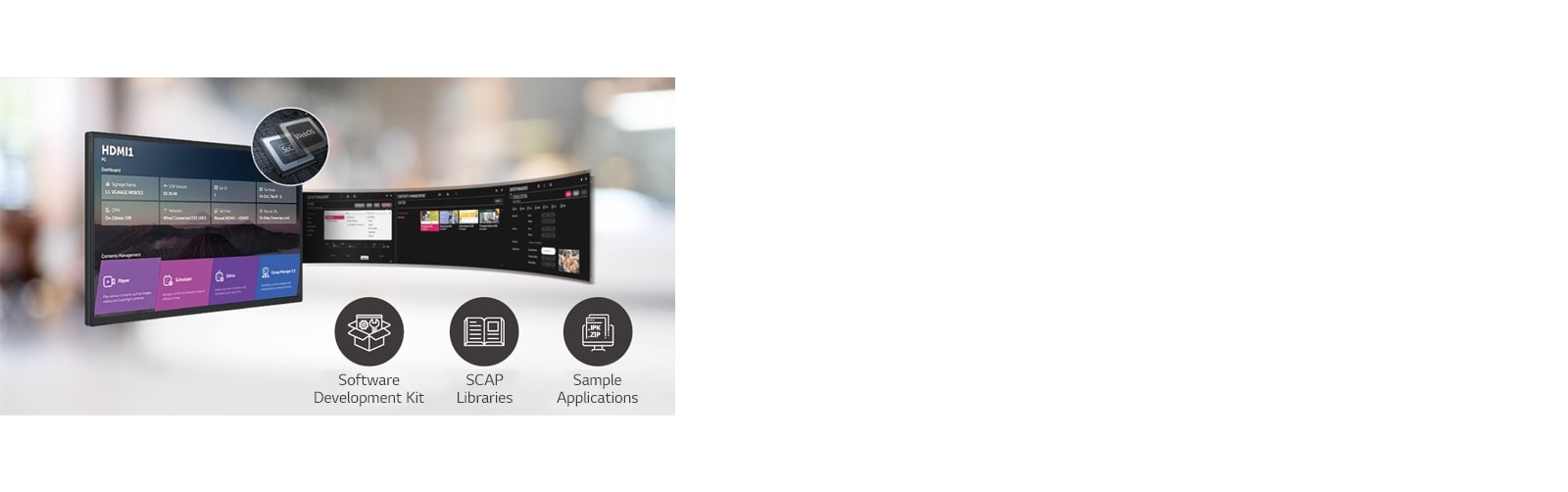

This image shows that several tasks can be done at the same time with the intuitive GUI. This image shows that several tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS 6.0

webOS 6.0, upgraded in SoC and web engine, is available on SM5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

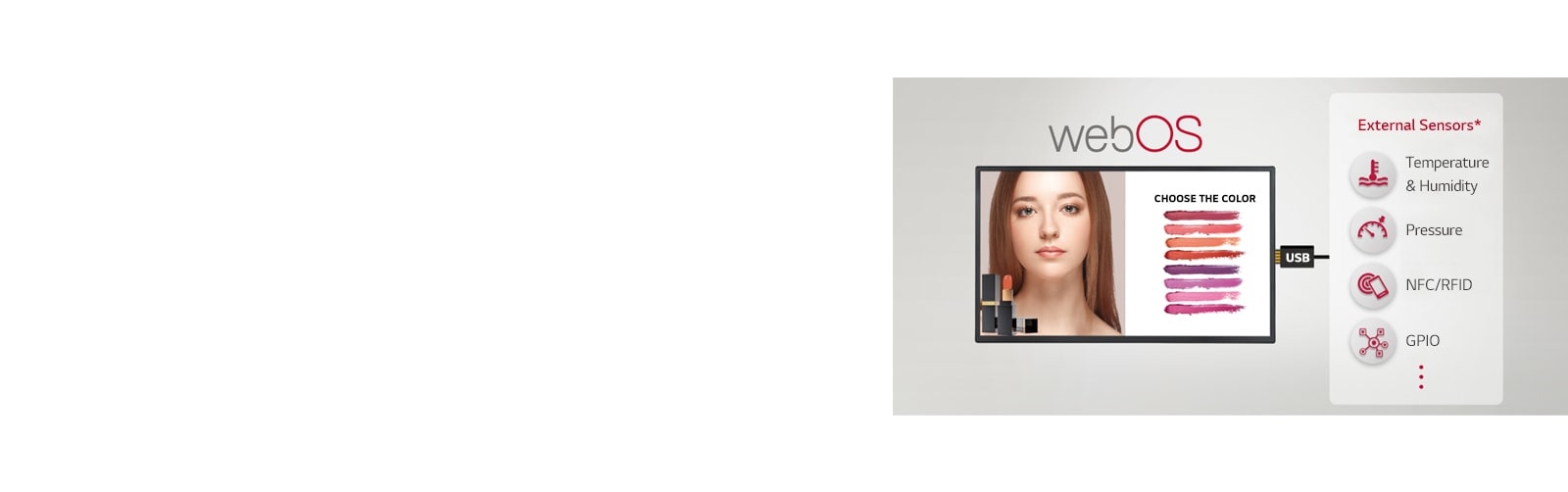

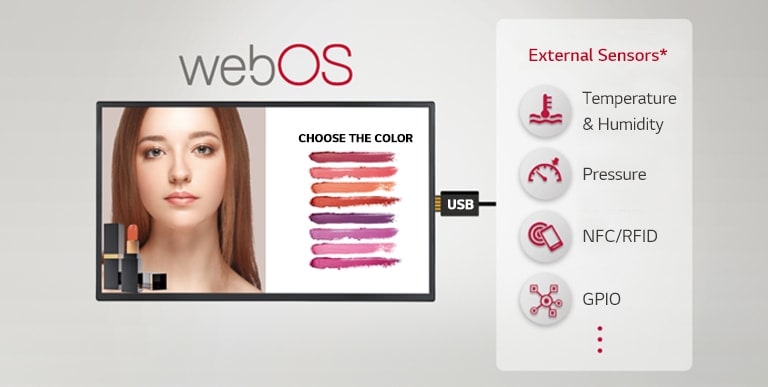

The image shows that various external sensors and signage can be connected through a USB plug-in, providing easy value-added solutions. The image shows that various external sensors and signage can be connected through a USB plug-in, providing easy value-added solutions.

Various Sensor Connection

LG webOS smart signage platform helps to easily provide additional solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.
* External sensors need to be purchased separately and tested for compatibility with webOS platform.

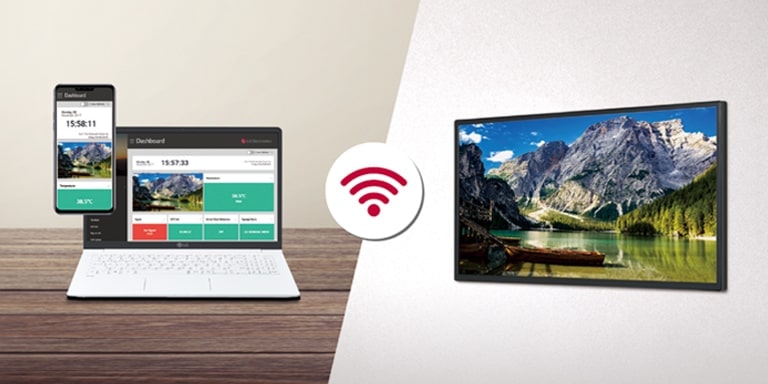

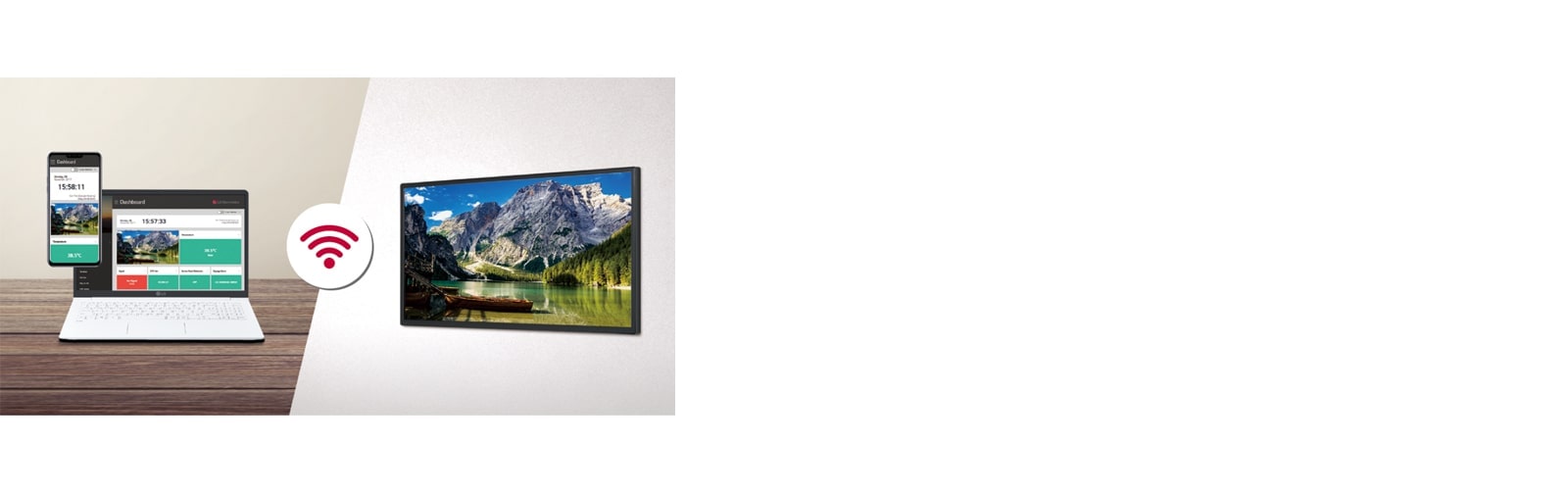

This image shows that the content set on the Control Manager page and the content displayed on the signage are the same. It indicates that the SM5J series can be remotely controlled and monitored in a different place with devices such as a mobile phone and a laptop, through the Control Manager. This image shows that the content set on the Control Manager page and the content displayed on the signage are the same. It indicates that the SM5J series can be remotely controlled and monitored in a different place with devices such as a mobile phone and a laptop, through the Control Manager.

Mobile & Web Monitoring

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the SM5J series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.
* The mobile devices need be connected with the Signage IP address and can control one Signage at a time.
** Control Manager is optimized for Google Chrome 56 version and above.

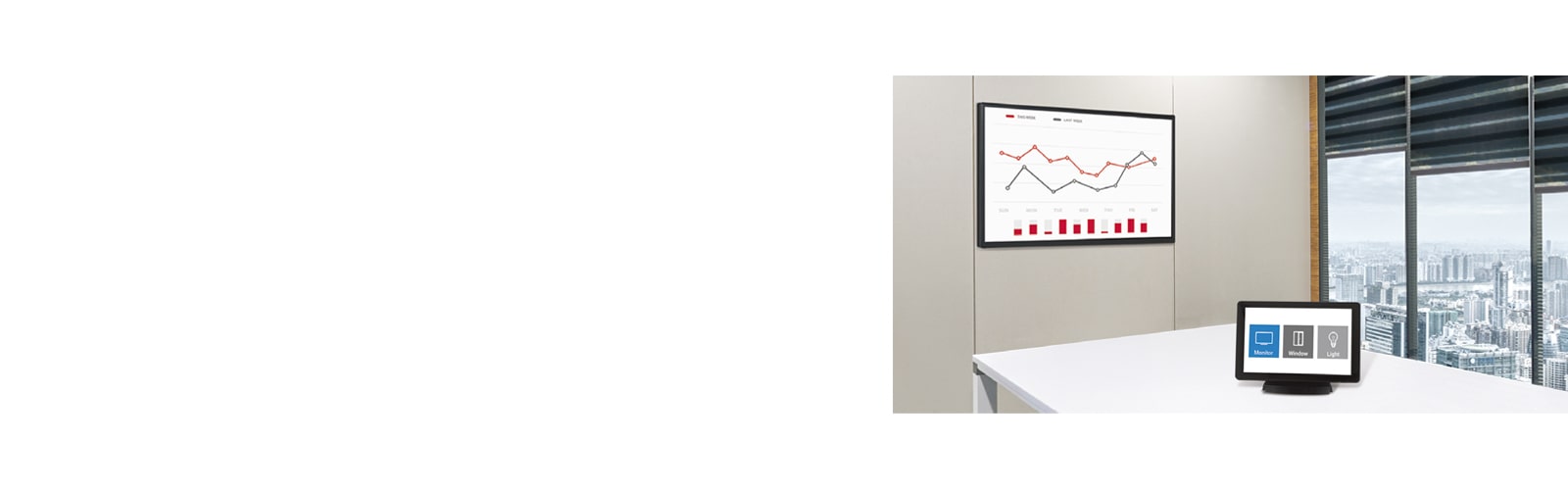

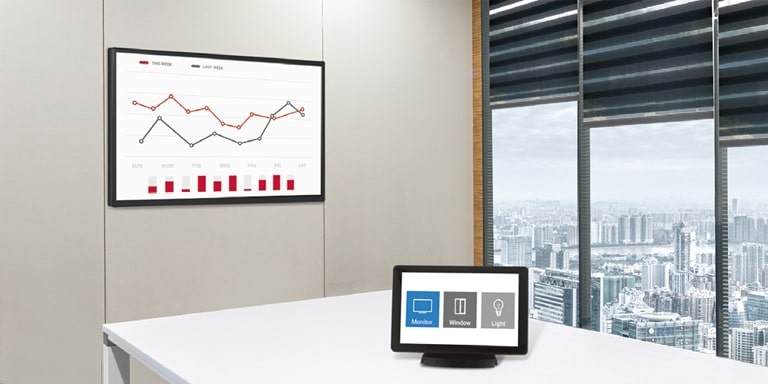

There is SM5J installed in the meeting room with one of AV control system, which helps users control AV of the SM5J series. There is SM5J installed in the meeting room with one of AV control system, which helps users control AV of the SM5J series.

Compatible with AV Control System

The SM5J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network based control

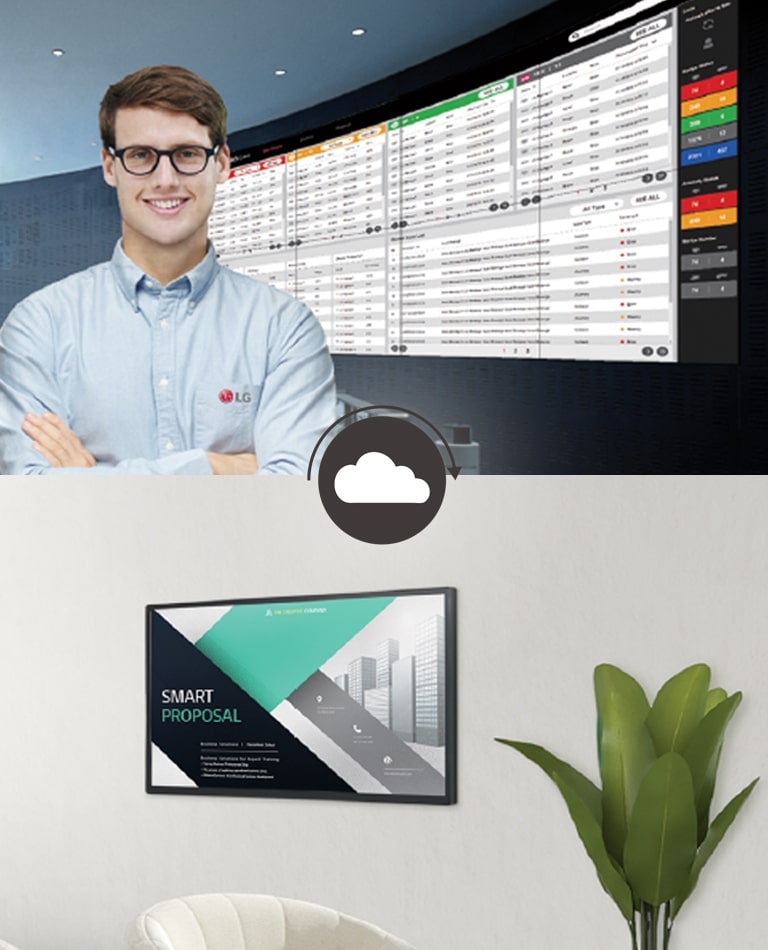

Real-Time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
The LG employee is remotely monitoring the SM5J series installed in a different place. The LG employee is remotely monitoring the SM5J series installed in a different place.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.

Smart Signage Platform

Coupons or sales promotions can be offered via Bluetooth. Also, the content of the Signage, installed on the wall of the store, has the same one of the mobile device, a person is holding, by the Content Mirroring function via the WiFi network. The SM5J series is on the wall and a woman is using a personal PC and mobile phone. This image shows that the signage can be connected wirelessly to the PC and mobile phone which she is holding. Coupons or sales promotions can be offered via Bluetooth. Also, the content of the Signage, installed on the wall of the store, has the same one of the mobile device, a person is holding, by the Content Mirroring function via the WiFi network. The SM5J series is on the wall and a woman is using a personal PC and mobile phone. This image shows that the signage can be connected wirelessly to the PC and mobile phone which she is holding.

  • Real-Time Promotion

    With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.

  • Content Sharing

    Content Mirroring among devices is available on a Wi-Fi network.

  • Wireless Access Point

    The SM5J series operates as a virtual router which can be an wireless access point for mobile devices.

Close
PANEL
  • Screen Size
    32"
    Panel Technology
    IPS
  • Native Resolution
    1,920 x 1,080 (FHD)
    Brightness
    400 nit (Typ.)
  • Contrast Ratio
    1,100:1
    Dynamic CR
    1,000,000 : 1
  • Viewing Angle (H × V)
    178 × 178
    Response Time
    10 ms (G to G)
  • Surface Treatment (Haze)
    1%
    Operation Hours (Hours/Day)
    24/7
  • Orientation
    Portrait / Landscape
CONNECTIVITY
  • Input
    HDMI (3, HDCP 2.2), USB 2.0 ( Type A)
    Output
    Audio Out (Off / Fixed / Variable)
  • External Control
    RS-232C In/Out (Phone-jack Type), RJ45 In (LAN), IR In (Phone-jack Type)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    13mm (T/R/L), 18mm (B)
  • Monitor Dimension (W × H × D)
    729.4 mm × 428.9 mm × 55.5 mm
    Weight (Head)
    5.7 kg
  • Monitor Dimension with Stand (W × H × D)
    729.4 mm × 481 mm × 154.2 mm
    Weight (Head + Stand)
    6.5 kg
  • VESA™ Standard Mount Interface
    200 x 200 mm
KEY FEATURE
  • Key Feature
    Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Sever Setting, webRTC, Pro:Idiom
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240 V~, 50/60 Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ. / Max.
    55 W / 75 W
    BTU (British Thermal Unit)
    187.67 BTU/Hr (Typ.), 255.911 BTU/Hr (Max.)
SOUND
  • Speaker
    Yes (10 W × 2 EA)
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE
  • ErP / Energy Star
    No / Yes
SOFTWARE COMPATIBILITY
  • Software Compatibility
    SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, LG ConnectedCare
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS-232C Gender
    Optional
    Stand(ST-322T)
