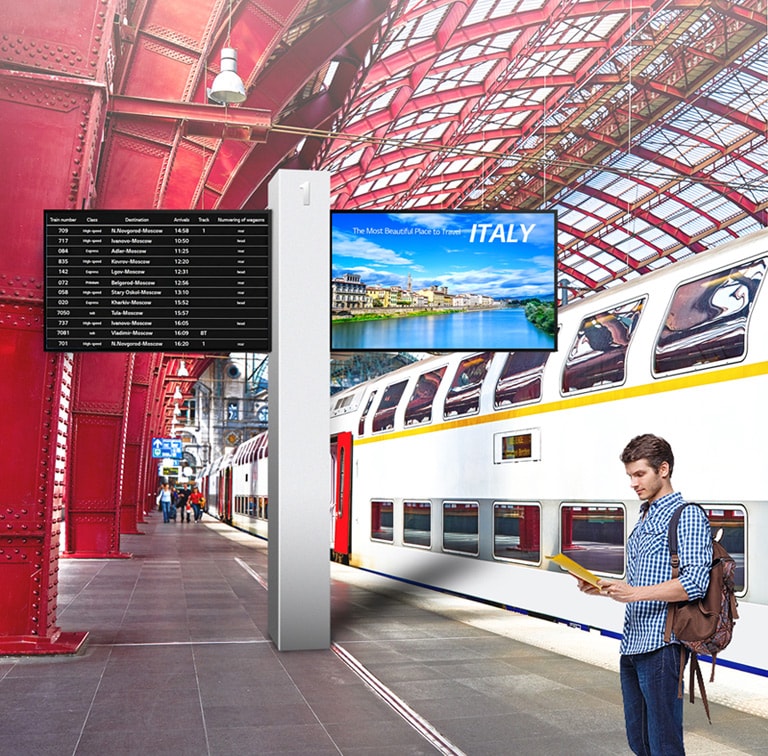

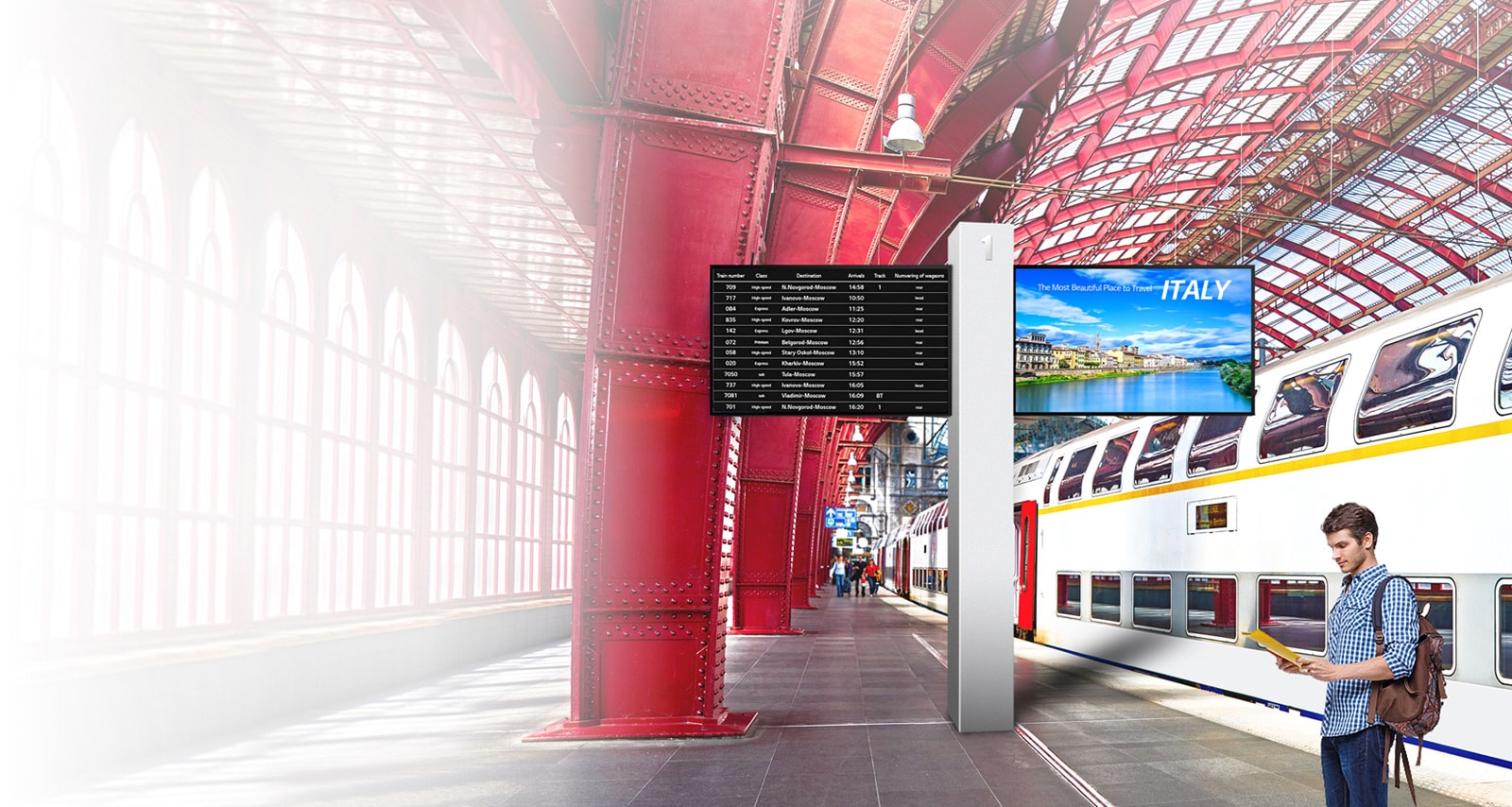

Slim & Robust Design with Outstanding Visibility
With a slim & robust design, XE4F series can be easily installed to meet the customer's needs under in external environments that require complex installation conditions. And upgraded brightness captures the customer's attention even under strong and direct sunlight.
SLIM & ROBUST DESIGN

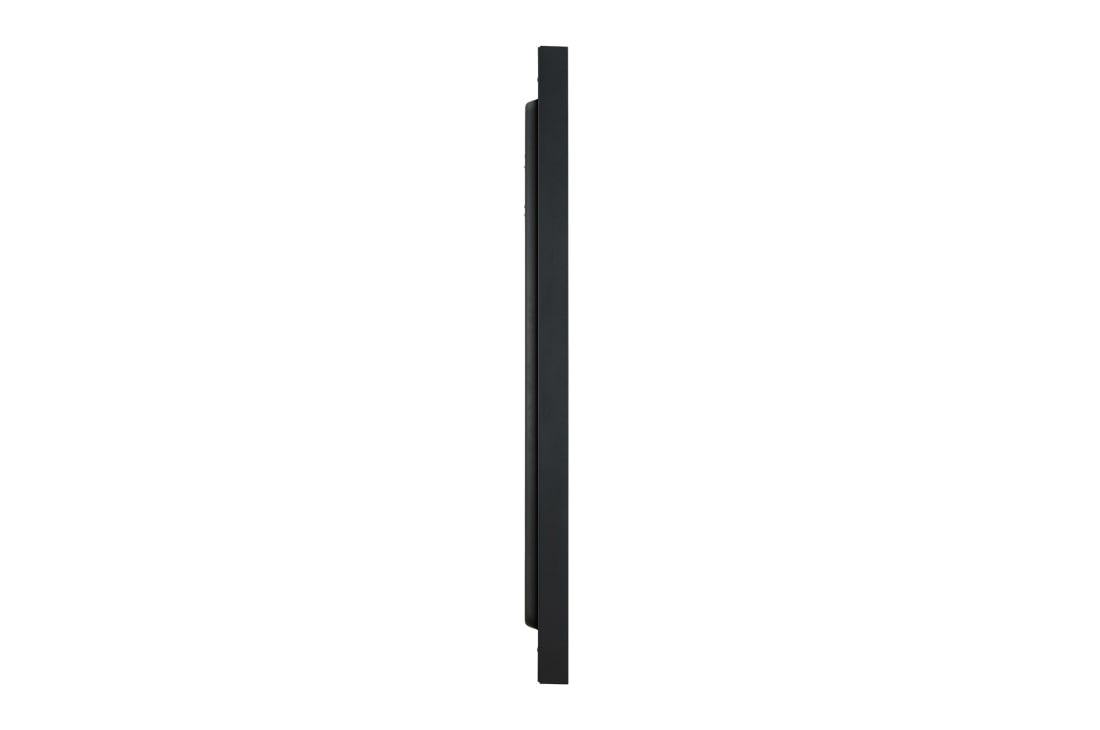

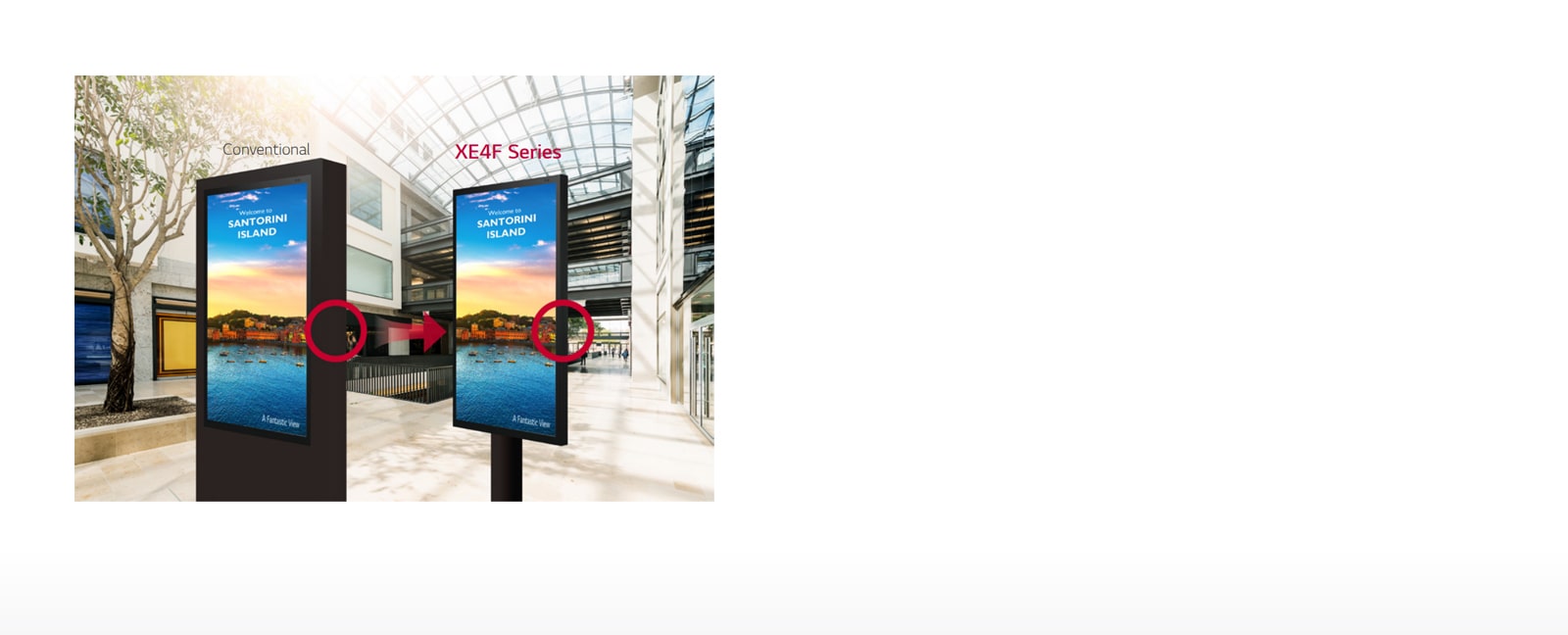

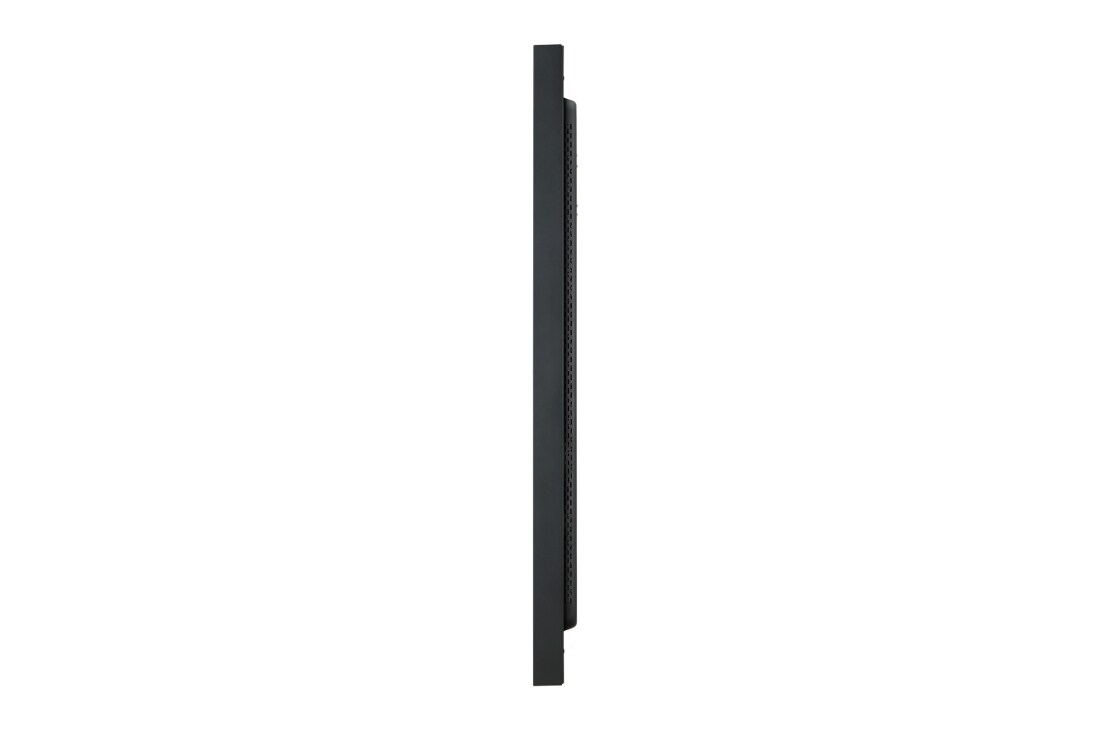

Slim & Light Design
XE4F series composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.
SLIM & ROBUST DESIGN

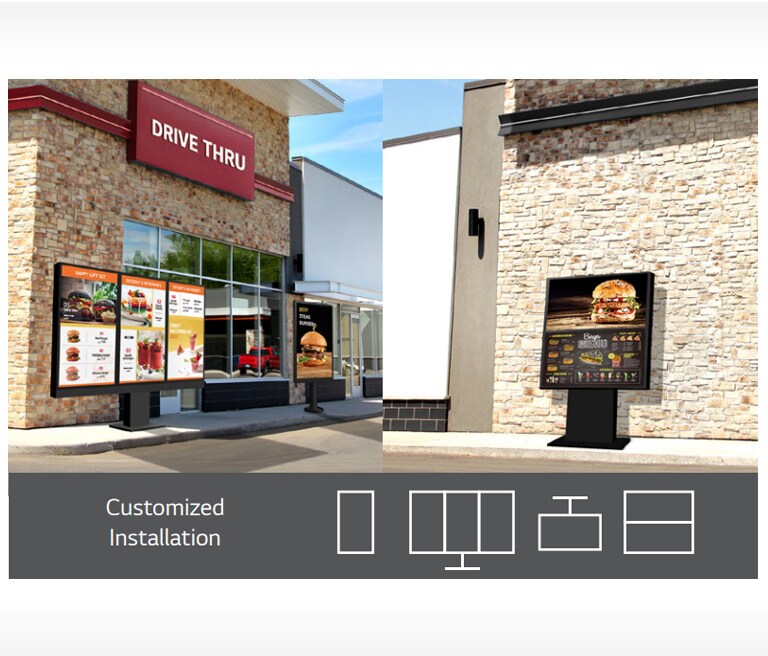

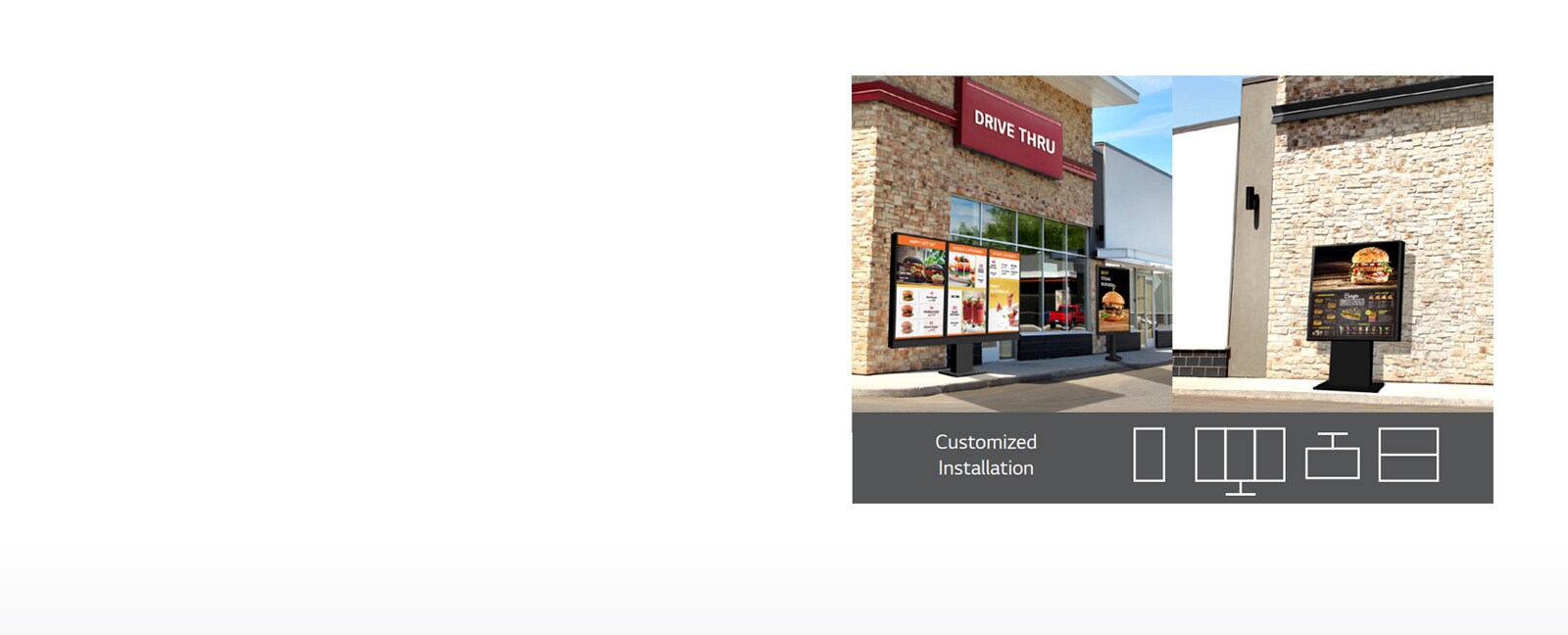

Easy integration for partner's customized design
The XE4F series are lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series are also mount ready and optimized for customers, based on the industry destination and use.
OUTSTANDING VISIBILITY

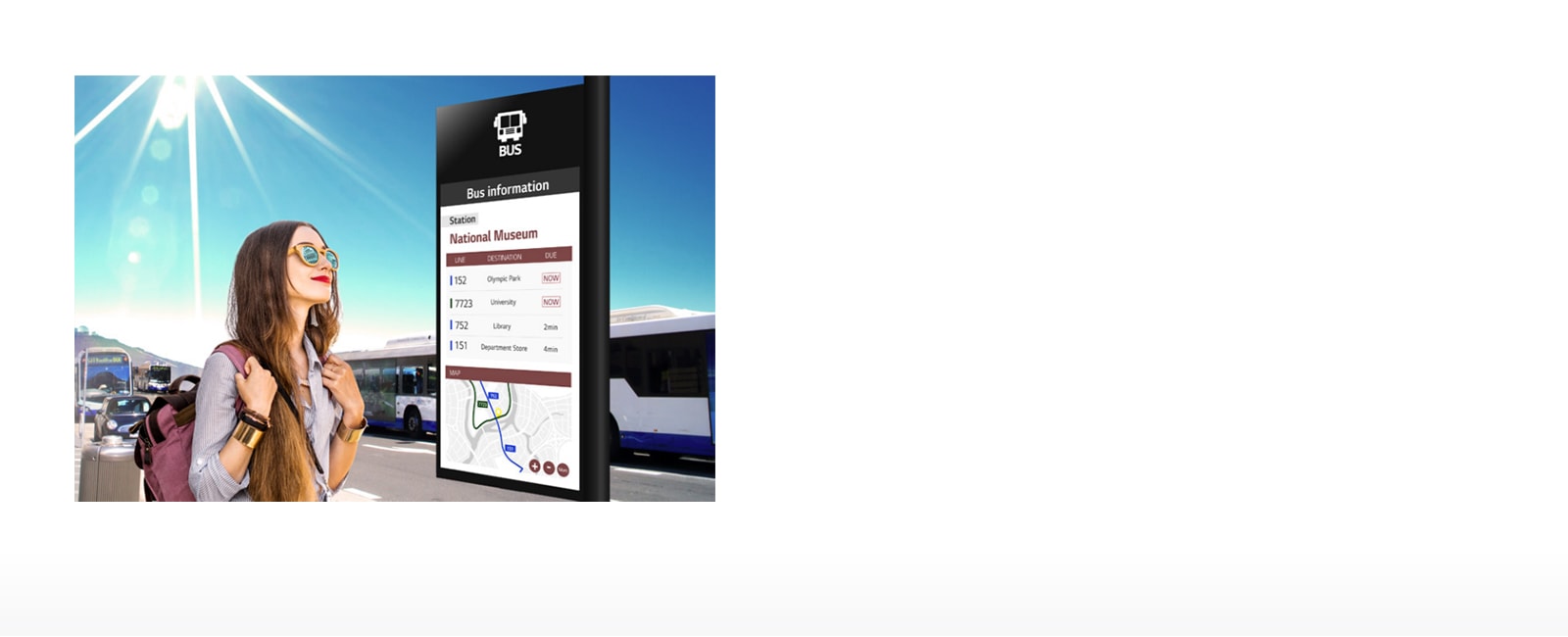

Bright & Brilliant
The XE4F series possess powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.
OUTSTANDING VISIBILITY

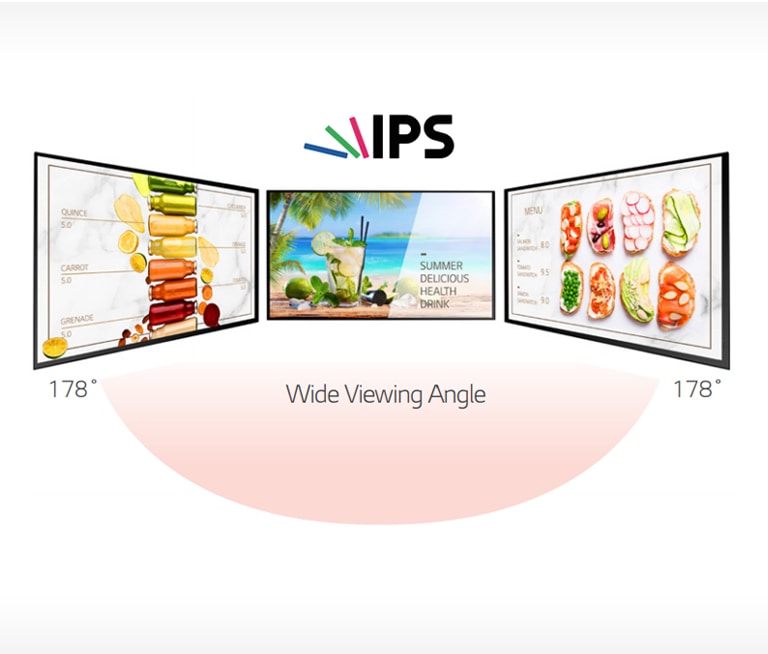

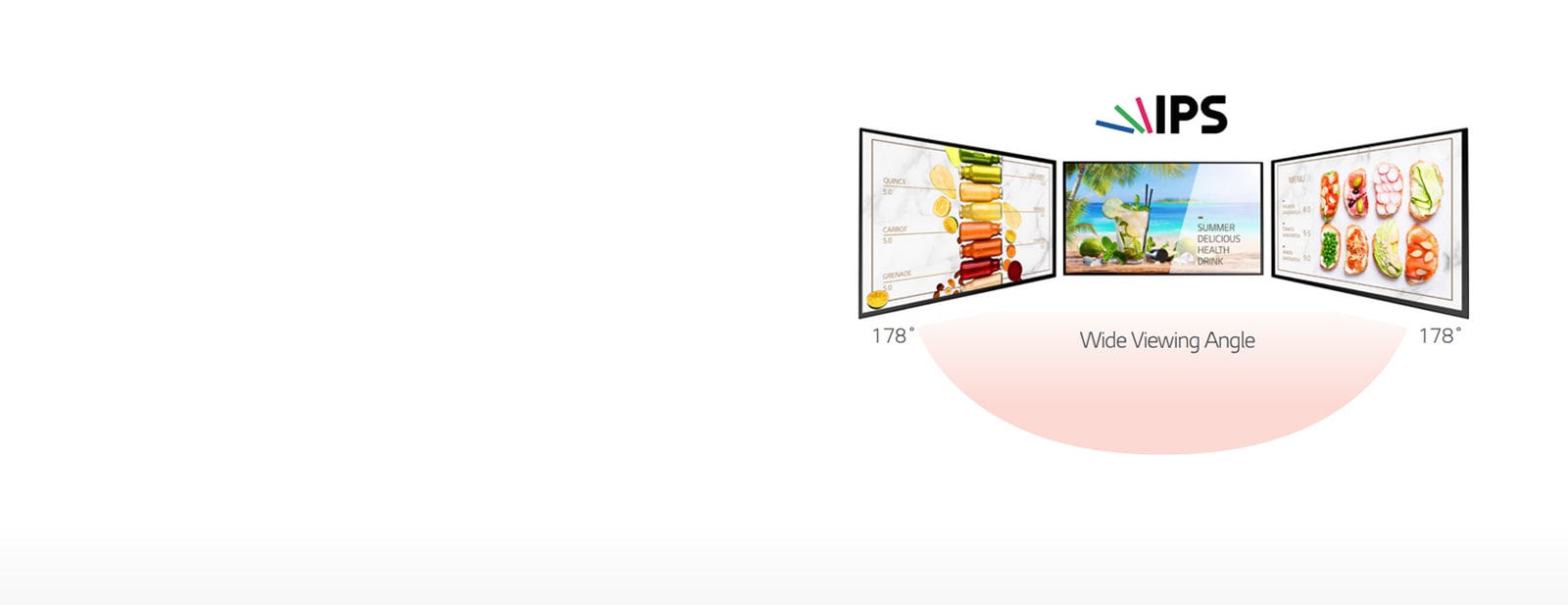

Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
OUTSTANDING VISIBILITY
Long Lasting Brightness
By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.
OUTSTANDING VISIBILITY

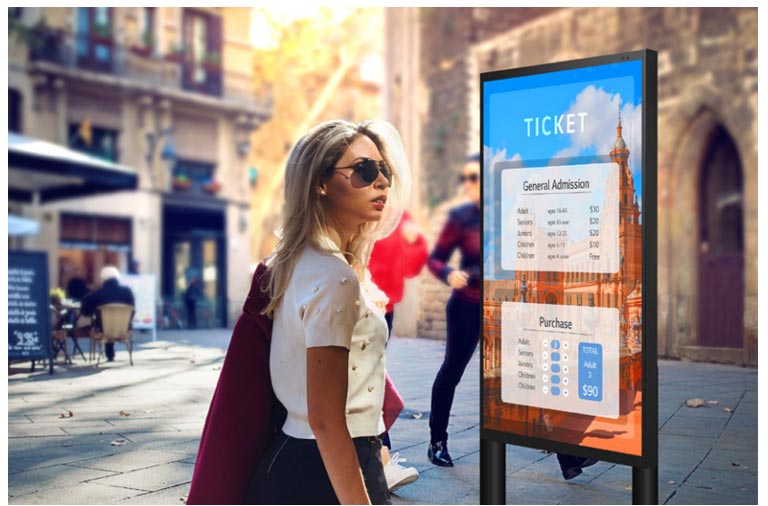

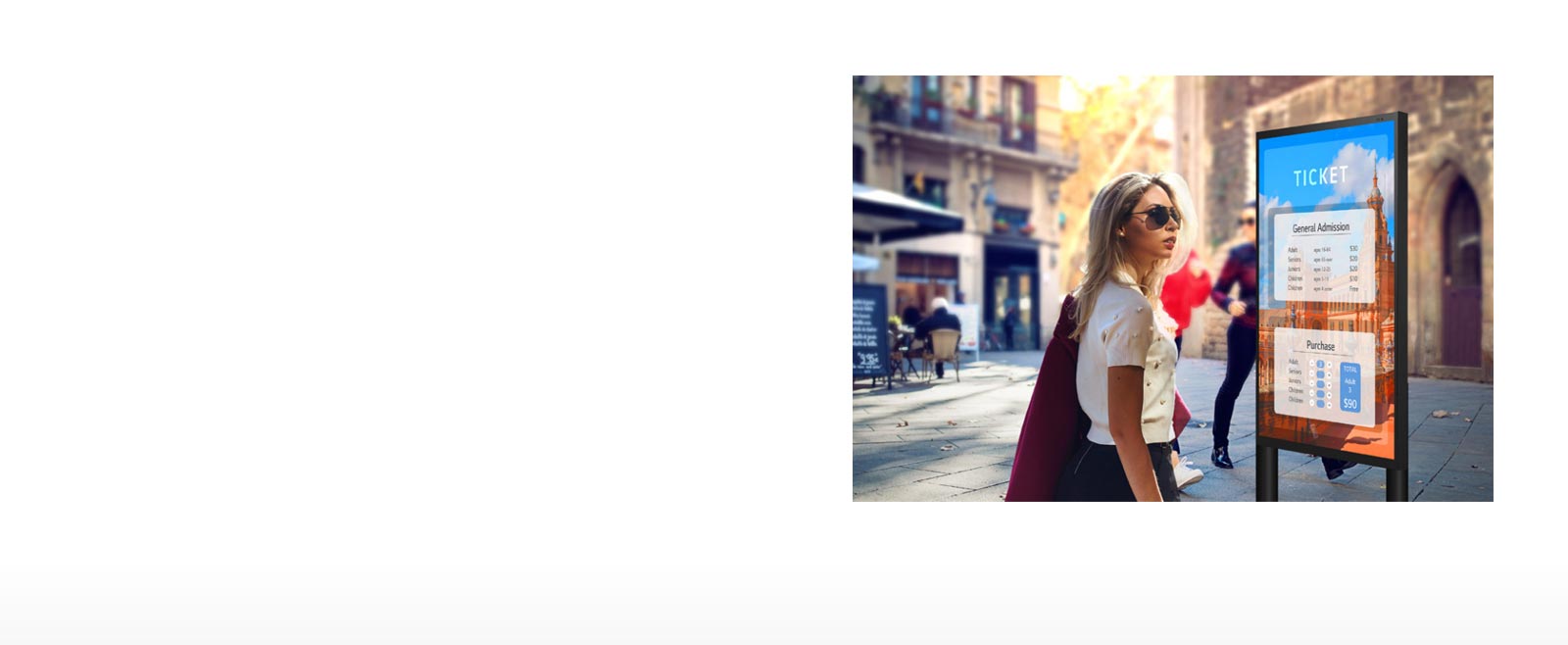

Visible with Polarized Sunglasses
QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.
* Quarter Wave Plate
RELIABILITY FOR OUTDOOR USAGE
Secured Protection with IP56 Design
The display is sealed with IP56 design for reliable operation. It's designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.
RELIABILITY FOR OUTDOOR USAGE

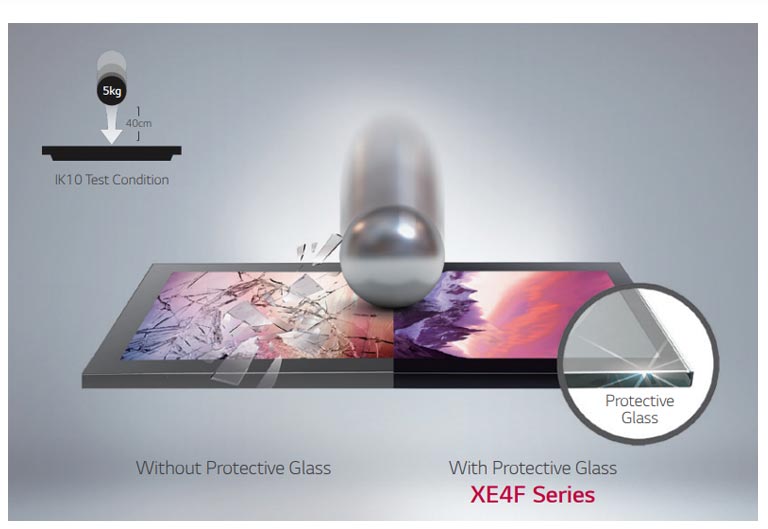

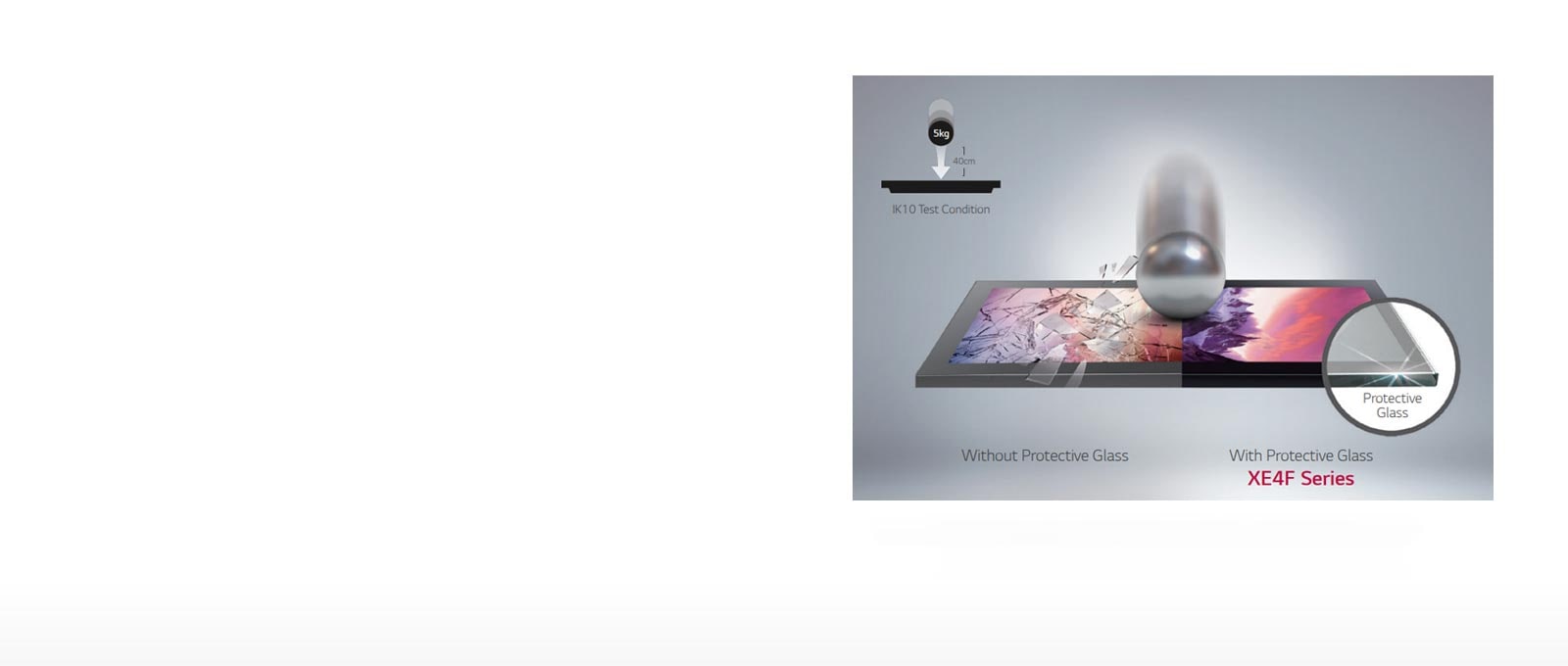

Protective Glass (IK10 Certified)
The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.
* The image is for illustrative purposes only
* IK rating refers to the deqree of resistance against external impacts on a scale of O to 10. (10 indicates the highest level of protection.).
* IK rating refers to the deqree of resistance against external impacts on a scale of O to 10. (10 indicates the highest level of protection.).
EASY MAINTENANCE

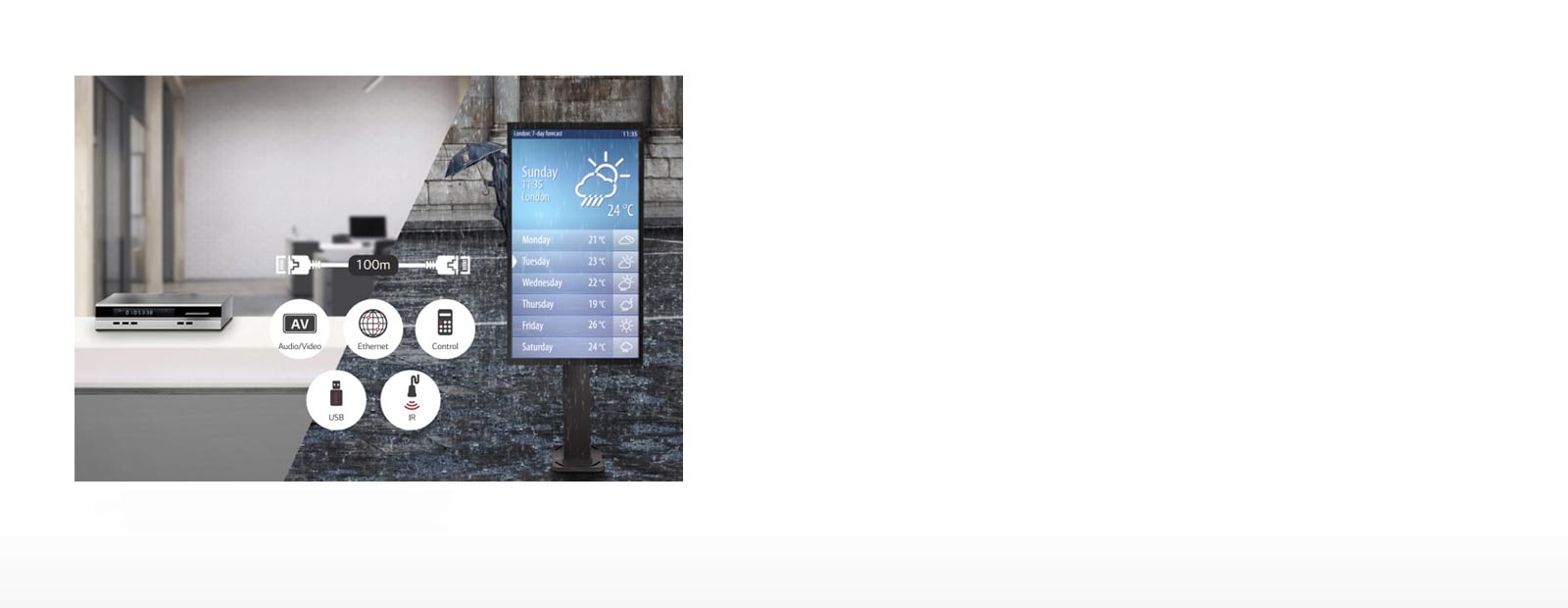

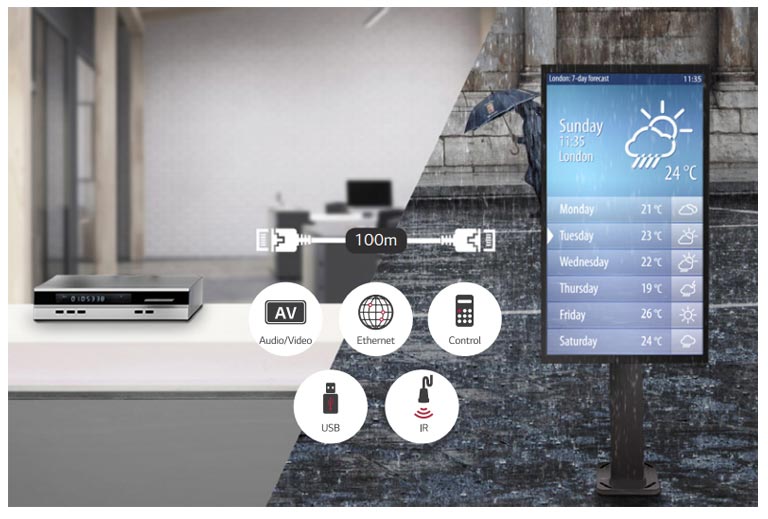

Support HDBaseT ™
XE4F Series support HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installaiton and maintenance costs.
* XE4F Series don't support the power supply
EASY MAINTENANCE

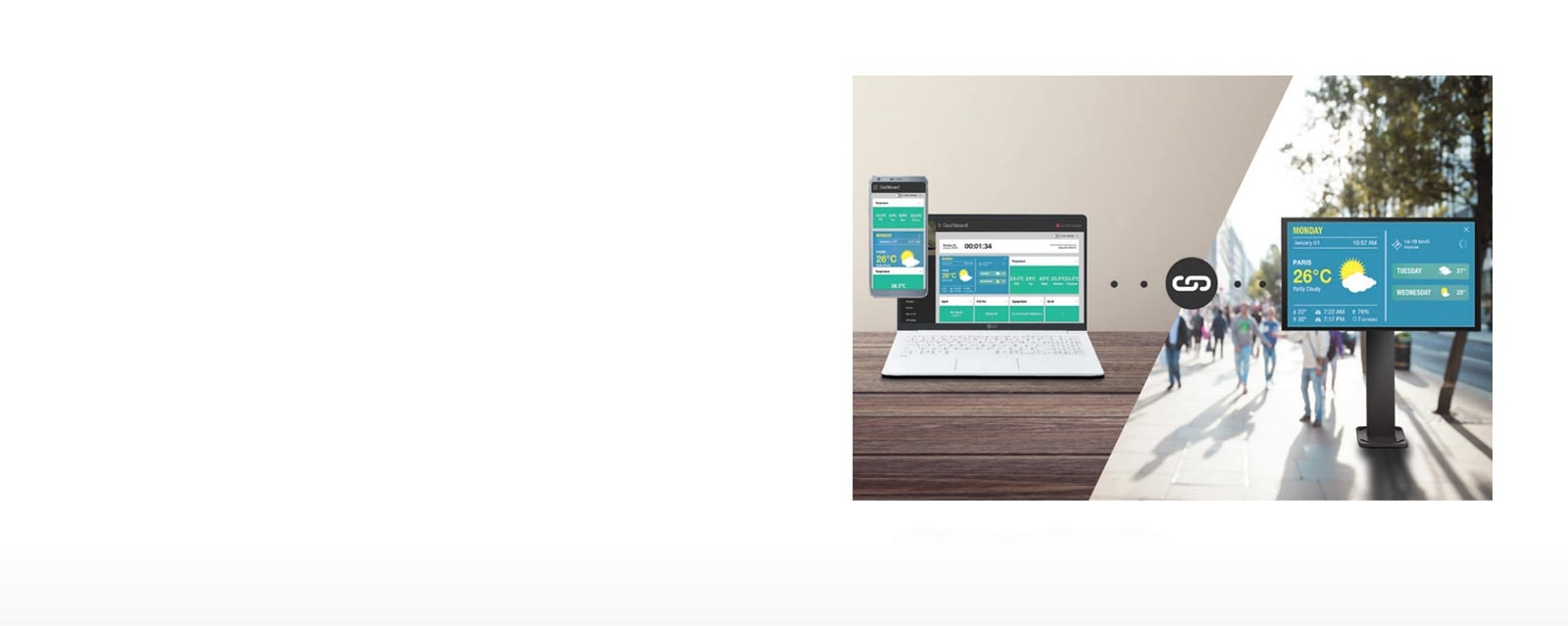

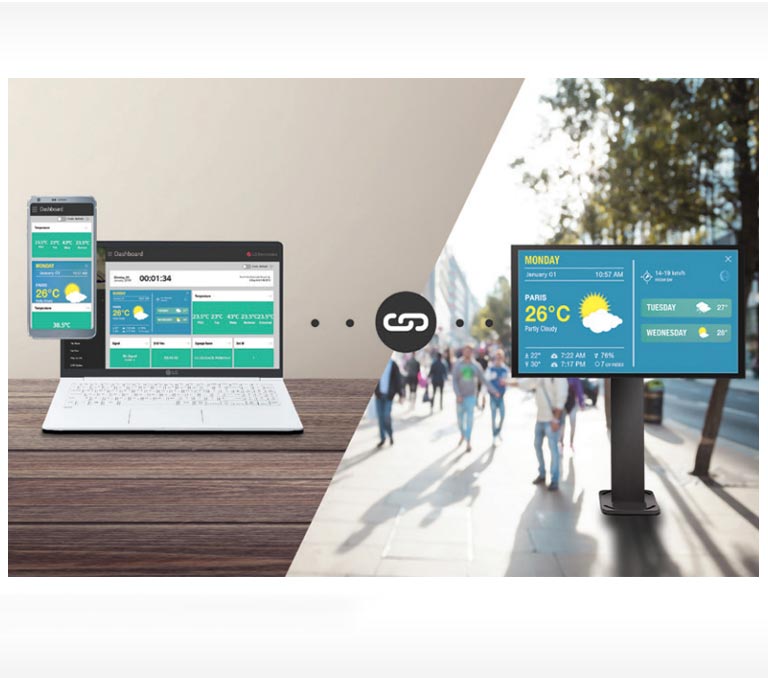

Web Monitoring
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
* The image is for illustative purposes only

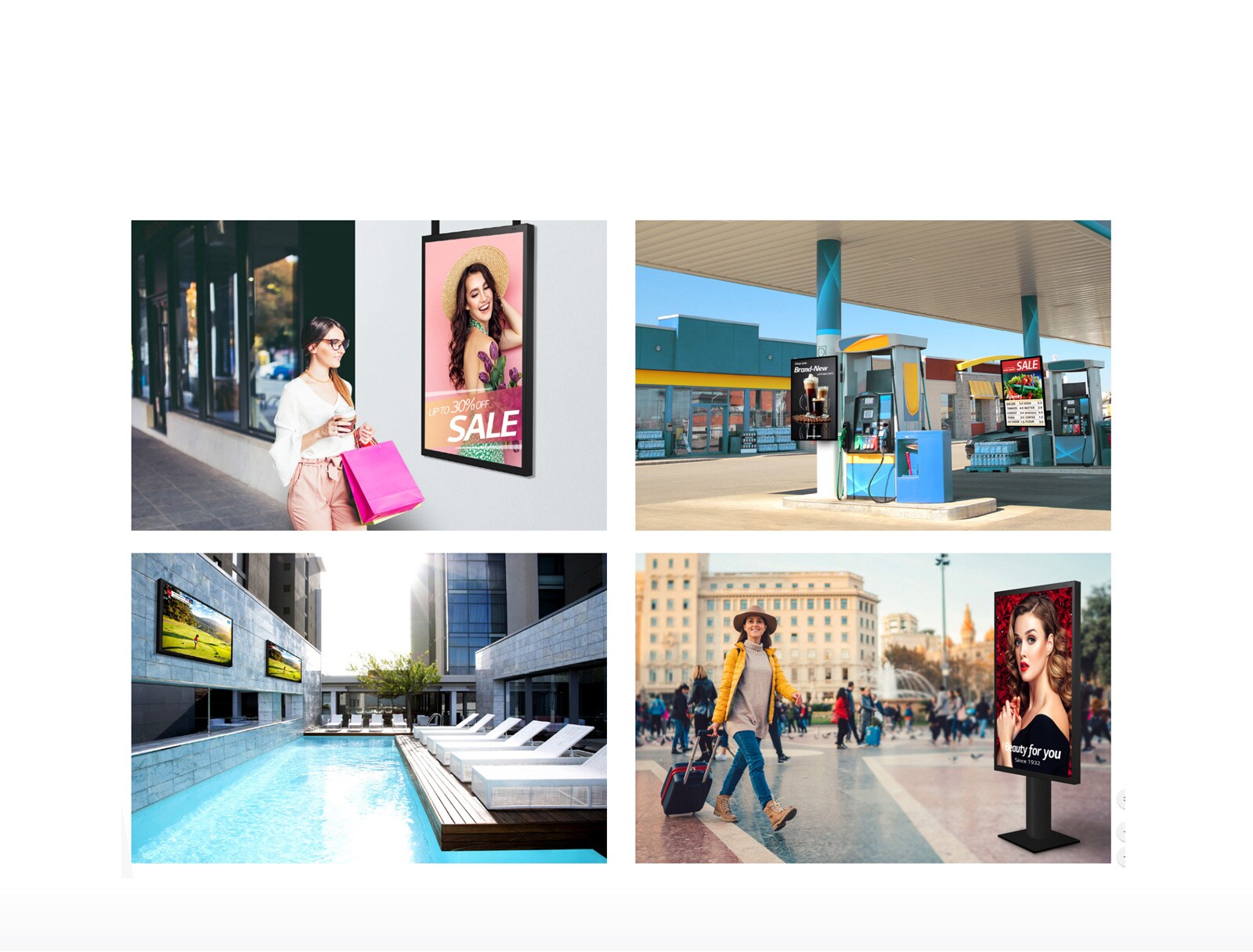

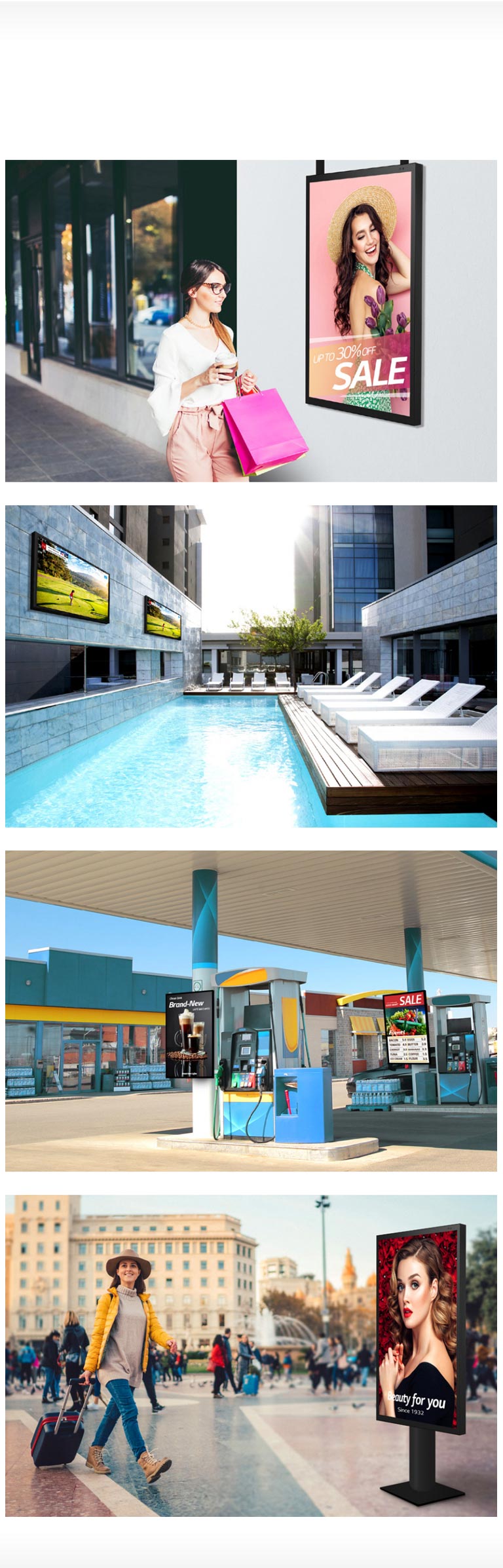

USER SCENE
ACCESSORY
-
- Basic
- Remote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE
CONNECTIVITY
-
- External Control
- RS232C In/Out, RJ45(LAN) In/Out
- Input
- HDMI(2), DP, HDBaseT, USB(2)
-
- Output
- External Speaker Out(L/R)
ENVIRONMENT CONDITIONS
-
- Operation Humidity
- 5 % to 100 %
- Operation Temperature
- -30°C to 50 °C
PANEL
-
- Aspect Ratio
- 16 : 9
- Backlight Type
- Direct
-
- Brightness (Min., cd/m²)
- 3200
- Brightness (Typ., cd/m²)
- 4000
-
- Contrast Ratio
- 1,300:1
- Dynamic CR
- 500,000:1
-
- Life Time (Typ.)
- 50,000 Hrs
- Local dimming
- 48 Blocks
-
- Native Resolution
- 1,920 x 1,080 (FHD, WRGB)
- Operation Hours
- 24 Hrs
-
- Orientation
- Portrait & Landscape
- Panel Technology
- IPS, M+(WRGB)
-
- Response Time
- Typ. 8ms (G to G BW)
- Screen Size
- 49
-
- Surface Treatment (Haze, Quarter Wave Plate)
- Haze 3%, QWP
- Viewing Angle (H x V)
- 178 x 178
PHYSICAL SPECIFICATION
-
- Bezel Color
- Black
- Bezel Width
- 38.4mm(T/B), 26.0mm(L/R)
-
- Handle
- X
- Monitor Dimension (W x H x D)
- 1,153 x 656.2 x 88.0mm
-
- Packed Weight
- 37Kg
- Packing Dimensions (W x H x D)
- 1,286 x 797 x 207mm
-
- Protection Glass
- 5mm(IK 10, Degree of Protection, Chemical Strengthening,Anti-Reflective)
- Weight (Head)
- 32Kg
POWER
-
- Power Supply
- 100-240V~, 50/60Hz
- Power Type
- Built-In Power
POWER CONSUMPTION
-
- Typ.
-
300W (Full White)
144W (IEC 62087)
- Max
- 350 W
SOFTWARE COMPATIBILITY
-
- Signage365Care
- Yes
- SuperSign
- Yes(CMS, Control)
STANDARD(CERTIFICATION)
-
- EMC
- FCC Class "A" / CE / KCC
- ErP / Energy Star
- No /NA
-
- Safety
- CB / NRTL
