UHD Standard Signage

UHD Signage Display with
LG webOS Platform and Advanced Security

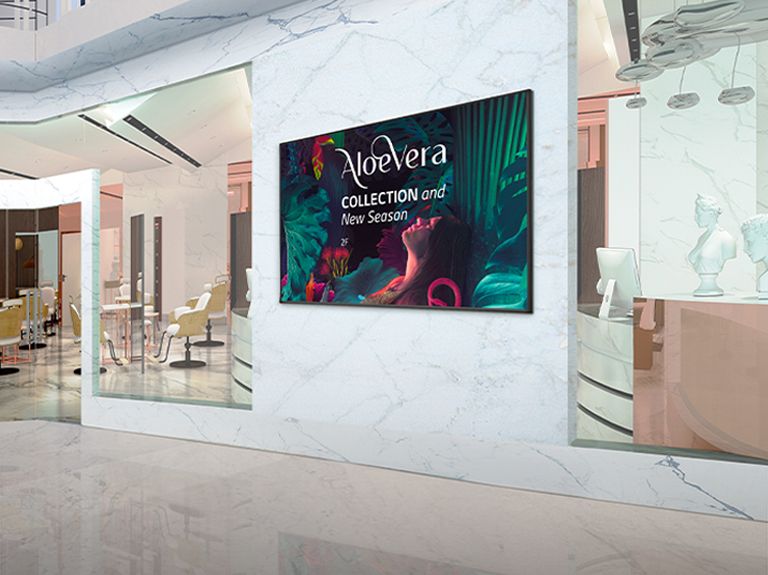

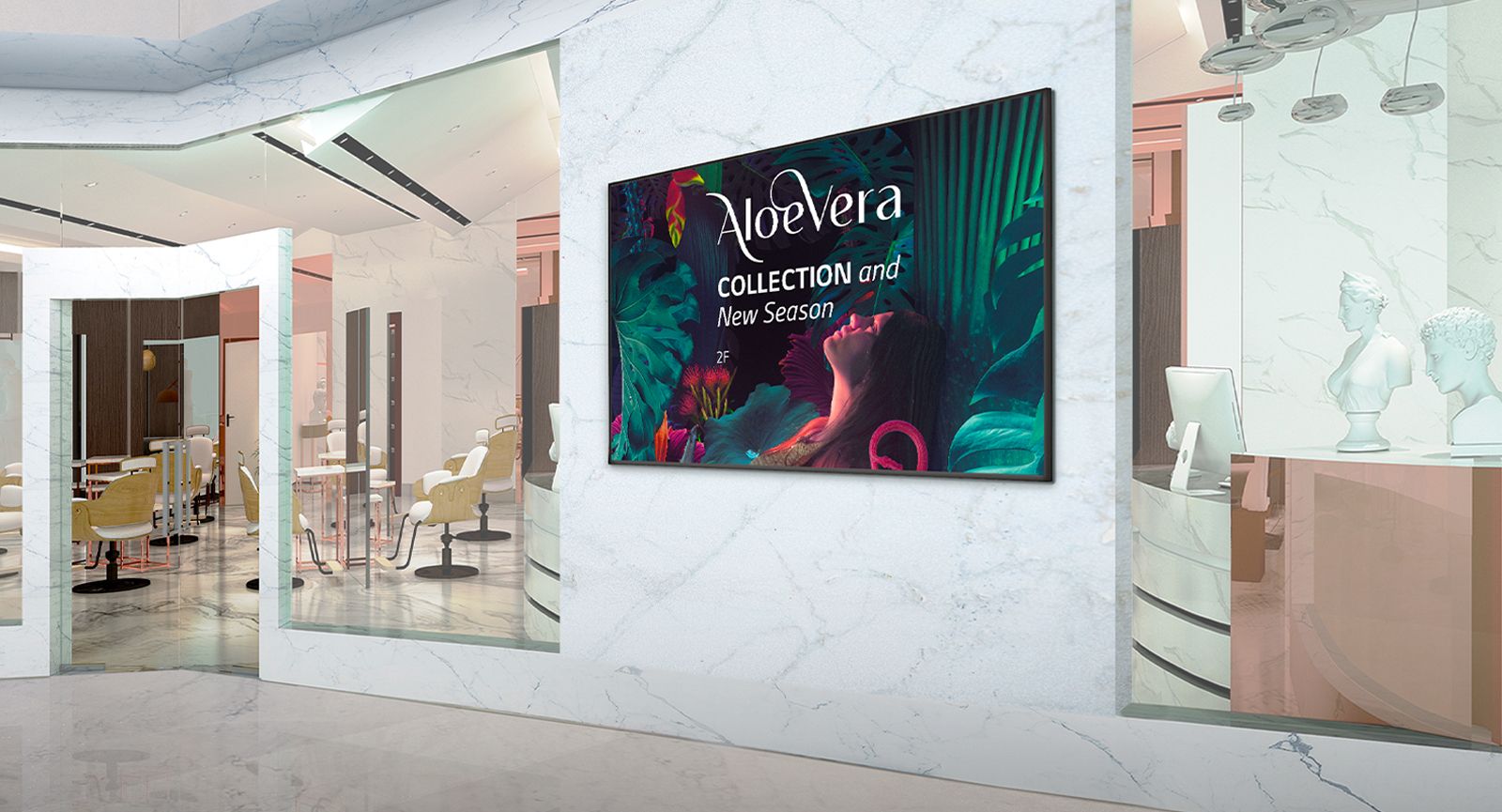

Signage installed on the interior walls of the shopping mall displays advertisements vividly. Signage installed on the interior walls of the shopping mall displays advertisements vividly.
* 75 inch
* All images in this page are for illustrative purposes only.
The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD. The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

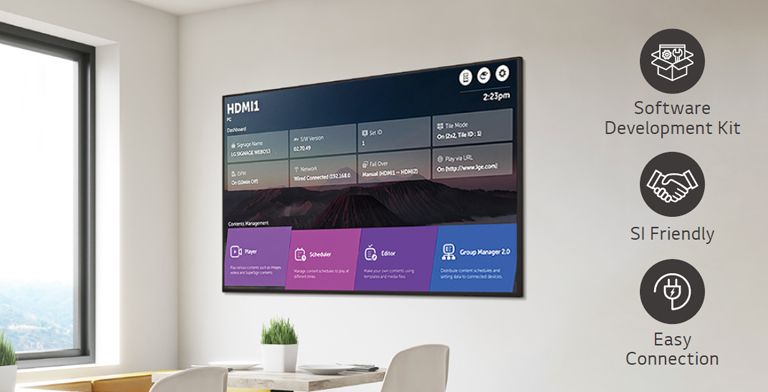

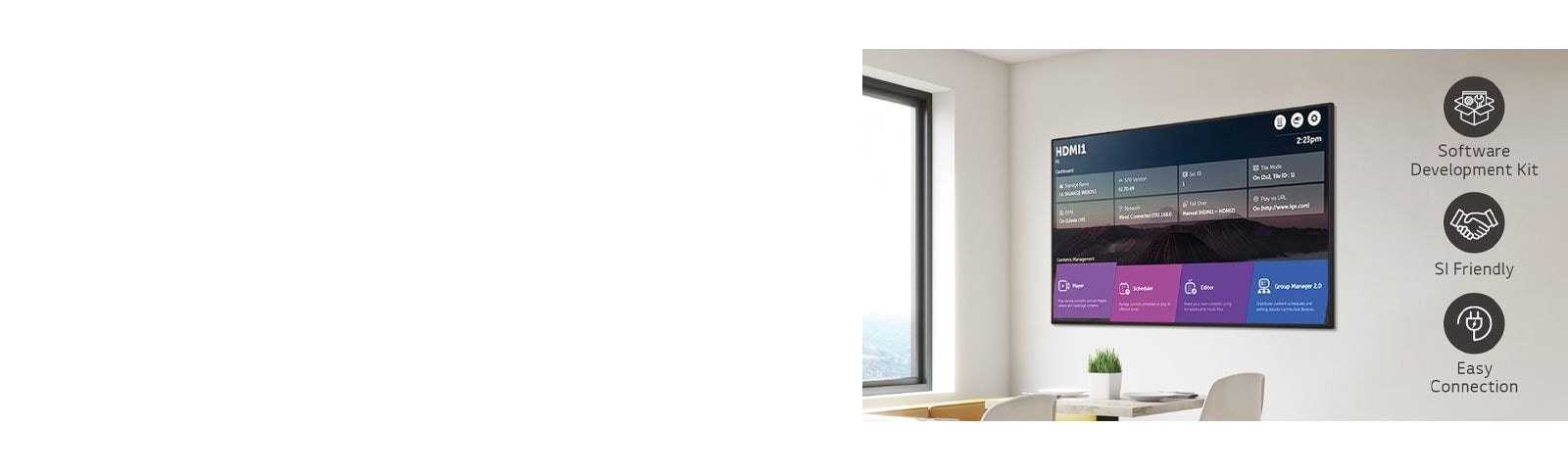

A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.

Convenient webOS Platform

The UH5N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Stylish interior with Art Frame

Enhance the sophistication of your space with the Art Frame featuring bezels accessories, providing a artistic touch to the UH5N-E for a more refined interior. Bezels accessories empower customers to utlize their UH5N-E to seamlessly blend with their interior, transforming it into a chic decorative centerpiece.

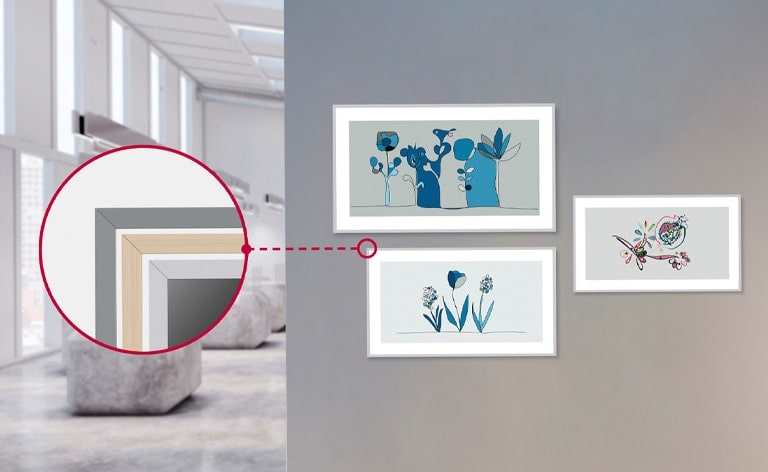

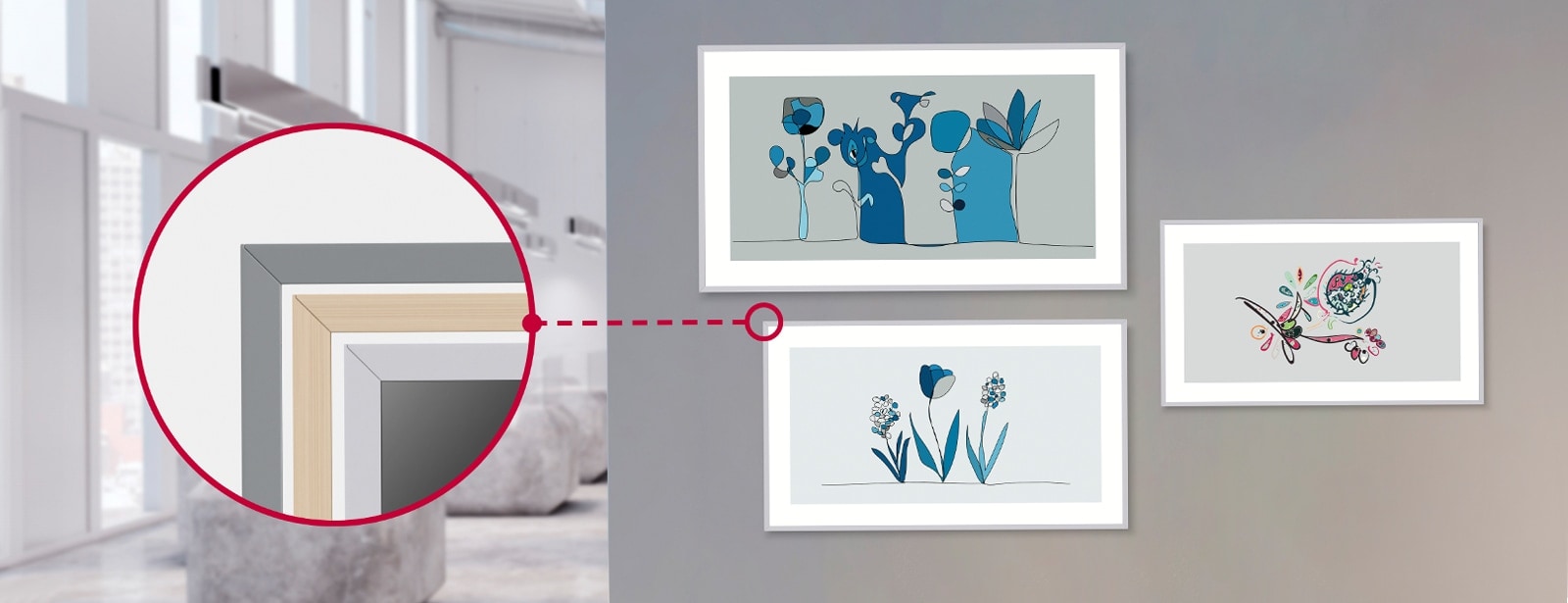

Three UHD Standard Signage are installed on a gray-toned wall, each displaying different artworks, creating an appearance like framed paintings. Harmonizing with the white and gray-toned interior, these UH5N-E are equipped with white bezel Art Frames. The left side provides a detailed image showcasing three types of bezel accessories in gray, wood, and white. Three UHD Standard Signage are installed on a gray-toned wall, each displaying different artworks, creating an appearance like framed paintings. Harmonizing with the white and gray-toned interior, these UH5N-E are equipped with white bezel Art Frames. The left side provides a detailed image showcasing three types of bezel accessories in gray, wood, and white.
* Bezel accessories are sold separately at an additional cost. For more information, please contact LG Sales.

Design for Space Utilization

Designed with thin bezels and simple cable management, the UH5N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket. Bezels accessories can also be used to convert it into an art frame, making it a stylish interior element that matches customers' interior spaces.

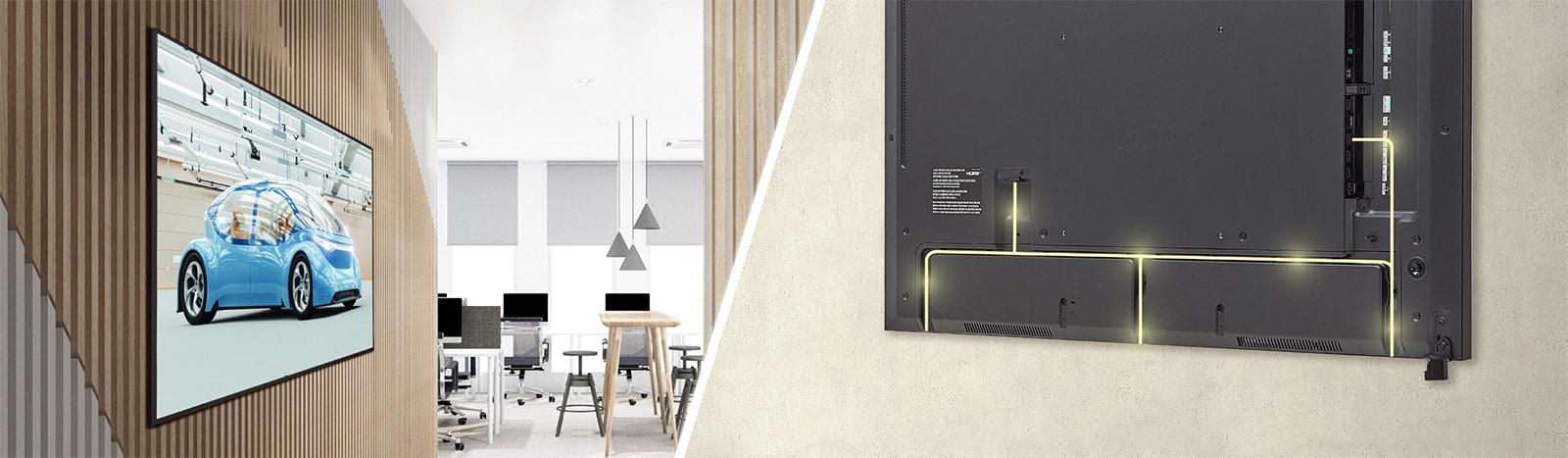

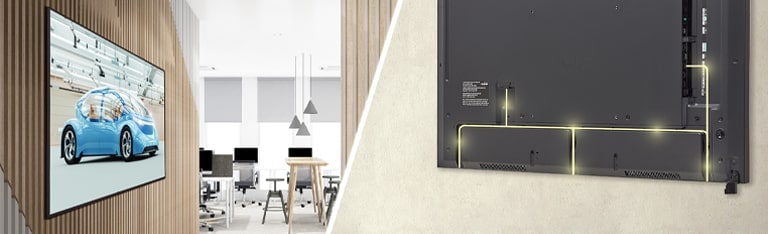

The UH5N-E with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system. The UH5N-E with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.
* All images are for illustrative purposes only.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
* Bezel accessories are sold separately at an additional cost.

Durability that Provides Reliability

Optimized for business environments, the UH5N-E is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

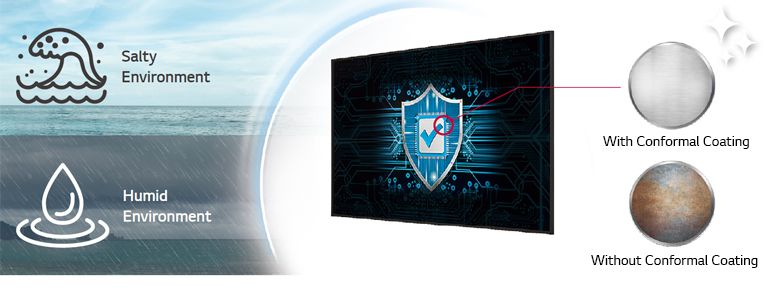

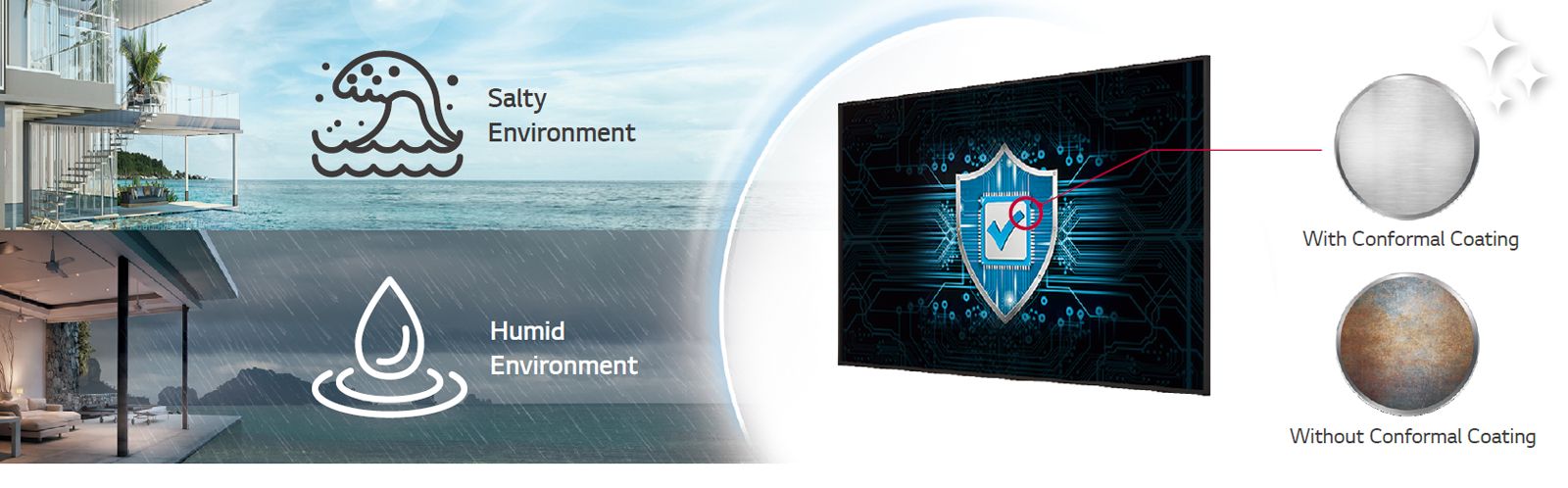

The UH5N-E has Conformal Coating on the power board to protect display even in a salty or humid environment. The UH5N-E has Conformal Coating on the power board to protect display even in a salty or humid environment.
The UH5N-E provides security features to protect important data from external access or attacks. The UH5N-E provides security features to protect important data from external access or attacks.

Enhanced Security Features

The UH5N-E provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
LG strives for a sustainable future by obtaining various certifications such as FCC EMC Class B. LG strives for a sustainable future by obtaining various certifications such as FCC EMC Class B.

Sustainability

With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software. Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

Carbon Footprint Certification

The cradle-to-grave carbon footprint of UH5N-E has been reduced.
Carbon Footprint Certification1 Carbon Footprint Certification2
* UH5N-E achieved CO2 Measured certification.
* The Carbon Trust Assurance for UH5N-E is valid until 07 Sep 2025.
* The Carbon Trust Assurance for UH5N-E is certified against PAS2050:2011.
Close
INFO
  • Product
    Standard (UHD)
    Year
    Y23
  • Month
    M05
PANEL
  • Screen Size (Inch)
    65"
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16:9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    60Hz
  • Brightness (Typ.)
    500nit (Typ.)
    Contrast Ratio
    1,100:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    BT709 95%
  • Viewing Angle(H x V)
    178 x 178
    Color Depth
    10bit(D), 1.07Billion colors
  • Response Time
    Tr : 8ms / Tf :10ms
    Surface Treatment(Haze)
    28%
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
(JACK INTERFACE)
  • HDMI IN
    Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
    DP IN
    Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
  • RS232C IN
    Yes (1), 4pin Phone-jack
    RJ45(LAN) IN
    Yes (1)
  • IR IN
    Yes (1)
    USB IN
    USB2.0 Type A(1)
  • HDMI Out
    Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP
    Audio Out
    Yes (1)
  • RS232C Out
    Yes (1), 4pin Phone-jack
    IR Out
    No (Support IR daisy chain via RS232C IN/OUT)
  • Daisy Chain
    Yes(Input HDMI, DP / Output HDMI)
MECHANICAL
  • Bezel Color
    Black
    Bezel Width
    T/R/L: 8.9mm, B: 12.9mm
  • Weight (Head)
    24.2 kg
    Packed Weight
    30.4 kg
  • Monitor Dimensions (W x H x D)
    1450.3 x 830.3 x 29.7mm (Without IR)
    Carton Dimensions (W x H x D)
    1600.0 x 970.0 x 172.0mm
  • VESATM Standard Mount Interface
    300 x 300
HW FEATURE
  • Internal Memory
    16GB
    Wi-Fi (Built-in)
    Yes
  • Temperature Sensor
    Yes
    Auto Brightness sensor
    Yes(IR)
  • Acceleration(Gyro) Sensor
    Yes
    Local Key Operation
    Yes
  • Speaker (Built-in)
    Yes
SW FEATURE
  • OS ver.
    webOS6.0
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    Booting Logo Image
    Yes
  • No Signal Image
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    PIP
    Yes
  • PBP
    Yes (4)
    Screen Share
    Yes
  • Video Tag
    Yes (4)
    Play via URL
    Yes
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes (Max. 15x15)
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Cisco Certi.
    Yes
    Crestron Inside
    Yes
  • Smart Energy Saving
    Yes
    PM mode
    Yes
  • Wake on LAN
    Yes
    Beacon
    Yes
  • Network Ready
    Yes
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
  • Pro:Idiom
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ.)
    145W
    Power Consumption (Max.)
    200W
  • Power Consumption (British Thermal Unit)
    495 BTU/Hr(Typ.), 682 BTU/Hr(Max)
    Power Consumption (Smart Energy Saving, ~70%)
    101.5W
  • Power Consumption (DPM)
    0.5W
    Power Consumption (Power Off)
    0.5W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "B" / CE / KC
  • ErP / Energy Star
    Yes(NewErP)/Yes
    ePEAT(US only)
    Yes
  • ISTA6
    Yes(~'23.9, US Suffix Only)
    Carbon Trust
    Yes(TBD, Reducing CO2)
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Cloud
    Yes
  • Mobile CMS
    Yes
    Connected Care
    Yes
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish→Türkiye, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA)
    Optional
    Slim Wall Mount (WB21LMA/B),
    Wall Mount (OLW480A/B)
    Wall Mount Adapter (AM-B330S)
SPECIAL FEATURE
  • Tilt (Face Down)
    Yes(Max 30º degree, 40ºC temperature)
    IP Rating
    IP5x
  • Conformal Coating (Power Board)
    Yes
