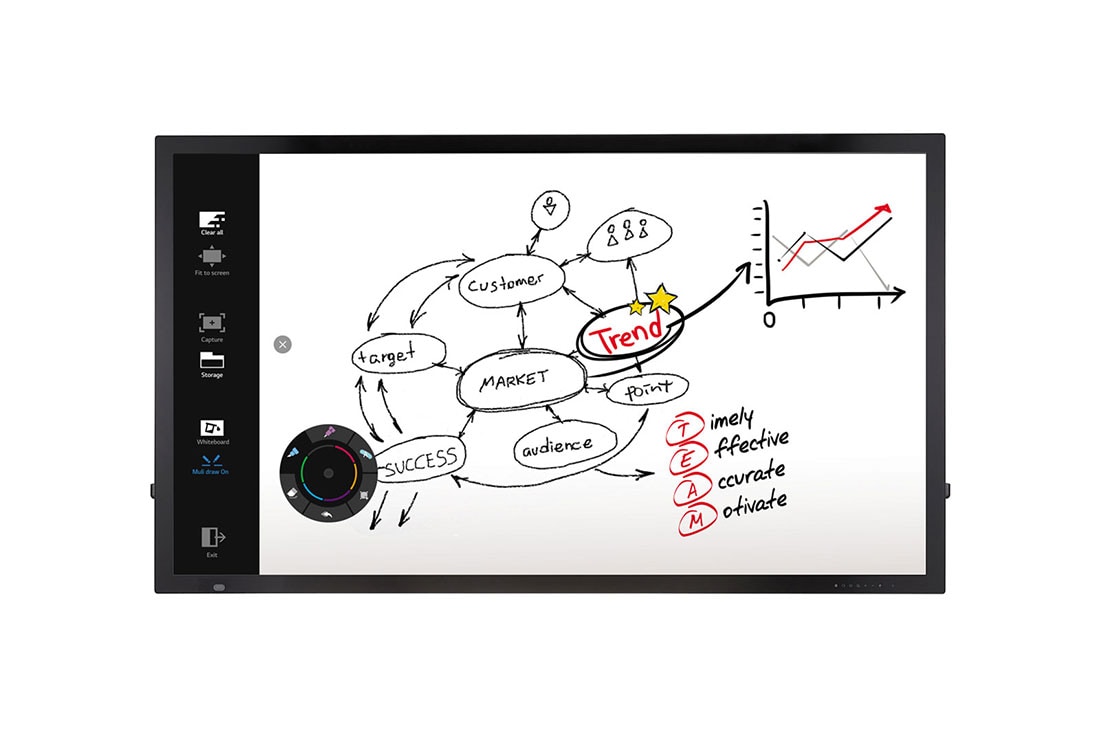

Interactive Digital Board

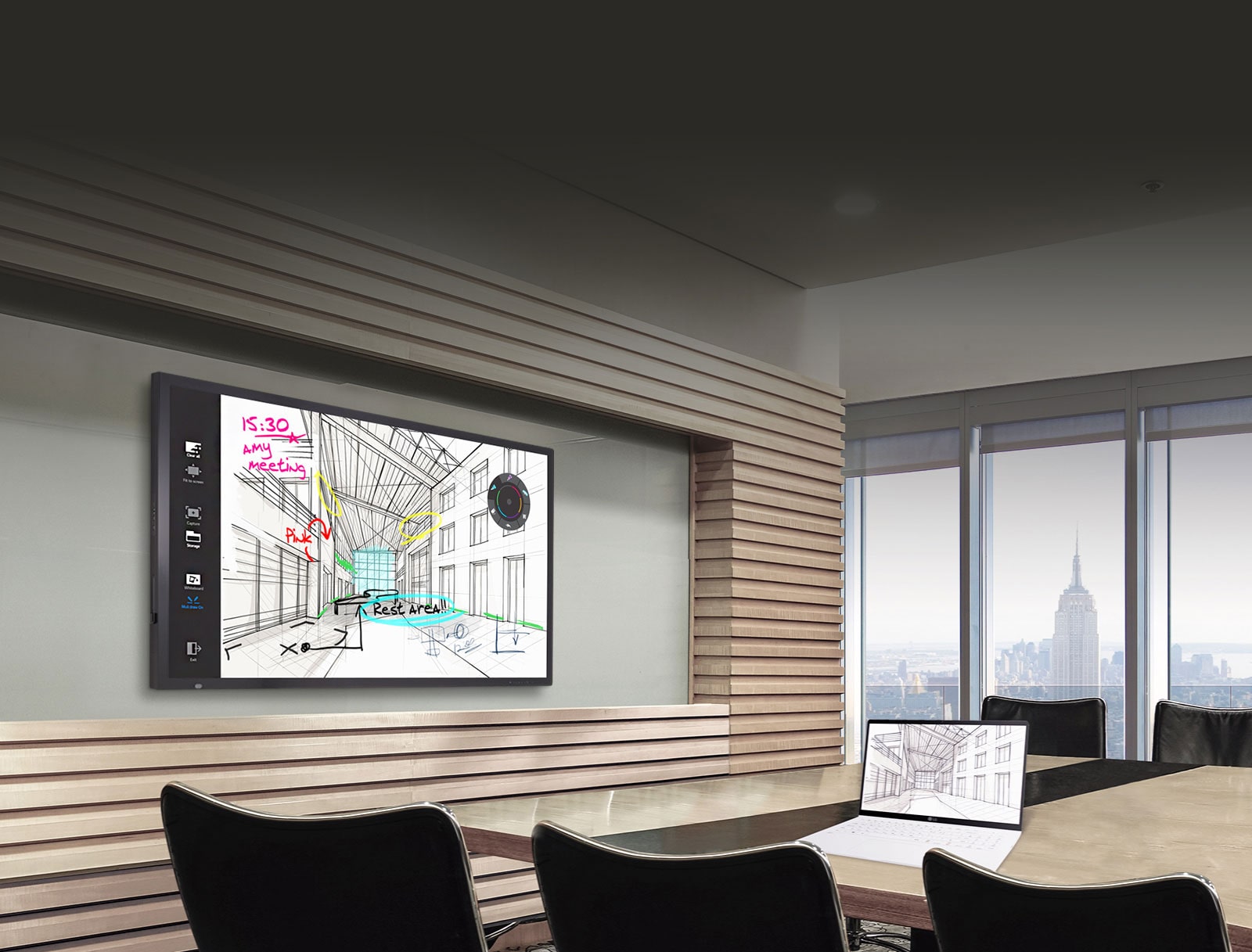

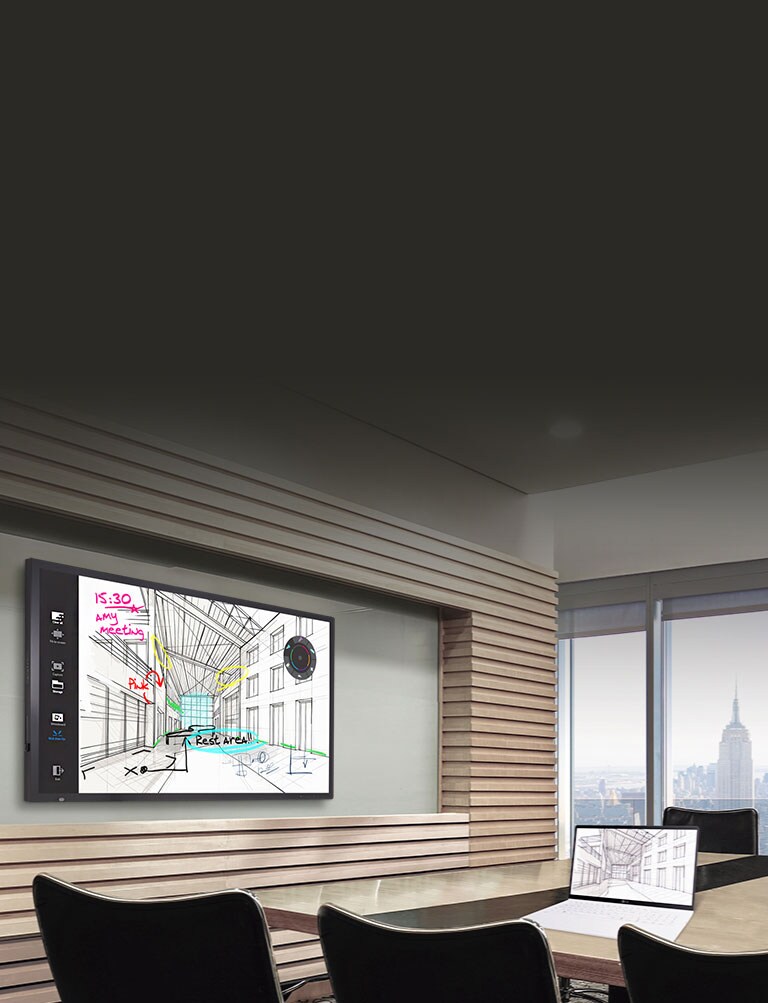

LG IDB: Do More Smartly, Simply<br>1 LG IDB: Do More Smartly, Simply<br>2
Embedded LG IDB App & webOS

LG IDB: Do More Smartly, Simply

With the IDB app, based on the webOS smart platform, get rid of the need for a PC or additional software licenses when writing/collaborating on Interactive Digital Board.

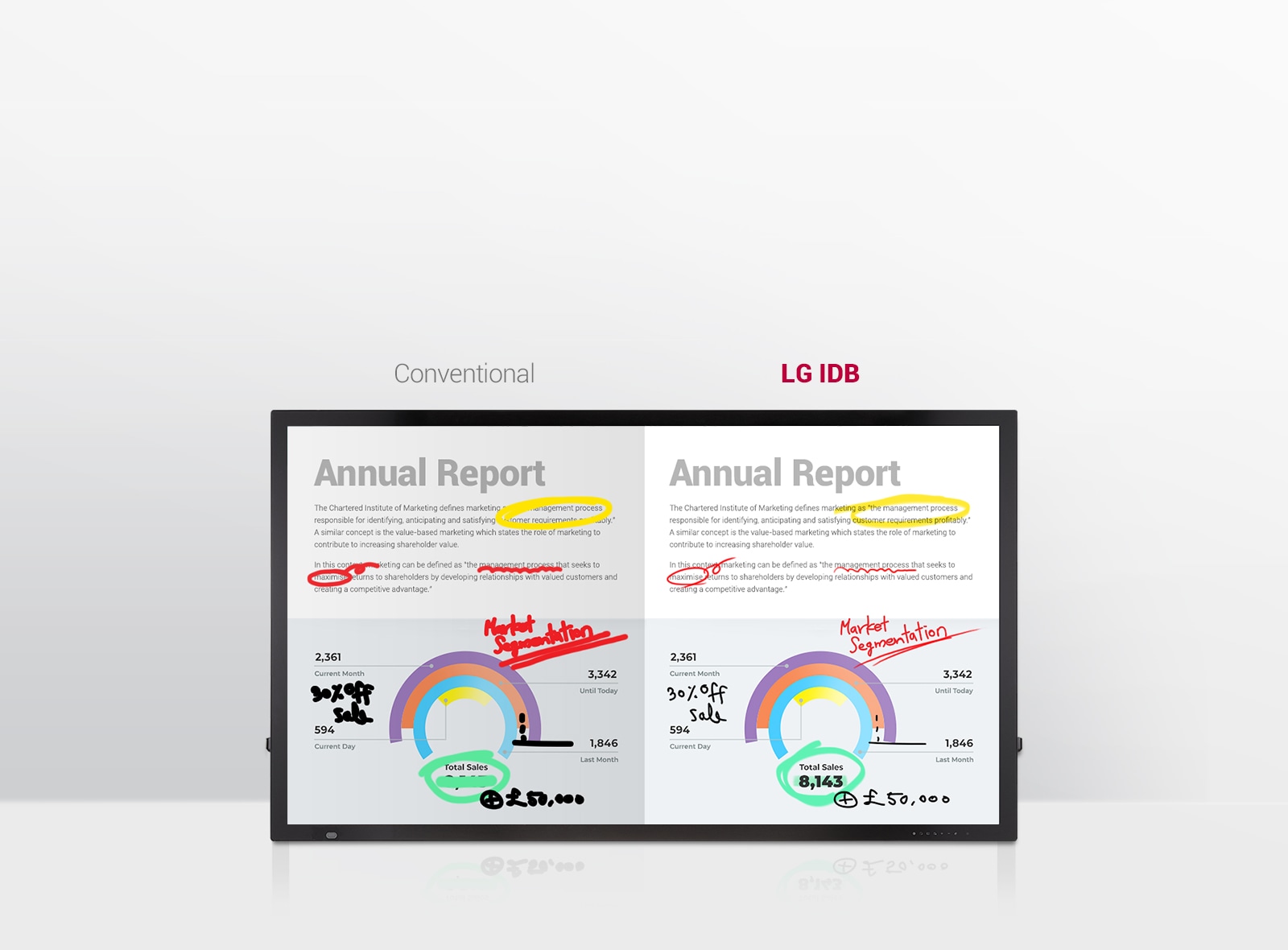

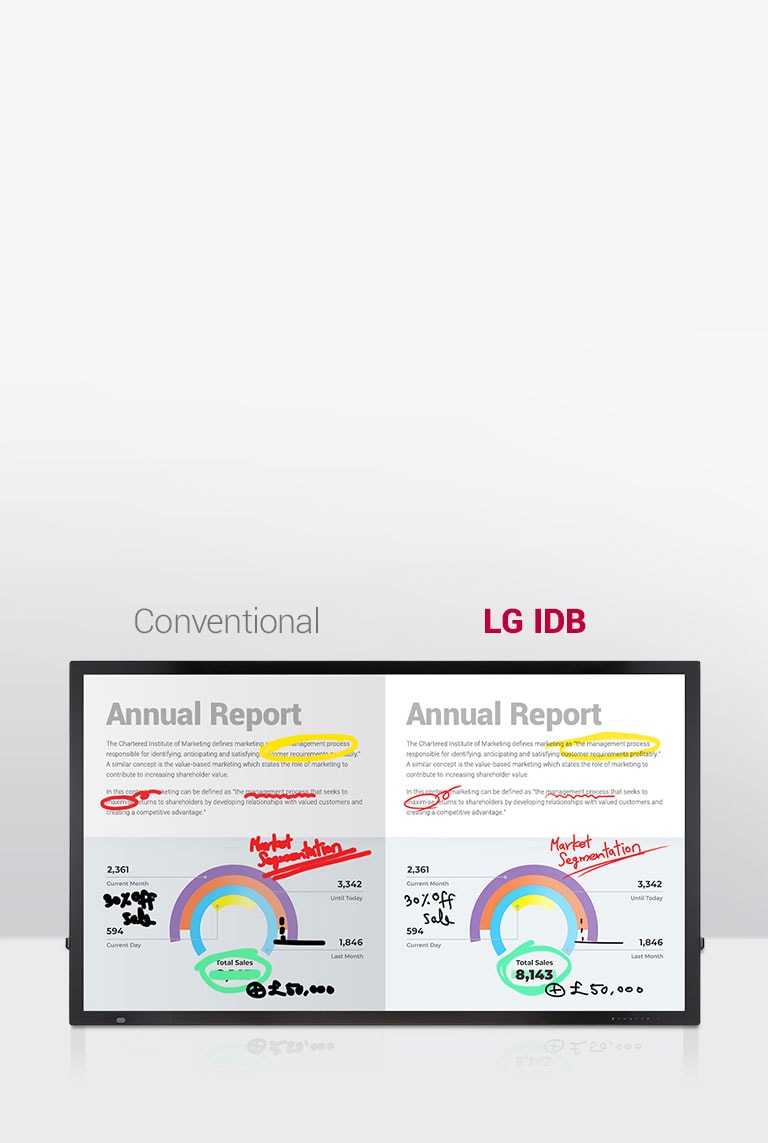

Intuitive Touch and Writing<br>1 Intuitive Touch and Writing<br>2
Innovative Touch Performance

Intuitive Touch and Writing

Advanced P-Cap touch-technology enables precise touch responses and realistic handwriting. Pen thickness adapts to the writing speed, with support for max. 40 point muli-touch.

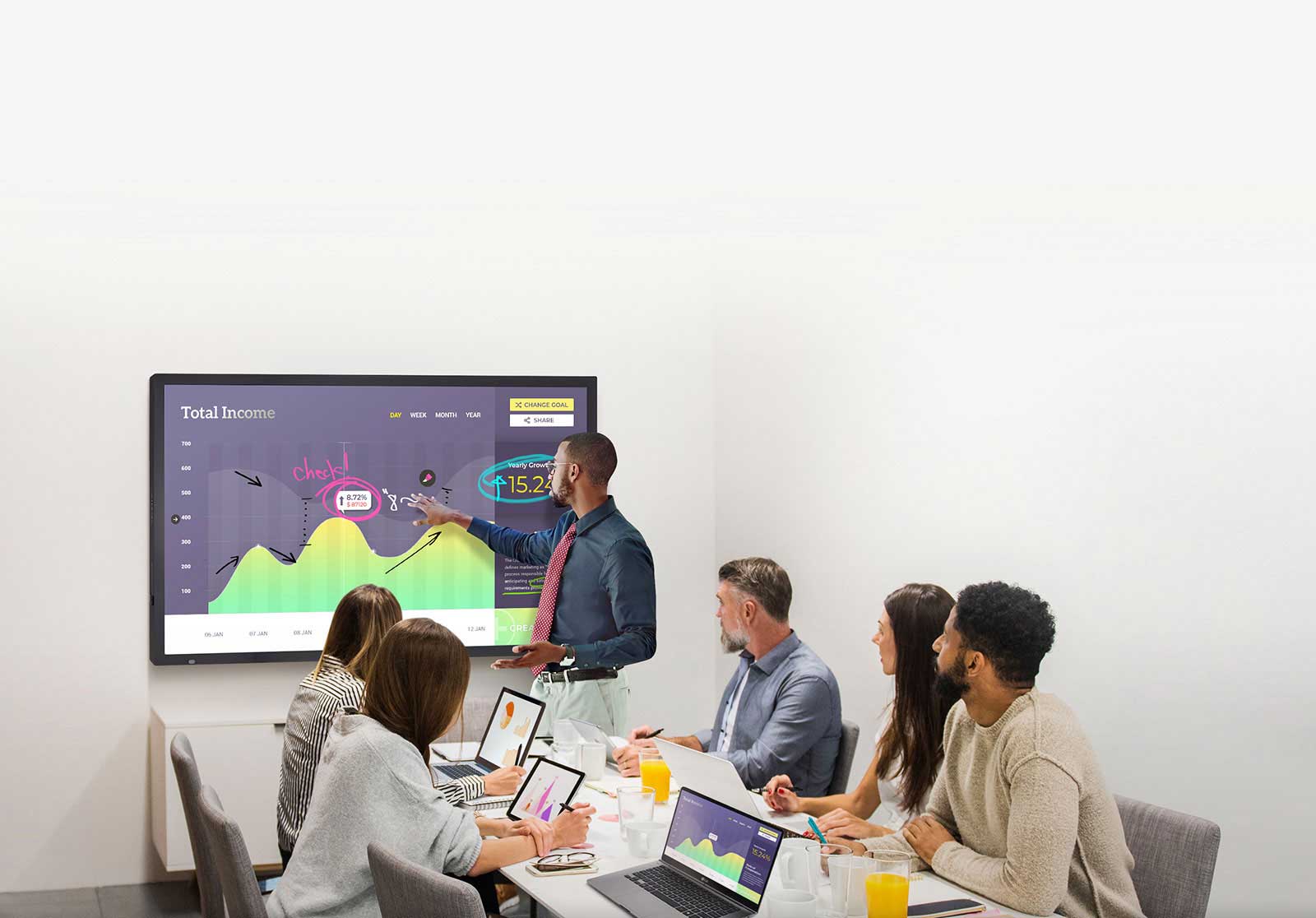

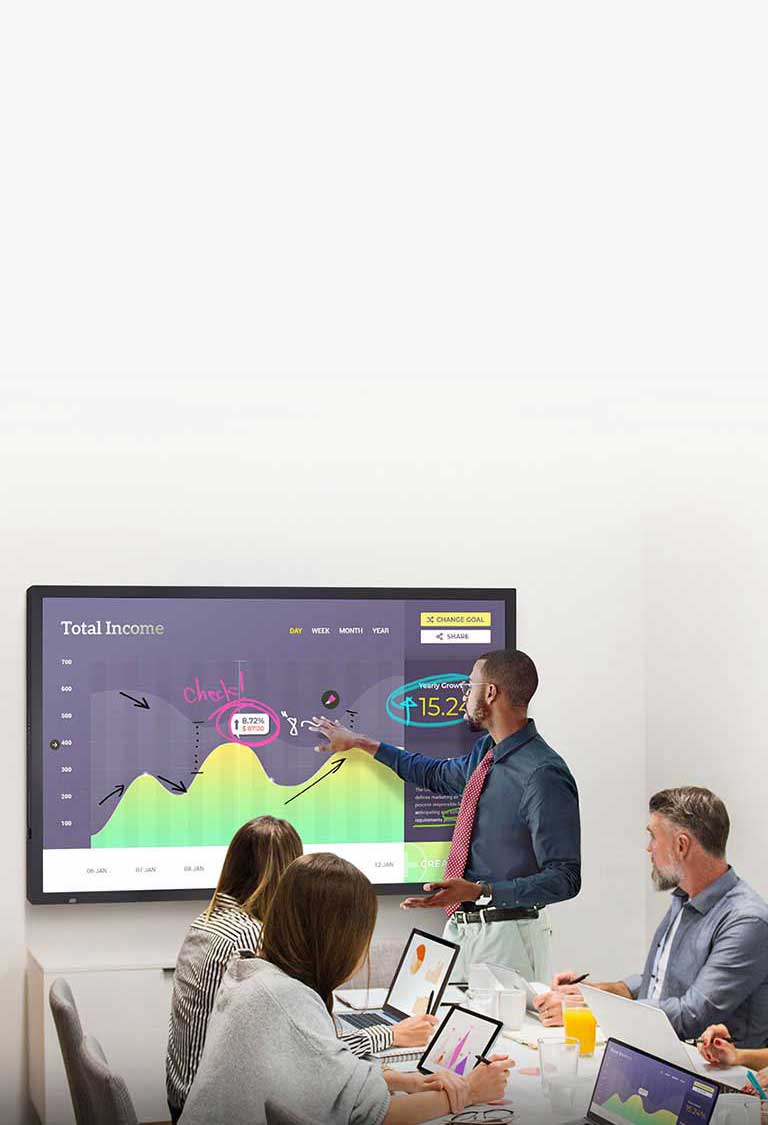

All-in-One Meeting Experience<br>1 All-in-One Meeting Experience<br>2
Efficient Collaboration

All-in-One Meeting Experience

For effective collaboration, LG IDB combines once separate processes including participant laptop screen sharing via wired/wireless* connection, writing on a shared screen, and saving annotations.
*Installation of the PC client app (IDB Duo) is required. Go to the 'Tech Spec' section of this page for the minimum requirements and then download the app from the 'Business Resources' section.
Peerless Picture Quality<br>1 Peerless Picture Quality<br>2
UHD Resolution

Peerless Picture Quality

With LG IDB's UHD resolution, users can view content in the finest detail, even with full zoom-in. UHD provides the highest-quality media experience at four times higher definition than FHD.
True Color, Wide View<br>1 True Color, Wide View<br>2
IPS Panel

True Color, Wide View

LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

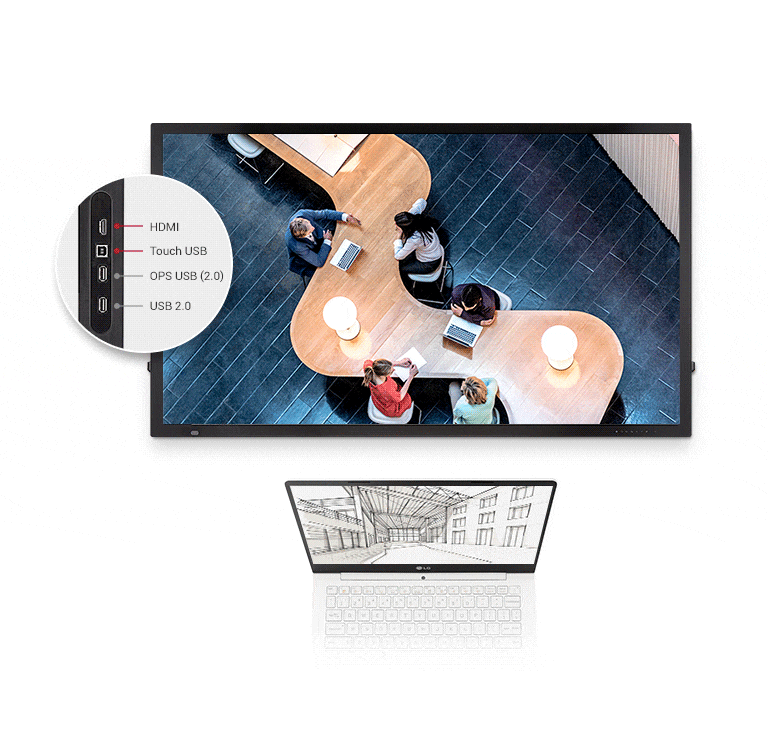

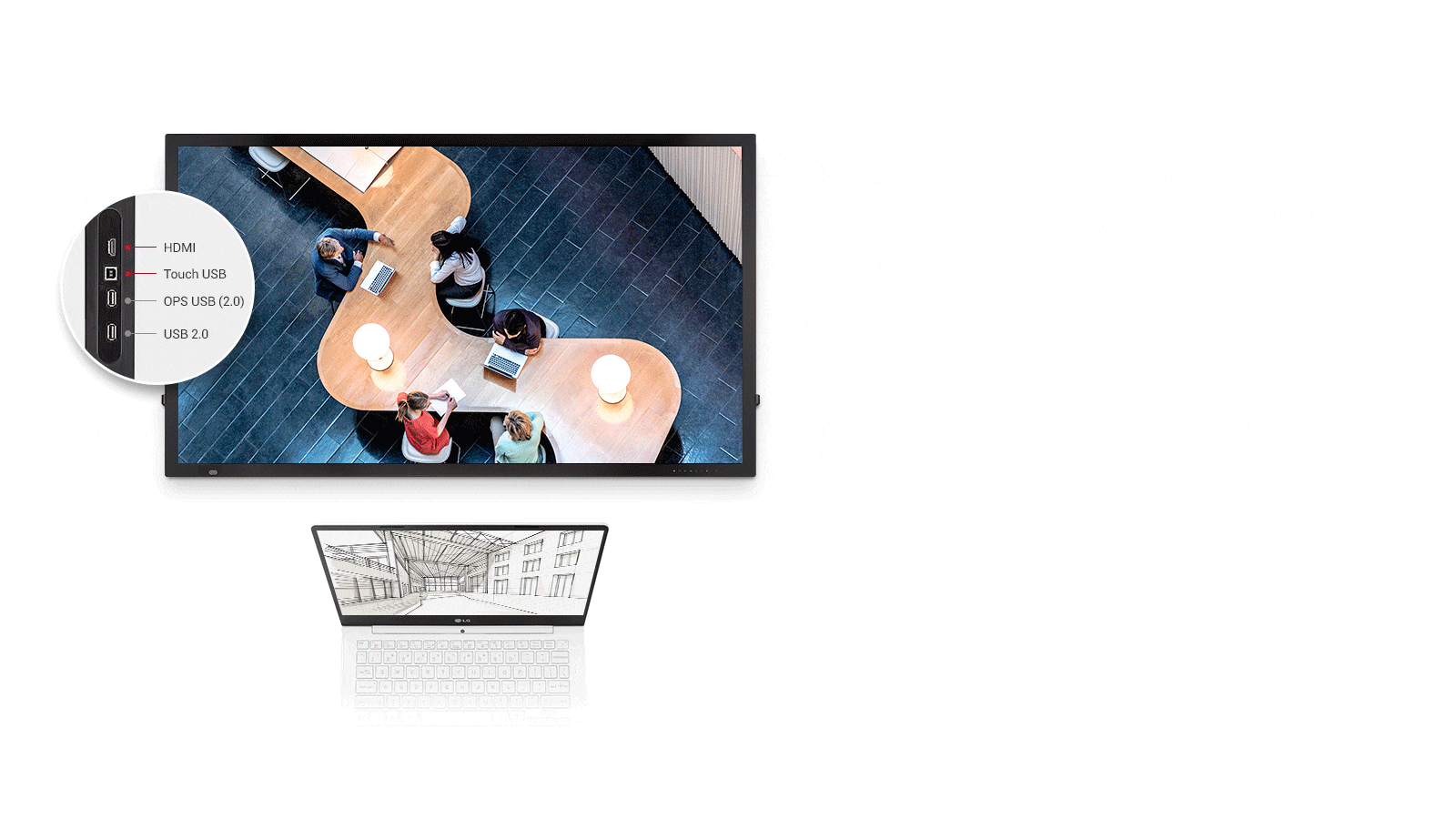

Quick and Easy Screen Sharing1 Quick and Easy Screen Sharing2
Auto Signal/Touch Switching

Quick and Easy Screen Sharing

Delivering time-saving functionality, the display can detect input/touch signals and automatically change the source if the new input has higher priority than the previous source.

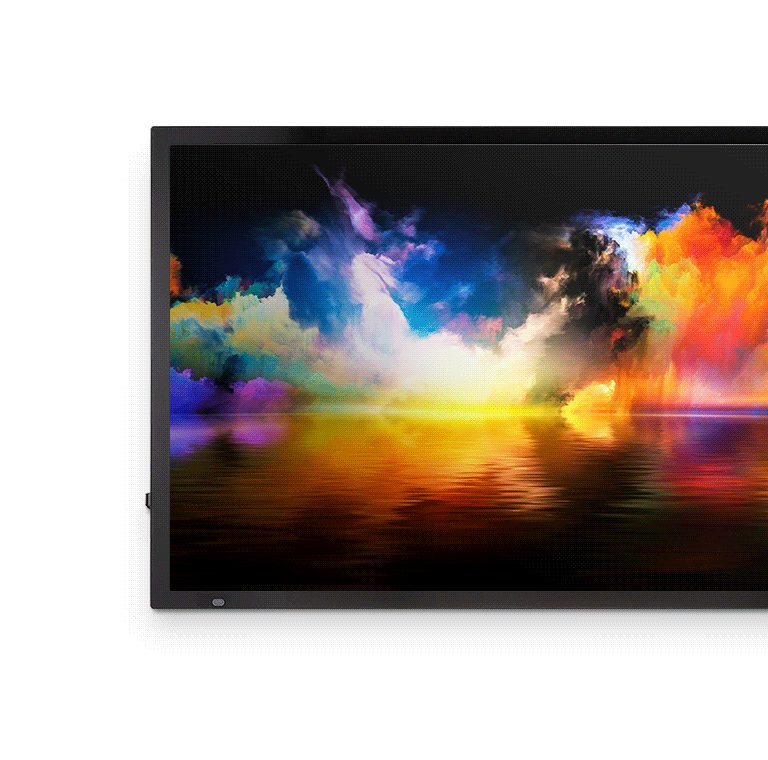

Easy Menu Calling, and Control<br>1 Easy Menu Calling, and Control<br>2
Assistive Touch Menu

Easy Menu Calling, and Control

Providing optimal ease of use, LG IDB users can run desired functions or change settings by softly pressing the screen to call up the Touch Menu.
*The menu design (GUI) is subject to change without notice.

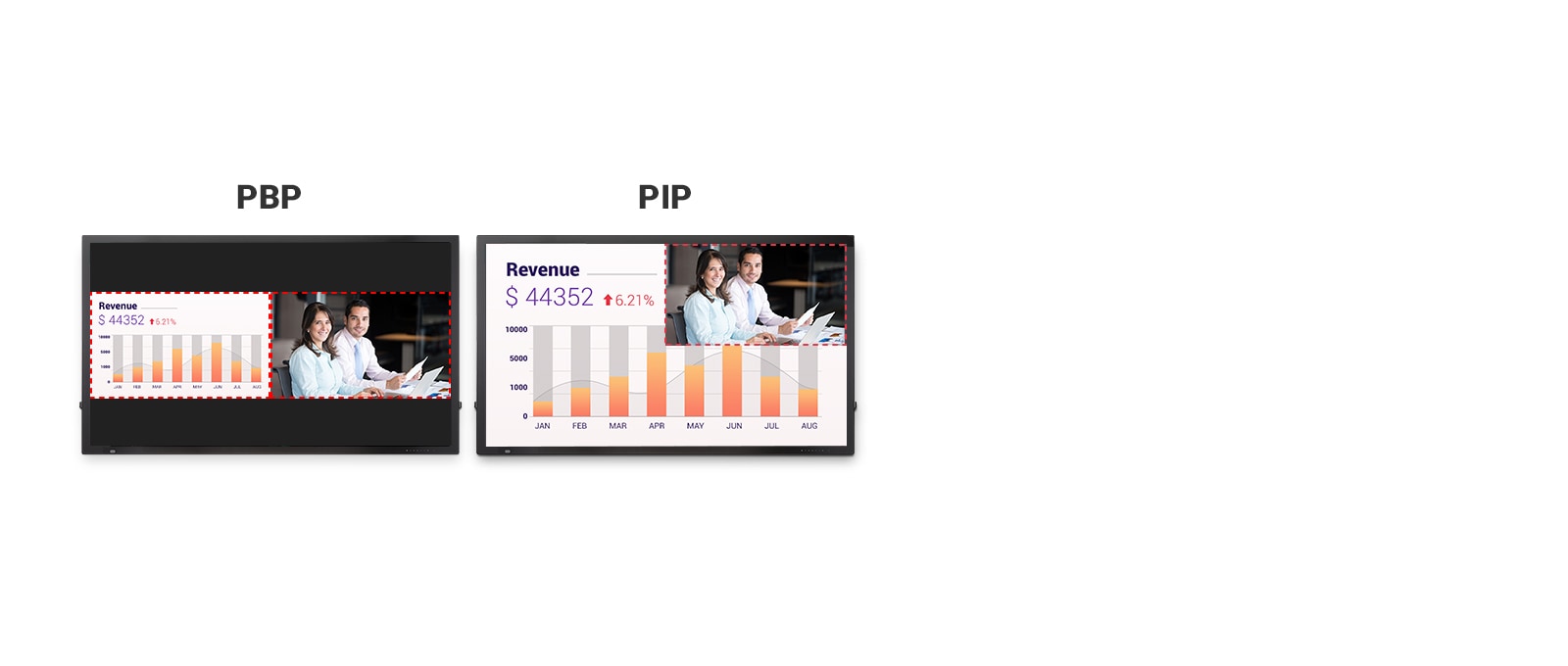

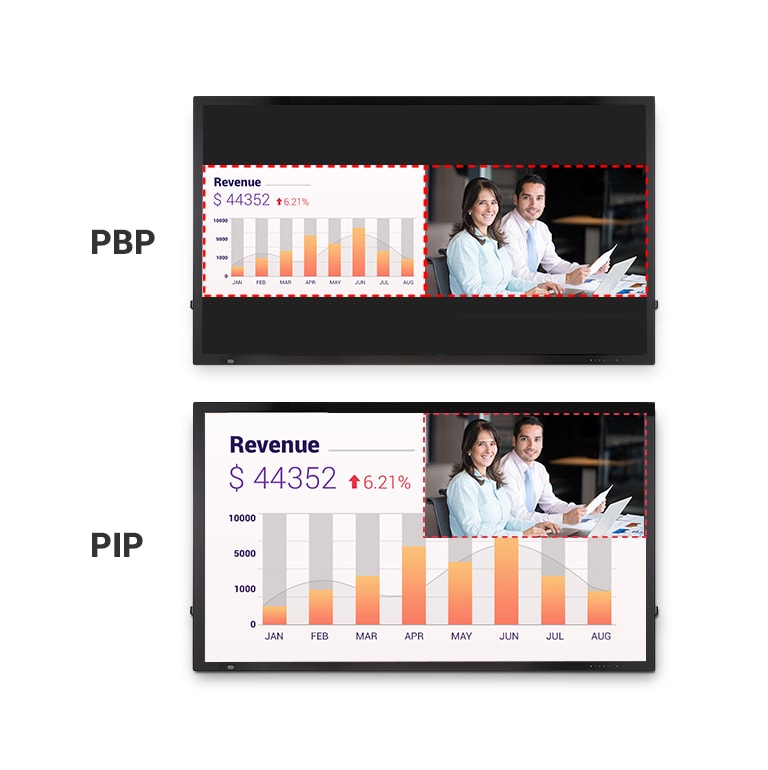

Enjoy a Multi Screen Experience<br>1 Enjoy a Multi Screen Experience<br>2
PBP/PIP

Enjoy a Multi Screen Experience

Providing enhanced flexibility for users, PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub-screen modes.
Close
ACCESSORY
  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea)
    Optional
    OPS Kit (KT-OPSA), Wall Mount(LSW640A/B)
CONNECTIVITY
  • External Control
    RS232C in/out, RJ45 in
    Input
    HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0
  • Output
    Touch USB 2.0 (2)
ENVIRONMENT CONDITIONS
  • Operation Humidity
    10% to 80%
    Operation Temperature
    0°C to 40°C
PANEL
  • Brightness (Module, Typ., cd/m²)
    500
    Native Resolution
    3,840 x 2,160 (UHD)
  • Screen Size
    75”
PHYSICAL SPECIFICATION
  • Bezel Width
    41.6 mm(T/L/R/B)
    Carton Dimensions (W x H x D)
    1,870 x 1,264 x 285 mm (with pallet)
  • Monitor Dimension (W x H x D)
    1,732.8 x 1011.1 x 69.7 mm (w/o Handle)
    Packed Weight
    94kg
  • VESA™ Standard Mount Interface
    600 x 400 mm
    Weight (Head)
    74.5 kg
POWER CONSUMPTION
  • Smart Energy Saving
    ≤ 170W
    Typ.
    ≤ 240W
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link
STANDARD(CERTIFICATION)
  • EMC
    FCC Class “A”/CE/KCC
    Safety
    UL/cUL/CB/TUV/KC
TOUCH
  • Touch type
    P-Cap (Ag Metal Mesh)
    Interface
    USB 2.0
  • Protection Glass Thickness
    4T (Anti-Glare)
    Multi touch point
    Max. 40 Points
  • Available object size for touch
    more than Ø 6mm
    Accuracy
    2mm
MINIMUM REQUIREMENTS FOR LG PRESENTER
  • OS (Windows 32bit or 64bit)
    Windows 7, Windows 10
    OS (macOS)
    macOS 10.12 Sierra, MacOS 10.13 High Sierra
  • CPU (Windows)
    2.7GHz+ Dual Core Broadwell or higher
    CPU (macOS)
    Any CPU which supports Sierra or High Sierra
  • Memory
    4GB RAM
    Hard Drive
    1GB of free space
  • Graphics Hardware (Windows)
    Intel Iris or higher, Nvidia, ATI
    Graphics Hardware (macOS)
    Any GPU which supports Sierra or High Sierra
