86BH5C component-copyModelName
86BH5C Series

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86BH5C)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86BH5C)
    $
    $
    LG Members Price
Total
86BH5C Series

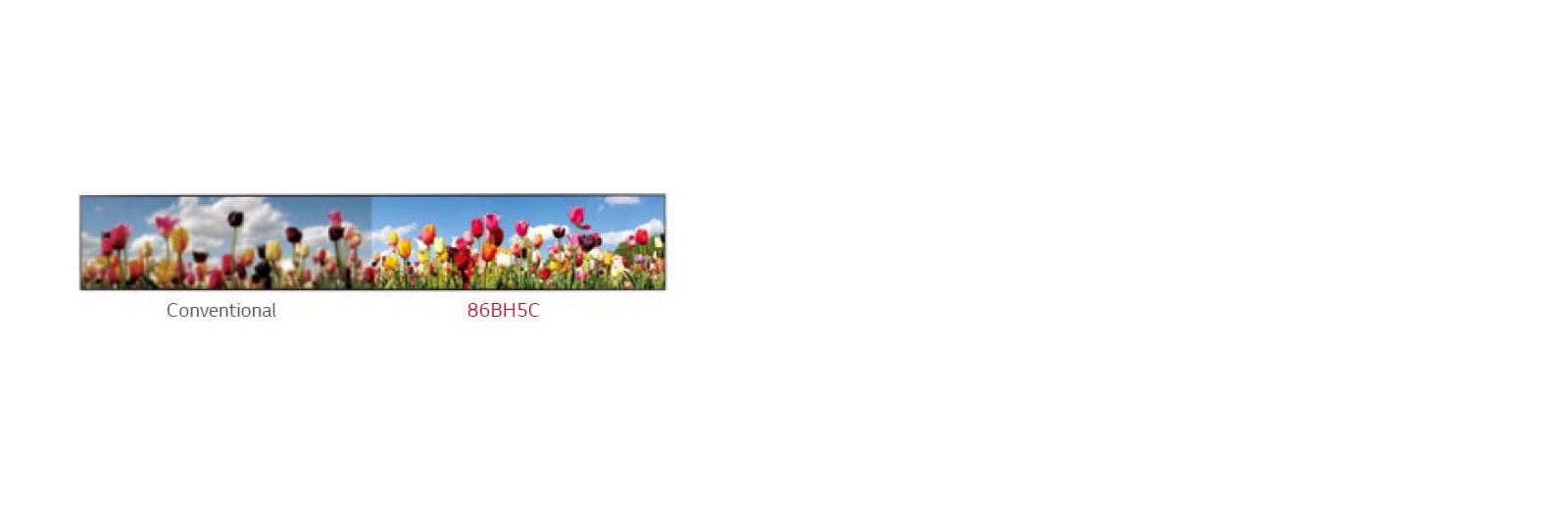

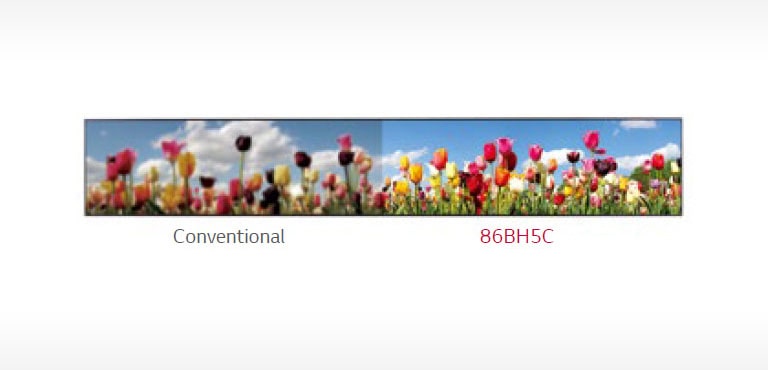

Ultra HD Resolution (3840 x 600)<br>1 Ultra HD Resolution (3840 x 600)<br>2
New Design Confi guration

Ultra HD Resolution (3840 x 600)

Ultra HD large screens deliver an immersive
viewing experience.
58:9 Extended Wide Format<br>1 58:9 Extended Wide Format<br>2
New Design Configuration

58:9 Extended Wide Format

Dynamic content is delivered on one screen since the new widescreen format is a 58:9 bar- type display.
Multiple Screens<br>1 Multiple Screens<br>2

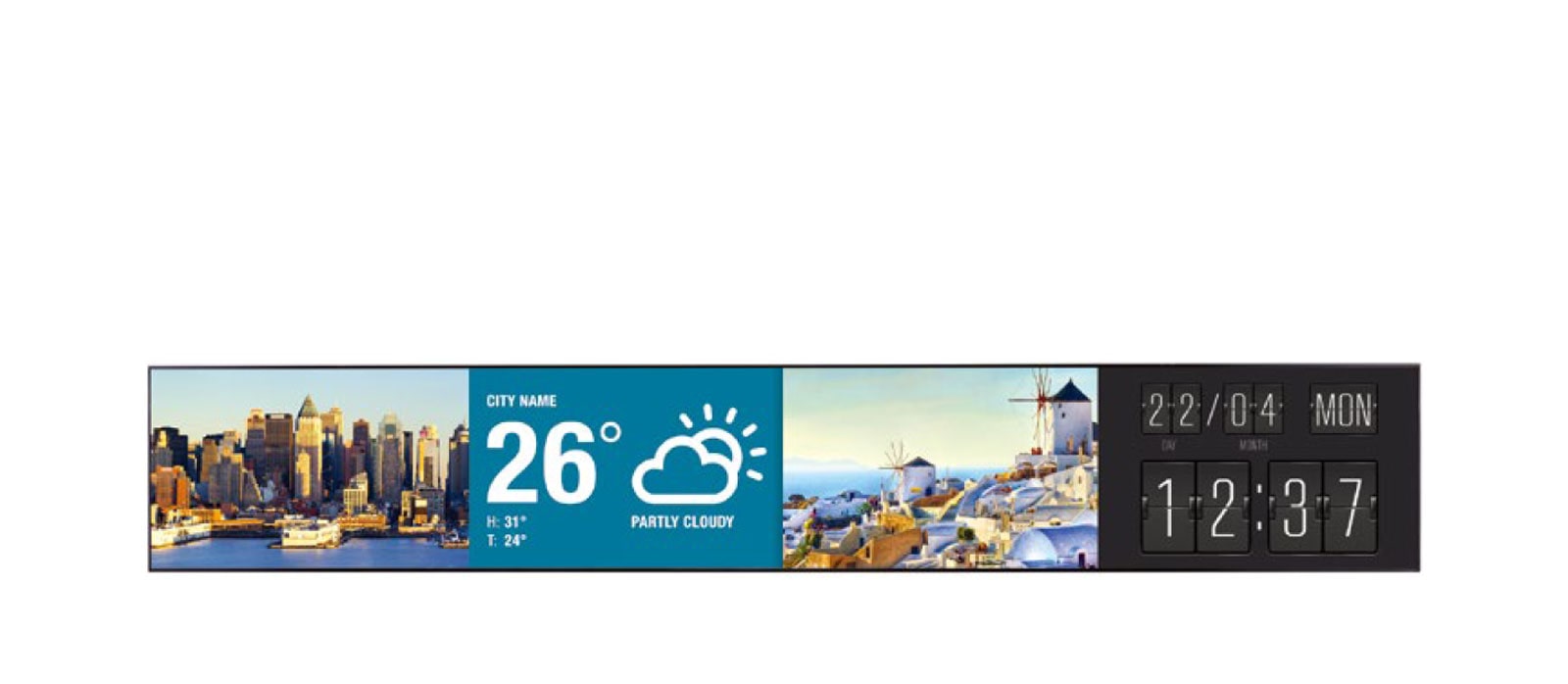

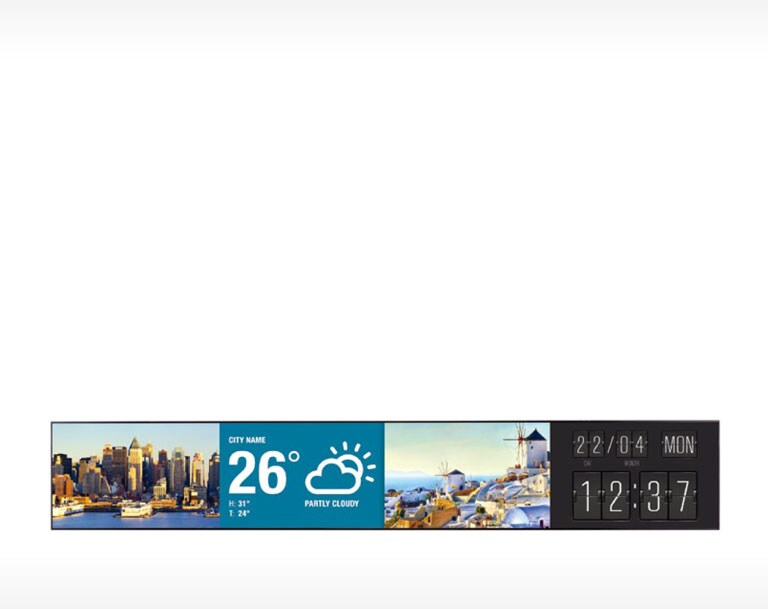

Multiple Screens

4 Divided PBP in Landscape or Portrait
The Picture-by-Picture (PBP) feature allows you to divide a screen into four parts in landscape or portrait installations.
58:9 Content Editing<br>1 58:9 Content Editing<br>2
Content Management

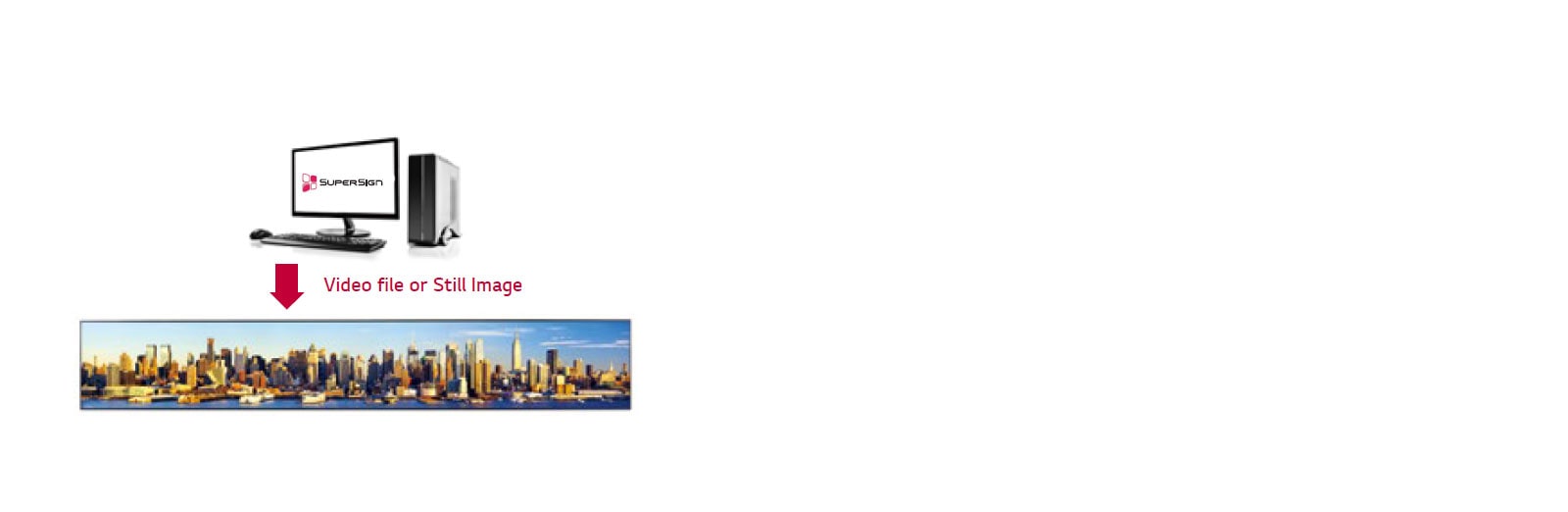

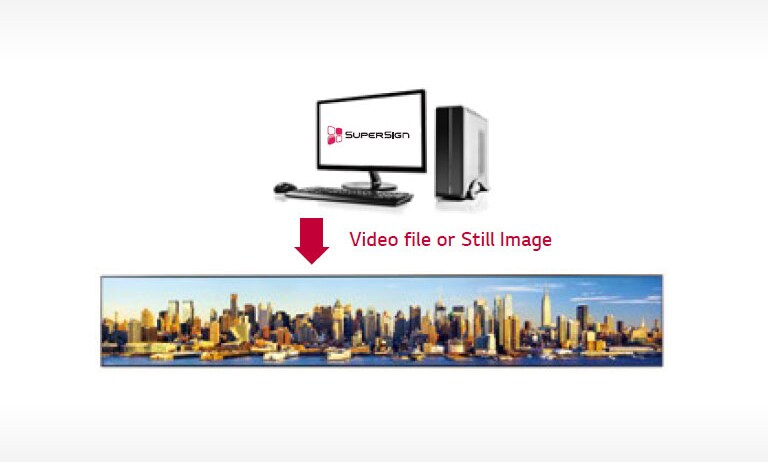

58:9 Content Editing

With the LG SuperSign media editor, you can easily edit images or video clips of original content without any additional editing programs.

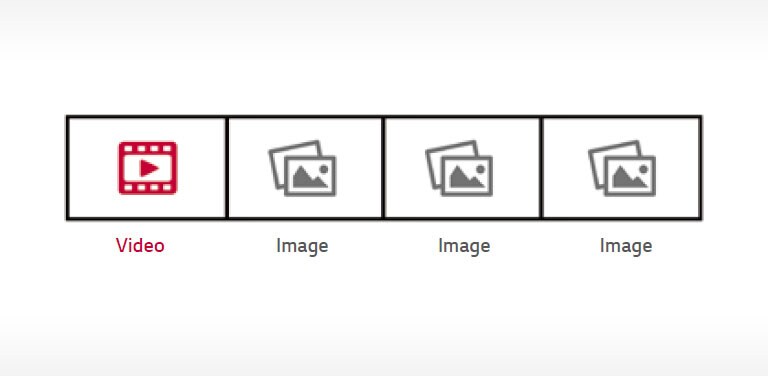

Multiple Content Creation<br>1 Multiple Content Creation<br>2
Content Management

Multiple Content Creation

Users can edit content that consists of one video and several still images (up to 20) with SuperSign Editor.

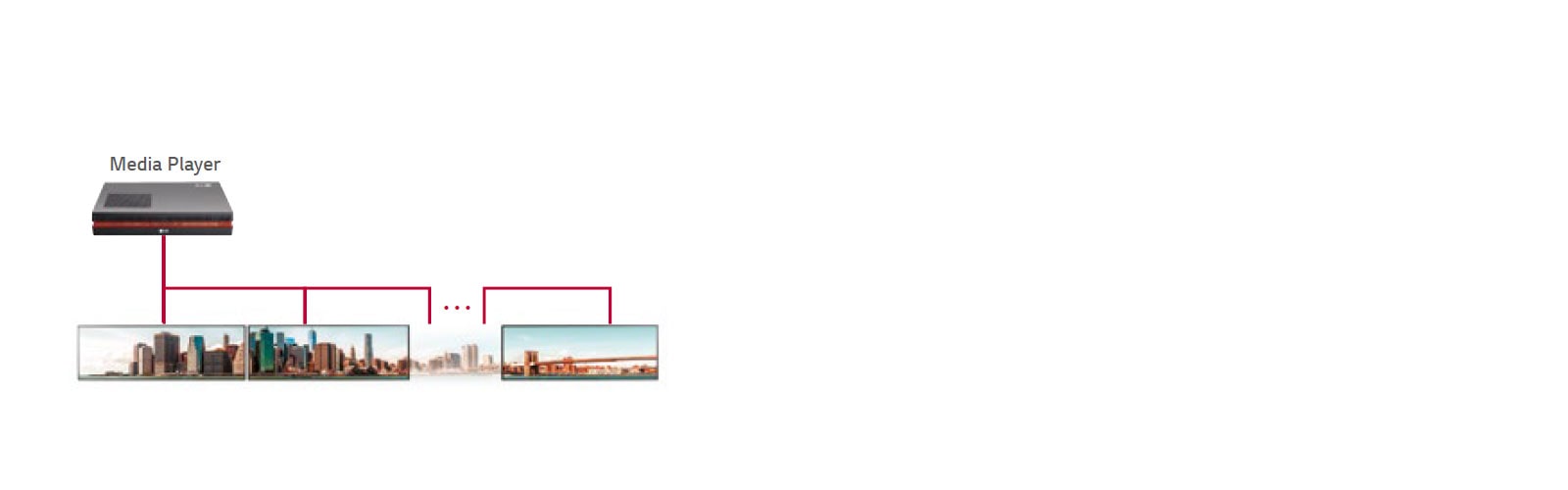

Tiling Scene with Daisy Chain<br>1 Tiling Scene with Daisy Chain<br>2
Convenient Connectivity Support

Tiling Scene with Daisy Chain

This product supports lateral tiling for 1x4 or 4x1 installations (landscape or portrait), and up to a 4x4 installation with a daisy chain confi guration.

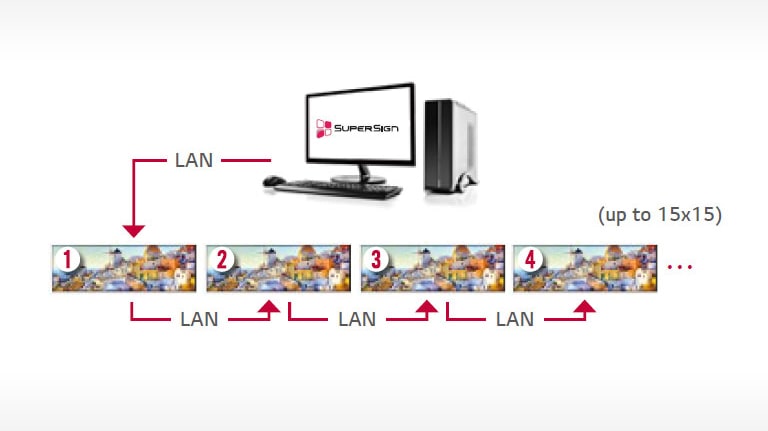

LAN Daisy Chain<br>1 LAN Daisy Chain<br>2
Convenient Connectivity Support

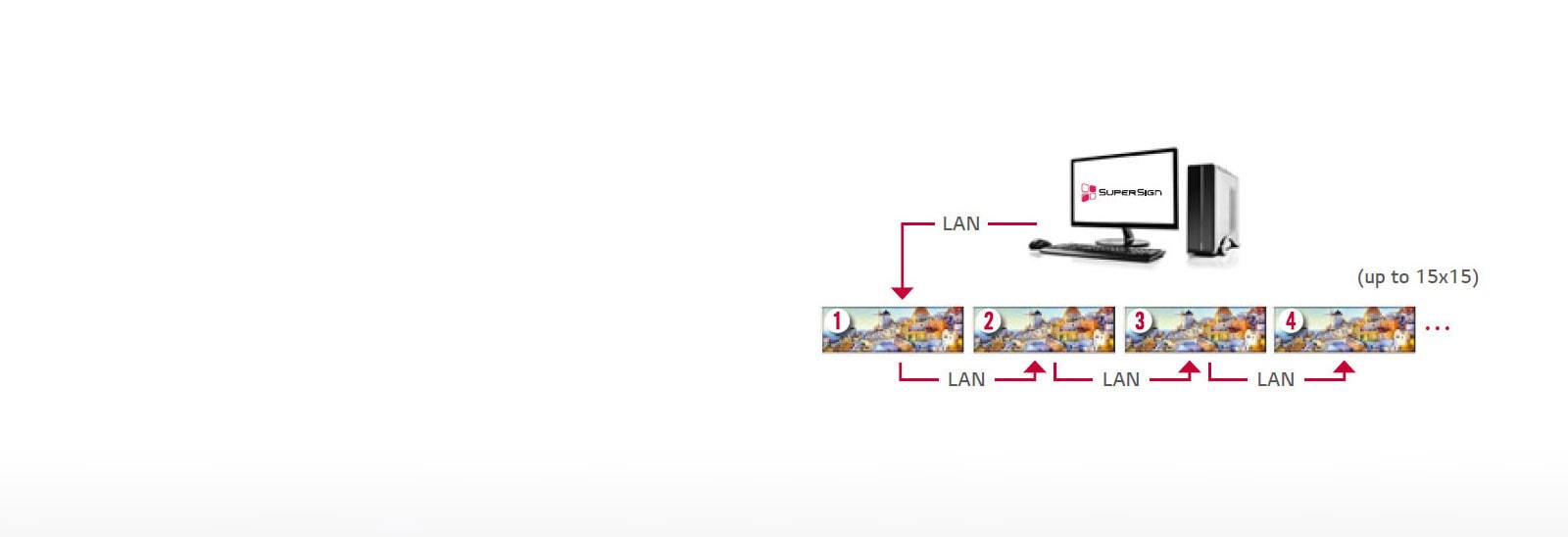

LAN Daisy Chain

The LAN daisy chain allows you to control and monitor devices, distribute content, and even update fi rmware.

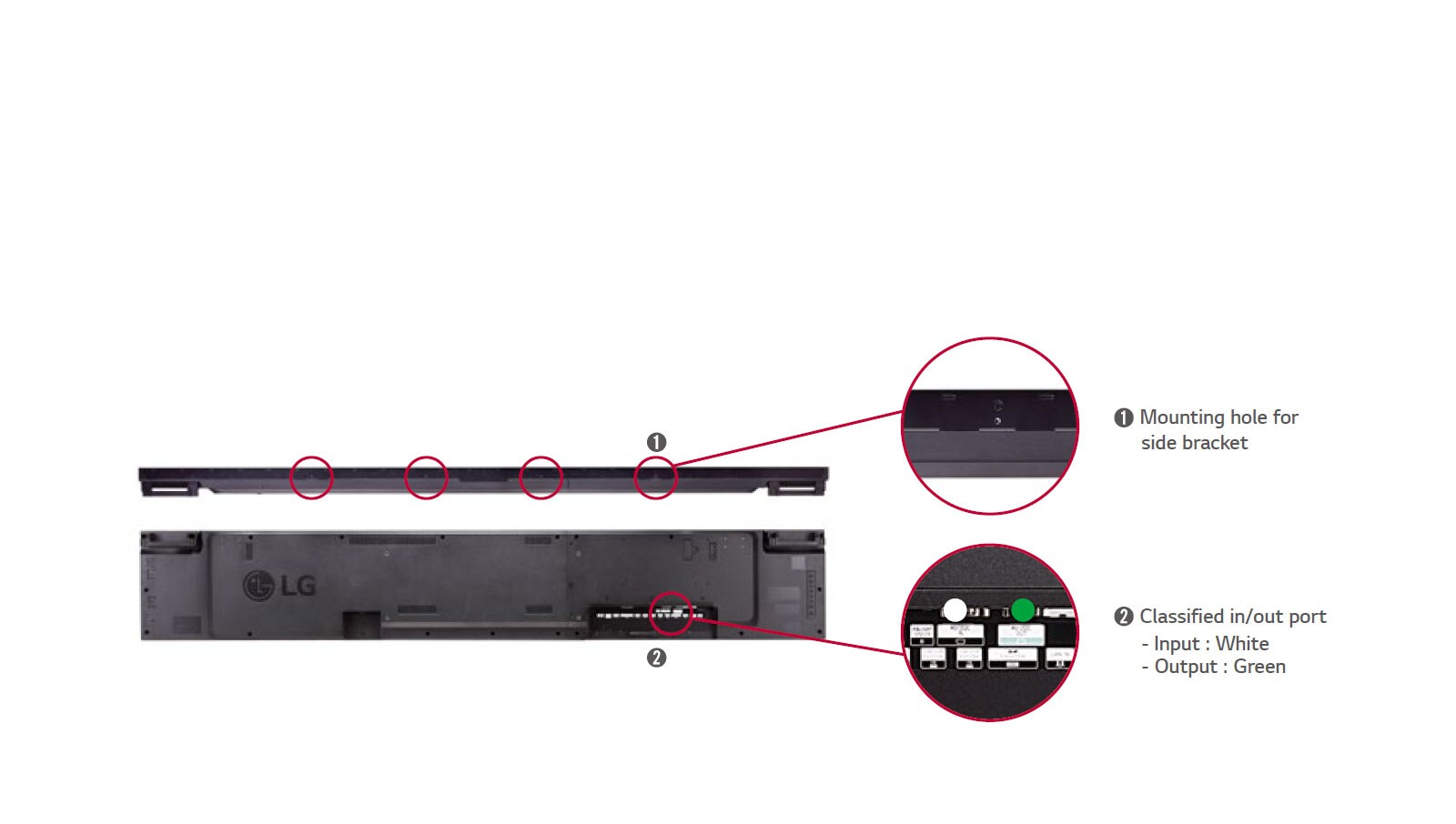

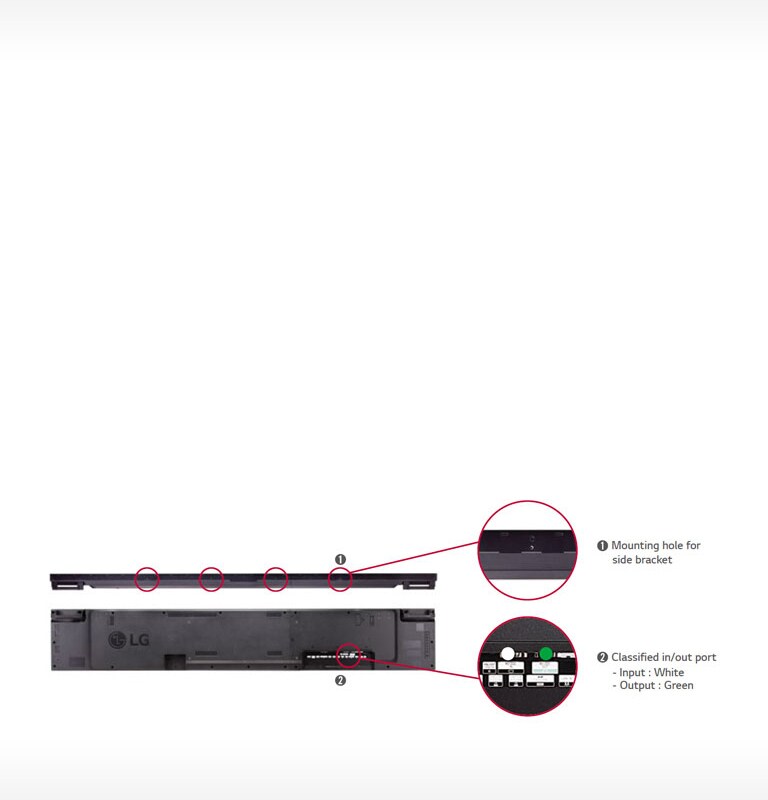

Easy Installation<br>1 Easy Installation<br>2

Easy Installation

Side Bracket / Classifi ed Port
This product supports side brackets for buried installations. The classified in/out port prevents errors when connecting a daisy chain.
Close
ACCESSORY
  • Basic
    Remote Controller (2ea Batteries included), Power Cord, DP (3M), RS-232C Cable (3M), Owner's Manual (Website upload)
    Optional
    AN-WF500 (WiFi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available
CONNECTIVITY
  • External Control
    RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio
    Input
    HDMI, DP, OPS, DVI-D, USB2.0, USB3.0, SD Card
  • Output
    Analog Audio
ENVIRONMENT CONDITIONS
  • Operation Humidity
    10 % to 80 %
    Operation Temperature
    0°C to 40°C
MEDIA PLAYER COMPATIBILITY
  • External Media player Attatchable
    No
    OPS Type Compatible
    Yes
PANEL
  • Brightness(Typ.,cd/m²)
    500
    Resolution
    3,840 x 600 (UHD)
  • Screen Size
    86"
PHYSICAL SPECIFICATION
  • Bezel Width
    4.4mm (L/R), 5.9mm (T/B)
    Monitor Dimension (W x H x D)
    2,158.3 x 348.5 x 81.7mm
  • Weight (Head)
    20.5kg
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
SOFTWARE COMPATIBILITY
  • SuperSign-c
    Yes
    SuperSign-w lite
    Yes
STANDARD(CERTIFICATION)
  • EMC
    FCC Class "A" / CE / KCC
    ErP/Energy Star
    NA / NA
  • Safety
    UL / cUL / CB / TUV / KC
