Interactive Digital Board

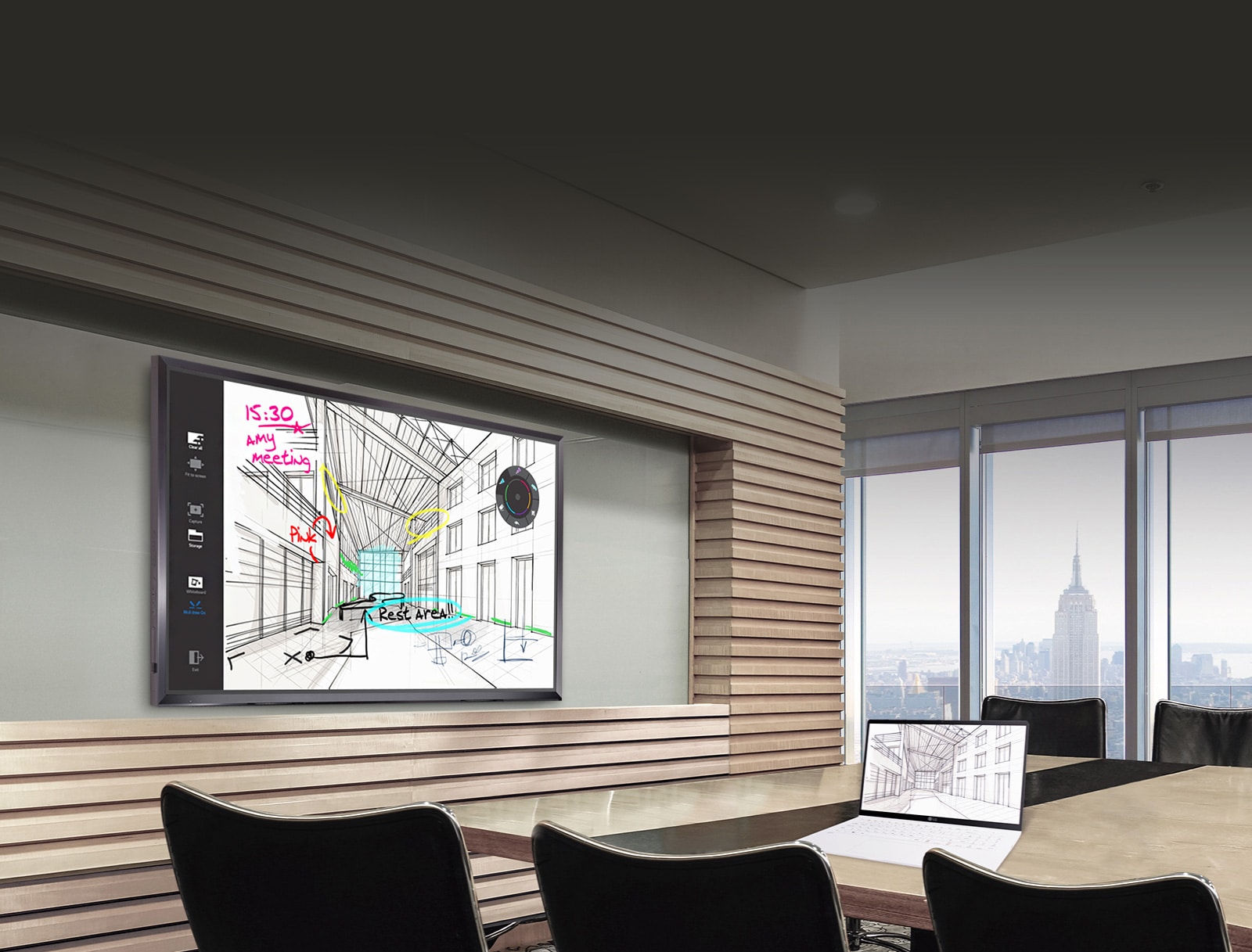

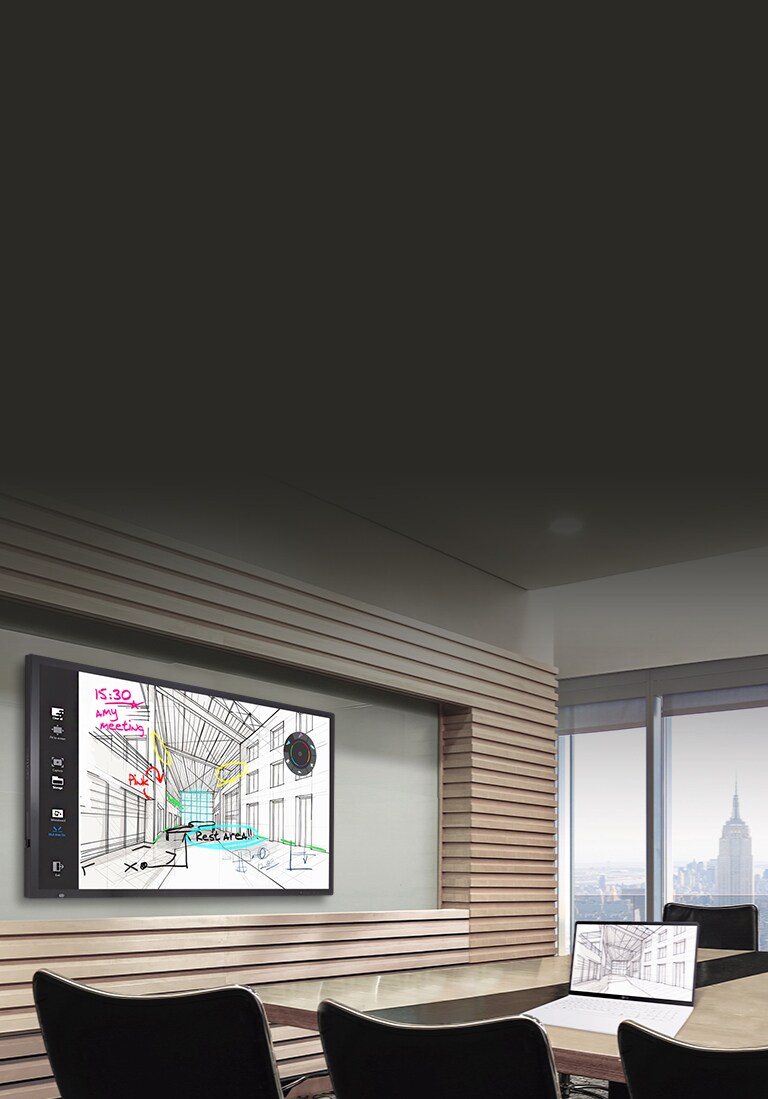

Be Smarter and Simpler with LG IDB<br>1 Be Smarter and Simpler with LG IDB<br>2
Embedded LG IDB App & webOS

Be Smarter and Simpler with LG IDB

IDB app makes it possible to write and collaborate on Interactive Digital Board(IDB) without the need for a PC or additional licenses for writing/collaboration solutions based on the webOS smart platform.

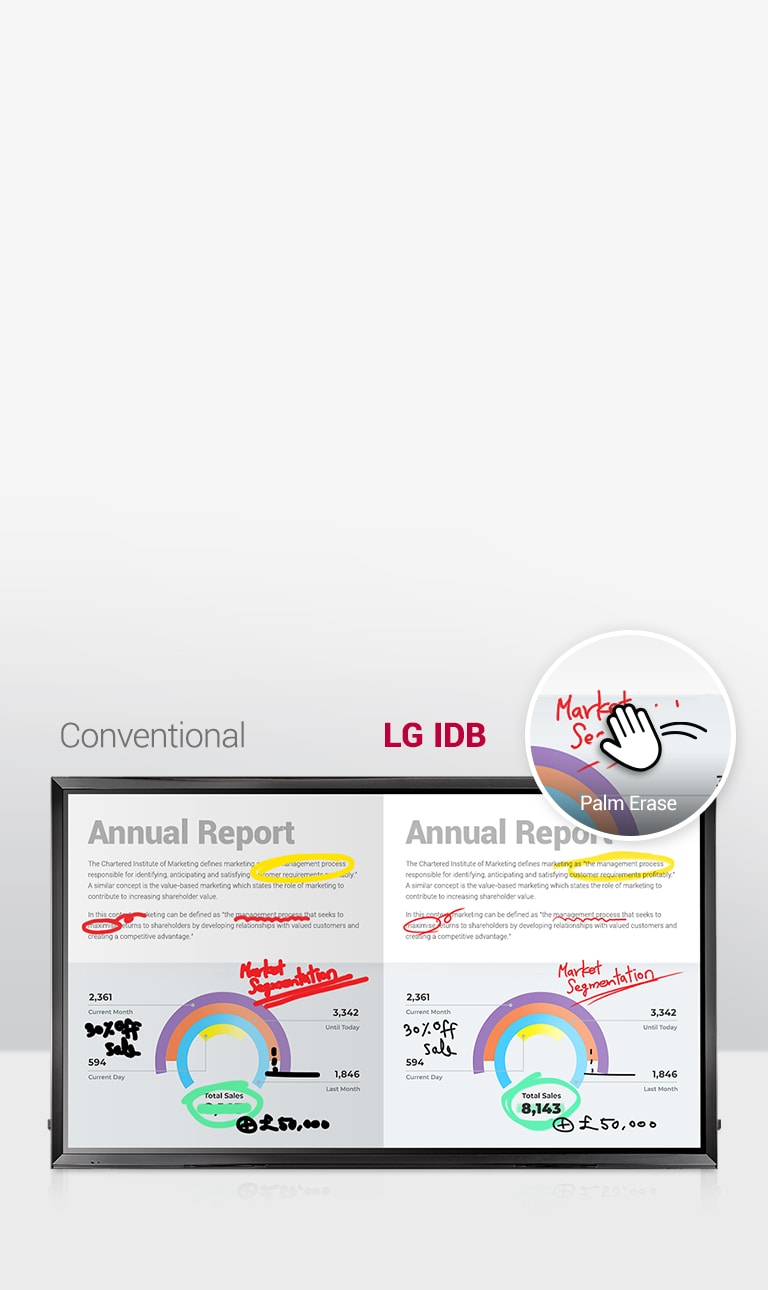

Intuitive Touch and Writing<br>1 Intuitive Touch and Writing<br>2
Outstanding Touch Performance

Intuitive Touch and Writing

The most advanced touch technology, InGlass™, enables precise touch responses and detailed writing like a realistic handwriting. The thickness of the pen is adapted to the writing speed, and max. 20 point multi-touch is supported. All notes on IDB are simply erased with user's palm.
All-in-One Meeting Experience<br>1 All-in-One Meeting Experience<br>2
Efficient Collaboration

All-in-One Meeting Experience

For the effective collaboration, LG IDB combines whole processes which includes sharing screens of participants' laptops via wired/wireless* connection simultaneously, writing on the shared screen, and saving annotation.
*Installation of the PC client app (IDB Duo) is required. Go to the 'Tech Spec' section of this page for the minimum requirements and then download the app from the 'Bussiness Resources' section.
The Superior Picture Quality<br>1 The Superior Picture Quality<br>2
UHD Resolution

The Superior Picture Quality

With the UHD resolution of LG IDB, users can view the content in fine detail even when zoomig in it on the display. It provides high-quality media experience with 4 times higher definition picture quality than FHD.
True Colors and Wider View<br>1 True Colors and Wider View<br>2
IPS Panel

True Colors and Wider View

The LG IPS panel has a wide viewing angle to deliver clear content regardless of the positions of meeting attendees. Moreover, each pixel of the IPS panel truly reproduces the image colors without distortion.

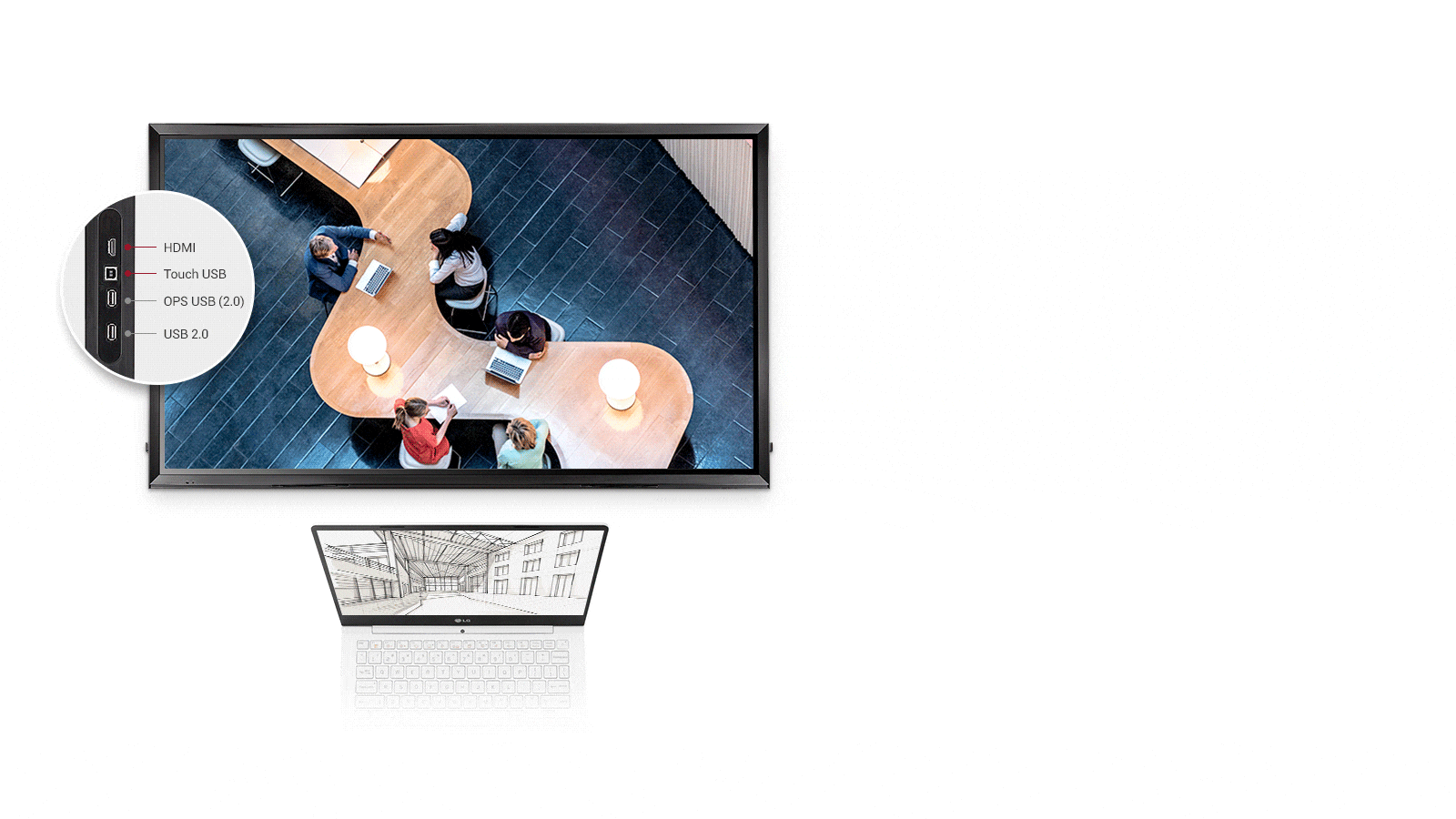

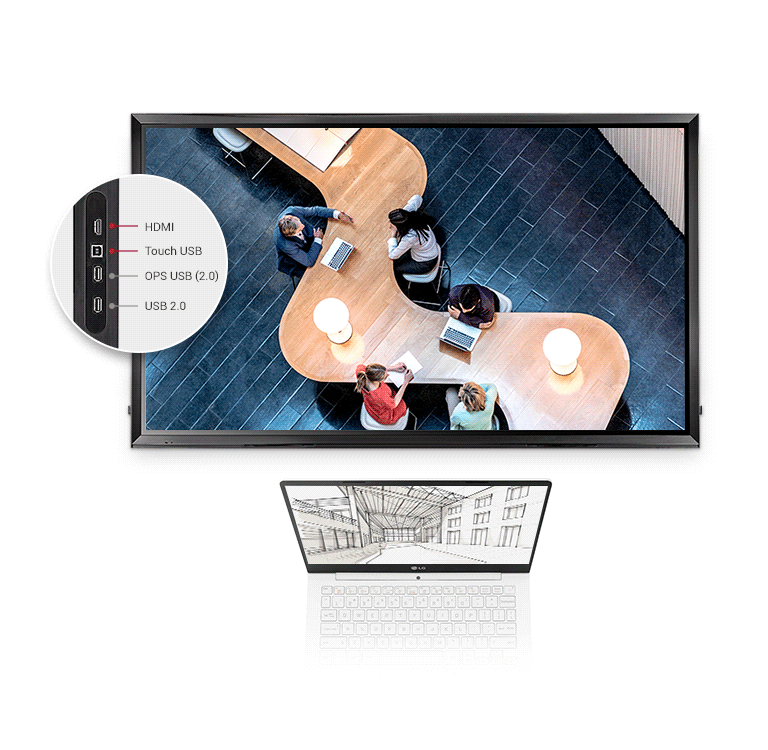

Quick and Easy to Share a Screen<br>1 Quick and Easy to Share a Screen<br>2
Auto Signal/Touch Switching

Quick and Easy to Share a Screen

The display can detect input/touch signals and automatically change the source if the new input has a higher priority than the previous source. It is a time-saving function for users to set-up the signals in conference

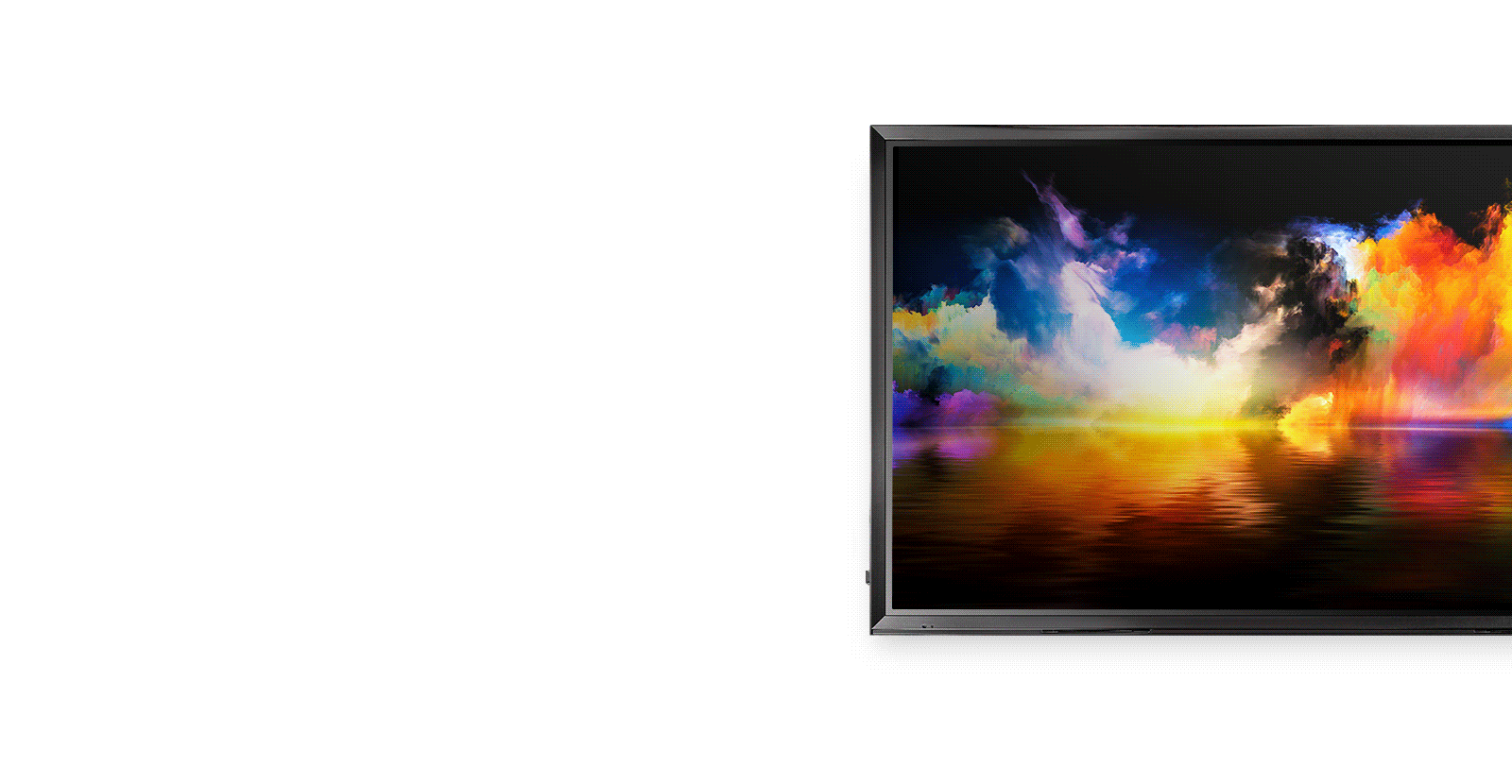

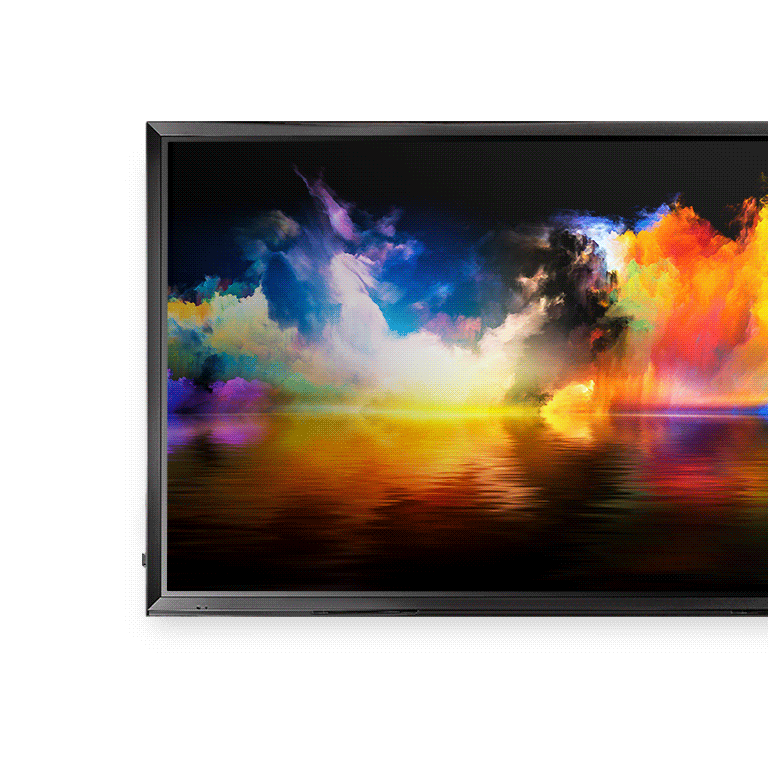

Easy to Call and Control the Menu<br>1 Easy to Call and Control the Menu<br>2
Assistive Touch Menu

Easy to Call and Control the Menu

For improving user-friendliness, LG IDB users can run the desired function or change the setting from anywhere by softly pressing the screen to call up the Touch Menu.

*The menu design(GUI) is subject to change without notice.

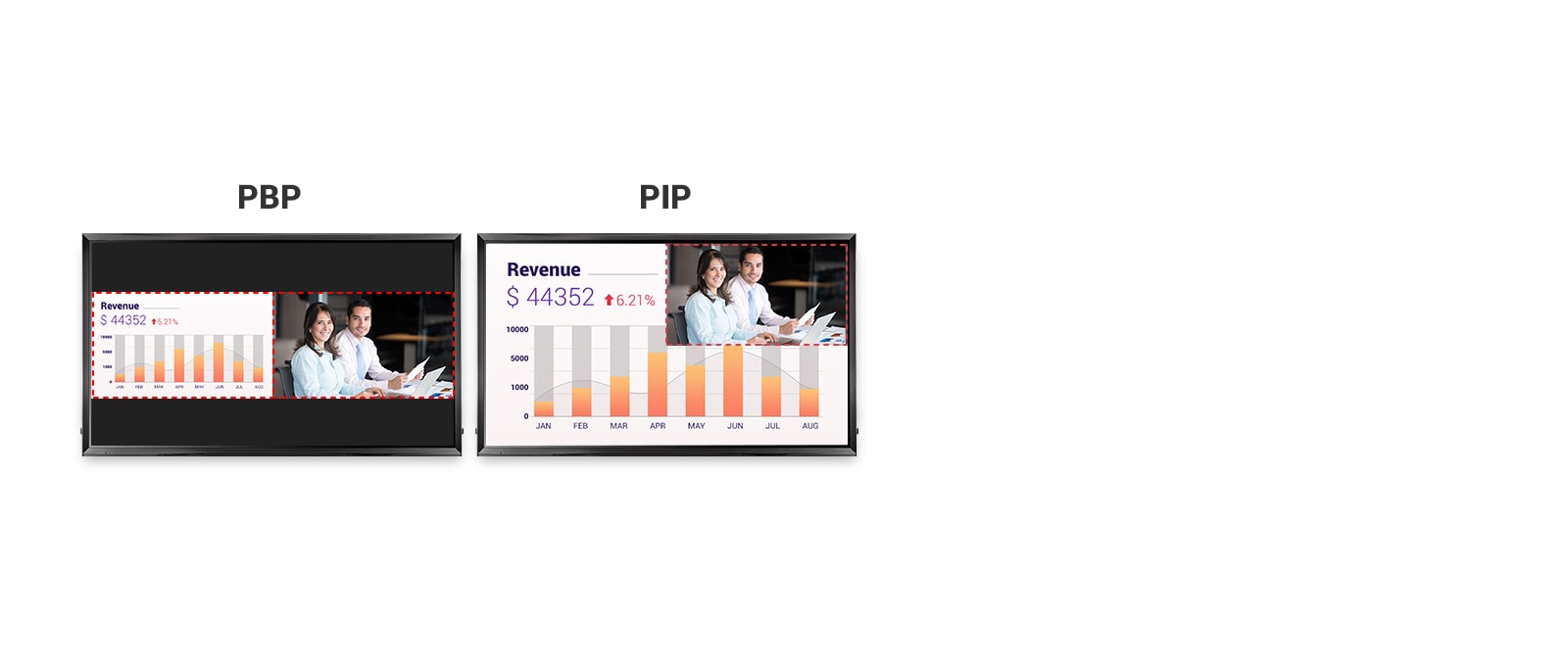

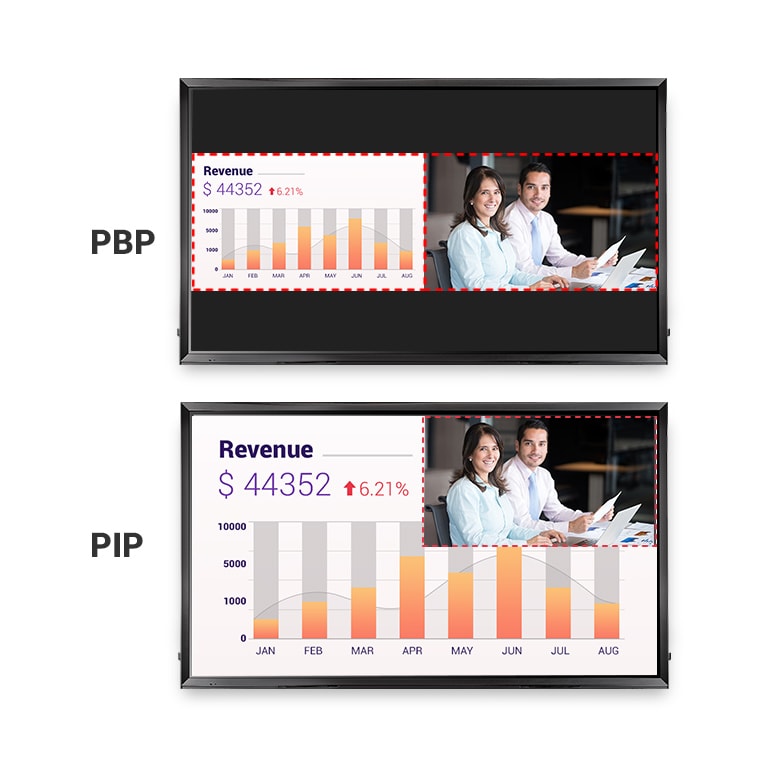

Enjoy <br>Multi Screens<br>1 Enjoy <br>Multi Screens<br>2
PBP/PIP

Enjoy
Multi Screens

PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub screen modes. This gives great flexibility to users to allocate space for each content source.
Close
ACCESSORY
  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea)
    Optional
    OPS Kit (KT-OPSA)
CONNECTIVITY
  • Input
    HDMI (3), DP, DVI-D, RGB, Audio, USB 3.0, USB 2.0, OPS USB 2.0
    Output
    Touch USB 2.0 (2)
ENVIRONMENT CONDITIONS
  • Operation Humidity
    10% to 80%
    Operation Temperature
    0°C to 40°C
PANEL
  • Brightness(Module, Typ., cd/m²)
    410
    Screen Size
    86"
PHYSICAL SPECIFICATION
  • Bezel Width
    50.7 mm (T/L/R), 62.2 mm (B)
    Carton Dimensions (W x H x D)
    2,190 × 1,470 × 371 mm
  • Monitor Dimension (W x H x D)
    2,026.9 x 1,180.3 x 79.5 mm (w/o Handle)
    Packed Weight
    114.6 kg
  • VESA™ Standard Mount Interface
    600 x 400 mm
    Weight (Head)
    85.8 kg
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link
TOUCH
  • Touch type
    InGlass™
    Interface
    USB 2.0
  • Protection Glass Thickness
    4T (Anti-Glare)
    Multi touch point
    Max 20 Point
  • Available object size for touch
    more than Ø 3 mm
    Accuracy
    2mm
MINIMUM REQUIREMENTS FOR LG PRESENTER
  • OS (Windows 32bit or 64bit)
    Windows 7, Windows 10
    OS (macOS)
    macOS 10.12 Sierra, MacOS 10.13 High Sierra
  • CPU (Windows)
    2.7GHz+ Dual Core Broadwell or higher
    CPU (macOS)
    Any CPU which supports Sierra or High Sierra
  • Memory
    4GB RAM
    Hard Drive
    1GB of free space
  • Graphics Hardware (Windows)
    Intel Iris or higher, Nvidia, ATI
    Graphics Hardware (macOS)
    Any GPU which supports Sierra or High Sierra
