Ultra Stretch Signage

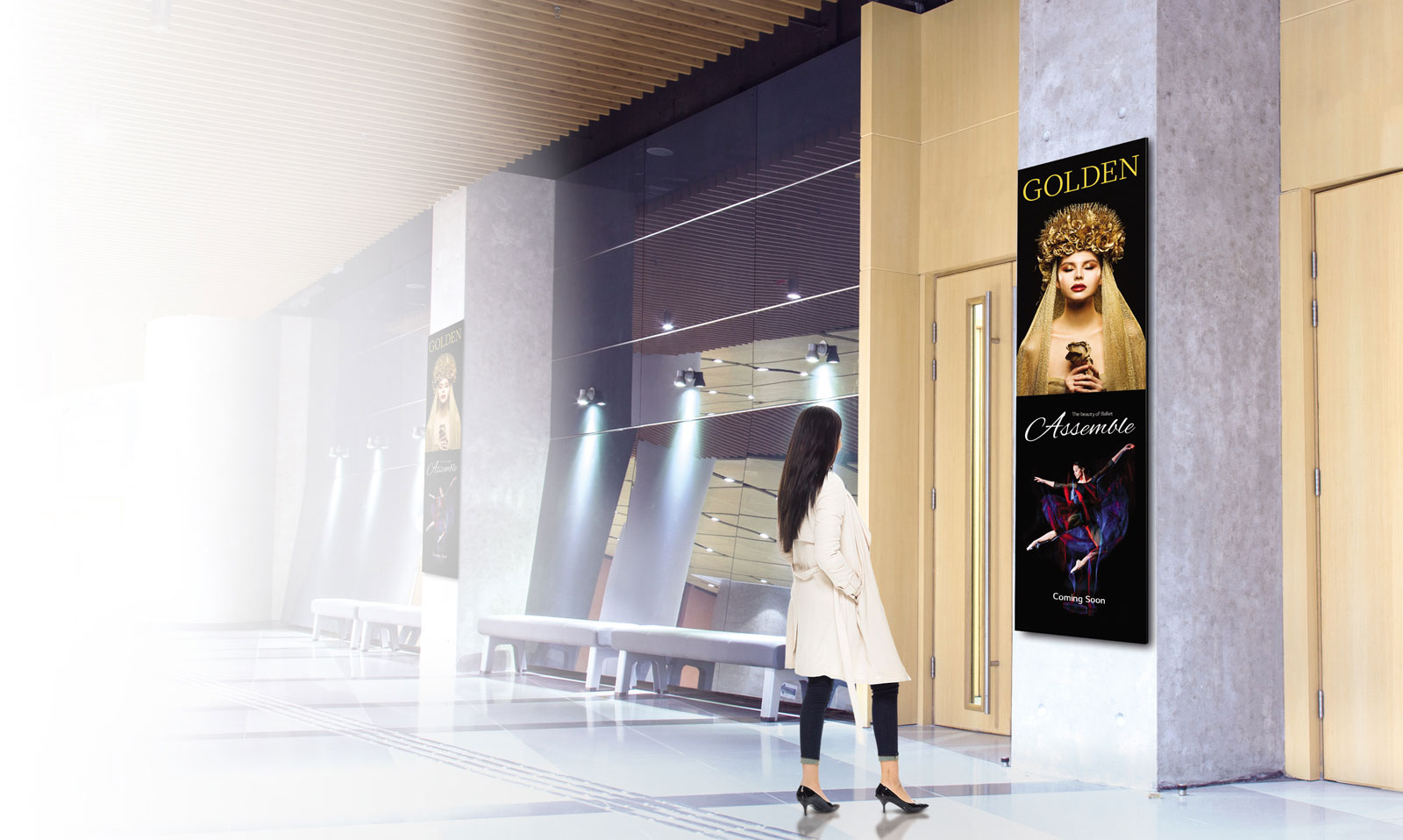

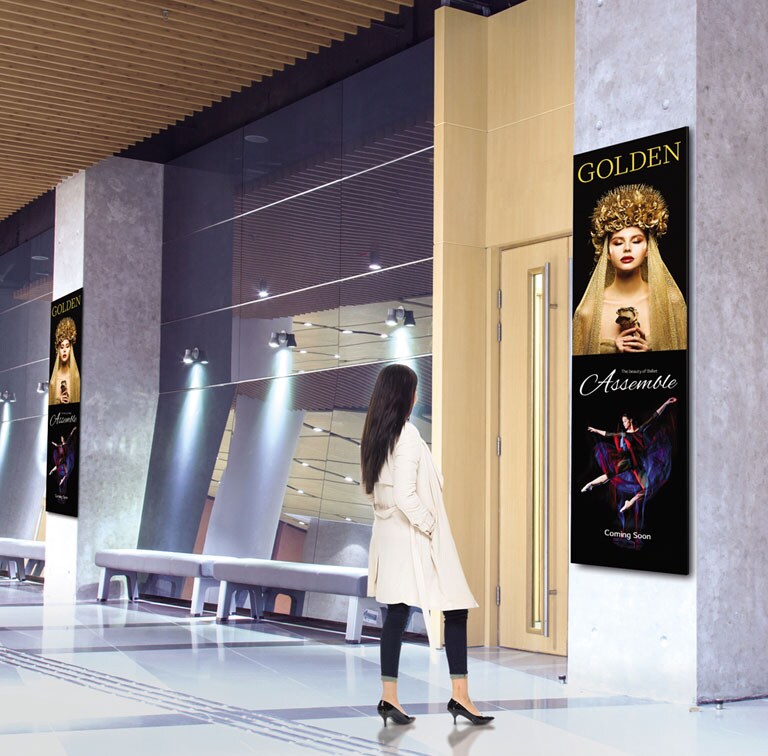

32:9 Ultra Stretch Signage1 32:9 Ultra Stretch Signage2

32:9 Ultra Stretch Signage

The 88BH7F is the most suitable display for delivering new forms of advertising and multiplexed information in a 32:9 widescreen format that brings you a new experience, captivating customers' attention.

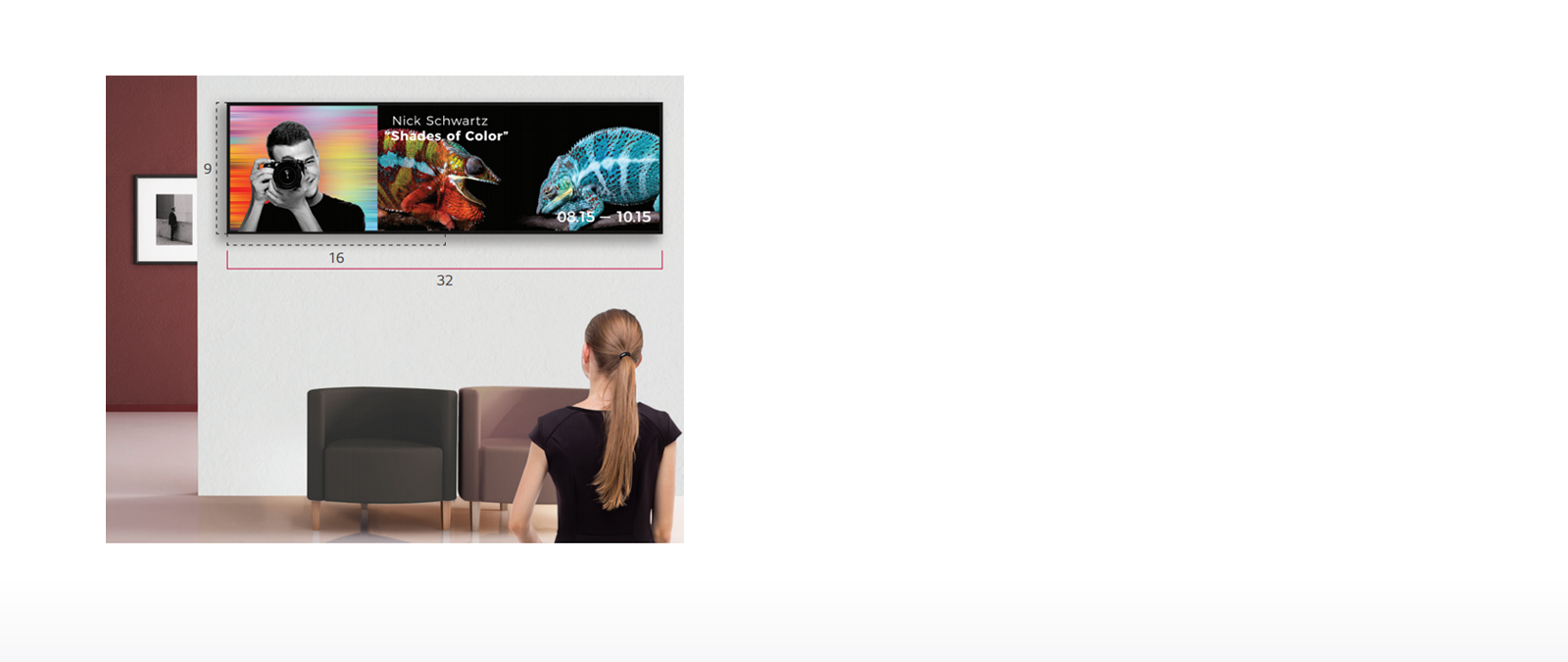

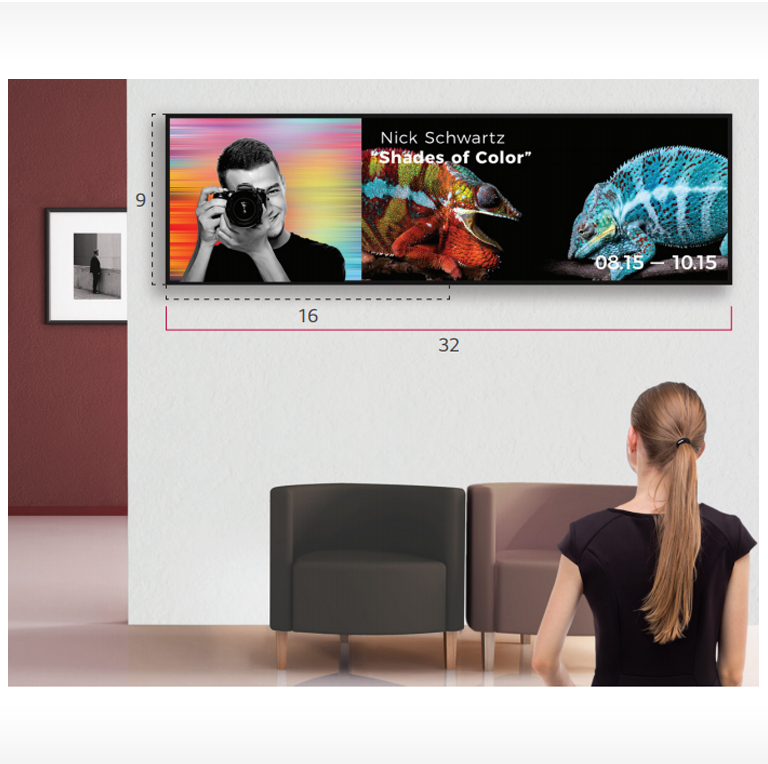

32:9 Extended Wide Format1 32:9 Extended Wide Format2
EXTRAORDINARY VIEWING EXPERIENCE

32:9 Extended Wide Format

It is a unique wide screen with 32:9 bar type which provides much more flexibility in playing content than the conventional display of 16:9 ratio.

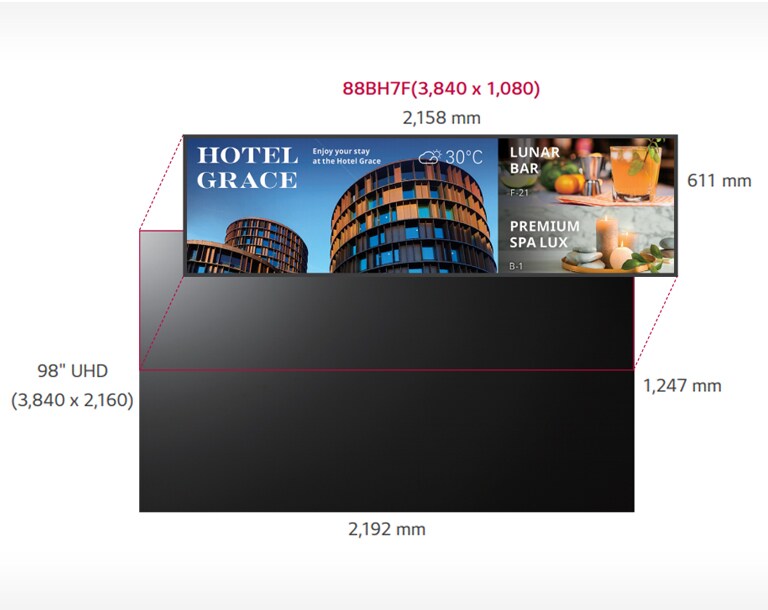

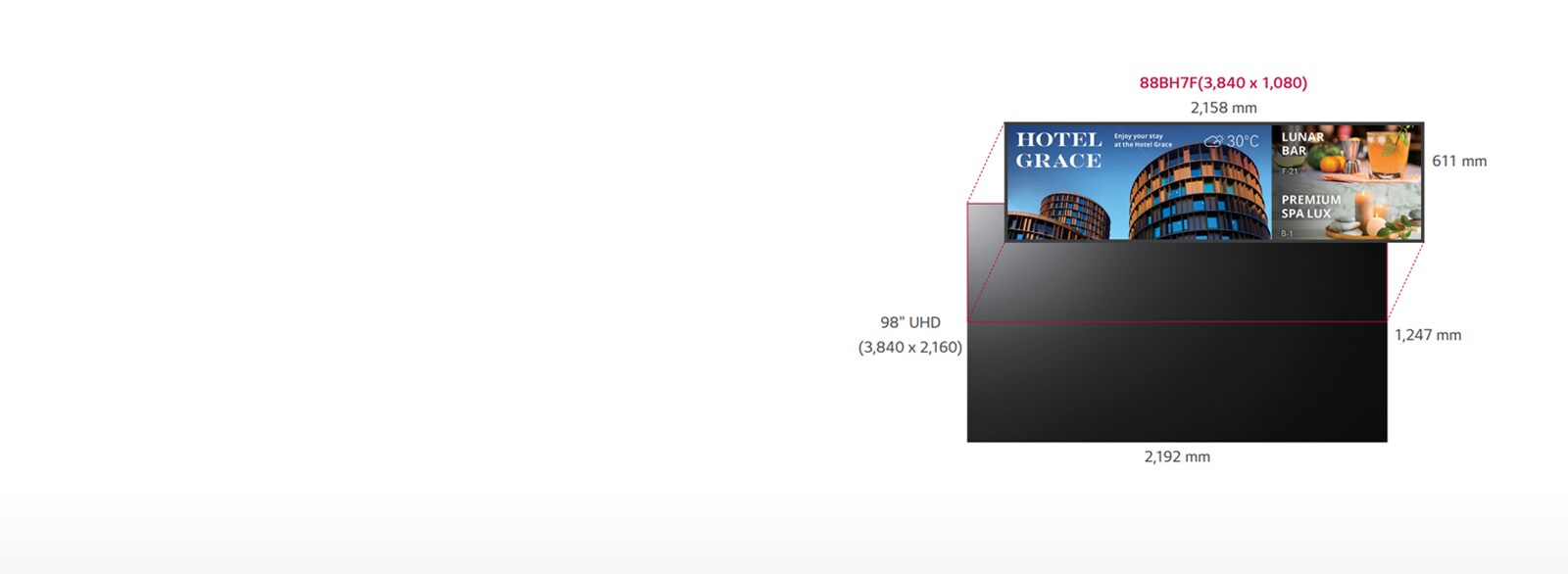

Ultra HD Resolution (3,840 x 1,080)1 Ultra HD Resolution (3,840 x 1,080)2
EXTRAORDINARY VIEWING EXPERIENCE

Ultra HD Resolution (3,840 x 1,080)

Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

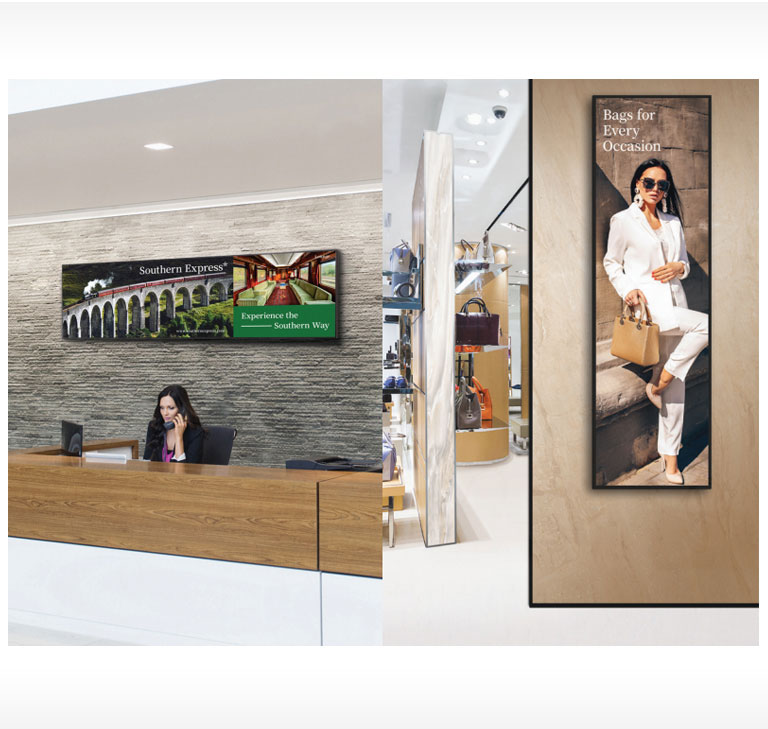

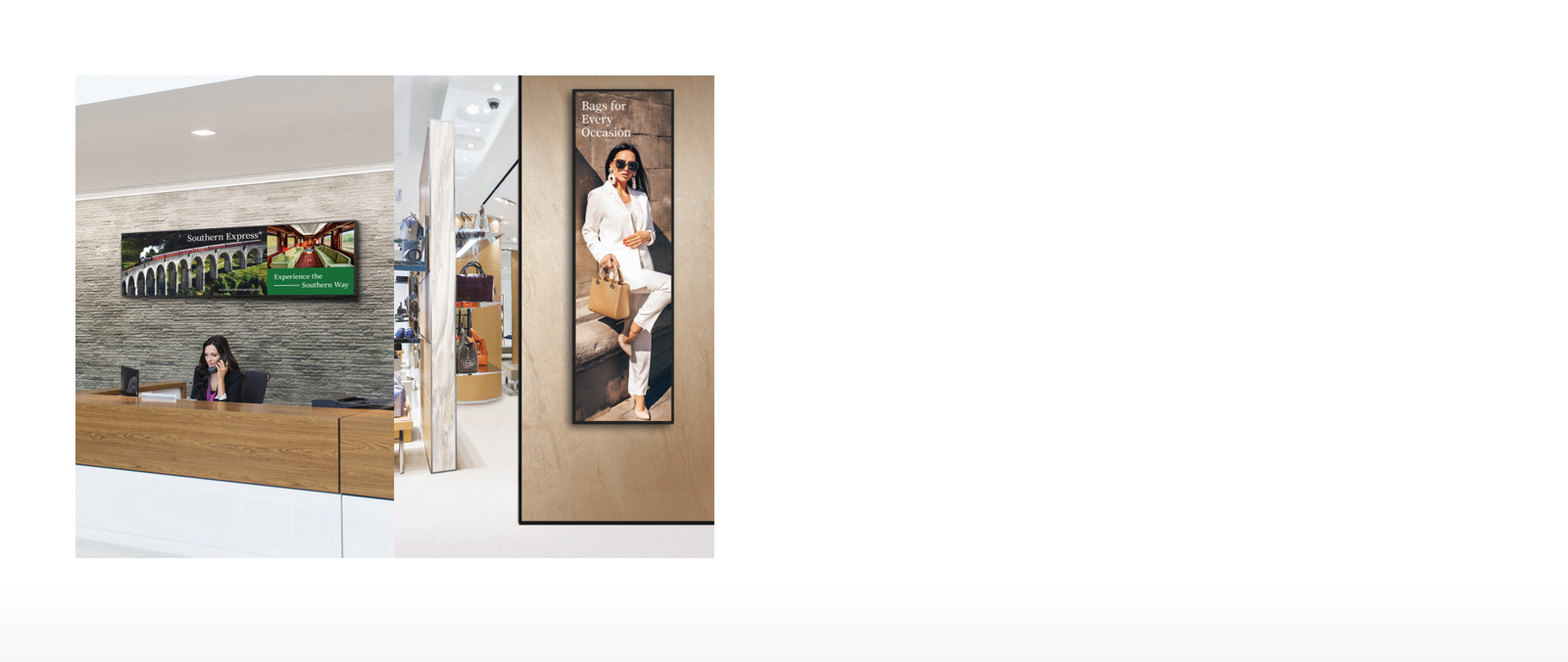

Flexibility for Content Management1 Flexibility for Content Management2
EFFECTIVE CONTENT DELIVERY

Flexibility for Content Management

The 88BH7F is able to organize multi content with video and text according to user's desired ratio. Also, it is optimized to show a vertical or horizontal object without truncation, providing lifelike viewing experiences to the customers.

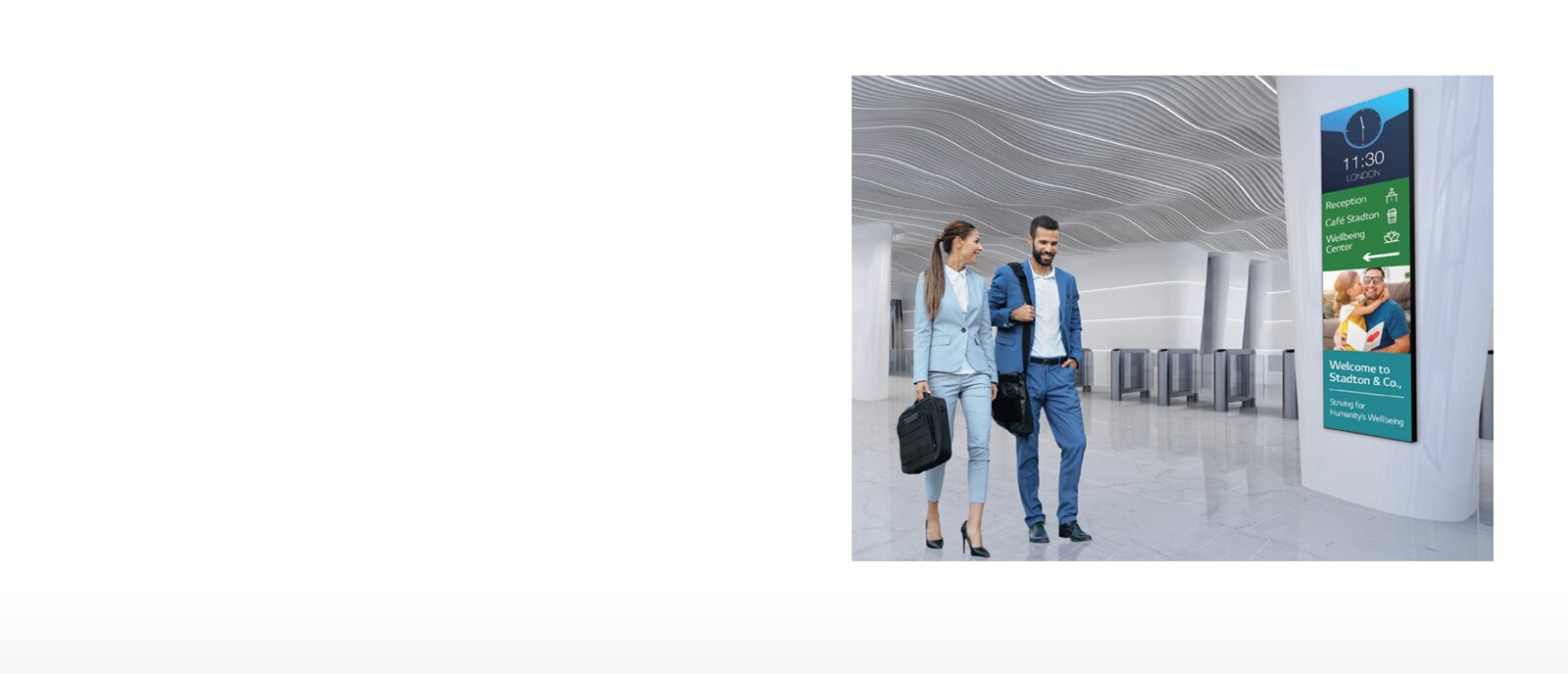

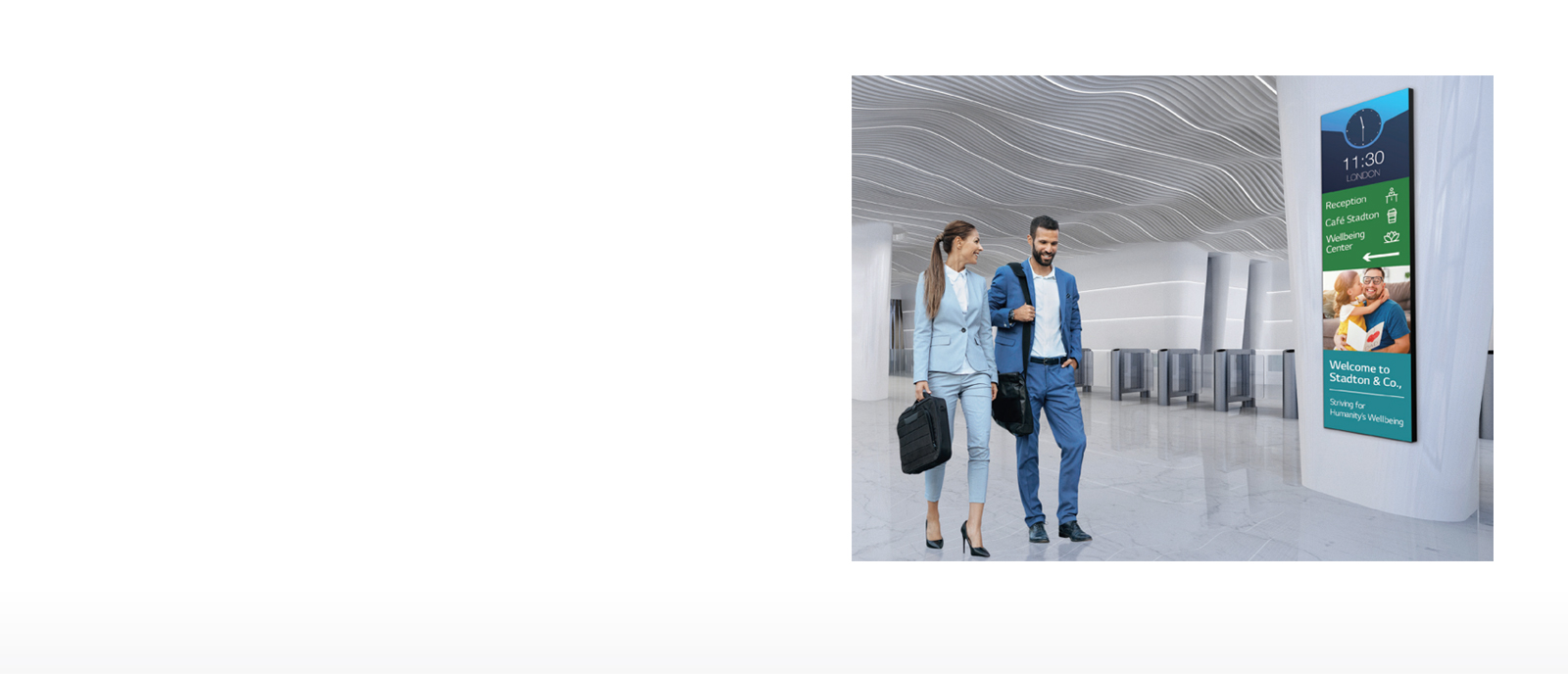

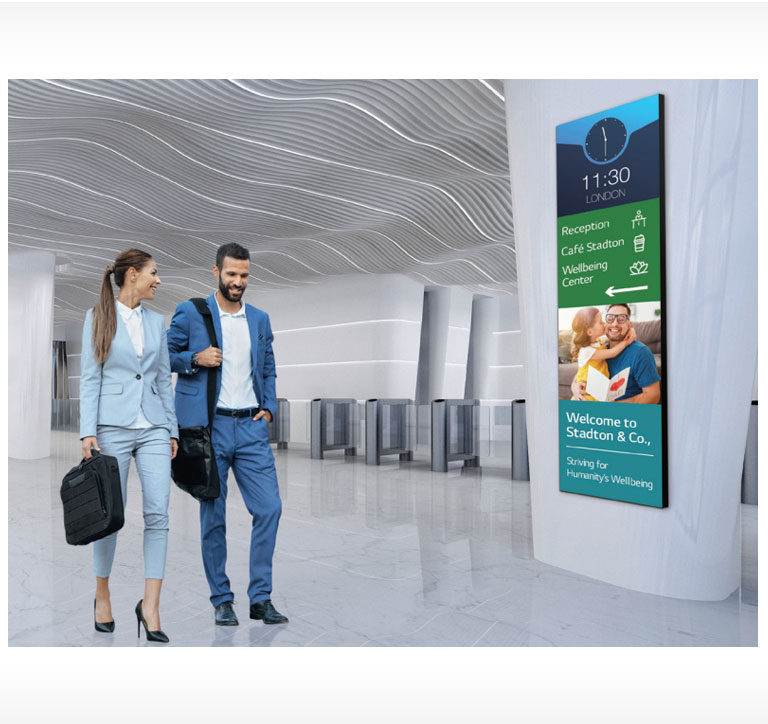

Multi Screen Mode with 4PBP1 Multi Screen Mode with 4PBP2
EFFECTIVE CONTENT DELIVERY

Multi Screen Mode with 4PBP

The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

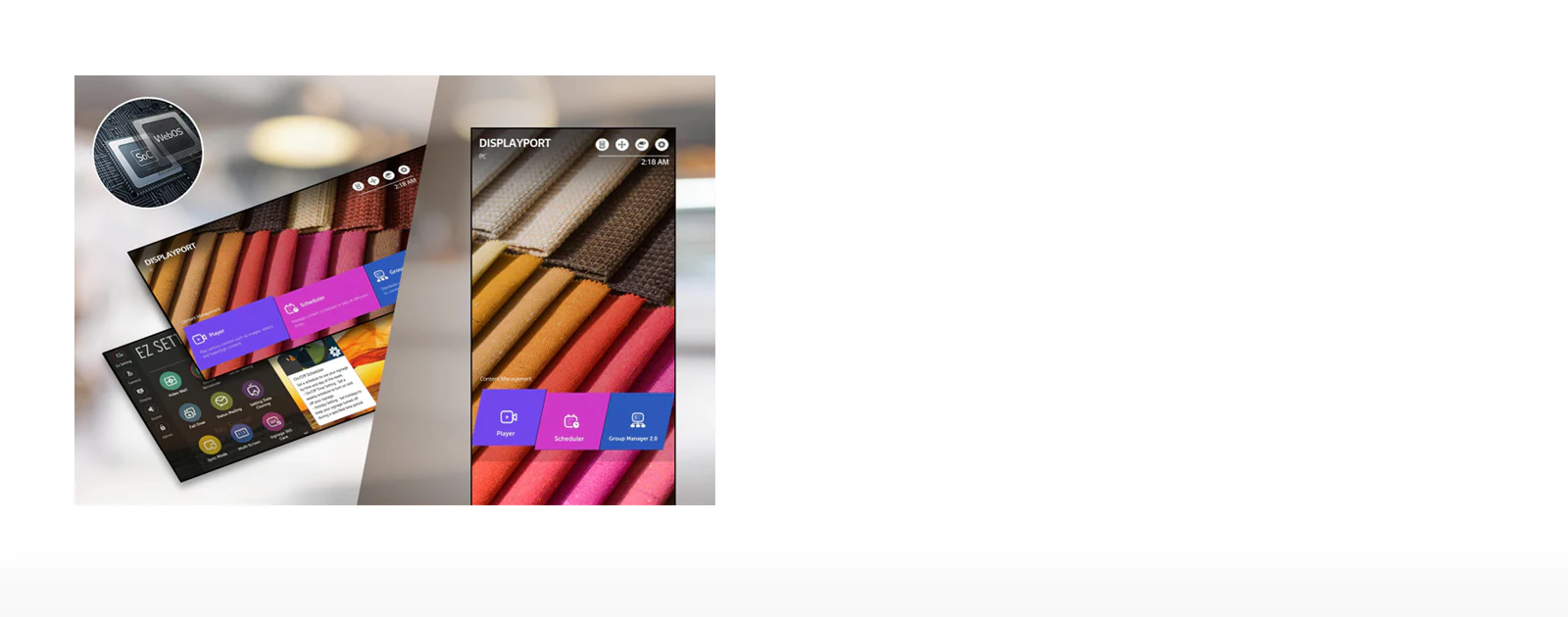

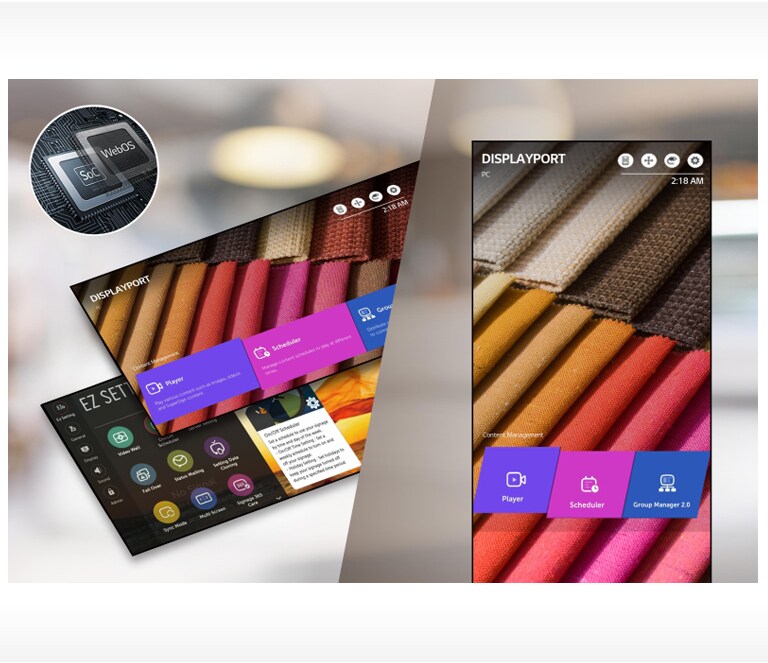

88BH7F-06-High Performance SoC with webOS-Special-Digital Signage-ID 88BH7F-06-High Performance SoC with webOS-Special-Digital Signage-ID-Mobile
OPERATIONAL EFFICIENCY

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

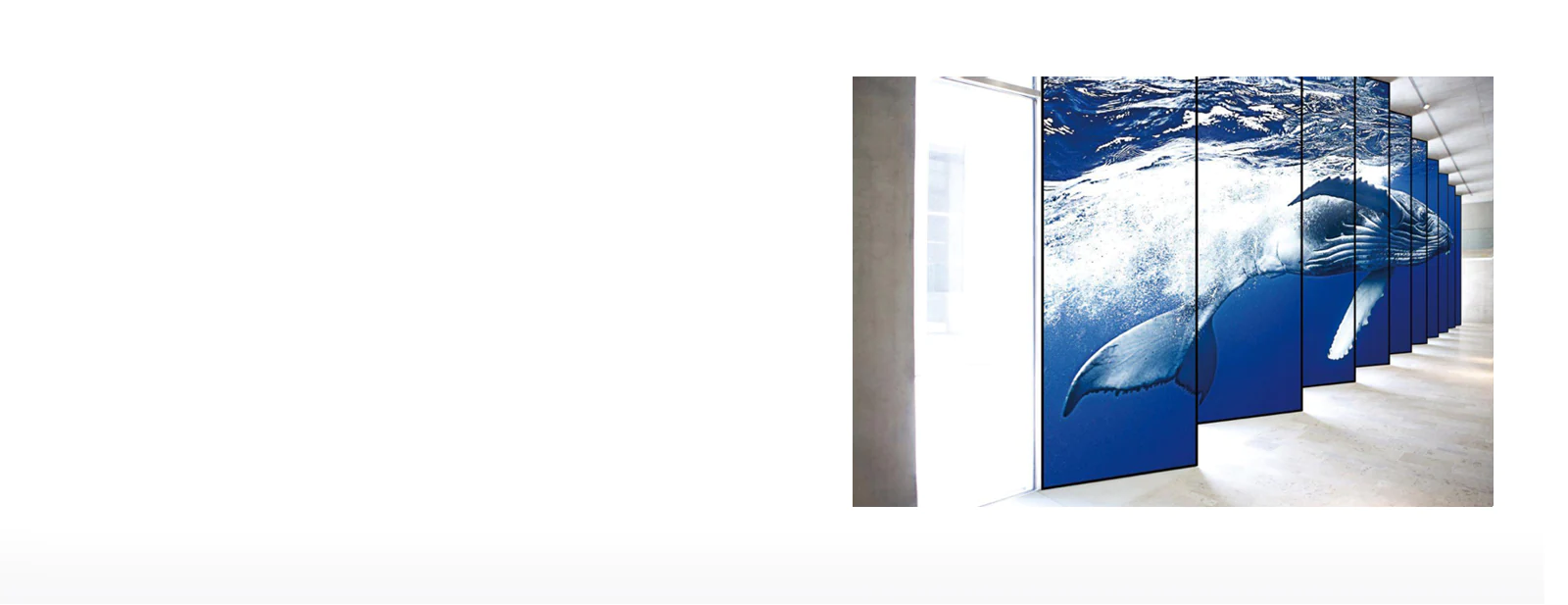

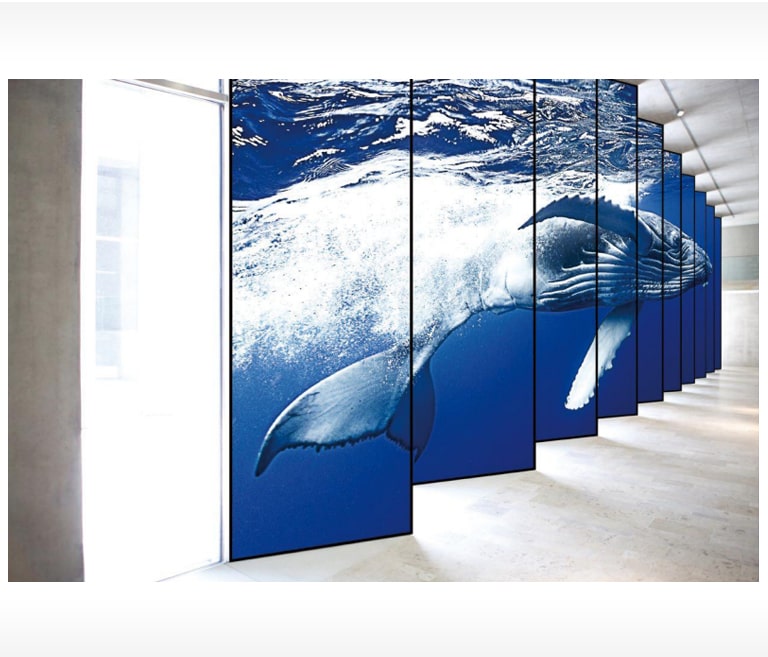

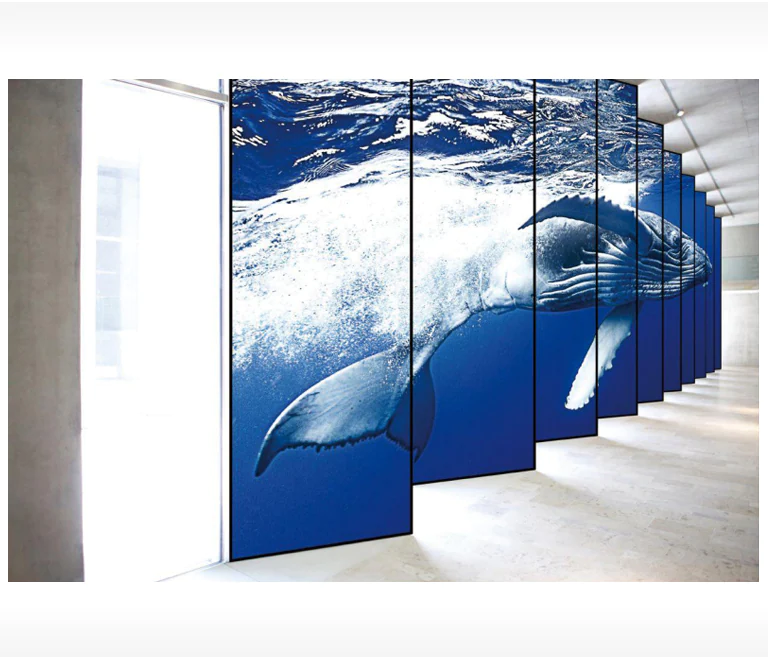

Tiled Scene with Immersive View1 Tiled Scene with Immersive View2
OPERATIONAL EFFICIENCY

Tiled Scene with Immersive View

The 88BH7F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

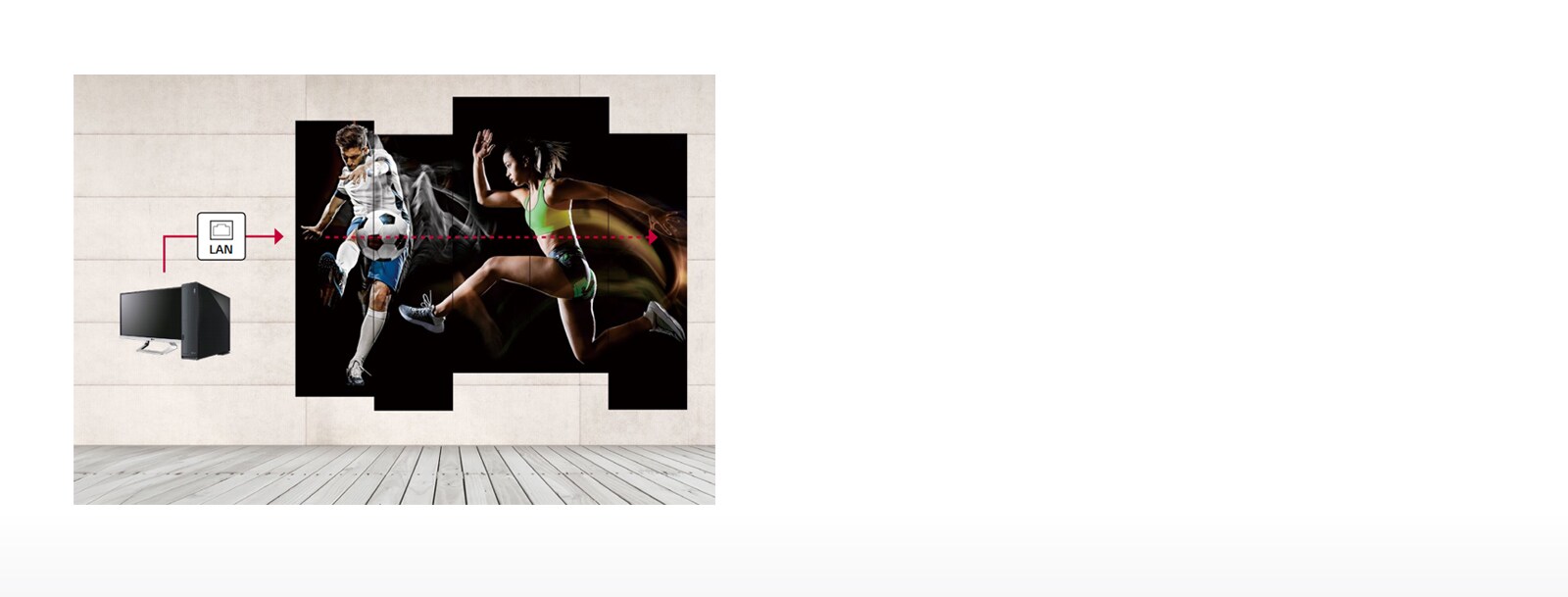

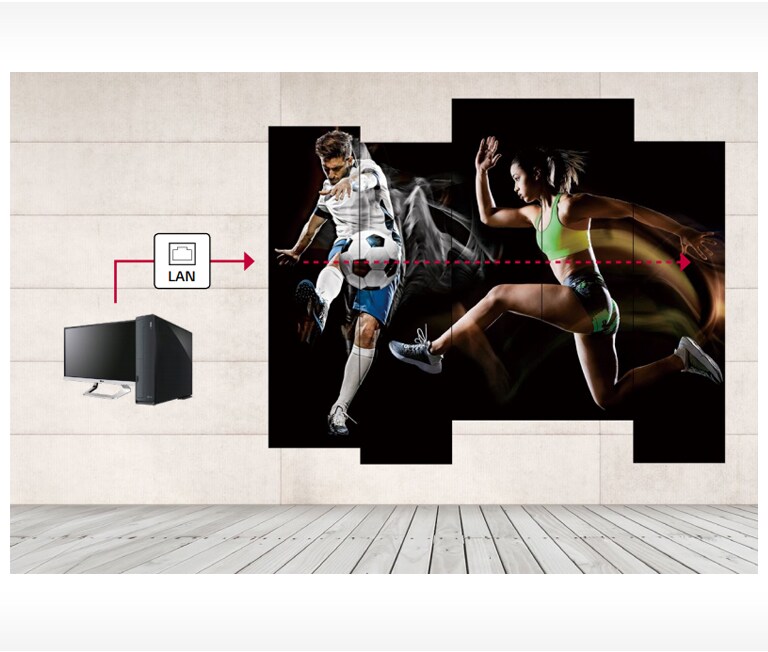

LAN Daisy Chain Management1 LAN Daisy Chain Management2
OPERATIONAL EFFICIENCY

LAN Daisy Chain Management

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

Real-Time Monitoring with Signage365Care1 Real-Time Monitoring with Signage365Care2
OPERATIONAL EFFICIENCY

Real-Time Monitoring with Signage365Care

Easier and faster maintenance are available with our optional cloud service solution Signage365Care*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
* The availability of the "Signage365Care" service differs by region, so please contact the LG sales representative in your region for more details.
Close
PANEL
  • Screen Size
    88"
    Panel Technology
    IPS
  • Aspect Ratio
    32:9
    Native Resolution
    3,840 x 1,080 (UHD)
  • Brightness(Typ.,cd/m²)
    700
    Contrast Ratio
    1,100:1 (Typ)
  • Dynamic CR
    500,000:1 (Typ)
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    8ms (G to G)
    Surface Treatment
    AGLR (Haze 3%)
  • Lifetime
    50,000 Hrs (Typ.)
    Operation Hours
    24Hrs / 7Days
  • Orientation
    Landscape & Portrait
CONNECTIVITY
  • Input
    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45 In/out, IR In
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    4.4 mm (L/R), 5.9 mm (T/B)
  • Monitor Dimension (W × H × D)
    2,158.3 x 611.2 x 84.8 mm
    Weight (Head)
    33.9 kg
  • Carton Dimensions (W × H × D)
    2,274 x 717 x 212 mm
    Packed Weight
    51.7 kg (Pallet included)
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ. / Max.
    450 W / 530 W
    Smart Energy Saving
    210 W
STANDARD(CERTIFICATION)
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP/Energy Star
    Yes(EU Only) / N/A
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/ Control+
  • Signage365Care
    Yes
ACCESSORY
  • Basic
    Remote Controller, Power Cord, DP (2.6M), RS-232C Cable (3M), IR/Light Sensor Receiver, Manual
    Optional
    KT-OPSF(OPS Kit)
