webOS Box

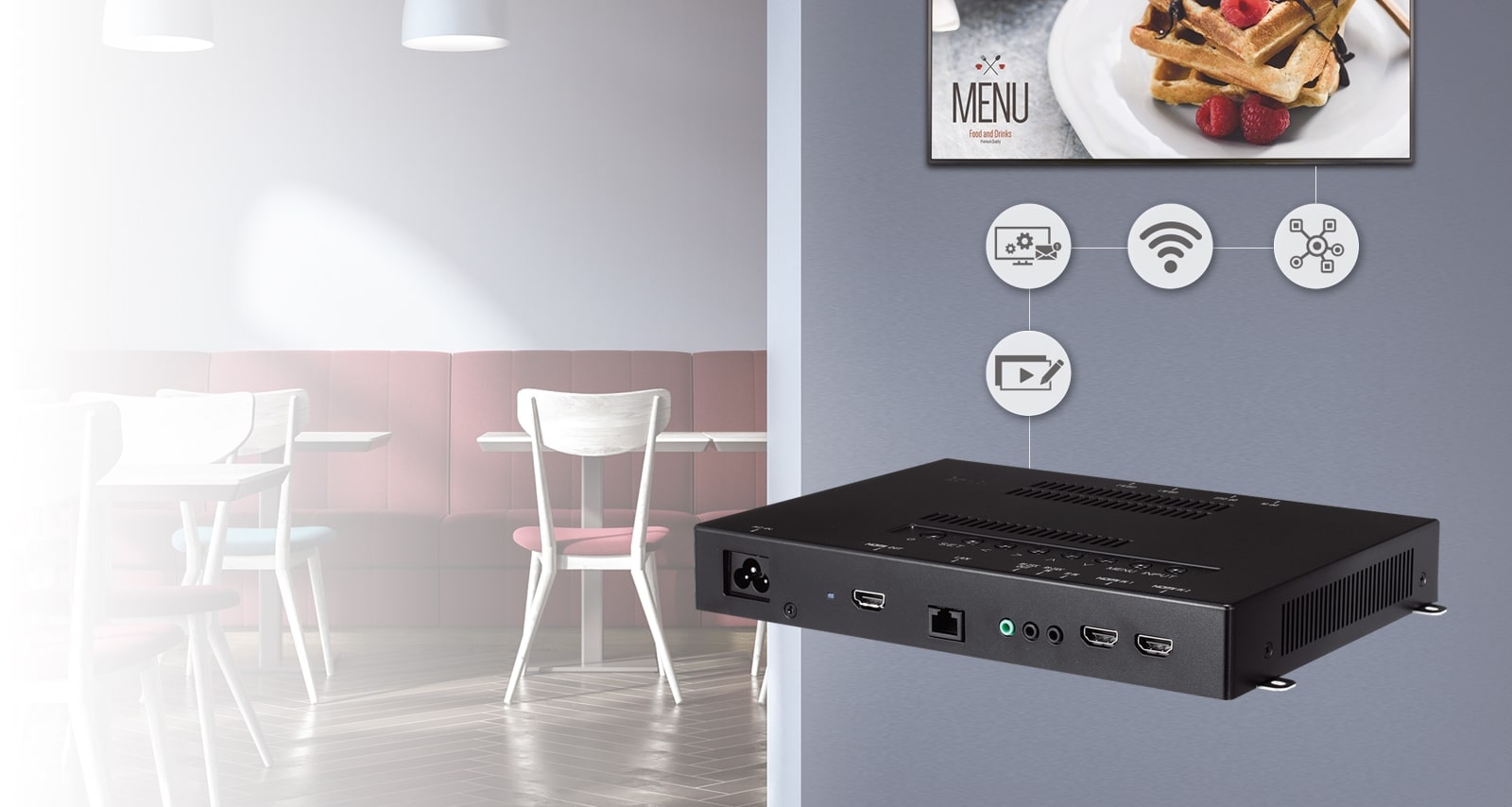

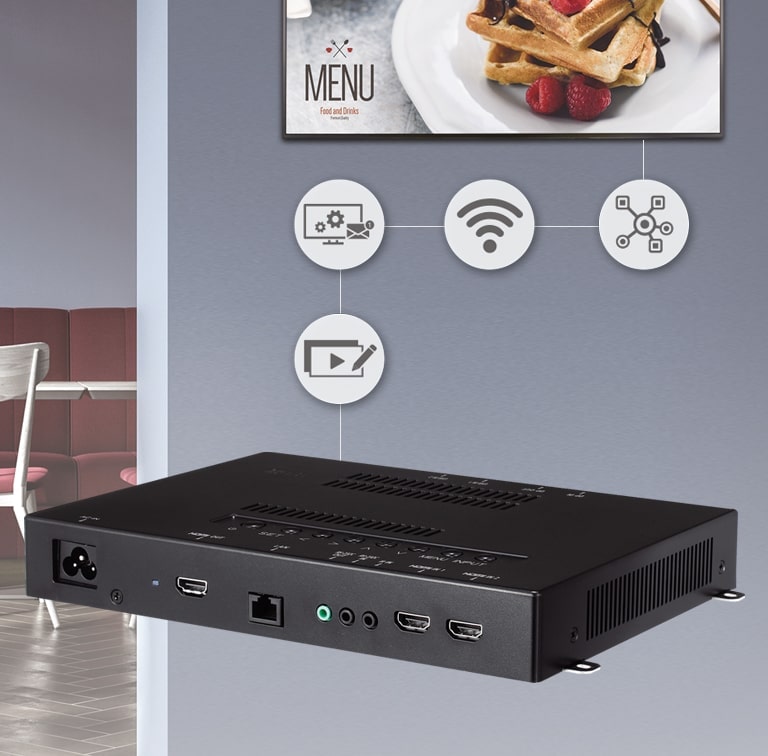

WP402 is connected to LG digital signage to perform several functions. WP402 is connected to LG digital signage to perform several functions.

The User-Friendly Smart Signage Platform

The WP402 webOS box operates webOS 4.0, the enhanced user-friendly LG smart signage platform, and is attached to existing LG digital signages and upgrades them regardless of their original platform. It can execute several tasks at once while providing smooth content playback, and provides an excellent user experience.
* All images in this web page are for illustrative purposes only and may differ from the actual product.
Great Scalability

Upgrade to the webOS 4.0 Smart Signage Platform

The WP402 may be applied towards any type of LG digital signages regardless of its platform. The webOS box provides user-friendly smart functions with dedicated menus essential for business use. This way, users are able to easily manage and distribute content or develop web-based applications for multiple signages simultaneously.

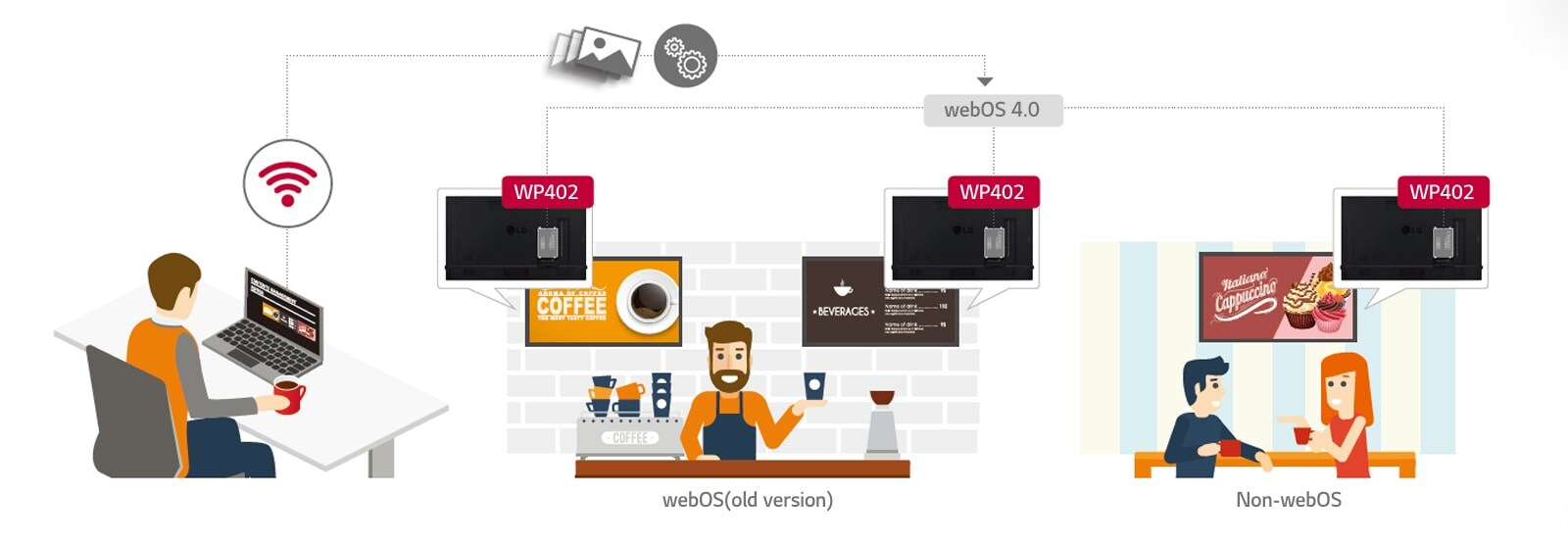

This image shows that WP402 upgrades webOS(old version) and Non-webOS type of LG digital signages to webOS 4.0 Smart Signage Platform. In this way, users easily manage and distribute web-based applications. This image shows that WP402 upgrades webOS(old version) and Non-webOS type of LG digital signages to webOS 4.0 Smart Signage Platform. In this way, users easily manage and distribute web-based applications.
WP402 supports the play of UHD video, and this shopping mall digital signage scene is one of examples. WP402 supports the play of UHD video, and this shopping mall digital signage scene is one of examples.
High Performance Media Player

UHD Video Playback Supported

The WP402 supports Ultra HD high-quality video playback which delivers color and details of content vividly, with four times higher definition than FHD. Only a single webOS box is required for this superior picture quality.

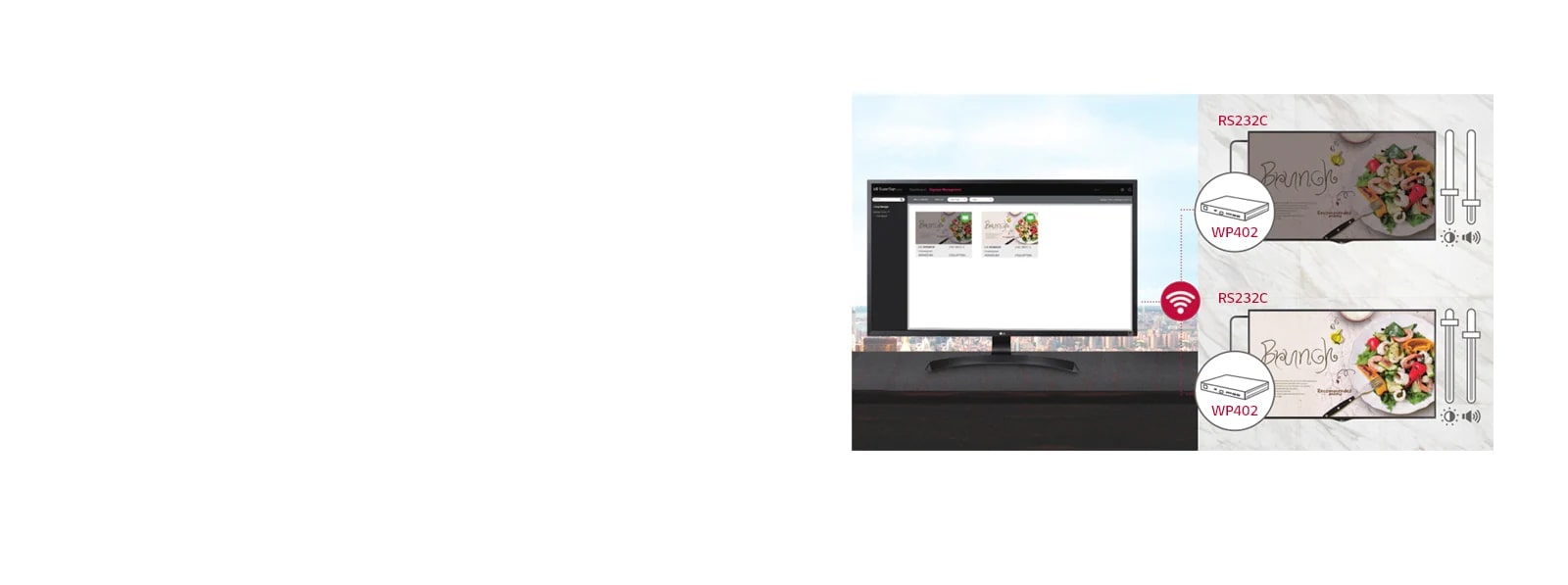

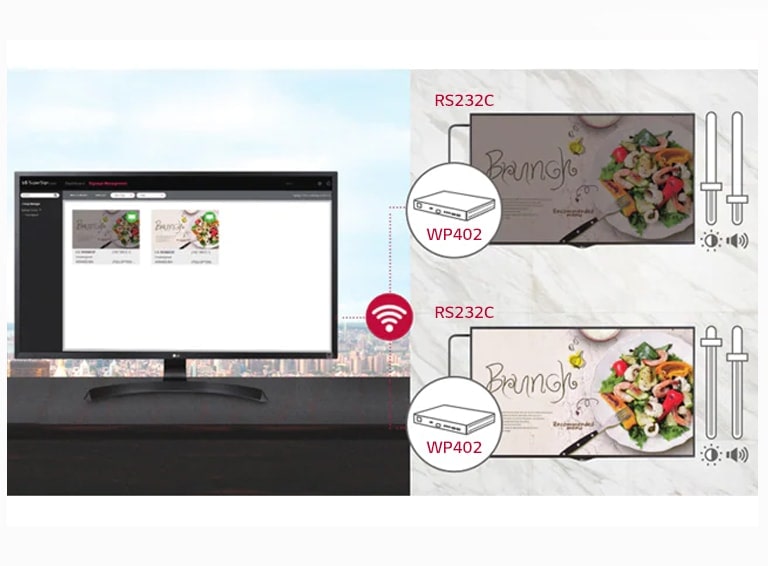

WP402 allows the users to flexibly control the brightness and volume of multiple LG digital signages through RS-232C cable connection. WP402 allows the users to flexibly control the brightness and volume of multiple LG digital signages through RS-232C cable connection.
High Performance Media Player

Display Control Capability

Beyond content management, control commands from the WP402 can be sent to LG digital signages through the RS232C cable connection. It allows users to flexibly set up display values such as power, brightness or volume for optimal operation.

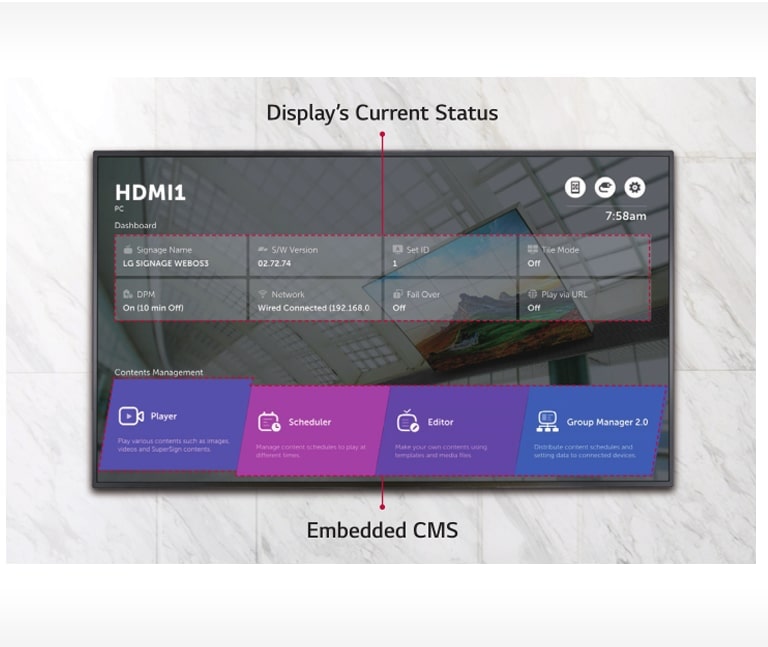

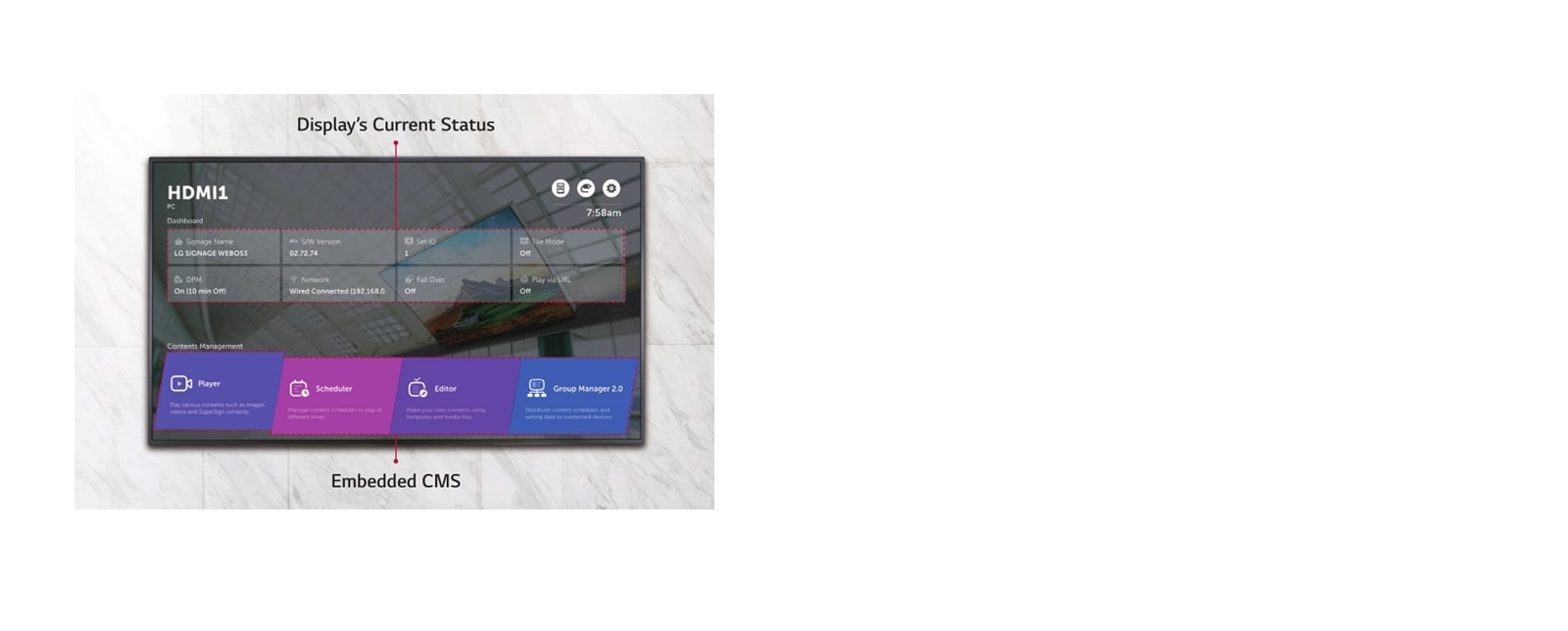

WP402 provides a home menu showing display’s current status and embedded CMS. WP402 provides a home menu showing display’s current status and embedded CMS.
User-Friendly Smart Platform

All-in-One Home Menu

The WP402 offers a signage-dedicated home menu that shows key information related to signage operation at a glance. A dashboard showing the status of devices, a content management menu, and shortcuts leading to quick settings greatly enhance user convenience.

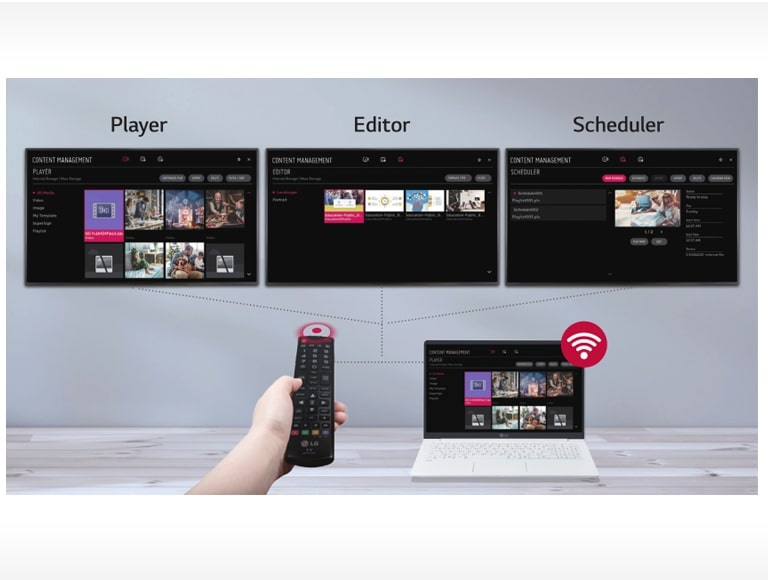

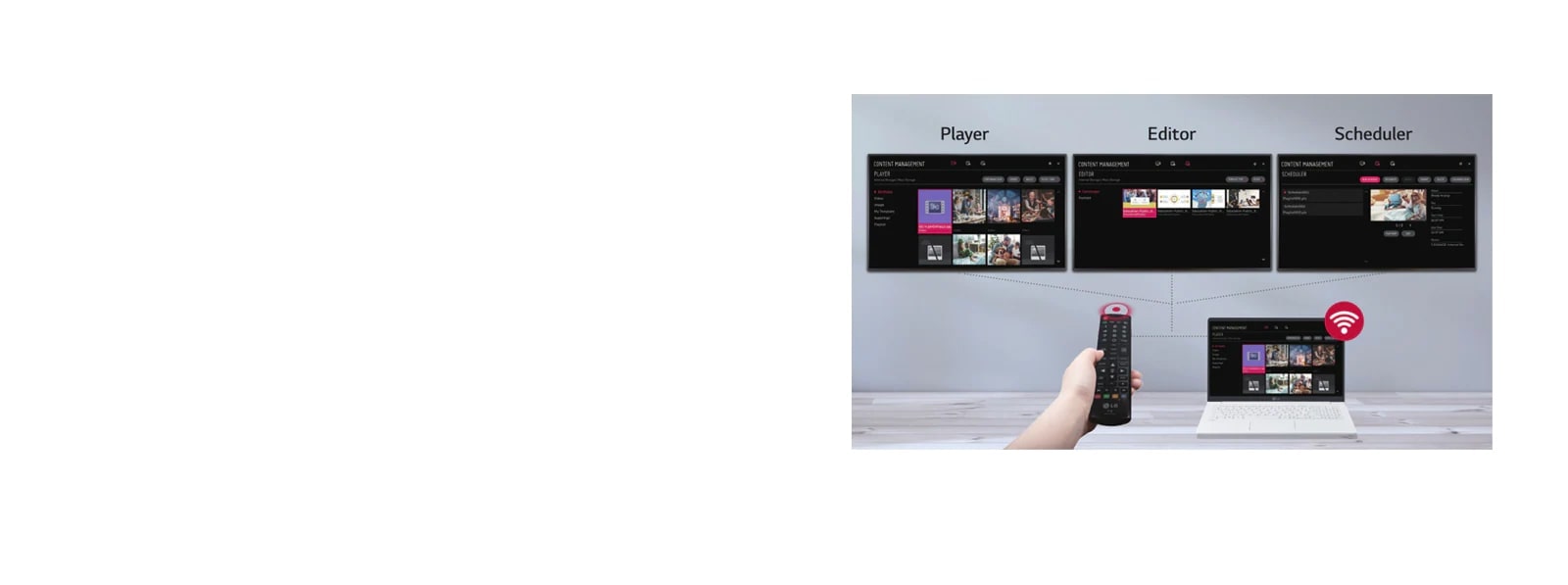

Users can set up players, editors, schedulers, etc. for displays using various devices from remote controls to laptops. Users can set up players, editors, schedulers, etc. for displays using various devices from remote controls to laptops.
User-Friendly Smart Platform

Embedded Content Management

The embedded CMS(Content Management System) allows users to edit content using internal/external sources and set playlists to play at the desired schedule. Users can easily explore and manage content through the intuitive GUI, using various input devices, from a remote control to a laptop.

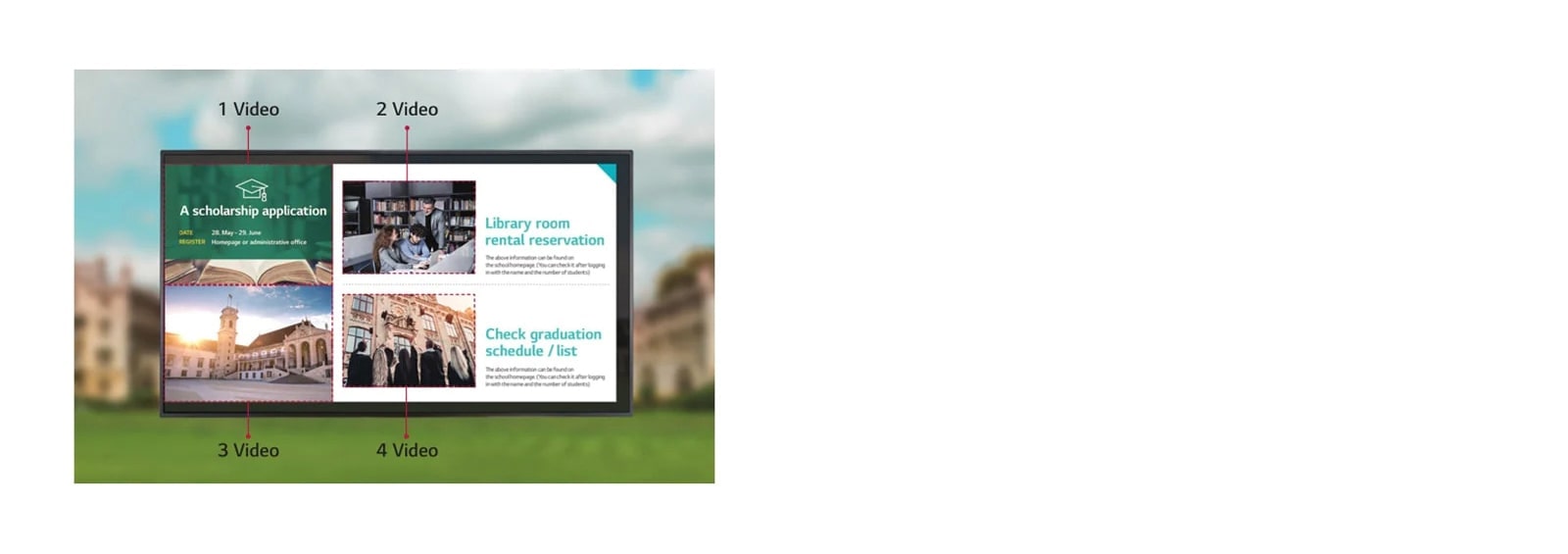

It plays 4 videos simultaneously and distribute content through multi video tags feature. It plays 4 videos simultaneously and distribute content through multi video tags feature.
Flexible Operation

Multi Video Tags

Several different videos can be played at the same time using the multi video tags feature. This gives you greater flexibility to organize and deploy content when various content items need to be delivered simultaneously via web apps.

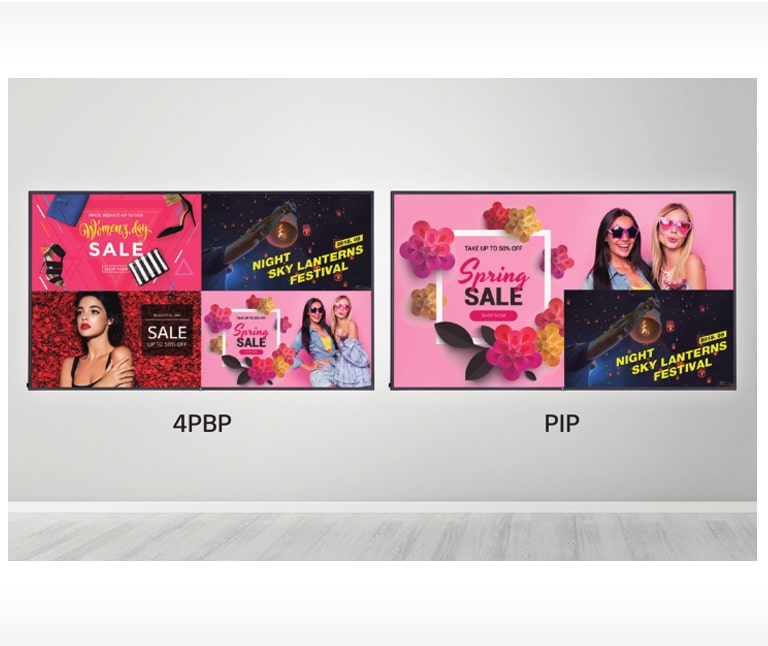

PBP provides 4 screens for 1 display, and PIP consists of the main screen and second screen in various layouts. PBP provides 4 screens for 1 display, and PIP consists of the main screen and second screen in various layouts.
Flexible Operation

Multi Screen with PBP/PIP

PBP(Picture-By-Picture) features multi screen in a single display with upto 4 input sources while PIP(Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.
WP402 is compatible with LG SuperSign Solutions and uses SuperSign to facilitate the creation and distribution of various contents. WP402 is compatible with LG SuperSign Solutions and uses SuperSign to facilitate the creation and distribution of various contents.
Flexible Operation

Compatibility with LG SuperSign Solutions

LG SuperSign is a comprehensive and indispensable software solution for the integrated management of LG digital signages. With SuperSign, content creation and distribution gets easier and centralized monitoring and control becomes simpler, helping your business save time and operate more effectively across different locations.
LG employees are remotely monitoring LG digital signage installed in other locations using a cloud-based LG monitoring solution. LG employees are remotely monitoring LG digital signage installed in other locations using a cloud-based LG monitoring solution.
Flexible Operation

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
* The availability differs by regions.
Close

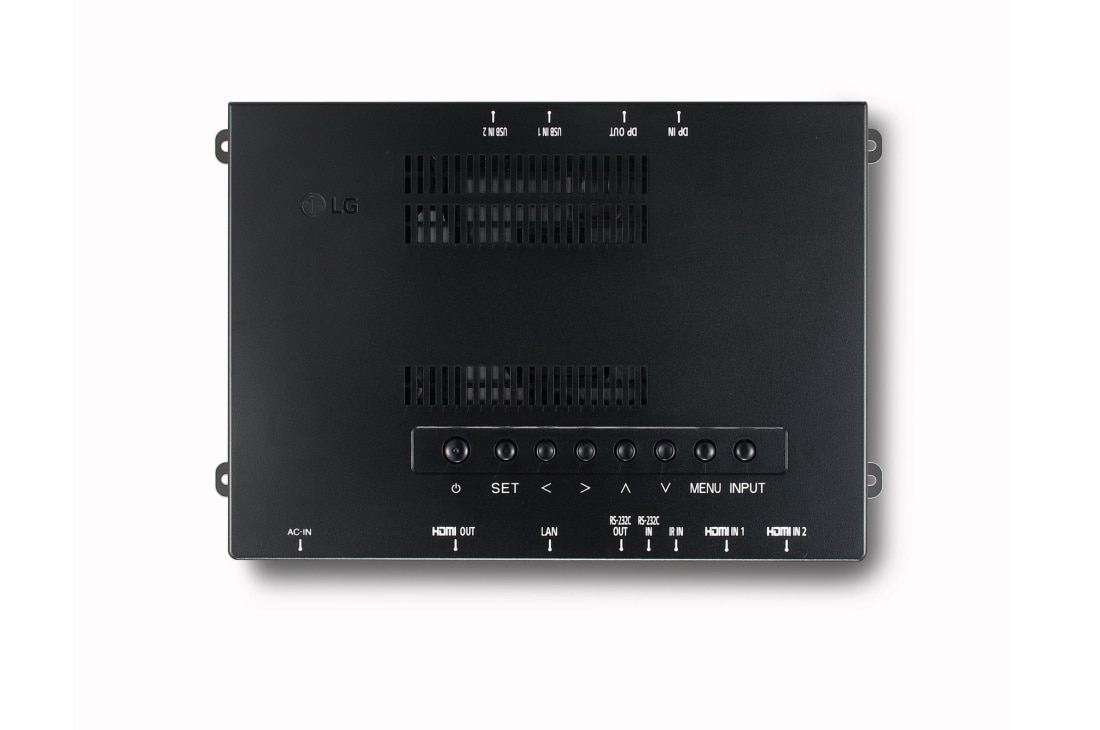

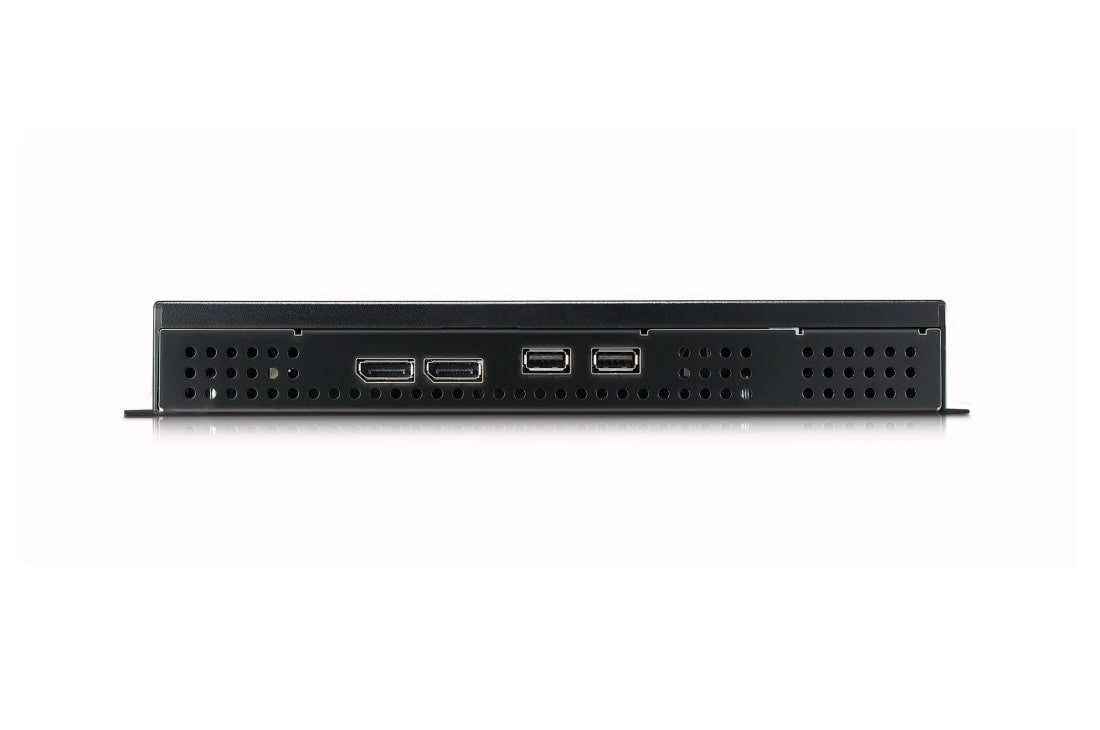

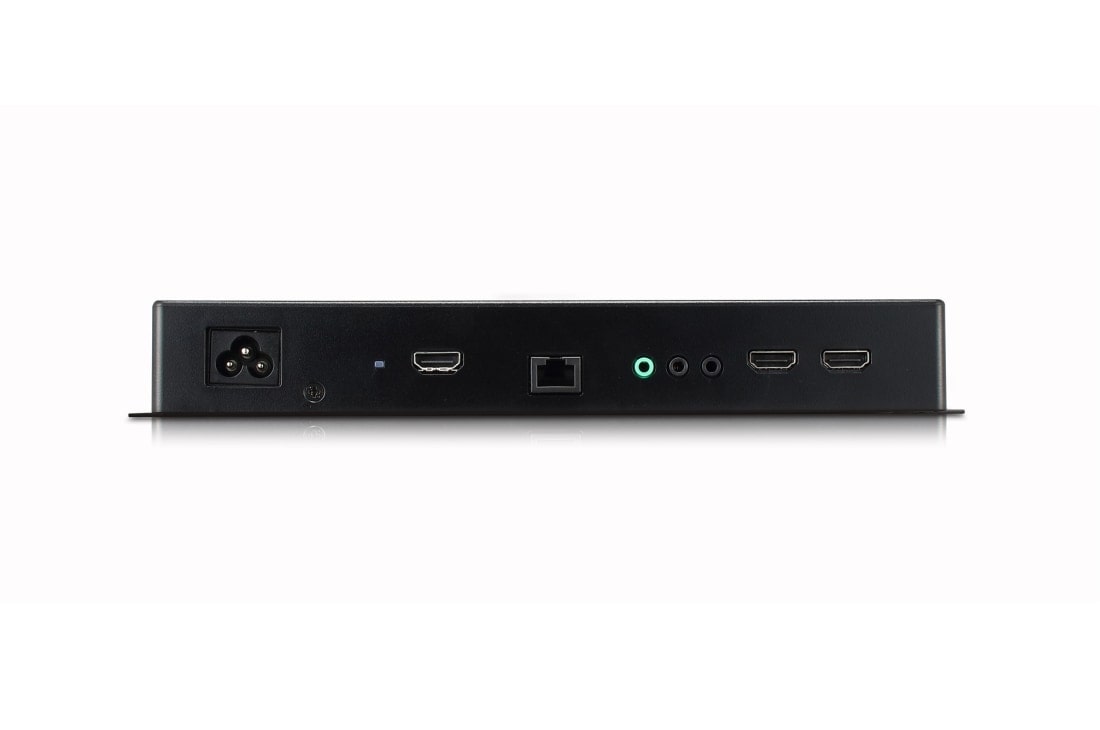

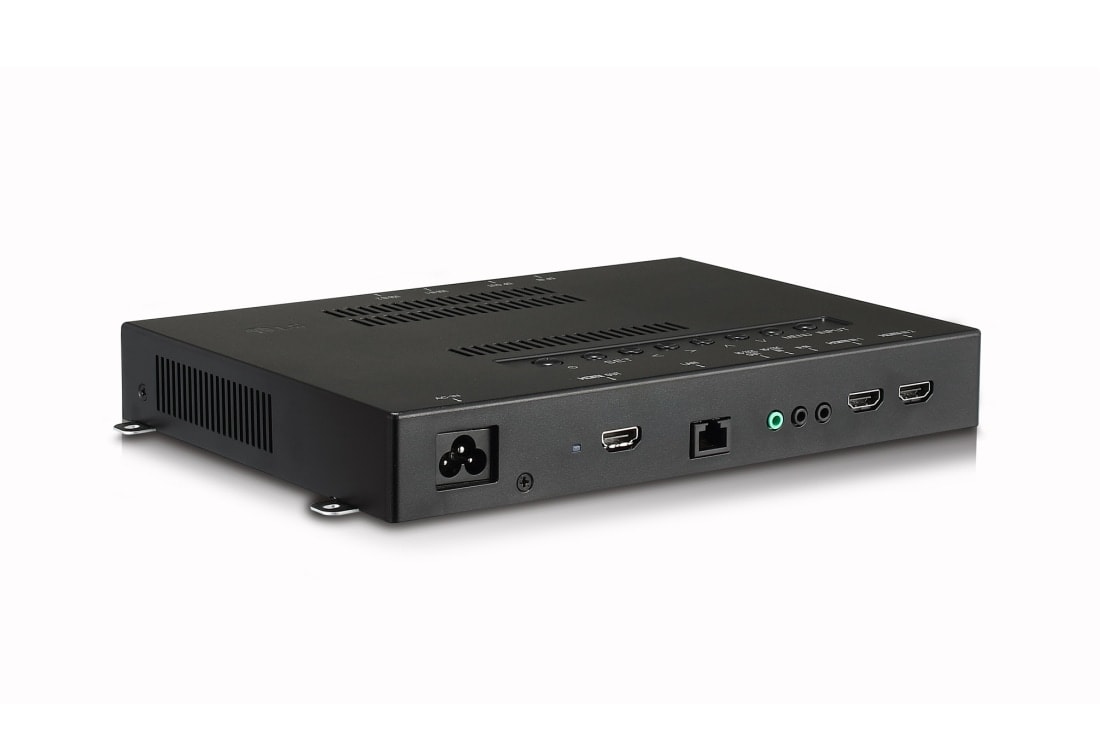

CONNECTIVITY
  • Input
    HDMI (2), DP, USB 2.0 (2)
    Output
    HDMI, DP(Daisy chain only)
  • External Control
    RS232C in/out, RJ45 in, IR in
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Player Dimension (W x H x D)
    258 × 36.5 × 186 mm
  • Weight (Head)
    0.87 kg
    Carton Dimensions (W × H × D)
    359 x 124 x 314 mm
  • Packed Weight
    1.77 kg
KEY FEATURE(HARDWARE)
  • Key Feature (Hardware)
    8 GB (System 4 GB, Available 4 GB), Wi-Fi Built-in, Temperature Sensor, Power Indicator, Local Key Operation
KEY FEATURE(SOFTWARE)
  • webOS ver.
    webOS 4.0
    Embedded CMS
    Local Contents Scheduling, Group Manager
  • Fail over
    Yes
    Background Image
    No Signal Image
  • Multi-screen
    PIP/PBP(4)
    Screen Share
    Yes
  • Video Tag
    Yes (4)
    Play via URL
    Yes
  • Rotation
    Screen Rotation, External Input Rotation
    Gapless Playback
    Yes
  • Tile Mode Setting
    Yes (Max. 15 × 15)
    Setting Data Cloning
    Yes (RS-232C, Network, USB)
  • SNMP
    Yes
    ISM Mode
    (Image Sticking Minimization)
    Yes
  • Status Mailing
    Yes
    Power Mgmt.
    Wake on LAN
  • Beacon
    Yes
    HDMI-CEC
    Yes * Compatibility may differ by equipment.
  • SI Server Setting
    Yes
    webRTC
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    23 W
    Max.
    27 W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A"/CE
OPS COMPATIBILITY
  • OPS Type Compatible / OPS Power Built In
    No / No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS-232C Gender
