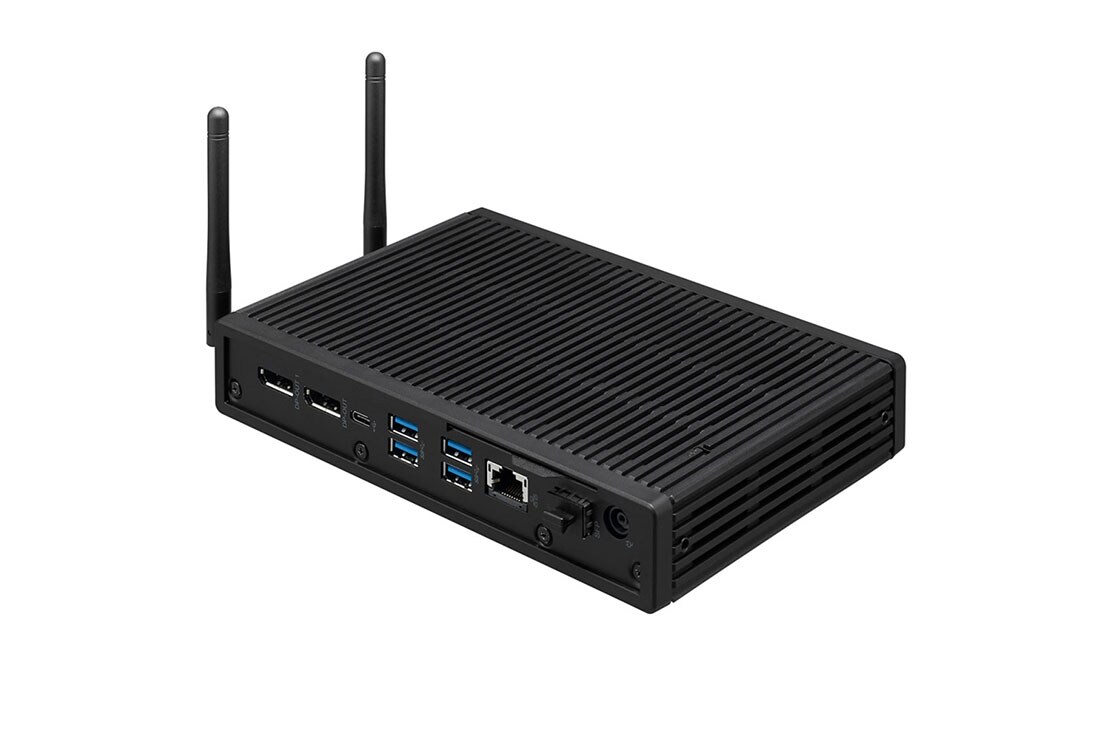

PC
-
- Processor
- Intel® Celeron J4105 (Quad Core 1.5GHz, up to 2.5GHz burst), Fanless
- Operation System
- Non OS
-
- System Memory
- 4GB DDR4, 2666MHz, 2 SODIMM slots
- Graphics
- Integrated Graphics
-
- Storage
- 16GB eMMC
- Display Support
- Up to 3 displays : 2560x1600@60Hz (via 1st DisplayPort 1.2 out) 3840x2160@60Hz (via 2nd DisplayPort 1.2 out) 3840x2160@60Hz (via USB Type-C)
-
- TPM (Trust Platform Module)
- Hardware TPM 2.0
- Expansion Slot
- M.2 Slots x 2 (Slot 1 : N/A, Slot 2 : WiFi + Bluetooth card) *Note: Slot 1 should be capable of supporting SATA SO-DIMM x 2 (Slot 1 : 4GB DDR4, Slot 2 : N/A)
INTERFACE
-
- Networking - Wireless
- Dual Band 802.11a/b/g/n/ac 2x2 (BT 5.0 Combo, External Antenna)
- Networking - BT
- BT5.0
-
- Networking - LAN
- 1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
- Networking - Fiber
- SFP Module support ready for Fiber NIC network connectivity (mutually exclusive with RJ45)
-
- Signal Input - DC-in
- Yes
- Signal Input - [ Jack Location ]
- Horizontal
-
- Signal Output - DisplayPort Out
- 2 x DisplayPort 1.2 out
- Audio Input - Mic In
- 1 x 3.5mm audio-mic combo jack (CTIA Type)
-
- Audio Input - [ Jack Location ]
- Horizontal (Front)
- Audio Output - Headphone Out
- 1 x 3.5mm audio-mic combo jack (CTIA Type)
-
- Audio Output - [ Jack Location ]
- Horizontal (Front)
- USB
- 2 x USB 2.0 Type-A (Front) 4 x USB 3.1 gen1 (5Gb/s) Type-A (Rear) 1x USB 3.1 gen1 (5Gb/s) Type-C with DP1.2 (Rear)
-
- DC-In
- Yes
SPEAKER
-
- Type
- mono speaker
- Audio output (watt)
- 1.2W
POWER
-
- Input/Output - Type
- Adapter
- Input/Output - Input
- 100~240 V (50/60 Hz)
-
- Input/Output - Output
- 65Watt
- Consumption - Sleep Mode (Max)
- 1.2Watt (In DV Stage)
-
- Consumption - DC Off (Max)
- 1.0Watt (In DV Stage)
- Consumption - Long Idle (Display OFF)
- 6.0Watt (In DV Stage)
-
- Consumption - Short Idle (Display ON)
- 6.0Watt (In DV Stage)
- Consumption - TEC (kWh)
- 27.0kWh (In DV Stage)
CONTROL KEY
-
- Key Number
- 1
- Key Description
- Power
-
- Key Type
- Tact
- LED Color (On mode)
- White (PC Power/HDD)
-
- LED Color (Power Save Mode)
- LED OFF
- [ Key Location ]
- Front
COLOR
-
- Front
- Matt Black (Texture)
- Back Cover
- Matt Black (Texture)
-
- Stand
- Matt Black (Texture)
SECURITY
-
- Kenshinton Lock Slot
- Yes
SIZE/WEIGHT
-
- Dimension (WxDxH) - Set (without Stand, mm)
- 199mm x 35mm x 137mm
- Dimension (WxDxH) - Box (mm)
- 260mm x 101mm x 164mm
-
- Dimension (WxDxH) - VESA/Wall Mount (mm)
- 100 x 100, 75 x 75 (wall mount)
- Weight - Set (with Stand, Kg)
- 0.82kg
-
- Weight - Set (without Stand, Kg)
- 0.8kg
- Weight - Box (Kg)
- 1.685kg
-
- Stuffing - Pallet(20ft/40ft/40ft HC)
- 3,000/6,300/7,560
WRAP
-
- Packing Material
- A-Flute
- Stacking Type
- Vertical
-
- Box Printing Type
- Flexo
STANDARD
-
- UL(cUL)
- Yes
- TUV-GS
- Yes
-
- TUV-Ergo
- Yes
- TUV-Type
- Yes
-
- CB
- Yes
- FCC-B
- Yes
-
- CE
- Yes
- ROHS, REACH
- ROHS, REACH
ACCESSORY
-
- Power Adapter
- Yes
- Power Cord
- Yes
-
- CD (Manual/Software)
- Yes (Paper Manual)
- VESA Bracket
- Horizontal/Vertical feet and VESA/wall mounting
-
- External Antenna (Wi-Fi)
- Yes
ETC
-
- Warranty
- 3 Years
- Temperature Range
- Operating : 10°C~40°C Storage : -20°C~60°C
-
- Humidity Range
- Operating : 20%~80% Storage : 10%~90%
