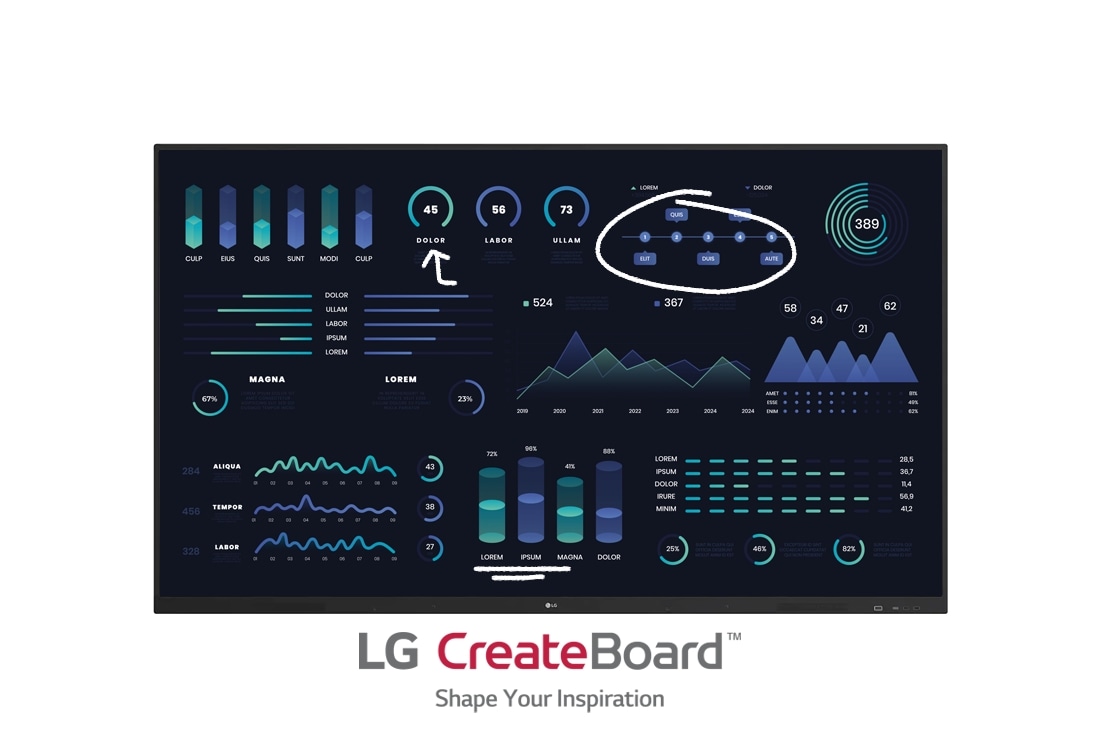

LG CreateBoard™ TR3DJ-B Series 65" IPS UHD IR Multi Touch Interactive Whiteboard with Embedded Writing Software and Built-in Front Speakers
PANEL
-
- Screen Size
- 65"
- Panel Technology
- IPS
-
- Back Light Type
- Direct
- Aspect Ratio
- 16:9
-
- Native Resolution
- 3,840 x 2,160 (UHD)
- Brightness (Typ., cd/m², w/ Protection Glass)
- 350
-
- Contrast Ratio
- 1,100:1
- Viewing Angle (H x V)
- 178 x 178
-
- Response Time
- 9ms (G to G)
- Life Time (Typ.)
- 30,000 Hrs (Min.)
-
- Operation Hours
- 16 Hrs
- Orientation
- Landscape
CONNECTIVITY
-
- (Input) Video / Audio
- HDMI (3), RGB/Audio In
- (Input) External Control
- RS232C In
-
- (Input) USB
- USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2)
- (Output) Video / Audio
- HDMI (1), Optical Output/Audio Out
-
- (Output) Video / Audio
- Optical Output/Audio Out
MECHANICAL SPECIFICATION
-
- Bezel Color
- Black
- Bezel Width (Off Bezel)
- Top/Right/Left:17.7mm, Bottom:45.7mm
-
- Monitor Dimension (W × H × D)
- 1,488 × 897 × 86 mm
- Weight (Head)
- 40kg
-
- Carton Dimensions (W x H x D) with pallet
- 1,700 × 1,175 × 250 mm
- Packed Weight
- 67.6kg
-
- Handle
- Yes
- VESA™ Standard Mount Interface
- 600 x 400
ENVIRONMENT CONDITIONS
-
- Operation Temperature
- 0°C to 40°C
- Operation Humidity
- 10% to 80%
POWER
-
- Power Supply
- 100-240V~, 50/60Hz
- Power Type
- Built-In Power
POWER
-
- Power Consumption (Typ. / Max.)
- 145/275 W
SOUND
-
- Speaker
- Built in 24W (12W + 12W)
STANDARD (CERTIFICATION)
-
- Safety
- CB/NRTL
- EMC
- FCC Class "A"/CE
-
- ErP/Energy Star
- Yes (EU Only)/No
MEDIA PLAYER COMPATIBILITY
-
- OPS type compatible
- Yes
ACCESSORY
-
- Basic
- Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control
SPECIAL FEATURE
-
- Embedded Writing Software
- Yes
TOUCH SPECIFICATIONS
-
- Touch type
- IR
- Available object size for touch
- Ø3mm↑
-
- Response Time
- 60ms↓ (Android)/100ms↓ (Windows)
- Accuracy
- 1.5mm
-
- Interface
- USB 2.0
- Protection Glass Thickness
- 4T (Anti-Glare)
-
- Protection Glass Transmission
- 87%
- Operating System Support
- Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)
-
- Multi touch point
- Max 20 points/Max 10 writing
