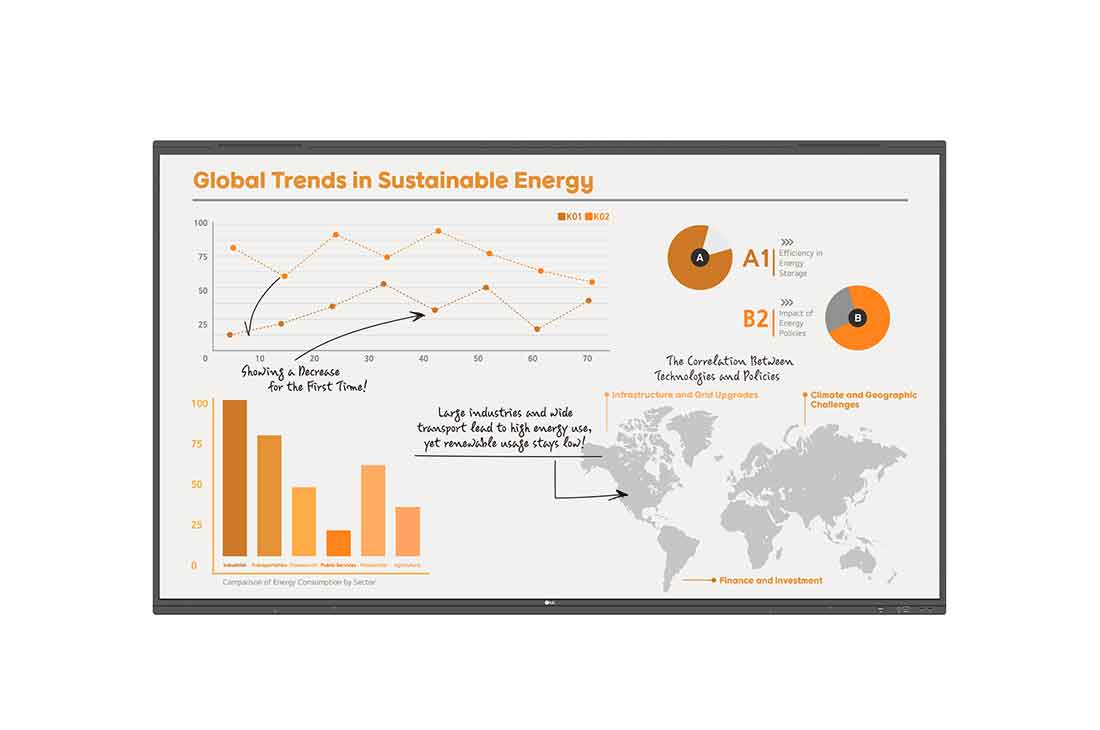

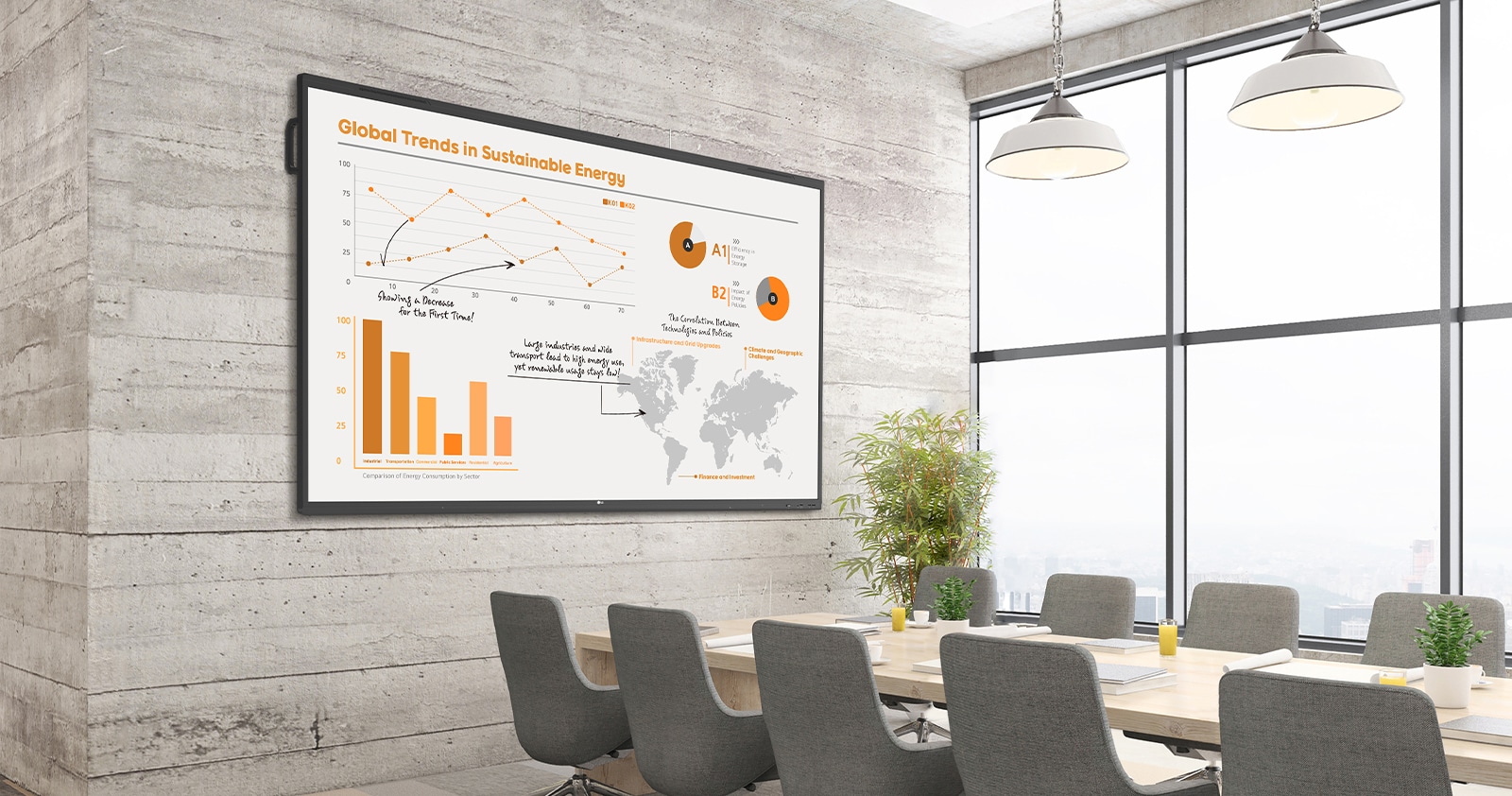

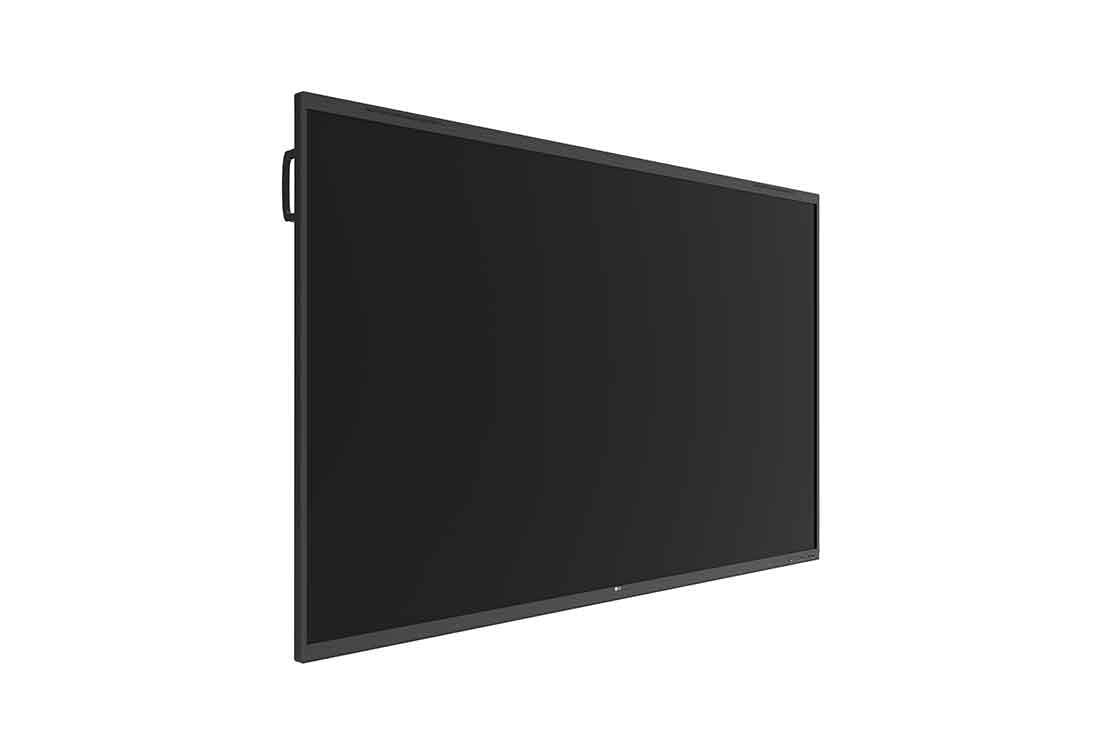

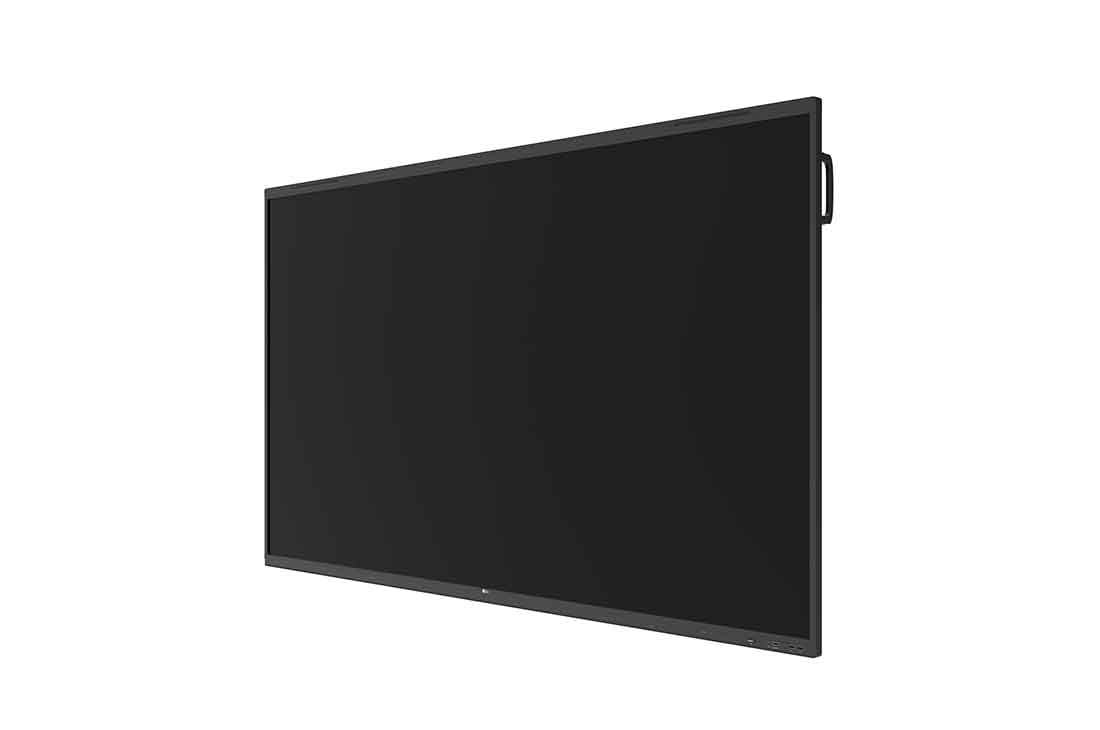

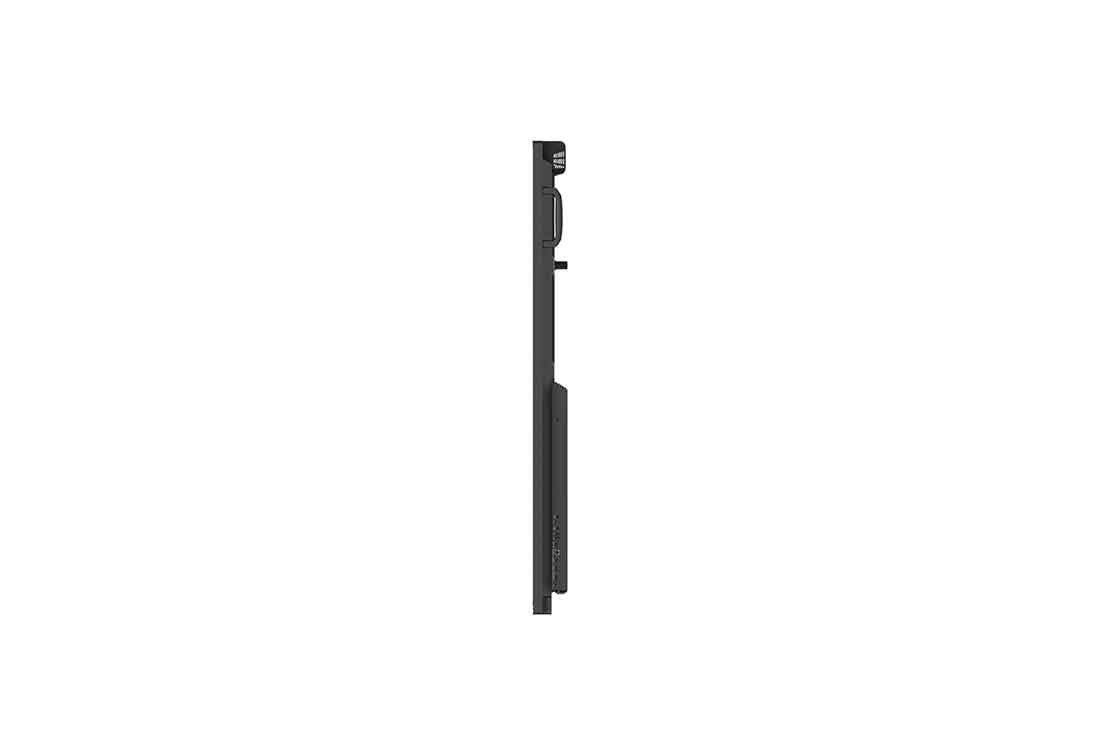

LG CreateBoard Pro
Where Digital Innovation Meets Intuitive Functionality
*Images are simulated for illustration purposes only.
Why LG CreateBoard Pro?
Google Certified - Amazing Sound - Silky Smooth Touch - ELGi AI Helper to Boost Productivity The LG CreateBoard Pro offers a lifelike touch experience, allowing users to interact with content directly on the board. You can write, draw, zoom, and rotate using your fingertips. With screen and content sharing, CreateBoard Pro is an effective tool for collaborative projects and presentations. You can even utilize CreateBoard Pro like a giant touch-screen version of the laptop that you’re used to. With the ChromeOS OPS or Windows OS OPS, simply sign into your account for access to your custom settings, folders, apps and more.
Google Certification
-
Google Certification
LG CreateBoard has received Google certification, enabling users to seamlessly integrate with the Google ecosystem by connecting their Google accounts.* Exceptions apply in countries without Google services.
-

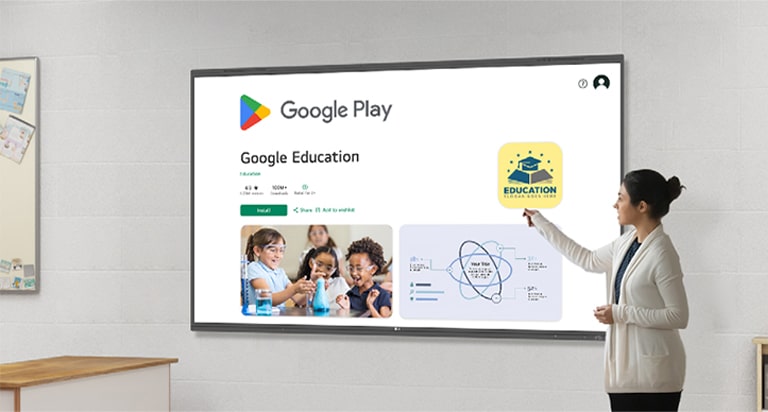

Google Play Store
Users have access to the Google Play Store, where they can download a wide range of applications, including education related games, tools, and more for an expanded experience.* Exceptions apply in countries without Google services.
We would like to introduce you to our built-in helper, ELGi. ELGi AI is dedicated to helping save time with tasks, boost productivity and create efficiencies for all users. With key features for recognition, prediction and translation, ELGi can even be a game changer for users with disabilities. ELGi can read out text and assist with navigation. ELGi Features: • Handwriting Recognition• Handwriting Prediction• Signature Recognition• Writing Structure Recognition• Live Language Translation with Subtitles• Sketch Recognition• SVG Image converter• Circle to Search• Math Notes• Video Pilot with Summary• Not feeling it? Shut AI on or Off easily.
Microphone Array
CreateBoard Pro is packed with extra features like the built-in microphone array located at the top of the board. Whether you are recording a lecture, teaching to online students or simply taking notes, the CreateBoard Pro microphone is sure to be an everyday feature.
*Images are simulated for illustration purposes only.

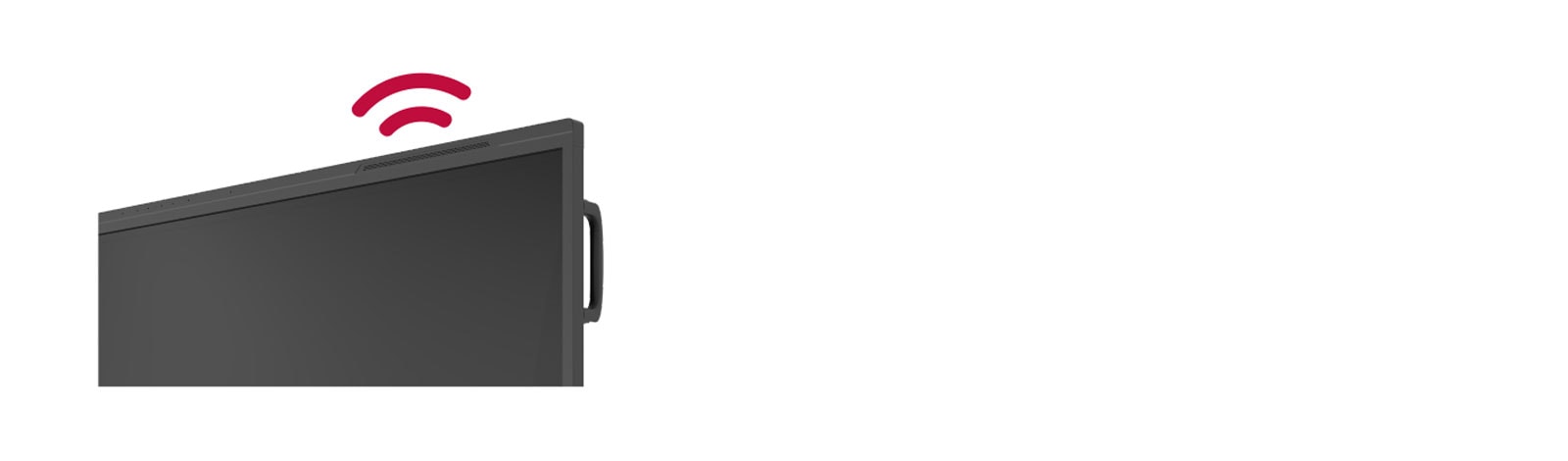

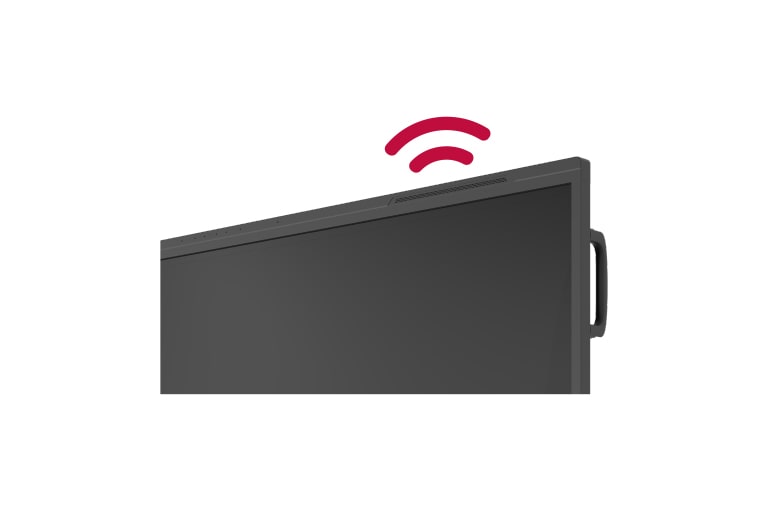

Quadraphonic Sound
The quad speakers provide a three-dimensional clearer and louder sound than traditional 15W display speakers. Whether you’re playing a video, music, a pre-recorded lesson or have online students on the other side, the CreateBoard Pro sounds perfect in the classroom environment.
LG CreateBoard Lab
LG’s proprietary whiteboarding software
*Images are simulated for illustration purposes only.

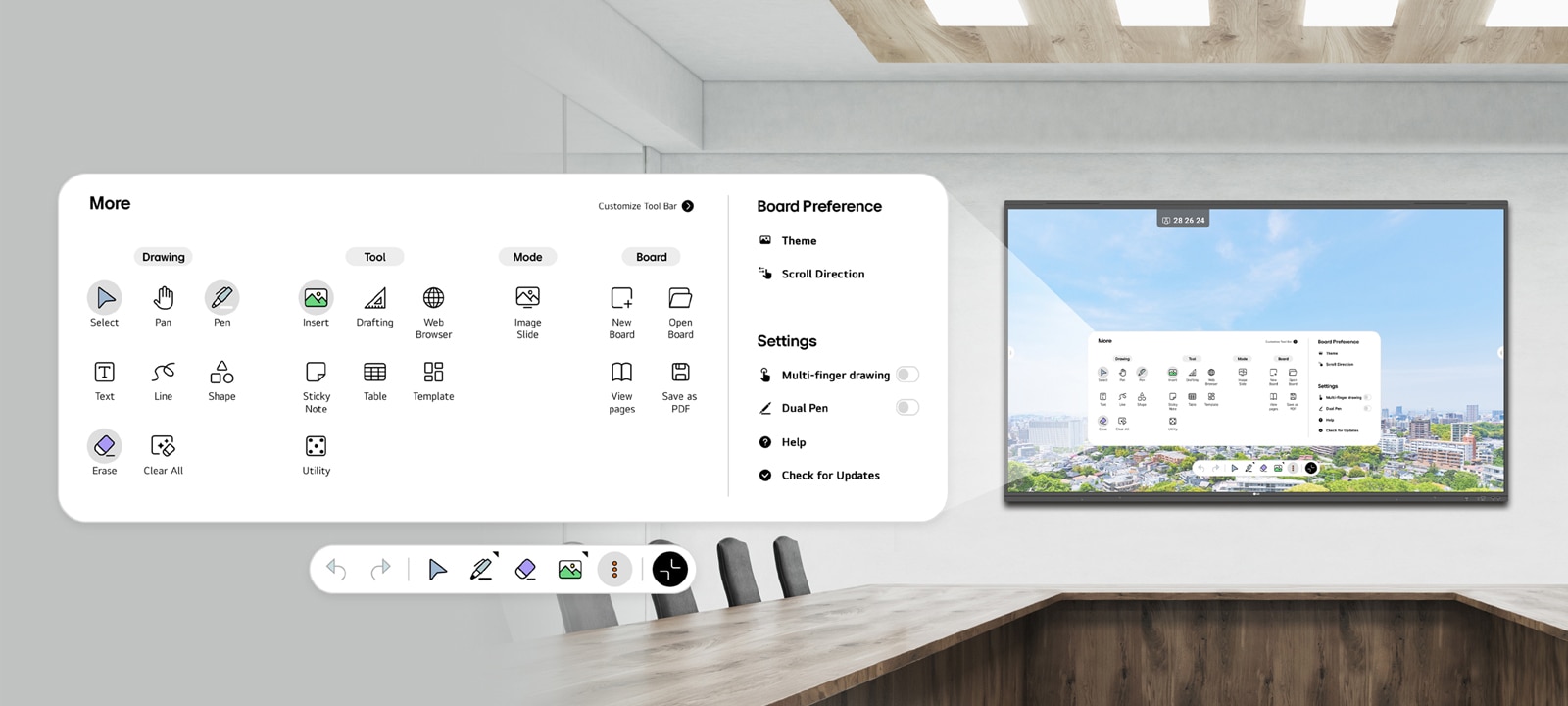

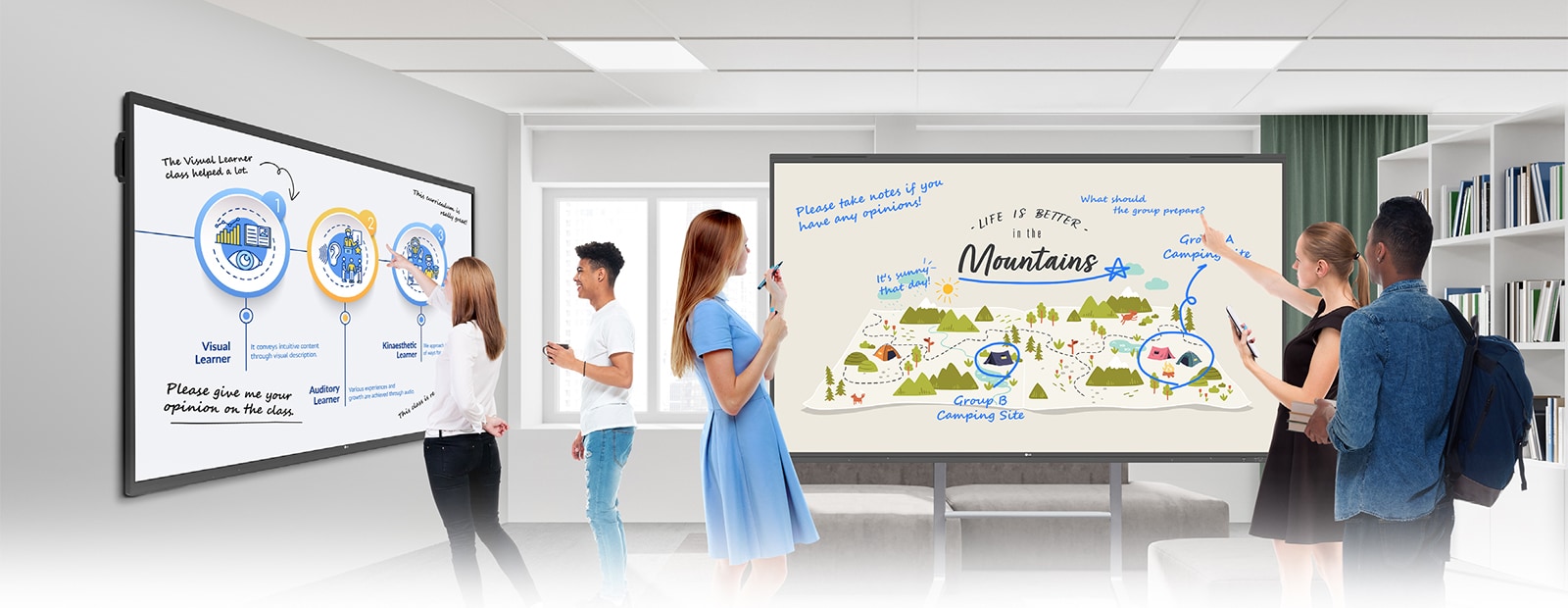

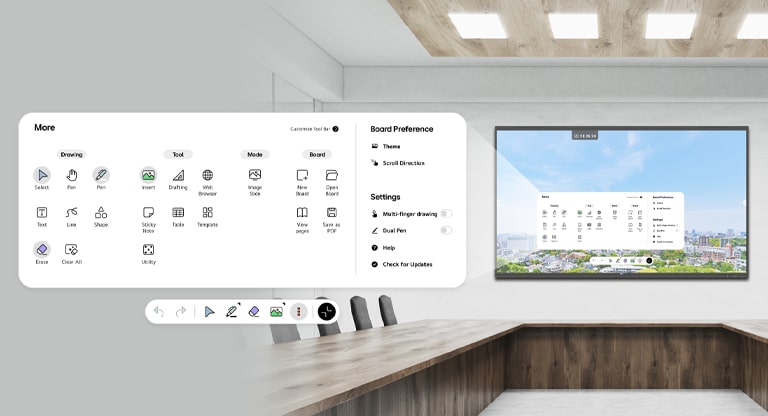

Tools for Fluid Collaboration
LG CreateBoard Lab™ offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through connected cloud devices.

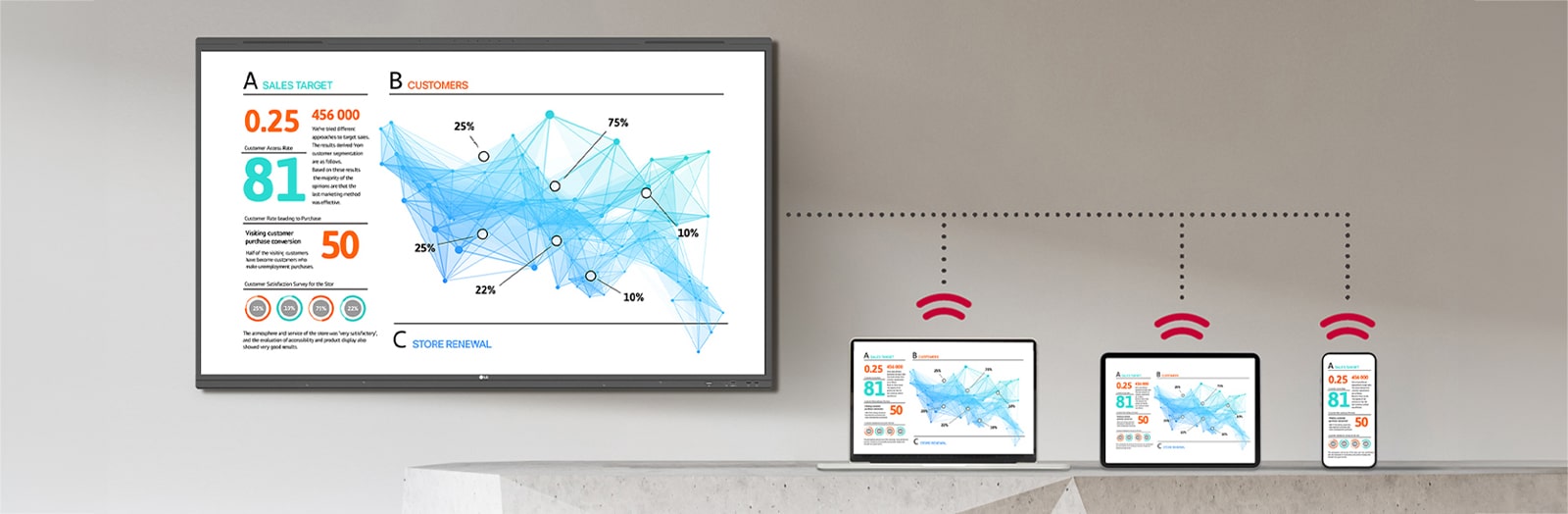

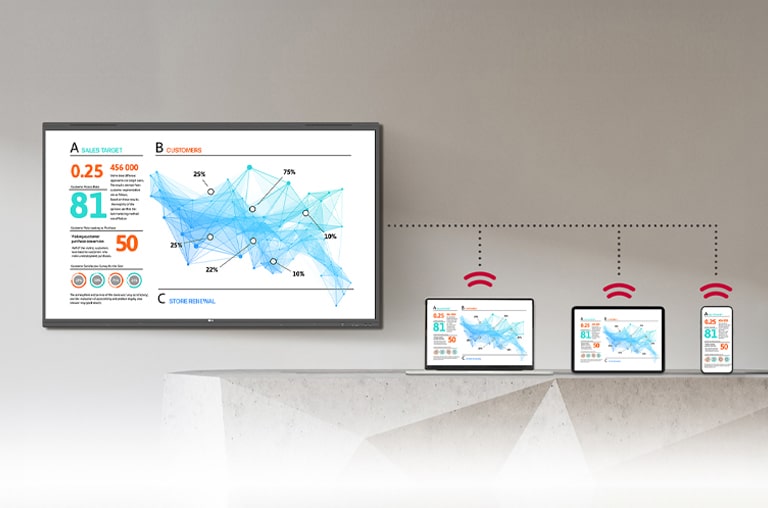

LG CreateBoard Share
LG CreateBoard Share offers a wireless screen sharing feature, providing users with a flexible discussion environment. Users can share their screen from their own devices, simplifying the process of sharing and collaborating on team projects or presentation materials. LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network. For a more stable connection, LG recommends the installation of a dedicated app (e.g., LG CreateBoard Share).
*Images are simulated for illustration purposes only. LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).
LG CreateBoard Share app is compatible with Android 5.1 and higher, iOS 12.0 and higher, and MacOS 11.0 and higher.
For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).
LG CreateBoard Share app is compatible with Android 5.1 and higher, iOS 12.0 and higher, and MacOS 11.0 and higher.

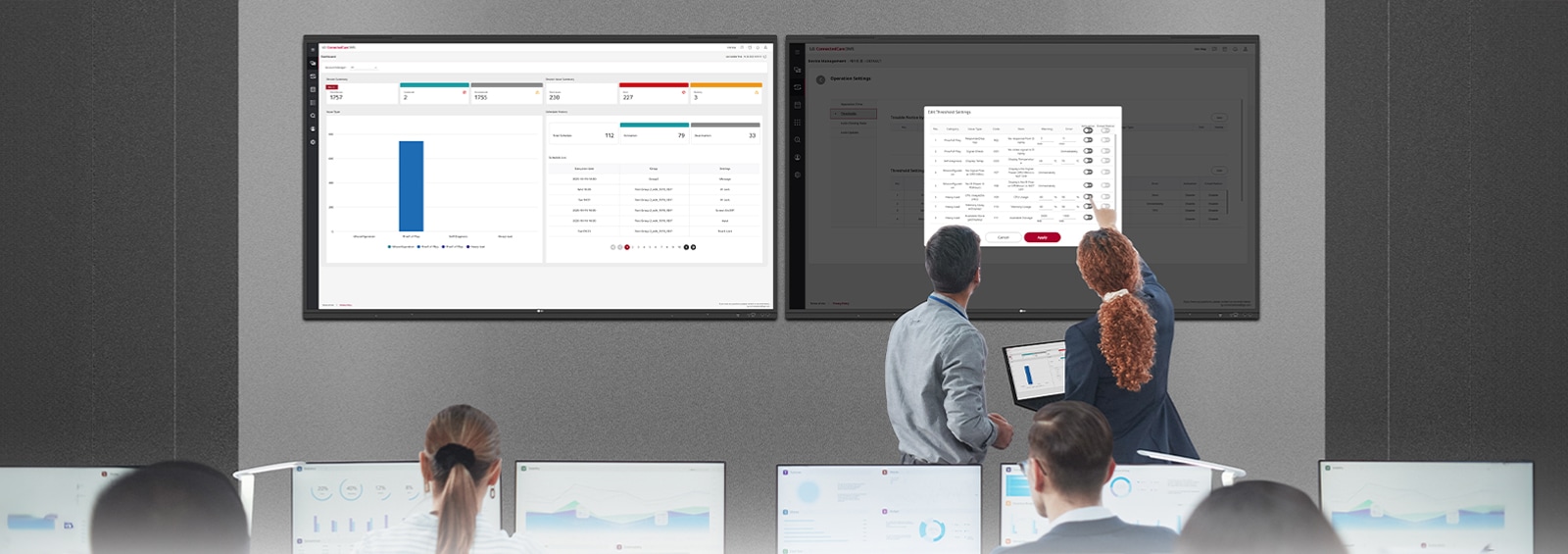

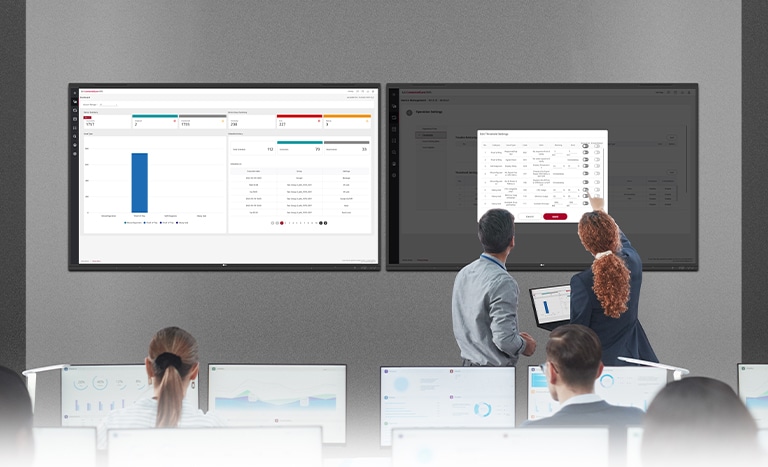

LG ConnectedCare DMS
LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard and signage displays. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.
*Images are simulated for illustration purposes only. The availability of the ‘LG ConnectedCare DMS’ service differs by region, so please contact the LG sales representative in your region for more details.

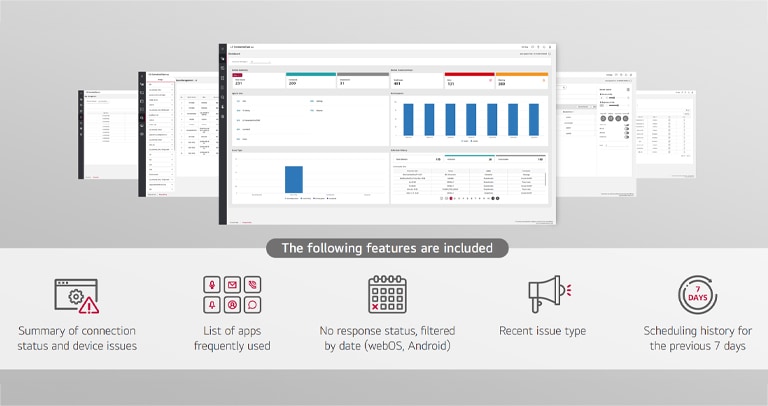

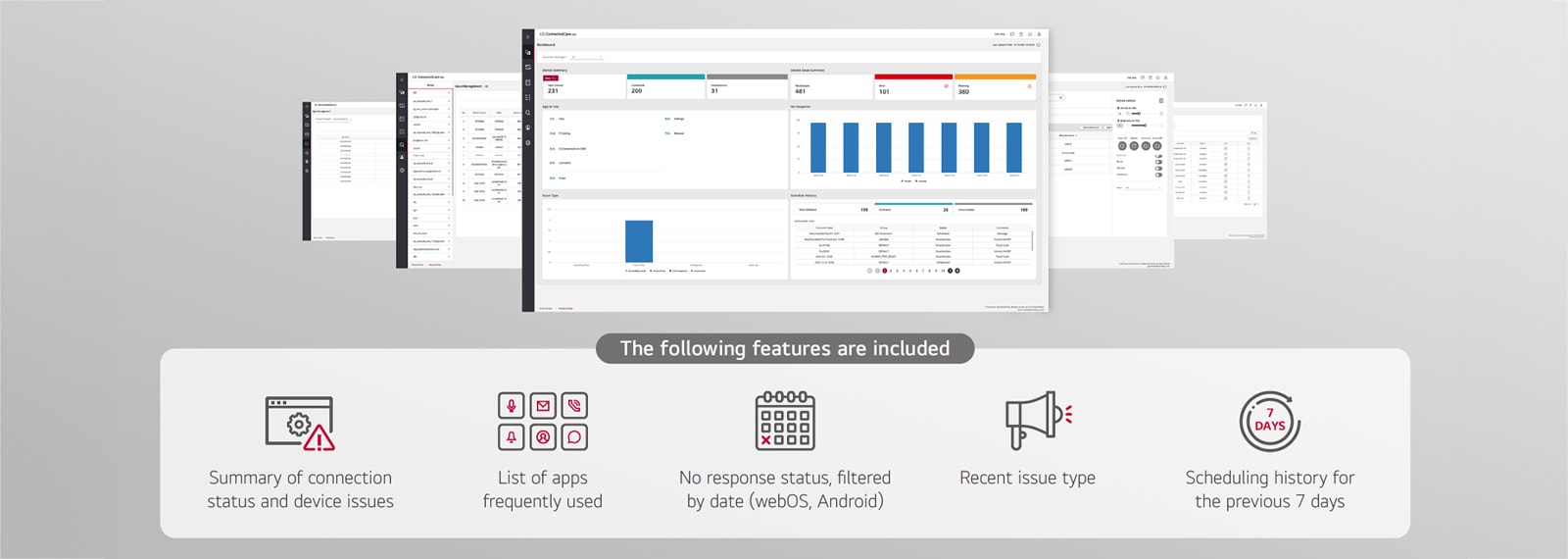

Dashboard
The LG ConnectedCare DMS dashboard allows you to view and monitor multiple devices at the same time, thereby saving time and boosting efficiency.
-

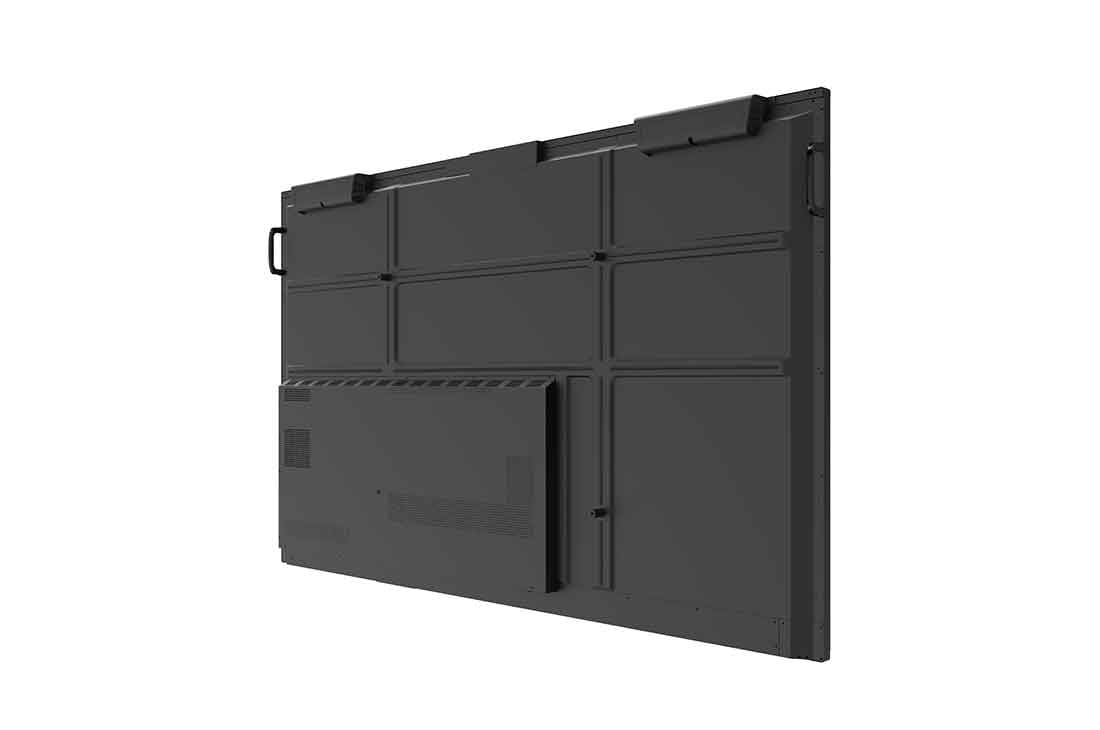

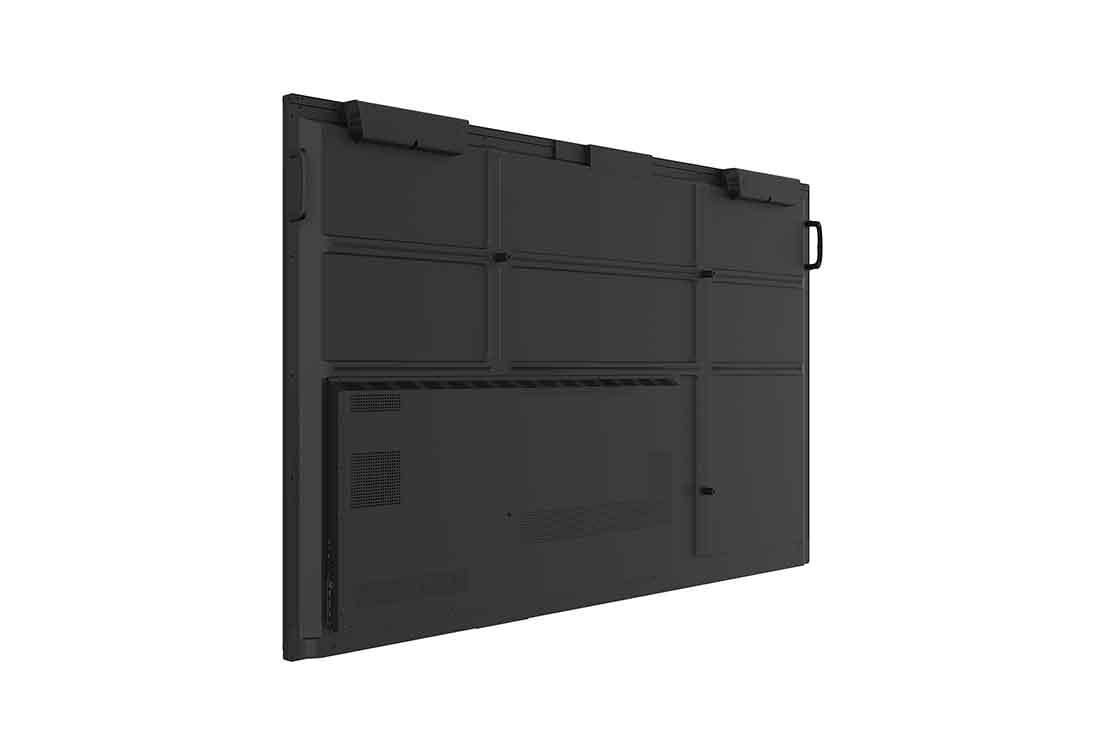

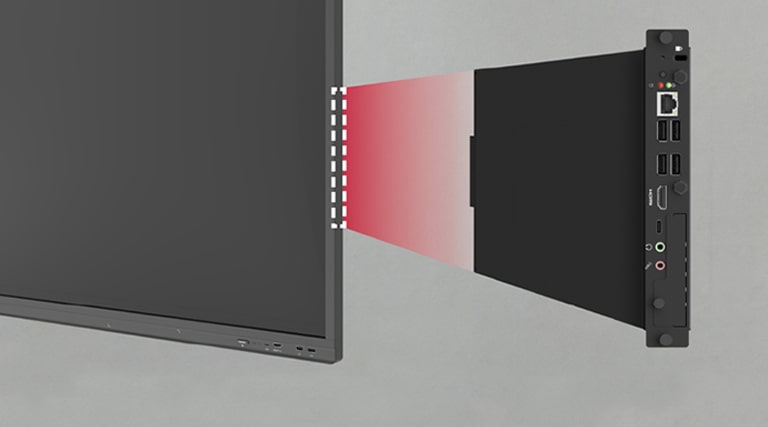

Built-in OPS Slot
LG CreateBoard supports OPS slots, allowing users to conveniently mount OPS Module at the back of the screen without the hassle of connecting to an external desktop. This enables various PC functions and Windows software.* OPS : Open Pluggable Specification
-

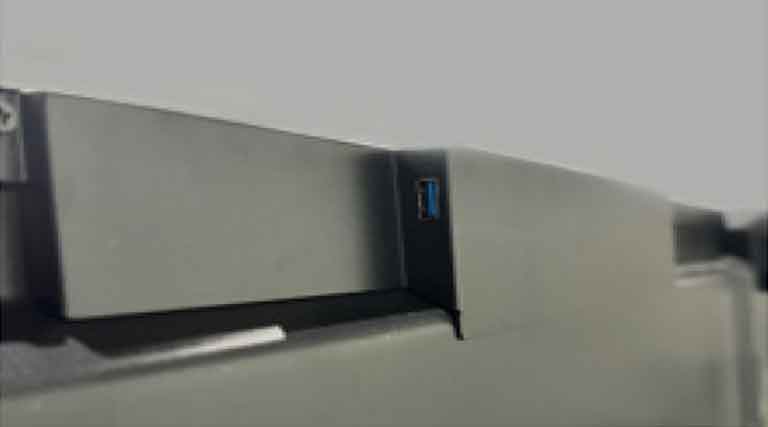

Camera Port
The CreateBoard Pro has a camera port on top reserved for easyconnection, reducing cabling and cleaner setup.
* USB Type-C cables are sold separately.

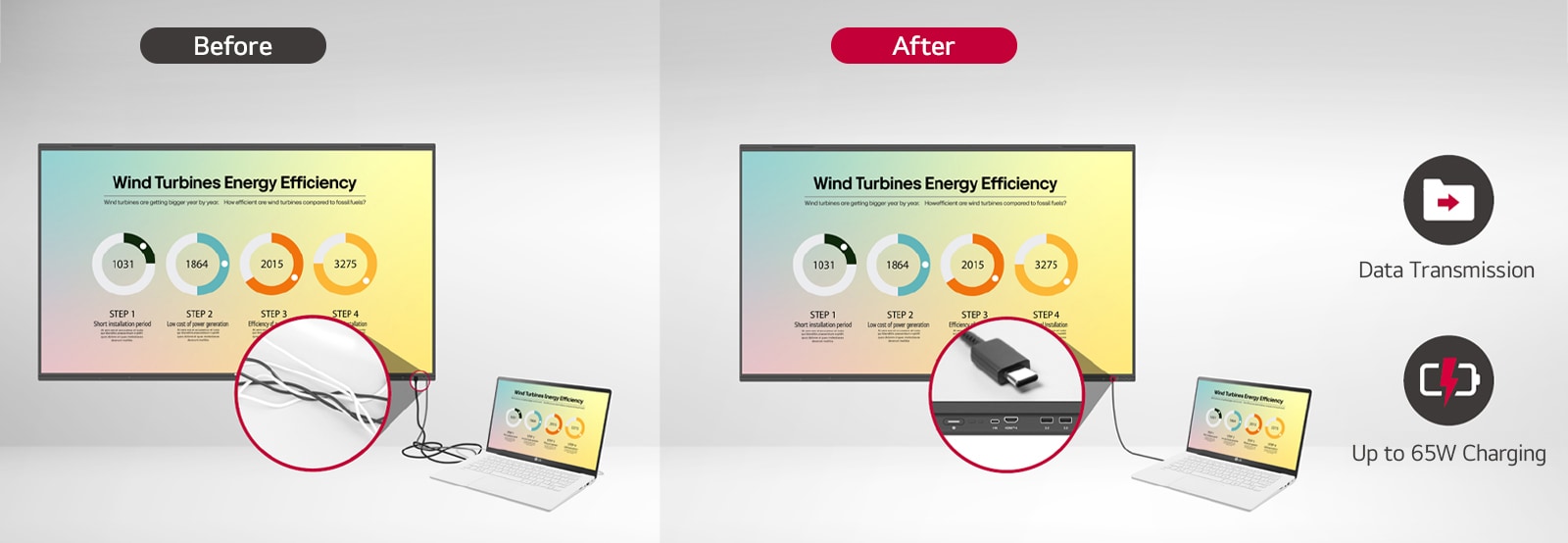

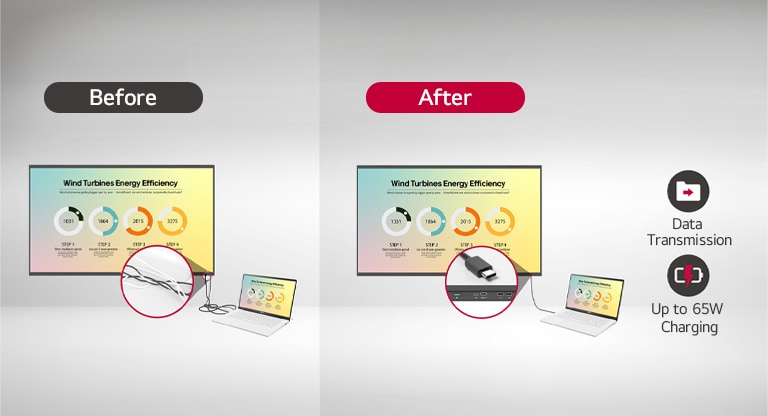

C-type Connection
USB-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.
PANEL
-
- Screen Size
- 86"
- Panel Technology
- IPS
-
- Back Light Type
- Direct
- Aspect Ratio
- 16:9
-
- Native Resolution
- 3,840 x 2,160 (UHD)
- Refresh Rate
- 60 Hz
-
- Brightness
- 400 nit (w/o Glass Typ.)
- Contrast Ratio
- 4,000:1
-
- Dynamic CR
- 5,000:1
- Color Gamut
- NTSC 72%
-
- Viewing Angle (H x V)
- 178° x 178°
- Color Depth
- 10 bit (8 bit + FRC)
-
- Response Time
- 6.5 ms (Typ.)
- Surface Treatment (Haze)
- 25%
-
- Lifetime*
- Up to 50,000 Hours
- Operation Hours (Hours / Days)
- 16 / 7
-
- Portrait / Landscape
- No / Yes
CONNECTIVITY
-
- Input
- HDMI (4, HDCP 2.3), DP (1, HDCP 1.3 / 2.3), Audio In, RS-232C In, RJ45 (LAN), USB (2, Type C), USB 3.0 (4, Type A), USB 2.0 (3, Type A)
- Output
- HDMI Out, Audio Out, Touch USB 2.0 (2, Type A), RJ45 (LAN)
MECHANICAL SPECIFICATIONS
-
- Bezel Color
- Black
- Bezel Width (T / R / L / B)
- 34.3 / 15.6 / 15.6 / 37 mm
-
- Weight (Head)
- 140 lbs. / 63.5 kg
- Packed Weight
- 176.6 lbs. / 80.1 kg
-
- Dimensions (W x H x D)
- 77.1 x 46.1 x 3.4 in. 1,957 x 1,171 x 86 mm
- Shipping Dimensions (W x H x D)
- 83.1 x 50.9 x 8.9 in. 2,110 x 1,291 x 225 mm
-
- Handle
- Yes (2)
- VESA™ Standard Mount Interface
- 800 x 600
Protection Glass
-
- Thickness
- 3.2 mm
- Degree of Protection
- Safety Glass
-
- Tempered / Chemical Strengthening
- Tempered Strengthening
KEY FEATURES
-
- Key Features
- Internal Memory (64 GB), Built-In Wi-Fi (Slot Type), Temperature Sensor, Auto Brightness Sensor, Power Indicator, Built-in MIC (8), webOS ver. (Android 13 (EDLA)), Booting Logo Image, PIP (External Source), Screen Share (LG CreateBoard Share), Smart Energy Saving (Energy Saving), Wake on LAN, Network Ready (Fast Power On), HDMI-CEC
ENVIRONMENT CONDITIONS
-
- Operation Temperature
- 32°F to 104°F 0°C to 40°C
- Operation Humidity
- 10% to 90%
-
- Power Supply
- 100 to 240 Vac, 50/60 Hz
- Power Type
- Built-In Power
-
- Power Consumption - Typ. / Max.
- 280 / 530 W
- Power Consumption - BTU (British Thermal Unit)
- 1,280 BTU/Hr (Typ.), 1,945 BTU/Hr (Max.)
-
- Power Consumption - DPM
- Less than 0.5 W
- Power Consumption - Power Off
- Less than 0.5 W
SOUND
-
- Speakers (Built-in)
- Yes (18 W x 2, 8 W x 2)
REGULATORY & CERTIFICATIONS
-
- Safety
- IEC62368, EN62368, GB4943, UL62368
- EMC
- FCC Class "A"
-
- Energy Star
- Yes
OPS Compatibility
-
- OPS Type Compatible
- Yes
- OPS Power Built-in
- Yes
SOFTWARE COMPATIBILITY
-
- LG ConnectedCare¹
- Yes
WARRANTY
-
- 3 Year Limited
- Yes
Language
-
- Language
- English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Portugues (Europe), Dutch, Czech, Greek, Arabic, Polski, Hungary, Romania, Thai, Turkiye, Ukraine, Basque, Catalan, Kazakhstan, Indonesia
ACCESSORIES
-
- Basic
- Power Cord (3 M x 1), USB Cable (Type A-Type B) 5 M x 1, USB Type-C Cable (C to C) 1.8 M x 1, HDMI Cable (3 M x 1), Writing Pen x 2 Pcs, User Manual, QSG, Carton Box, Remote Controller, Wi-Fi Module
- Optional
- Wall Mount (WM-LOOOS), Floor Stand (ST-OOOF / ST-860F)
Touchscreen Features
-
- Touch - Available Object Size for Touch
- 0̷2 mm↑
- Touch - Response Time
- ≤2.5 ms
-
- Touch - Writing Height
- ≤1 ms
- Touch - Accuracy (Typ.)
- ±1
-
- Touch - Interface
- USB 2.0
- Touch - Protection Glass Thickness
- 3.2 mm
-
- Touch - Protection Glass Transmission
- 88%
- Touch - Operating System Support
- Windows 10 / 8 / 7 / Android
-
- Touch - Multi Touch Point
- 50 Points (Max.)
System Features
-
- CreateBoard Pro System - CPU
- Octa-core A76 x 4 + ASS x 4
- CreateBoard Pro System - GPU
- Mali G52MP2
-
- CreateBoard Pro System - Storage
- 64 GB
- CreateBoard Pro System - Memory (RAM)
- 8 GB
-
- CreateBoard Pro System - Wi-Fi
- 802.11 a/b/g/n/ac/ax
- CreateBoard Pro System - LAN
- Gigabit LAN
-
- CreateBoard Pro System - Bluetooth
- Bluetooth 5.0
- CreateBoard Pro System - OS version
- Android 13 (EDLA)
