KEY FEATURES

  • Public Display Mode
  • USB Cloning
  • USB Auto Playback +
  • RS-232C

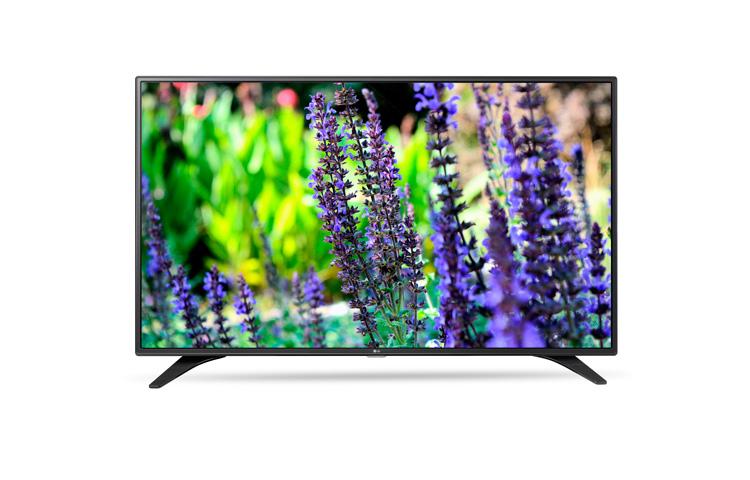

32" Class (TBD" diagonal) Direct LED Commercial Lite Integrated HDTV

PANEL

    • Resolution
    • 1366 x 768 (HD)
    • Frame Rate
    • 60Hz
    • Response Time
    • 9ms(G to G)
    • Brightness
    • 300cd/m2
    • Viewing Angle ( H x V)
    • 178° x 178°
    • Panel Technology
    • Direct LED
    • Static (Panel) Contrast Ratio
    • 1,200:1

GENERAL FEATURES

    • Management
    • USB Diagnostics
    • Kensington Lock
    • Yes
    • Interactivity
    • HTNG / HDMI-CEC
    • RJP Compatibility
    • Teleadapt (RS232C), Teleadapt / Guestlink (HDMI CEC)
    • Supported Media Formats for USB
    • Moving Picture Playback (Divx HD), Picture (JPEG), Audio Codec (MP3, AC3, MPEG, AAC, HEAAC, CDDA, LPCM)
    • Advanced Setting Option
    • Auto Off / Auto Sleep, Motion Eye Care

DIMENSIONS

    • VESA®
    • 200mm x 200mm
    • Bezel Width On (L/R, U, B)
    • 14.1mm, 13.6mm, 19.1mm
    • Bezel Width Off (L/R, U, B)
    • 11.6mm, 11.1mm, 16.6mm
    • WxHxD (with Stand)
    • 28.86" x 19.02" x 6.69" / 11.20lb
    • WxHxD (w/o stand)
    • 28.86" x 17.16" x 2.84" (SPK3.0") / 10.89lb
    • WxHxD Packing
    • 31.97" x 20.47" x 5.59" / 15.43lb

INTERFACE (Rear)

    • Component In
    • 1 (Y, Pb,Pr) + Audio (L/R)
    • RGB In
    • Yes
    • RF In
    • Yes
    • AV In
    • 1 (Sharing with Component in)
    • HDMI/HDCP Input
    • Yes
    • External Speaker Out
    • Yes
    • RS232 In
    • Yes
    • LAN Port
    • 1

BROADCASTING SYSTEM

    • Analog
    • NTSC
    • Digital
    • ATSC/VSB/Clear QAM

VIDEO

    • Dynamic Color Enhancer
    • Yes
    • Triple XD Engine
    • Yes
    • Real Cinema 24p (3:3 pull down)
    • Yes
    • Aspect Ratio
    • 6 modes ( 16:9, Just scan,Set by program, 4:3,Zoom,Cinema zoom1)

INTERFACE (Side)

    • HDMI In
    • Yes
    • USB (2.0)
    • Yes

AUDIO

    • Audio Output
    • 5W + 5W/2.0 ch
    • Clear Voice
    • Yes
    • Sound Mode
    • 6 Modes (Standard, News, Music, Cinema, Sport, Game)
    • Optical Sound Sync
    • Yes
    • Sound Optimizer
    • Yes, 3 Modes (Normal, Wall-Mount Type, Stand Type)

POWER

    • Voltage
    • 110 ~ 240V, 50/60Hz
    • Stand-by
    • 0.5W

WARRANTY

    • WARRANTY
    • 2-Year Limited Warranty (Parts and Labor) | Extended Warranties Available

Specification Sheet
