KEY FEATURES

  • INSTANT MESSAGE DELIVERY
  • ALL-IN-ONE DIGITAL SIGNAGE SOLUTION
  • SIMPLE CONNECTION
  • EMBEDDED SUPERSIGN W-LITE SOFTWARE

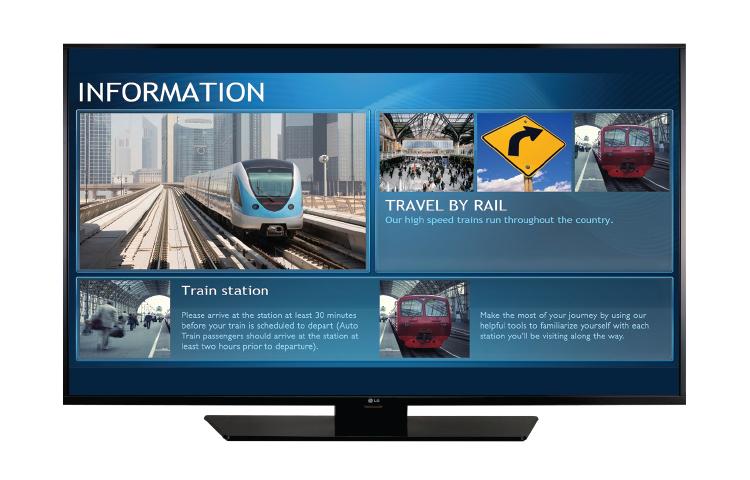

43" class (43"/1079.5mm diagonal) LX540S TV Tuner Built-In Digital Signage

DISPLAY

    • Screen Size
    • 60" / 55" / 49" / 43"
    • Type
    • LED (Edge)
    • Resolution
    • 1,920 x 1,080 (FHD)
    • Brightness
    • 60" : 350cd/m2 / 55" : 330cd/m2 / 49", 43" : 300cd/m2

BROADCASTING SYSTEM

    • Analog
    • NTSC
    • Digital
    • ATSC, Clear QAM/VSB

AUDIO

    • Audio Output
    • 10W + 10W

GENERAL FEATURES

    • Management
    • Remote diagnostics / Self diagnostics
    • Interactivity
    • HDMI-CEC (without ARC), HTNG-CEC
    • Anti-theft System
    • Kensington Lock (Stand)

INTERFACE

    • Side
    • HDMI In, USB 2.0(2), Cl Slot, Headphone Out (3.5mm Phone Jack)
    • Rear
    • RF In, AV In (Sharing with Component In), Component In, Optical Audio Out, RGB In, PC Audio Input (Sharing with Component In), RS-232C, HDMI In, LAN Port, External Speaker Out

VIDEO

    • Resolution
    • 1920 x 1080 (FHD)
    • Triple XD Engine
    • Yes
    • Aspect Ratio
    • 6 modes (16:9, Just Scan, Set by Program, 4:3, Zoom, Cinema Zoom1)

ACCESSORY

    • Yes
    • L-Con, Power Cable, Simple Manual

POWER

    • Voltage, Hz
    • 100 ~ 240V, 50/60Hz
    • Typical (Watts)
    • 60" : 136W / 55" : 95.4W / 49" : 80.8W / 43" : 79W

SOFTWARE COMPATIBILITY

    • Yes
    • SuperSign Lite, SuperSign C, SuperSign Simple Editor

WARRANTY

    • Warranty
    • 2-Year Limited Warranty (Parts and Labor) | Extended Warranties Available
