SUMMARY
-
- EasyClean®
- Yes
CAPACITY
-
- Upper Oven Capacity (cu. ft.)
- 3.0
- Lower Oven Capacity (cu. ft.)
- 4.3
-
- Total Oven Capacity (cu. ft.)
- 7.3
OVEN FEATURES
-
- Configuration
- Double Oven
UPPER OVEN FEATURES
-
- Configuration
- Freestanding Double Electric Range
- Broil Element (Watt)
- Sheathed Heater 3,800W
-
- Bake Element (Watt)
- 2,400W / 4 Pass (Exposed Bake)
- Oven Cooking
- Conventional
-
- Oven Cooking Modes
- Bake, Broil, Delay Bake, Delay Clean, Warm, Pizza
- Oven Control Features
- Glass Touch
-
- EasyClean®
- Yes
- GoCook Smart Oven Light
- Yes (1 Light)
-
- No. of Rack Positions
- 2
- Door Lock
- Yes
-
- Automatic Safety Shut-Off
- After 12 hours
LOWER OVEN FEATURES
-
- Broil Element (Watt)
- 3,800W / 6 Pass
- Bake Element (Watt)
- -
-
- Convection Element (Watt)
- 2,500W / 2 Turn
- Convection Conversion
- Yes
-
- Convection System/Mode/Cooking System
- ProBake Convection®
- Oven Cooking Modes
- Bake, Broil, Convection Bake, Convection Roast, Favorites, Multi-Rack Convection Baking, Delay Bake, Delay Clean, Proof, Warm, Pizza, Speed Roast
-
- Oven Control Features
- Glass Touch
- EasyClean®
- Yes
-
- GoCook Smart Oven Light
- Yes (1 Light)
- No. of Rack Positions
- 4
-
- Door Lock
- Yes
- Automatic Safety Shut-Off
- After 12 hours

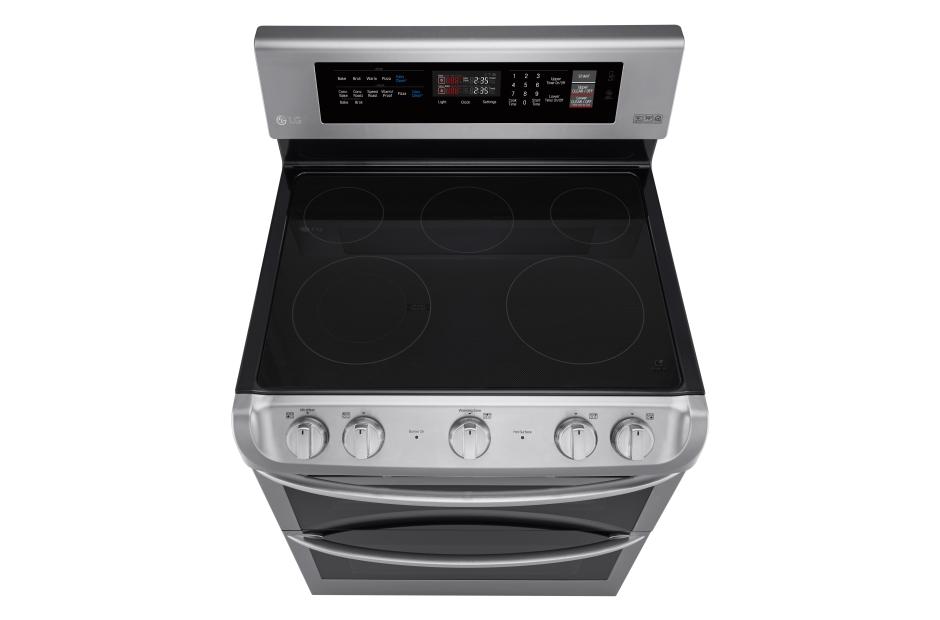

COOKTOP
-
- Element Size/Wattage - Left Rear
- 6" - 1,200W
- Element Size/Wattage - Right Rear
- 6" - 1,200W
-
- Element Size/Wattage - Left Front
- 9" 6" - 3,200W / 1,400W
- Element Size/Wattage - Right Front
- 9" / 2500W
-
- Center (Warming Zone)
- 7" - 100W
- Cooktop Finish
- Grey Patterned on Black Ceramic Glass
-
- Hot Surface LED Indicator
- Yes

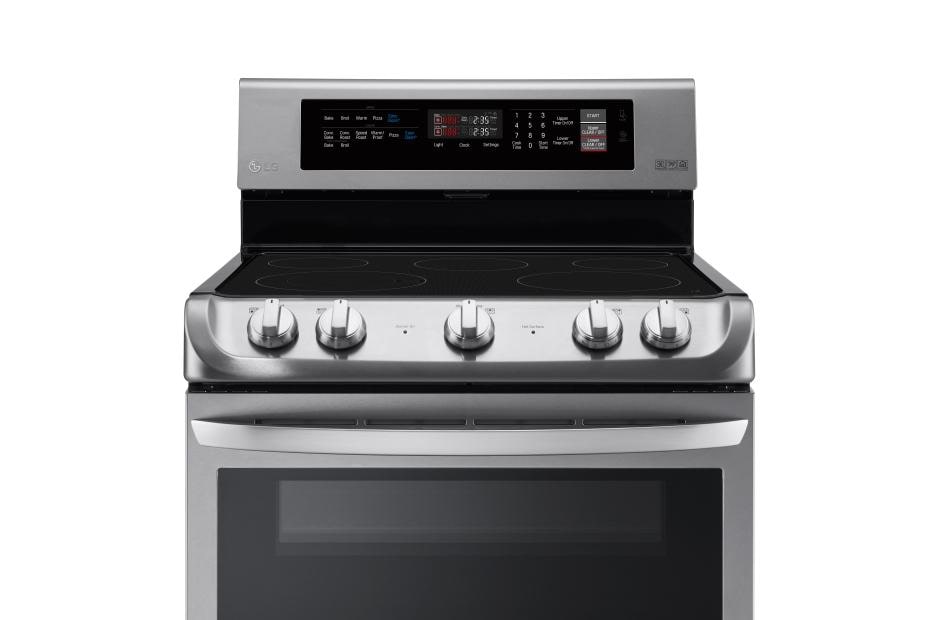

CONTROL
-

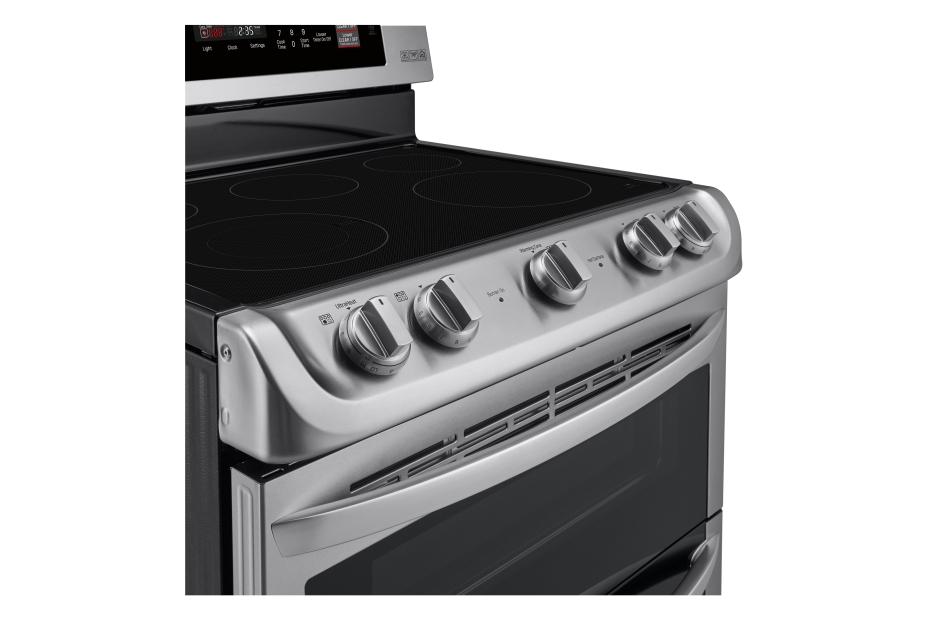

- Cooktop Control Type
- Front Tilt-Control Knobs
- Oven Control Type
- Glass Touch
-
- Display
- VFD
- Language
- English
-
- Smart Function
- NFC / Smart Buzzer
- Clock
- 12 hr or 24 hr (option)
-
- Temperature Unit of Measure
- ˚F or ˚C
- Cooking Complete Reminder Volume
- 1. High 2. Low 3. Mute
APPEARANCE
-
- Available Colors
- Stainless Steel
- Handle/Knobs
- STS Finish (AIuminum)
-
- Oven Door Feature
- WideView™ Window
DIMENSIONS / CLEARANCES / WEIGHT
-
- Shipping Weight (lbs)
- 215
- Product Weight (lbs)
- 191.8
-
- Cabinet Width (in)
- 30"
- Overall Depth (in) - including handle
- 28 15/16"
-
- Overall Height (in) - including backguard
- 47 9/32"
- Overall Width (in)
- 29 15/16"
-
- Oven Interior Dimensions (Upper) (in) (W x H x D)
- 24 13/16" x 10 13/16" x 19 13/16"
- Height to Cooking Surface (in)
- 36"
-
- Oven Interior Dimensions (Lower) (in) (W x H x D)
- 24 13/16" x 14 1/4" x 19 15/16"
- Carton Dimensions (in) (W x H x D)
- 31 31/32” x 51” x 30 17/32”
POWER/RATINGS
-
- Amp Rating at 208V
- 40A
- Amp Rating at 240V
- 40A
-
- KW Rating at 208V
- 11.6kW
- KW Rating at 240V
- 15.5kW
ACCESSORIES
-
- Standard Rack
- 3
- Cooktop Cleaning Pad
- Yes
-
- Spray Bottle
- Yes
- Scouring Pad
- Yes
-
- Cooktop Cream / Cleaner
- Yes
WARRANTY/UPC
-
- Limited Warranty
- 1 Year Parts and Labor (In Home Service) 10 Years Limited on Magnetron (In Home Service)
- UPC
- 048231319515
