Black Stainless Steel Matte Black Stainless Steel Smooth Black Smooth White Stainless Steel
Smooth Black
Inquiry to Buy
Add to Wishlist

KEY FEATURES

  • 6.3 cu. ft. Large Capacity
  • True Convection
  • SmoothTouch™ Glass Touch Controls

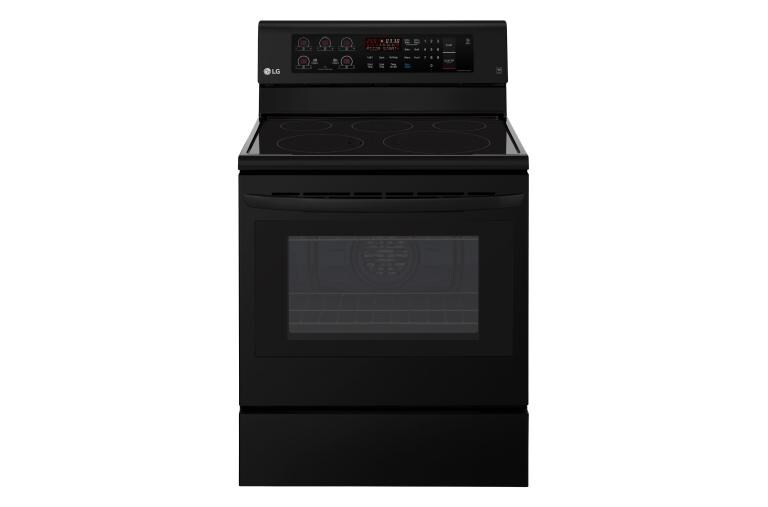

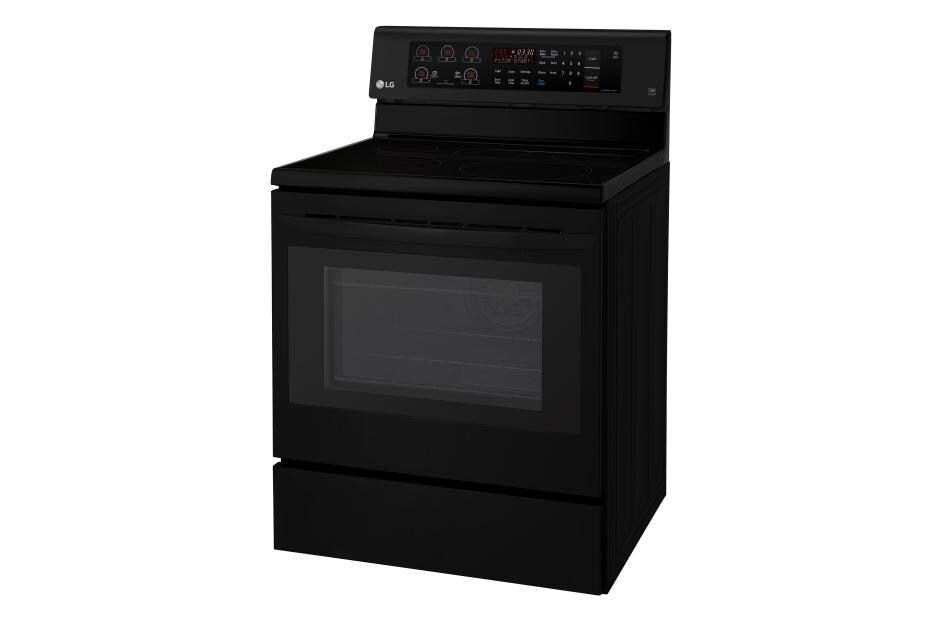

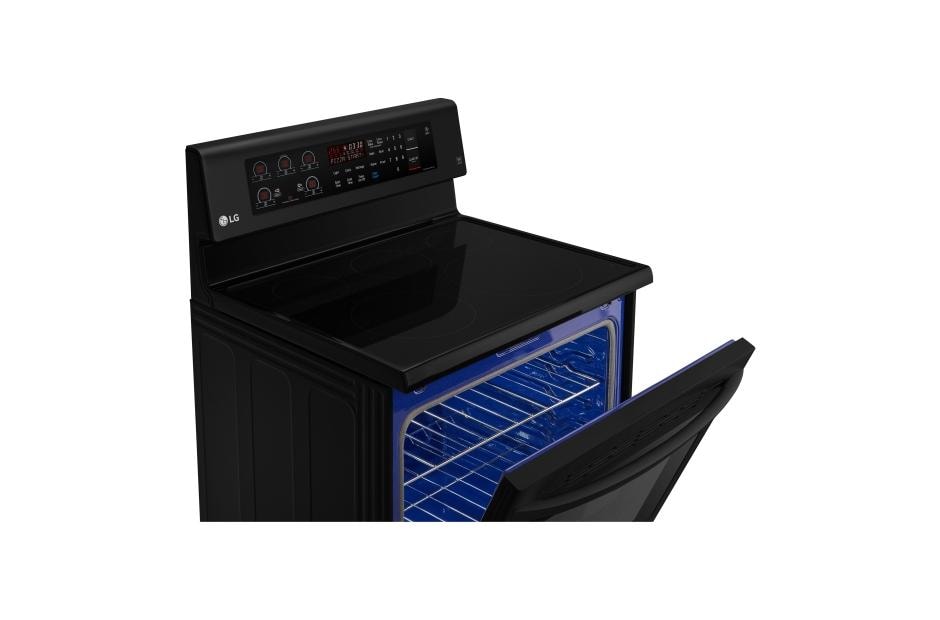

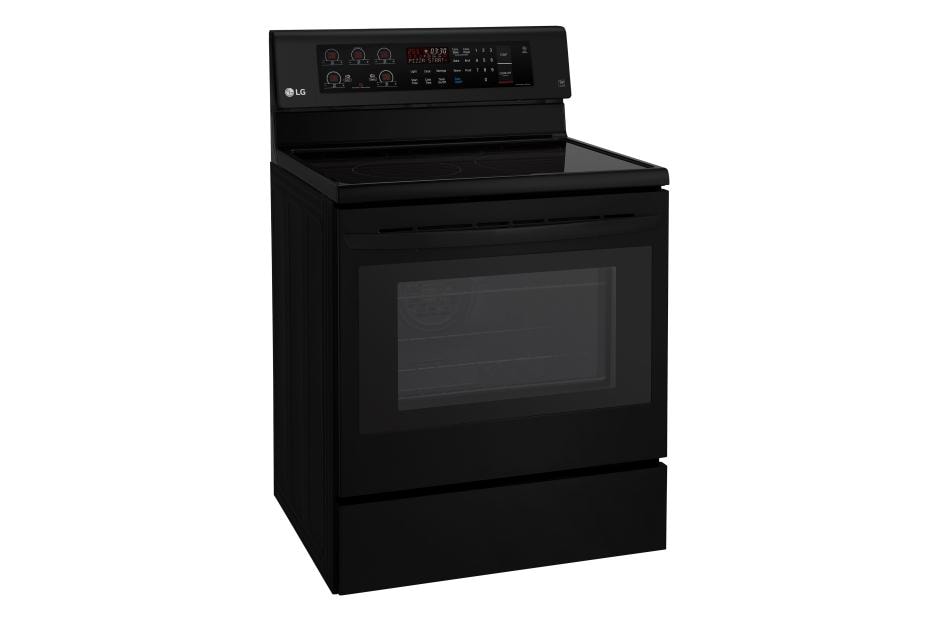

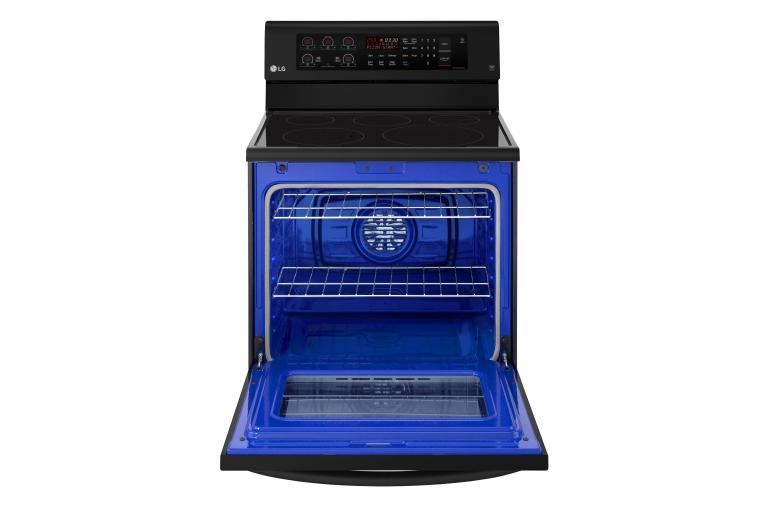

6.3 cu. ft. Electric Single Oven Range with True Convection and EasyClean®
Download Spec Sheet

SUMMARY

    • EasyClean®
    • Yes
    • Range Type
    • Electric
    • Capacity
    • 6.3 cu.ft.
    • Color
    • Smooth Black

CAPACITY

    • Oven Capacity (cu. ft.)
    • 6.3

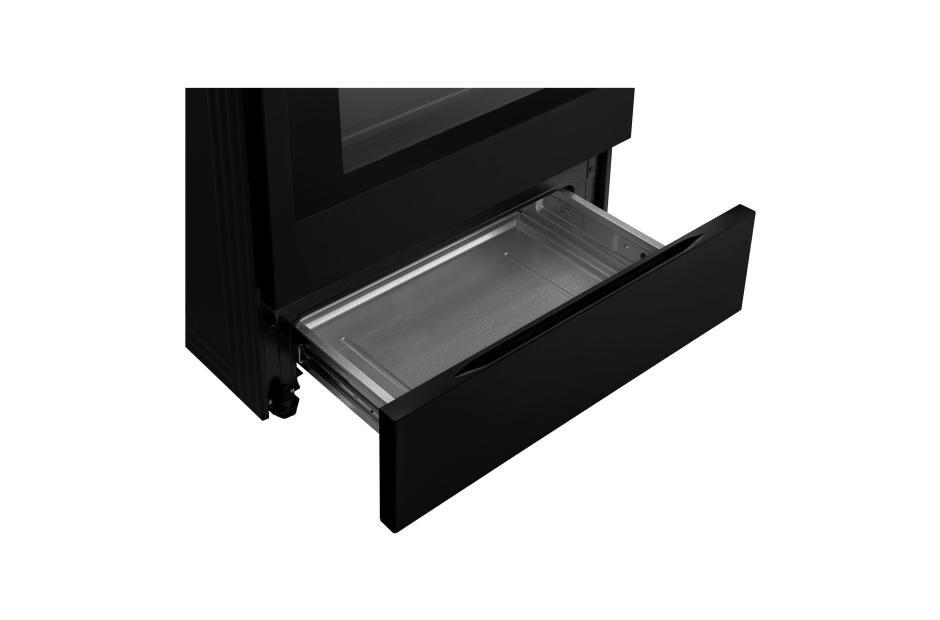

    • Storage Drawer Capacity (cu. ft.)
    • .8

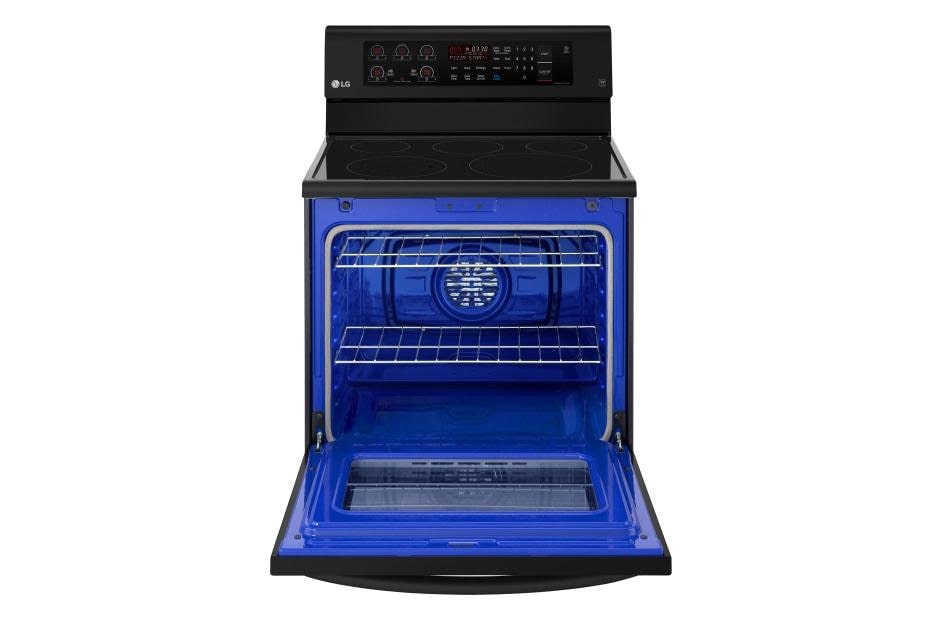

OVEN FEATURES

    • Configuration
    • Single Oven
    • Configuration Type
    • Freestanding Electric Range
    • Broil Element (Watts)
    • Sheath 4,200W / 6 Pass
    • Convection/Bake Element (W)
    • 700W (Convection) / 3400W (Bake)

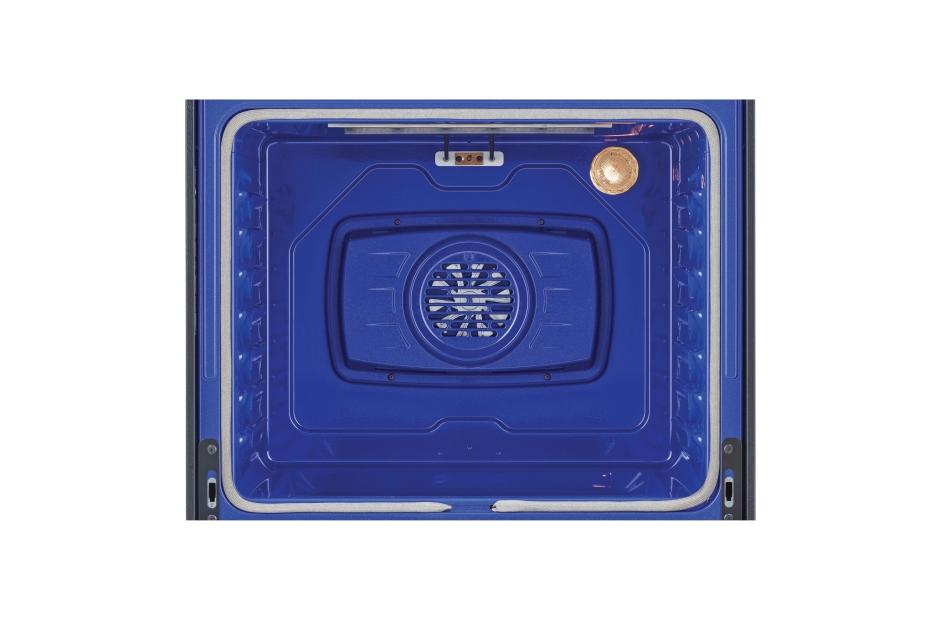

    • Oven Cooking Technology
    • True Convection
    • Oven Cooking Modes
    • Bake, Broil, Convection Bake, Convection Roast, Multi-Rack Convection Baking, Delay Bake, Proof, Warm
    • Oven Control Features
    • Glass Touch
    • Convection Conversion
    • Yes
    • EasyClean®
    • Yes
    • GoCook Smart Oven Light
    • Yes (1 Light)
    • No. of Rack Positions
    • 7
    • Automatic Safety Shut-Off
    • After 12 hours

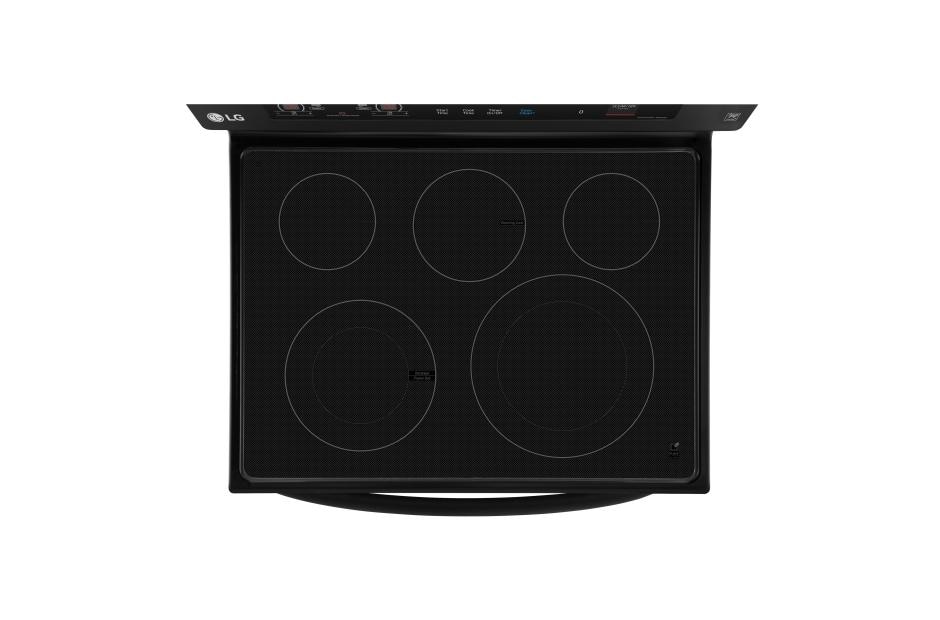

COOKTOP

    • Element Size/Wattage - Left Rear
    • 6" - 1,200W
    • Element Size/Wattage - Right Rear
    • 6" - 1,200W
    • Element Size/Wattage - Left Front
    • 9" - 3,200W / 6" - 1,400W
    • Element Size/Wattage - Right Front
    • 12" - 2,700W / 9" - 1,700W
    • Element Size/Wattage - Center (Warming Zone)
    • 7" - 100W
    • Cooktop Finish
    • Grey Patterned on Black Ceramic Glass
    • Hot Surface LED Indicator
    • Yes

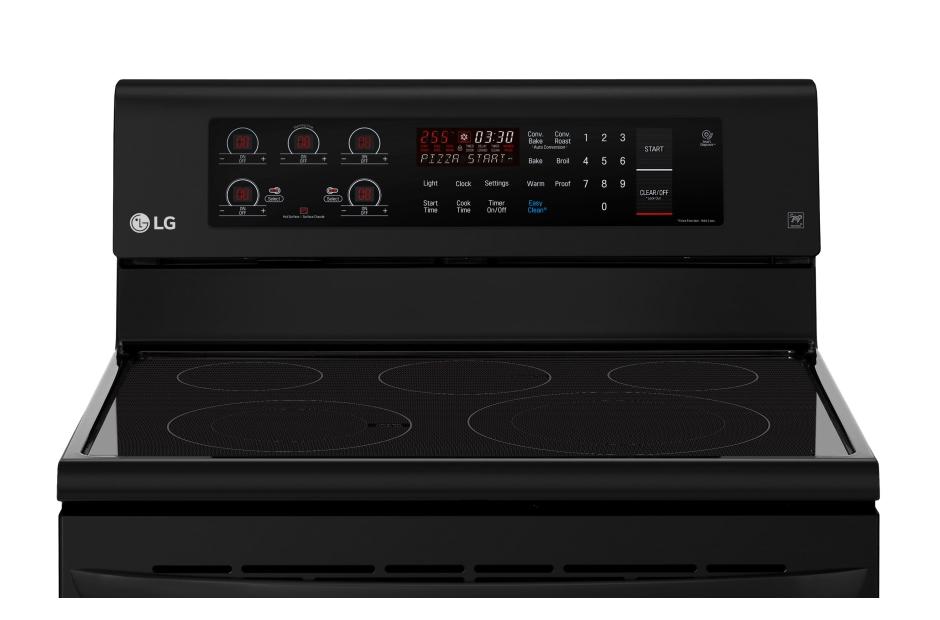

CONTROL

    • Cooktop Control Type
    • Glass Touch
    • Oven Control Type
    • Glass Touch
    • Display
    • VFD Scrolling
    • Language
    • English, Spanish, French
    • Smart Function
    • Smart Buzzer
    • Clock
    • 12 hr or 24 hr (option)
    • Temperature Unit of Measure
    • ˚F or ˚C
    • Preheat Alarm Light
    • On/Off
    • Oven Thermostat Adjustment
    • (+) or (-)
    • Cooking Complete Reminder Volume
    • Normal/Mute

APPEARANCE

    • Available Colors
    • Stainless Steel, Black Stainless Steel, Black, White
    • Handle/Knobs
    • Matching Finish (AIuminum)
    • Oven Door Feature
    • WideView™ Window

DIMENSIONS / CLEARANCES / WEIGHT

    • Product Weight (lbs)
    • 167
    • Shipping Weight (lbs)
    • 191
    • Product Dimensions (in) (W x H x D)
    • 29 7/8" x 47 1/8" (w/backguard) x 28 1/4" (w/ handle)
    • Cabinet Dimensions (in) (W x H x D)
    • 30" x 36" x 25"
    • Height to Cooking Surface (in)
    • 36"
    • Oven Interior Dimensions (Upper) (in) (W x H x D)
    • 24 13/16" x 22 1/4" x 19 11/16"
    • Drawer Dimensions (in) (W x H x D)
    • 22 3/16" x 4 1/2" x 16 3/8"
    • Carton Dimensions (in) (W x H x D)
    • 33 11/16" x 50 7/8" x 30 9/16"

POWER / RATINGS

    • Amp Rating at 208V
    • 40A
    • Amp Rating at 240V
    • 40A
    • KW Rating at 208V
    • 10.1kW
    • KW Rating at 240V
    • 13.4kW

ACCESSORIES

    • Standard Rack
    • 2
    • Spray Bottle
    • Yes

WARRANTY

    • Limited Warranty
    • 1 Year Parts & Labor

WARRANTY/UPC

    • UPC
    • 048232337549
