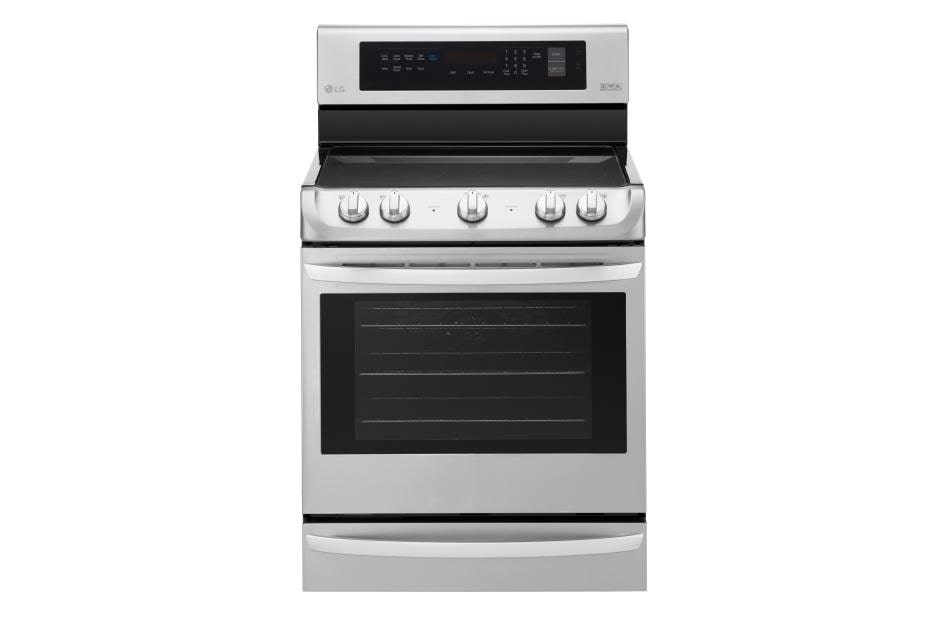

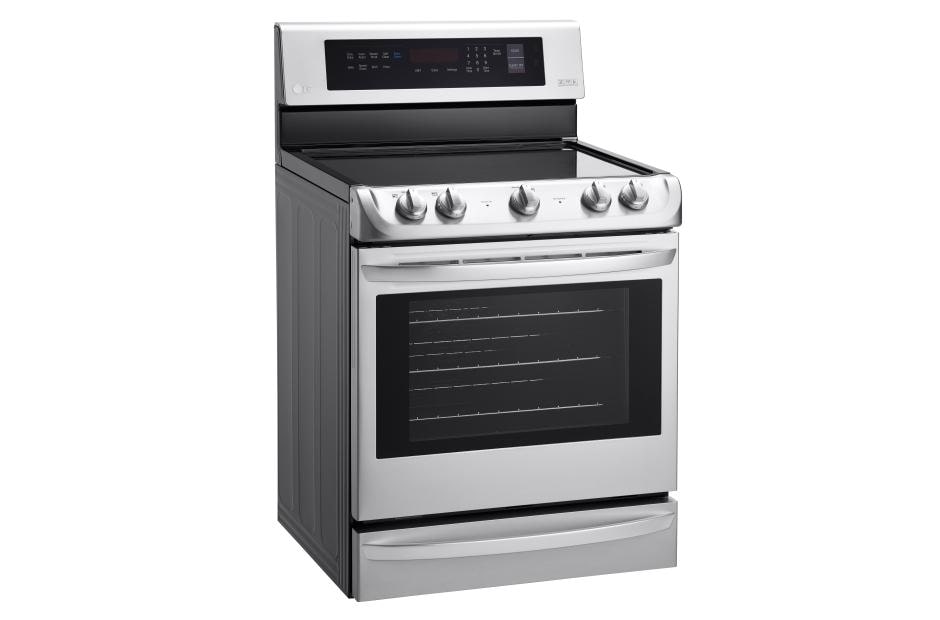

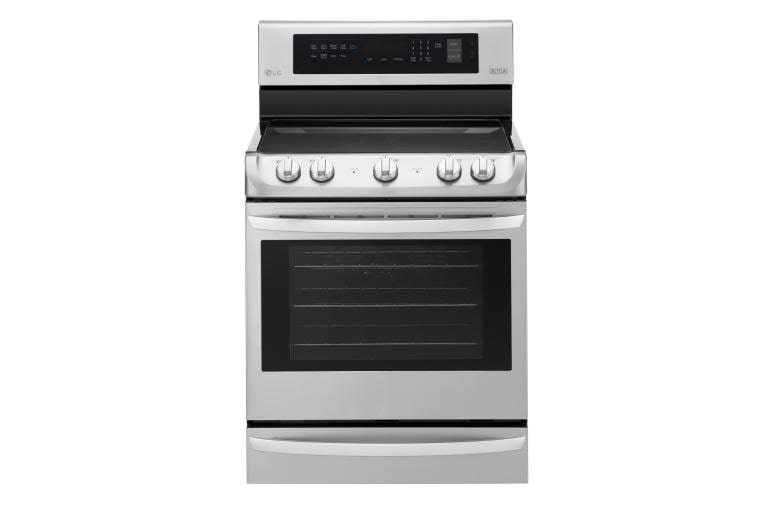

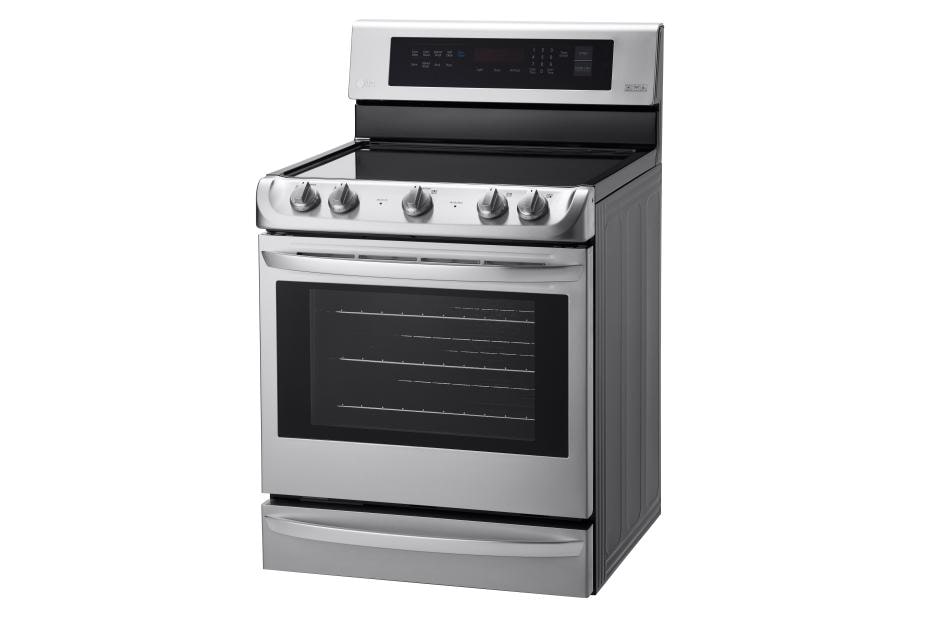

Baked to Perfection on Every Rack, Every Time

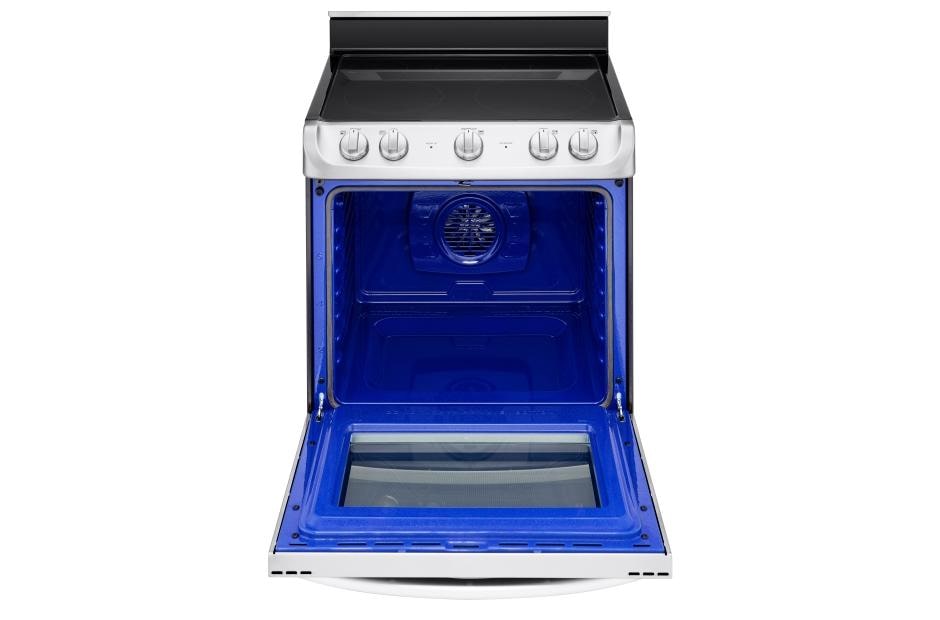

LG ProBake Convection® delivers even baking results on every rack, every time*. Inspired by pro-style ranges, this new LG range moved the heating element from the bottom of the oven to the back wall for optimal heat distribution.
10 Minutes. 1 Spotless Oven.
LG EasyClean® delivers the fastest oven-cleaning feature yet. In 10 quick minutes your oven can be sparkling clean, without strong chemical fumes or high heat*. Simply spray the oven interior with water, press EasyClean® and then in 10 minutes, quickly wipe away any leftover grime.

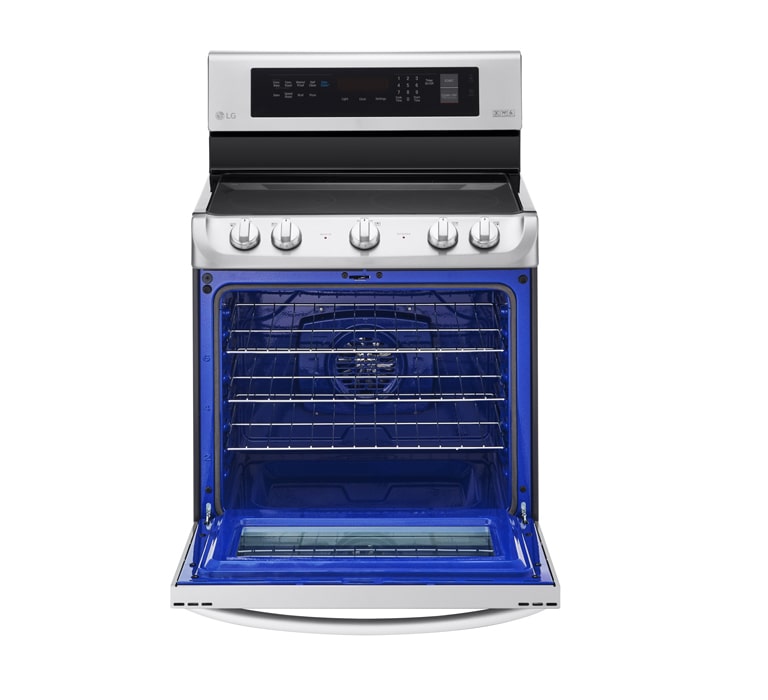

Handles Any Size Meal
Bring on your oversize roasts, your 24-pound-plus turkeys, your cavalcade of side dishes. If you can dream it, this huge 6.3 cu. ft. capacity oven can match your menu stride for stride. With this large capacity oven, you can conquer large meals with room to spare.

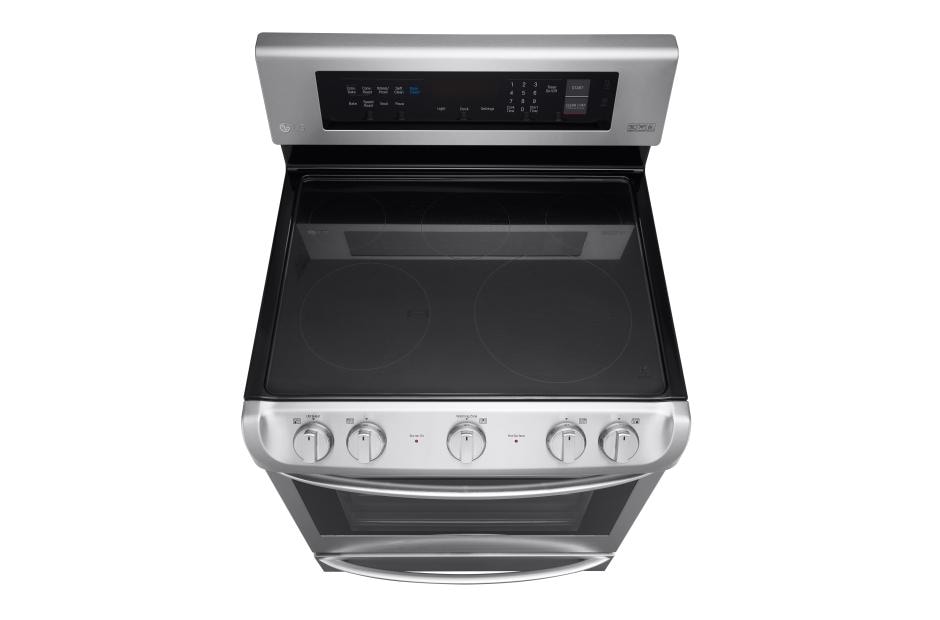

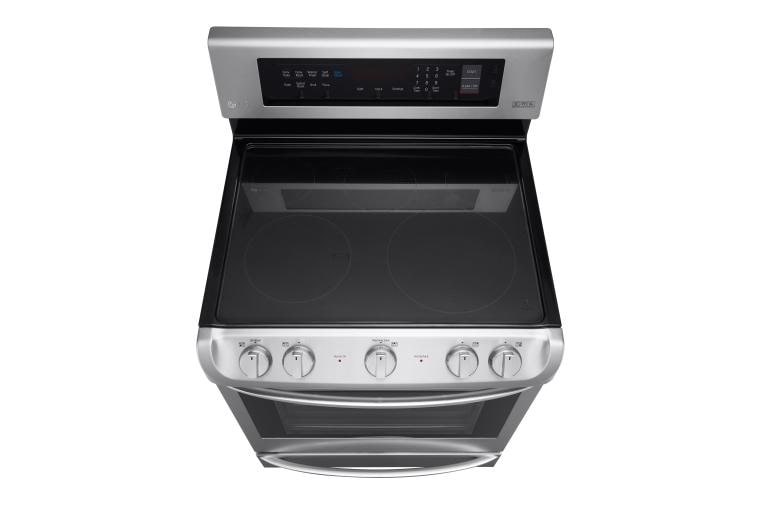

LG's Fastest Boiling Cooktop Elements
Just when you thought it couldn’t get any faster, it did. With 3200 watts, these dual cooktop elements are the most powerful available.* Not only do they deliver LG’s fastest boil, they let you match the element size to your cookware for the utmost in flexibility.

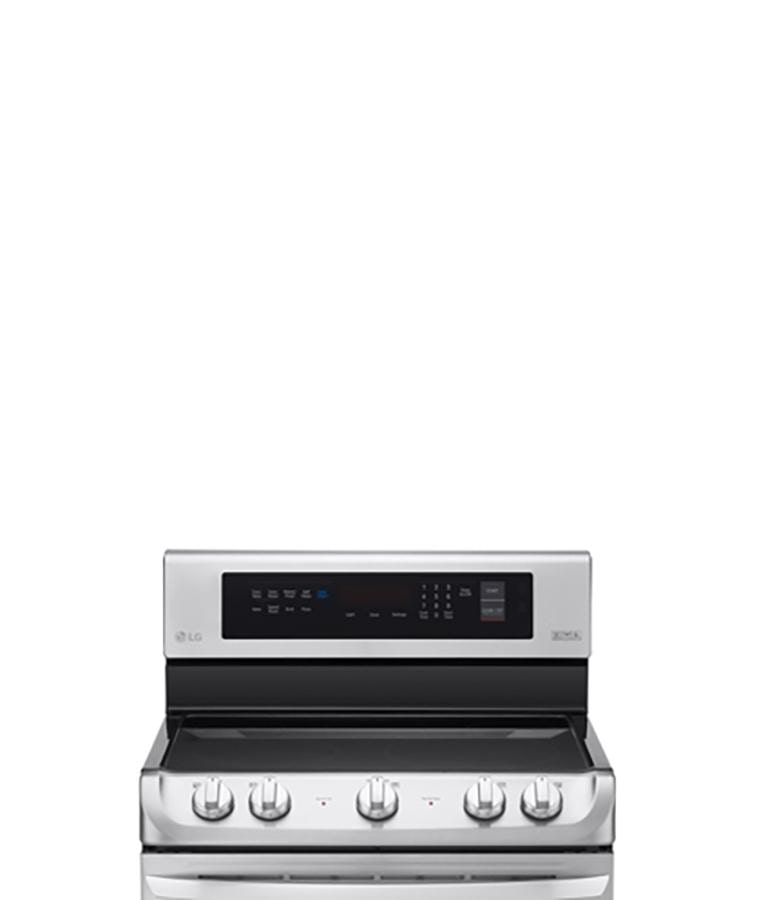

A Stylish Take On Convenience
Stop reaching over hot pans to adjust your cooktop burners. Sleek, angled controls put power and visibility at your fingertips- bringing an updated, stylish look to your kitchen.
DIMENSIONS/CLEARANCES/WEIGHT
-
- Shipping Weight (lbs)
- 188 lbs
- Weight (Product)
- 164 lbs
-
- Cabinet Width (in)
- 30"
- Overall Height (in) - including backguard
- 47 5/16"
-
- Overall Width (in)
- 29 7/8"
- Height to Cooking Surface (in)
- 36"
-
- Oven Interior Dimensions (Upper) (in) (W x H x D)
- 24 13/16" x 21 5/16" x 19 3/4"
- Drawer Dimensions (in) (W x H x D)
- 22 3/16 x 4 1/2 x 16 3/8"
-
- Carton Dimensions (in) (W x H x D)
- 31 31/32” x 51” x 30 17/32”
- Depth (including handle)
- 28 15/16"
OVEN FEATURES
-
- Convection element
- Sheath 2500W
- Configuration
- Single Oven
-
- Broil Element
- Sheath 4,200W / 6 Pass
- Oven Cooking Modes
- Bake, Broil, Convection Bake, Convection Roast, Favorites, Multi-Rack Convection Baking, Delay Back, Delay Clean, Proof, Warm, Pizza, Speed Roast
-
- Oven Cooking
- ProBake Convection®
- Door Lock
- Yes
-
- Convection Conversion
- Yes
- Active Convection
- ProBake
-
- Configuration Type
- Freestanding Electric Range
SUMMARY
-
- ProBake Convection®
- Yes
CONTROLS
-
- Display
- VFD
- Cooktop Control Type
- Front Tilt-Control Knobs
-
- Oven Control Type
- Glass Touch
- Clock
- 12 hr or 24 hr (option)
-
- Temperature Unit of Measure
- ˚F or ˚C
POWER/RATINGS
-
- Amp Rating at 208V
- 40A
- Amp Rating at 240V
- 40A
-
- KW Rating at 208V
- 9.5kW
- KW Rating at 240V
- 12.6kW
WARRANTY/UPC
-
- Limited Warranty
- 1 Year Parts & Labor
- UPC
- 048231319522
CAPACITY
-
- Storage Drawer Capacity (cu. ft.)
- 1
MATERIALS/FINSHES
-
- Oven Door Feature
- WideView™ Window
ACCESSORIES
-
- Cooktop Cream/Cleaner
- Yes
- Standard Rack
- 3
-
- Offset Rack
- No
- Gliding Rack
- No
-
- Scouring Pad
- Yes
- Spray Bottle
- Yes
COOKTOP
-
- Element Size/Wattage - Left Rear
- 6" / 1200W
- Element Size/Wattage - Right Rear
- 6" / 1200W
-
- Element Size/Wattage - Left Front
- 9", 6"/3,200W, 1,400W
- Element Size/Wattage - Right Front
- 12" 9" - 2,700W / 1,700W
-
- Cooktop Finish
- Grey Patterned on Black Ceramic Glass
APPEARANCE
-
- Handle/Knobs
- Stainless-Steel Finish (AI)
