KEY FEATURES

  • 5.4 cu.ft. Capacity
  • 1.0 cu.ft. Storage Drawer Capacity
  • EasyClean®
  • Premium Stylish Design

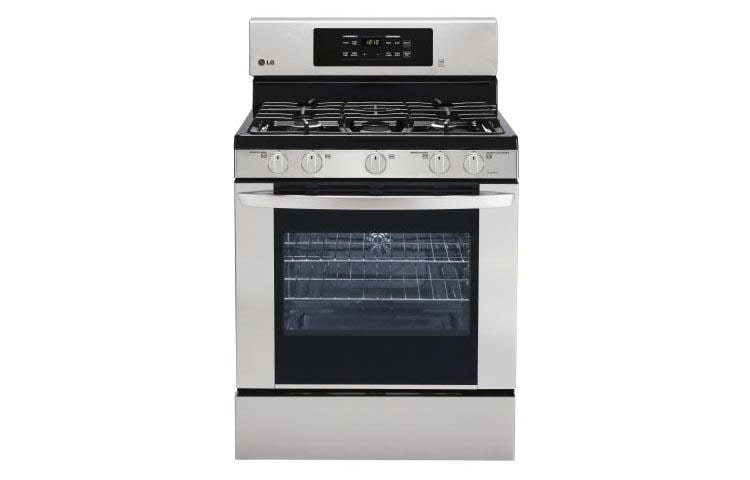

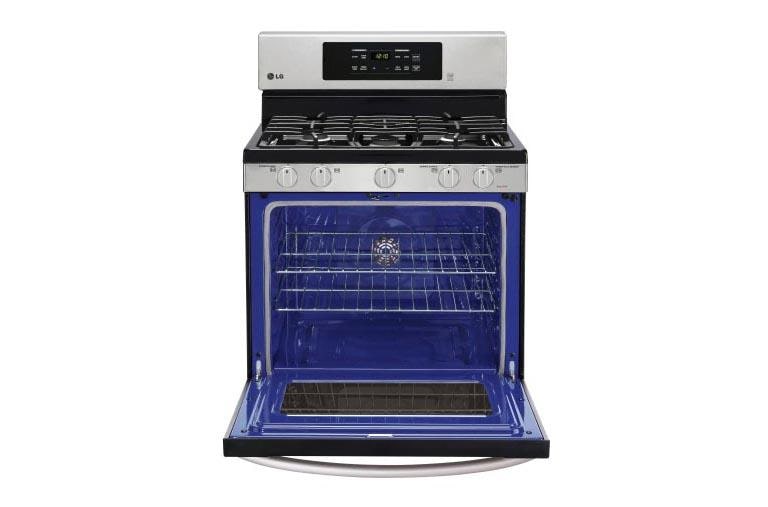

5.4 cu. ft. Gas Single Oven Range with EasyClean®
Download Spec Sheet

SUMMARY

    • EasyClean®
    • Yes

CAPACITY

    • Oven Capacity
    • 5.4 cu.ft.

OVEN FEATURES

    • Configuration
    • Freestanding Gas Oven with Storage Drawer
    • Bake Element (BTUh)
    • 19,000/18,000
    • Broil Element (BTUh)
    • 14,500/13,500
    • Oven Control Features
    • Delay Clean, Automatic Shut-Off (After 12 hours)
    • Cleaning
    • EasyClean®/Self Clean (3,4,5 hours)
    • Oven Light
    • 1 (Incandescent)
    • Oven Rack
    • 2 Standard Racks
    • Convection
    • EvenJet™ Fan Convection
    • Door Lock
    • Yes
    • No. Rack Positions
    • 7
    • Temperature Display
    • Yes (Fahrenheit or Celsius display)

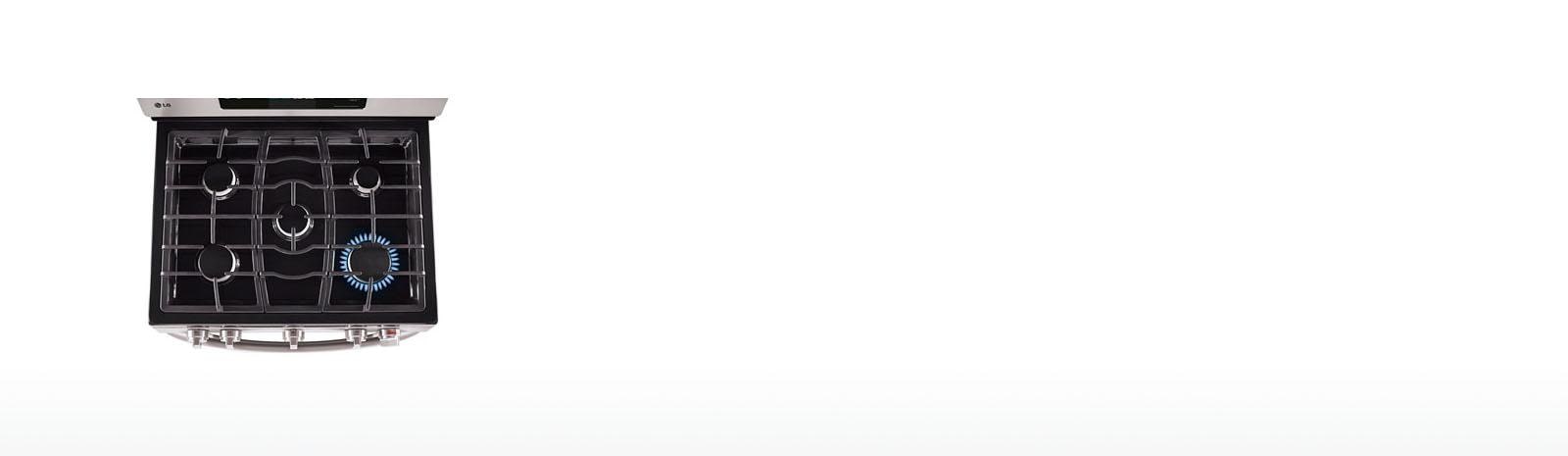

COOKTOP

    • Cooktop Burner Type
    • Sealed Gas Burners
    • No. of Burners
    • 5
    • Fuel Type
    • LNG/LPG
    • Grates
    • Continuous, Dishwasher Safe
    • No. of Grates
    • 3
    • Valves
    • Push & Turn
    • Knobs
    • Nickel Plating, Hair Lined
    • Bezel
    • Continuous, Dishwasher Safe
    • Burner Configuration
    • Size/BTU
    • Burner Configuration - Left Rear
    • 9,100/9,100
    • Burner Configuration - Right Rear
    • 5,000/5,000
    • Burner Configuration - Center Rear
    • 9,100/9,100
    • Burner Configuration - Left Front
    • 12,000/9,500
    • Burner Configuration - Right Front
    • 17,000/10,000
    • Simmer BTU - Left Rear
    • 1,100
    • Simmer BTU - Right Rear
    • 650
    • Simmer BTU - Center Rear
    • 1,100
    • Simmer BTU - Left Front
    • 1,200
    • Simmer BTU - Right Front
    • 1,400
    • Cooktop Finish
    • Grey Patterned on Black Ceramic Glass

CONTROL

    • Cooktop
    • Backguard /Front
    • Oven
    • Knob
    • Display
    • Green LED
    • Electronic Clock & Timer
    • Yes
    • Control Lock Capability
    • Yes (Except Kitchen Timer,Clock Set,Oven Light)
    • Audible Preheat Signal
    • Yes
    • Cooking Complete Reminder
    • Yes

APPEARANCE

    • Available Colors
    • Stainless Steel
    • Handle
    • Matching Color
    • Knobs
    • Matching Color
    • Oven Door Feature
    • Large WideView™ Plus Window, Full SS Wrap

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • 269
    • Product Weight (lbs)
    • 227
    • Cabinet Width (in)
    • 29 15/16"
    • Overall Depth (in)
    • 26 1/2" (to door) / 27 31/32" (including handle)
    • Overall Height (in)
    • 47 5/8"
    • Overall Width (in)
    • 29 15/16"
    • Oven Interior Dimensions (Upper) (in) (W x H x D)
    • 24 1/2" x 19 1/2" x 19 3/8"
    • Height to Cooking Surface (in)
    • 36"
    • Drawer Dimensions (in) (W x H x D)
    • 22 3/16" x 4 1/2" x 16 3/8"
    • Carton Dimensions (in) (W x H x D)
    • 33 1/4" x 51 9/16" x 31 5/16"

POWER/RATINGS

    • Requirements
    • 120 VAC
    • KW / Amp Rating @120V
    • 540kw / 4.5A

ACCESSORIES

    • Standard Rack
    • 2
    • Spray Bottle
    • Yes
    • Scouring Pad
    • Yes
    • Conversion Kit
    • Yes

FIND THE RIGHT PRODUCTS

    • EasyClean
    • Yes

WARRANTY / UPC

    • Limited Warranty
    • 1 Year Parts and Labor, 5 Years Glass Cooktop/Electric Elements/Sealed Gas Burners
    • UPC
    • 048231319072
