KEY FEATURES

  • ProBake Convection®
  • EasyClean®
  • Large Capacity Oven (6.3 cu. Ft)
  • UltraHeat™ 18,500 BTU Burner

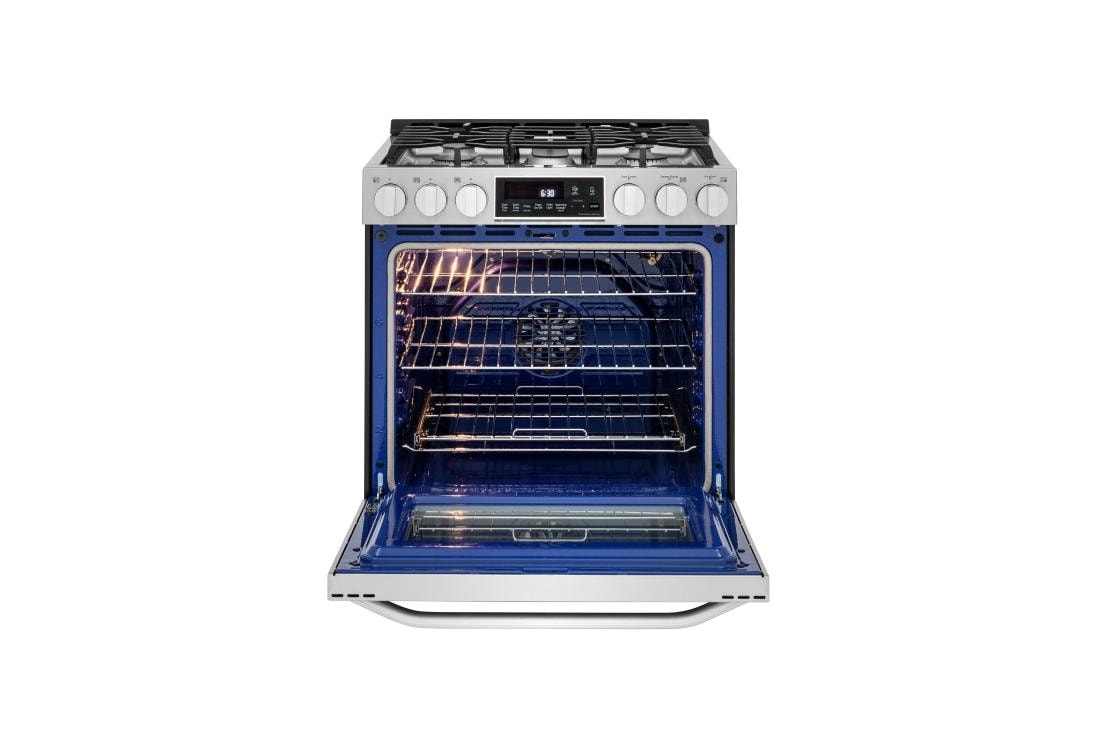

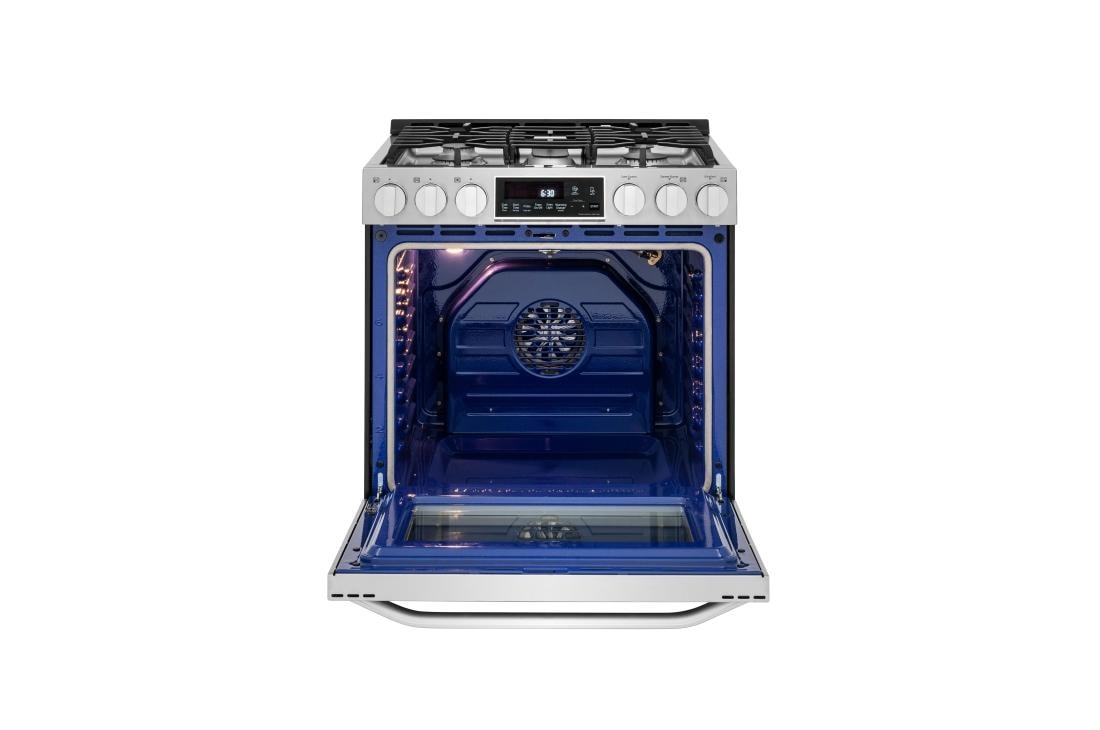

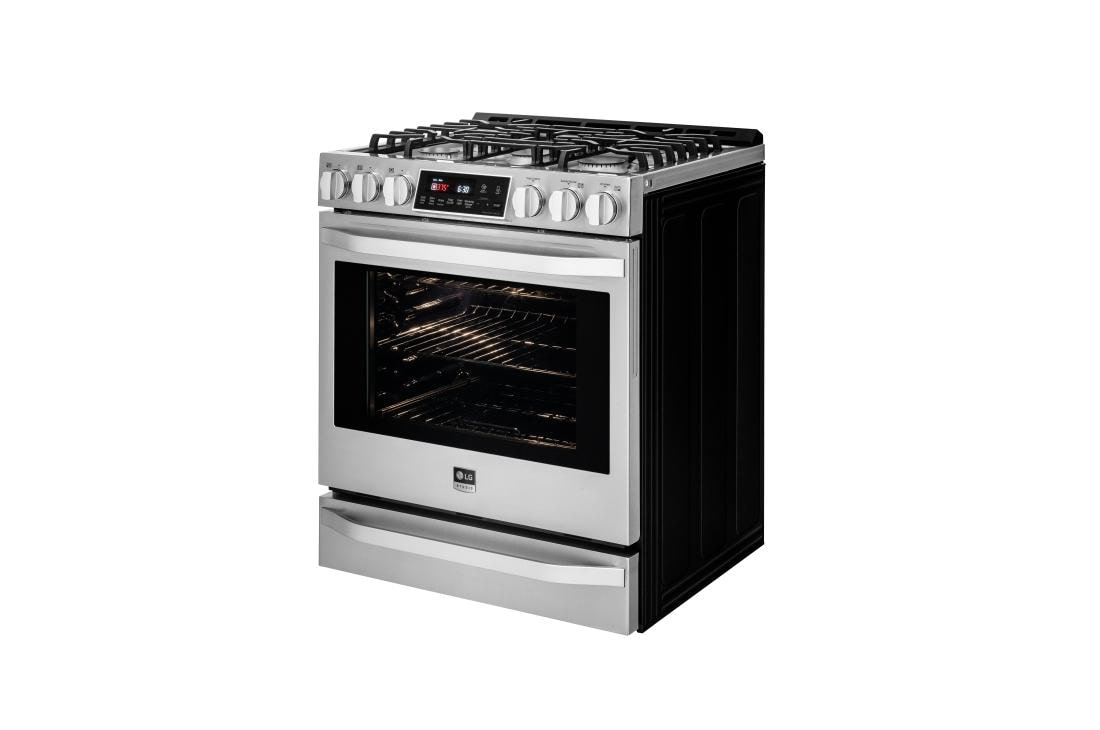

LG STUDIO 6.3 cu. ft. Gas Single Oven Slide-in Range with ProBake Convection®
Download Spec Sheet

SUMMARY

    • LG STUDIO
    • Yes
    • ADA Compliant
    • Yes

TYPE

    • Type
    • Gas Slide-In Range

CAPACITY

    • Oven Capacity (cu. ft.)
    • 6.3
    • Warming Drawer Capacity (cu. ft.)
    • 0.8

OVEN FEATURES

    • Configuration
    • Single Oven
    • Broil Element (BTU/h) (LNG/LPG)
    • 15,200 / 12,500
    • Convection (BTU/h) (LNG/LPG
    • 19,000 / 17,000
    • Convection Fan
    • Dual Speed (High/Low)
    • Convection Conversion
    • Yes
    • Convection System/Mode/ Cooking System
    • ProBake Convection®
    • Oven Cooking Modes
    • Bake, Broil, Convection Bake (Single/Multi-Rack), Convection Roast, Pizza, Delay Bake, Delay Clean, Proof, Warm
    • Oven Control Features
    • Glass Touch
    • EasyClean®
    • Yes
    • Self Clean
    • Yes (3 hr. / 4 hr. / 5hr.)
    • Delay Clean
    • Yes
    • Delay Start
    • Yes
    • GoCook Smart Oven Light
    • Yes
    • No. of Racks
    • 2 Heavy, 1 Gliding
    • No. Rack Positions
    • 7
    • Door Lock
    • Yes
    • Automatic Safety Shut-Off
    • After 12 hours

COOKTOP FEATURES

    • Type
    • Sealed Gas Burner
    • No of Elements
    • 5
    • Fuel Type
    • Liquid Nitrogen (LNG) / Liquid Propane (LPG)
    • Left Rear - BTU/h (LNG/LPG)
    • 9,100 BTU / 9,100 BTU
    • Right Rear - BTU/h (LNG/LPG)
    • 5,000 BTU / 5,000 BTU
    • Left Front - BTU/h (LNG/LPG)
    • 12,000 BTU / 10,000 BTU
    • Right Front - BTU/h (LNG/LPG)
    • 18,500 BTU / 12,500 BTU
    • Center - BTU/h (LNG/LPG)
    • 10,000 BTU / 10,000 BTU (Single Oval)
    • Left Rear - Simmer BTU/h (LNG/LPG)
    • 1,100 BTU
    • Right Rear - Simmer BTU/h (LNG/LPG)
    • 650 BTU
    • Left Front - Simmer BTU/h (LNG/LPG)
    • 1,200 BTU
    • Right Front - Simmer BTU/h (LNG/LPG)
    • 1,330 BTU
    • Center - Simmer BTU/h (LNG/LPG)
    • 2,300 BTU
    • Grates
    • Continuous, Dishwasher Safe
    • No. of Grates
    • 3
    • Knobs
    • Push & Turn
    • Hot Surface LED Indicator
    • No

DRAWER

    • Capacity
    • 0.8 cu. ft.
    • Type
    • Warming
    • Levels
    • 3
    • Time Control
    • Yes

CONTROL

    • Cooktop Control Type
    • Front Tilt-Control Knobs
    • Oven Control Type
    • Glass Touch
    • Display
    • VFD (White/Red)
    • Language
    • English
    • Clock
    • 12 hr or 24 hr (option)
    • Kitchen Timer
    • Yes
    • Timed Cook
    • Yes
    • Temperature Unit of Measure
    • ˚F or ˚C
    • Cooking Complete Reminder Volume
    • 1. High 2. Low 3. Mute

APPEARANCE

    • Available Colors
    • Stainless Steel
    • Handle/Knobs
    • STS Finish (AIuminum)
    • Oven Door Feature
    • WideView™ Window

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • 238.1
    • Product Weight (lbs)
    • 170.6
    • Cabinet Width (in)
    • 30"
    • Overall Depth (in) - including door
    • 26 9/16”
    • Overall Depth (in) - including handle
    • 28 15/16"
    • Overall Height (in)
    • 37 1/10”
    • Overall Width (in)
    • 29 7/8"
    • Oven Interior Dimensions (in) (W x H x D)
    • 24 13/16” x 22” x 20”
    • Height to Cooking Surface (in)
    • 36"
    • Warming Drawer Dimensions (W x H x D)
    • 22 1/4" x 4 1/2” x 16 1/2”
    • Carton Dimensions (in) (W x H x D)
    • 32 1/2” x 45 1/2” x 30 1/2”

POWER/RATINGS

    • Amp at 120V
    • 8.66A
    • kW at 120V
    • 1.039 kW

ACCESSORIES

    • Heavy Duty Rack
    • 2
    • Drawer Rack
    • 1
    • Gliding Rack
    • 1
    • Spray Bottle
    • Yes
    • Scouring Pad
    • Yes
    • Scraper
    • Yes
    • Cooktop Sponge
    • Yes

WARRANTY/UPC

    • Limited Warranty
    • 2 Year Parts & Labor
    • UPC
    • 048231319614
