KEY FEATURES

  • 6.3 cu. ft. Large Capacity
  • Fingerprint & Smudge Resistant
  • ProBake Convection®
  • EasyClean®

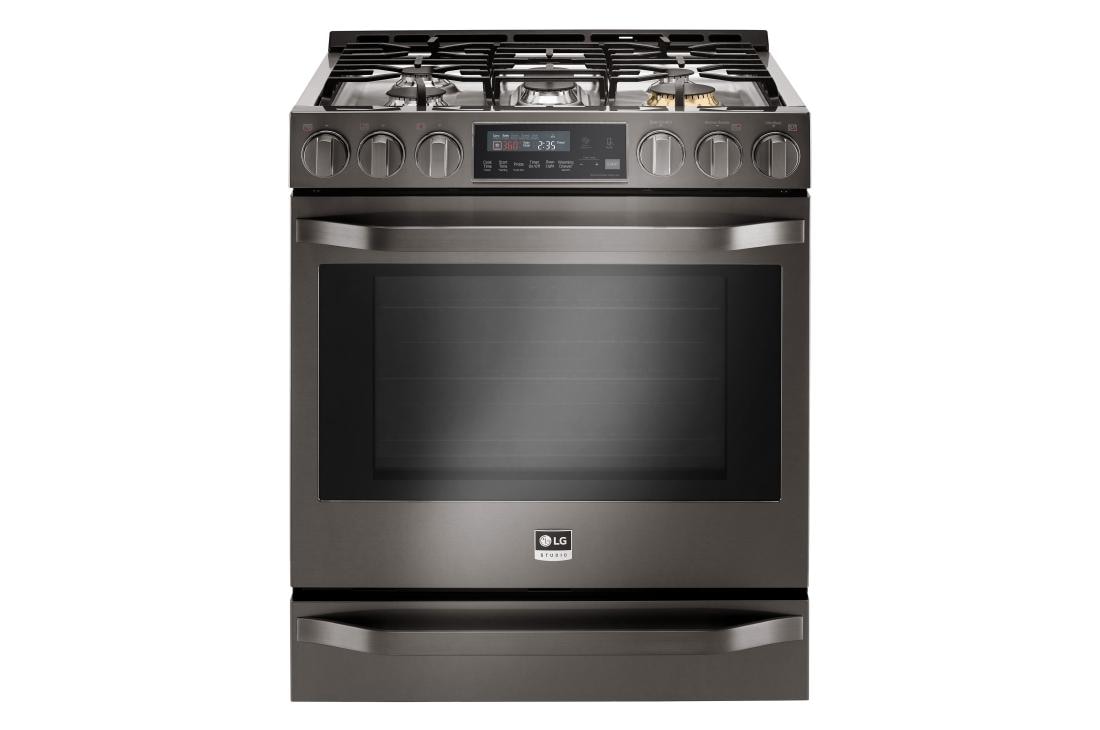

LG STUDIO 6.3 Gas Single Oven Slide-In-range with ProBake Convection®
Download Spec Sheet

SUMMARY

    • LG STUDIO
    • Yes
    • ADA Compliant
    • Yes

TYPE

    • Type
    • Gas Slide-In Range

CAPACITY

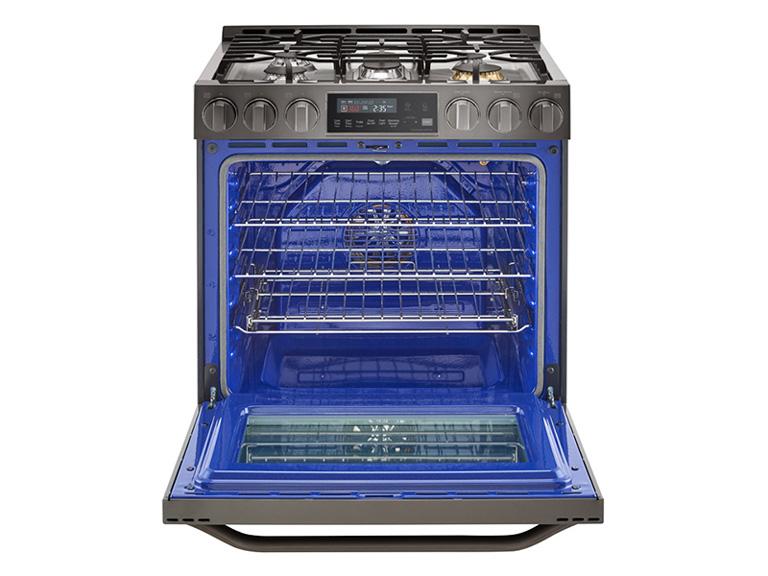

    • Oven Capacity
    • 6.3
    • Warming Drawer Capacity (cu. ft.)
    • 0.8

OVEN FEATURES

    • Configuration
    • Single Oven
    • Broil Element (BTUh)
    • 15,200 / 12,500
    • Convection (BTU/h) (LNG/LPG
    • 19,000 / 17,000
    • Convection Fan
    • Dual Speed (High/Low)
    • Convection Conversion
    • Yes
    • Convection System/Mode/Cooking System
    • ProBake Convection®
    • Oven Cooking Modes
    • Bake, Broil, Convection Bake (Single/Multi-Rack), Convection Roast, Pizza, Delay Bake, Delay Clean, Proof, Warm
    • Oven Control Features
    • Glass Touch
    • EasyClean®
    • Yes
    • Self Clean
    • Yes (3 hr. / 4 hr. / 5hr.)
    • Delay Clean
    • Yes
    • Delay Start
    • Yes
    • GoCook Smart Oven Light
    • Yes
    • No. of Racks
    • 2 Heavy, 1 Gliding
    • No. of Rack Positions
    • 7
    • Door Lock
    • Yes
    • Automatic Safety Shut-Off
    • After 12 hours

COOKTOP FEATURES

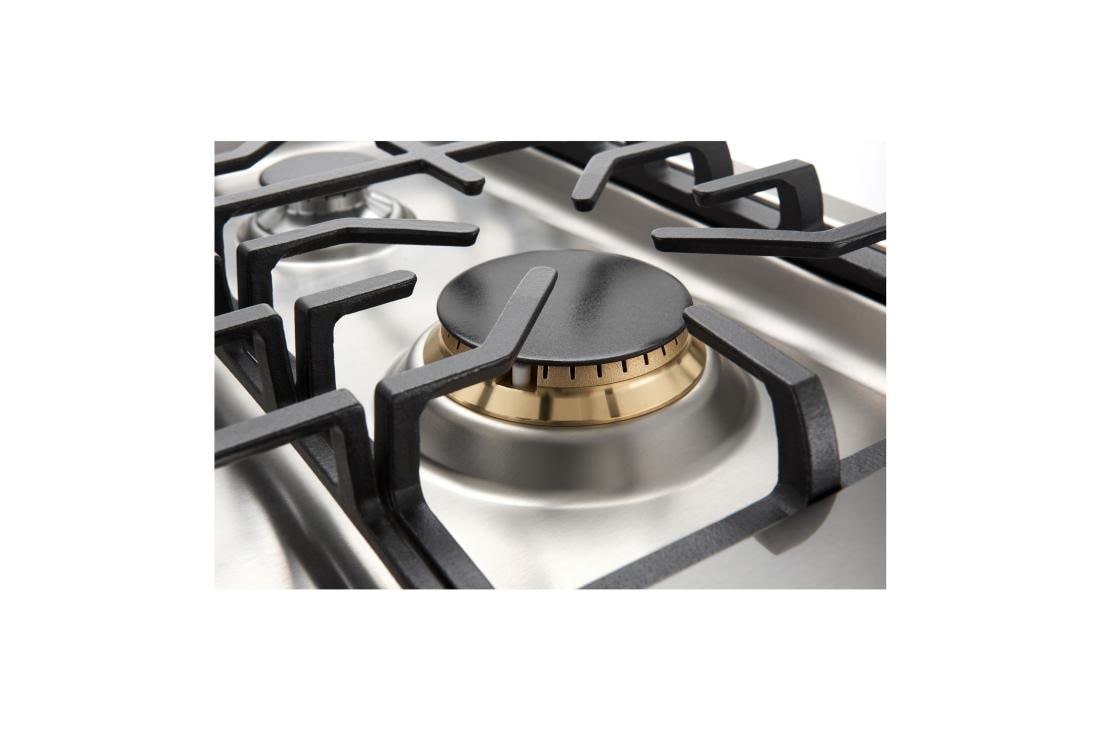

    • Burner type
    • Sealed Gas Burner
    • No. of Burners
    • 5 Total (1 Brass)
    • Fuel Type
    • Liquefied Natural Gas (LNG) / Liquid Propane Gas (LPG)
    • BTU/h (LNG/LPG)
    • -
    • -Left Rear
    • 9,100 / 9,100 BTU
    • -Right Rear
    • 5,000 / 5,000 BTU
    • -Left Front
    • 12,000 / 10,000 BTU

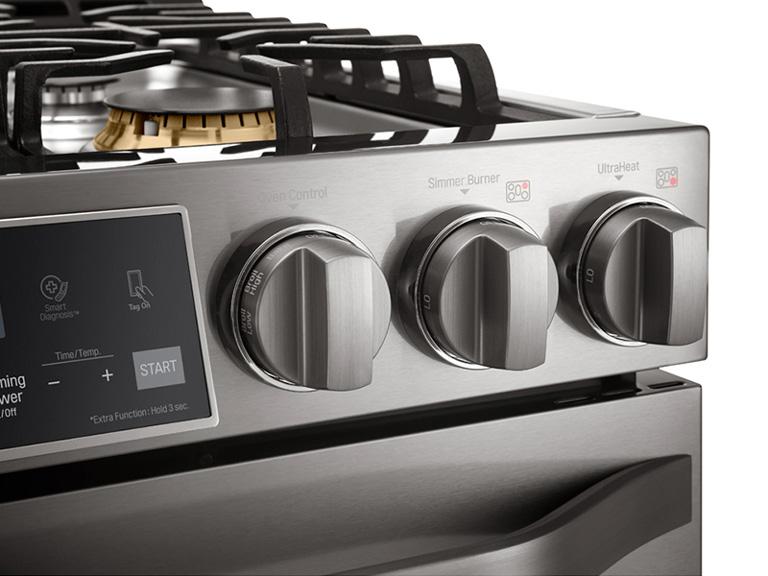

    • -Right Front
    • 18,500 / 12,500 BTU
    • -Center
    • 10,000 BTU / 10,000 BTU (Single Oval)
    • Simmer BTU/h (LNG & LPG)
    • -
    • -Left Rear
    • 1,100 BTU
    • -Right Rear
    • 650 BTU
    • -Left Front
    • 1,200 BTU
    • -Right Front
    • 1,330 BTU
    • -Center
    • 2,300 BTU
    • Grates
    • Continuous , Dishwasher Safe
    • No. of Grates
    • 3
    • Knobs
    • Push & Turn
    • Hot Surface LED Indicator
    • No

DRAWER

    • Capacity
    • 0.8 cu. ft.
    • Type
    • Warming
    • Levels
    • 3
    • Time Control
    • Yes

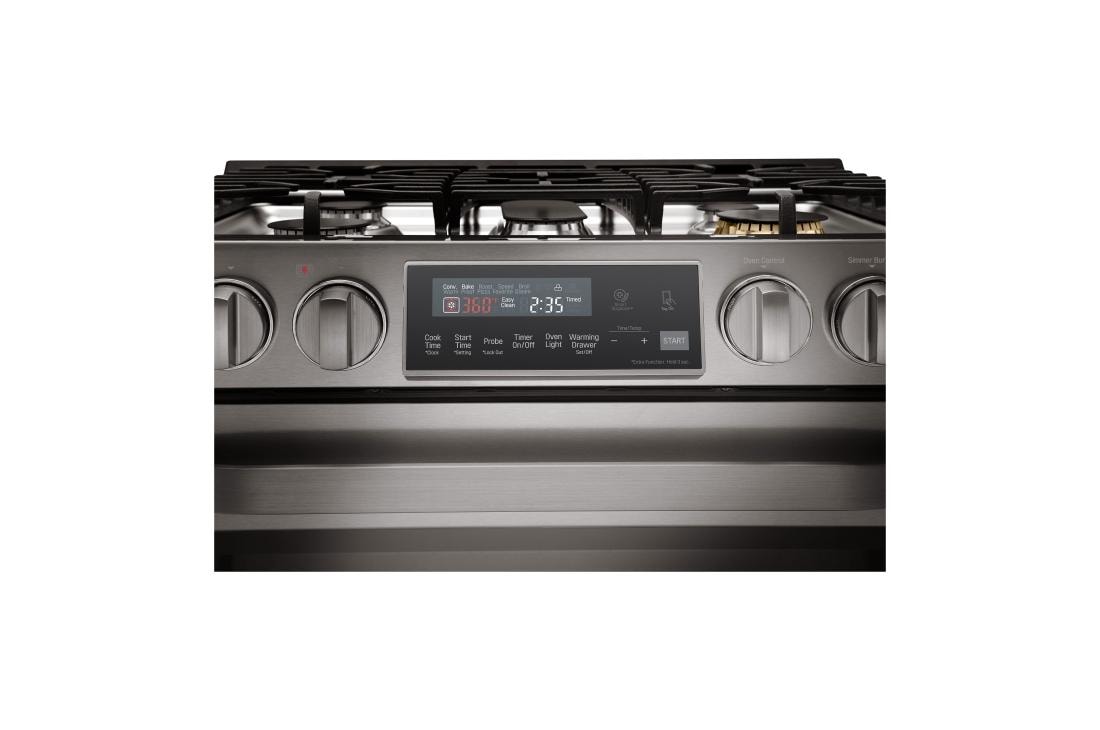

CONTROL

    • Display
    • VFD (White/Red)
    • Language
    • English
    • Clock
    • 12 hr or 24 hr (option)
    • Kitchen Timer
    • Yes
    • Timed Cook
    • Yes
    • Temperature Unit of Measure
    • ˚F or ˚C
    • Cooking Complete Reminder Volume
    • 1. High 2. Low 3. Mute

APPEARANCE

    • Available Colors
    • Black Stainless Steel
    • Handle/Knobs
    • Black STS Finish (AIuminum)
    • Fingerprint & Smudge Resistant
    • Yes
    • Oven Door Feature
    • WideView™ Window

DIMENSIONS / CLEARANCES / WEIGHT

    • Shipping Weight (lbs)
    • 238.1
    • Product Weight (lbs)
    • 170.6
    • Cabinet Width (in)
    • 30"
    • Overall Depth (in) - including door
    • 26 9/16”
    • Overall Depth (in) - including handle
    • 28 15/16"
    • Overall Height (in)
    • 37 1/10”
    • Overall Width (in)
    • 29 7/8"
    • Oven Interior Dimensions (in) (W x H x D)
    • 24 13/16” x 22” x 20”
    • Height to Cooking Surface (in)
    • 36"
    • Warming Drawer Dimensions (W x H x D)
    • 22 1/4" x 4 1/2” x 16 1/2”
    • Carton Dimensions (in) (W x H x D)
    • 32 1/2” x 45 1/2” x 30 1/2”

POWER/RATINGS

    • Amp at 120V
    • 8.66A
    • kW at 120V
    • 1.039 kW

ACCESSORIES

    • Heavy Duty Rack
    • 2
    • Drawer Rack
    • 1
    • Gliding Rack
    • 1
    • Spray Bottle
    • Yes
    • Scouring Pad
    • Yes
    • Scraper
    • Yes
    • Cooktop Sponge
    • Yes

WARRANTY/UPC

    • Limited Warranty
    • 2 Year Parts & Labor
    • UPC
    • 048232336993
Connect to a builder distributor in your area, and get the info you need to complete your next project.
Business Unit is required
Address Unit is required.
  • sales
  • install
  • service
Please retry to enter zip code.

There are no results. Please retry to enter zip code.

  • LG ExtendedCare Plan

    LG's ExtendedCare Plan protects your investment by offering extended service coverage provided by LG for commercial displays in the hospitality, healthcare, and digital signage markets. By offering this program, you will enjoy the added peace of mind that comes with knowing your products are protected.

  • Quick Swap (Advanced Exchange)

    Minimizes down time of device and quickly gets the device up and running. LG will provide a return box and prepaid return shipping label for customer to return the unit. Service call for Advanced Exchange must be made by 2pm CST.
    Next Business Day Exchange, 2nd Business Day Delivery or 3rd Business Day Delivery dependent on the product model and service option available.

  • White-Glove Quick Swap (Advanced Exchange)

    An LG authorized technician will meet you onsite. Technicians will remove, re-install and return product. Service calls for Advanced Exchange delivery must be made by 2pm CST.
    Next Business Day Exchange, 2nd Business Day Delivery or 3rd Business Day Delivery dependent on the product model and service option available.

    For more information, click here

Compare (0)

Compare (0)
© Copyright 2024 ©LG Electronics USA, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Corp. All other trademarks are the property of their respective owners. Prices, promotions, and availability may vary by dealer. The information contained herein is subject to change without notice. All screen images are simulated.
*Black Stainless model only.
*Compared to LG's conventional ovens
*As of June 2015. Heavy build-up may require additional manual effort or use of the full self-clean feature.

**ADA - COMPLIANT FREESTANDING SLIDE IN RANGE -
LG freestanding slide in range feature touch controls that meet ADA requirements by being positioned on the face of the unit, allowing for easy forward reach and are operable with one hand and require no more than five pounds of pressure. Inside, all racks are designed for easy front access, and are adjustable for loading flexibility. The controls are located on the front so they can be accessed without reaching across hot burner.

In addition to meeting the standards applicable to the product’s controls, ADA standards for accessible design are in part dependent upon the height at which a range is installed. LG’s freestanding slide in range can be installed at various heights to reduce bending and stooping. If knee or toe space is provided, it must be insulated to protect against burns, abrasions or electric shocks. Follow up with your appliance installation professional to ensure your freestanding slide in range is installed at the proper height to meet the ADA’s other applicable standards.

To be considered ADA-compliant, a freestanding slide in range must meet the following requirements:
• Maximum high forward reach for controls and operating mechanisms is 48”; maximum low forward reach is 15”.
• Controls and operating mechanisms must be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate controls shall be no more than 5 lbs.
• The location of controls shall not require reaching across burners.
• If knee or toe space is provided, will be insulated to protect against burns, abrasions or electric shocks.
