KEY FEATURES

  • LG exclusive 4-Mode True Convection
  • EasyClean®
  • Hidden bake
  • Gliding Rack System

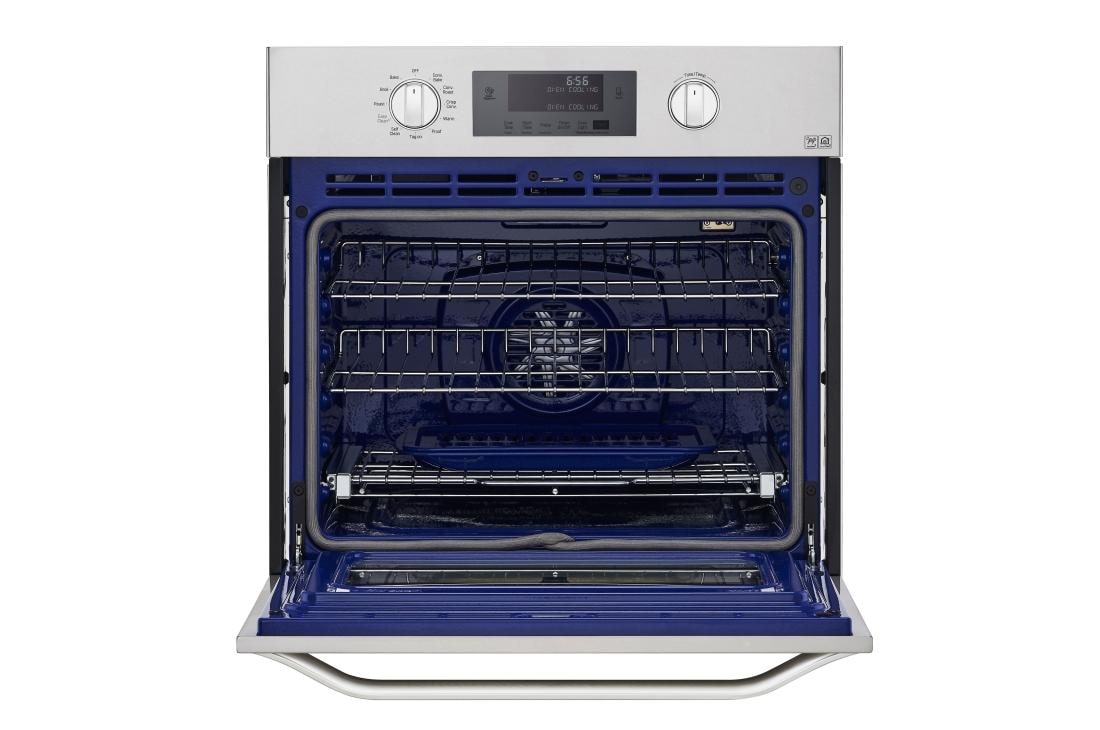

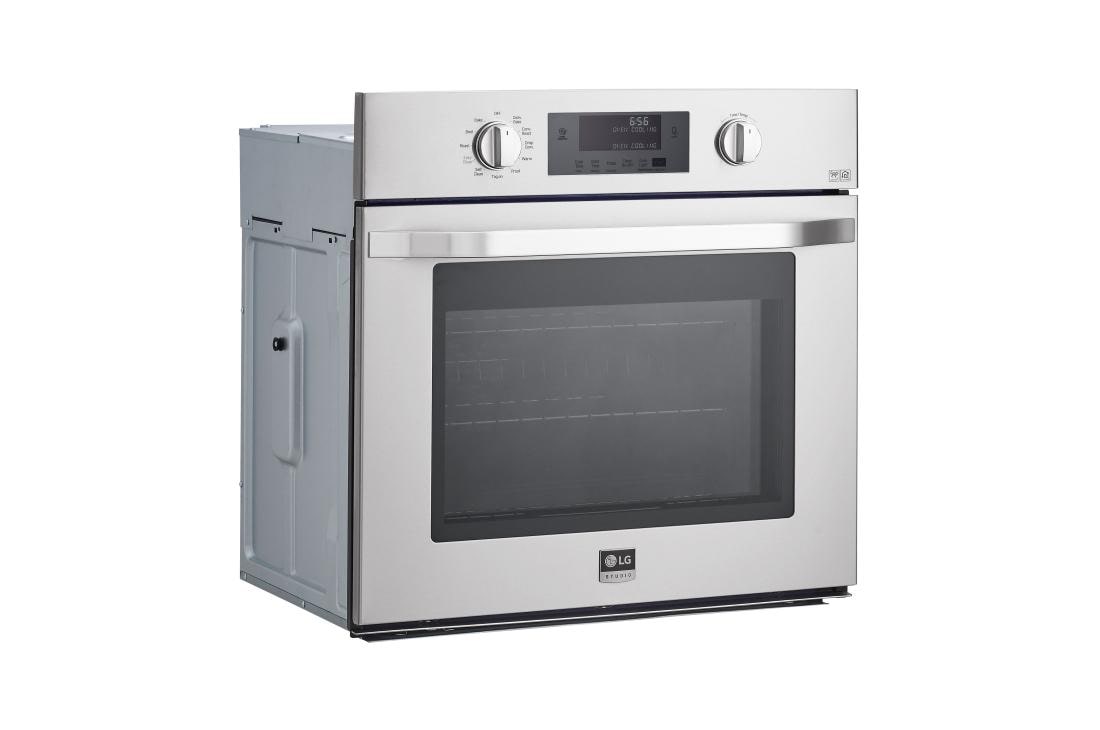

LG STUDIO 4.7 cu. ft. Single Built-In Wall Oven
$ 2,299.99

Say hello to the LG STUDIO kitchen

With innovative freestanding and built-in appliances that perform flawlessly and look awesome, you may never want to leave your home again.
Learn More

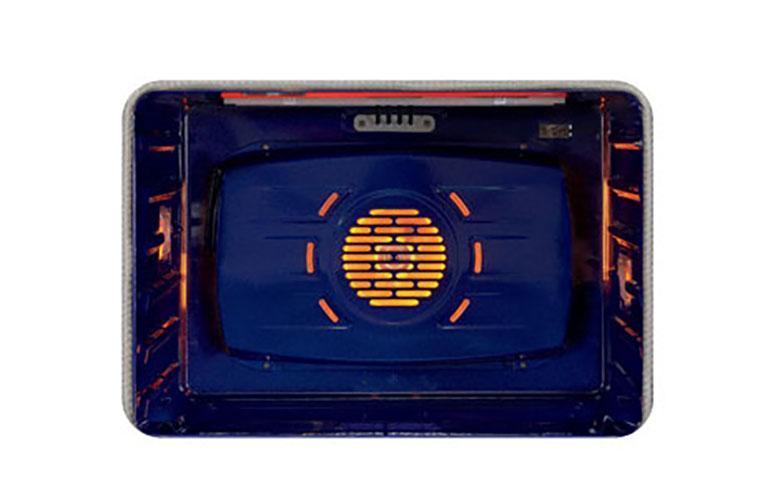

Cooked to Perfection

Hot air flows evenly throughout the oven cavity to maximize heat distribution and cook more evenly on every rack. 4 modes include Bake, Roast, Crisp Healthier Roast

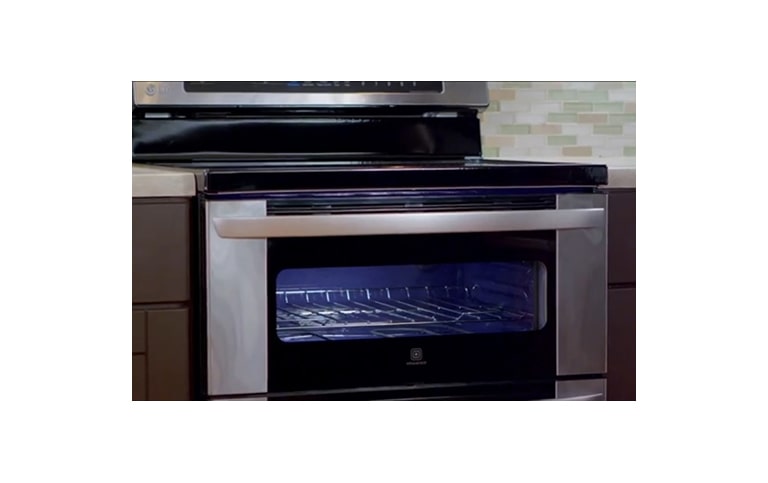

A Clean Oven In Just 10 Minutes

Got 10 minutes? In three easy steps and 10 quick minutes your oven can be sparkling clean, without strong chemical fumes or high heat*. Simply spray the oven interior with water, press EasyClean® and then in 10 minutes, quickly wipe away any leftover grime.
Watch the Full Movie

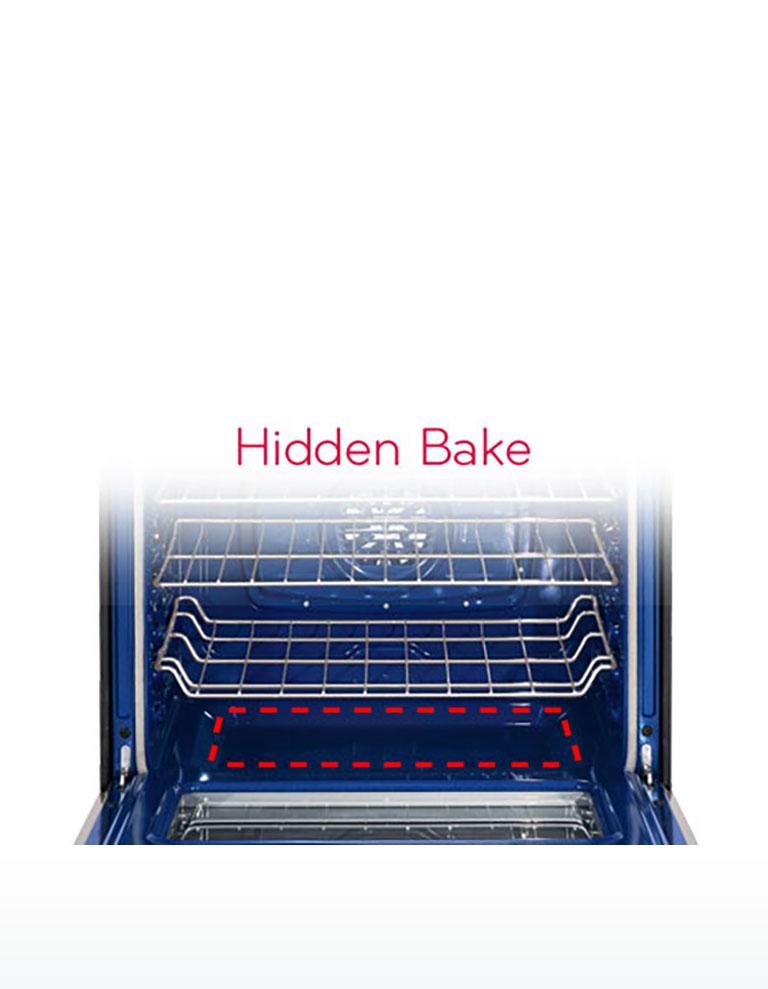

Less Mess

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning.

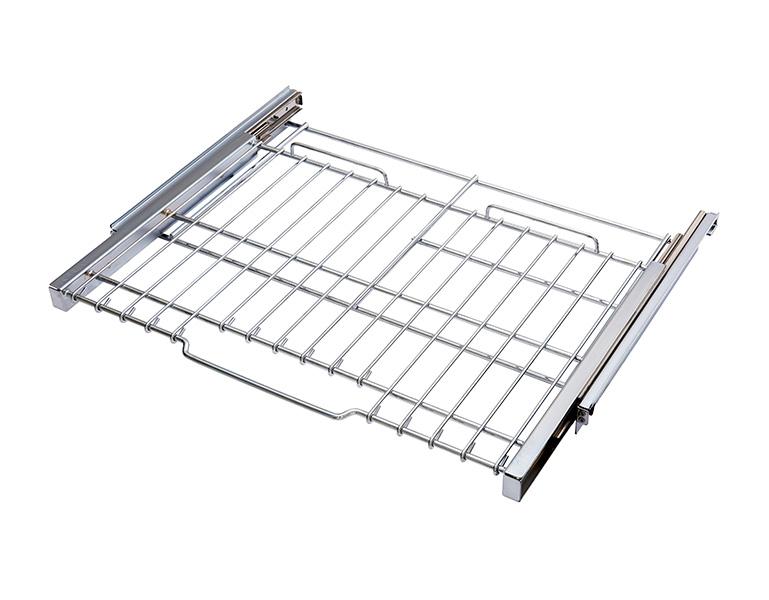

Gliding Rack System

The adjustable full extension rack glides out effortlessly and extends over the open oven door for easy access to food. Now you can baste and check on food from a safer distance

Qualifications


Download Spec Sheet

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • Approx. 81.2 kg (179lbs)
    • Weight (Product)
    • Approx. 71.2 kg (157lbs)
    • Depth
    • 24 3/8"
    • Height
    • 29 5/16"
    • Width
    • 29 3/4"
    • Carton Dimensions (in) (W x H x D)
    • 33"(W) x 30"(D) x 34"(H)
    • Product (WxHxD)
    • 29-3/4"(W) x 29-5/16"(H) x 24-3/8"(D)
    • Cut-Out (WxHxD)
    • 28-1/2"(W) x 29"(H) x 23-1/2"(D)
    • Stuffing Quantity (40ft High)
    • 84 units

OVEN FEATURES

    • Configuration
    • Single Oven
    • Bake Element
    • 2,500 watts
    • Bake element type
    • Hidden (8 pass)
    • Broil Element
    • 2,500 watts inner / 1,500 watts outer
    • Variable broil
    • Yes( Full,Center / High,Med,Low)
    • Broil element pass
    • 8
    • Self-Cleaning
    • Yes
    • Variable cleaning time
    • Yes (3,4,5 hrs)
    • Convection Conversion
    • Yes
    • Capacity (cu.ft)
    • 4.7
    • Interior Color
    • Blue
    • 12 hrs. shut-off
    • Yes
    • Proof
    • Yes
    • Variable warm
    • Yes (High,Med,Low)

SUMMARY

    • LG STUDIO
    • Yes

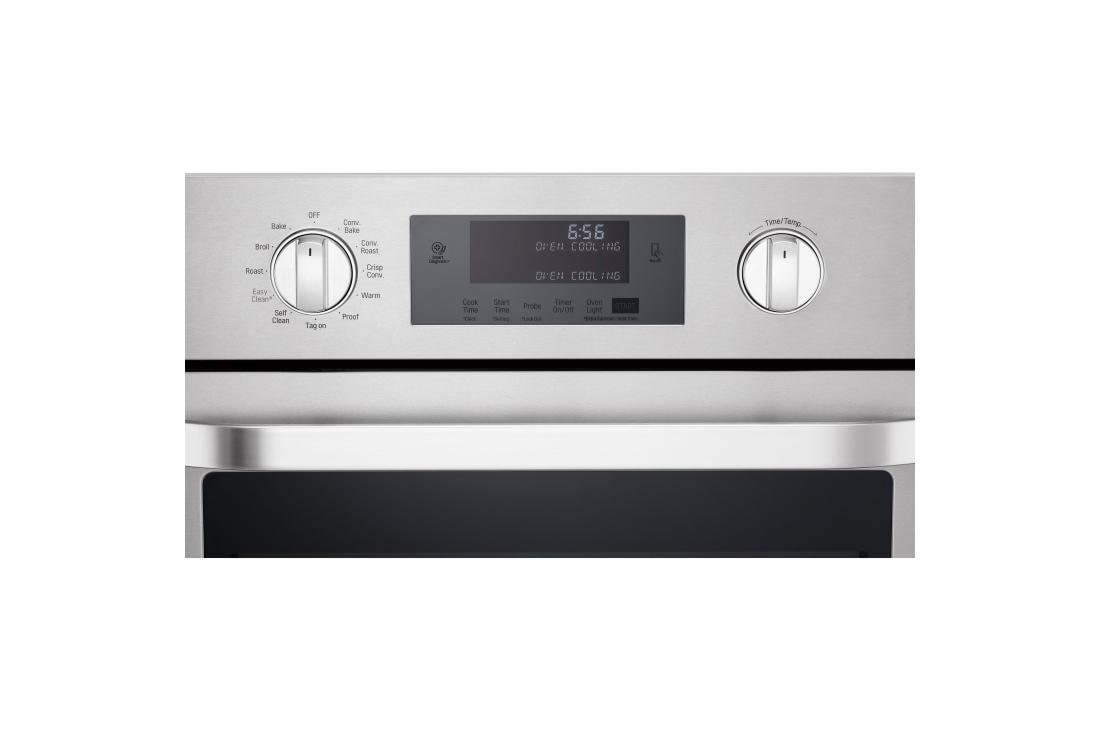

CONTROLS

    • Oven
    • SmoothGlass Touch + Knob
    • Display
    • White VFD
    • Control Lock Capability
    • Yes

POWER/RATINGS

    • Electric Supply
    • 120/240 VAC,120/208 VAC
    • Max. Amp Load
    • 17.3A
    • Rating
    • 4.1 KW

WARRANTY/UPC

    • Limited Warranty
    • 2 Year Parts & Labor
    • UPC
    • 048232333213

ACCESSORIES

    • Grid
    • 1
    • Heavy Duty Rack
    • 2
    • Gliding Rack
    • 1

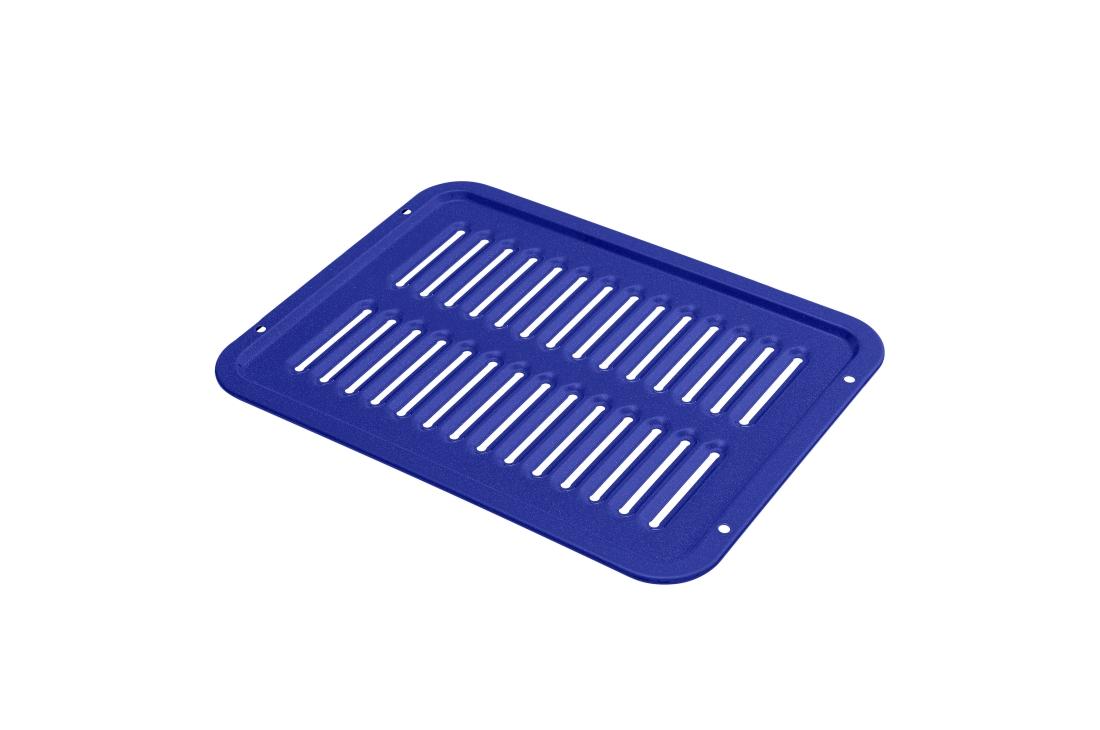

    • Broiler pan
    • 1

SMART FUNCTION

    • NFC
    • Yes

HANDLE

    • Color & Material
    • STS Finish (Aluminum)

Catalog

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.

Connect to a builder distributor in your area, and get the info you need to complete your next project.
Business Unit is required
Address Unit is required.
  • sales
  • install
  • service
Please retry to enter zip code.

There are no results. Please retry to enter zip code.

  • LG ExtendedCare Plan

    LG's ExtendedCare Plan protects your investment by offering extended service coverage provided by LG for commercial displays in the hospitality, healthcare, and digital signage markets. By offering this program, you will enjoy the added peace of mind that comes with knowing your products are protected.

  • Quick Swap (Advanced Exchange)

    Minimizes down time of device and quickly gets the device up and running. LG will provide a return box and prepaid return shipping label for customer to return the unit. Service call for Advanced Exchange must be made by 2pm CST.
    Next Business Day Exchange, 2nd Business Day Delivery or 3rd Business Day Delivery dependent on the product model and service option available.

  • White-Glove Quick Swap (Advanced Exchange)

    An LG authorized technician will meet you onsite. Technicians will remove, re-install and return product. Service calls for Advanced Exchange delivery must be made by 2pm CST.
    Next Business Day Exchange, 2nd Business Day Delivery or 3rd Business Day Delivery dependent on the product model and service option available.

    For more information, click here

Compare (0)

Compare (0)
© Copyright 2024 ©LG Electronics USA, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Corp. All other trademarks are the property of their respective owners. Prices, promotions, and availability may vary by dealer. The information contained herein is subject to change without notice. All screen images are simulated.
*ADA - COMPLIANT SINGLE OVENS -
LG single ovens feature touch controls that meet ADA requirements by being positioned on the face of the unit, allowing for easy forward reach and are operable with one hand and require no more than five pounds of pressure. Inside, all racks are designed for easy front access, and are adjustable for loading flexibility.

In addition to meeting the standards applicable to the product’s controls, ADA standards for accessible design are in part dependent upon the height at which a oven is installed. LG’s single ovens can be installed at various heights to reduce bending and stooping. Follow up with your appliance installation professional to ensure your single oven is installed at the proper height to meet the ADA’s other applicable standards.

To be considered ADA-compliant, a single oven must meet the following requirements:
• Maximum high forward reach for controls and operating mechanisms is 48""; maximum low forward reach is 15"".
• Controls and operating mechanisms must be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate controls shall be no more than 5 lbs.
• Ovens shall have controls on front panels; they may be located on either side of the door.
