KEY FEATURES

  • 21.3-inch 5MP (2,048x2,560) IPS Display
  • 1,100 cd/m² Brightness (Typ.)
  • Multi-Resolution Mode (5/3/2MP)
  • Internal Front Calibration Sensor
  • Focus View Mode / Pathology Mode
  • Daisy Chain

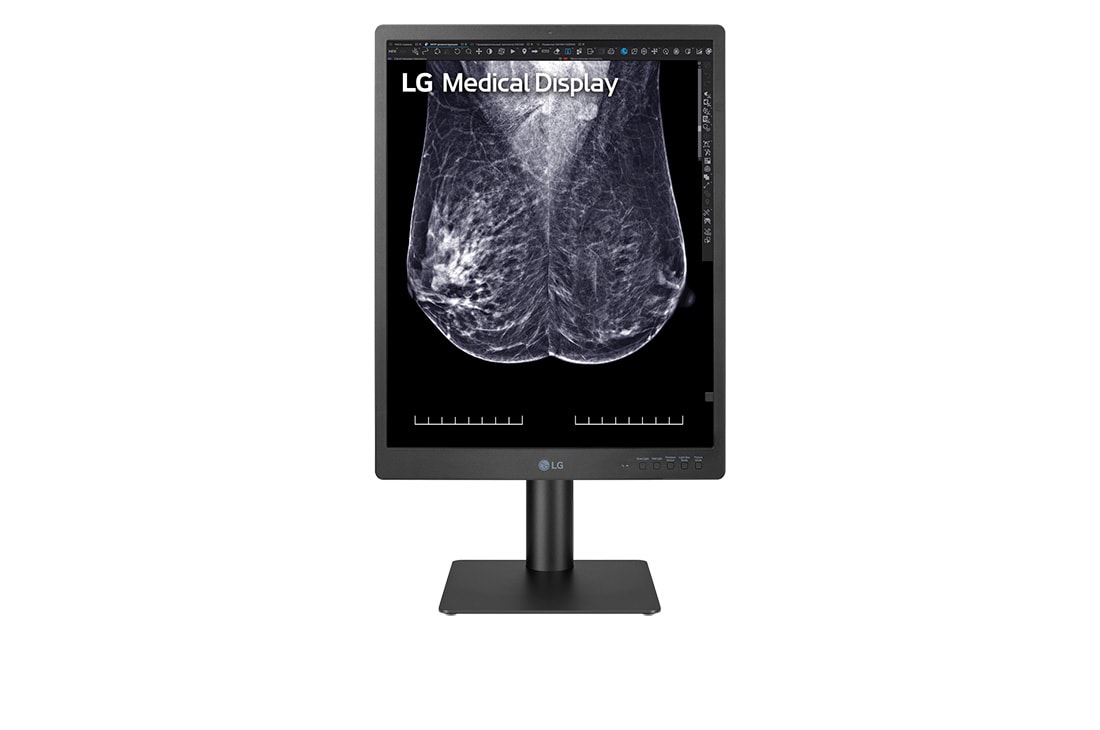

LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography
$
21.3" 5MP IPS Diagnostic Monitor

Designed for Breast
Imaging

Watch the Full Movie
*Images are simulated for illustration purposes only.

  • Display for Breast Imaging

    21.3-inch 5MP (2048x2560) IPS Display
    Calibration with Front Sensor

  • Efficiency

    5 Hot Keys
    Daisy Chain

  • Convenience

    User-friendly Monitor Stand
    Down Light & Wall Light

High-Resolution Display for Breast Imaging

High-Definition Imaging

Diagnostic Monitor 21HQ613D-B displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m² and a contrast ratio of 1,800:1. Moreover, this monitor showcases vivid color, high-definition mammography and breast tomosynthesis images including breast MRI, CT scans and ultrasound, ensuring versatile performance across various medical imaging modalities.
*Images are simulated for illustration purposes only.
Multi-Resolution Mode

Set the Resolution Mode to Fit Your Needs

The various resolution modes (5/3/2MP) of the 21HQ613D-B allow users to customize their resolution to better fit their respective needs.
*Images are simulated for illustration purposes only.
Internal Front Calibration Sensor

Consistency in Medical Images

The front-sensor, supported by calibration software, enables calibration without the need for additional measuring equipment.
*Images are simulated for illustration purposes only.
Focus View Mode

Focus on the Region of Interest

Highlight specific parts of the medical image with Focus View Mode. Users can easily select and focus on areas of concern while darkening the rest of the screen.
*Images are simulated for illustration purposes only.
Pathology Mode

Like Looking at a Microscope

With Pathology Mode, this diagnostic monitor provides image clarity and accuracy as if you were looking at a microscope.
*Images are simulated for illustration purposes only.

Streamlined and Efficient Workflow

5 Hot Keys

Intuitive Control

The 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. They provide fast and easy ways to operate while working, allowing you to change mode, screen resolution, and lighting settings without disrupting your workflow.
Body texts can be up to 100 characters.
*Images are simulated for illustration purposes only.
Presence Sensor

Convenient Power Management

The presence sensor automatically turns off the display when no motion is detected for 5 minutes, reducing power consumption when not in use.
*Images are simulated for illustration purposes only.
Daisy Chain

Simple Connection for a Clutter-Free Workspace

This monitor supports Daisy Chain Setup, which helps reduce clutter on your desk and simplify cable management, promoting a productive workspace.
*Images are simulated for illustration purposes only.

User Convenience

Bi-directional auto pivot

User-Friendly Monitor Stand

The 21HQ613D-B monitor is designed to be adjustable for users' posture during image review. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.
*Auto pivot refers to the automatic screen rotation function based on the pivot direction.

  • Swivel ±15°

  • Tilt -5° to 20°

  • Height 110mm

*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Down Light & Wall Light

Ideal Diagnostic Workspace

Down /Wall Light Modes assist readability of documents below monitor, even in low-light environments.

  • Wall Light.

  • Down Light

*Images are simulated for illustration purposes only.
Auto Luminance Sensor

Automatically Adjusts Screen Brightness

The Auto Luminance Sensor automatically adjusts screen brightness to ambient room lighting.
*Images are simulated for illustration purposes only.

PANEL

    • Panel Type
    • IPS
    • Inch (Aspect Ratio)
    • 21.3-inch (4:5)
    • Resolution
    • 5MP (2,048 x 2,560)
    • Surface Treatment
    • Anti-Glare
    • Color Gamut (Typ.)
    • NTSC 72% (CIE1 931)
    • Viewing Angle (CR≥10)
    • 178° (Right / Left), 178° (Up / Down)
    • Brightness (Typ.)
    • 1,100 cd/m²
    • Brightness (Stabilization)
    • 600 cd/m²
    • Color Bit
    • 10 bit
    • Contrast Ratio
    • 1,800:1
    • Response Time (GtG*)
    • 5 ms (GtG at Faster

FEATURE

    • DICOM Compliant
    • Yes
    • HW Calibration
    • Yes
    • Picture Mode
    • Custom, Mono, Pathology, Text, DICOM, DICOM (Custom) Calibration 1, Calibration 2
    • Super Reolution+
    • Yes
    • Multi Resolution Mode
    • Yes (5MP / 3MP / 2MP)
    • Focus View Mode
    • Yes
    • Light Box Mode
    • Yes

VIDEO SIGNALS

    • Input Terminals
    • DisplayPort x 2, DVI-D (Dual Link) x 1
    • Output Terminals
    • DisplayPort x 1 (Daisy Chain, 5MP / @48 Hz)

CONNECTIVITY

    • USB
    • USB 3.0 2 Upstream, 2 Downstream

POWER

    • AC Input
    • 100 - 240 Vac, 50 / 60 Hz
    • Power Consumption (Max.)
    • 120 W
    • Power Consumption (DC Off)
    • Less than 0.3 W

User Convenience

    • Dual Controller
    • Yes
    • Reader Mode / Flicker Safe
    • Yes
    • Lighting
    • Yes (Down / Wall)
    • Hot Key
    • Yes (5 Keys)
    • Presence Sensor
    • Yes
    • Auto Luminance Sensor
    • Yes
    • Front Sensor (Built-in Calibration)
    • Yes

PHYSICAL SPECIFICATIONS

    • Weight (With Stand)
    • 17.3 lbs / 7.85 kg
    • Weight (Without Stand)
    • 12 lbs / 5.45 kg
    • Adjustable Stand
    • Pivot (Bi-Directional), Swivel (±15°), Tilt (-5° to 20°), Height (4.3 in. / 110 mm)
    • Wall Mount Size
    • 100 x 100 mm

OTHER

    • Limited Warranty
    • 5 Years

Specification Sheet
