KEY FEATURES

  • User-Friendly Smart Platform
  • Content Display and Management
  • Powerful Wireless Capabilities
  • Reliable Operation
  • Value-added Offerings
  • Industrial Design

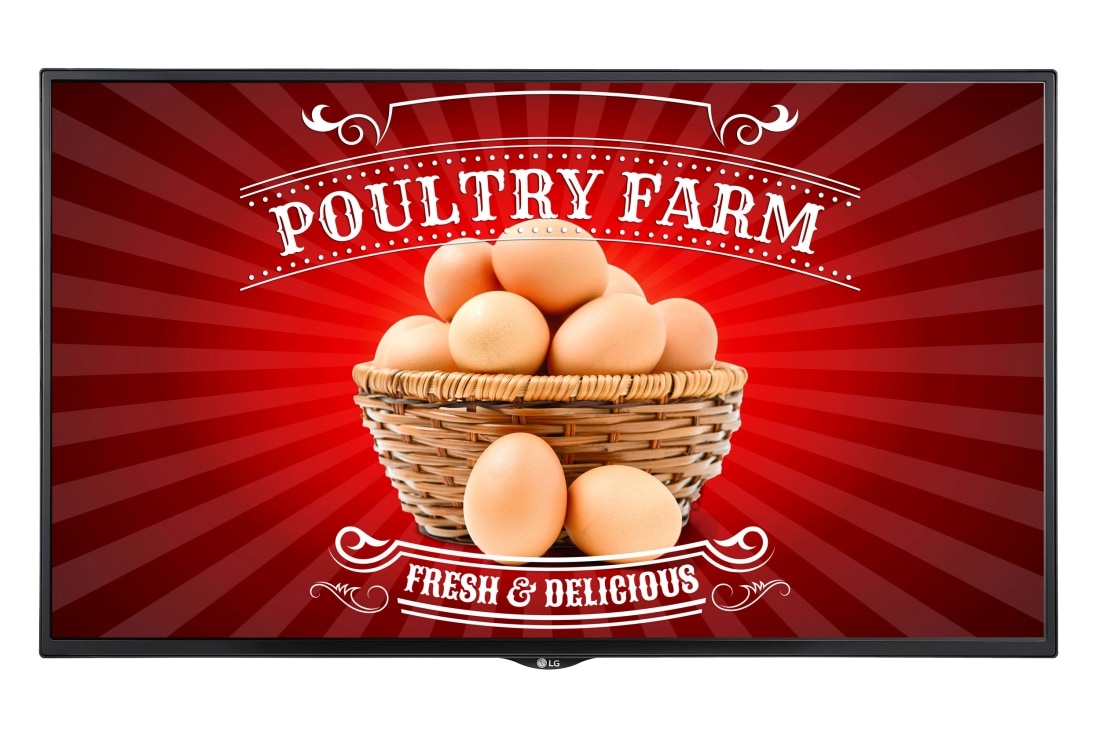

43” class - Versatile Signage with a User-friendly Smart Platform

PANEL

    • Screen Size
    • 43"
    • Panel Technology
    • IPS
    • Contrast Ratio
    • 1,100:1
    • Response Time
    • 12 ms (G to G BW), 9.4 ms (WOT)
    • Brightness
    • 450 nits
    • Aspect Ratio
    • 16 : 9
    • Native Resolution
    • 1,920 x 1,080 (FHD)
    • Viewing Angle (H x V)
    • 178°/178°
    • Orientation
    • Landscape & Portrait
    • Lifetime (Typ.)
    • 50,000 Hrs
    • Operation Hours
    • 24 Hrs
    • Surface Treatment (Haze)
    • Hard Coating (3H), Anti-glare Treatment of the Front Polarizer (Haze 1% (Typ.))

CONNECTIVITY

    • Input
    • HDMI (3), DP, DVI-D, Audio, USB 3.0
    • Output
    • DP (SST), Audio (Off/Fixed/Variable)
    • External Control
    • RS232C In/out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATIONS

    • Bezel Color
    • Black
    • Bezel Width
    • 11.9 mm (T/R/L), 18 mm (B)
    • Monitor Dimension (W x H x D)
    • 38.2” x 22.2” x 2.1” / 969.6 x 563.9 x 54 mm
    • Weight (Head)
    • 22 lbs / 10.0 kg
    • Monitor w/opt. Stand Dimensions (W x H x D)
    • 38.2” x 24.5” x 7.6” / 969.6 x 622.2 x 193 mm
    • Weight (Head + Stand)
    • 27.6 lbs / 12.5 kg
    • VESA TM Standard Mount Interface
    • 200 x 200 mm
    • Carton Dimensions (W x H x D)
    • 41.4” x 25.6” x 4.8” / 1,052 x 650 x 123 mm
    • Packed Weight
    • 27.8 lbs / 12.6 kg

KEY FEATURES

    • Yes
    • Internal Memory 8GB (System 4GB, Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, webOS 4.0, Embedded CMS, Fail Over, Image Customization, PIP/PBP(2), Screen Share, Video Tag (2), Play via URL, Gapless Playback, Tile Mode Setting (Up to 15x15), Setting Data Cloning, Firmware Update by Network, SNMP (Ver. 1.4), Control Manager, Crestron Connected®*, Extron IP Link, Smart Energy Saving, Beacon, HDMI-CEC (2)**, Built-in Speaker (10W+10W)

ENVIRONMENTAL CONDITIONS

    • Operating Temperature Range
    • 0°C to 40°C / 32°F to 104°F
    • Operating Humidity Range
    • 10 % to 80 %

POWER

    • Power Supply
    • 100-240 V~, 50/60 Hz
    • Power Type
    • Built-in Power
    • Power Consumption (Smart Energy Saving)
    • 55 W (TBD)
    • Power Consumption (Typ./Max)
    • 75 W (TBD) / 95 W

STANDARD CERTIFICATIONS

    • Safety
    • IEC 60950-1 / EN 60950-1 / UL 60950-1
    • EMC
    • FCC Class "A" / CE / KC

MEDIA PLAYER COMPATIBILITY

    • External Media Player Attatchable
    • Yes
    • OPS Type Compatible
    • Yes

SOFTWARE COMPATIBILITY

    • Content Management Software
    • SuperSign CMS
    • Control and Monitoring Software
    • SuperSign Control / Control+

ACCESSORIES

    • Basic
    • Remote Controller (2ea Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory Cover
    • Optional
    • Stand (ST-432T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T43E)

WARRANTY

    • Limited Warranty
    • 3-Year Limited Warranty
