Discontinued 43TNF5J-B

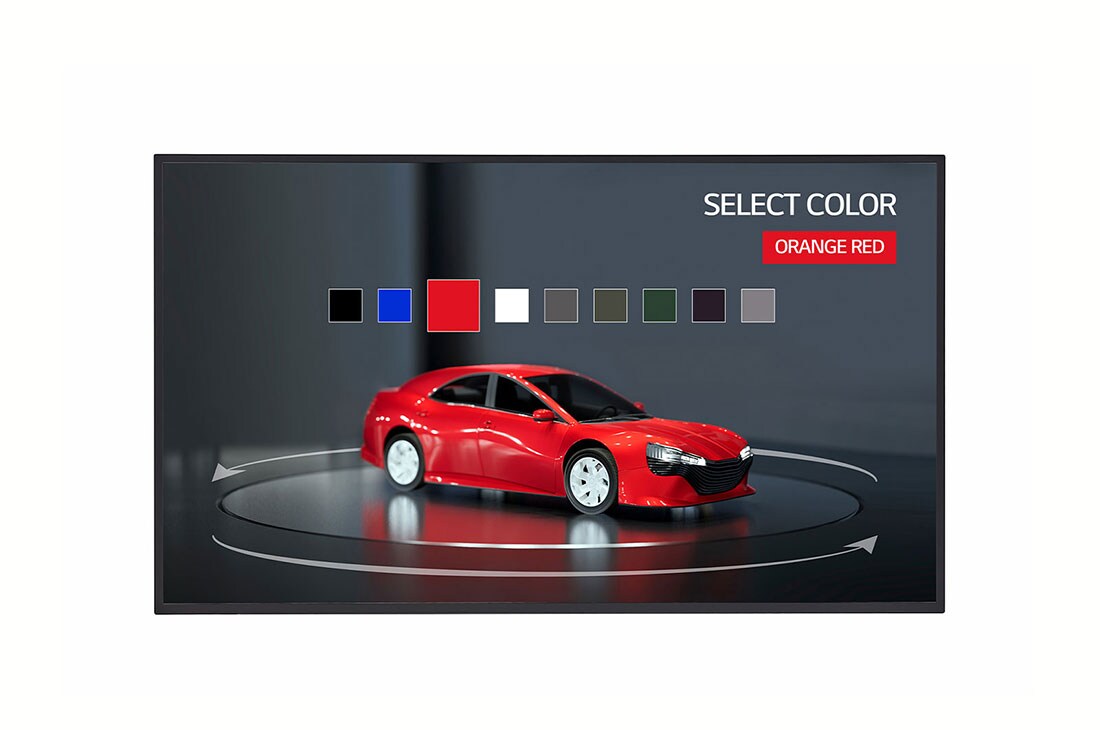

43'' TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness

LG 43'' TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness, 43TNF5J-B, 43TNF5J-B, thumbnail 1

LG 43'' TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness, 43TNF5J-B, 43TNF5J-B, thumbnail 2

LG 43'' TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness, 43TNF5J-B, 43TNF5J-B, thumbnail 3

LG 43'' TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness, 43TNF5J-B, 43TNF5J-B, thumbnail 4

LG 43'' TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness, 43TNF5J-B, 43TNF5J-B, thumbnail 5

LG 43'' TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness, 43TNF5J-B, 43TNF5J-B, thumbnail 6

LG 43'' TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness, 43TNF5J-B, 43TNF5J-B, thumbnail 7

LG 43'' TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness, 43TNF5J-B, 43TNF5J-B, thumbnail 8

LG 43'' TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness, 43TNF5J-B, 43TNF5J-B, thumbnail 9

/

32" 43" 55"

NOTIFY ME

Add to Wishlist

Add to Compare

EXTENDEDCARE PLANS

KEY FEATURES Expand Key Features

43" UHD (3,840 x 2,160) IPS Display
Multi-Touch Point : Max. 10 Points
WebOS™ 6.0, Pro:Idiom, Embedded CMS, Compatible with LG Supersign Software
Portrait, Landscape and 45° Tilt
500 nits brightness
Operation 24/7 with Life up to 50,000 Hours

To place a bulk order quantity-10 or more for the business product, please click here to connect with our sales team.

Discontinued 43TNF5J-B

43'' TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness

LG 43'' TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness, 43TNF5J-B, 43TNF5J-B

+5

KEY FEATURES Expand Key Features

43" UHD (3,840 x 2,160) IPS Display
Multi-Touch Point : Max. 10 Points
WebOS™ 6.0, Pro:Idiom, Embedded CMS, Compatible with LG Supersign Software
Portrait, Landscape and 45° Tilt
500 nits brightness
Operation 24/7 with Life up to 50,000 Hours

32" 43" 55"

Add to Wishlist

Add to Compare

NOTIFY ME

EXTENDEDCARE PLANS

To place a bulk order quantity-10 or more for the business product, please click here to connect with our sales team.

43" TN5J Series UHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness

43" In-Cell Multi-touch Open Frame Display

*All images in this page are for illustrative purposes only.

10 Points of Multi-Touch

The 43TNF5J-B provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once.

*Image simulation for illustration purposes only.

24hrs / 7days

TNF5J’s excellent durability allows for use in kiosks that require a full day of operation.

Design Flexibility

This slim touch display can be portrait or landscape to meet your implimation needs, while webOS™ 6.0 smart signage platform lets you create great applications.

*Image simulation for illustration purposes only.

Wide Viewing Angle

IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

*Image simulation for illustration purposes only.

Slim Design

The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).

*Image simulation for illustration purposes only.

45-degree Tilt

43TNF5J-B has a max tilt of 45 degrees (screen up), which is great for using at waste level or lower.

*Image simulation for illustration purposes only.

High-Performance with webOS™ 6.0

43TNF5J-B features LG's webOS™ 6.0 smart signage platform that enhances user convenience with intuitive Graphic User Interface (GUI). It provides System Integrators (SI) or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, & sample applications.

*Image simulation for illustration purposes only.

Print

DISPLAY

- Screen Size (Inch)
- 43"
- Panel Technology
- IPS Touch
- Back Light Type
- Edge
- Aspect Ratio
- 16:9
- Native Resolution
- 3840 x 2160 (UHD)
- Refresh Rate
- 60Hz
- Brightness (Typ.)
- 500 nits
- Contrast Ratio
- 1,000:1
- Color gamut
- NTSC 72%
- Viewing Angle (H x V)
- 178 x 178
- Color Depth
- 10bit, 1.07Billion colors
- Response Time
- 9ms (G to G)
- Surface Treatment(Haze)
- Haze 3%
- Life time
- Up to 50,000 Hrs
- Operation Hours (Hours/Day)
- 24/7
- Portrait / Landscape
- Yes / Yes
- Available object size for touch
- Greater than 0.6 mm
- Reponse Time( PC Win10, Education Mode)
- Less than 90 ms
- Accuracy (Typ.)
- 3.5mm
- Interface
- USB2.0
- Active Pen Interface
- No
- Operating System Support
- Win 10
- Multi touch points
- Max 10 Points

CONNECTIVITY

- HDMI IN
- Yes (x2), HDCP 2.2/1.4
- RS232C In
- Yes
- RJ45(LAN) IN
- Yes
- IR In
- Yes
- USB IN
- Yes (USB2.0 Type A)
- Audio Out
- Yes
- Touch USB
- USB2.0 Type B(1)
- Externel Speaker Out
- No
- Daisy Chain
- No

FEATURES

- Internal Memory (eMMC)
- 8GB (System 5GB + Available 2.48GB)
- Wi-Fi (Built-in)
- No
- Temperature Sensor
- Yes
- Acceleration(Gyro) Sensor
- Yes
- OS ver.
- webOS6.0
- Local Contents Scheduling
- Yes
- Group Manager
- Yes
- USB Plug & Play
- Yes
- Fail over
- Yes
- Booting Logo Image
- Yes
- No Signal Image
- Yes
- Video Tag
- Yes (x4)
- Play via URL
- Yes
- Screen Rotation
- Yes
- Gapless Playback
- Yes
- Setting Data Cloning
- Yes
- SNMP
- Yes
- ISM Method
- Yes
- Status Mailing
- Yes
- Control Manager
- Yes
- Cisco Certi.
- Yes
- Crestron Inside
- Yes
- Smart Energy Saving
- Yes
- PM mode
- Yes
- Wake on LAN
- Yes
- Network Ready
- Yes
- HDMI-CEC
- Yes
- SI Server Setting
- Yes
- webRTC
- Yes
- Pro:Idiom
- Yes

MECHANICAL

- Bezel Color
- Black
- Bezel Width
- 10.9/10.9/10.9/13.5 mm
- Weight
- 22.9 lbs. / 10.4 kg
- Shipping Weight
- 27.3 lbs. / 12.4 kg
- Dimensions (W x H x D)
- 38.1 x 22.0 x 1.5 in. 967.2 x 559 x 38.0 mm
- Shipping Dimensions (W x H x D)
- 41.9 x 26.2 x 6.1 in. 1064 x 665 x 156 mm
- Handle
- No
- Tilt (Face Up)
- Yes (Max 45°)
- Conformal Coating (Power Board)
- Yes
- VESATM Standard Mount Interface
- 200 x 200

ENVIRONMENT

- Operation Temperature
- 0 °C to 40 °C
- Operation Humidity
- 10% to 80%

ELECTRICAL

- Power Supply
- AC 100-240 V~, 50/60 Hz
- Power Type
- Built-In Power
- Power Consumption (Typ.)
- 95W
- Power Consumption (Max.)
- 110W
- Power Consumption (British Thermal Unit)
- 324 BTU/Hr(Typ.), 375BTU/Hr(Max.)
- Power Consumption (Smart Energy Saving, ~70%)
- 67W
- Power Consumption (DPM)
- Less than 0.5 W
- Power Consumption (Power Off)
- Less than 0.5 W

LG SOFTWARE COMPATIBILITY

- SuperSign CMS
- Yes
- SuperSign Control+
- Yes
- SuperSign WB
- No
- SuperSign Cloud
- Yes
- Promota
- No
- Mobile CMS
- Yes
- Connected Care
- Yes

Warranty & Other

- Warranty
- 3 Year Limited
- UPC
- 1 95174 02762 2
- Safety
- CB / NRTL
- EMC
- FCC Class "A"/ CE
- ErP (Environmental)
- Yes
- Onscreen Display Languages
- English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Arabic, Türkçe, Polski
- Accessories
- 1.5m Power Cord, 1.8m USB Cable (Type A-Type B) User Manual, QSG, Remote Control (includes 2 batteries), RS232C Adapter, IR Receiver
