PANEL
-
- Surface Treatment
- Hard coating (3H), Anti-reflection treatment of the front polarizer (Haze 1%)
- Orientation
- Portrait and Landscape
-
- Dynamic CR
- 500,000 : 1
- Color gamut
- 68%
-
- Contrast Ratio
- 1,000:1
- Response Time
- 9ms (GTG)
-
- Aspect Ratio
- 16 : 9
- Native Resolution
- 1920 x 1080 (FHD)
-
- Brightness
- 400 cd/m^2 (340 cd/m^2 Typ With Protection Glass)
- Screen Size
- 47" (46.96" measured diagonally)
-
- Color Depth
- 8bits, 16.7Million colors
- Pixels(H x V x 3)
- 6,220,800
-
- Viewing Angle
- 178°/178°
- Panel Technology
- IPS
VIDEO (PC)
-
- Recommended Resolution
- 1920 x 1080@ 60Hz(RGB,HDMI/DVI-D)
- Picture mode
- Vivid, Standard, Cinema, Sports, Game
-
- V-Scanning Frequency
- 50Hz ~ 75.02Hz (RGB), 56Hz~60.317Hz (HDMI/DVI-D), 50 ~ 60 Hz(Component)
- Pixel Frequency
- 148.5 MHz (RGB, HDMI/DVI-D)
-
- Video Input
- RGB, HDMI, DVI, DP
- Color temperature
- Warm, Medium, Cool
-
- Sync Compatibility
- Separate / Composite / Digital
- Max Input Resolution
- 1920 x 1080@ 60Hz(RGB,HDMI/DVI-D)
-
- H-Scanning Frequency
- 30 ~ 83 kHz (RGB, HDMI/DVI-D), 15.625 ~ 60 kHz(Component)

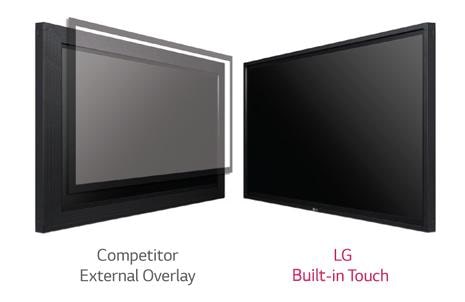

Touch
-
- Multi touch point
- Max 10 Point
- Protection Glass Thickness
- 3T (Anti-fog, Anti-glare)
-
- Protection Glass Transmission
- 85%
- Interface
- USB 2.0
-
- Touch Resolution
- 1280 x 730
- Accuracy
- 1mm
-
- Scan Time
- 10 ms
- Power (Typ.)
- 4W
-
- Operating System Support
- Windows XP (1Point) / Windows 7 (10 Point)
- Available object size for touch
- Ø6 mm
-
- Touch type
- IR(Infrared Rays) Spread
CONNECTIVITY INPUT (Rear)
-
- Analog
- RGB(1) (Shared Component & AV)
- USB
- Yes(2) Contents Playerback & Touch Control
-
- External Control
- RS232C(In/Out), RJ45(1), IR(1)
- HDTV Formats
- Component : 720p, 1080i , 1080p, HDMI : 720p, 1080i, 1080p
-
- Audio
- RGB/DVI-D/Component(3.5Φ 1)
- Digital
- HDMI(1), DVI-D(1), DP(1)
OUTPUT (Rear)
-
- Audio
- Speaker L/R
- External Control
- RS232C(In/Out), IR(1)
AUDIO
-
- Audio Power
- 20W(10W x 2)
- Clear Voice II
- Yes
-
- Sound Mode
- Standard, Music, Cinema, Sports, Game
- Speaker On/Off
- Yes
-
- Balance
- Yes
PHYSICAL SPECIFICATIONS
-
- Color
- Black
- VESA Standard Mount Interface
- 400mm x 400mm
-
- Weight (w/Optional Speaker)
- 47.0 lbs.
- Monitor Dimensions (w/Optional Speaker)
- 43.4” x 25.5” x 4.0”
-
- Monitor Dimensions (head only)
- 43.4” x 25.5” x 4.0”
- Weight (head only)
- 45.2 lbs.
-
- Packed Weight
- 53.6 lbs.
- Bezel Width
- 15mm(Left/Right/Top/Bottom)
-
- Carton Dimensions
- 47.4" x 31.1" x 7.5"
SPECIAL FEATURES
-
- Brightness/Contrast/ Backlight
- Yes
- DPM Select
- Yes
-
- Temperature Sensor
- Yes
- Information
- Model/Type, Software Version, Serial Number, IP Address, MAC Address, Homepage
-
- Position/Size
- Yes
- ISM Method
- Normal, White Wash, Orbiter, Inversion
-
- Tile Mode
- Yes (not available in Touch)
- Key Lock
- Yes
-
- Auto Config/Phase
- Yes
- Advanced
- Dynamic Contrast, Dynamic Color, Clear White, Skin Color, Noise Reduction, Digital Noise Reduction, Gamma, Black Level
-
- Smart Energy Saving
- Yes
- Energy Saving
- Yes (Off, Minimum, Medium, Maximum, Screen Off)
-
- File Play with USB
- Yes
- Auto Power/Source Memory
- Yes
-
- Input Label
- Yes(PC/DTV)
- Time
- Clock, On/Off Time, Sleep Timer, Power on Delay, Auto Off, Automatic Standby
-
- PIP/PBP
- Yes
- Source Selection
- Component, RGB, DVI-D, HDMI, USB, Display Port
ENVIRONMENT CONDITIONS
-
- Operation Temp.
- 0°C ~ 40°C
- Operation Humidity
- 10% ~ 80%
POWER
-
- Power Consumption-Power Off
- 0.5W (Typ.)
- Power Consumption-Typ
- 100W
-
- Power Supply
- 100 -240V, 50/60Hz
- Power Consumption-DPMS
- 0.5W (Typ.)(RGB), 0.7W(Typ.)(DVI-D, HDMI, DP)
STANDARD CERTIFICATION
-
- Erp/Energy Star
- Yes/Yes (Energy Star 6.0)
- Safety
- UL / cUL / CB scheme
-
- EMC
- FCC Class "A", VCCI, CE, KCC
MEDIA PLAYER COMPATIBILITY
-
- External Media Player Attachable
- Yes (NC1100 / NA1100 / NA1000)
SOFTWARE COMPATIBILITY
-
- SuperSign Elite-w lite / Elite-c
- Yes (Editing, Scheduling, Distribution & Play, Control) / Yes
WARRANTY
-
- Warranty
- 3-Year Limited Warranty (Parts/Labor/Backlight)
ACCESSORIES
-
- Included
- IR Dongle/USB Cable/RGB Cable/CD(Manual&SW) /Remote (with Battery)
UPC
-
- UPC
- 7 19192 19314 7
