KEY FEATURES

  • Quad Core SoC*
  • WebOS 3.0
  • Group Manager
  • PBP (Picture-By-Picture) / PIP (Picture-In-Picture)

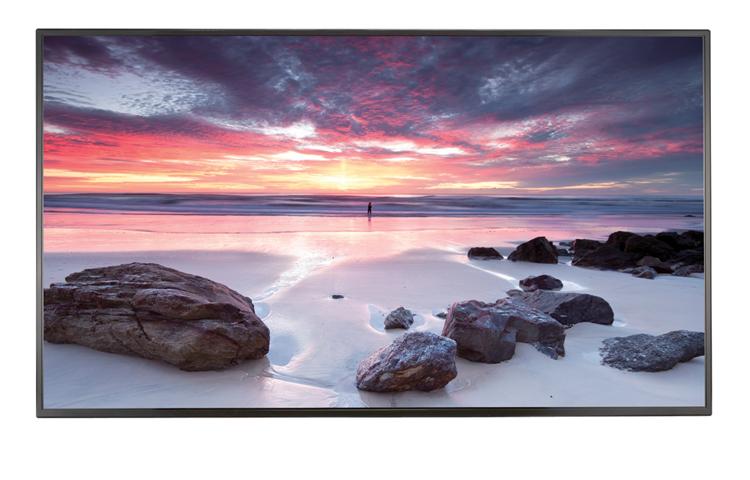

49" class - Immersive Screen with Smart Platform Ultra HD UH5C Series

PANEL

    • Screen Size
    • 49"
    • Panel Technology
    • IPS
    • Contrast Ratio
    • 1,100:1
    • Response Time
    • 8 ms (G to G)
    • Dynamic Contrast Ratio
    • 1,000,000 : 1
    • Brightness
    • 500cd/m2
    • Aspect Ratio
    • 16:9
    • Native Resolution
    • 3,840 x 2,160 (UHD)
    • Viewing Angle (H x V)
    • 178°/178°
    • Surface Treatment
    • Low Haze 1%
    • Orientation
    • Portrait & Landscape
    • Lifetime (Typ.)
    • 50,000 Hrs
    • Operation Hours
    • 24 hours

CONNECTIVITY

    • Input
    • HDMI, DP, DVI-D, Audio, USB 3.0, SD Card
    • Output
    • DP, External Speaker out
    • External Control
    • RS232C, RJ45, IR Receiver, Pixel Sensor

PHYSICAL SPECIFICATIONS

    • Bezel Color
    • Black
    • Bezel Width
    • 11.9 mm (T), 12.4 mm (R/L), 15.5 mm (B)
    • Monitor Dimension (W x H x D)
    • 1,103.2 x 648.0 x 38.6 mm
    • Weight (Head)
    • 13.3 kg
    • VESA TM Standard Mount Interface
    • 300 x 300 mm
    • Carton Dimensions (W x H x D)
    • 1197 x 760 x 166 mm
    • Packed Weight
    • 17.7 kg

SPECIAL FEATURES

    • Yes
    • Temperature Sensor, Auto Brightness Sensor, Tile Mode (up to 15x15), Natural Mode@Tile Mode, ISM Method, Internal Memory (8GB, System 4GB), Wi-Fi built-in (802.11n), USB Cloning, Content Scheduling, Sync mode, PM mode, Fail Over, Wake on LAN, BEACON (On/Off), Embedded Template, PIP/PBP

ENVIRONMENTAL CONDITIONS

    • Operating Temperature Range
    • 0°C to 40°C / 32°F to 104°F
    • Operating Humidity Range
    • 10 % to 80 %

POWER

    • Power Supply
    • 100–240V~, 50/60Hz
    • Power Type
    • Built-in Power
    • Power Consumption (Smart Energy Saving)
    • 70 W
    • Power Consumption-Typ
    • 102 W

STANDARD CERTIFICATIONS

    • Safety
    • UL / cUL / CB / TUV / KC
    • EMC
    • FCC Class "A" / CE / KCC
    • ErP/Energy Star
    • Yes (EU Only) / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

    • External Media Player Attatchable
    • Yes (MP500/MP700)
    • OPS Type Compatible
    • Yes

SOFTWARE COMPATIBILITY

    • SuperSign-C
    • Yes
    • SuperSign W-Lite
    • Yes

ACCESSORIES

    • Basic
    • Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover
    • Optional
    • Speaker (SP-5200), Stand (ST-201T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)

WARRANTY

    • Limited Warranty
    • 3 years
