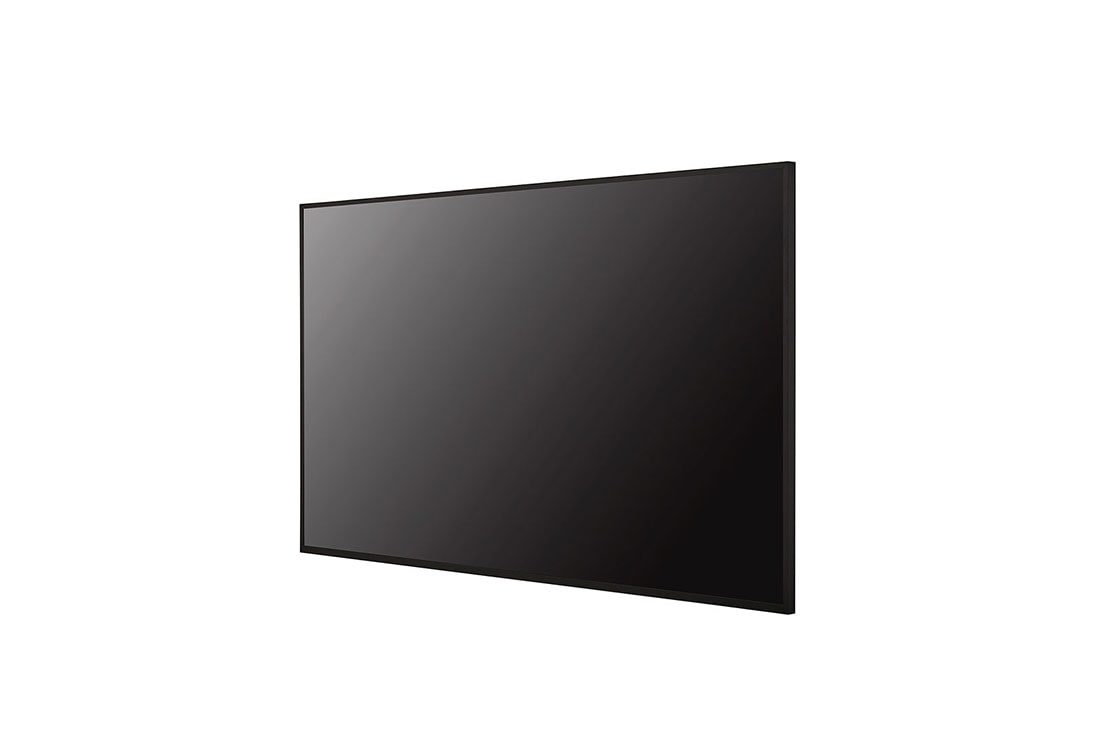

UHD Digital Signage with BrightSignOS™
*Images are simulated for illustration purposes only.

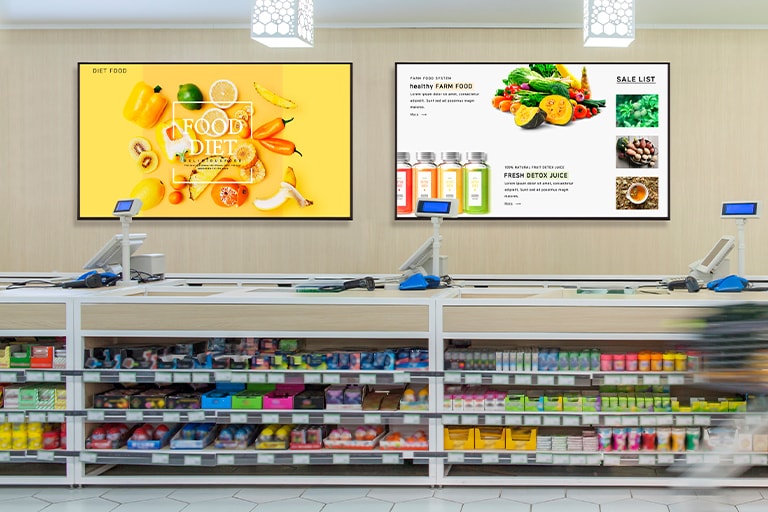

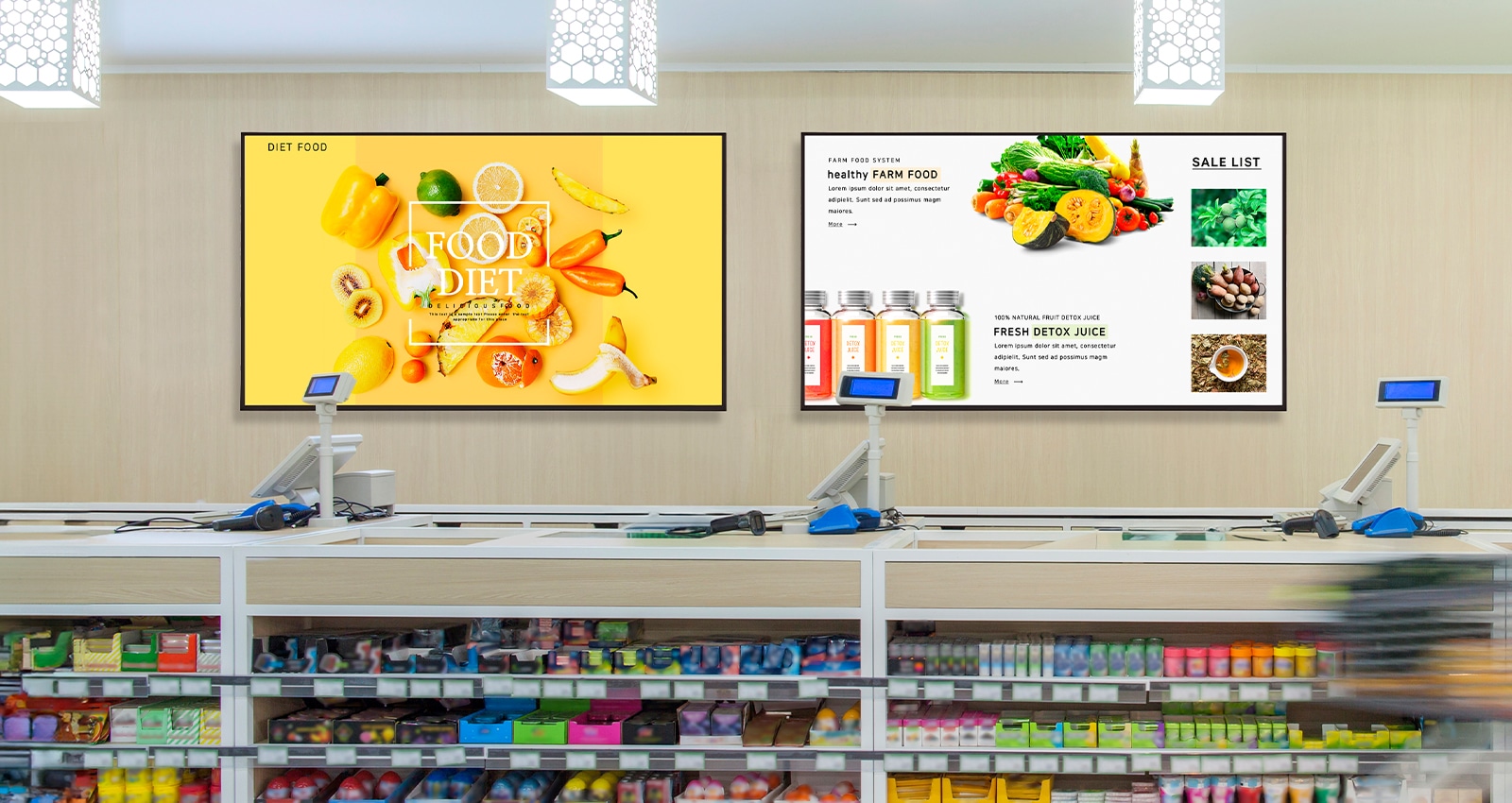

BrightSignOS™

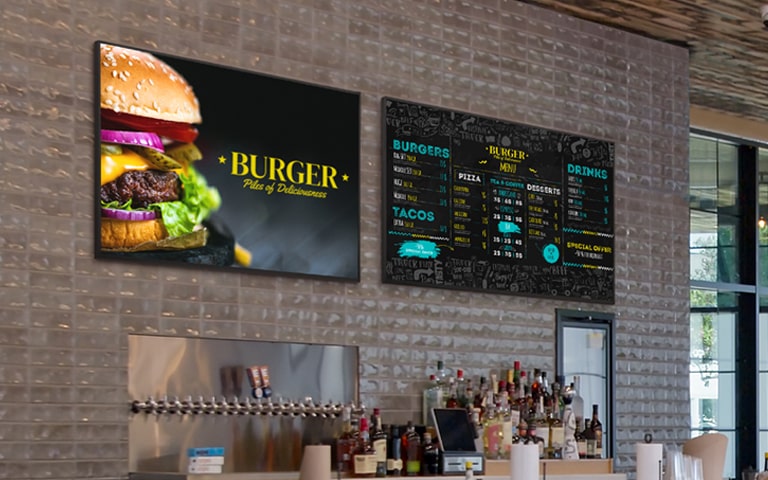

Leading the way in digital signage, the UV5N-E is powered by BrightSignOS, known for its security, reliability, sustainability, and support. Running BrightSignOS also includes a free bsn.Control subscription for remote multidevice monitoring and seamless integration with over 100 CMS solutions.
*Images are simulated for illustration purposes only.
UHD Resolution Display
UHD resolution is 4 times higher than FHD, which makes the color and details of the contents more vivid and realistic. In addition, the IPS Panel allows for wider viewing angles and provides clearer content with no distortion.

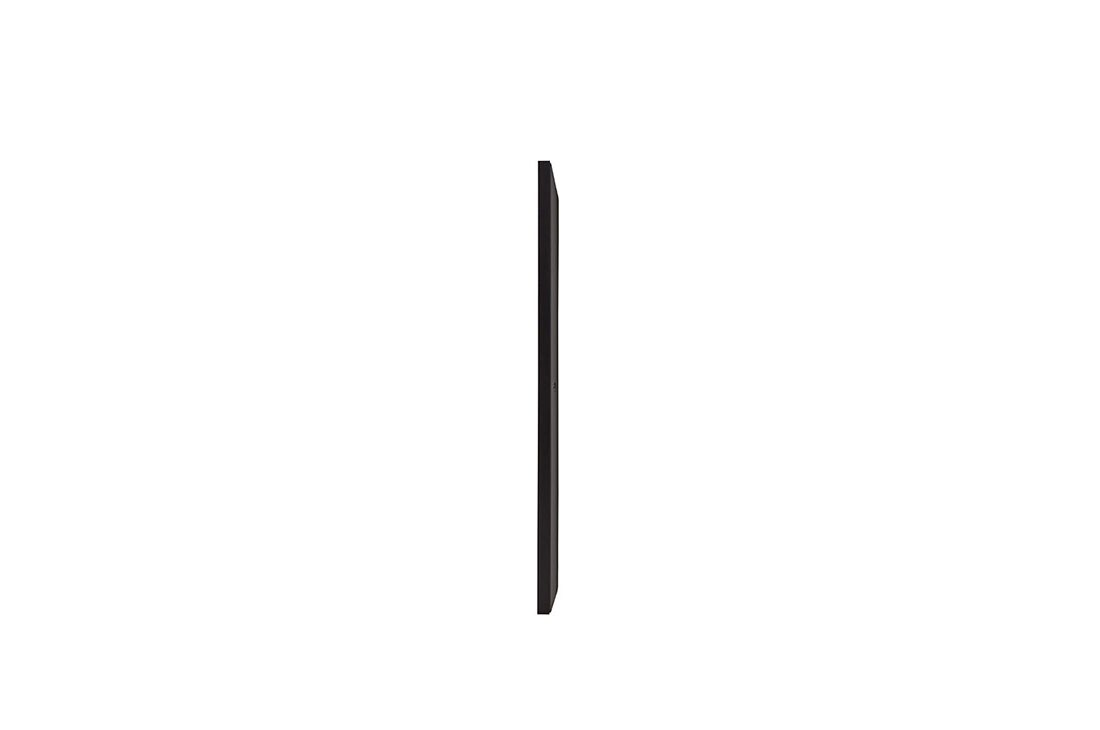

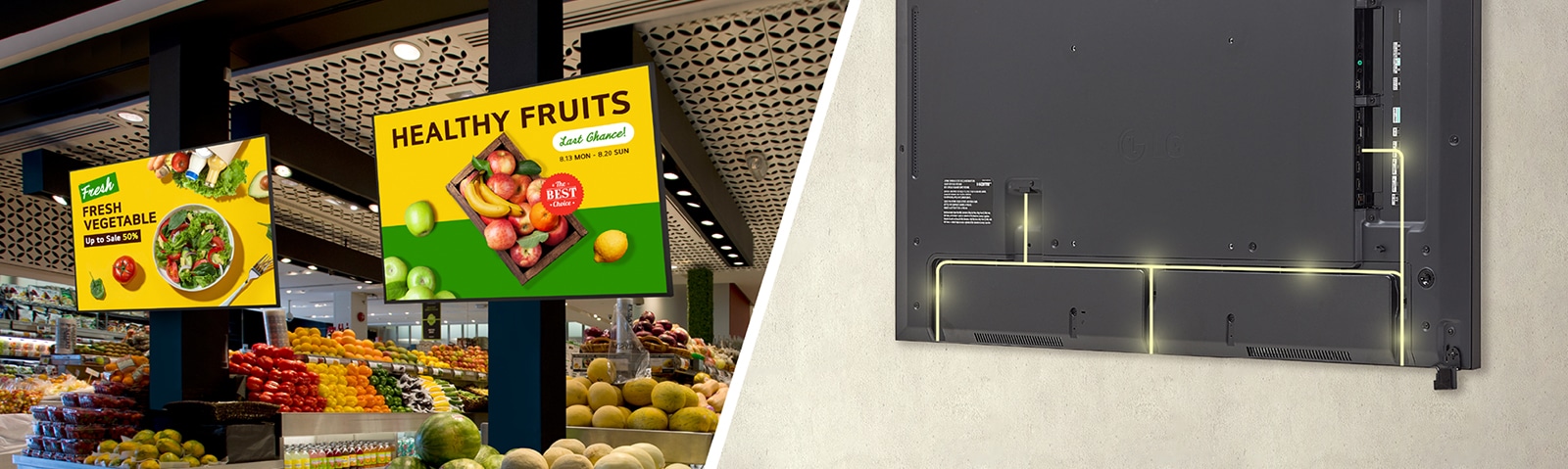

Design for Space Utilization

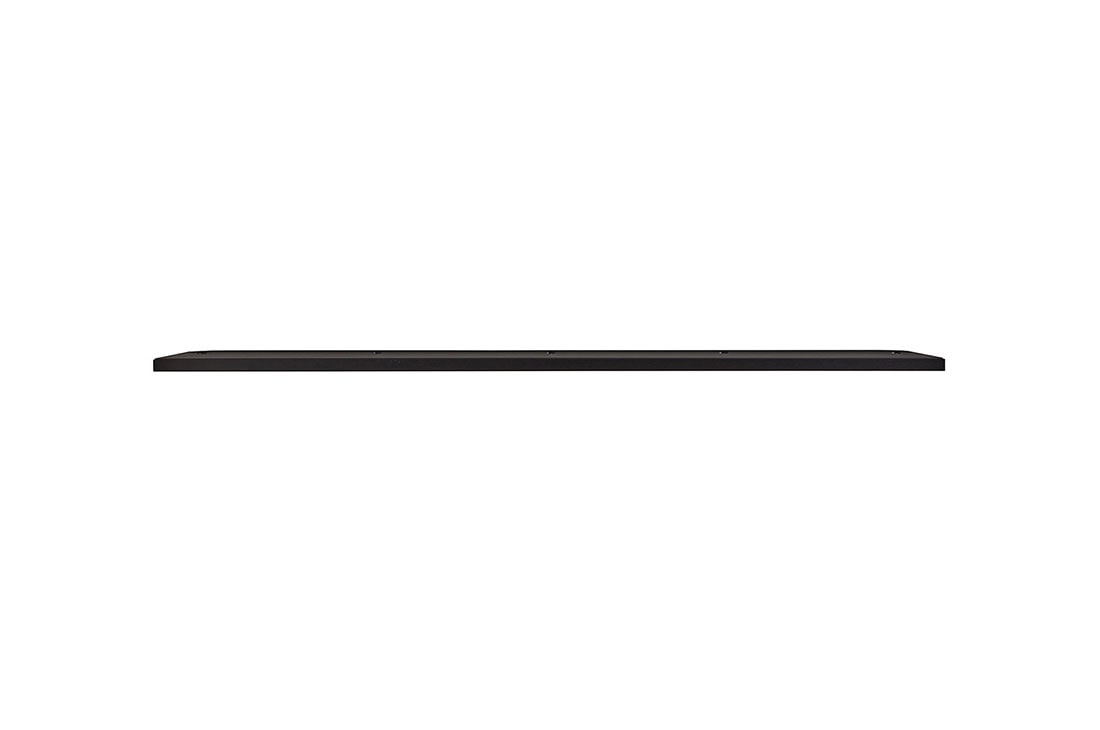

Designed with thin bezels and simple cable management, the UV5N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about .5 in (13 mm) of space with the slim bracket.

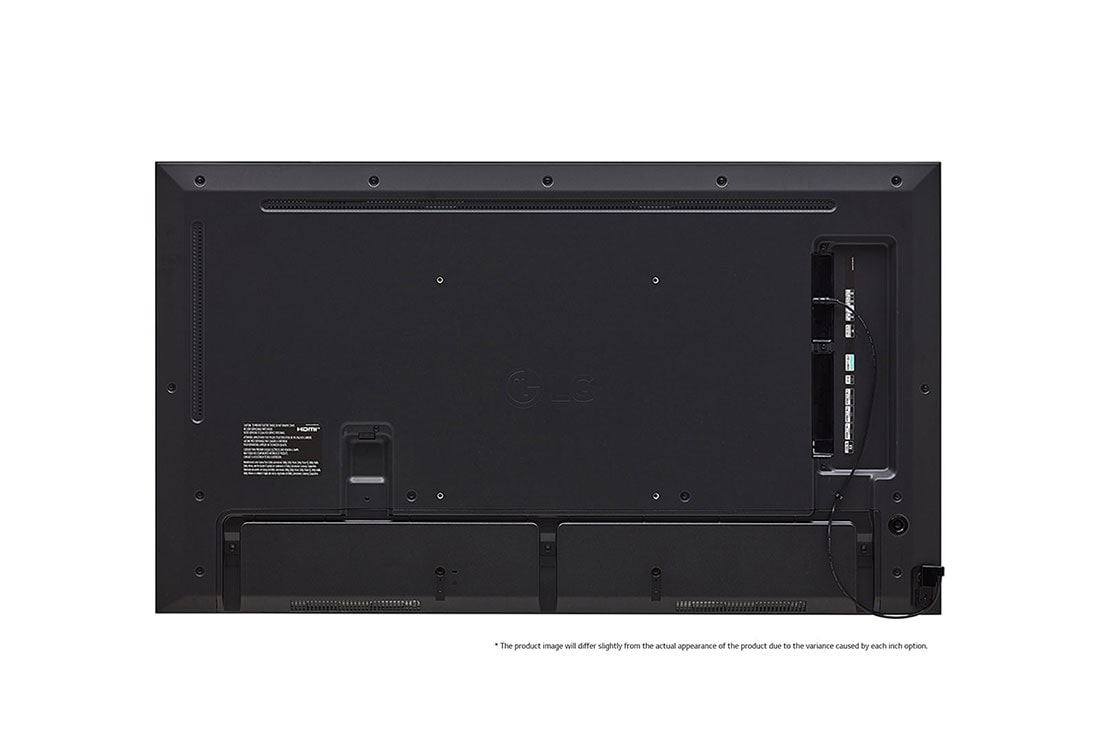

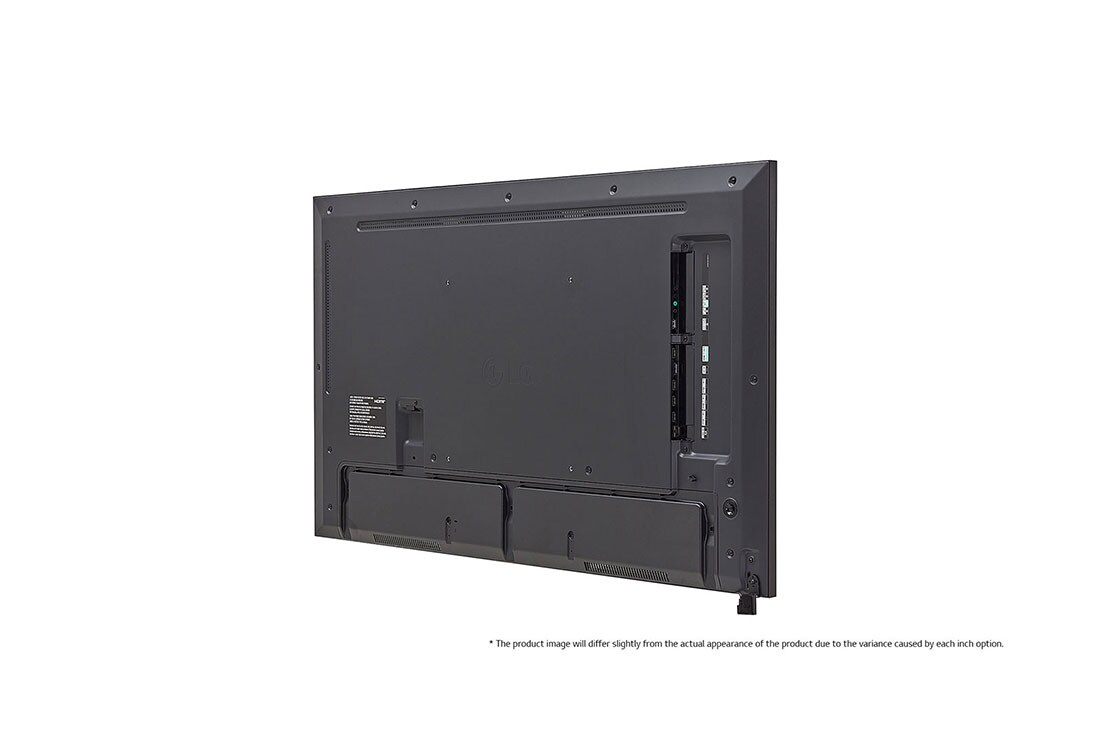

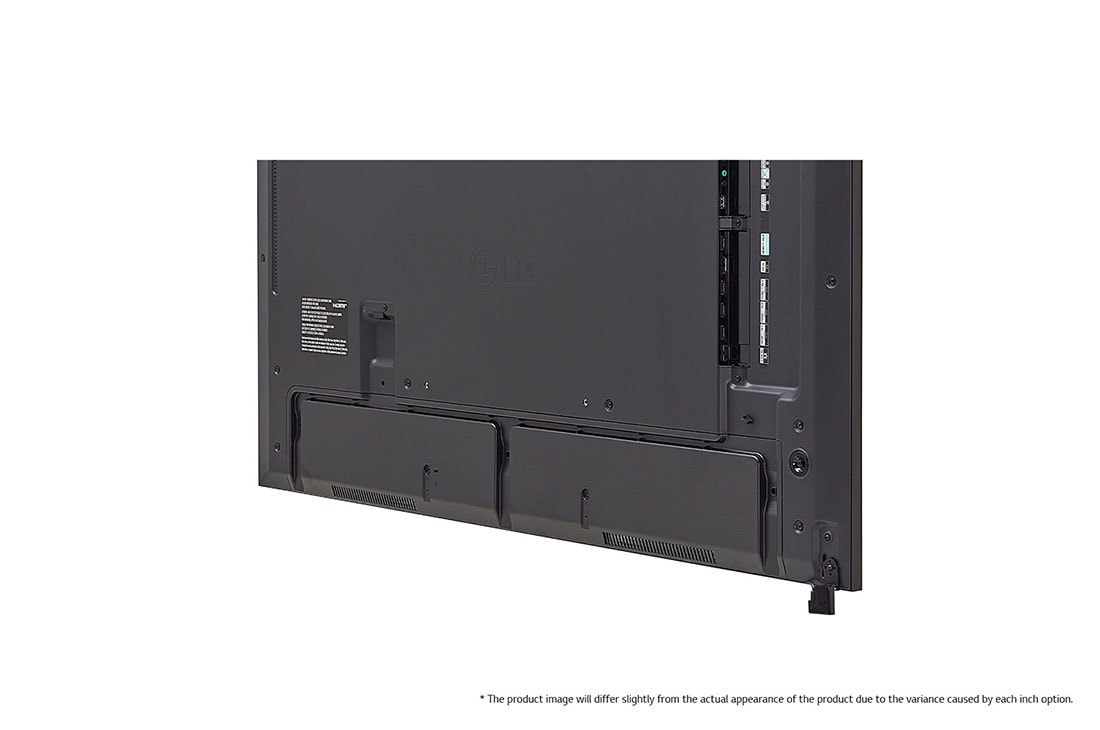

*Images are simulated for illustration purposes only. The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

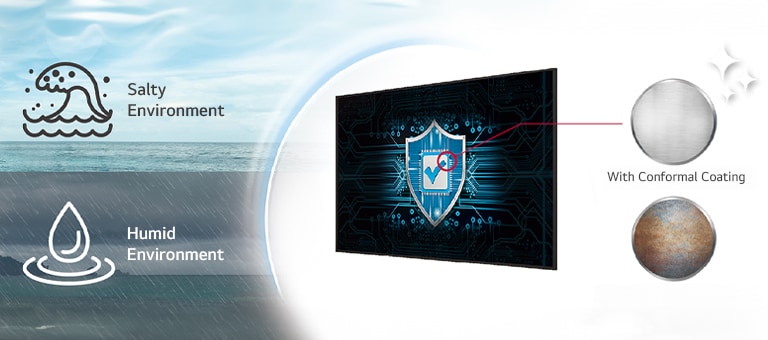

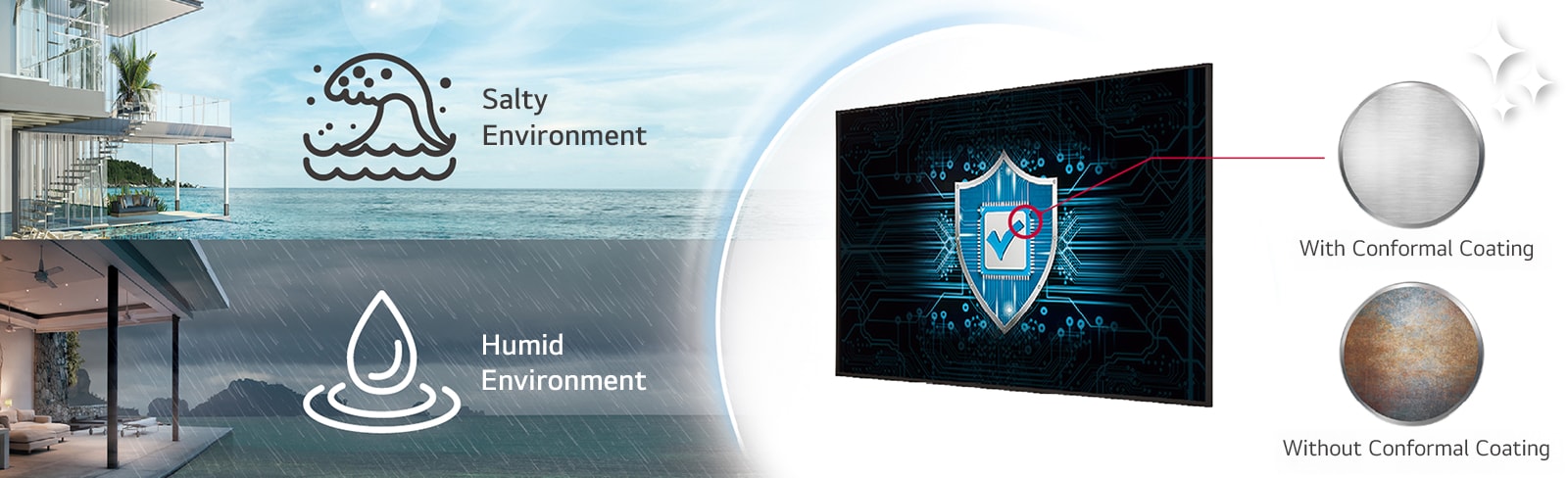

Durability that Provides Reliability
Optimized for business environments, the UV5N-E is protected against salt, dust, iron powder and humidity thanks to conformal coating on the power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and flexibility.
Enhanced Security Features
Built exclusively for digital signage, BrightSignOS offers a fortified security system that can be configured to any security profile with a secure, signature-verified operating system that runs only approved signage applications. This security extends to integrated CMS solutions and the free bsn.Control remote management service.
Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and generations to come. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.
PANEL
-
- Screen Size (Inch)
- 49"
- Panel Technology
- IPS
-
- Back Light Type
- Edge
- Aspect Ratio
- 16:9
-
- Native Resolution
- 3,840 x 2,160 (UHD)
- Refresh Rate
- 60 Hz
-
- Brightness (Typ.)
- 502 nits
- Contrast Ratio
- 1,100:1
-
- Dynamic CR
- 1,000,000:1
- Color Gamut
- BT709 95%
-
- Viewing Angle (H x V)
- 178° x 178°
- Color Depth (Number of Colors)
- 12 bit, 1.07 Billion colors
-
- Response Time
- Tr: 8ms / Tf: 10ms
- Surface Treatment (Haze)
- 28%
-
- Lifetime*
- Up to 50,000 Hours
- Operation Hours (Hours/Day)
- 24 / 7
-
- Portait / Landscape
- Yes / Yes
CONNECTIVITY
-
- HDMI IN
- Yes (x3) 3840x2160 @ 60Hz HDCP 2.2/1.4
- DP In
- Yes (x1) 3840x2160 @ 60Hz HDCP2.2/1.3
-
- RS232C In
- Yes (x1), 4-pin 3.5 mm Jack
- RJ45(LAN) IN
- Yes (x1)
-
- IR In
- Yes (x1)
- USB IN
- USB2.0 Type A (x1)
-
- HDMI Out
- Yes (x1) 3840x2160 @ 30Hz Input: HDMI1/2/3/DP
- Audio Out
- Yes (x1)
-
- RS232C OUT
- Yes (x1), 4-pin 3.5 mm Jack
- Daisy Chain
- O(Input HDMI, DP / Output HDMI)
MECHANICAL
-
- Bezel Color
- Black
- Bezel Width
- T/R/L: 8.9mm, B: 12.9mm
-
- Weight
- 30.0 lbs. / 13.6 kg
- Shipping Weight
- 35.5 lbs. / 16.1 kg
-
- Dimensions without IR (W x H x D)
- 43.1 x 24.8 x 1.2 in. 1095.6 x 630.8 x 29.7 mm
- Carton Dimensions (W x H x D)
- 47.8 x 29.0 x 6.0 in. 1215.0 x 736.0 x 152.0 mm
-
- Handle
- No
- Tilt (Face Down)
- Yes (Max 30-degrees, 104°F temp.)
-
- Solid Ingress Rating (Dust Protection)
- IP5X
- Conformal Coating (Power Board)
- Yes
-
- VESATM Standard Mount Interface
- 300 x 300
- Operation Temperature
- 32°F to 104°F, 0°C to 40°C
-
- Operation Humidity
- 10% to 80%
HARDWARE FEATURES
-
- Internal Memory (eMMC)
- 16 GB
- Built-in Wi-Fi / Bluetooth
- Yes / Yes
-
- Temperature Sensor
- Yes
- Auto Brightness sensor
- Yes
-
- Acceleration(Gyro) Sensor
- Yes
- Local Key Operation
- Yes
ELECTRICAL
-
- Power Supply
- 100 to 240 Vac, 50/60 Hz
- Power Type
- Built-In Power
-
- Typ.
- 90W
- Max.
- 130W
-
- BTU (British Thermal Unit)
- 307 BTU/Hr(Typ.), 444 BTU/Hr(Max)
- Smart Enegy Saving (70%)
- 70 W
-
- DPM
- 0.5 W
- Power off
- 0.5 W
SOFTWARE FEATURES
-
- OS Ver. (webOS)
- webOS6.0 (BrightSignOS compatible)
- Local Contents Scheduling
- Yes
-
- Group Manager
- Yes
- USB Plug & Play
- Yes
-
- Fail over
- Yes
- Booting Logo Image
- Yes
-
- No Signal Image
- Yes
- RS232C Sync
- Yes
-
- Local Network Sync
- Yes
- PIP
- Yes
-
- PBP
- Yes (x4)
- Screen Share
- Yes
-
- Video Tag
- Yes (x4)
- Play via URL
- Yes
-
- Screen Rotation
- Yes
- External Input Rotation
- Yes
-
- Gapless Playback
- Yes
- Tile Mode Setting
- Yes (Max. 15 x 15)
-
- Setting Data Cloning
- Yes
- SNMP
- Yes
-
- ISM Method
- Yes
- Auto Set ID
- Yes
-
- Status Mailing
- Yes
- Control Manager
- Yes
-
- Cisco Certification
- Yes
- Crestron Connected
- Yes
-
- Smart Energy Saving
- Yes
- PM mode
- Yes
-
- Wake on LAN
- Yes
- Network Ready
- Yes
-
- Beacon
- Yes
- HDMI-CEC
- Yes
-
- SI Server Setting
- Yes
- webRTC
- Yes
-
- Pro:Idiom
- Yes
SOUND
-
- Built-in Speakers
- Yes (10 W x 2)
REGULATORY & CERTIFICATIONS
-
- Safety
- NRTL
- EMC
- FCC Class "B"
-
- Energy Star
- Yes
- ePEAT(US only)
- Yes
LG SOFTWARE COMPATIBILITY
-
- SuperSign CMS
- Yes
- SuperSign Control / Control+
- Yes/Yes
-
- SuperSign WB
- Yes
- SuperSign Cloud
- Yes
-
- Mobile CMS
- Yes
- Connected Care
- Yes
Languages
-
- Onscreen Display Languages
- English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Warranty & Other
-
- Warranty
- 3 Year Limited
- Basic Accessories
- Remote Control (includes 2 batteries), Power Cord, QSG, Regulation Book, 3.5mm to RS232C Adapter, Cable Holder (x2), AC Cord Holder
-
- Optional Accessories (Available for an additional cost)
- Wall Mount (OLW480A/B) Slim Wall Mount (WB21LMA/B) Wall Mount Adapter (AM-B330S)
