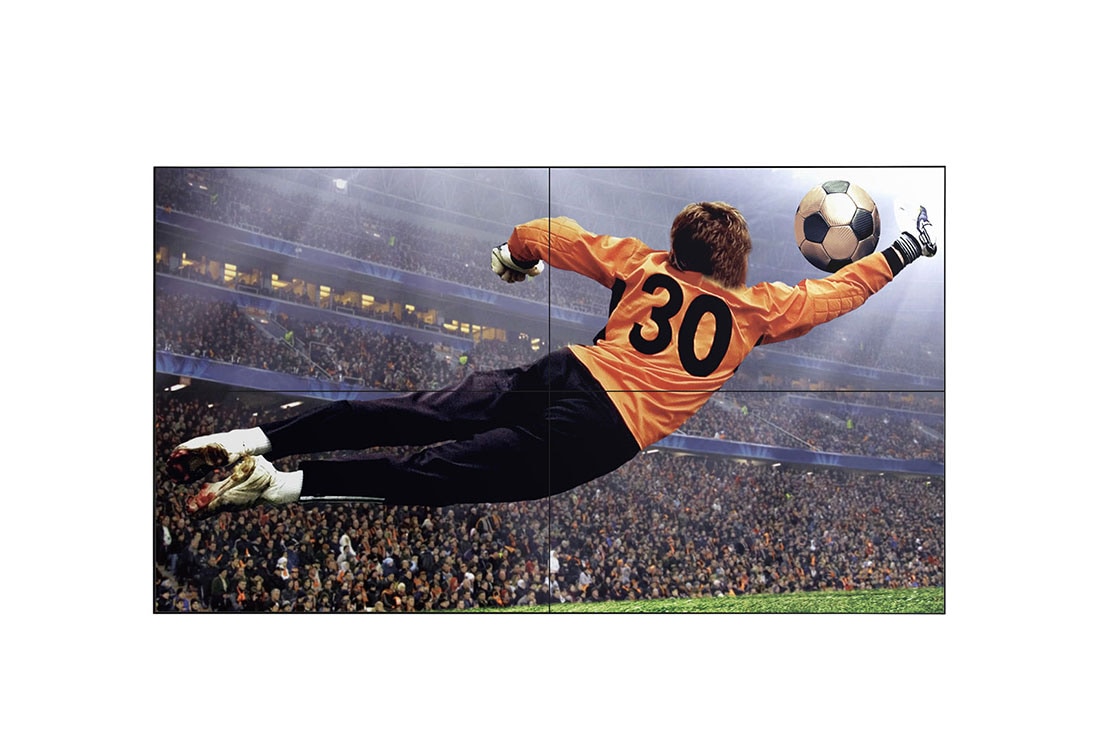

49” VL5G-A Series 2.25mm Slim Bezel FHD IPS Video Wall with 500nits Brightness, Image Gap Reduction & Wide Viewing Angles
PANEL
-
- Screen Size
- 49"
- Panel Technology
- IPS
-
- Back Light Type
- Direct
- Aspect Ratio
- 16:9
-
- Native Resolution
- 1,920 x 1,080 (FHD)
- Max Input Resolution
- 1,920 x 1,080 (FHD)
-
- Refresh Rate
- 60Hz
- Brightness
- 500nits
-
- Contrast Ratio
- 1,000:1
- Dynamic CR
- 500,000:1
-
- Color Gamut
- NTSC 72%
- Viewing Angle (H x V)
- 178° x 178°
-
- Color Depth
- 10 bits, 1.07 Billion colors
- Response Time (G to G)
- 8ms
-
- Surface Treatment (Haze)
- 3%
- Lifetime (Typ.)
- 60,000 Hrs
-
- Operation (Hours/Day)
- 24/7
- Portrait / Landscape
- Yes/Yes
CONNECTIVITY
-
- HDMI
- Yes (2), HDCP1.4
- DP
- Yes (1), HDCP1.3
-
- DVI-D
- Yes (1), HDCP1.4
- Audio In
- Yes
-
- RS-232C IN
- Yes
CONNECTIVITY
-
- RJ45 (LAN)
- Yes
CONNECTIVITY
-
- IR In
- Yes
- USB 2.0 Type A
- Yes
-
- DisplayPort Out
- Yes, Input: HDMI (HDCP X)/DVI (HDCP X)/DP (HDCP O)
- Audio Out
- Yes
-
- RS-232C OUT
- Yes
MECHANICAL
-
- Bezel Color
- Black
- Bezel Width (T/R/L/B)
- 2.25/1.25/2.25/1.25 mm
-
- Weight
- 37.3 lbs/16.9kg
- Shipping Weight
- 64.6 lbs/29.3kg
-
- Dimensions (W x H x D)
- 42.4 x 23.9 x 3.5 in/1077.6 x 607.8 x 89.7mm
- Shipping Dimensions (W x H x D)
- 47.8 x 30.6 x 10.4 in/1214 x 778 x 263 mm
-
- Handle
- Yes
- VESA™ Standard Mount Interface
- 600 x 400
-
- Temperature Sensor
- Yes
- Local Contents Scheduling
- Yes
-
- USB Plug & Play
- Yes
- Fail over
- Yes
-
- Booting Logo Image
- Yes
- No Signal Image
- Yes
-
- RS-232C Sync
- Yes
- Screen Rotation
- Yes
-
- Tile Mode Setting
- Yes (Max. 15 x 15)
- Setting Data Cloning
- Yes
-
- SNMP
- Yes
- ISM Method
- Yes
-
- Auto Set ID
- Yes
- Crestron Inside
- Yes
-
- Smart Energy Saving
- Yes
- PM mode
- Yes
-
- Wake on LAN
- Yes
- HDMI-CEC
- Yes
-
- SI Server Setting
- Yes
- W/B Setting by Grey scale
- Yes
-
- Scan Inversion
- Yes
ENVIRONMENT & POWER
-
- Operation Temperature
- 32°F to 104°F/0°C to 40°C
- Operation Humidity
- 10% to 80%
-
- Power Supply
- 100-240 Vac, 50/60Hz
- Power Type
- Built-In Power
-
- Power Consumption (Typ)
- 100W, 341 BTU/Hr
- Power Consumption (Max)
- 120W, 409 BTU/Hr
-
- Smart Energy Saving
- 60W
- DPM
- 0.5W
-
- Power off
- 0.5W
LG SOFTWARE COMPATIBILITY
-
- SuperSign CMS
- Yes
- SuperSign Control / Control+
- Yes/Yes
-
- SuperSign WB
- Yes
- SuperSign Media Editor
- Yes
-
- Signage 365 Care
- Yes
Warranty & Other
-
- Warranty
- 3 Year Limited
- FCC (Regulatory)
- Class "A"
-
- CE (Regulatory)
- Yes
- Energy Star (Environmental)
- Energy Star 8.0
-
- ErP (Environmental)
- Yes
- Basic Accessories
- Remote Control (x2 batteries), Power Cord, RS-232C cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
-
- Optional Accessories
- Landscape Wall Mount: WM-L640V/Portrait Wall Mount: WM-P640V
