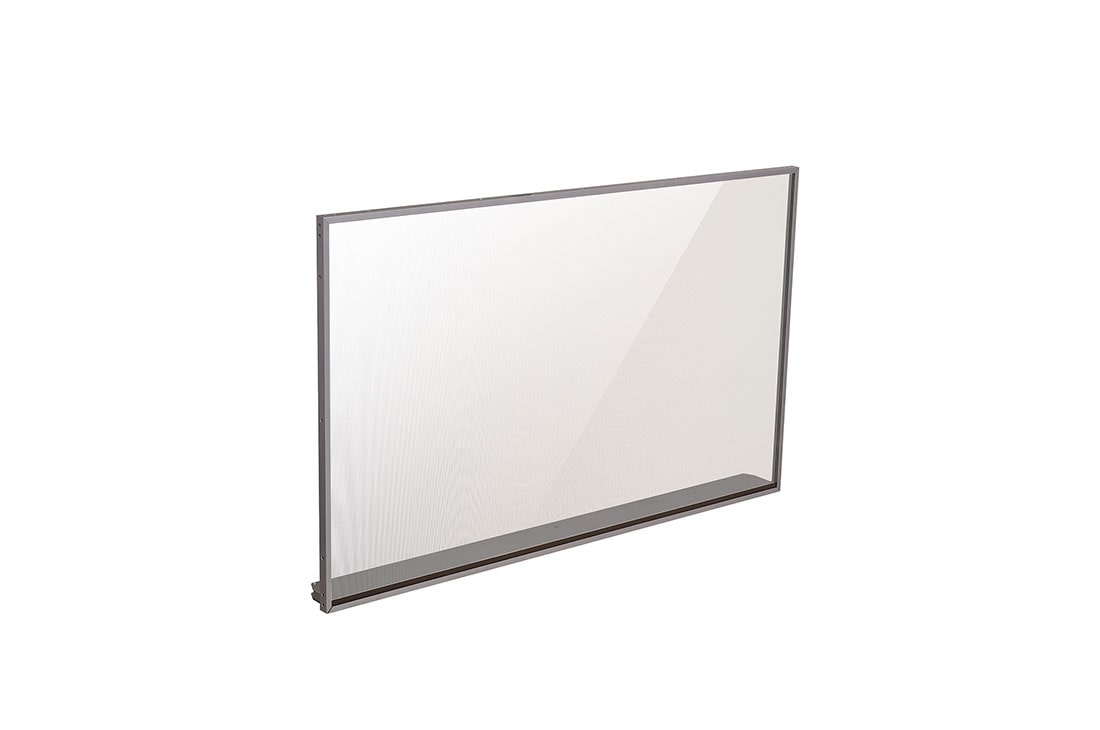

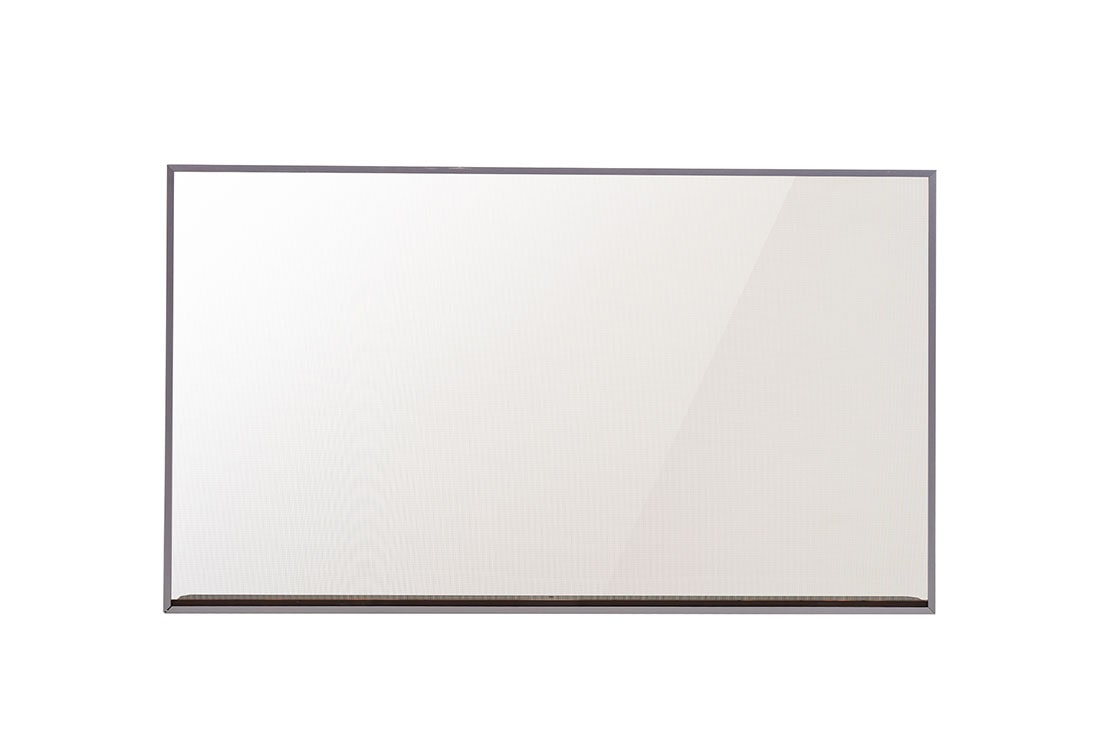

See the Unseen,
LG Transparent OLED
*Images are simulated for illustration purposes only.

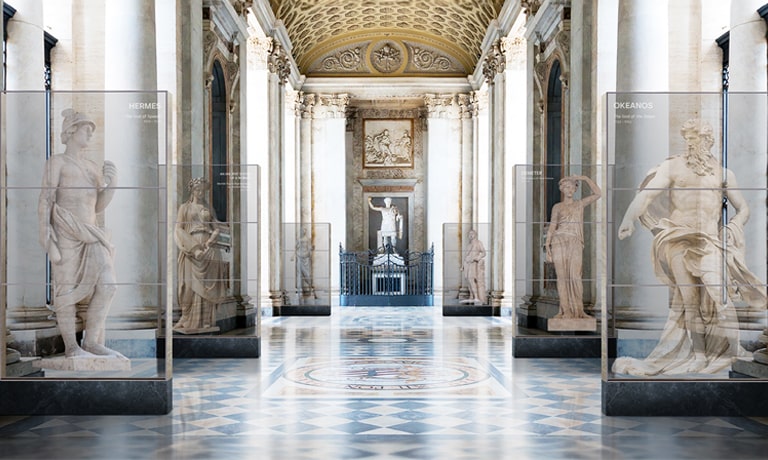

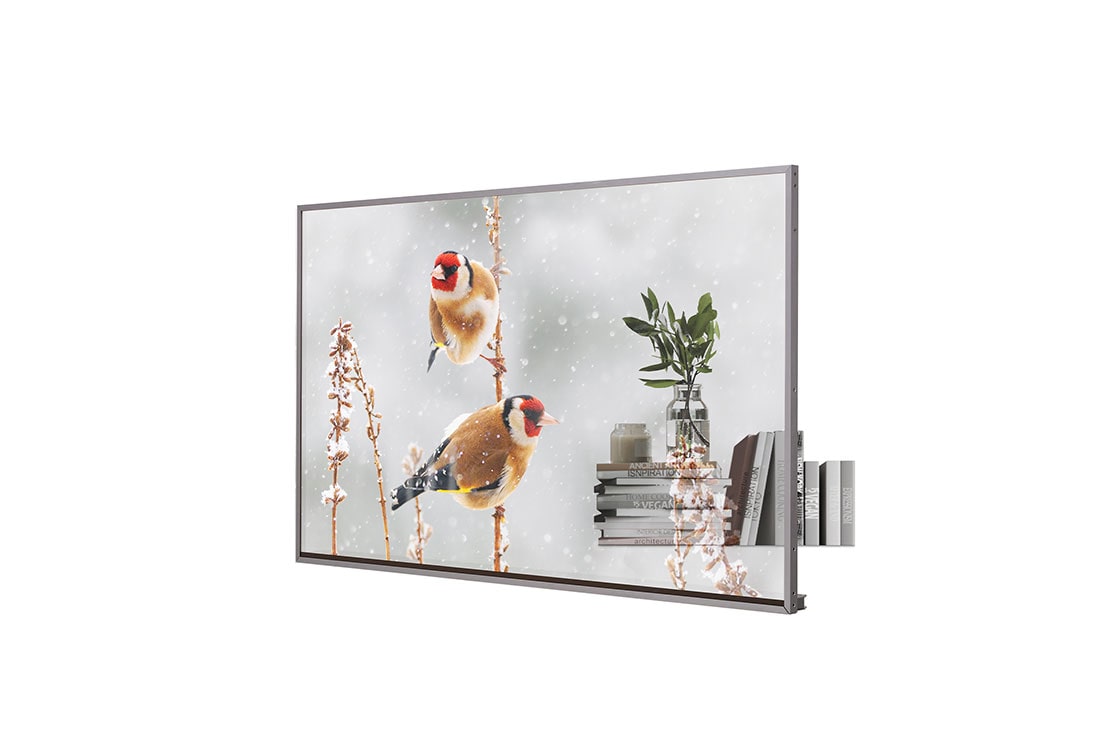

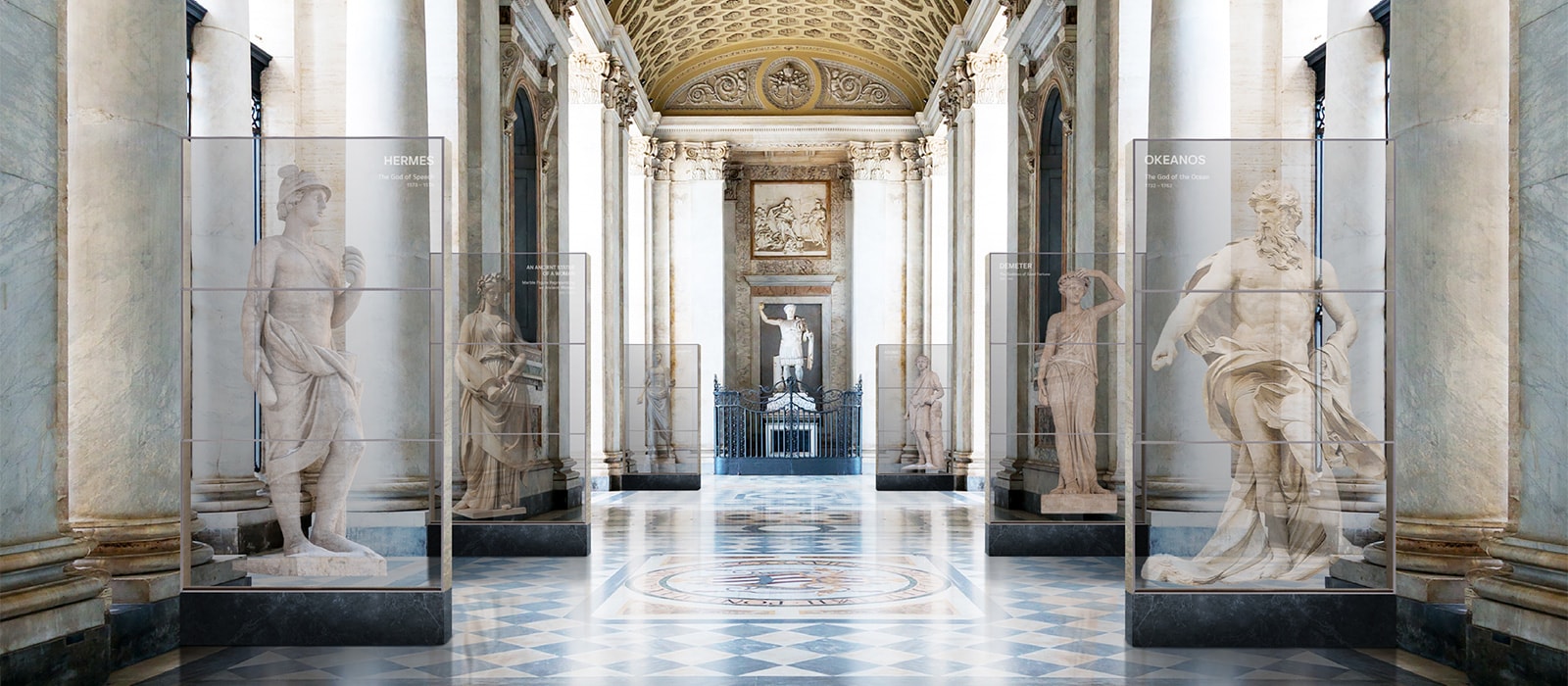

High Transparency
LG OLED technology enables the Transparent OLED Signage to have a sleek design without the need for a backlight unit or liquid crystal layer, achieving an impressive 43% transparency.* It clearly displays objects behind the screen while overlaying additional information directly in front of them.
*Images are simulated for illustration purposes only. Transparency Testing Conducted in 2022 by LG Display Using a Hazemeter

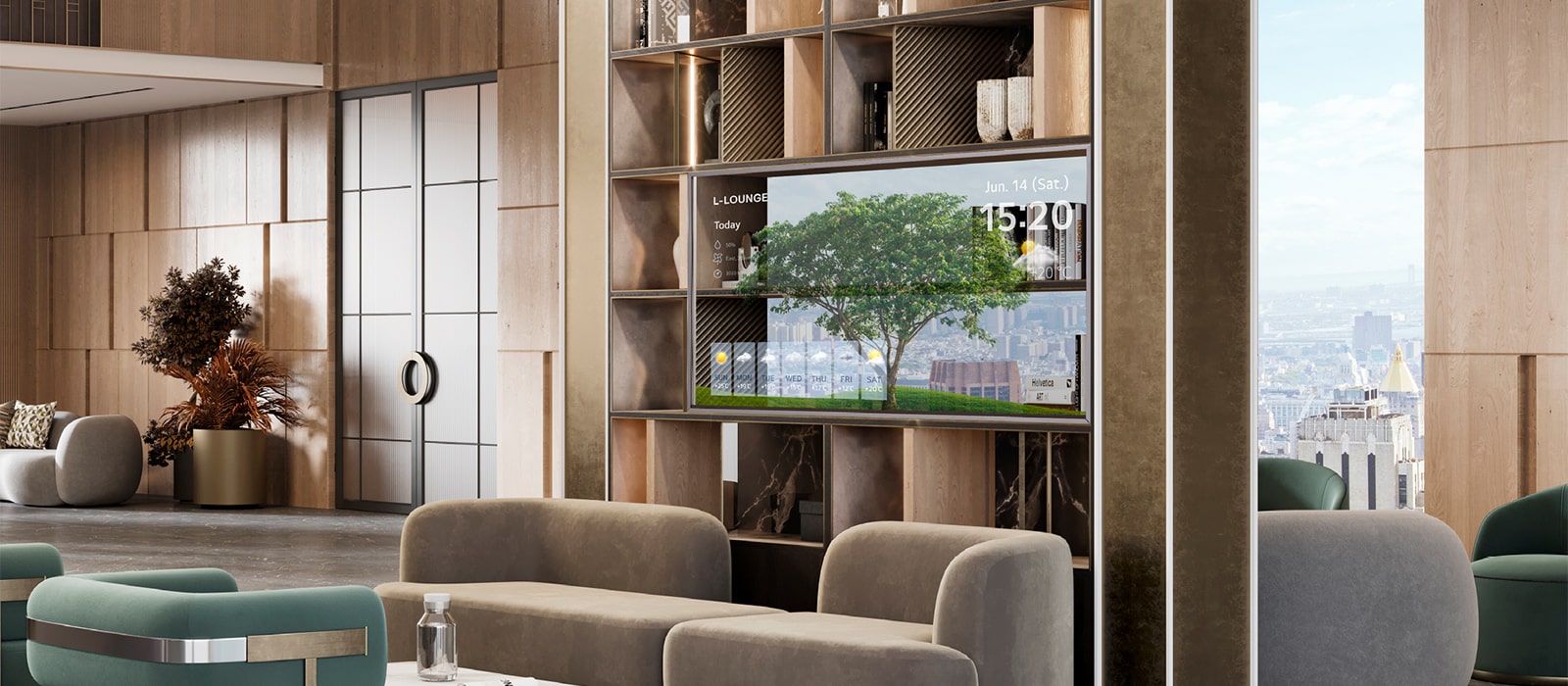

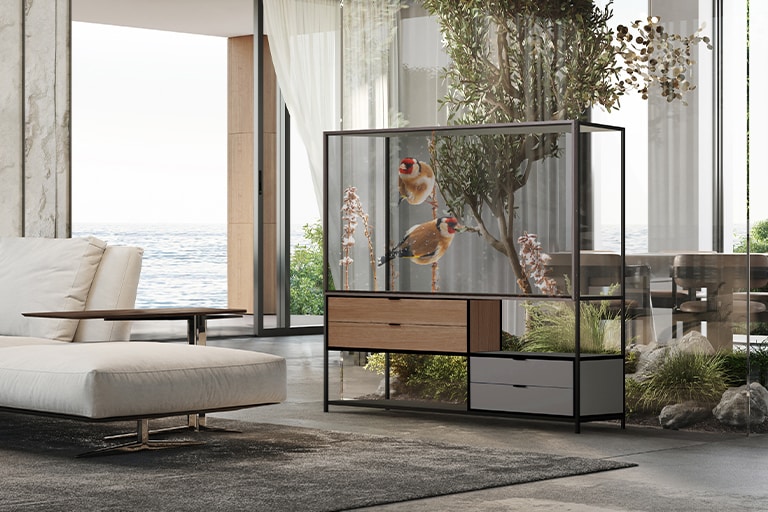

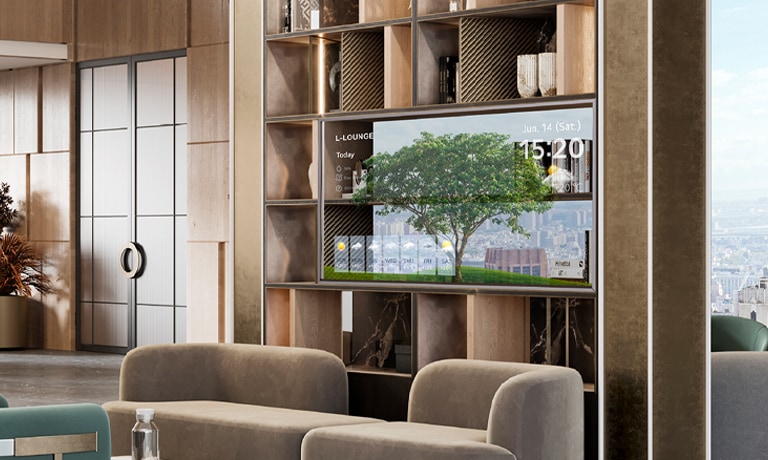

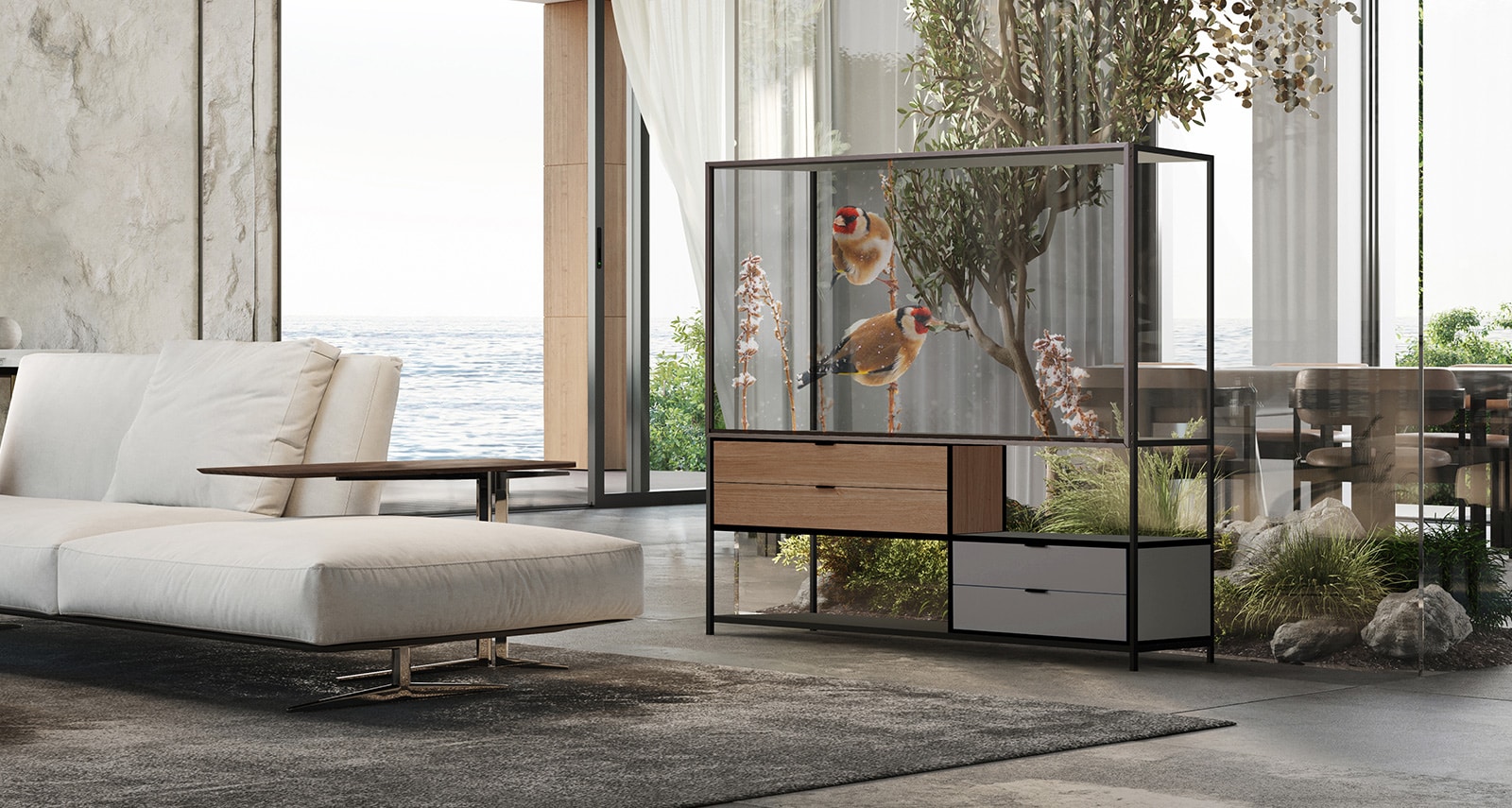

Sleek Elegance in Transparency
Connecting spaces and adding a sense of openness, this transparent display boasts a beautiful design that complements high-end furniture and luxurious interiors. Its clean metal finish allows for easy installation on furniture, walls, or practically any desired location.
*Images are simulated for illustration purposes only.

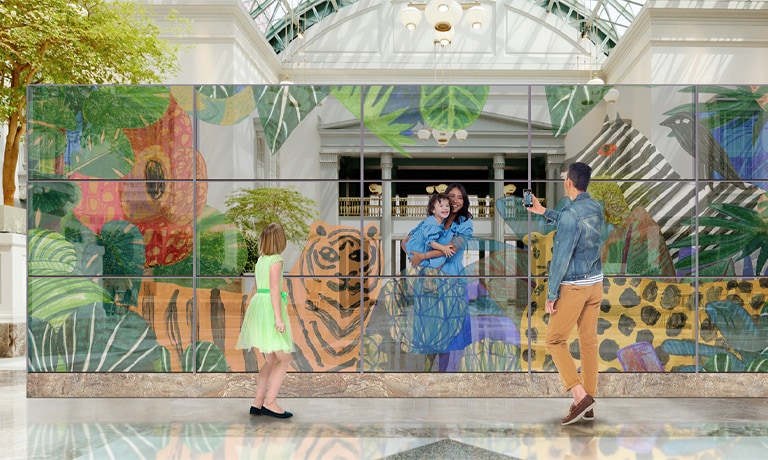

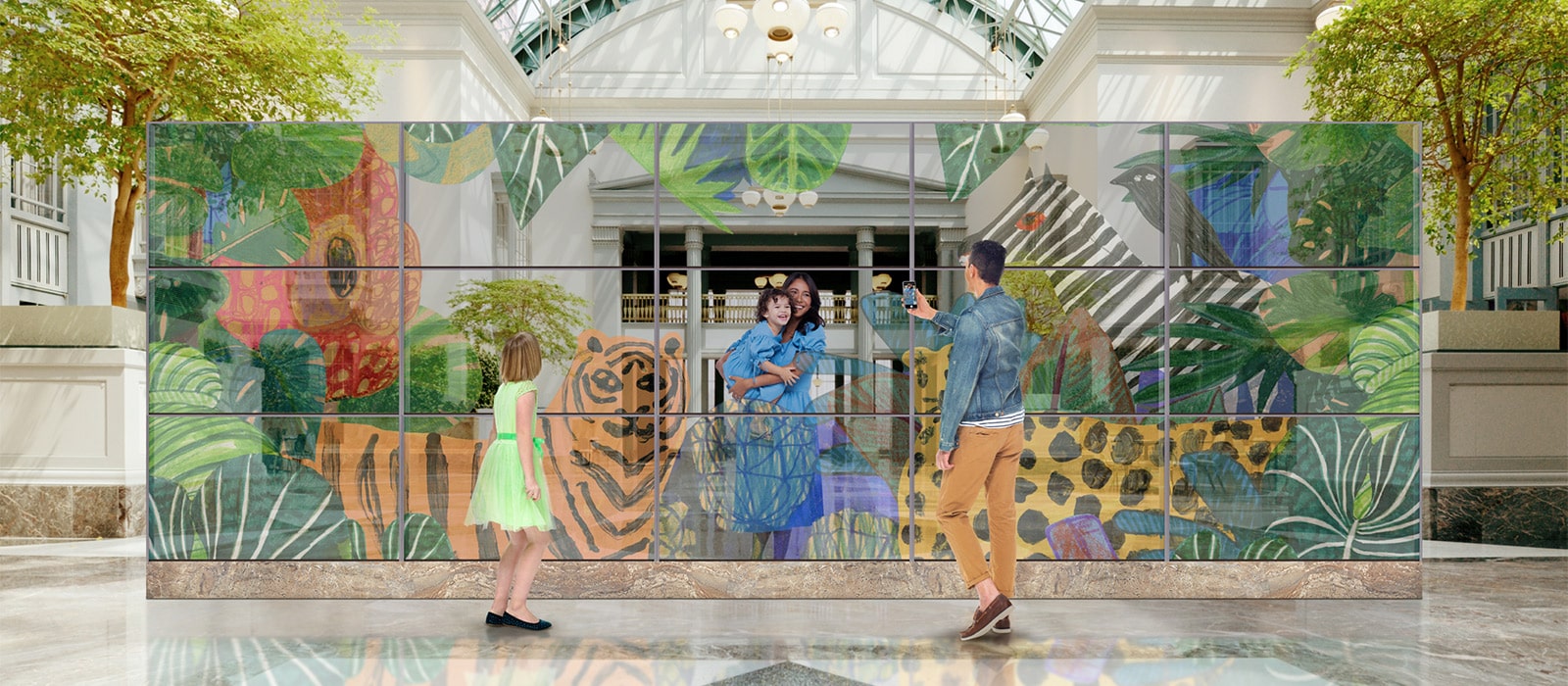

Expandable Design
Thanks to the improved mechanical design, it can be installed in various ways, whether as a single unit or as a truly transparent wall, to fit existing structures and spaces. Place this product in your dream space to enhance openness and aesthetics.
*Images are simulated for illustration purposes only.

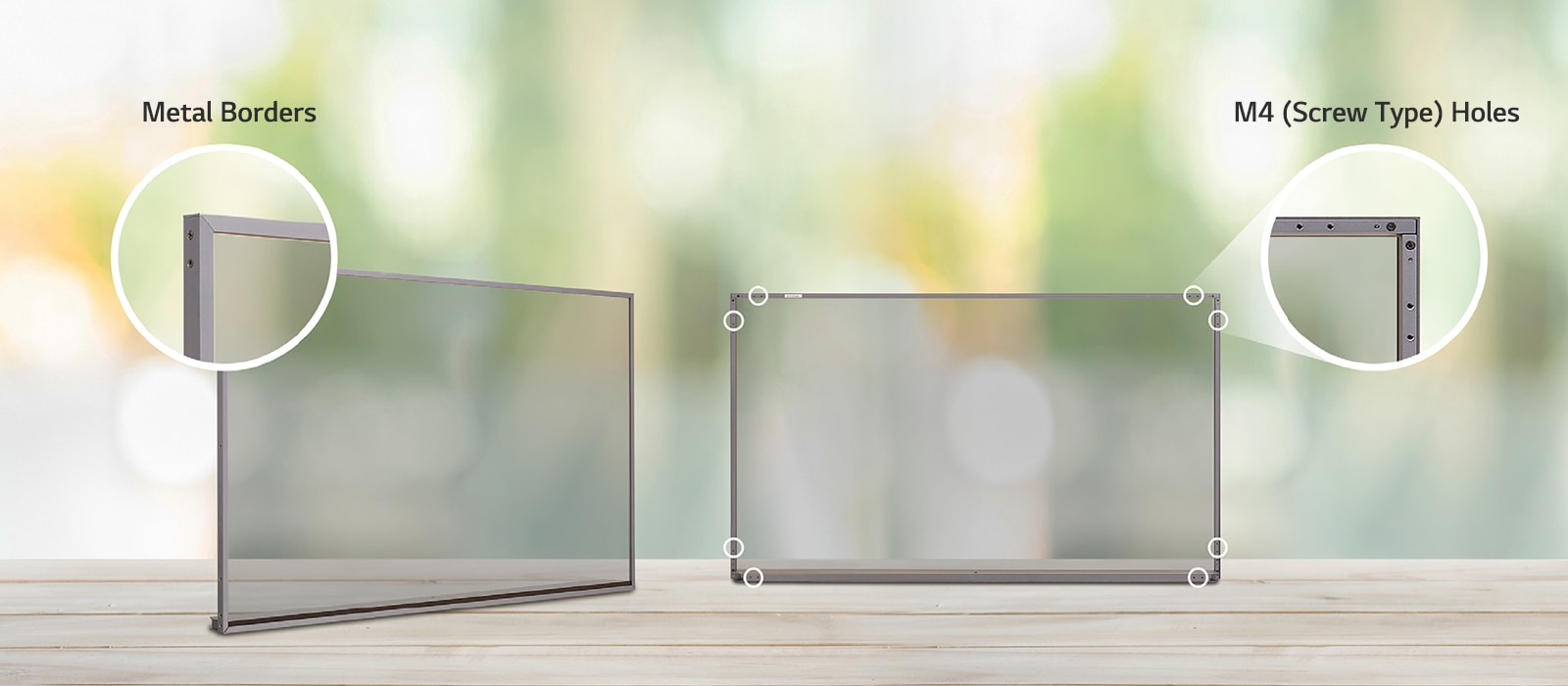

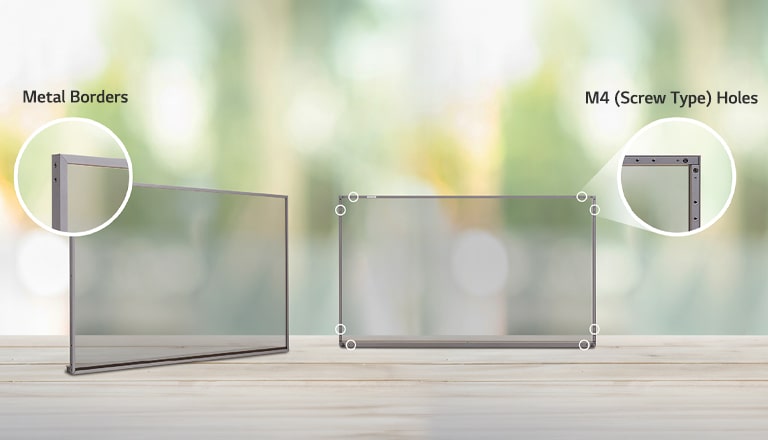

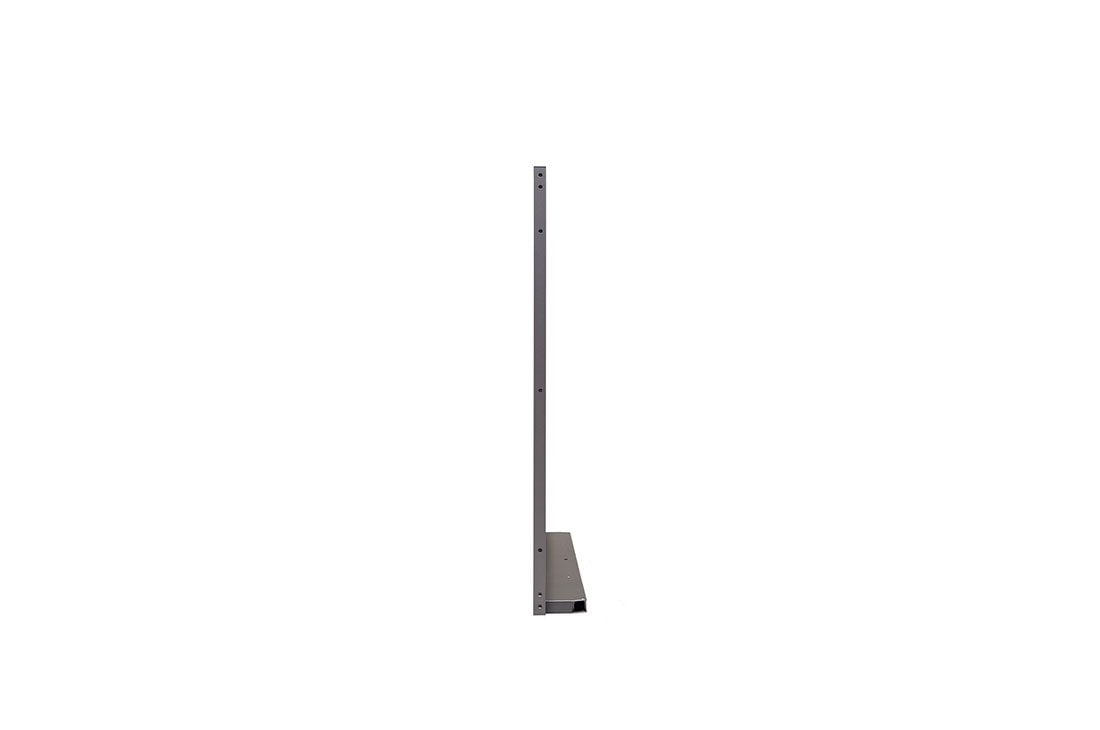

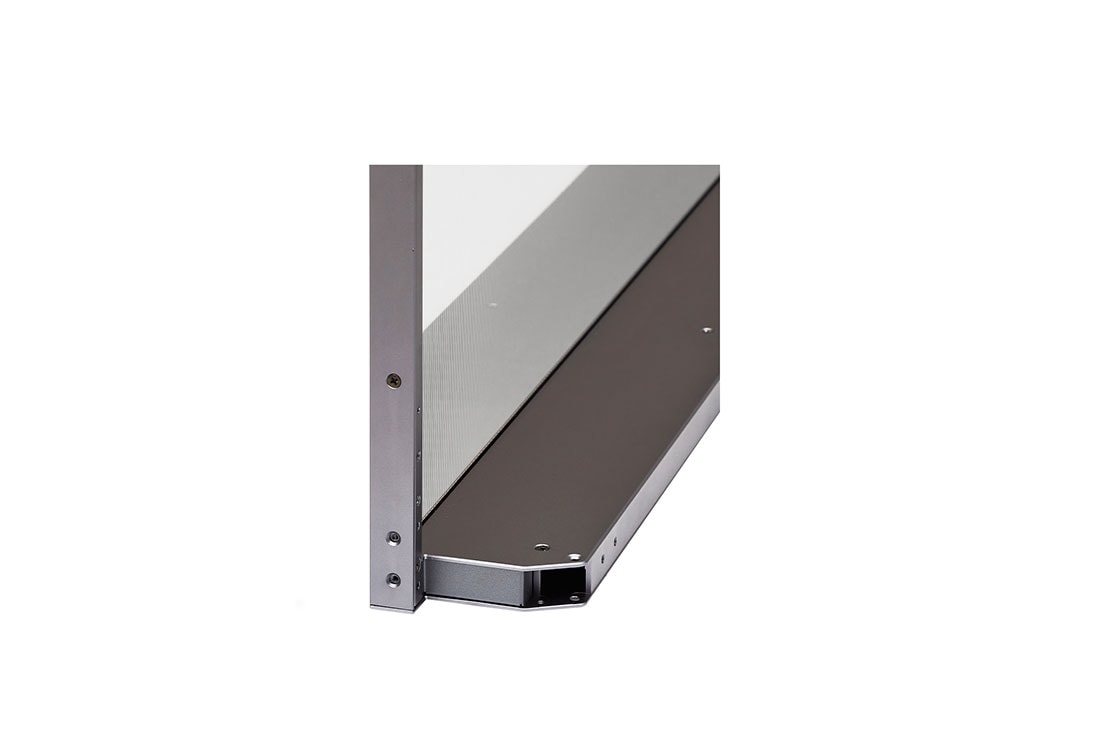

Convenience of Installation & Stability
This product offers ease and stability during installation thanks to its metal borders and structure. In other words, the metal border applied to the bezel areas enhances the product’s rigidity. Additionally, M4 apertures, which are widely-used globally, are incorporated into all rear corners to facilitate installation.
* Screws are not supplied.

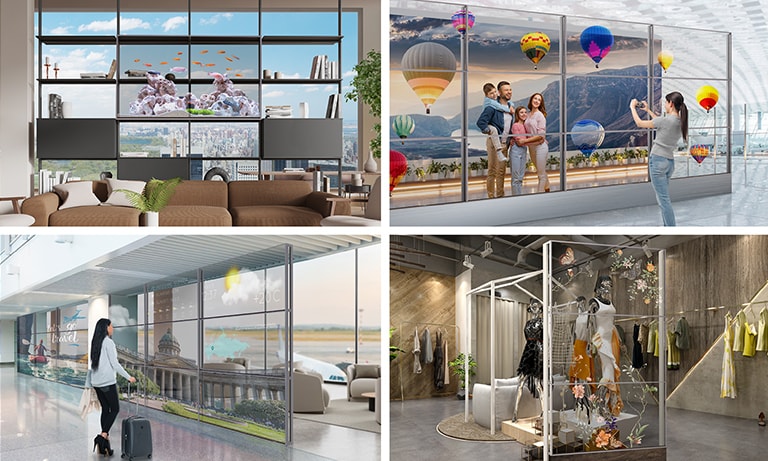

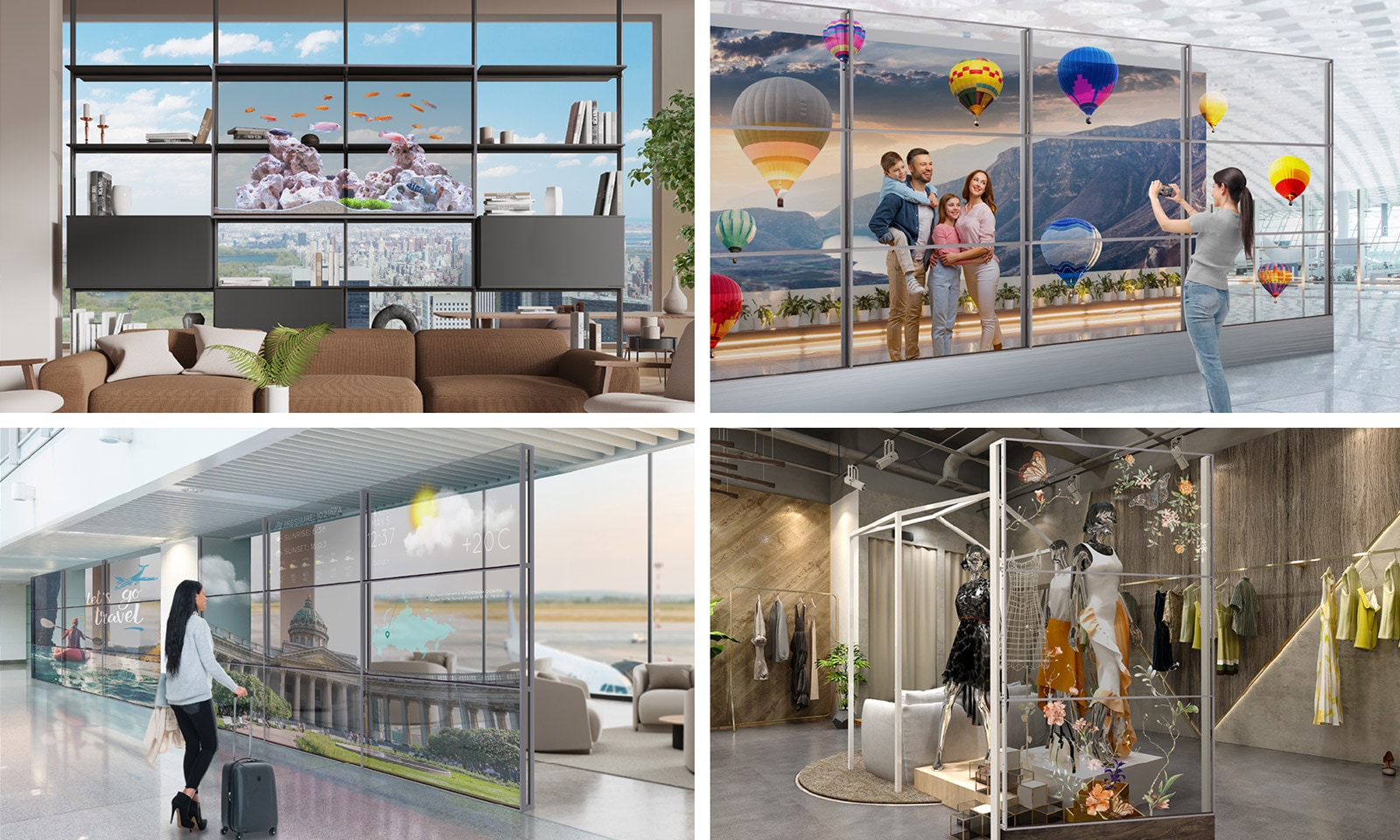

Elevates Virtually Any Setting
Experience the marvel of LG’s state-of-the-art Transparent OLED Signage, designed for use in various spaces. This product breaks down the barriers between the screen and reality, seamlessly connecting different spaces, objects, and people.

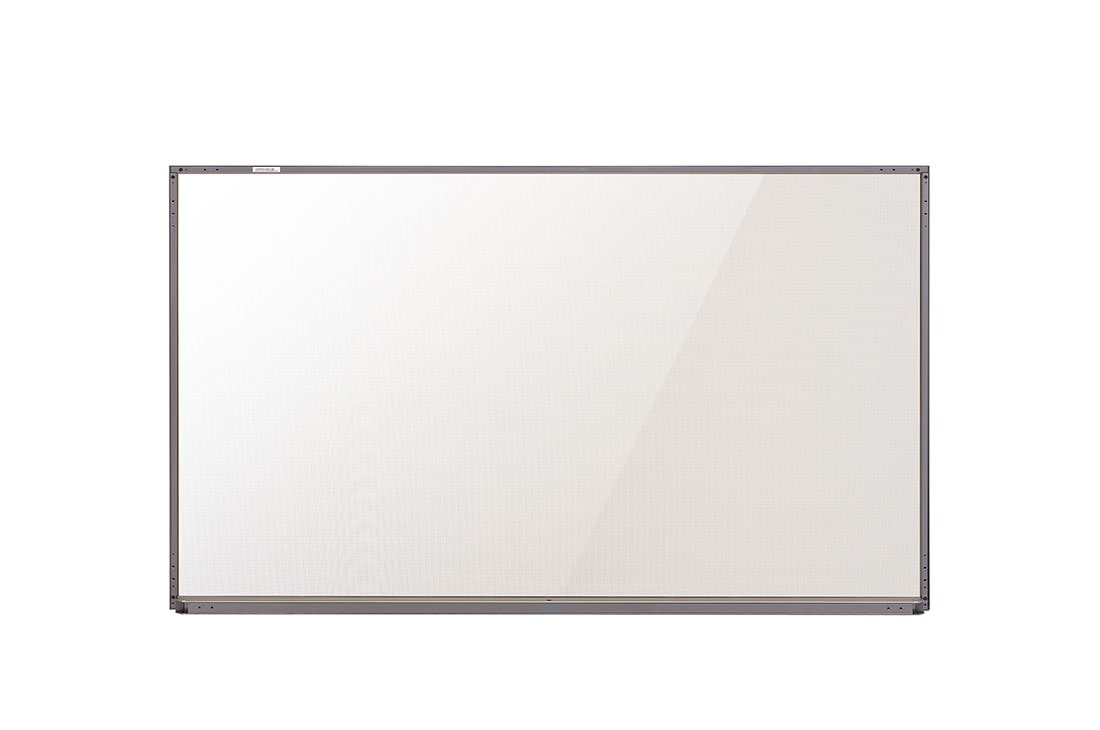

PANEL
-
- Screen Size
- 55"
- Panel Technology
- OLED
-
- Back Light Type
- OLED
- Aspect Ratio
- 16:9
-
- Native Resolution
- 1,920 × 1,080 (FHD)
- Refresh Rate
- 120 Hz
-
- Brightness
- 200 / 600 nit (APL 100% / 25%, without Glass)
- Contrast Ratio
- 200,000 : 1
-
- Dynamic CR
- No
- Color Gamut
- DCI 90%, BT709 110%
-
- Viewing Angle (H × V)
- 178° × 178°
- Color Depth
- 10 bit (R), 1.07 Billion Colors
-
- Response Time
- 0.1 ms (G to G), 8 ms (MPRT)
- Surface Treatment (Haze)
- Haze 3% (Set), Hard Coating (5 H)
-
- Lifetime*
- 30,000 Hours (Typ.)
- Operation Hours (Hours / Day)
- 18 / 7 (Moving Content Only)
-
- Portrait / Landscape
- Yes / Yes
- Transparency
- 43% (Set)
-
- QWP (Quarter Wave Plate)
- No

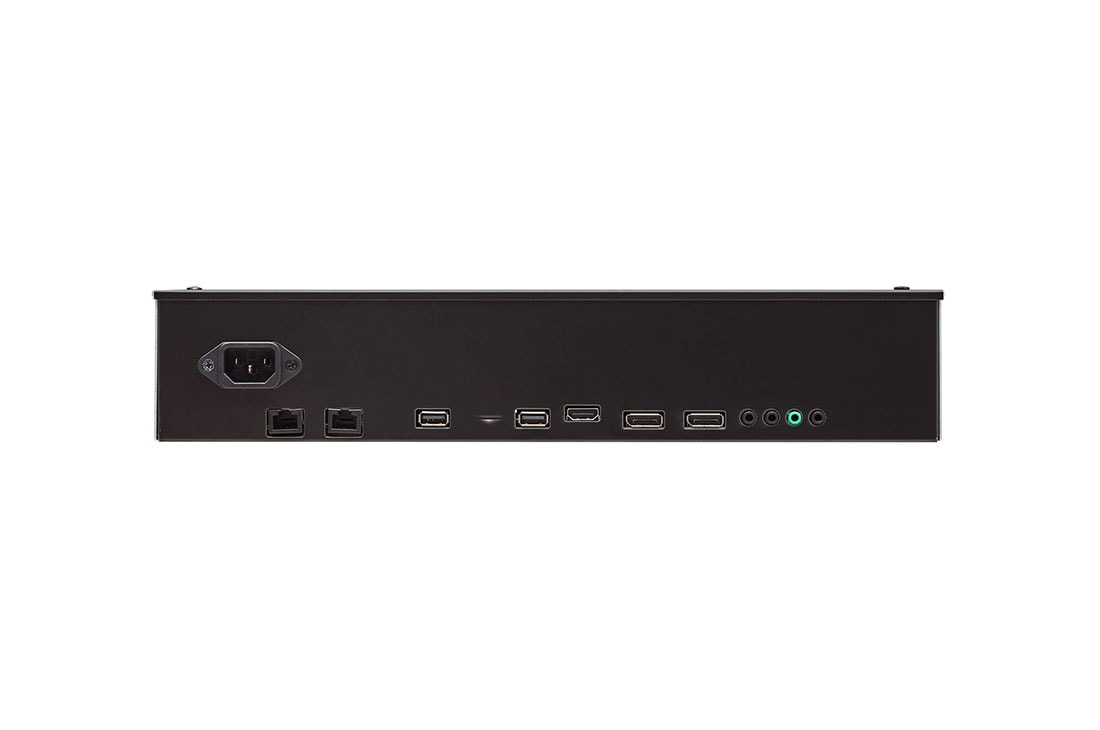

CONNECTIVITY
-
- Input
- HDMI (HDCP 2.2/1.4), DP (HDCP 1.3), RS-232C, RJ45 (LAN), IR (External IR Receiver), USB 2.0 Type A (x2), Daisy Chain (HDMI, DP)
- Output
- DP, Audio, RS-232C, RJ45 (LAN), IR (Sharing RS-232C), Daisy Chain (DP)
MECHANICAL
-
- Bezel Color
- Transparent
- Bezel Width
- 12.2 mm Even (T/R/L/B)
-
- Weight
- 31.1 lbs. / 14.1 kg (Display), 5.7 lbs. / 2.6 kg (Signage Box)
- Shipping Weight
- 66.1 lbs. / 30.0 kg
-
- Display Dimensions (W × H × D)
- 48.7 x 28.3 x 3.4 in. / 1,237.6 × 717.9 × 86.5 mm

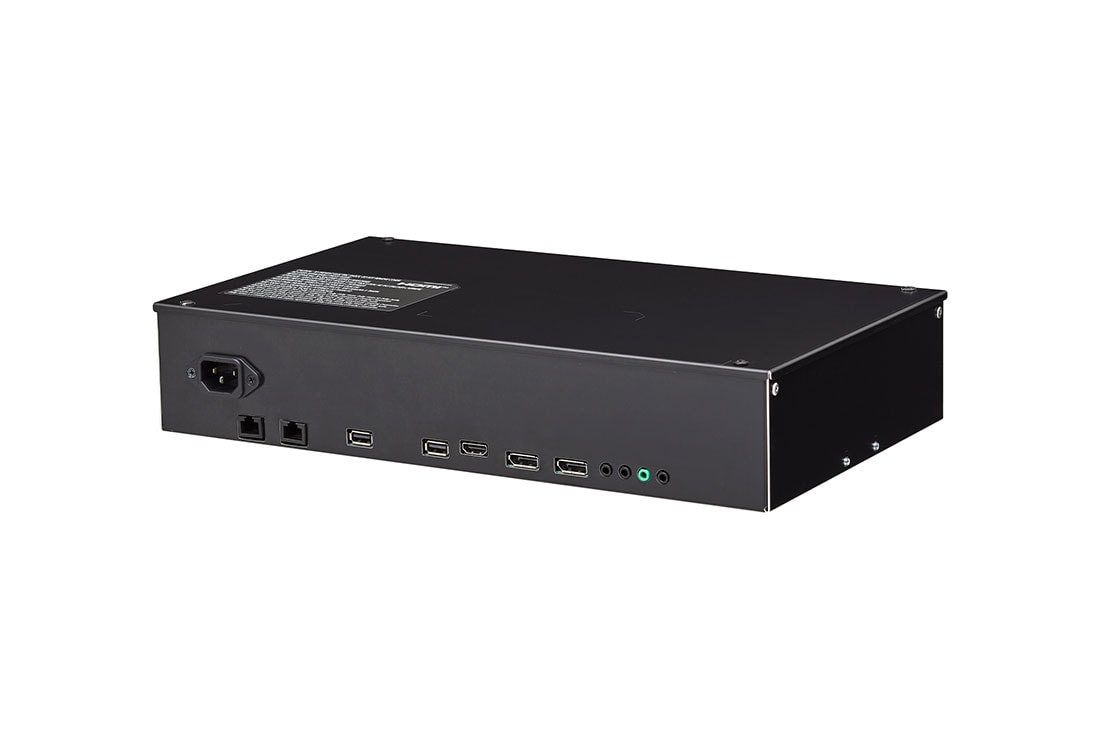

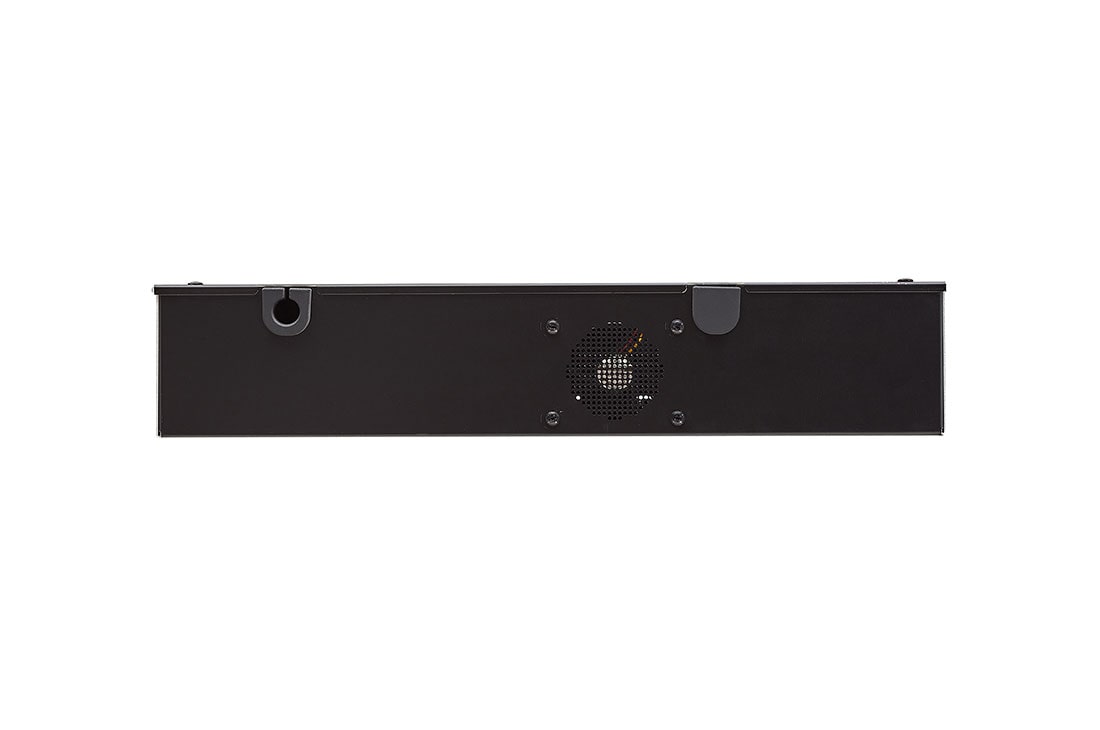

- Signage Box Dimensions (W × H × D)
- 15 x 8.6 x 2.9 in. / 381.6 × 217.6 × 73.6 mm
-
- Shipping Dimensions (W × H × D)
- 53.9 x 9.6 x 37.7 in. / 1,368 × 245 × 957 mm
- Conformal Coating (Power Board)
- Yes
-
- Protection Glass-Thickness
- 0.1 in. / 3.0 mm
- Protection Glass-Chemical Strengthening
- Yes
-
- Protection Glass-Anti-reflective
- Yes (Film)
- Protection Glass-Shatter-proof
- Yes
KEY FEATURES
-
- Key Features
- Internal Memory (eMMC) 16 GB, Temperature Sensor, webOS 7.5, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, RS-232C Sync, Local Network Sync, Video Tag (4), Screen Rotation, External Input Rotation, Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, PM Mode, Wake on LAN, HDMI-CEC, SI Server Setting, Scan Inversion
ENVIRONMENT CONDITIONS
-
- Operation Temperature
- 32°F to 104°F / 0°C to 40°C
- Operation Humidity
- 10% to 80%
ELECTRICAL
-
- Power Supply
- 100-240 Vac, 50/60 Hz
- Power Type
- Built-In Power
-
- Power Consumption-Typ. / Max.
- 70 W (IEC 62087) / 230 W
- Power Consumption-BTU (British Thermal Unit)
- 239 BTU/Hr (Typ.), 785 BTU/Hr (Max.)
-
- Power Consumption-DPM
- 0.5 W
- Power Consumption-Power Off
- 0.5 W
Regulatory
-
- FCC
- Class “A”
- CE
- Yes
-
- ERP
- Yes
LG SOFTWARE COMPATIBILITY
-
- LG Software Compatibility
- SuperSign CMS, SuperSign Control+, SuperSign Cloud, Mobile CMS, LG ConnectedCare
Languages
-
- Languages
- English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Türkiye, Arabic
Warranty & Other
-
- Warranty
- 3 Year Limited Up to 5 Years with LG ExtendedCare (optional purchase)
- Accessories

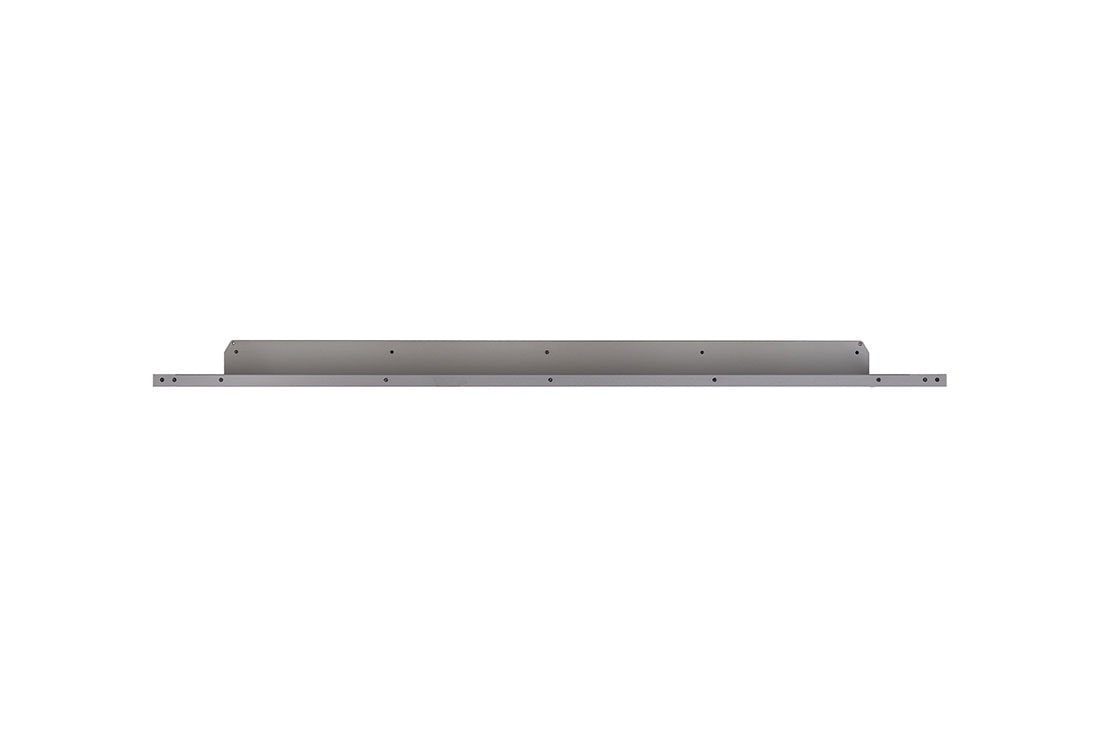

- Remote Control, Power Cord, QSG, IR Receiver, Regulation Book, 3.5mm to RS-232C Adapter, MCX / Harness Cables (x4, 3m / x2, 3m for Connection between Panel and Signage Box), DP Cable (2m), LAN Cable (1.5m), RS-232 Cable (4P-4P, 1.5m), LC Cable (VLC, 3m), Screws (x24, M3 × L5.5 Black / x8, M3 × L5.5 Silver / x14, M3 × L6 Black), Cover Shield Assembly, Cable Accessory (x2), Cable Cap Assembly (x2), Tiling Bracket (x2), Signage Box Wing Bracket (x2)
