KEY FEATURES

  • Brightness (Typ.): 400 nits (APL 25%, without Glass)
  • Transparency (Typ.): 33% (Set)
  • Bezel: 7.9mm (T/B/L), 144.5mm (B)
  • Interface: HDMI / DP / USB 2.0 (2) / Touch USB / RS232C / RJ45 / IR / Audio
  • PCAP Touch, Tempered Front Glass (3T)

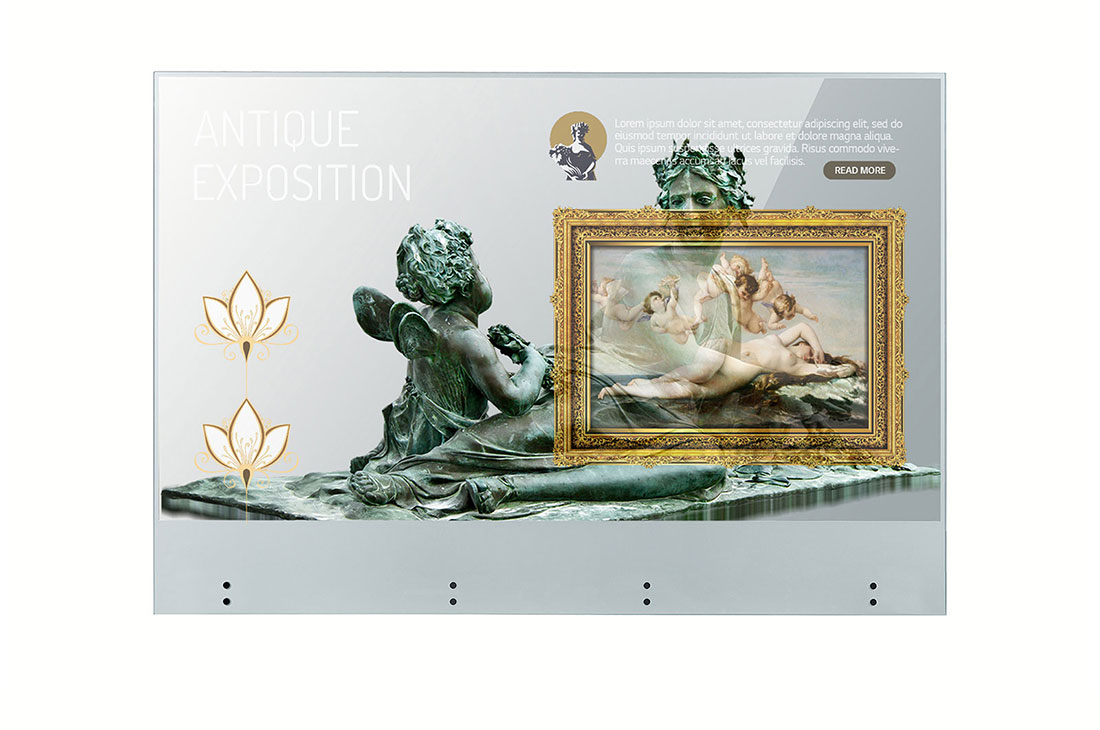

55” EW5TF-A Series Transparent OLED PCAP Touch Screen Digital Signage with Tempered Front Glass

PANEL

    • Screen Size
    • 55"
    • Panel Technology
    • Transparent OLED Touchscreen
    • Aspect Ratio
    • 16:9
    • Native Resolution
    • 1,920 x 1,080 (FHD)
    • Refresh Rate
    • 120Hz
    • Brightness (Typ.)
    • 400/150 nits (APL 25%/100%, Without Glass)
    • Contrast Ratio
    • 150,000 : 1
    • Color Gamut
    • 120% BT709
    • Viewing Angle (H x V)
    • 178 x 178
    • Color Depth
    • 10 bit (R), 1.07 Billion Colors
    • Response Time
    • 1ms (G to G)
    • Lifetime (Typ.)
    • 30,000 Hrs
    • Operation Hours (Hours / Day)
    • 18/7 (Moving Content Only)
    • Portrait / Landscape
    • Yes/Yes
    • Transparency (Typ.)
    • 33% (Set)

CONNECTIVITY

    • Input
    • HDMI, DP, USB 2.0 Type A, USB 2.0 Type A (Touch Control Board only)
    • Output
    • DP, Audio, USB 2.0 Type B (Touch USB)
    • External Control
    • RS232C In/Out, RJ45 (LAN) In/Out, IR In (External IR Receiver)

MECHANICAL SPECIFICATION

    • Bezel Color
    • Matt Silver
    • Bezel Width
    • 7.9/7.9/7.9/144.5 mm (T/R/L/B)
    • Weight (Head)
    • 32.2 lbs/14.6kg (Head), 7.5 lbs/3.4kg (Signage Box)
    • Packed Weight
    • 50.9 lbs/23.1kg
    • Monitor Dimensions (W x H x D)
    • 48.2" x 32.8" x 0.3"/1,225.5 x 832.9 x 7.0 mm (Head), 30.8" x 9.4" x 1.4"/782.8 x 238.4 x 34.7 mm (Signage Box)
    • Carton Dimensions (W x H x D)
    • 53" x 32.7" x 8.4"/1,345 x 945 x 207 mm
    • Protection Glass
    • Depth 3.0 mm , Tempered/Chemical Strengthening, Anti-Reflective, Shatter-Proof

KEY FEATURES

    • Key Features
    • Internal Memory (16GB), Temperature Sensor, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Screen Rotation, Setting Data Cloning, SNMP, ISM Method (Image Sticking Minimization), Auto Set ID, Status Mailing, Control Manager, Crestron Connected®*, DPM, PM Mode, Wake on LAN, HDMI-CEC**, SI Server Setting
    • *
    • Network based control.
    • **
    • Compatibility may differ by equipment.

ENVIRONMENT CONDITIONS

    • Operation Temperature Range
    • 32° F to 104° F/0° C to 40° C
    • Operation Humidity Range
    • 10% to 80%

POWER

    • Power Supply
    • 100-240 Vac, 50/60 Hz
    • Power Type
    • Built-in Power

POWER

    • Power Consumption (Typ. / Max.)
    • 250W/280W

CERTIFICATION

    • Safety
    • CB, NRTL
    • EMC
    • FCC Class "A"/CE/KC
    • ErP/Energy Star
    • Yes (EU Only)/No

SOFTWARE COMPATIBILITY

    • Content Management Software
    • SuperSign CMS
    • Control and Monitoring Software
    • SuperSign Control/Control+
    • Signage365Care
    • Yes
    • ***
    • SuperSign CMS, Control+ and Signage365Care are optional paid software and services. Signage365Care implementation may very by region.

ACCESSORIES

    • Basic
    • Remote Controller, Power Cord, IR Receiver, Phone to RS232C Gender, FFC Cables (1,600mm x 4ea), HDMI Cable (3m), Micro to A Type USB Cable (1.8m), A to B Type USB Cable, Tapes, Screws, Shield Cover Assy', Rubber Dampers, Touch Cable Holders, QSG, Regulation Book

TOUCH

    • Touch Type
    • P-Cap
    • Operating System Support
    • Windows
    • Multi touch point
    • Max 10 Points
