55VSM5J-H

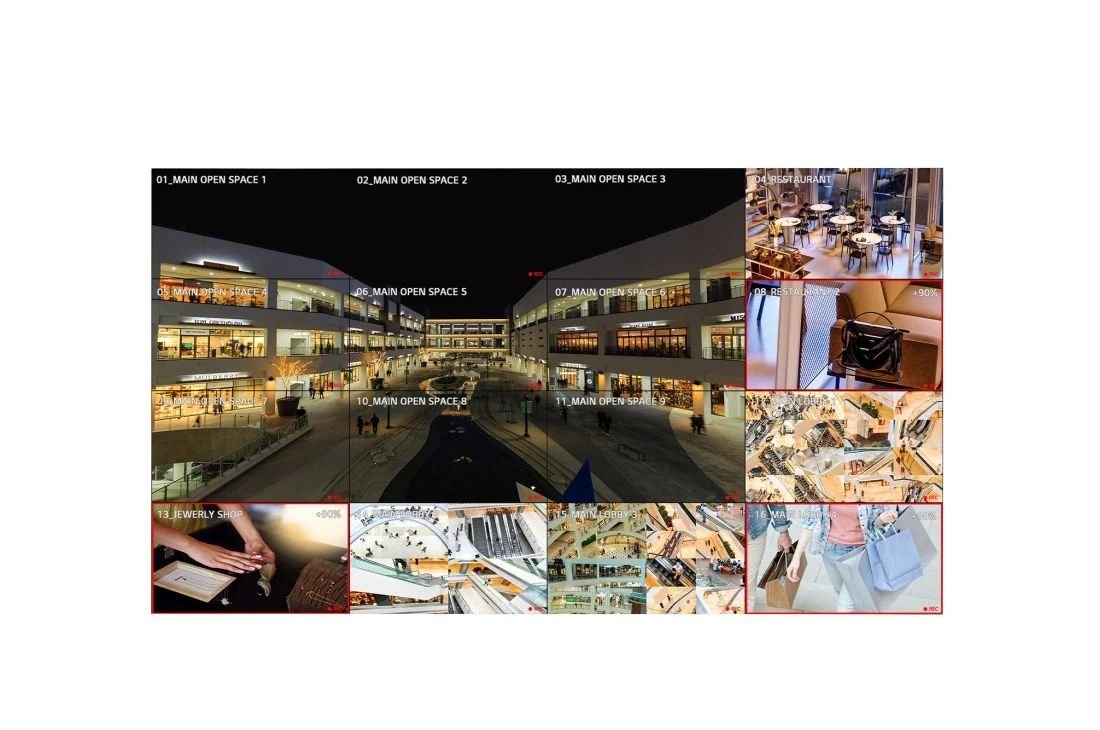

55” VSM5J-H Series 0.44mm EVEN BEZEL FHD IPS Video Wall with Smart Calibration, 500 nits Brightness and webOS™ Smart Signage Platform
$3,583.00
In Stock Free in-Home Delivery
/
1/11
55” VSM5J-H Series 0.44mm EVEN BEZEL FHD IPS Video Wall with Smart Calibration, 500 nits Brightness and webOS™ Smart Signage Platform
$
3,583.00
0.44mm Even Bezel Video Wall
*Images are simulated for illustrative purposes only
VIRTUALLY SEAMLESS VIEWING EXPERIENCE
Stunning 0.44mm Even Bezel
The razor-thin bezel – 0.44 mm EVEN BEZEL – verified by Nemko*, depicts content nearly true to form, with virtually no distortions. Seamlessly assembled on a large video wall screen, the VSM5J series will provide an incredibly immersive experience to viewers.
*Images are simulated for illustrative purposes only
High Viewing Angle
Typically, when a large video wall is positioned above eye-level, the picture quality is substantially compromised by the high viewing angle. However, the VSM5J-H displays vivid colors and maintains uniform picture quality with virtually no distortion even at steep viewing angles.
*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
*Images are simulated for illustrative purposes only
*Images are simulated for illustrative purposes only
Wide Viewing Angle
LG IPS panel technology enables control of
liquid crystals, thereby allowing the screen to be viewed from virtually any
angle. As a result, the VSM5J-H series will captivate and mesmerize viewers at
virtually any viewing position with close to lifelike colors and vivid clarity.
*Images are simulated for illustrative purposes only
Uniform Color Expression
Poor uniformity around
bezel boundaries can give the corners a dark appearance. However, the VSM5J
series has uniform color expression within the four corners of the display to
deliver vivid and consistent color throughout the screen.
*Uniformity among 13 points of the screen. Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
*Dramatization is for illustrative purposes only.
*Images are simulated for illustrative purposes only
*Dramatization is for illustrative purposes only.
*Images are simulated for illustrative purposes only
Image Gap Reduction
The VSM5J series
includes an image improvement algorithm that reduces image gaps among tiled
displays. Objects located on the bezel boundaries are adjusted for a virtually
seamless viewing experience.
*The "55SVM5F series" refers to an LG model which does not include an image improvement algorithm.
*Images are simulated for illustrative purposes only
*Images are simulated for illustrative purposes only
Clear View with Non-glare Panel
Viewers can be distracted by unnecessary light reflection when viewing a screen under bright conditions. The VSM5J series has set the level of haze to 28％, which enhances visibility and text readability.
*Dramatization of the comparison is for illustrative purposes only.
*Images are simulated for illustrative purposes only
*Images are simulated for illustrative purposes only
High Performance and Great Scalability
With the built-in System-on-a-Chip (SoC) and webOS™ smart signage platform, the VSM5J
series can execute several tasks at once while simultaneously providing smooth
content playback. As webOS supports HTML5 as a web-based platform and offers
SDK (Software Development Kit), it is easy for SIs to build and optimize web
apps.
*SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)
*Images are simulated for illustrative purposes only
*Images are simulated for illustrative purposes only
Flexible Content Creation & Management
Up to four different videos or images can be played simultaneously while various animation effects can be applied to the content. Real-time streaming* is also available, providing the flexibility to create an engaging and informative video wall display.
*Supported protocols : RTSP, RTP, HLS, UDP Multicast
*Images are simulated for illustrative purposes only
*Images are simulated for illustrative purposes only
Intuitive Menu Structure
Optimized for commercial use, the menu
structure includes simple approach flows and groups similar functions together,
creating an intuitive user experience and graphical user interface (GUI). This
way, users can avoid trial-and-error when managing displays.
*Images are simulated for illustrative purposes only
Dedicated GUI for Portrait Orientation
The VSM5J Series has a GUI that can be adapted
to landscape or portrait mode, as the OSD (One Screen Display) consists of a
long range menu with orientation-specific font sizes and a 9:16 ratio.
*Images are simulated for illustrative purposes only
Daisy Chain Capability
A LAN daisy chain allows the user to control
and monitor video walls and even update their firmwares at once. Also, through
UHD daisy chain using HDMI and DisplayPort, the user can easily set up a UHD
video wall without the need for DisplayPort MST™ or Matrox™ graphics card.
*Images are simulated for illustrative purposes only
Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional
ConnectedCare* service, a cloud service solution provided by LG. It remotely
manages the status of displays in client workplaces for troubleshooting and
remote-control services, enabling the stable operation of clients' businesses.
*LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
*Images are simulated for illustrative purposes only
*Images are simulated for illustrative purposes only
Smart Calibration
Smart Calibration is a solution that analyzes not only the color* property differences within each individual display but also the differences between connected displays. With just few simple clicks of a remote control, this calibration process can be done in a matter of minutes. In addition, calibration can be set to automatically occur at regular intervals to always deliver optimum image quality.
*Manual calibration can be done if the user feels there are color differences after smart calibration.
PANEL
-
- Screen Size
- 55"
- Panel Technology
- IPS
-
- Back Light Type
- Direct
- Aspect Ratio
- 16:9
-
- Native Resolution
- 1920 x 1080 (FHD)
- Refresh Rate
- 60 Hz
-
- Brightness
- 500 nits
- Contrast Ratio
- 1,100:1
-
- Dynamic CR
- 500,000:1
- Color Gamut
- NTSC 72%
-
- Viewing Angle(H x V)
- 178° x 178°
- Color Depth
- 10 bit, 1.07 Billion colors
-
- Response Time
- 8ms (G to G)
- Surface Treatment (Haze)
- 28%
-
- Lifetime (Typ)
- 60,000 Hrs
- Operation Hours (Hours/Days)
- 24/7
-
- Portrait / Landscape
- Yes / Yes
- Built-in Speaker
- No
CONNECTIVITY IN
-
- HDMI
- Yes (x2), HDCP2.2
- DP
- Yes (x1), HDCP2.2
-
- DVI-D
- Yes (x1), HDCP1.4
- Audio In
- Yes
-
- RS232C IN
- Yes
- RJ45(LAN)
- Yes
-
- IR IN
- Yes
- USB
- USB2.0 Type A
CONNECTIVITY OUT
-
- DP Out
- Yes (Input: HDMI / DVI / DP)
- Audio Out
- Yes
-
- RS232C OUT
- Yes
- RJ45 (LAN)
- Yes
MECHANICAL
-
- Bezel Color
- Black
- Bezel Width
- 0.44mm Even Bezel
-
- Weight
- 40.6 lbs / 18.4 kg
- Shipping Weight
- 52.0 lbs / 23.6 kg
-
- Monitor Dimension (W x H x D)
- 47.7 x 26.8 x 3.4 in, 1210.51 x 681.22 x 86.5 mm
- Carton Dimensions (W x H x D) (Box outer size)
- 53.3 x 33.7 x 10.4 in, 1353 x 855 x 263 mm
-
- Handle
- Yes
- VESA™ Standard Mount Interface
- 600 x 400
-
- Operation Temperature
- 32°F to 104°F, 0°C to 40°C
- Operation Humidity
- 10% to 80%
-
- IP Rating
- IP5X
HARDWARE FEATURES
-
- Internal Memory
- 8GB
- Temperature Sensor
- Yes
-
- BLU Sensor
- Yes
- Acceleration(Gyro) Sensor
- Yes
-
- Local Key Operation
- Yes
- Fanless Design
- Yes
-
- OPS type compatible
- Yes (Piggyback)
SOFTWARE FEATURES
-
- webOS ver.
- webOS 4.1
- Local Contents Scheduling
- Yes
-
- Group Manager
- Yes
- USB Plug & Play
- Yes
-
- Fail over
- Yes
- No Signal Image
- Yes
-
- RS-232C Sync
- Yes
- Local Network Sync
- Yes
-
- Video Tag
- Yes (x4)
- Play via URL
- Yes
-
- Screen Rotation
- Yes
- External Input Rotation
- Yes
-
- Gapless Playback
- Yes
- Tile Mode Setting
- Yes (Max. 15x15)
-
- Setting Data Cloning
- Yes
- SNMP
- Yes
-
- ISM Method
- Yes
- Auto Set ID
- Yes
-
- Status Mailing
- Yes
- Control Manager
- Yes
-
- Crestron Inside
- Yes
- Smart Energy Saving
- Yes
-
- PM mode
- Yes
- Wake on LAN
- Yes
-
- Network Ready
- Yes
- HDMI-CEC
- Yes
-
- SI Server Setting
- Yes
- webRTC
- Yes
-
- Pro:Idiom
- Yes
- W/B Setting by Grey scale
- Yes
-
- Scan Inversion
- Yes
POWER
-
- Power Supply
- 100-240 Vac, 50/60Hz
- Power Type
- Built-In Power
-
- Typ. Power Consumption
- 200 W, 682 BTU/hr
- Max. Power Consumption
- 250 W, 853 BTU/hr
-
- Smart Enegy Saving
- 105 W
- DPM
- 0.5 W
-
- Power Off
- 0.5 W
CERTIFICATION
-
- Safety
- CB / NRTL
- EMC
- FCC Class "B" / CE / KC
-
- ErP / Energy Star
- Yes / Energy Star 8.0
SOFTWARE CAPABILITY
-
- SuperSign CMS
- Yes
- SuperSign Control / Control+
- Yes / Yes
-
- SuperSign WB
- Yes
- SuperSign Media Editor
- Yes
-
- LG Connected Care
- Yes
ACCESSORIES & OTHER
-
- Basic Accessories
- Remote Controller(includes battery 2ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
- Optional Accessories
- OPS Kit (KT-OPSF)
-
- Smart Calibration
- Yes
