KEY FEATURES

  • Compatible with ConnectedCare* DMS for remote monitoring, controlling, and managing.
  • UHD (3,840 x 2,160) provides quality pictures for teachers & students
  • Broadcasting & Alert Messaging with ConnectedCare
  • Built-in Speakers
  • 3 Year Limited Warranty

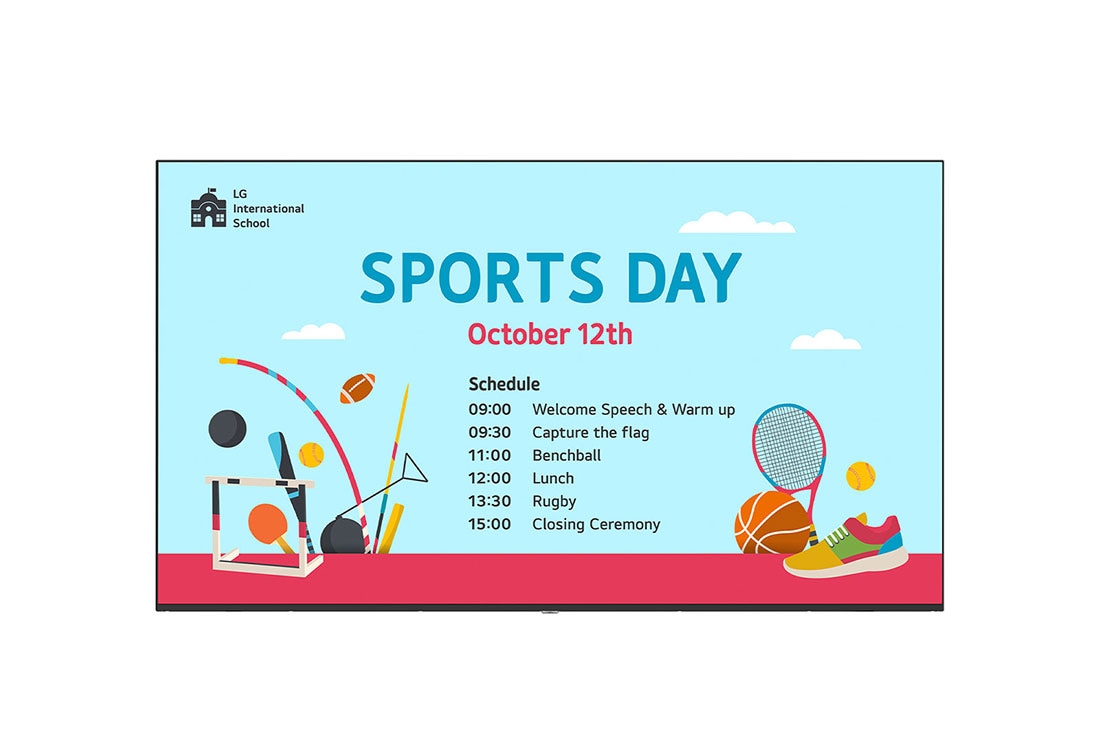

75" UM340E Series Professional TV for Education
$ 1,148.00

LG UHD TV Signage

*Images are simulated for illustration purposes only.

Superb Picture Quality with Ultra HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard and TV signage devices installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites. LG ConnectedCare DMS must be purchased seperately.
*LG ConnectedCare DMS supports TV Signage (UM340E, UR640S), LG CreateBoard (TR3DK, TR3DJ, TR3PJ) and Stretch Signage (105BM5N) as of now (plus more to come) under a cloud environment.

Dashboard

The LG ConnectedCare DMS dashboard allows you to view and monitor multiple devices at the same time.

The following features are included:

  • Remote-control

    Frequently used controls such as the screen on/off, scheduling, brightness, and screen lock functions can be applied using a remote control. Additionally, IT manager can remotely install and update the apps on selected devices, which helps lessen the need for on-site response.

  • Broadcasting / Alert Messaging

    Content such as images, videos, audio messages, and live streaming can be shared from the primary system to specific devices including UM340E and LG CreateBoard installed in the school. In case of urgent occasions alert messages can be distributed manually across the system, which help teachers and students promptly take safety action.

*Images are simulated for illustration purposes only.
*Images are simulated for illustration purposes only.

  • Threshold Settings

    Users can set thresholds including CPU Temperature, memory usage, or available storage, and can receive warning or error notifications based on their threshold settings.

  • Monitoring & Fault Diagnosis

    An engineer can check the status in real-time and diagnose problems remotely. Also, the current status of issues can be categorized, allowing for easy viewing and quick responses.

  • Issue Management

    Remote issue management can be carried out by the LG ConnectedCare DMS solution. This makes management safer and more efficient, facilitating the stable operation of the classroom.

LCD Panel

    • Screen Size (Diag.)
    • 75"
    • Resolution
    • 3,840 x 2,160
    • Aspect Ratio
    • 16:9
    • Brightness
    • 250 nits (Center,Typ)
    • Contrast Ratio
    • 1,200:1 (Typ.)
    • Color Gamut
    • 68% (NTSC)
    • Viewing Angle (CR > 10)
    • 178°
    • Display Area (H x V)
    • 1649.66(H) × 927.94(V)
    • Refresh Rate
    • 60 Hz
    • Display Mode
    • ADS
    • Surface Treatment (Haze)
    • 1%, 3 H

Configuration

    • RAM / ROM (DDR / eMMC)
    • 2G + 16G
    • Language
    • English, French, Spanish
    • System
    • Android 11.0 (AOSP)
    • HDMI ARC, CEC
    • Yes
    • Web Browser
    • Yes
    • Miracast
    • Yes
    • DMS
    • Yes (with LGE Support)

POWER

    • Input Power
    • 100-240 Vac
    • Power Consumption (Typ.)
    • ≤200W
    • Power Consumption (Standby)
    • < 0.5 W

Operating Conditions

    • Operating Temp
    • 32°F to 104°F 0°C to 40°C
    • Operating Humid
    • 10% to 80%

MECHANICAL

    • Off Bezel Width (T/B/L/R)
    • 2.2 / 16 / 2.2 / 2.2 mm
    • Back Cover
    • Plastic/PC + ABS V0
    • Wall Handing Size (H x V)
    • 400 mm x 400 mm
    • Wall Handing Screws
    • M8 x 12mm
    • Dimensions without Stand (W x H x D)
    • 65.7 x 37.6 x 3.4 in. 1668.7 x 955.9 x 85.1 mm

Installation and Packing Type

    • Stand
    • Small
    • Packing
    • Carton

SPECIFICATIONS

    • I/O Interface
    • HDMI (3), USB, RJ45 In, North America (D-TV: ATSC), Wi-Fi (MT7663, 2T2R + BT), Built-in Speakers (10 W × 2)
    • Key Features
    • SoftAP, Bluetooth Audio Playback, USB Auto Playback (Only Play), Fail Over (Only Off), Time Scheduler @ DMS (On / Off Timer), NTP Sync Timer (Auto Obtain Network Time)
    • Warranty
    • 3 Year Limited

Case Study

Specification Sheet

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
