86UH5F-H

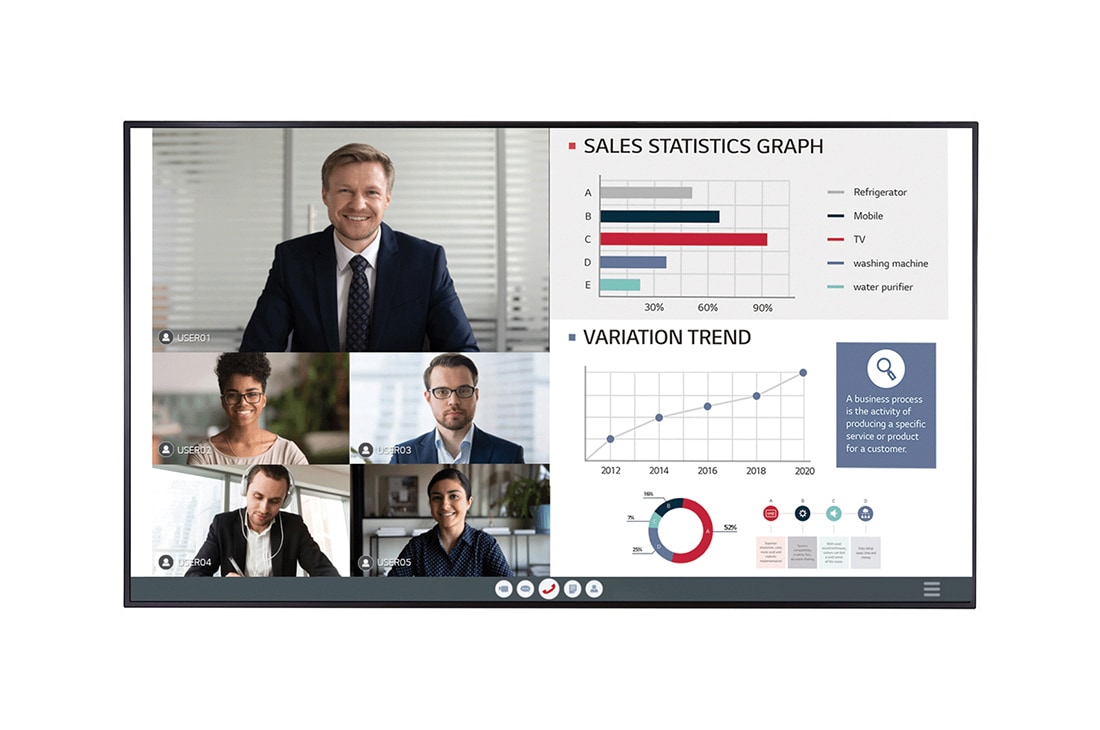

86” UH5F-H Series Slim UHD IPS Digital Signage with non-glare coating, webOS platform, Cisco & Crestron compatible & IP5x Certified
$5,242.00
$225.00 OFF
WAS
In Stock
/
1/7
86” UH5F-H Series Slim UHD IPS Digital Signage with non-glare coating, webOS platform, Cisco & Crestron compatible & IP5x Certified
$
5,242.00
Committed to Sustainability
LG Recognized as MSAP Leader
LG’s environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23.
MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices.
LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices.
LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
SUPERB PICTURE QUALITY
Clear View with Non-glare Coating
Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
SUPERB PICTURE QUALITY
ULTRA HD Resolution
With a resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear content with virtually no distortion.
webOS™ SMART SIGNAGE PLATFORM
High-Performance with webOS™
Built-in Quad Core System on Chip (SoC) can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS™ platform enhances user convenience with intuitive graphical user interface (GUI) and access to an advanced ecosystem of third-party development applications.
webOS™ SMART SIGNAGE PLATFORM
Various Sensor Applications
LG webOS™ smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
MEETING ROOM SOLUTION COMPATIBILITY
Compatible with AV Control System
The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
*Network based control.
*Image for illustration purposes only.
*Image for illustration purposes only.
MEETING ROOM SOLUTION COMPATIBILITY
Compatible with Video Conference System
The UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smart video conference.
*Using an HDMI cable connection.
*Image for illustration purposes only.
*Image for illustration purposes only.
EASY MANAGEMENT
Real-time Monitoring & Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F-H series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
EASY MANAGEMENT
LG ConnectedCare
The maintenance gets easier and faster with an optional service LG ConnectedCare*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
*The availability of “LG ConnectedCare” service can differ by region, so please contact the LG sales representative in your region for further details.
USER CONVENIENCE
Multiscreen Feature with PBP / PIP
PBP (Picture-By-Picture)features multiple screens in a single display with up to 4 input sources while PIP (Picture-In-Picture) supports playing both a main screen and a subscreen at the same time with various layouts. This gives great flexibility to allocate space for each content source.
USER CONVENIENCE
Wireless Access Point
The UH5F-H series operates as a virtual router which can be an wireless access point for mobile devices.
PANEL
-
- Screen Size
- 86"
- Panel Technology
- IPS
-
- Back Light Type
- Edge
- Aspect Ratio
- 16:9
-
- Native Resolution
- 3840 x 2160 (UHD)
- Refresh Rate
- 120Hz
-
- Brightness (Typ.)
- 500nits
- Contrast Ratio
- 1,100:1
-
- Dynamic CR
- 1,000,000:1
- Color Gamut
- NTSC 72%
-
- Viewing Angle (H x V)
- 178° x 178°
- Color Depth
- 10 bit, 1.07 Billion colors
-
- Response Time (G to G)
- 8 ms
- Surface Treatment (Haze)
- 28%
-
- Lifetime
- 50,000 Hrs
- Operation Hours (Hours/Day)
- 24/7
-
- Portrait/Landscape
- Yes/Yes
SOUND
-
- Speaker
- Yes
CONNECTIVITY
-
- HDMI IN
- Yes (3) HDMI1/HDMI2: HDCP 2.2/1.4, HDMI3: HDCP 1.4
- DP In
- Yes (1), HDCP2.2/1.3
-
- DVI-D In
- Yes (1), HDCP1.4
- Audio In
- Yes
-
- RS232C In
- Yes (1), 4pin 3.5mm Jack
- RJ45 (LAN) IN
- Yes
-
- IR In
- Yes
CONNECTIVITY
-
- USB in
- USB2.0 Type A(2)
CONNECTIVITY
-
- DP Out
- Yes (1), Input: HDMI1/2/3/DVI/DP
- Audio Out
- Yes
-
- RS232C OUT
- Yes (1), 4pin 3.5mm Jack
MECHANICAL
-
- Bezel Color
- Black
- Bezel Width
- Even bezel: 14.3mm
-
- Weight (Head)
- 108.0 lbs/49.0kg
- Packed Weight
- 159.8 lbs/72.5kg
-
- Monitor Dimension (W x H x D)
- 75.8 x 43.2 x 2.4 in/1926.2 x 1097.2 x 60.6 mm (without Handle and LG Logo)
- Carton Dimensions (W x H x D) (Box outer size)
- 81.6 x 49.2 x 11.2 in/2073 x 1250 x 285 mm
-
- Handle
- Yes
- VESA™ Standard Mount Interface
- 600 x 400
-
- Operation Temperature
- 32°F to 104°F/0°C to 40°C
- Operation Humidity
- 10% to 80%
-
- OPS type compatible
- Yes
KEY FEATURES
-
- Internal Memory
- 8GB
- Built-in Wi-Fi
- Yes
-
- Temperature Sensor
- Yes
- Auto Brightness sensor
- Yes
-
- Local Key Operation
- Yes
- webOS ver.
- webOS 4.0
-
- Local Contents Scheduling
- Yes
- Group Manager
- Yes
-
- USB Plug & Play
- Yes
- Fail over
- Yes
-
- Booting Logo Image
- Yes
- No Signal Image
- Yes
-
- RS-232C Sync
- Yes
- Local Network Sync
- Yes
-
- PIP
- Yes
- PBP
- Yes (4)
-
- Screen Share
- Yes
- Video Tag
- Yes (4)
-
- Play via URL
- Yes
- Screen Rotation
- Yes
-
- External Input Rotation
- Yes
- Gapless Playback
- Yes
-
- Tile Mode Setting
- Yes (Max. 15x15)
- Setting Data Cloning
- Yes
-
- SNMP
- Yes
- ISM Method
- Yes
-
- Auto Set ID
- Yes
- Status Mailing
- Yes
-
- Control Manager
- Yes
- Crestron Inside
- Yes
-
- Smart Energy Saving
- Yes
- PM mode
- Yes
-
- Wake on LAN
- Yes
- Beacon
- Yes
-
- HDMI-CEC
- Yes
- SI Server Setting
- Yes
-
- webRTC
- Yes
- Pro:Idiom
- Yes
POWER
-
- Power Supply
- 100-240 Vac, 50/60 Hz
- Power Type
- Built-in Power
-
- Typ. Power
- 215W
- Max. Power
- 280W
-
- BTU (British Thermal Unit)
- 733.69 BTU/Hr (Typ.), 955.5 BTU/Hr (Max.)
- Smart Enegy Saving
- 150.5W
-
- DPM
- 0.5W
- Power Off
- 0.5W
LG SOFTWARE & SERVICES*
-
- SuperSign CMS
- Yes
- SuperSign Control / Control+
- Yes/Yes
LG SOFTWARE & SERVICES*
-
- SuperSign WB
- Yes
- SuperSign Media Editor
- Yes
-
- LG ConnectedCare
- Yes
- *
- SuperSign CMS, Control+, White Balance and LG ConnectedCare are optional pay-for software/services.
Warranty & Other
-
- Warranty
- 3 Year Limited
- FCC (Regulatory)
- Class A
-
- CE (Regulatory)
- Yes
- ErP
- Yes
-
- Basic Accessories
- Remote Control (battery 2ea), Power Cord, QSG, IR/Light receiver, DP Cable (1.8m), Regulation Book, Phone to RS232C Adapter
