KEY FEATURES

  • Embedded Content Management System (CMS)
  • UHD Video Playback across multiple displays
  • Compatible with LG SuperSign Software
  • Supports real-time maintenance with LG ConnectedCare
WebOS™ Signage & Digital Media Player on WebOS™ 6.0 user-friendly Smart Signage Platform
$

The User-Friendly Smart Signage Platform

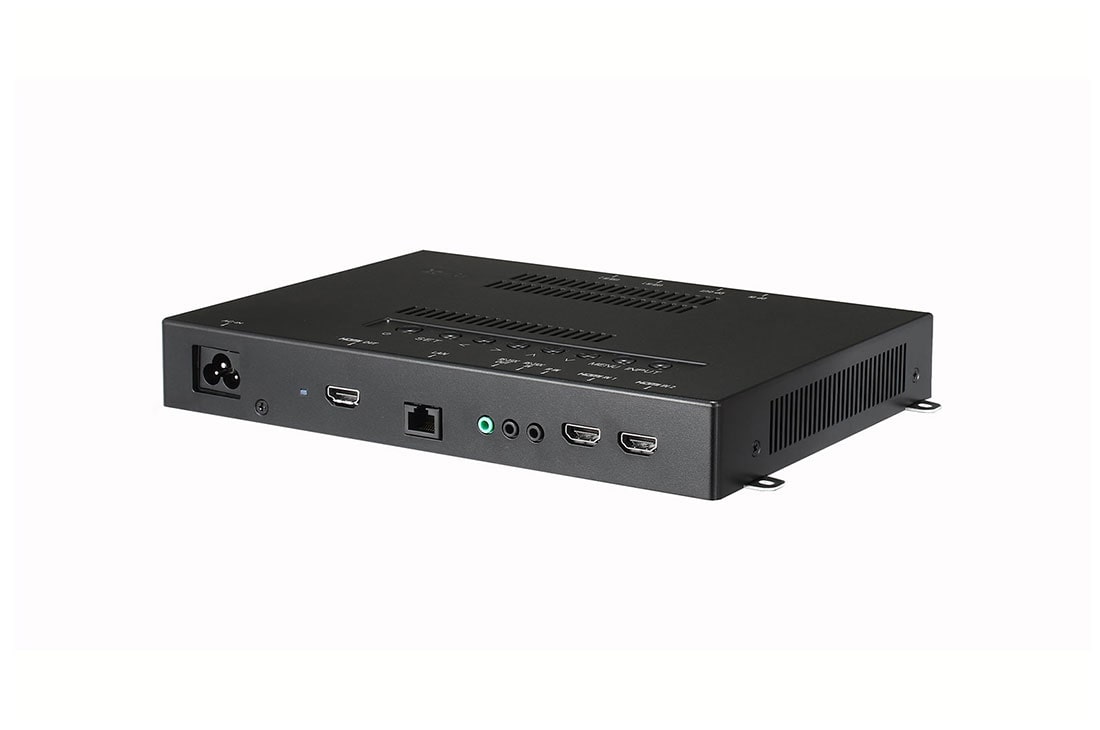

The WP600 webOS box operates webOS™ 6.0, the user-friendly LG smart signage platform, and is attached to existing LG digital signages and upgrades them regardless of their original platform. It can execute several tasks at once while providing smooth content playback, and provides an excellent user experience with an intuitive menu and convenient features.
*Images are simulated for illustration purposes only.

webOS™ 6.0 Smart Signage Platform

The WP600 may be applied towards any type of LG digital signages. The webOS™ box provides user-friendly functions with dedicated menus essential for business use. Users are able to easily manage and distribute content or develop web-based applications for multiple signages simultaneously. Moreover, the WP600 has expanded its versatile ability to control displays.
*Images are simulated for illustration purposes only.

UHD Video Playback Supported

The WP600 supports Ultra HD high-quality video playback which delivers color and details of content vividly, with four times higher definition than FHD. Only a single webOS™ box is required for this superior picture quality.
*Images are simulated for illustration purposes only.

Display Control Capability

Beyond content management, control commands from the WP600 can be sent to LG digital signages through the RS-232C cable connection. It allows users to flexibly set up display values such as power, brightness or volume for optimal operation.
*Images are simulated for illustration purposes only.

All-in-One Home Menu

The WP600 offers a signage-dedicated home menu that shows key information related to signage operation at a glance. A dashboard showing the status of devices, a content management menu, and shortcuts leading to quick settings greatly enhance user convenience.
*Images are simulated for illustration purposes only.

Embedded Content Management

The embedded Content Management System (CMS) allows users to edit content using internal/external sources and set playlists to play at the desired schedule. Users can easily explore and manage content through the intuitive GUI, using various input devices, from a remote control to a laptop.

*Images are simulated for illustration purposes only.

Multi Video Tags

Several different videos can be played at the same time using the multi video tags feature. This gives you great flexibility to organize and deploy content when various content items need to be delivered simultaneously via web apps.
*Images are simulated for illustration purposes only.

Multi Screen with PBP/PIP

Picture-By-Picture (PBP) features Multi-Screen in a single display with upto 4 input sources while Picture-In-Picture (PIP) supports playing both main screen and secondary screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.
*Images are simulated for illustration purposes only.

Compatibility with LG SuperSign™ Solutions

LG SuperSign™ is a comprehensive and indispensable software solution for the integrated management of LG digital signages. With SuperSign™, content creation and distribution gets intuitive and centralized monitoring and control becomes simple, helping your business save time and operate effectively across different locations.
*Images are simulated for illustration purposes only.

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

* The availability differs by regions.
*Images are simulated for illustration purposes only.

SPECIFICATIONS

    • HARDWARE FEATURES
    • Internal Memory 8 GB, Wi-Fi, Temperature Sensor, Local Key Operation
    • SOFTWARE FEATURES
    • webOS 6.0, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, No Signal Image, Local Network Sync, PIP, PBP (4), Screen Share, Video Tag (4), Play via URL, Screen Rotation, External Input Rotation, Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning (RS-232C, Network, USB), SNMP, ISM Method, Status Mailing, Control Manager, Wake on LAN, Network Ready, Beacon, HDMI-CEC1 ) (HDMI Out), SI Server Setting, webRTC, Pro:Idiom
    • LG SOFTWARE COMPATIBILITY
    • SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare

CONNECTIVITY

    • Input
    • HDMI (x2, HDCP2.2), DP (HDCP1.3), RS-232C (3.5mm jack), RJ45 (LAN), IR (3.5mm jack), USB (x2, USB 2.0 Type A)
    • Output
    • HDMI (FHD or UHD (4k, 60Hz)), DP (SST, Daisy Chain Only (Input: DP)), RS-232C (3.5mm jack)

MECHANICAL

    • Bezel Color
    • Black
    • Dimensions (W x H x D)
    • 10.2 in. x 1.4 in. x 7.3 in. 258.0 mm × 36.5 mm × 186.0 mm
    • Weight
    • 1.9 lbs. / 0.87 kg
    • Shipping Dimensions (W x H x D)
    • 13.3 in. x 4.9 in. x 12.4 in. 339.0 mm × 124.0 mm × 314.0 mm
    • Shipping Weight
    • 3.9 lbs. / 1.77 kg

ENVIRONMENT CONDITIONS

    • Operation Temperature
    • 32°F to 104°F / 0°C to 40°C
    • Operation Humidity
    • 10% to 80%

ELECTRICAL

    • Power Supply
    • 100 to 240 Vac, 50/60 Hz
    • Power Type
    • Built-In Power
    • Power Consumption (Typ. / Max)
    • 23 W / 27 W
    • Power Consumption - Power Consumption (British Thermal Unit)
    • 78.48 BTU/Hr (Typ.), 92.13 BTU/Hr (Max.)
    • Power Consumption - Power Consumption (DPM)
    • 0.5 W (WOL Off)
    • Power Consumption - Power Consumption (Power Off)
    • 0.5 W

REGULATORY & CERTIFICATIONS

    • FCC
    • Class “A”
    • CE
    • Class “A”
    • ERP
    • Yes

OPS Compatibility

    • OPS Type Compatible / OPS Power Built In
    • No / No

Language

    • OSD
    • English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic

Warranty & Other

    • Warranty
    • 3 Year Limited
    • Basic Accessories (included)
    • Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS-232C Adapter, IR Receiver, Screws
