KEY FEATURES

  • 3.91 mm Pixel Pitch Single SMD
  • IP30 Rated front & back
  • Up to 5,000 nits brightness with 160° x 155° viewing angle
  • Megapixel VR Helios Controller (Sold seperately)
  • Front or Rear Accessible

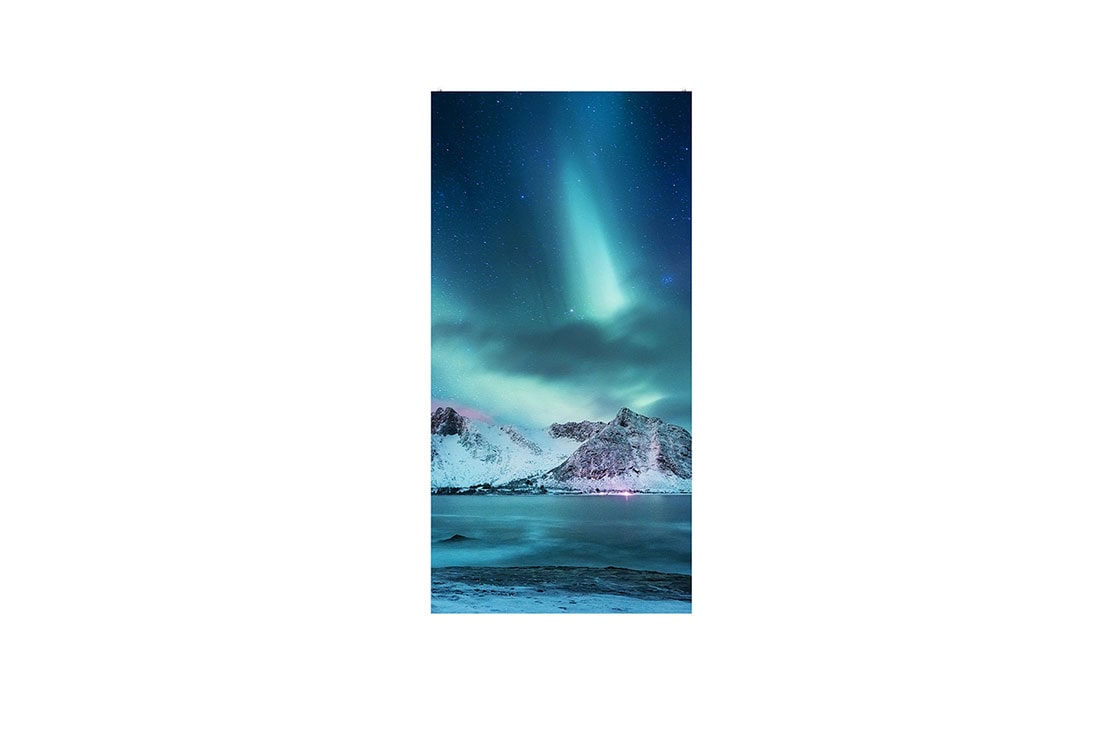

GSCE Ceiling Direct View LED compatible with Megapixel VR Helios Controller
$

Ceiling Direct View LED Display for
Virtual Production

*Images are simulated for illustrated purposes only.

Easy Installation

The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly.

Easy Maintenance

The module can be easily removedusing using the dedicated tool (with front or rear selective service access).

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their need.

High Brightness

The ceiling LED with 5,000 nits enables GSCE series to be used for alternative lightings in XR and virtual production.
*Images are simulated for illustrated purposes only.

Powerful UI/UX with
Megapixel VR HELIOS LED Processing Platform

With the MVR controller, GSCE now has the capability to utilize powerful UX and UI functionalities. Real-Time Mapping and Multi-User Control, Stunning Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics are all available.
*Please note that Megapixel VR HELIOS LED processing platform needs to be purchased separately, and depending on the actual usage environment, there may be limitations in the implementation of certain features offered by HELIOS. A game controller needs to be purchased separately.

SPECIFICATIONS

    • Pitch Name
    • P3.91
    • Cabinet
    • GSCE
    • Input
    • HDMI 2.0, HDCP 2.2, DP 1.4 (HBR3), SDI (4 × 12G-SDI), OPS (ST2110)
    • Output
    • Optic (To LED Screen (8 × 10G))
    • Video Processing
    • Brightness Adjustment, Chroma Adjustment, Improved Grayscale at Low Brightness, Scaling, HDR (PQ, HLG, Custom), EDID Custom
    • Application
    • SuperSign CMS (Cross-platform Web Interface), webOS API, Configuration SW (Cross-platform Web Interface)

PHYSICAL PARAMETERS

    • Pixel Configuration
    • Single SMD
    • Pixel Pitch (mm)
    • 3.91
    • Module Resolution (W x H)
    • 64 × 128
    • Module Dimensions (W x H, in. / mm)
    • 9.8 x 19.6 in. / 250 × 500 mm
    • Weight per Module (lbs. / kg)
    • 3.1 lbs. / 1.4 kg
    • No. of Modules per Cabinet (W × H)
    • 2 × 2
    • Cabinet Resolution (W × H)
    • 128 × 256
    • Cabinet Dimensions (W x H x D, in. / mm)
    • 19.6 x 39.4 x 2.6 in. 500 × 1,000 × 66.05 mm
    • Cabinet Surface Area (ft2 / m2 )
    • 5.4 ft2 / 0.5m2
    • Weight per Cabinet (lbs. / kg)
    • 27.3 / 12.4
    • Weight per Square Meter (kg/m²)
    • 24.9
    • Physical Pixel Density (pixels/m²)
    • 65,536
    • Flatness of Cabinet (mm)
    • ±0.3
    • Cabinet Material
    • Die-casting Magnesium
    • Service Access
    • Front or Rear (select one only)

OPTICAL SPECIFICATIONS

    • Max. Brightness (After Calibration, nits)
    • 5,000
    • Color Temperature (K)
    • 2,000-11,000
    • Visual Viewing Angle (H × V)
    • 160° x 155°
    • Brightness Uniformity
    • 0.97
    • Color Uniformity
    • ±0.003 Cx, Cy
    • Contrast Ratio
    • 6,000 : 1
    • Processing Depth (bit)
    • 16 (PQ, HLG)

ELECTRICAL SPECIFICATIONS

    • Max Power Consumption per Cabinet (W)
    • 300
    • Avg. Power Consumption per Cabinet (W)
    • 100
    • Max Power Consumption (W/m²)
    • 600
    • Max Heat Dissipation per Cabinet (BTU/h)
    • 1,024
    • Avg. Heat Dissipation per Cabinet (BTU/h)
    • 341
    • Max Heat Dissipation (BTU/h/m² )
    • 2,047
    • Power Supply (Vac)
    • 100 to 240
    • Frame Rate (Hz)
    • 50 / 60
    • Refresh Rate (Hz)
    • 3,840

OPERATION SPECIFICATIONS

    • Operating Temperature (°F / °C)
    • -22 to 113 / -30 to +45
    • Operating Humidity
    • 10-99% RH
    • IP Rating Front / Rear
    • IP30 / IP30

Warranty & Other

    • Warranty
    • 3 Year Limited
    • Regulatory
    • CE, FCC, ETL
    • Environmental
    • RoHS
    • Controller
    • Megapixel VR HELIOS LED Processing Platform
    • 90 degree corner cut
    • No

Max Output Range

    • Loading Capacity
    • 8,192 × 4,320 @ 60 Hz
    • Output Resolution
    • 35.3 Million Pixels

Control

    • LAN
    • Yes
    • GenLock
    • Yes (In)

MECHANICAL

    • Size (W × H × D, in. / mm)
    • 18.9 x 1.7 x 15.5 in. 481.5 × 44.2 × 393 mm
    • Weight (lbs. / kg)
    • 12.6 lbs. / 5.7kg

Specification Sheet
