KEY FEATURES

  • Pixel Pitch: 1.5mm
  • Screen Size: 130"
  • Brightness: 500 cd/m²
  • HDR10 Pro / Surface Sound
  • Embedded System Controller
  • TAA Compliant

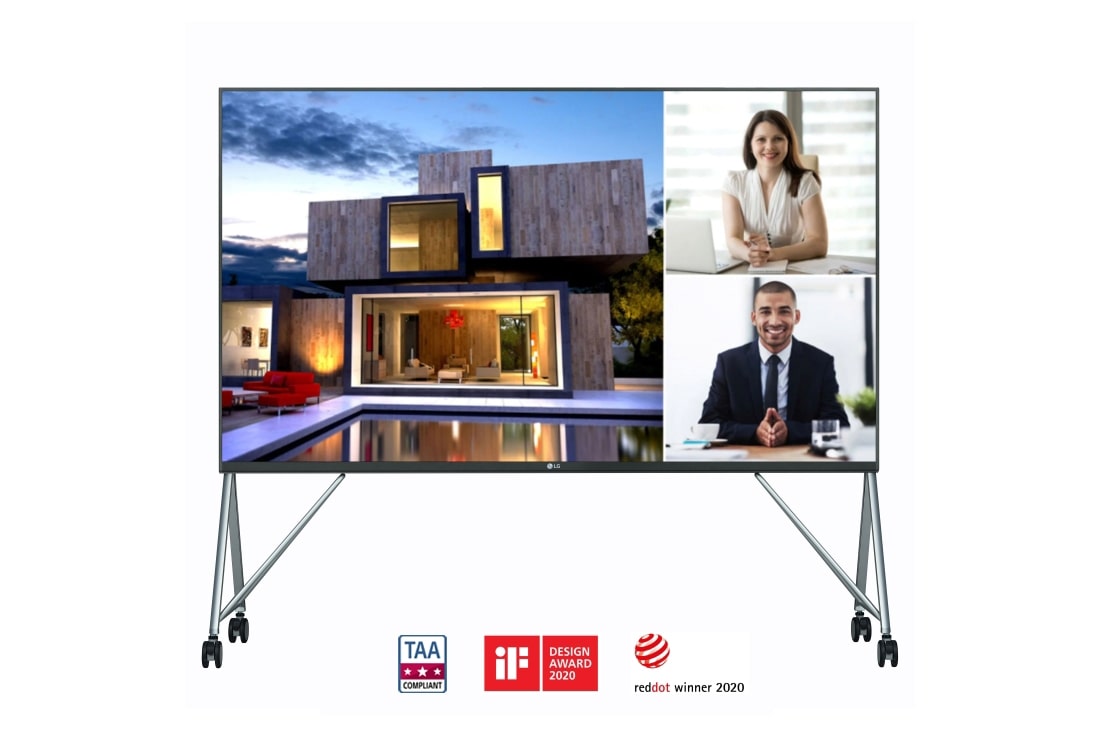

130” All-in-one DVLED LAAF Series Signage with HDR10 Support, SoC with webOS, Compatible with AV Control Systems

PHYSICAL PARAMETERS

    • Pixel Configuration
    • 3 in 1 SMD
    • Pixel Pitch(mm)
    • 1.50
    • Screen Resolution (WxH)
    • 1,920x1,080
    • Screen Dimensions (WxH, mm)
    • 2,880x1,620x128.5
    • Screen Weight (kg)
    • 162.1
    • No. of Modules per Unit Case (WxH)
    • 4x3
    • Unit Case Resolution (WxH)
    • 640x360
    • Unit Case Dimensions (W x H x D, mm)
    • 960x540x128.5
    • Unit Case Surface Area (m²)
    • 0.518
    • Weight per Unit Case (kg/unit)
    • Master: 20.85, Auxiliary: 19.24
    • Weight per Square Meter (kg/㎡)
    • 37.6
    • Physical Pixel Density (pixels/m²)
    • 444,444
    • Flatness of Unit Case (mm)
    • ±0.2
    • Unit Case Material
    • Front : Die Casting Aluminum, Rear : PC+ABS
    • Service Access
    • Front and Rear

OPTICAL SPECIFICATIONS

    • Min. Brightness (After Calibration)
    • 500 cd/㎡
    • Color Temperature
    • 6,500
    • Visual Viewing Angle (Horizontal)
    • 160
    • Visual Viewing Angle (Vertical)
    • 140
    • Brightness Uniformity
    • 95%
    • Color Uniformity
    • ±0.015Cx,Cy
    • Contrast Ratio
    • 5,000
    • Processing Depth (bit)
    • 16 (HDR10)

ELECTRICAL SPECIFICATIONS

    • Power Consumption (W/unit, Avg.)
    • 1,765
    • Power Consumption (W/unit, Max.)
    • 3,530
    • Power Consumption (W/㎡, Max.)
    • 760
    • Power Supply (V)
    • 100 to 240
    • Frame Rate (Hz)
    • 50 / 60
    • Refresh Rate (Hz)
    • 3,840

OPERATION SPECIFICATIONS

    • Lifetime (Half brightness, hrs)1
    • 100,000
    • Operating Temperature
    • 0℃ to 40℃
    • Operating Humidity
    • 10-80% RH

CERTIFICATION

    • Safety
    • IEC 60950-1 / EN 60950-1 / UL 60950-1
    • EMC
    • FCC Class A / CE / KC
    • Environment
    • RoHS

CONNECTIVITY(EMBEDDED CONTROLLER)

    • Video Inputs
    • HDMI In(3), DP In, USB
    • Control
    • RJ45 In, RS232C In/out
    • Special Features
    • Temperature Sensor, IR & Ambient Light Sensor, Audio Out, Crestron Connected2)

CAD

Specification Sheet
