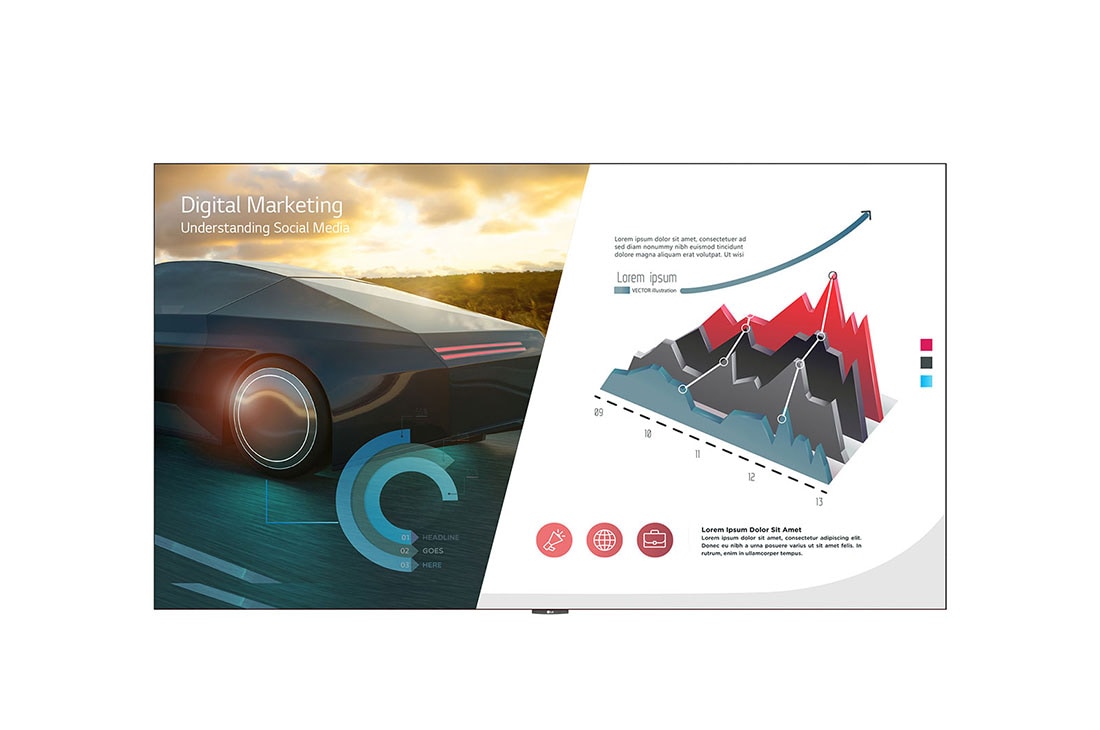

163" All-in-One LED Display with webOS™
*Image simulation for illustration purposes only. Stand accessories differ by models, and need to be purchased separately.
All-in-One DVLED Screen with Built-in Speaker
LG’s LED All-in-One LAEC series has two size of screens; 136- inch and a 163-inch. The LAEC series is offered as an all-in-one package including an embedded controller and built-in speaker. After a simple installation process that neither requires controller connections or module configuration, all you need to do is to turn on the screen with the remote control like a home TV.
*Image simulation for illustration purposes only.
High Performance with webOS™
Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS™ Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.
*The webOS™ Signage Developer site (https://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.
Easy Installation
The installation process of the All-in-One Smart series is very simple. After securing cabinets (two for LAEC015, three for LAEC018), attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.
*Fixing screws or installing wall mount / accessories is needed additionally.
*The image is illustrated as an example of LAEC015 model.
*The image is illustrated as an example of LAEC015 model.
Versatile Installation with Dedicated Accessories
The product is offered with the necessary component including the landscape wall mount and tools for installation. The dedicated stand* is provided as an option, so that you can easily place it depending on your installation sites. Also, the LAEC series can be installed side by side in the form of 1 × N or 2 × N, up to 14 screens, suitable for its installation site and its purposes.
*Stand accessories differ by models, and need to be purchased separately. Image simulation for illustration purposes only.
Quick Maintenance
In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.
*Image simulation for illustration purposes only.
Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
*Image simulation for illustration purposes only.
Compatible with AV Control Systems
The LAEC series supports Crestron Connected®* for high compatibility with professional AV controls to achieve virtually seamless integration and automated control**, boosting business management efficiency.
* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
*Image simulation for illustration purposes only.
Wireless Screen Sharing
The LAEC series is compatible with LG One:Quick Share*, a wireless screen sharing solution. It helps to simply share one’s personal PC screen to the display with its button and embedded Wi-Fi**, and it can also adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control.
* LG One:Quick Share needs to be purchased separately.
** Users need to set up SoftAP enabled at Network Menu of the Signage.
* LG One:Quick Share needs to be purchased separately.
** Users need to set up SoftAP enabled at Network Menu of the Signage.
*Image simulation for illustration purposes only.
Magic Remote for Easy of Use
With the LG Magic Remote, you can select and run the menu of the signage just like using a mouse and its cursor can be used as a laser pointer. In addition, through the newly added 'FREEZE' button on the remote control, users can temporarily freeze the screen while switching contents on the PC, so that users are able to have uninterrupted meetings without exposing its switching process.
*LG Magic Remote needs to be purchased separately. The FREEZE function is only available when the LAEC is connected to an external input signal. Image simulation for illustration purposes only.
PHYSICAL PARAMETERS
-
- Pixel Configuration
- Single SMD
- Pixel Pitch
- 1.88 mm
-
- Screen Resolution (W × H)
- 1,920 × 1,080
- Module Dimensions (W × H)
- 11.8 x 6.6 in. / 300 × 168.75 mm
-
- No. of Modules per Screen (W × H)
- 12 × 12 (Total 144)
- Screen Dimensions (W × H × D)
- 141.9 x 79.9 x 3.2 in. 3,604 × 2,029 × 81 mm
-
- Screen Surface Area
- 78.5 ft² / 7.29 m²
- Screen Weight
- 418.9 lbs. / 190 kg
-
- Physical Pixel Density
- 284,444 pixels/m²
- Flatness of Cabinet
- ±0.2mm
-
- Cabinet Material
- Die-casting Aluminum
- Service Access
- Front
OPTICAL SPECIFICATIONS
-
- Max. Brightness After Calibration
- 500 nits
- Color Temperature
- 3,200 - 9,300 K
-
- Visual Viewing Angle (Horizontal)
- 160°
- Visual Viewing Angle (Vertical)
- 160°
-
- Brightness Uniformity
- 98%
- Color Uniformity
- ±0.015Cx,Cy
-
- Contrast Ratio
- 3,000:1
- Processing Depth
- 16 bit (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
-
- Max Power Consumption
- 2,200 W , 7,506 BTU/h
- Avg. Power Consumption
- 880 W , 3,004 BTU/h
-
- Max Power Consumption per Unit Area
- 302 W/m² , 1,030 BTU/h/m²
- Power Supply
- 100 to 240 Vac
-
- Frame Rate
- 50 / 60 Hz
- Refresh Rate
- 3,000 Hz
OPERATION SPECIFICATIONS
-
- Lifetime (Half brightness)
- Up to 100,000 Hours
- Operating Temperature
- 32°F to 104°F / 0°C to +40°C
-
- Operating Humidity
- 10-80% RH
- IP Rating (Front / Rear)
- IP30 / IP20
Speakers
-
- Speakers
- Built-in (9 W + 9 W)
CERTIFICATIONS
-
- CERTIFICATIONS
- CE, FCC, ETL, CB
ENVIRONMENT
-
- Environment
- RoHS, REACH
LED CONTROLLER
-
- LED Controller
- Embedded
